Model Electrolux 417.99160110 Laundry Center (Kenmore 41799160110) – Common Parts & Diagrams

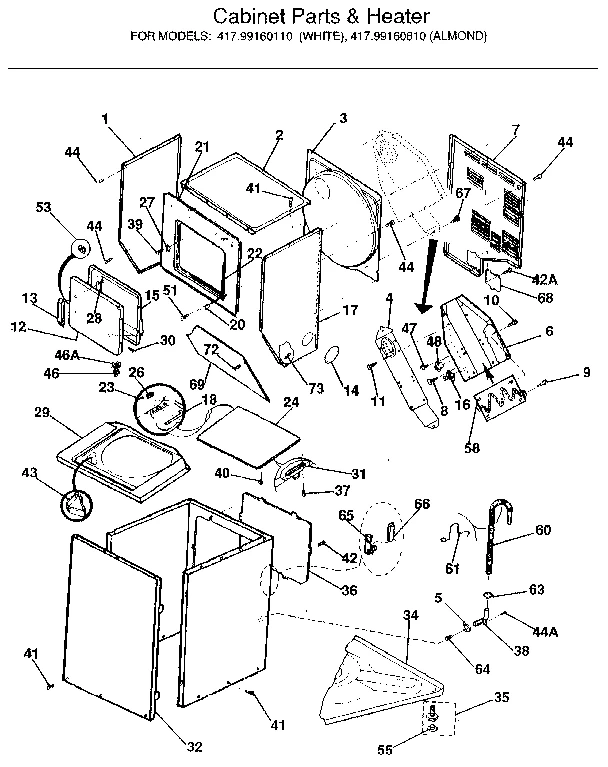

CABINET PARTS & HEATER

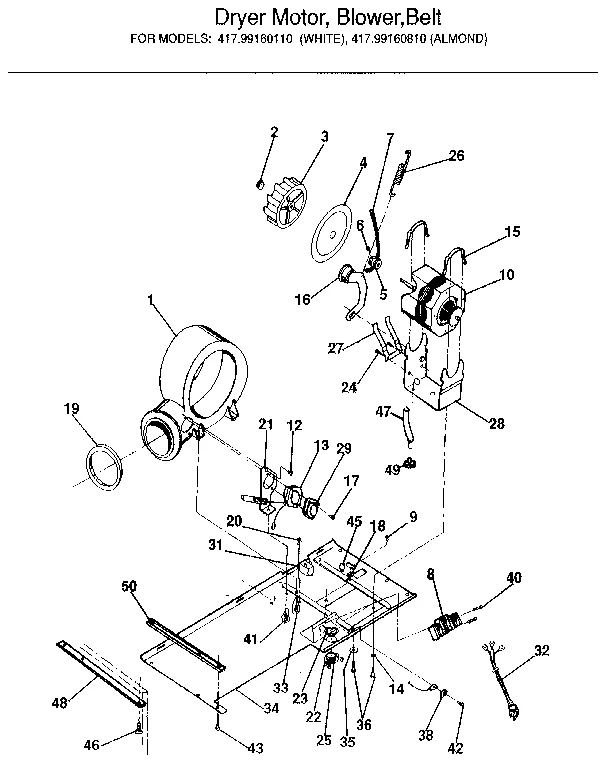

DRYER MOTOR, BLOWER, BELT

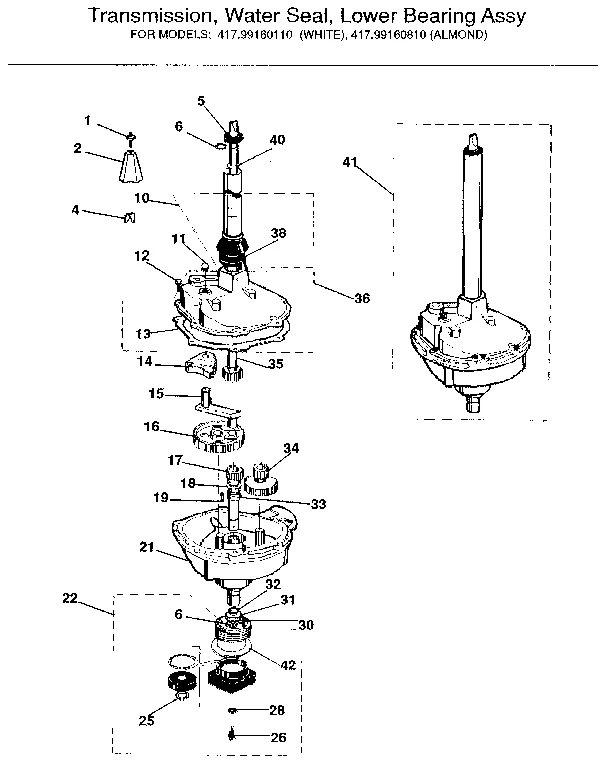

TRANSMISSION, WATER SEAL, LOWER BEARING ASSY
CABINET PARTS & HEATER

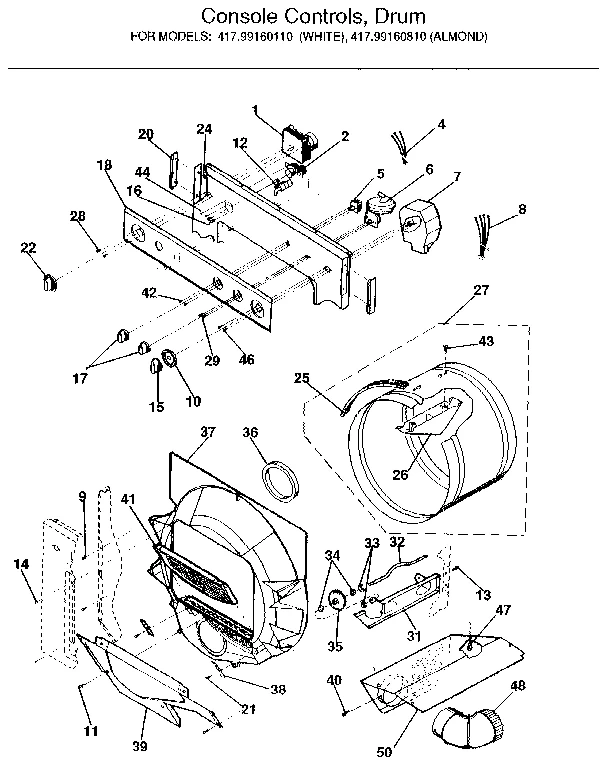

CONSOLE CONTROLS, DRUM

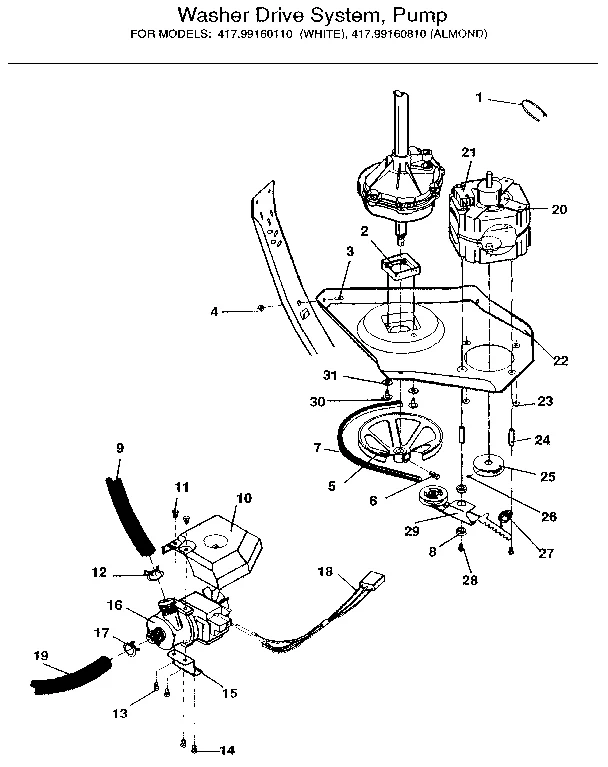

WASHER DRIVE SYSTEM, PUMP

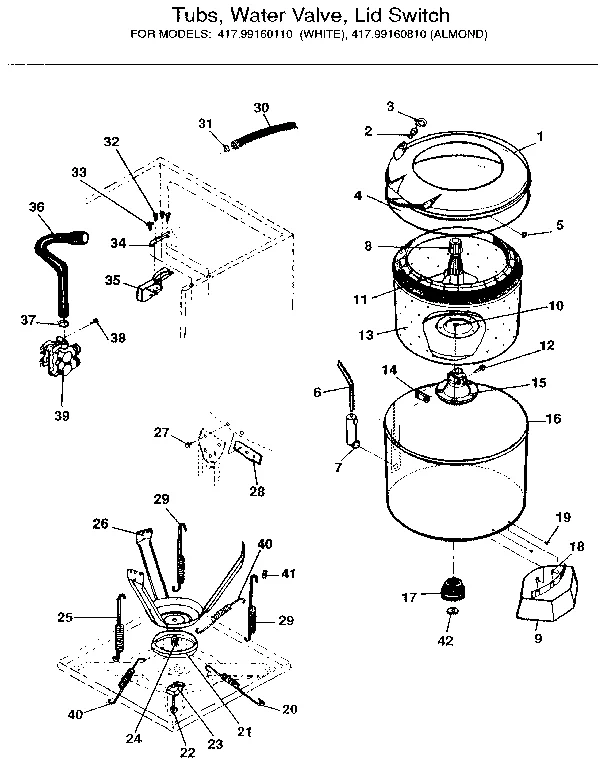

TUBS, WATER VALVE, LID SWITCH
All Parts
Common parts from model Electrolux 417.99160110 Laundry Center (Kenmore 41799160110)
1
Housing WCI 5303209767 Contact Us For Availability
1
Screw WCI 5303161221 Contact Us For Availability
1
Laundry Center Timer WCI 3205944 Contact Us For Availability
1
Washer Cover WCI 3205029 Contact Us For Availability
2
Clip WCI 5308001875 Contact Us For Availability
2
Hub WCI 5303280324 Contact Us For Availability
2
Switch WCI 5303209765 Contact Us For Availability
2
Cushion WCI 5377009100 Contact Us For Availability
2
Valve WCI 5308027515 Contact Us For Availability
3
Laundry Center Dryer Blower Wheel WCI 5303209769 Contact Us For Availability
3
Clamp WCI 5364154013 Contact Us For Availability
3
Screw WCI 3161211 Contact Us For Availability
4
Plate WCI 5303209770 Contact Us For Availability
4
Shim WCI 5303280325 Contact Us For Availability
4
Harness WCI 5303283043 Contact Us For Availability
4
Nut WCI 3161212 Contact Us For Availability
4
Seal WCI 5303161121 Contact Us For Availability
5
Laundry Center Washer Tub Cover Clip WCI 5303161199 Contact Us For Availability
5
Laundry Center Washer Water Temperature Switc WCI 5303017895 Contact Us For Availability
5
Pulley WCI 5303211473 Contact Us For Availability
5
Pulley WCI 5303937080 Contact Us For Availability
6
Snap Ring WCI 5303161223 Contact Us For Availability
6
Washer Screw WCI 5303270023 Contact Us For Availability
6
Screw WCI 5308027520 Contact Us For Availability
6
Switch WCI 5303283044 Contact Us For Availability
7
Dryer Drum Belt WCI 5303161099 Contact Us For Availability
7
Timer WCI 5303283045 Contact Us For Availability
7
Bell WCI 5303283048 Contact Us For Availability
8
Cap WCI 5303161122 Contact Us For Availability
8
Block WCI 3205019 Contact Us For Availability
8
Harness WCI 5303283046 Contact Us For Availability
8
Bushing WCI 08027535 Contact Us For Availability
9
Hose WCI 5303283055 Contact Us For Availability
9
Shield WCI 5303283049 Contact Us For Availability
10
Washer Tub Seal Kit WCI 5308950197 Contact Us For Availability
10
Motor WCI 5303209771 Contact Us For Availability
10
Dial WCI 3204999 Contact Us For Availability
10
Shield WCI 5303283071 Contact Us For Availability
10
Trunnion Screw WCI 5308027519 Contact Us For Availability
11
Screw Shield WCI 5303283072 Contact Us For Availability
11
Plug WCI 5303161224 Contact Us For Availability
11
Agitator WCI 5303283050 Contact Us For Availability
12
Screw WCI 08002804 Contact Us For Availability
12
Switch WCI 3205000 Contact Us For Availability
12
Clamp WCI 5303283073 Contact Us For Availability
13
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
13
Screw WCI 08011280 Contact Us For Availability
13
Heater WCI 5303206879 Contact Us For Availability
13
Tub WCI 5303161486 Contact Us For Availability
14
Screw WCI 000404101 Contact Us For Availability
14
Washer WCI 5363602000 Contact Us For Availability
14
Gear WCI 5308011268 Contact Us For Availability
14
Screw WCI 3205020 Contact Us For Availability
15
Clip, Motor WCI 5308002293 Contact Us For Availability
15
Rod WCI 5303161169 Contact Us For Availability
15
Knob WCI 3205001 Contact Us For Availability
15
Bracket WCI 5303283074 Contact Us For Availability
15
Support WCI 5308014908 Contact Us For Availability
16
Wheel WCI 5303161103 Contact Us For Availability
16
Gear WCI 5308015496 Contact Us For Availability
16
Screw WCI 08001544 Contact Us For Availability
16
Pump WCI 5303283075 Contact Us For Availability
16
Tub WCI 5303283051 Contact Us For Availability
17
Laundry Center Control Knob WCI 3205004 Contact Us For Availability
17
Shaft WCI 5308014905 Contact Us For Availability
17
Clamp WCI 5303283076 Contact Us For Availability
17
Bearing WCI 5308027536 Contact Us For Availability
18
Washer WCI 5303161226 Contact Us For Availability
18
Terminal WCI 5379171000 Contact Us For Availability
18
Panel WCI 5303280343 Contact Us For Availability
18
Harness WCI 5303283077 Contact Us For Availability
18
Clip WCI 5303283052 Contact Us For Availability
19
Gasket WCI 5303209442 Contact Us For Availability
19
Pin WCI 5303161227 Contact Us For Availability
19
Hose WCI 5303283078 Contact Us For Availability
20
Trim WCI 3205006 Contact Us For Availability
20
Motor WCI 5308015502 Contact Us For Availability
20
Spring WCI 5303212125 Contact Us For Availability
21
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
21
Bracket WCI 3016464 Contact Us For Availability
21
Housing WCI 5303912535 Contact Us For Availability
21
Switch WCI 5308014888 Contact Us For Availability
22
Body WCI 3016472 Contact Us For Availability
22
Housing WCI 5308950058 Contact Us For Availability
22
Knob WCI 3205007 Contact Us For Availability
22
Plate WCI 08002472 Contact Us For Availability
22
Screw WCI 5303161284 Contact Us For Availability
23
Nut WCI 5303016473 Contact Us For Availability
23
Nut-hex WCI 5303283079 Contact Us For Availability
23
Block WCI 5303161202 Contact Us For Availability
24
Screw, Retainer WCI 08004646 Contact Us For Availability
24
Nut WCI 3205008 Contact Us For Availability
24
Spacer WCI 5303161303 Contact Us For Availability
24
Nut WCI 3161203 Contact Us For Availability
25
Screw WCI 3016474 Contact Us For Availability
25
Ring WCI 5308015536 Contact Us For Availability
25
Seal WCI 3205009 Contact Us For Availability
25
Pulley WCI 5308006686 Contact Us For Availability
25
Spring WCI 5303161131 Contact Us For Availability
26
Grommet Hinge WCI 3204362 Contact Us For Availability
26
Spring WCI 5308015828 Contact Us For Availability
26
Baffle WCI 3161076 Contact Us For Availability
26
Screw WCI 5303206869 Contact Us For Availability
26
Support WCI 5303283054 Contact Us For Availability
27
Spring WCI 5308002456 Contact Us For Availability
27
Latch Spring WCI 3016439 Contact Us For Availability
27
Retainer WCI 08015824 Contact Us For Availability
27
Drum WCI 3205010 Contact Us For Availability
27
Screw WCI 3161205 Contact Us For Availability
28
Cradle WCI 3016466 Contact Us For Availability
28
Screw WCI 5303283080 Contact Us For Availability
28
Plate WCI 5303269887 Contact Us For Availability
29
Dryer Thermostat WCI 5308015847 Contact Us For Availability
29
Arm WCI 5303937001 Contact Us For Availability
29
Spring WCI 5303161133 Contact Us For Availability
29A
Panel (White) WCI 5303207099 Contact Us For Availability
29B
Panel (Almond) WCI 5303207100 Contact Us For Availability
30
Screw WCI 5303161187 Contact Us For Availability
30
Screw WCI 5308027582 Contact Us For Availability
30
Washer WCI 5308002475 Contact Us For Availability
31
Buzzer WCI 5308004087 Contact Us For Availability
31
Spacer WCI 5303207426 Contact Us For Availability
31
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
31A
Bracket WCI 5303161080 Contact Us For Availability
31B
Bracket WCI 5303161081 Contact Us For Availability
32
Screw WCI 08001578 Contact Us For Availability
32
Cord WCI 5303212832 Contact Us For Availability
32
Drum Roller Shaft WCI 5308004076 Contact Us For Availability
32A
Panel (White) WCI 3204973 Contact Us For Availability
32B
Panel (Almond) WCI 3204975 Contact Us For Availability
33
Spring WCI 5303161174 Contact Us For Availability
33
Retaining Ring WCI 3161255 Contact Us For Availability
34
Base WCI 5303283018 Contact Us For Availability
34
Gear WCI 5303161175 Contact Us For Availability
34
Roller Shaft Washer WCI 08012152 Contact Us For Availability
34
Bracket WCI 3205035 Contact Us For Availability
35
Switch WCI 3205033 Contact Us For Availability
35
Washer, Motor Cradle Bolt WCI 5308002468 Contact Us For Availability
35
Roller WCI 5308004077 Contact Us For Availability
36
Panel WCI 3204980 Contact Us For Availability
36
Housing WCI 5303937039 Contact Us For Availability
36
Gasket WCI 5303209445 Contact Us For Availability
36
Hose WCI 3205034 Contact Us For Availability
37
Housing WCI 3205012 Contact Us For Availability
37
Clamp WCI 064154-004 Contact Us For Availability
38
Coupling WCI 3161452 Contact Us For Availability
38
Washer WCI 08001572 Contact Us For Availability
38
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
38
Guide WCI 3205013 Contact Us For Availability
38
Screw WCI 5303010202 Contact Us For Availability
39
Rivet WCI 3161237 Contact Us For Availability
39
Cover WCI 3205014 Contact Us For Availability
40
Bumper WCI 3204981 Contact Us For Availability
40
Screw WCI 3161240 Contact Us For Availability
40
Screw WCI 3161274 Contact Us For Availability
40
Washer WCI 5303161232 Contact Us For Availability
40
Spring WCI 5308006573 Contact Us For Availability
41
Laundry Center Dryer Lint Screen WCI 3205015 Contact Us For Availability
41
Mechanism WCI 5308057579 Contact Us For Availability
41
Clip WCI 3161288 Contact Us For Availability
42
Washer WCI 5308057430 Contact Us For Availability
42
Screw WCI 5303208454 Contact Us For Availability
43
Dispenser WCI 3204983 Contact Us For Availability
44
Screw WCI 08010804 Contact Us For Availability
44A
Screw WCI 5303209461 Contact Us For Availability
45
Retainer Ring WCI 08006557 Contact Us For Availability
46
Hinge Pin WCI 3016440 Contact Us For Availability
46A
Washer WCI 5303208633 Contact Us For Availability
47
Screw WCI 3204269 Contact Us For Availability
47
Screw WCI 3205016 Contact Us For Availability
48
Gibson Laundry Center Dryer Thermal Limiter WCI 5303211472 Contact Us For Availability
48
Lower Brace WCI 3016468 Contact Us For Availability
48
Elbow WCI 3205017 Contact Us For Availability
49
Connector WCI 08006559 Contact Us For Availability
50
Plate WCI 3016469 Contact Us For Availability
50
Shield WCI 3205018 Contact Us For Availability
53
Strike Plate WCI 3016442 Contact Us For Availability
55
Cushion WCI 5303004083 Contact Us For Availability
57
Screw WCI 5303161185 Contact Us For Availability
58
Dryer Heater WCI 5303161050 Contact Us For Availability
60
Hose WCI 3205414 Contact Us For Availability
61
Retainer WCI 5303204987 Contact Us For Availability
64
Check Valve WCI 3204375 Contact Us For Availability
65
Bracket WCI 5303161252 Contact Us For Availability
68
Cover WCI 5303212087 Contact Us For Availability
69A
Panel (White) WCI 3204991 Contact Us For Availability
69B
Panel (Almond) WCI 3204992 Contact Us For Availability
NI
Washer Timer Shaft Spacer WCI 5308015493 Contact Us For Availability
NI
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Clip WCI 08008454 Contact Us For Availability
NI
Hose WCI 142337-000 Contact Us For Availability
NI
Oil WCI 3005242 Contact Us For Availability
NI
Label WCI 3017115 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Label WCI 3204466 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Sleeve WCI 5303161182 Contact Us For Availability
NI
Dispenser WCI 5303207085 Contact Us For Availability
NI
Channel WCI 5303208455 Contact Us For Availability
NI
Lubricant WCI 5303209323 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Label WCI 5303209436 Contact Us For Availability
NI
Label WCI 5303209437 Contact Us For Availability
NI
Label WCI 5303280355 Contact Us For Availability
NI
Resistor WCI 5303281110 Contact Us For Availability
NI
Clamp WCI 5303283081 Contact Us For Availability
NI
Label WCI 5303283083 Contact Us For Availability
NI
Installation Instructions WCI 5303283084 Contact Us For Availability
NI
Operating Instructions WCI 5303283085 Contact Us For Availability
NI
Use and Care Guide WCI 5303283086 Contact Us For Availability
NI
Technical Sheet WCI 5303283088 Contact Us For Availability
NI
Insulation WCI 5303937030 Contact Us For Availability
NI
Compound WCI 5308006576 Contact Us For Availability
NI
Resistor WCI 5308015784 Contact Us For Availability
NI
Bearing WCI 5308950214 Contact Us For Availability
NI
Gasket WCI 5373565000 Contact Us For Availability
NI
Parts List WCI 5995214839 Contact Us For Availability
× ![]()
Login and Registration Form
