Model Electrolux 417.94988810 Washer (Kenmore 41794988810) – Common Parts & Diagrams
CABINET, PUMP, SPEED-CONTROL & HOSES

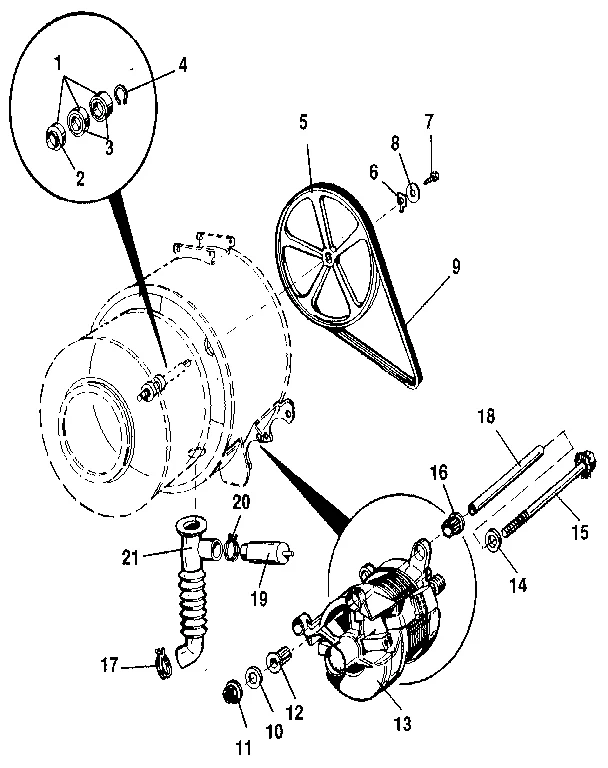

PULLEY, BELT & MOTOR MAIN
All Parts

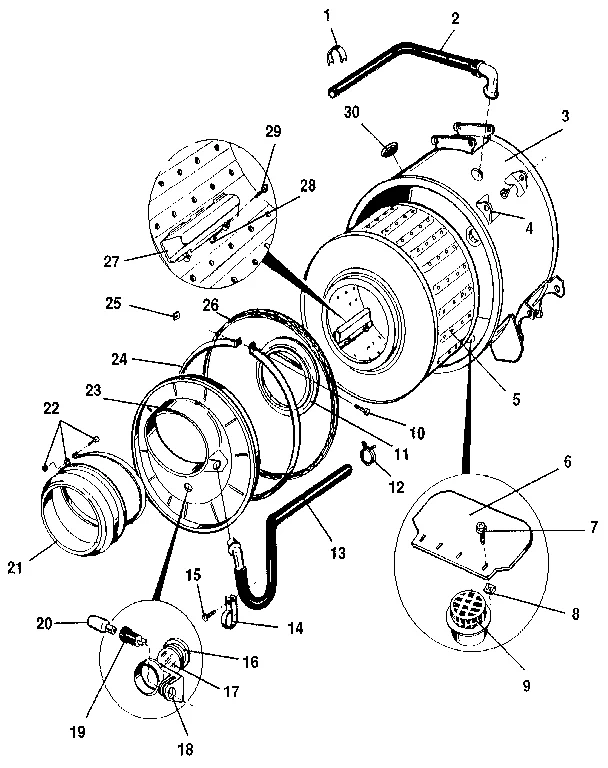

TUBS & HOSES

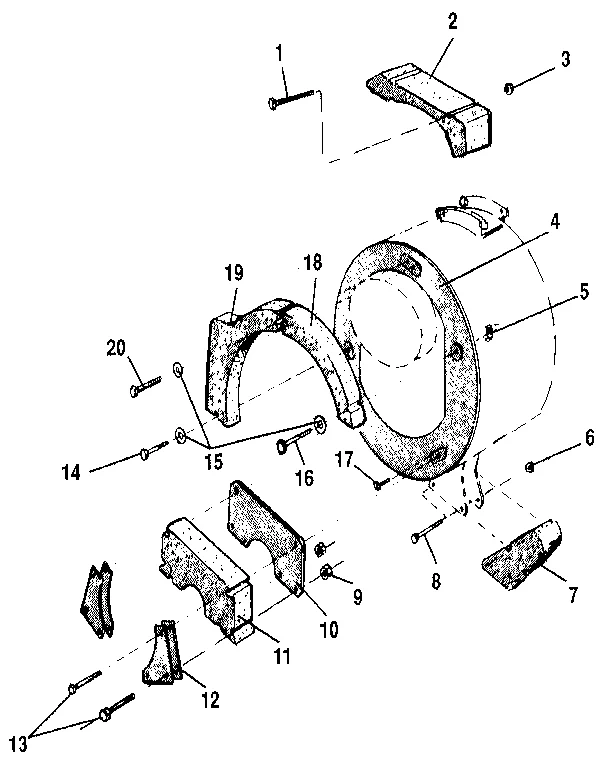

COUNTERWEIGHT

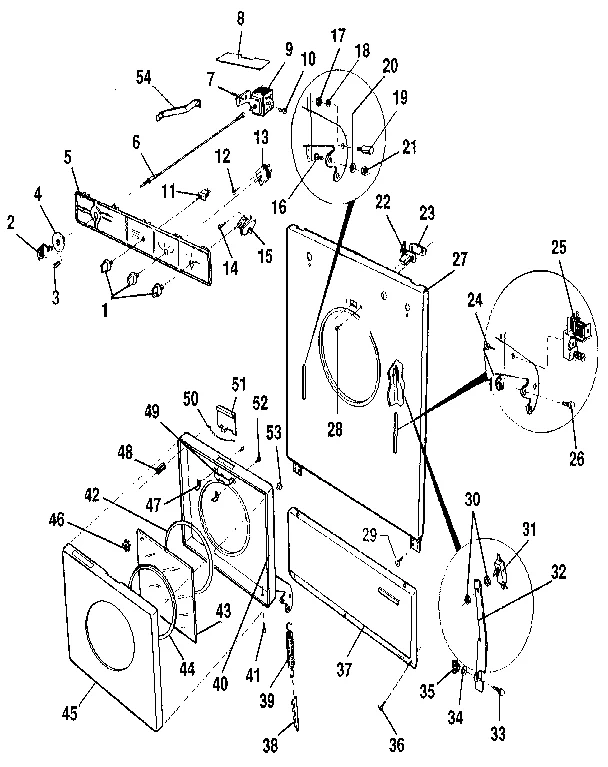

FRONT PANEL, DOOR, CONSOLE & CONTROLS
Common parts from model Electrolux 417.94988810 Washer (Kenmore 41794988810)
1
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
1
Washer Bearing and Seal Kit WCI 5300137158 Contact Us For Availability
1
Clamp WCI 5300605241 Contact Us For Availability
1
Bolt-late WCI 5303286623 Contact Us For Availability
1A
Knob (White) WCI 3204897 Contact Us For Availability
1B
Knob (Almond) WCI 3204898 Contact Us For Availability
2
Seal WCI 5308015092 Contact Us For Availability
2
Hose WCI 5303203056 Contact Us For Availability
2
Weight WCI 3203039 Contact Us For Availability
2A
Knob (White) WCI 5303286607 Contact Us For Availability
2B
Knob (Almond) WCI 5303286608 Contact Us For Availability
3
Bearing WCI 5308015338 Contact Us For Availability
3
Tub WCI 5303937095 Contact Us For Availability
3
Nut WCI 5308001876 Contact Us For Availability
3
Spring WCI 5303202946 Contact Us For Availability
4
Ring WCI 5303286621 Contact Us For Availability
4
Grommet WCI 5300125501 Contact Us For Availability
4
Gibson Ring WCI 08015249 Contact Us For Availability
4
Timer Dial WCI 3204901 Contact Us For Availability
5
Pulley WCI 5303203014 Contact Us For Availability
5
Tub WCI 5303286636 Contact Us For Availability
5
Nut WCI Q000500553 Contact Us For Availability
5A
Control Panel (White) WCI 3204902 Contact Us For Availability
5B
Control Panel (Almond) WCI 3204903 Contact Us For Availability
6
Washer WCI 5303203015 Contact Us For Availability
6
Cover WCI 5303203007 Contact Us For Availability
6
Washer Suspension Rod WCI 5303286609 Contact Us For Availability
7
Cover WCI 5303286635 Contact Us For Availability
7
Screw WCI 5308015629 Contact Us For Availability
7
Screw WCI 5300502495 Contact Us For Availability
7
Weight WCI 5300172115 Contact Us For Availability
7
Bracket WCI 3202969 Contact Us For Availability
8
Washer WCI 3205718 Contact Us For Availability
8
Speed Nut WCI 3261100 Contact Us For Availability
8
Bolt WCI 08015333 Contact Us For Availability
8
Gibson Cover WCI 5303286610 Contact Us For Availability
9
Bracket WCI 5303286611 Contact Us For Availability
9
Washer Drive Belt WCI 5303203018 Contact Us For Availability
9
Strainer WCI 5303283920 Contact Us For Availability
9
Nut WCI 08015281 Contact Us For Availability
9
Laundry Center Timer WCI 5303208738 Contact Us For Availability
10
Screw WCI 08015356 Contact Us For Availability
10
Bolt WCI 08015332 Contact Us For Availability
10
Bracket WCI 5300172102 Contact Us For Availability
11
Gibson Nut WCI 5308001883 Contact Us For Availability
11
Deflector WCI 5303261136 Contact Us For Availability
11
Weight WCI 3261250 Contact Us For Availability
11
Switch WCI 5303202976 Contact Us For Availability
12
Screw WCI 3161259 Contact Us For Availability
12
Panel WCI 5303286633 Contact Us For Availability
12
Bushing WCI 5303203019 Contact Us For Availability
12
Bracket WCI 5300172104 Contact Us For Availability
13
Washer Motor WCI 5303203037 Contact Us For Availability
13
Hose WCI 5308015184 Contact Us For Availability
13
Screw WCI 5303261248 Contact Us For Availability
13
Switch WCI 5303202977 Contact Us For Availability
14
Clamp WCI 08015369 Contact Us For Availability
14
Screw WCI 5303281035 Contact Us For Availability
14
Bolt WCI 08015304 Contact Us For Availability
15
Bolt WCI 3203036 Contact Us For Availability
15
Washer WCI 08015312 Contact Us For Availability
15
Switch WCI 5303202978 Contact Us For Availability
16
Cord WCI 5303202995 Contact Us For Availability
16
Shield WCI 5300501201 Contact Us For Availability
16
Screw WCI 08015306 Contact Us For Availability
16
Screw WCI 3261026 Contact Us For Availability
17
Strain WCI 3261064 Contact Us For Availability
17
Lens WCI 5300000495 Contact Us For Availability
17
Screw WCI 5303010202 Contact Us For Availability
17
Nut WCI 5303269641 Contact Us For Availability
18
Hose WCI 131028000 Contact Us For Availability
18
Spacer WCI 5303286622 Contact Us For Availability
18
Retainer WCI 5300028710 Contact Us For Availability
18
Weight WCI 3261240 Contact Us For Availability
18
Washer WCI 5300402801 Contact Us For Availability
19
Clamp WCI 08001916 Contact Us For Availability
19
Bell WCI 5303203033 Contact Us For Availability
19
Receptacle WCI 5308015211 Contact Us For Availability
19
Weight WCI 5300172113 Contact Us For Availability
19
Stud WCI 3261025 Contact Us For Availability
20
Gibson Duct WCI 5300154361 Contact Us For Availability
20
Bulb WCI 3203012 Contact Us For Availability
21
Hose WCI 5303203035 Contact Us For Availability
21
Boot WCI 5303261132 Contact Us For Availability
22
Bracket WCI 08015227 Contact Us For Availability
22
Clamp WCI 5303261133 Contact Us For Availability
22
Catch WCI 5303261023 Contact Us For Availability
23
Tub WCI 5300137181 Contact Us For Availability
23
Nut WCI 5300500531 Contact Us For Availability
24
Clamp WCI 5300502207 Contact Us For Availability
24
Clamp WCI 5303272669 Contact Us For Availability
24
Screw WCI 5300516984 Contact Us For Availability
25
Bracket WCI 5303286613 Contact Us For Availability
25
Nut WCI 08015290 Contact Us For Availability
25
Solenoid WCI 5303261011 Contact Us For Availability
26
Screw WCI 5303286614 Contact Us For Availability
26
Gasket WCI 5303261135 Contact Us For Availability
27
Vane WCI 5308015245 Contact Us For Availability
27A
Panel (White) WCI 3203053 Contact Us For Availability
27B
Panel (Almond) WCI 3204505 Contact Us For Availability
28
Spring WCI 5303202996 Contact Us For Availability
28
Screw WCI 08015286 Contact Us For Availability
29
Grommet WCI 5303202998 Contact Us For Availability
29
Screw WCI 5303290948 Contact Us For Availability
30
Nut WCI 5303203000 Contact Us For Availability
30
Plug WCI 3261139 Contact Us For Availability
30
Lock Nut WCI 08015344 Contact Us For Availability
31
Nut WCI 5303203002 Contact Us For Availability
31
Washer Door Switch WCI 5300184701 Contact Us For Availability
32
Pan WCI 3203001 Contact Us For Availability
32
Arm WCI 3261013 Contact Us For Availability
33
Screw WCI 08015362 Contact Us For Availability
35
Nut WCI 5300402601 Contact Us For Availability
37
Spring WCI 5303937063 Contact Us For Availability
37A
Panel (White) WCI 5303261017 Contact Us For Availability
37B
Panel (Almond) WCI 5300602004 Contact Us For Availability
38
Bracket WCI 3261082 Contact Us For Availability
38
Screw WCI 3202989 Contact Us For Availability
39
Pump WCI 5303202988 Contact Us For Availability
39
Spring WCI 5300011943 Contact Us For Availability
40
Screw WCI 5303281150 Contact Us For Availability
40A
Panel (White) WCI 5308015269 Contact Us For Availability
40B
Panel (Almond) WCI 3261029 Contact Us For Availability
41
Spacer WCI 3261088 Contact Us For Availability
41
Screw WCI 08015347 Contact Us For Availability
42
Washer Gasket WCI 5303261021 Contact Us For Availability
42A
Body (White) WCI 5303286615 Contact Us For Availability
42B
Body (Almond) WCI 5303286616 Contact Us For Availability
43
Bracket WCI 5308015384 Contact Us For Availability
43
Glass WCI 3261042 Contact Us For Availability
44
Filter WCI 5303202990 Contact Us For Availability
44
Washer Door Glass Gasket WCI 5300183302 Contact Us For Availability
45
Contrl-elc WCI 131070600 Contact Us For Availability
45A
Panel (White) WCI 5308015161 Contact Us For Availability
45B
Panel (Almond) WCI 08015406 Contact Us For Availability
46
Washer WCI 3202987 Contact Us For Availability
46
Spacer WCI 5308015122 Contact Us For Availability
47
Nut WCI 3202985 Contact Us For Availability
47
Clip WCI 5308015346 Contact Us For Availability
48
Spacer WCI 5308015121 Contact Us For Availability
49
Strike WCI 5308015383 Contact Us For Availability
50
Spring WCI 5300062204 Contact Us For Availability
51
Latch WCI 5308015229 Contact Us For Availability
53
Bumper WCI 5308001717 Contact Us For Availability
54
Support WCI 131004700 Contact Us For Availability
NI
Retainer WCI 5303204987 Contact Us For Availability
NI
Spacer WCI 5303281201 Contact Us For Availability
NI
Gibson Screw WCI 08015302 Contact Us For Availability
NI
Harness WCI 3202980 Contact Us For Availability
NI
Screw WCI 3203863 Contact Us For Availability
NI
Speed Nut WCI 3205717 Contact Us For Availability
NI
Nut WCI 3281089 Contact Us For Availability
NI
Screw WCI 3281092 Contact Us For Availability
NI
Screw WCI 3281120 Contact Us For Availability
NI
Brace Kit WCI 3937014 Contact Us For Availability
NI
Top Kit WCI 48881 Contact Us For Availability
NI
Top Kit WCI 48888 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Installation Kit WCI 5303208599 Contact Us For Availability
NI
Label WCI 5303208600 Contact Us For Availability
NI
Label WCI 5303208601 Contact Us For Availability
NI
Label WCI 5303208604 Contact Us For Availability
NI
Instruction Book WCI 5303208605 Contact Us For Availability
NI
Label WCI 5303209454 Contact Us For Availability
NI
Screw WCI 5303281096 Contact Us For Availability
NI
Harness-e WCI 5303286618 Contact Us For Availability
NI
Dispenser WCI 5303286624 Contact Us For Availability
NI
Technical Sheet WCI 5303286625 Contact Us For Availability
NI
Technical Sheet WCI 5303286626 Contact Us For Availability
NI
Use and Care Guide WCI 5303286627 Contact Us For Availability
NI
Installation Instructions WCI 5303286628 Contact Us For Availability
NI
Owner's Manual WCI 5303286629 Contact Us For Availability
NI
Use and Care Guide WCI 5303286630 Contact Us For Availability
NI
Technical Sheet WCI 5303286631 Contact Us For Availability
NI
Operating Instructions WCI 5303286632 Contact Us For Availability
NI
Screw WCI 5308001853 Contact Us For Availability
NI
Parts Catalog WCI 5995221768 Contact Us For Availability
× ![]()
