Model Electrolux 417.89190110 Combination Washer/Dryer (Kenmore 41789190110) – Common Parts & Diagrams
All Parts

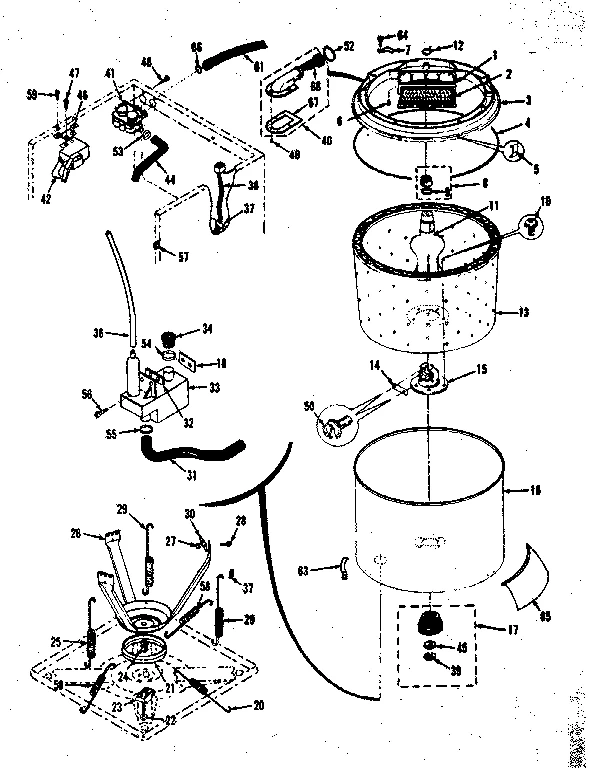

TUBS, WATER VALVE, LID SWITCH

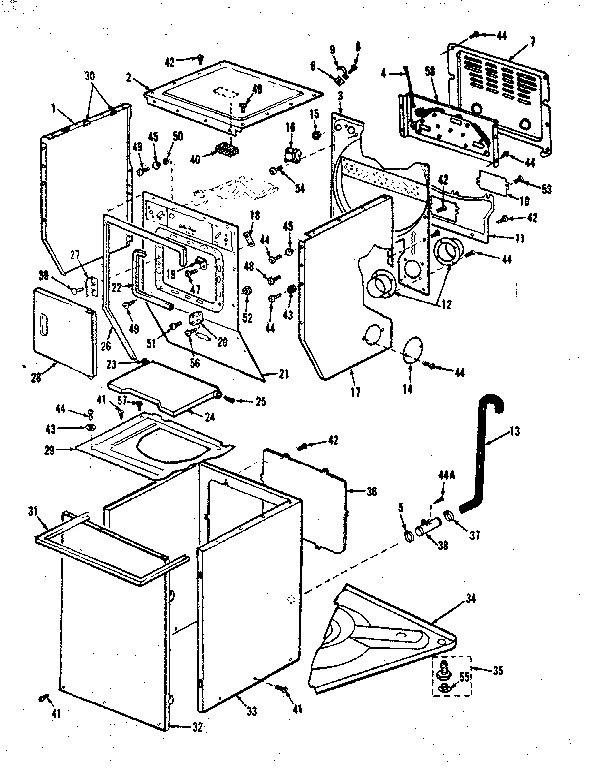

CABINET

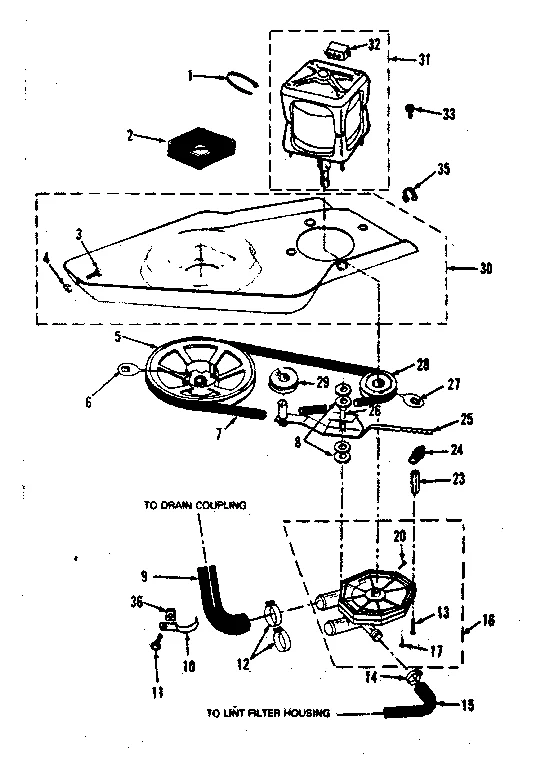

WASHER DRIVE SYSTEM, PUMP

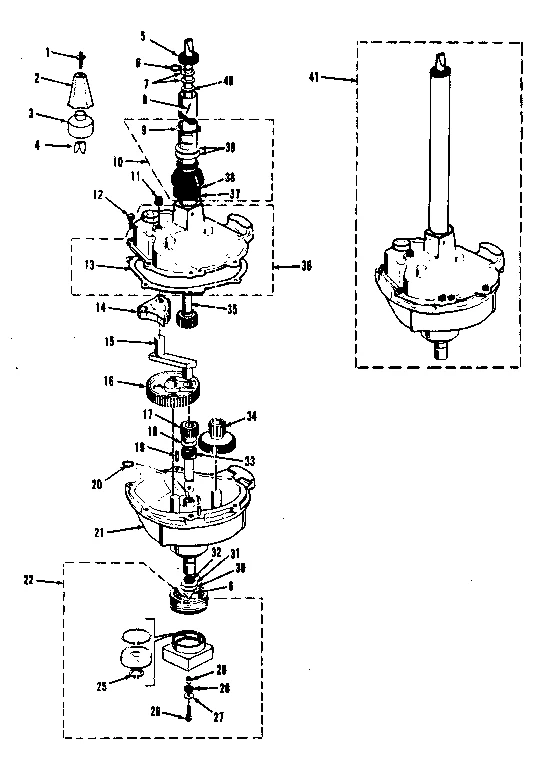

TRANSMISSION, WATER SEAL, LOWER BEARING ASMY.

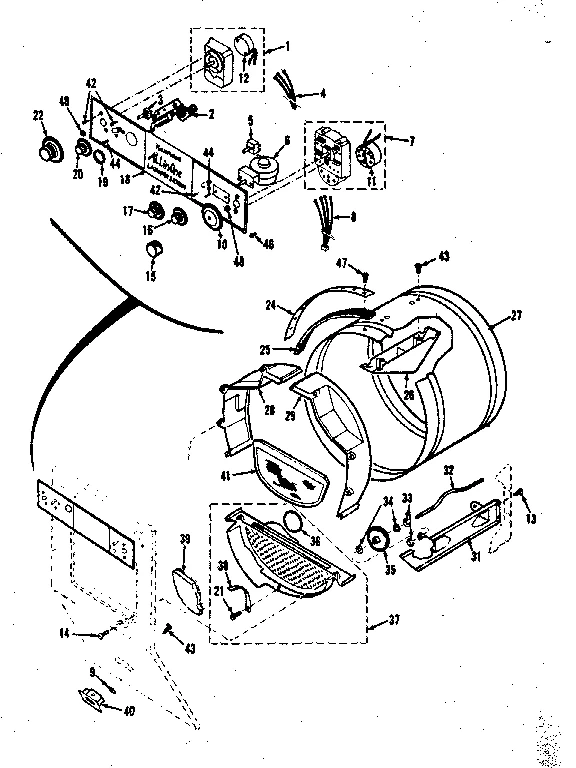

CONSOLE CONTROLS, DRUM

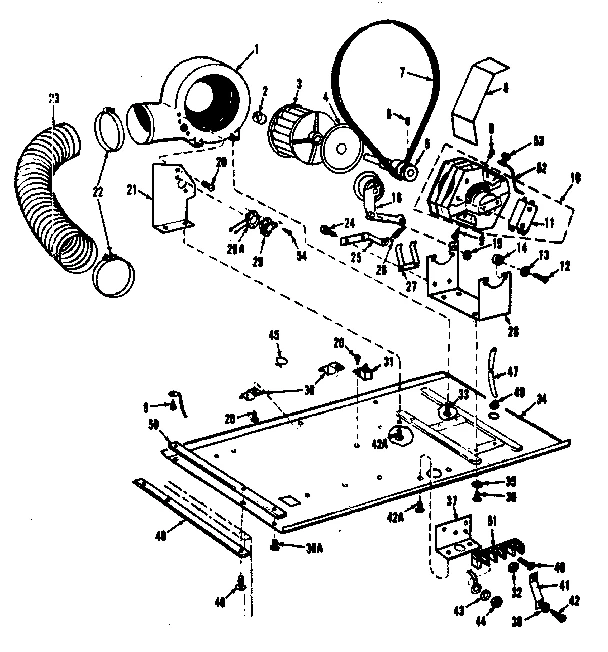

DRYER MOTOR, BLOWER, BELT
Common parts from model Electrolux 417.89190110 Combination Washer/Dryer (Kenmore 41789190110)
1
Filter Housing WCI 134878 Contact Us For Availability
1
Panel (White) WCI 136025-032 Contact Us For Availability
1
Tie Harness WCI 130495-1 Contact Us For Availability
1
Stud Bolt WCI 63882 Contact Us For Availability
1
Dryer Timer WCI 136727 Contact Us For Availability
1
Laundry Center Blower Housing WCI 136117 Contact Us For Availability
1A
Panel WCI 136025-038 Contact Us For Availability
1B
Panel (Almond) WCI 136025-039 Contact Us For Availability
2
Lint Filter WCI 78887 Contact Us For Availability
2
Panel (White) WCI 136031-032 Contact Us For Availability
2
Cushion WCI 77009-1 Contact Us For Availability
2
Drive Lug WCI 63880 Contact Us For Availability
2
Spring WCI 136097 Contact Us For Availability
2A
Panel WCI 136031-038 Contact Us For Availability
2B
Panel (Almond) WCI 136031-039 Contact Us For Availability
3
Tub Cover WCI 137379 Contact Us For Availability
3
Panel WCI 136034 Contact Us For Availability
3
Bolt WCI 77090 Contact Us For Availability
3
Agitator Shield WCI 77283 Contact Us For Availability
3
Switch WCI 136556 Contact Us For Availability
3
Wheel WCI 136096 Contact Us For Availability
4
Seal WCI 78611 Contact Us For Availability
4
Heat Harness WCI 136564 Contact Us For Availability
4
Lock Nut WCI 73804 Contact Us For Availability
4
Shim WCI 63881-3 Contact Us For Availability
4
Dryer Harness WCI 136563 Contact Us For Availability
4
Plate WCI 136095 Contact Us For Availability
5
Clip WCI 79975 Contact Us For Availability
5
Clamp WCI 64154-13 Contact Us For Availability
5
Trans Pulley WCI 78682-1 Contact Us For Availability
5
Seal WCI 66275 Contact Us For Availability
5
Switch WCI 136669 Contact Us For Availability
5
Shaft WCI 136083 Contact Us For Availability
6
Screw WCI 134167 Contact Us For Availability
6
Set Screw WCI 78793 Contact Us For Availability
6
Retaining Ring WCI 68158 Contact Us For Availability
6
Pressure Switch WCI 78342-1 Contact Us For Availability
6
Set Screw WCI 136084 Contact Us For Availability
7
Clamp WCI 130493 Contact Us For Availability
7
Panel WCI 136545 Contact Us For Availability
7
Spacer WCI 77060 Contact Us For Availability
7
Timer Motor WCI 139121-2 Contact Us For Availability
7
Drum Belt WCI 136102 Contact Us For Availability
8
Washer Agitator Cap WCI 131203-1 Contact Us For Availability
8
Washer WCI 78792 Contact Us For Availability
8
Sleeve Ag Sh WCI 60556-4 Contact Us For Availability
8
Harness WCI 136756 Contact Us For Availability
8
Shield WCI 136098 Contact Us For Availability
9
Washer WCI 73565 Contact Us For Availability
9
Clip WCI 130354 Contact Us For Availability
9
Hose WCI 136149 Contact Us For Availability
9
Retaining Ring WCI 64305 Contact Us For Availability
9
Screw WCI 137749 Contact Us For Availability
10
Screw WCI 78862 Contact Us For Availability
10
Plate WCI 136037 Contact Us For Availability
10
Clamp WCI 136152 Contact Us For Availability
10
Water Sl Kt WCI 79420 Contact Us For Availability
10
Indicator Dial WCI 136769 Contact Us For Availability
10
Motor WCI 136198 Contact Us For Availability
11
Agitator WCI 78117-1 Contact Us For Availability
11
Cover WCI 136036 Contact Us For Availability
11
Screw WCI 73653 Contact Us For Availability
11
Pipe Plug WCI 77061 Contact Us For Availability
11
Timer Motor WCI 68832-4 Contact Us For Availability
11
Motor Switch WCI 135503-1 Contact Us For Availability
11A
Motor Switch WCI 135503-200 Contact Us For Availability
12
Clamp WCI 63460-7 Contact Us For Availability
12
Clamp WCI 64154-12 Contact Us For Availability
12
Collar WCI 136183 Contact Us For Availability
12
Screw WCI 79688 Contact Us For Availability
12
Timer Motor WCI 135501-9 Contact Us For Availability
12
Screw WCI 136244 Contact Us For Availability
13
Spin Tub WCI 78523-1 Contact Us For Availability
13
Drain Hose WCI 78946 Contact Us For Availability
13
Screw WCI 77669 Contact Us For Availability
13
Gasket WCI 77047 Contact Us For Availability
13
Washer WCI 136081 Contact Us For Availability
14
Lock Plate WCI 60562-1 Contact Us For Availability
14
Screw WCI 79999 Contact Us For Availability
14
Exhaust Cover (White) WCI 136033-032 Contact Us For Availability
14
Clamp WCI 64154-6 Contact Us For Availability
14
Sector Gear WCI 130405 Contact Us For Availability
14
Grommet WCI 136079 Contact Us For Availability
14A
Exhaust Cover WCI 136033-038 Contact Us For Availability
14B
Exhaust Cover (Almond) WCI 136033-039 Contact Us For Availability
15
Trunnion WCI 78133 Contact Us For Availability
15
Grommet WCI 136145 Contact Us For Availability
15
Recirculation Hose WCI 136147 Contact Us For Availability
15
Connection Rod WCI 66078-1 Contact Us For Availability
15
Timer Knob WCI 136728 Contact Us For Availability
15
Retaining Ring WCI 136093 Contact Us For Availability
16
Tub Splash WCI 78120 Contact Us For Availability
16
Thermostat WCI 136204 Contact Us For Availability
16
Pump WCI 133058 Contact Us For Availability
16
Crank Gear WCI 130404 Contact Us For Availability
16
Knob WCI 136681 Contact Us For Availability
16
Idler WCI 136798 Contact Us For Availability
17
Tub Br H Asm WCI 137015 Contact Us For Availability
17
Panel (White) WCI 136024-032 Contact Us For Availability
17
Screw WCI 78716 Contact Us For Availability
17
Lower Shaft WCI 78722 Contact Us For Availability
17
Knob WCI 136679 Contact Us For Availability
17A
Panel WCI 136024-038 Contact Us For Availability
17B
Panel (Almond) WCI 136024-039 Contact Us For Availability
18
Speed Nut WCI 79149 Contact Us For Availability
18
Speed Clip WCI 136054 Contact Us For Availability
18
Thrust Washer WCI 77051 Contact Us For Availability
18
Trim Plate WCI 136674 Contact Us For Availability
19
Hinge WCI 136053 Contact Us For Availability
19
Dowel Pin WCI 77058 Contact Us For Availability
19
Trim WCI 136210-1 Contact Us For Availability
20
Spring WCI 79837 Contact Us For Availability
20
Screw WCI 136029 Contact Us For Availability
20
Hinge WCI 136056 Contact Us For Availability
20
Screw WCI 77203 Contact Us For Availability
20
O-Ring WCI 65855 Contact Us For Availability
20
Knob WCI 136677 Contact Us For Availability
21
Snubber Ring WCI 130789 Contact Us For Availability
21
Panel (White) WCI 136014-032 Contact Us For Availability
21
Low Housing WCI 133040 Contact Us For Availability
21
Bracket WCI 136121 Contact Us For Availability
21A
Panel WCI 136014-038 Contact Us For Availability
21B
Panel (Almond) WCI 136014-039 Contact Us For Availability
22
Shiping Bolt WCI 137203 Contact Us For Availability
22
Door Seal WCI 136018 Contact Us For Availability
22
Brng/hsng Lg WCI 137014 Contact Us For Availability
22
Knob Dial WCI 136770-1 Contact Us For Availability
22
Clamp WCI 136124 Contact Us For Availability
23
Shipp Block WCI 77075 Contact Us For Availability
23
Screw WCI 136615 Contact Us For Availability
23
Hex Spacer WCI 77012-1 Contact Us For Availability
23
Exhaust Tube WCI 136123 Contact Us For Availability
24
Exp Nut WCI 77074 Contact Us For Availability
24
Screw WCI 136249 Contact Us For Availability
24
Lid Washer WCI 136575-132 Contact Us For Availability
24
Tension Spring WCI 78465 Contact Us For Availability
24
Band WCI 136009 Contact Us For Availability
24A
Lid Washer WCI 136575-138 Contact Us For Availability
24B
Lid Washer WCI 136575-139 Contact Us For Availability
25
Vert Sprng S WCI 137997-1 Contact Us For Availability
25
Idler Arm WCI 133091 Contact Us For Availability
25
Retaining Ring WCI 78056 Contact Us For Availability
25
Drum Seal WCI 136007 Contact Us For Availability
25
Bracket WCI 136243 Contact Us For Availability
25A
Drum Seal WCI 136008 Contact Us For Availability
26
Leg Dome WCI 79630 Contact Us For Availability
26
Trim Strip WCI 136039-2 Contact Us For Availability
26
Round Spacer WCI 78743 Contact Us For Availability
26
Baffle WCI 136005 Contact Us For Availability
26
Spring WCI 136094 Contact Us For Availability
27
Nut WCI 54287 Contact Us For Availability
27
Latch Spring WCI 136015 Contact Us For Availability
27
Set Screw WCI 132861 Contact Us For Availability
27
Drum WCI 136004 Contact Us For Availability
27
Retainer WCI 136085 Contact Us For Availability
28
Screw WCI 63532 Contact Us For Availability
28
Door (White) WCI 136050-032 Contact Us For Availability
28
Motor Pulley WCI 134881 Contact Us For Availability
28
Spacer WCI 78749 Contact Us For Availability
28
Rim WCI 136043 Contact Us For Availability
28
Motor Cradle WCI 136078 Contact Us For Availability
28A
Door WCI 136050-038 Contact Us For Availability
28B
Door (Almond) WCI 136050-039 Contact Us For Availability
29
Vert Sprng L WCI 137997 Contact Us For Availability
29
Panel (White) WCI 136574-032 Contact Us For Availability
29
V-Pulley WCI 133366 Contact Us For Availability
29
Spacer WCI 130060 Contact Us For Availability
29
Rim WCI 136042 Contact Us For Availability
29
Thermostat WCI 136776 Contact Us For Availability
29A
Panel WCI 136574-038 Contact Us For Availability
29A
Heater WCI 136777 Contact Us For Availability
29B
Panel (Almond) WCI 136574-039 Contact Us For Availability
30
Plt Leg Bolt WCI 132729 Contact Us For Availability
30
Clip WCI 136162 Contact Us For Availability
30
Sup Plate Kt WCI 79494-3 Contact Us For Availability
30
Spacer WCI 77098 Contact Us For Availability
30
Clip WCI 136107 Contact Us For Availability
31
Hose WCI 139191 Contact Us For Availability
31
Trim Strip WCI 136134-2 Contact Us For Availability
31
Motor Switch WCI 78394-1 Contact Us For Availability
31
Bracket WCI 136069 Contact Us For Availability
31
Buzzer WCI 133242 Contact Us For Availability
31A
Bracket WCI 136070 Contact Us For Availability
32
Shim WCI 79017 Contact Us For Availability
32
Panel (White) WCI 136128-032 Contact Us For Availability
32
Motor Sw Em WCI 67631-13 Contact Us For Availability
32
Seal WCI 77062 Contact Us For Availability
32
Shaft WCI 136073 Contact Us For Availability
32
Nut WCI 73340 Contact Us For Availability
32A
Panel WCI 136128-038 Contact Us For Availability
32A
Motor Swge WCI 67631-12 Contact Us For Availability
32B
Panel (Almond) WCI 136128-039 Contact Us For Availability
33
Trap Button WCI 77276 Contact Us For Availability
33
Cabinet Washer WCI 136614-032 Contact Us For Availability
33
Spring WCI 77052 Contact Us For Availability
33
Screw WCI 136468 Contact Us For Availability
33
Retaining Ring WCI 136075 Contact Us For Availability
33A
Cabinet Washer WCI 136614-038 Contact Us For Availability
33B
Cabinet Washer WCI 136614-039 Contact Us For Availability
34
Grommet WCI 137466 Contact Us For Availability
34
Base WCI 136137 Contact Us For Availability
34
Idler Gear WCI 130403 Contact Us For Availability
34
Washer WCI 136074 Contact Us For Availability
34
Dryer Base WCI 136565 Contact Us For Availability
35
Lev Leg Asm WCI 134165-3 Contact Us For Availability
35
Clamp WCI 66912 Contact Us For Availability
35
Spacer WCI 79874 Contact Us For Availability
35
Agitator Shaft WCI 78517 Contact Us For Availability
35
Wheel WCI 136175 Contact Us For Availability
35A
Lock Washer WCI 63602 Contact Us For Availability
36
Pres Tube Lo WCI 77199-7 Contact Us For Availability
36
Speed Nut WCI 136297 Contact Us For Availability
36
Panel WCI 136131 Contact Us For Availability
36
Screw WCI 138539 Contact Us For Availability
36
Up Tr Hs Asm WCI 137016 Contact Us For Availability
36
Seal WCI 136240 Contact Us For Availability
36A
Screw WCI 136182 Contact Us For Availability
37
Clip WCI 131169 Contact Us For Availability
37
Felt Washer WCI 77154 Contact Us For Availability
37
Lint Housing WCI 136239 Contact Us For Availability
37
Brkt Ter Blk WCI 136532 Contact Us For Availability
38
Harness WCI 136757 Contact Us For Availability
38
Cplr Dr Hose WCI 130441 Contact Us For Availability
38
Slinger WCI 77156 Contact Us For Availability
38
Clip WCI 136046 Contact Us For Availability
38
Cup WCI 78101 Contact Us For Availability
39
Spacer WCI 132834 Contact Us For Availability
39
Rivet WCI 136016 Contact Us For Availability
39
Spacer Washer WCI 78332 Contact Us For Availability
39
Insulation WCI 136017 Contact Us For Availability
40
Water Inlet WCI 137017 Contact Us For Availability
40
Pad WCI 136032 Contact Us For Availability
40
Thrust Washer WCI 62568 Contact Us For Availability
40
Magnet (White) WCI 136019-032 Contact Us For Availability
40
Screw WCI 136471 Contact Us For Availability
40A
Magnet WCI 136019-038 Contact Us For Availability
40B
Magnet (Almond) WCI 136019-039 Contact Us For Availability
41
Water Valve WCI 136404 Contact Us For Availability
41
Screw WCI 136470 Contact Us For Availability
41
Complete Transmission WCI 130416-1 Contact Us For Availability
41
Lint Screen WCI 136047 Contact Us For Availability
41
Ground Strap WCI 76793 Contact Us For Availability
42
Lid Lock WCI 136146 Contact Us For Availability
42
Screw WCI 136132 Contact Us For Availability
42
Screw WCI 135021 Contact Us For Availability
42
Ground Screw WCI 131225 Contact Us For Availability
43
Retainer Trim WCI 136026 Contact Us For Availability
43
Washer WCI 73329 Contact Us For Availability
44
Hose WCI 137507 Contact Us For Availability
44
Screw WCI 135019 Contact Us For Availability
44
Nut WCI 73339 Contact Us For Availability
44G
Screw WCI 60753 Contact Us For Availability
45
Thrust Washer WCI 132835 Contact Us For Availability
45
Retainer Trim WCI 136028 Contact Us For Availability
45
Retainer WCI 136345 Contact Us For Availability
46
Bracket WCI 136148 Contact Us For Availability
46
Screw WCI 73635 Contact Us For Availability
46
Screw WCI 137944 Contact Us For Availability
47
Screw WCI 136354 Contact Us For Availability
47
Screw WCI 136469 Contact Us For Availability
47
Tube WCI 77199-10 Contact Us For Availability
48
Spacer WCI 136772 Contact Us For Availability
48
Brace WCI 136566 Contact Us For Availability
48A
Washer Tub Shaft WCI 78212 Contact Us For Availability
49
Screw WCI 132655 Contact Us For Availability
49
SCREW - SIDE PANEL & RIMS TO FRONT PANEL WCI 37858 Contact Us For Availability
49
Conec P/tube WCI 77193 Contact Us For Availability
49A
Screw WCI 137858 Contact Us For Availability
50
Screw WCI 60573 Contact Us For Availability
50
Spacer WCI 136289 Contact Us For Availability
50
Plate WCI 136181 Contact Us For Availability
51
Screw WCI 136058 Contact Us For Availability
51
Terminal Block WCI 73334 Contact Us For Availability
52
Clamp WCI 64154-10 Contact Us For Availability
52
Acorn Nut WCI 136057 Contact Us For Availability
52
Ground Wire WCI 136100 Contact Us For Availability
53
Clamp WCI 64154-3 Contact Us For Availability
53
Ground Screw WCI 132144 Contact Us For Availability
54
Clamp WCI 64154-20 Contact Us For Availability
54
Screw WCI 130220 Contact Us For Availability
55
Leg Pad WCI 134166 Contact Us For Availability
58
Spring WCI 78135 Contact Us For Availability
58
Heater WCI 136543 Contact Us For Availability
61
Inlet Hose WCI 73610 Contact Us For Availability
63
Clamp WCI 130491 Contact Us For Availability
65
Shield WCI 132044 Contact Us For Availability
66
Washer WCI 65798 Contact Us For Availability
67
Inlet Gasket WCI 138571 Contact Us For Availability
68
Valve WCI 137506 Contact Us For Availability
NI
Oil WCI 133059 Contact Us For Availability
NI
Nylube WCI 133077 Contact Us For Availability
NI
Drain Hose WCI 136141-1 Contact Us For Availability
NI
Shield WCI 136211 Contact Us For Availability
NI
Label WCI 136214 Contact Us For Availability
NI
Label WCI 136215 Contact Us For Availability
NI
Screen WCI 136258 Contact Us For Availability
NI
Label WCI 136555 Contact Us For Availability
NI
Installation Instructions WCI 136687 Contact Us For Availability
NI
Instruction Operation WCI 136688 Contact Us For Availability
NI
Fact Tag WCI 136690 Contact Us For Availability
NI
Energy Label WCI 136691 Contact Us For Availability
NI
Use and Care Guide WCI 136697 Contact Us For Availability
NI
Wiring Dgrm WCI 136764 Contact Us For Availability
NI
Resistor WCI 136778 Contact Us For Availability
NI
Parts List WCI 136790 Contact Us For Availability
NI
Adapter Kit WCI 137007 Contact Us For Availability
NI
Resistor WCI 137448-1 Contact Us For Availability
NI
Tran Oil WCI 60821-1 Contact Us For Availability
NI
Adhesive WCI 62805-1 Contact Us For Availability
NI
Adhesive WCI 64709-1 Contact Us For Availability
NI
Siphon Break WCI 76660 Contact Us For Availability
NI
Label WCI 77173-1 Contact Us For Availability
NI
Dispenser WCI 77317-1 Contact Us For Availability
NI
Label WCI 78028 Contact Us For Availability
NI
Spray Paing WCI F94566-50 Contact Us For Availability
NI
Spray Paint WCI F94566-51 Contact Us For Availability
NI
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
× ![]()
Login and Registration Form
