Model Electrolux 417.84988100 Washer (Kenmore 41784988100) – Common Parts & Diagrams

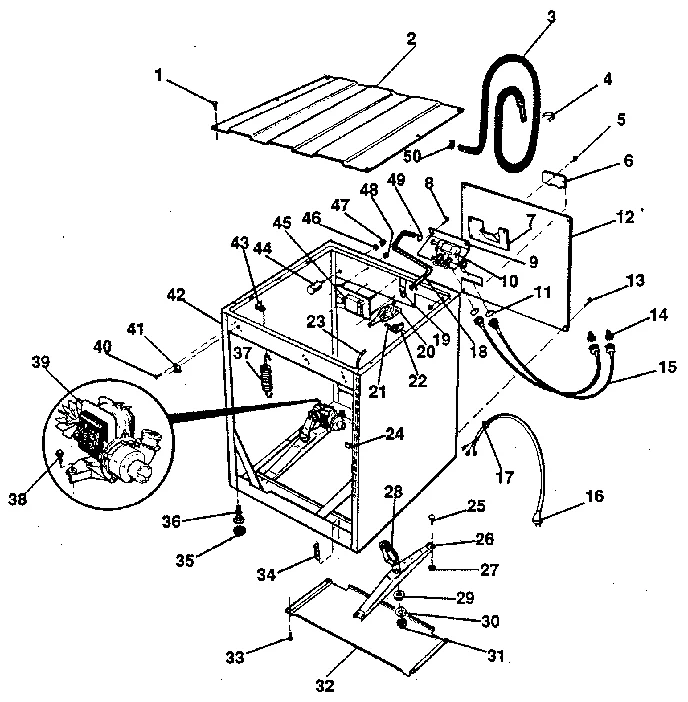

CABINET, PUMP, SPEED-CONTROL & HOSES
FRONT PANEL, DOOR, CONSOLE & CONTROLS
All Parts
PULLEY, BELT & MOTOR MAIN
TUBS & HOSES
COUNTERWEIGHT
Common parts from model Electrolux 417.84988100 Washer (Kenmore 41784988100)
1
Kit WCI Q000137158 Contact Us For Availability
1
Clamp WCI Q000605241 Contact Us For Availability
1
Bolt WCI 3203038 Contact Us For Availability
1A
Knob (White) WCI 3204897 Contact Us For Availability
1B
Knob (Almond) WCI 3204898 Contact Us For Availability
2
Seal WCI Q000009303 Contact Us For Availability
2
Hose WCI 3203056 Contact Us For Availability
2
Weight WCI 3203039 Contact Us For Availability
2A
Knob (White) WCI 3204899 Contact Us For Availability
2B
Knob (Almond) WCI 3204900 Contact Us For Availability
3
Spring WCI 3202946 Contact Us For Availability
3
Bearing WCI Q000500961 Contact Us For Availability
3
Outer Tub WCI 3203005 Contact Us For Availability
3
Nut WCI Q000500831 Contact Us For Availability
4
Clamp WCI 3202981 Contact Us For Availability
4
Timer Dial WCI 3204901 Contact Us For Availability
4
Snap Ring WCI Q000501341 Contact Us For Availability
4
Grommet WCI Q000125501 Contact Us For Availability
4
Ring WCI Q000172101 Contact Us For Availability
5
Pulley WCI 3203014 Contact Us For Availability
5
Tub Spinner WCI 3203006 Contact Us For Availability
5
Nut WCI Q000500553 Contact Us For Availability
5A
Control Panel (White) WCI 3204902 Contact Us For Availability
5B
Control Panel (Almond) WCI 3204903 Contact Us For Availability
6
Cover WCI 3202982 Contact Us For Availability
6
Rod W/clamp WCI 3202968 Contact Us For Availability
6
Washer WCI 3203015 Contact Us For Availability
6
Cover WCI 3203007 Contact Us For Availability
7
Cover WCI Q000621542 Contact Us For Availability
7
Bracket WCI 3202969 Contact Us For Availability
7
Door WCI 3202016 Contact Us For Availability
7
Screw WCI Q000502484 Contact Us For Availability
7
Weight WCI Q000172115 Contact Us For Availability
8
Cover WCI 3202971 Contact Us For Availability
8
Washer WCI 3203017 Contact Us For Availability
8
Bolt WCI 08015333 Contact Us For Availability
9
Bracket WCI Q000621932 Contact Us For Availability
9
Timer WCI 3202973 Contact Us For Availability
9
Drive Belt WCI 3203018 Contact Us For Availability
9
Strainer WCI 3203008 Contact Us For Availability
9
Nut WCI Q000402602 Contact Us For Availability
10
Bolt WCI Q000500804 Contact Us For Availability
10
Bracket WCI Q000172102 Contact Us For Availability
11
Switch WCI 3202977 Contact Us For Availability
11
Nut WCI Q000501083 Contact Us For Availability
11
Ring WCI 3261136 Contact Us For Availability
11
Weight WCI 08015254 Contact Us For Availability
11A
Screw WCI Q000435056 Contact Us For Availability
12
Panel WCI 3202983 Contact Us For Availability
12
Screw WCI Q000505061 Contact Us For Availability
12
Bushing WCI 3203019 Contact Us For Availability
12
Bracket WCI Q000172104 Contact Us For Availability
13
Switch WCI 3202976 Contact Us For Availability
13
Motor WCI 3203037 Contact Us For Availability
13
Fill Hose WCI 08015184 Contact Us For Availability
13
Bolt WCI 3261248 Contact Us For Availability
14
Clamp WCI Q000504501 Contact Us For Availability
14
Bolt WCI Q000435138 Contact Us For Availability
15
Screw WCI Q000435103 Contact Us For Availability
15
Switch WCI 3202978 Contact Us For Availability
15
Bolt WCI 3203036 Contact Us For Availability
15
Washer WCI Q000440045 Contact Us For Availability
16
Service Cord WCI 3202995 Contact Us For Availability
16
Screw WCI Q000007617 Contact Us For Availability
16
Shield WCI Q000501201 Contact Us For Availability
16
Bolt WCI Q000435145 Contact Us For Availability
17
Screw WCI Q000505564 Contact Us For Availability
17
Strain Relef WCI Q000063137 Contact Us For Availability
17
Nut WCI Q000443003 Contact Us For Availability
17
Lens WCI Q000000495 Contact Us For Availability
18
Hose WCI Q000156174 Contact Us For Availability
18
Washer WCI Q000402801 Contact Us For Availability
18
Spacer WCI 3203034 Contact Us For Availability
18
Grommet WCI Q000028710 Contact Us For Availability
18
Weight WCI Q000172112 Contact Us For Availability
19
Clamp WCI C000503356 Contact Us For Availability
19
Stud WCI Q000600102 Contact Us For Availability
19
Air Bell WCI 3203033 Contact Us For Availability
19
Socket WCI 08015211 Contact Us For Availability
19
Weight WCI Q000172113 Contact Us For Availability
20
Air Gap WCI Q000154361 Contact Us For Availability
20
Bulb WCI 3203012 Contact Us For Availability
21
Sump Hose WCI 3203035 Contact Us For Availability
21
Boot WCI Q000133321 Contact Us For Availability
22
Bracket WCI Q000148837 Contact Us For Availability
22
Door Catch WCI Q000091191 Contact Us For Availability
22
Clamp WCI Q000152961 Contact Us For Availability
23
Nut WCI Q000500531 Contact Us For Availability
23
Tub WCI 3203004 Contact Us For Availability
24
Clamp WCI Q000502207 Contact Us For Availability
24
Screw WCI Q000406801 Contact Us For Availability
24
Clamp Ring WCI Q000116505 Contact Us For Availability
25
Screw WCI 3203003 Contact Us For Availability
25
Solenoid WCI Q000129823 Contact Us For Availability
25
Nut WCI Q000408201 Contact Us For Availability
25A
Screw WCI 0001825642 Contact Us For Availability
26
Rail WCI 3202997 Contact Us For Availability
26
Gasket WCI Q000127581 Contact Us For Availability
27
Nut WCI Q000501084 Contact Us For Availability
27
Vane WCI Q000169412 Contact Us For Availability
27A
Panel (White) WCI Q000621720 Contact Us For Availability
27B
Panel (Almond) WCI Q000621716 Contact Us For Availability
28
Spring WCI 3202996 Contact Us For Availability
28
Screw WCI 08015286 Contact Us For Availability
28
Speed Nut WCI 3261100 Contact Us For Availability
29
Grommet WCI 3202998 Contact Us For Availability
30
Nut WCI 3203000 Contact Us For Availability
30
Lock Nut WCI Q000501450 Contact Us For Availability
30
Plug WCI Q000084503 Contact Us For Availability
30A
Harness WCI 3204904 Contact Us For Availability
31
Nut WCI 3203002 Contact Us For Availability
31
Door Switch WCI Q000184701 Contact Us For Availability
32
Pan WCI 3203001 Contact Us For Availability
32
Arm WCI Q000273137 Contact Us For Availability
33
Screw WCI Q000503596 Contact Us For Availability
35
Foot WCI Q000016971 Contact Us For Availability
35
Nut WCI Q000402601 Contact Us For Availability
37
Spring WCI 3202993 Contact Us For Availability
37A
Panel (White) WCI Q000600564 Contact Us For Availability
37B
Panel (Almond) WCI Q000602004 Contact Us For Availability
38
Bracket WCI 3261082 Contact Us For Availability
38
Screw WCI 3202989 Contact Us For Availability
39
Pump WCI 3202988 Contact Us For Availability
39
Spring WCI Q000011943 Contact Us For Availability
40
Screw WCI 3281150 Contact Us For Availability
40A
Panel (White) WCI 08015269 Contact Us For Availability
40B
Panel (Almond) WCI Q000184777 Contact Us For Availability
41
Spacer WCI 3261088 Contact Us For Availability
41
Screw WCI C000505617 Contact Us For Availability
42
Door Gasket WCI Q000147492 Contact Us For Availability
42A
Body (White) WCI 3203046 Contact Us For Availability
42B
Body (Almond) WCI 3203049 Contact Us For Availability
43
Bracket WCI Q000600043 Contact Us For Availability
43
Glass WCI Q000017901 Contact Us For Availability
44
Suppressor WCI 3202990 Contact Us For Availability
44
Gasket Seal WCI Q000183302 Contact Us For Availability
45
Speed Control WCI 3202986 Contact Us For Availability
45A
Panel (White) WCI Q000088956 Contact Us For Availability
45B
Panel (Almond) WCI Q000603331 Contact Us For Availability
46
Washer WCI 3202987 Contact Us For Availability
46
Spacer WCI Q000040120 Contact Us For Availability
47
Nut WCI 3202985 Contact Us For Availability
47
Clip WCI Q000501661 Contact Us For Availability
48
Nut WCI 3202991 Contact Us For Availability
48
Spacer WCI Q000040118 Contact Us For Availability
49
Guide WCI Q000600037 Contact Us For Availability
50
Bar WCI Q000062204 Contact Us For Availability
51
Latch Bar WCI Q000151771 Contact Us For Availability
52
Screw WCI Q000403103 Contact Us For Availability
53
Bumper WCI Q000013435 Contact Us For Availability
53A
Harness WCI 3202980 Contact Us For Availability
NI
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
NI
Parts List WCI 3204896 Contact Us For Availability
NI
Operating Instructions WCI 3205674 Contact Us For Availability
NI
Brace Kit WCI 3937014 Contact Us For Availability
NI
Top Kit WCI 48881 Contact Us For Availability
NI
Top Kit WCI 48888 Contact Us For Availability
NI
Installation Kit WCI 5303208599 Contact Us For Availability
NI
Label WCI 5303208600 Contact Us For Availability
NI
Label WCI 5303208601 Contact Us For Availability
NI
Label WCI 5303208602 Contact Us For Availability
NI
Technical Sheet WCI 5303208603 Contact Us For Availability
NI
Label WCI 5303208604 Contact Us For Availability
NI
Instruction Book WCI 5303208605 Contact Us For Availability
NI
Use and Care Guide WCI 5303208606 Contact Us For Availability
NI
Installation Instructions WCI 5303208607 Contact Us For Availability
× ![]()
