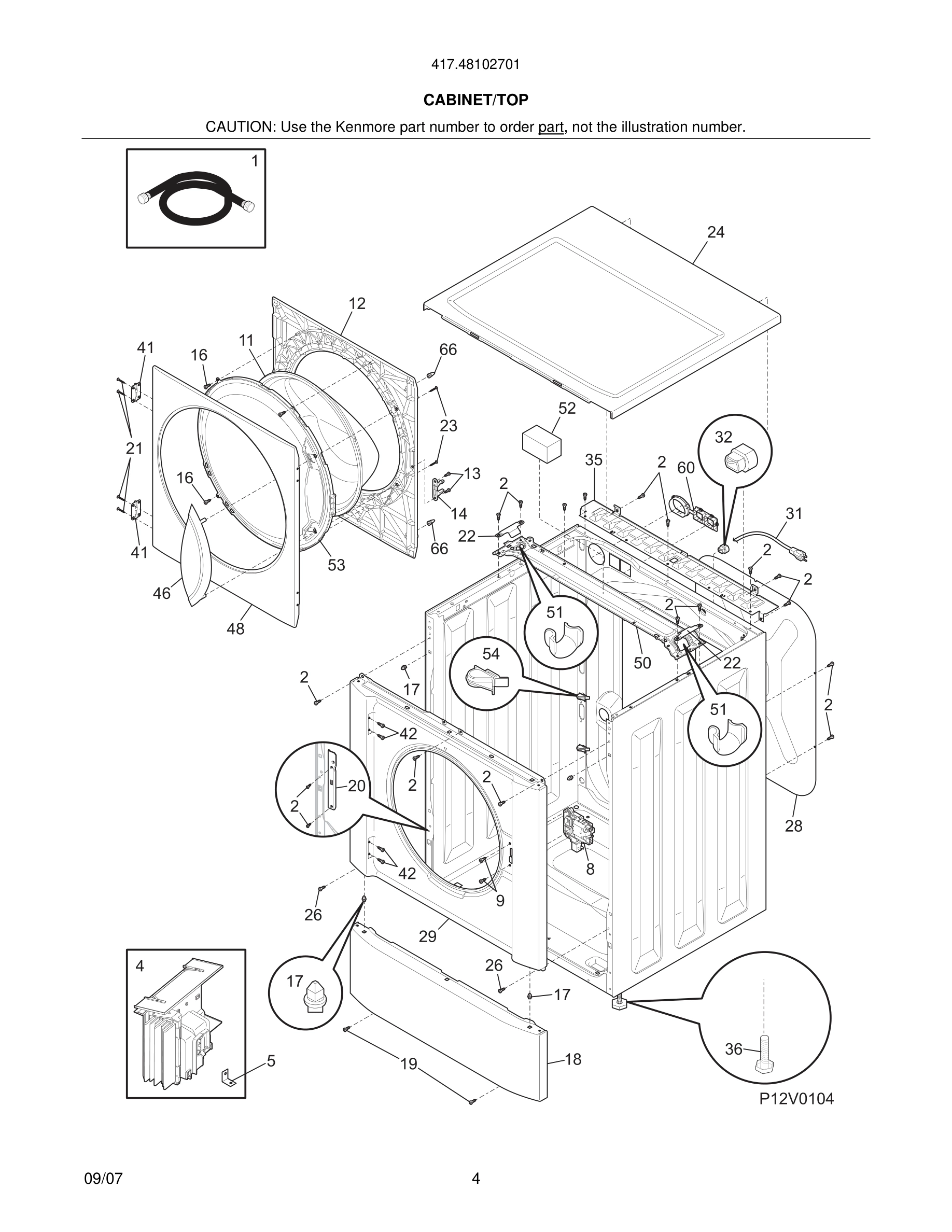

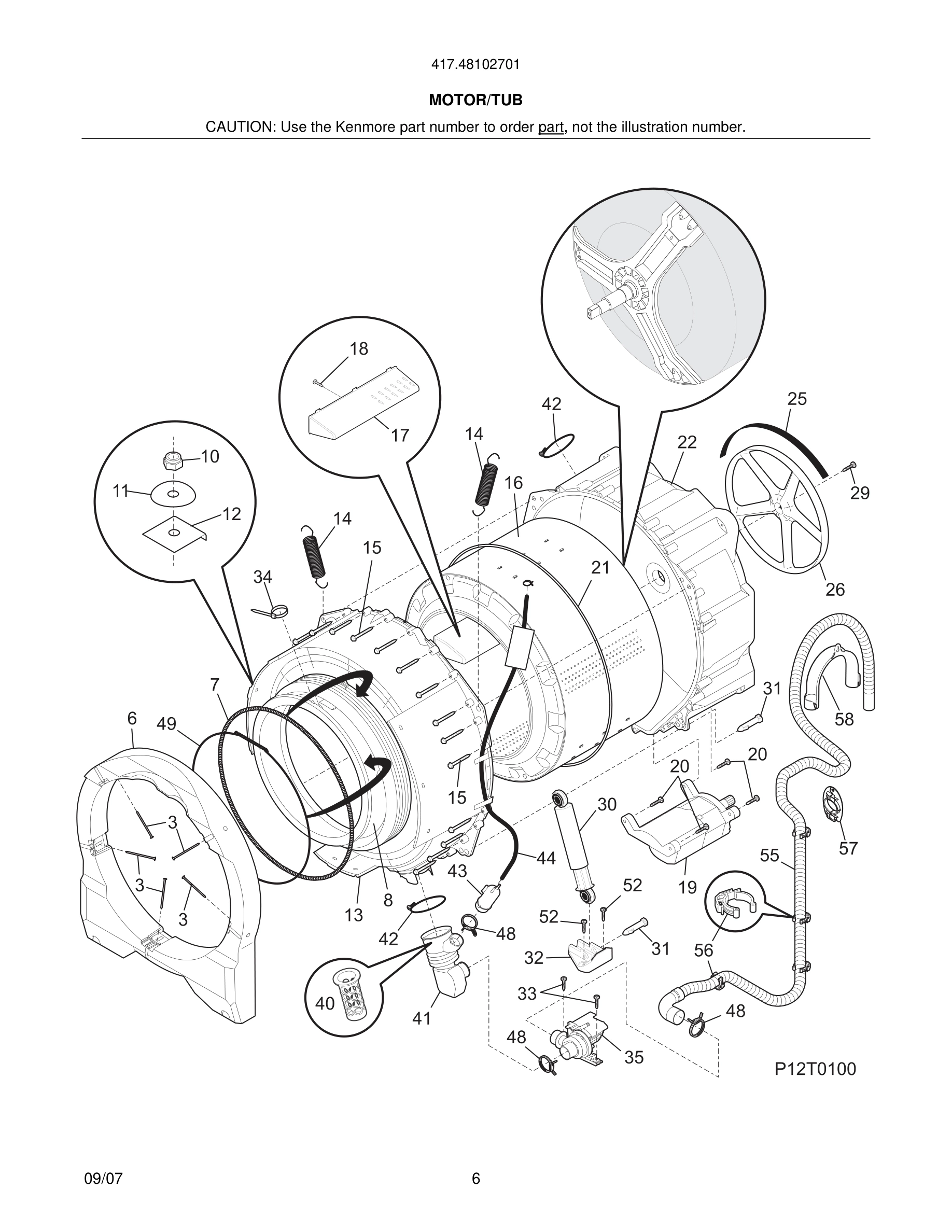

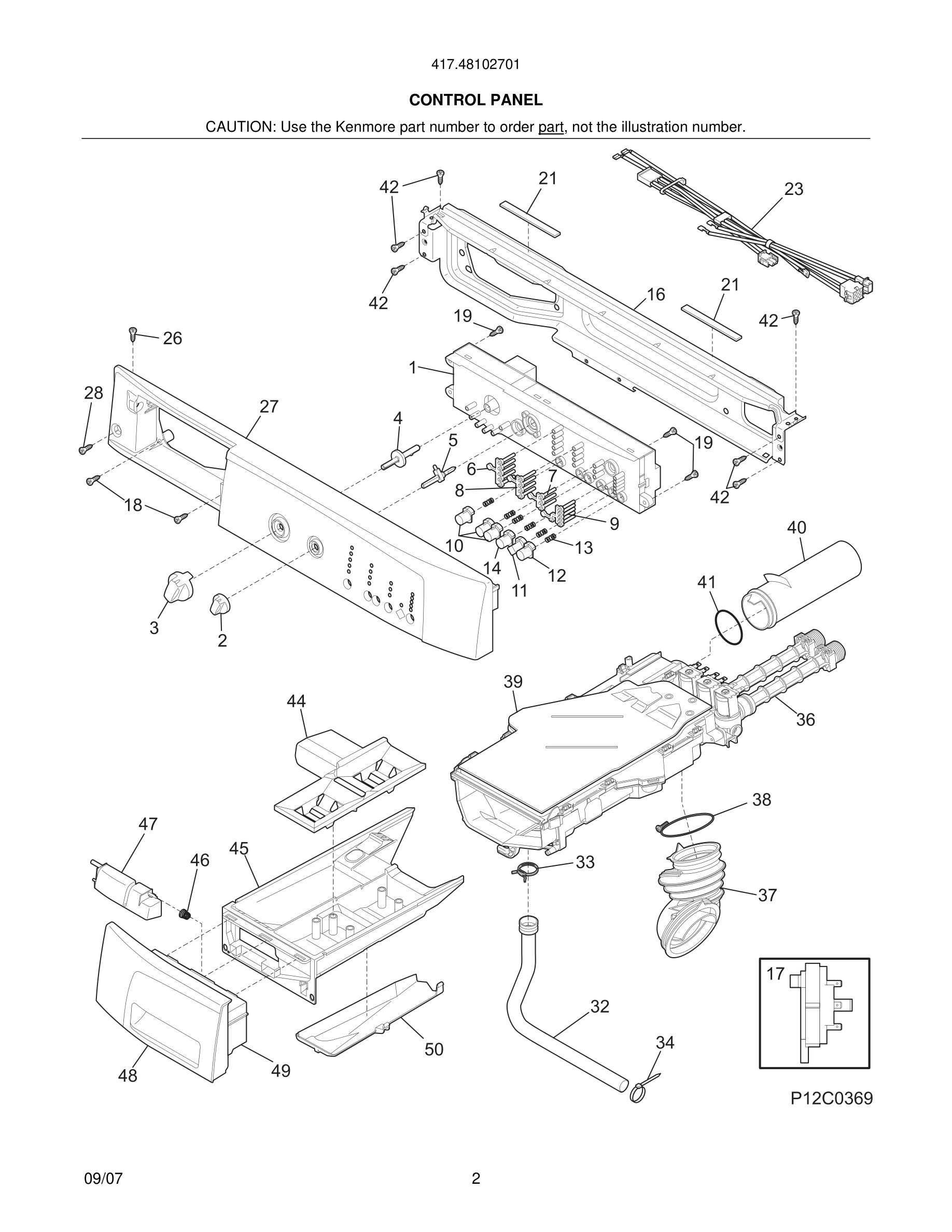

Model Kenmore 417.48102701 WASHER – Common Parts & Diagrams

3
Bolt, carriage, 1/4-20 x 2.60
Bolt, carriage, 1/4-20 x 2.60 WCI 131793303 Contact Us For Availability
View on Model
3
Knob, program, with bushing
Knob, program, with bushing WCI 134415200 Contact Us For Availability
View on Model
4
Pin, program knob
Pin, program knob WCI 134347700 Contact Us For Availability
View on Model
4*#

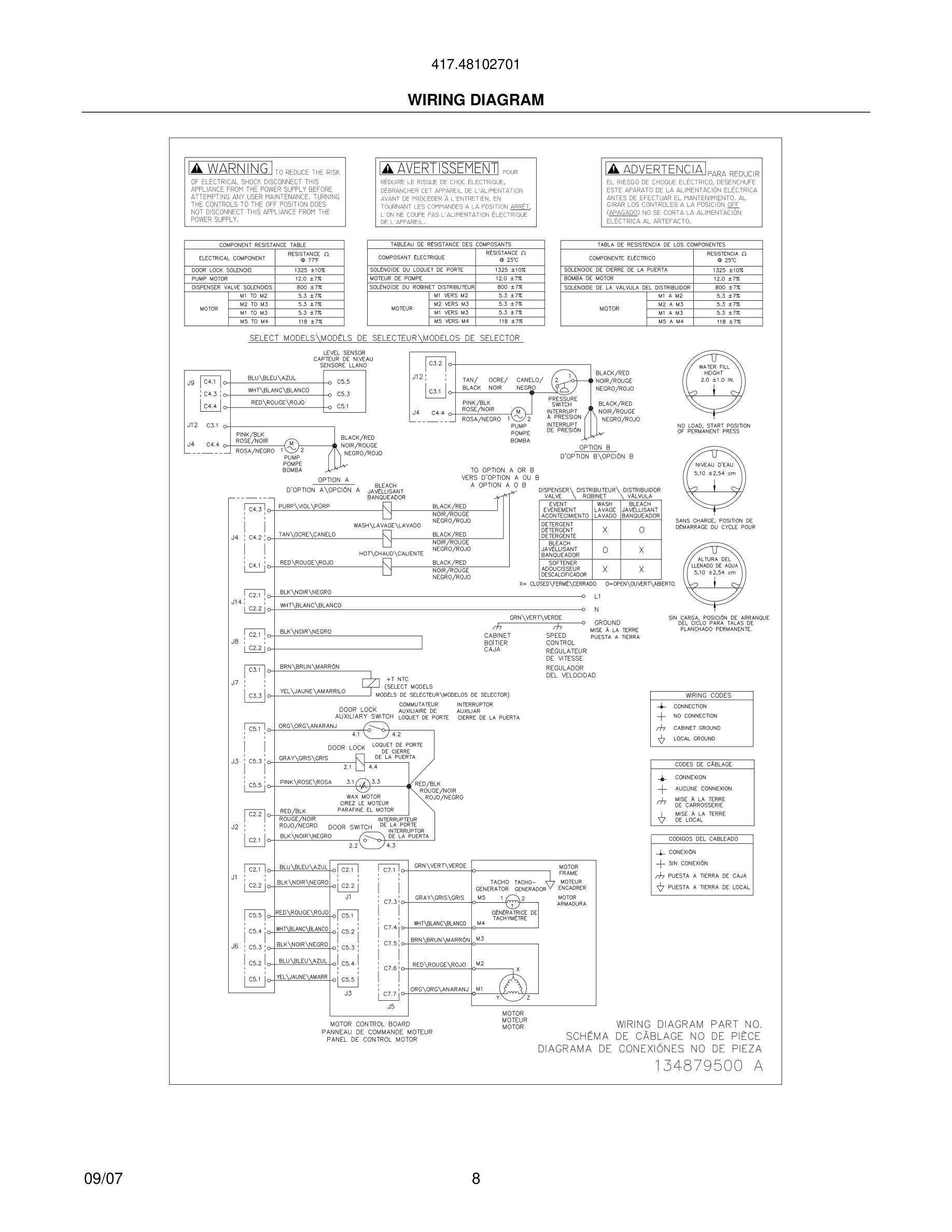

Wiring Harness, motor control
Wiring Harness, motor control WCI 134547600 Contact Us For Availability
View on Model
6
Counterweight, front, one piece
Counterweight, front, one piece WCI 134362200 Contact Us For Availability
View on Model
7
Light Pipe, array, 3 row of 3
Light Pipe, array, 3 row of 3 WCI 134429300 Contact Us For Availability
View on Model
8*#
Wiring Harness, door switch
Wiring Harness, door switch WCI 134606800 Contact Us For Availability
View on Model
9
Light Pipe, array, 4 start group
Light Pipe, array, 4 start group WCI 134429400 Contact Us For Availability
View on Model
10
Push Button, function
Push Button, function WCI 134385100 Contact Us For Availability
View on Model
12
Panel, inner door, with bumper
Panel, inner door, with bumper WCI 134507300 Contact Us For Availability
View on Model
13
Spring, push button
Spring, push button WCI 134349400 No Longer Available
View on Model
14#
Spring Assy, suspension
Spring Assy, suspension WCI 134362800 No Longer Available
View on Model
16
Bracket, top front
Bracket, top front WCI 134364800 Contact Us For Availability
View on Model
17
Clip, assembly
Clip, assembly WCI 134408700 Contact Us For Availability
View on Model
17#
Switch, pressure
Switch, pressure WCI 134844501 Contact Us For Availability
View on Model
20
Bracket, LS panel, reinforcement
Bracket, LS panel, reinforcement WCI 134434901 Contact Us For Availability
View on Model
23
Screw, #12 flat head, 10-14P, quad drive
Screw, #12 flat head, 10-14P, quad drive WCI 134522100 No Longer Available
View on Model
23#
Wiring Harness, controls
Wiring Harness, controls WCI 134435300 No Longer Available
View on Model
25#
Belt, drive, 6-rib
Belt, drive, 6-rib WCI 134051003 Contact Us For Availability
View on Model
27
Panel, control console
Panel, control console WCI 134443000 Contact Us For Availability
View on Model
28
Panel, service access, rear
Panel, service access, rear WCI 134364300 Contact Us For Availability
View on Model
32
Hose, disp-to-bellows
Hose, disp-to-bellows WCI 134586500 Contact Us For Availability
View on Model
40
Tube, disp-to-overflo
Tube, disp-to-overflo WCI 134372100 Contact Us For Availability
View on Model
41
Hinge, door
Hinge, door WCI 134412400 No Longer Available
View on Model
46
Spring, door latch
Spring, door latch WCI 134349500 Contact Us For Availability
View on Model
47
Latch, dispenser, slider lock
Latch, dispenser, slider lock WCI 134386500 Contact Us For Availability
View on Model
48
Handle, dispenser, front
Handle, dispenser, front WCI 134453600 Contact Us For Availability
View on Model
49
Frame, drawer handle
Frame, drawer handle WCI 134386300 Contact Us For Availability
View on Model
53
Adapter, door glass ring
Adapter, door glass ring WCI 134507400 Contact Us For Availability
View on Model
58
Hanger, drain hose
Hanger, drain hose WCI 134440700 Contact Us For Availability
