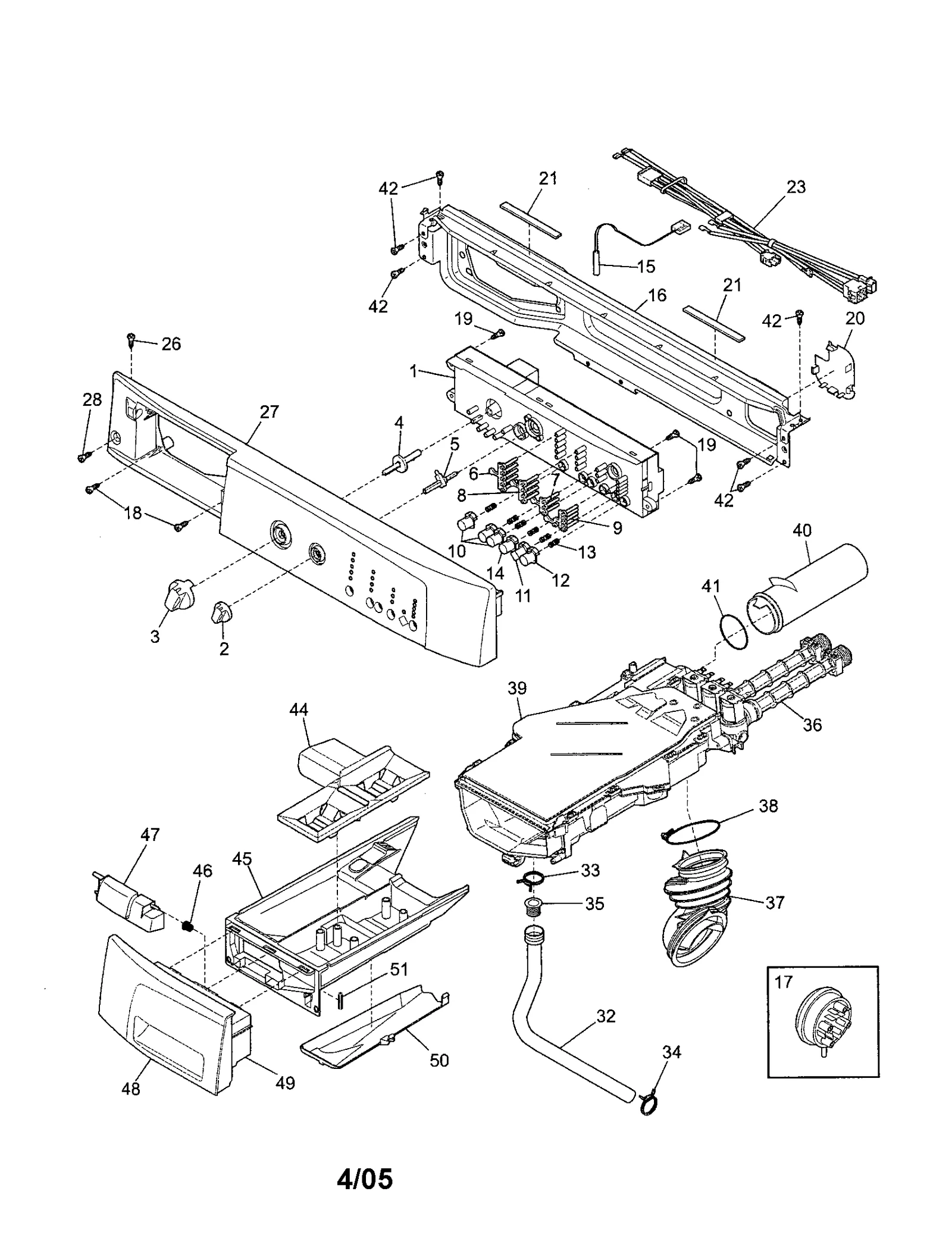

Model Electrolux 417.44052500 Washer (Kenmore 41744052500) – Common Parts & Diagrams

3
Washer Counterweight Bolt
Washer Counterweight Bolt WCI 131793303 Contact Us For Availability
View on Model
3
Washer Control Knob
Washer Control Knob WCI 134415200 Contact Us For Availability
View on Model
4
Laundry Appliance Program Knob Pin
Laundry Appliance Program Knob Pin WCI 134347700 Contact Us For Availability
View on Model
4A
Washer Wire Harness
Washer Wire Harness WCI 134372800 Contact Us For Availability
View on Model
6
Washer Counterweight
Washer Counterweight WCI 134362200 Contact Us For Availability
View on Model
7
Light Pipe
Light Pipe WCI 134429300 Contact Us For Availability
View on Model
9
Laundry Appliance Indicator Light Lens
Laundry Appliance Indicator Light Lens WCI 134429400 Contact Us For Availability
View on Model
10
Push Button
Push Button WCI 134385100 Contact Us For Availability
View on Model
11
Washer Door Glass Panel
Washer Door Glass Panel WCI 134366400 Contact Us For Availability
View on Model
12
Washer Door Inner Panel
Washer Door Inner Panel WCI 134507300 Contact Us For Availability
View on Model
13
Washer Control Push Button Spring
Washer Control Push Button Spring WCI 134349400 No Longer Available
View on Model
14
White-Westinghouse Washer Suspension Spring
White-Westinghouse Washer Suspension Spring WCI 134362800 No Longer Available
View on Model
15
Washer Door Hinge
Washer Door Hinge WCI 134412400 Contact Us For Availability
View on Model
15
Washer Dispenser Drawer Reed Switch
Washer Dispenser Drawer Reed Switch WCI 134399300 Contact Us For Availability
View on Model
16
Washer Control Panel Bracket
Washer Control Panel Bracket WCI 134364800 Contact Us For Availability
View on Model
17
Dryer Toe Panel Clip
Dryer Toe Panel Clip WCI 134408700 Contact Us For Availability
View on Model
20
Washer Cabinet Reinforcement Bracket, Left
Washer Cabinet Reinforcement Bracket, Left WCI 134434901 Contact Us For Availability
View on Model
23
Washer Wire Harness
Washer Wire Harness WCI 134435300 Contact Us For Availability
View on Model
27
Washer Control Panel
Washer Control Panel WCI 134443000 Contact Us For Availability
View on Model
28
Washer Service Panel
Washer Service Panel WCI 134364300 Contact Us For Availability
View on Model
40
Washer Dispenser Hose
Washer Dispenser Hose WCI 134372100 Contact Us For Availability
View on Model
45
Washer Drain Hose
Washer Drain Hose WCI 134369400 Contact Us For Availability
View on Model
45
Clamp
Clamp WCI 131306202 Contact Us For Availability
View on Model
46
Washer Dispenser Drawer Latch Spring
Washer Dispenser Drawer Latch Spring WCI 134349500 Contact Us For Availability
View on Model
47
Washer Dispenser Drawer Latch
Washer Dispenser Drawer Latch WCI 134386500 Contact Us For Availability
View on Model
48
Washer Door Outer Glass and Ring
Washer Door Outer Glass and Ring WCI 134507400 Contact Us For Availability
View on Model
48
Washer Dispenser Drawer Handle
Washer Dispenser Drawer Handle WCI 134453600 Contact Us For Availability
View on Model
49
Washer Dispenser Drawer Handle Frame
Washer Dispenser Drawer Handle Frame WCI 134386300 Contact Us For Availability
View on Model
51
Washer Dispenser Drawer Magnet
Washer Dispenser Drawer Magnet WCI 131373800 Contact Us For Availability
View on Model
56
Fastener
Fastener WCI 134369800 Contact Us For Availability
View on Model
NI01
Washer Shipping Bolt Kit
Washer Shipping Bolt Kit WCI 134511500 Contact Us For Availability
View on Model
NI04
Instructions
Instructions WCI 134437000 Contact Us For Availability
View on Model
