Model Whirlpool 4100PTW GAS RANGE – Common Parts & Diagrams

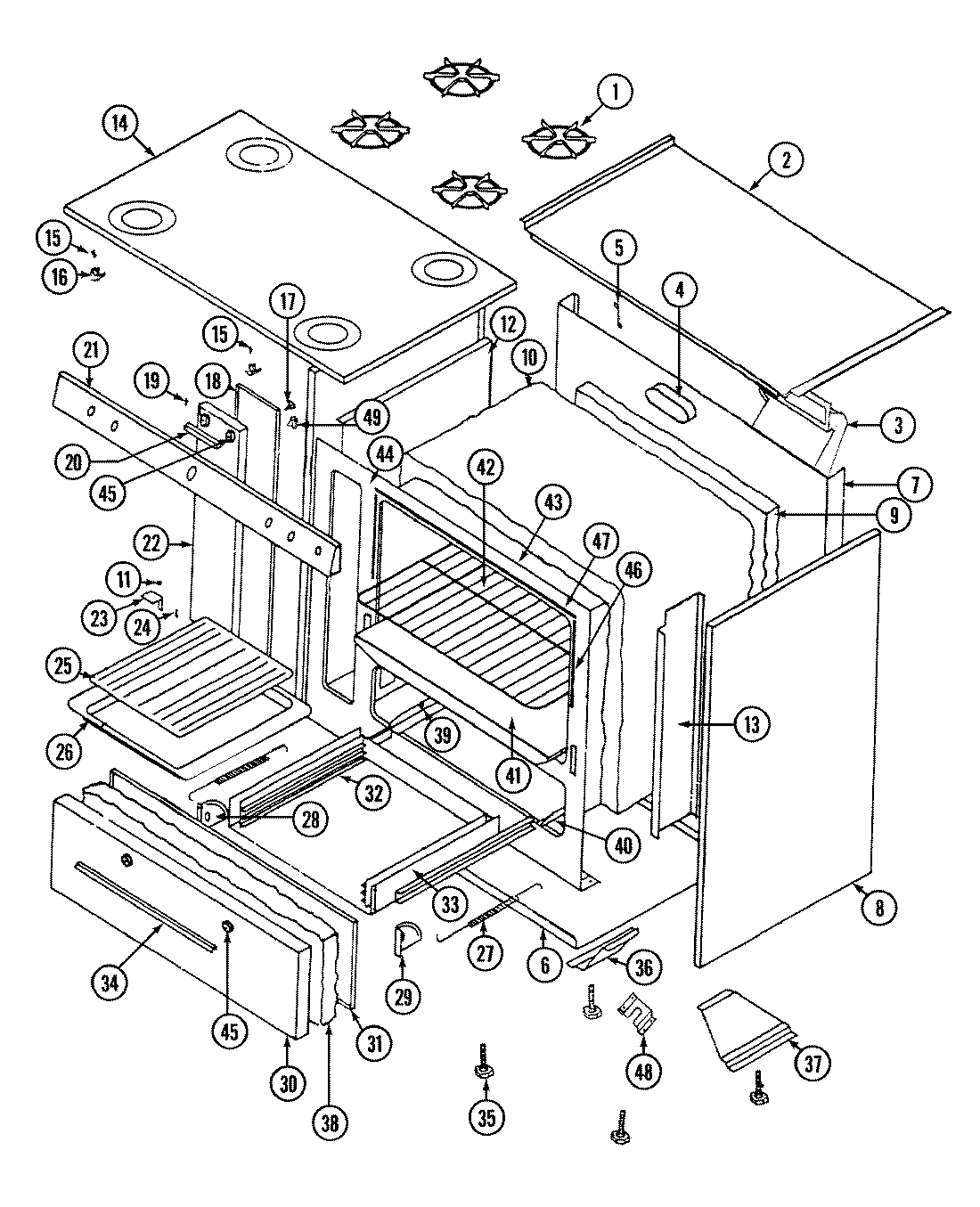

01 - BODY

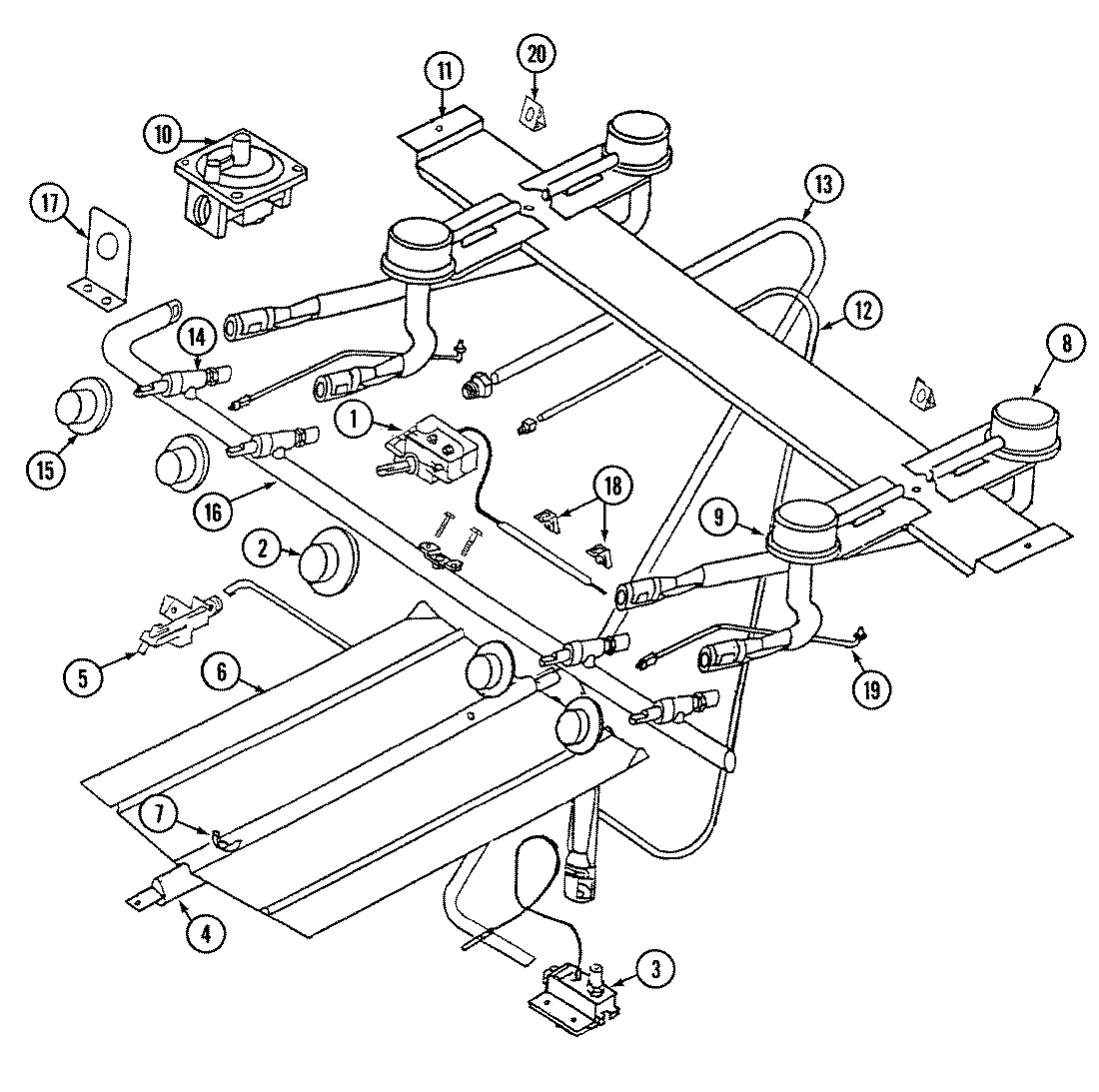

03 - CONTROL SYSTEM

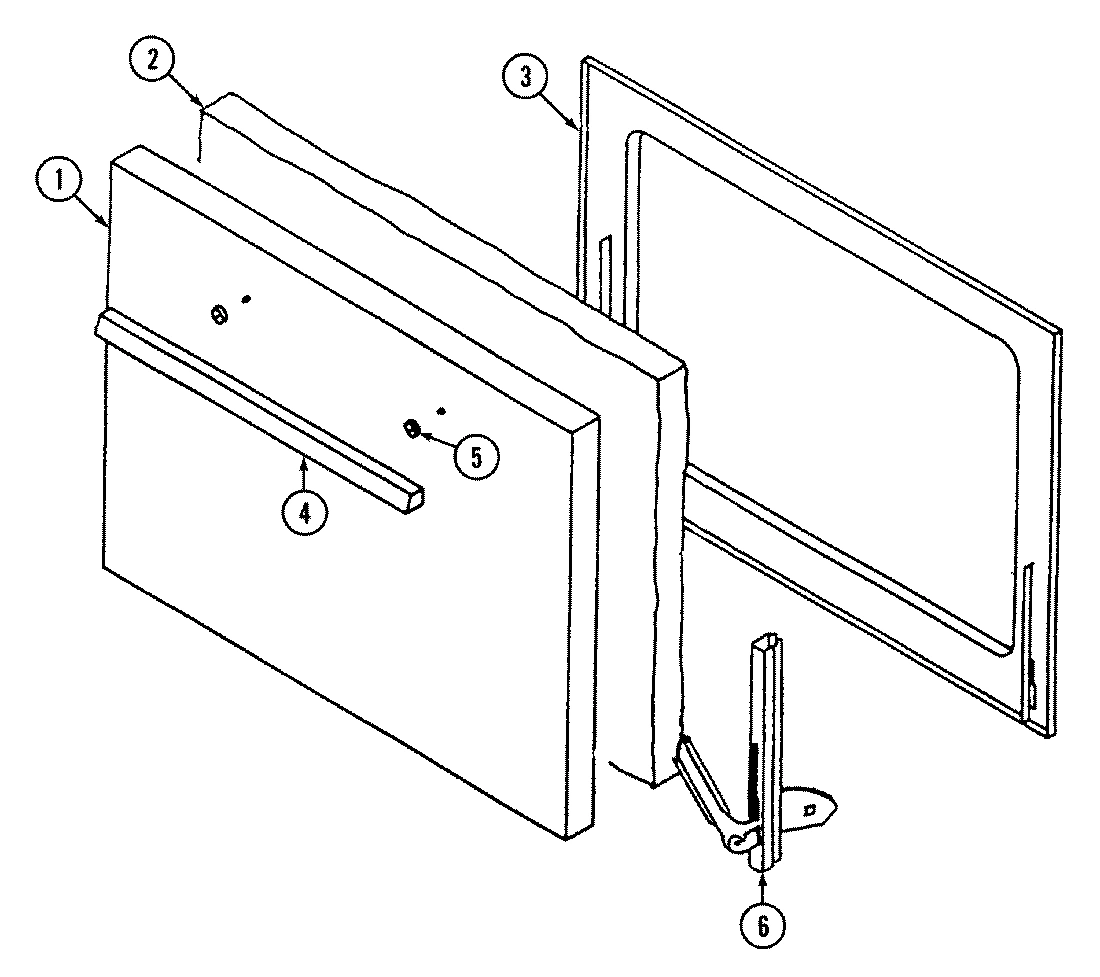

04 - DOOR

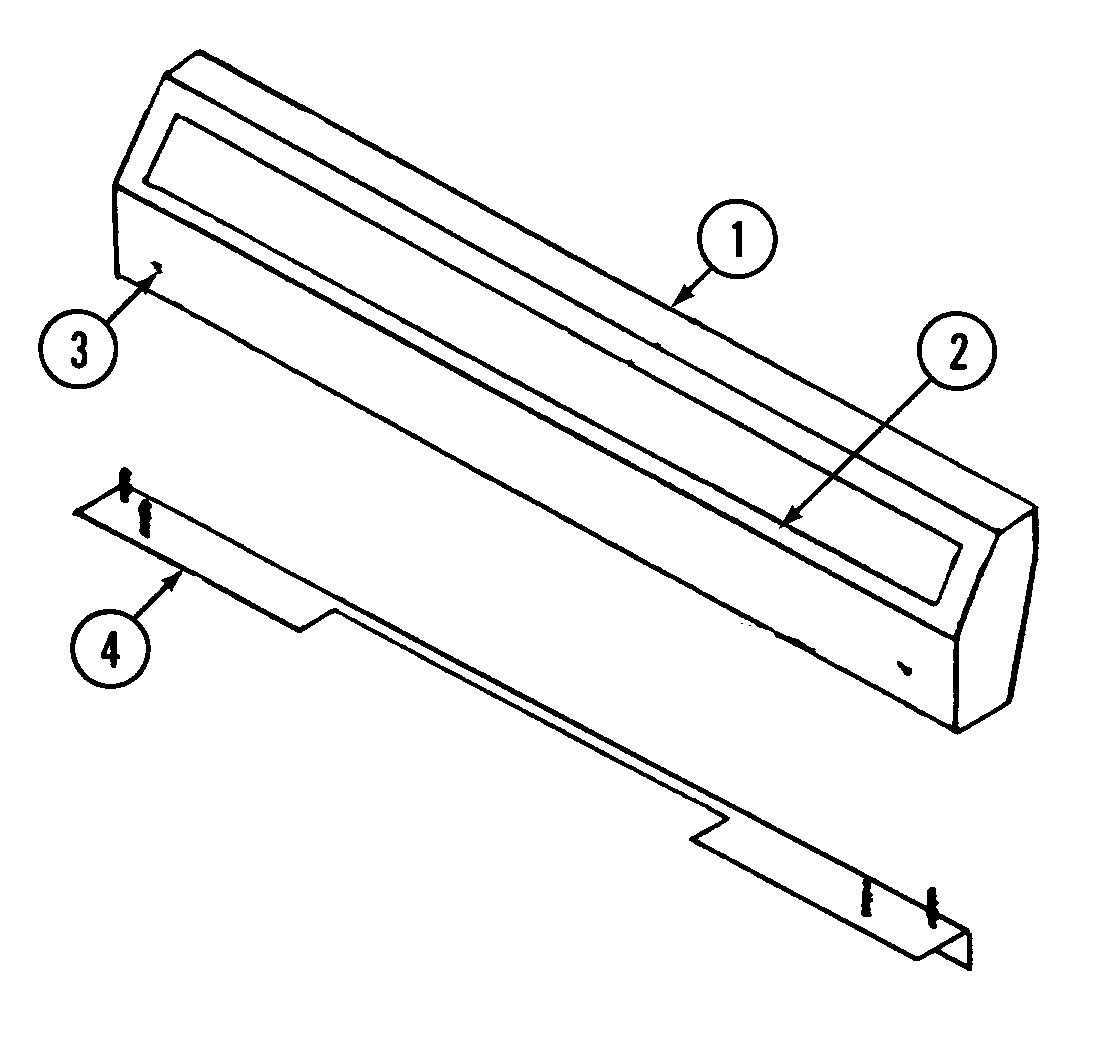

02 - CONTROL PANEL
Common parts from model Whirlpool 4100PTW GAS RANGE
1
GRATE WPL 72001002 Contact Us For Availability
1
BOWL, DRIP WPL 72001151 Contact Us For Availability
1
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
1
SCREW WPL 7101P24160 Contact Us For Availability
1
THERMOSTAT WPL 72001134 Contact Us For Availability
1
FLANGE WPL 7507P04860 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 72001147 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 72001144 Contact Us For Availability
2
BOX, BURNER WPL 72001003 Contact Us For Availability
2
KNOB, THERMOSTAT WPL 72001103 Contact Us For Availability
2
INSULATION, OVEN DOOR WPL 72001148 Contact Us For Availability
2
INSERT, CONTROL PANEL WPL 72001145 Contact Us For Availability
3
BOX, VENT WPL 72001004 Contact Us For Availability
3
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
3
VALVE, OVEN WPL 72001104 Contact Us For Availability
3
LINING, DOOR WPL 72001149 Contact Us For Availability
3
PIN, TOP HINGE WPL 72001081 Contact Us For Availability
4
RING, VENT BOX WPL 72001005 Contact Us For Availability
4
BURNER, OVEN WPL 72001105 Contact Us For Availability
4
HANDLE, DOOR WPL 72001089 Contact Us For Availability
4
SUPPORT, CONTROL PANEL WPL 72001146 Contact Us For Availability
5
BRACE, MAIN BACK WPL 72001006 Contact Us For Availability
5
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
5
PILOT, OVEN BURNER WPL 72001135 Contact Us For Availability
5
MANUAL, USE & CARE WPL 16007299 Contact Us For Availability
6
BOTTOM, MAIN WPL 72001007 Contact Us For Availability
6
BAFFLE, OVEN BURNER WPL 72001022 Contact Us For Availability
6
HINGE WPL 72001150 Contact Us For Availability
6
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
7
BACK, MAIN WPL 72001098 Contact Us For Availability
7
NUT, WING WPL 7103P03060 Contact Us For Availability
8
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
8
PANEL, SIDE (WHT) WPL 72001009 Contact Us For Availability
8
BURNER, TOP (REAR) WPL 72001108 Contact Us For Availability
9
INSULATION, OVEN BACK WPL 72001010 Contact Us For Availability
9
BURNER, TOP (FRONT) WPL 72001109 Contact Us For Availability
10
INSULATION, OVEN WRAP WPL 72001011 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 72001110 Contact Us For Availability
11
SPACER, COMP. DOOR HINGE WPL 72001099 Contact Us For Availability
11
HANGER, TOP BURNER WPL 72001137 Contact Us For Availability
12
SCREW WPL 7101P20960 Contact Us For Availability
12
LINING, COMPARTMENT WPL 72001101 Contact Us For Availability
12
3/16 X 80 TUBING WPL 0931201 Contact Us For Availability
13
BAFFLE, INNER SIDE WPL 72001100 Contact Us For Availability
13
KIT, TUBING W/LOXIT (3/8``) WPL 12001100 Contact Us For Availability
14
TOP, MAIN (WHT) WPL 72001025 Contact Us For Availability
14
VALVE, BURNER WPL 72001138 Contact Us For Availability
15
NUT WPL 7103P08260 Contact Us For Availability
15
KNOB, BURNER WPL 72001139 Contact Us For Availability
16
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
16
PIPE, MANIFOLD WPL 72001140 Contact Us For Availability
17
CATCH, COMPARTMENT DOOR WPL 72001028 Contact Us For Availability
17
BRACKET, MANIFOLD PIPE WPL 72001096 Contact Us For Availability
18
LINING, COMPARTMENT DOOR WPL 72001029 Contact Us For Availability
18
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
19
PIN, UPPER COMP. DOOR HINGE WPL 72001030 Contact Us For Availability
19
PILOT, TOP BURNER WPL 72001141 Contact Us For Availability
20
HANDLE, COMPARTMENT DOOR WPL 72001012 Contact Us For Availability
20
SHIELD, TOP BURNER PILOT WPL 72001142 Contact Us For Availability
21
INSERT, MANIFOLD PANEL WPL 72001014 Contact Us For Availability
21
PANEL, MANIFOLD (BLK) WPL 72001160 Contact Us For Availability
22
PANEL, COMPARTMENT DOOR (WHT) WPL 72001016 Contact Us For Availability
23
BRACKET, COMP. DOOR HINGE WPL 72001017 Contact Us For Availability
24
LOCKWASHER 1/4`` WPL 7109P03360 Contact Us For Availability
24
PIN, LOWER COMP. DOOR HINGE WPL 72001018 Contact Us For Availability
25
INSERT, BROILER PAN WPL 72001020 Contact Us For Availability
26
PAN, BROILER WPL 72001019 Contact Us For Availability
27
SPRING, BROILER DRAWER WPL 72001021 Contact Us For Availability
28
HINGE, BROILER DRAWER (LT) WPL 72001031 Contact Us For Availability
29
HINGE, BROILER DRAWER (RT) WPL 72001032 Contact Us For Availability
30
PANEL, BROILER DRAWER (WHT) WPL 72001034 Contact Us For Availability
31
LINING, BROILER DRAWER WPL 72001035 Contact Us For Availability
32
GLIDE, BROILER DRAWER WPL 72001036 Contact Us For Availability
33
DRAWER, BROILER WPL 72001037 Contact Us For Availability
34
SCREW WPL 7101P06860 Contact Us For Availability
34
HANDLE, BROILER DRAWER WPL 72001038 Contact Us For Availability
35
LEG, LEVELING WPL 74001311 Contact Us For Availability
36
SUPPORT, SIDE (L.R.) WPL 72001040 Contact Us For Availability
37
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
37
SUPPORT, SIDE (R.R.) WPL 72001041 Contact Us For Availability
38
INSULATION, BROILER DRAWER WPL 72001042 Contact Us For Availability
39
RUNNER, DRAWER (LT) WPL 72001043 Contact Us For Availability
40
RUNNER, DRAWER (RT) WPL 72001044 Contact Us For Availability
41
BOTTOM, OVEN WPL 72001045 Contact Us For Availability
42
RACK, OVEN WPL 72001046 Contact Us For Availability
43
FRONT, OVEN WPL 72001047 Contact Us For Availability
44
STRIKE WPL 72001026 Contact Us For Availability
46
WPL 72001050 WPL 72001050 Contact Us For Availability
47
WPL 72001051 WPL 72001051 Contact Us For Availability
48
WPL 7101P27460 WPL 7101P27460 Contact Us For Availability
48
WPL 72001121 WPL 72001121 Contact Us For Availability
49
WPL 8003P00460 WPL 8003P00460 Contact Us For Availability
× ![]()
