Model Whirlpool 4100PRW-K GAS RANGE – Common Parts & Diagrams
01 - BODY

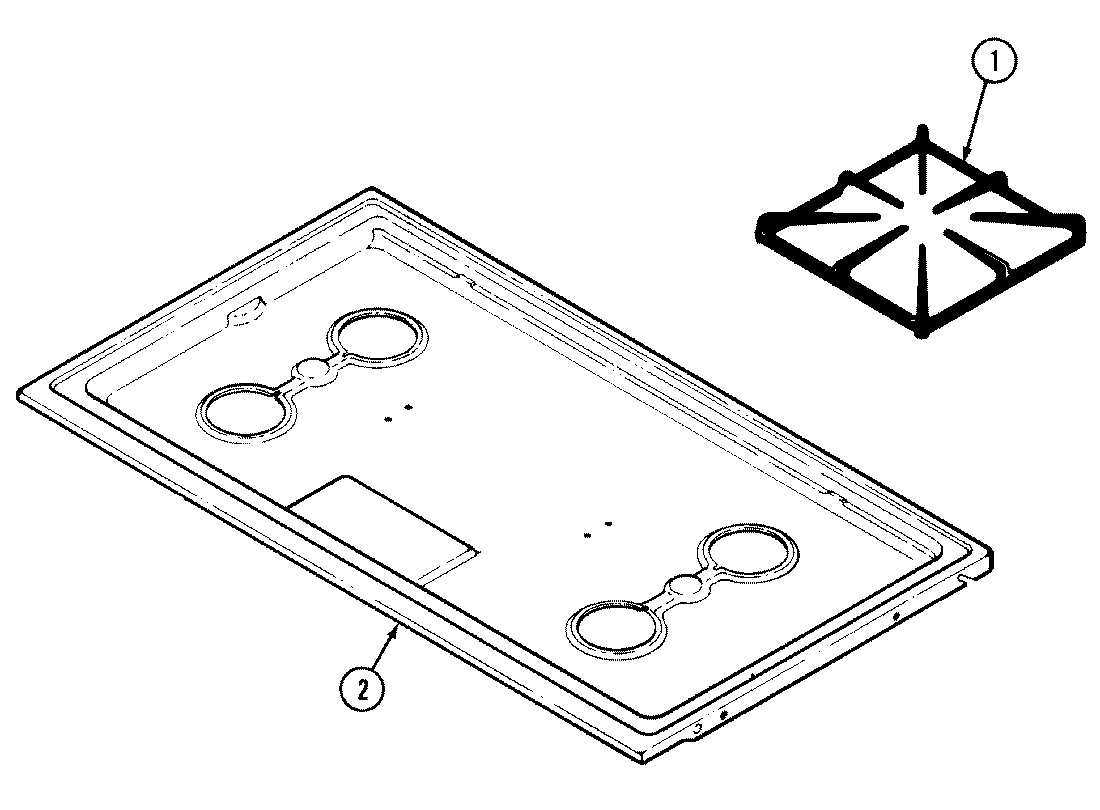

06 - TOP ASSY.

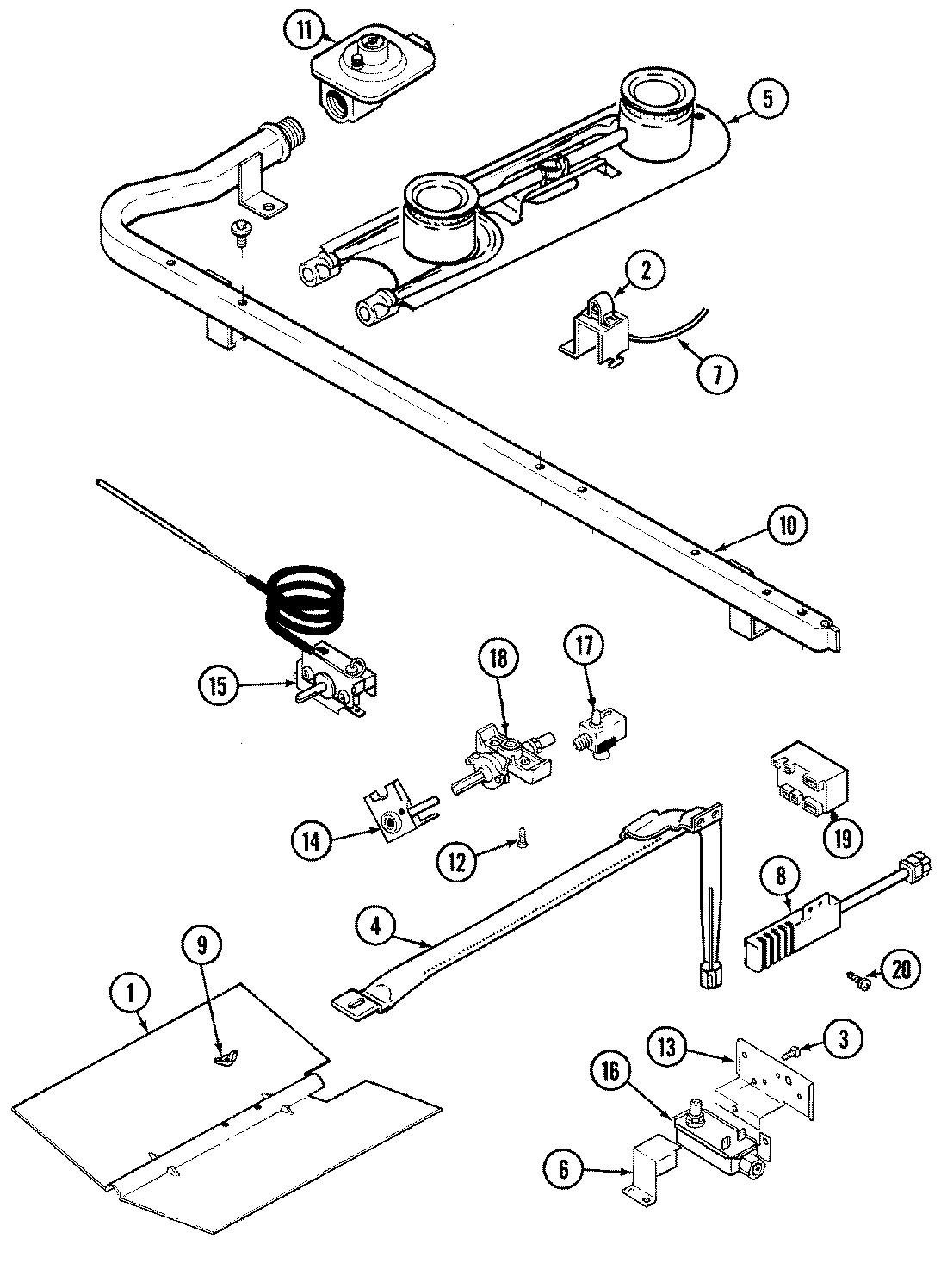

04 - GAS CONTROLS (ELECTRONIC)

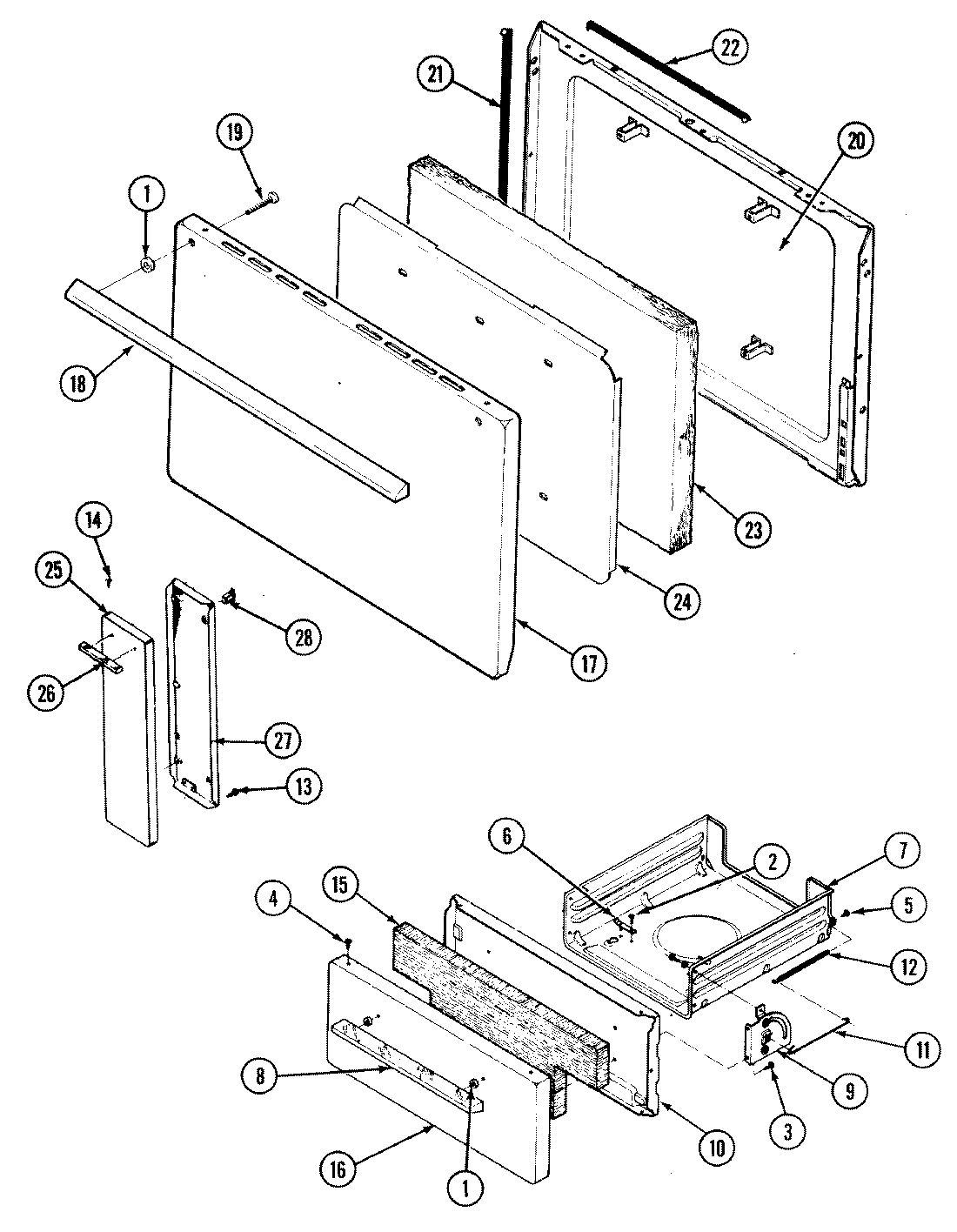

03 - DOOR/DRAWER

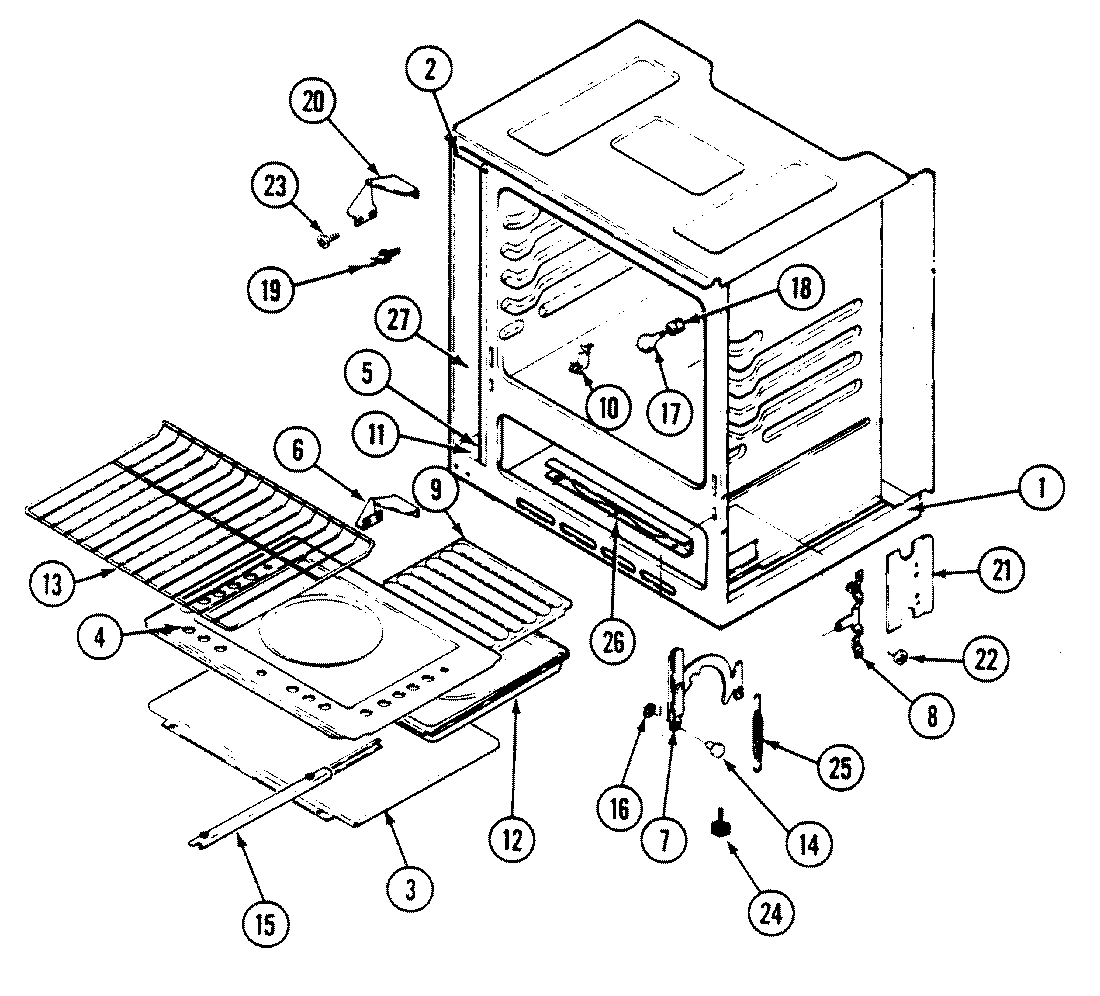

05 - OVEN

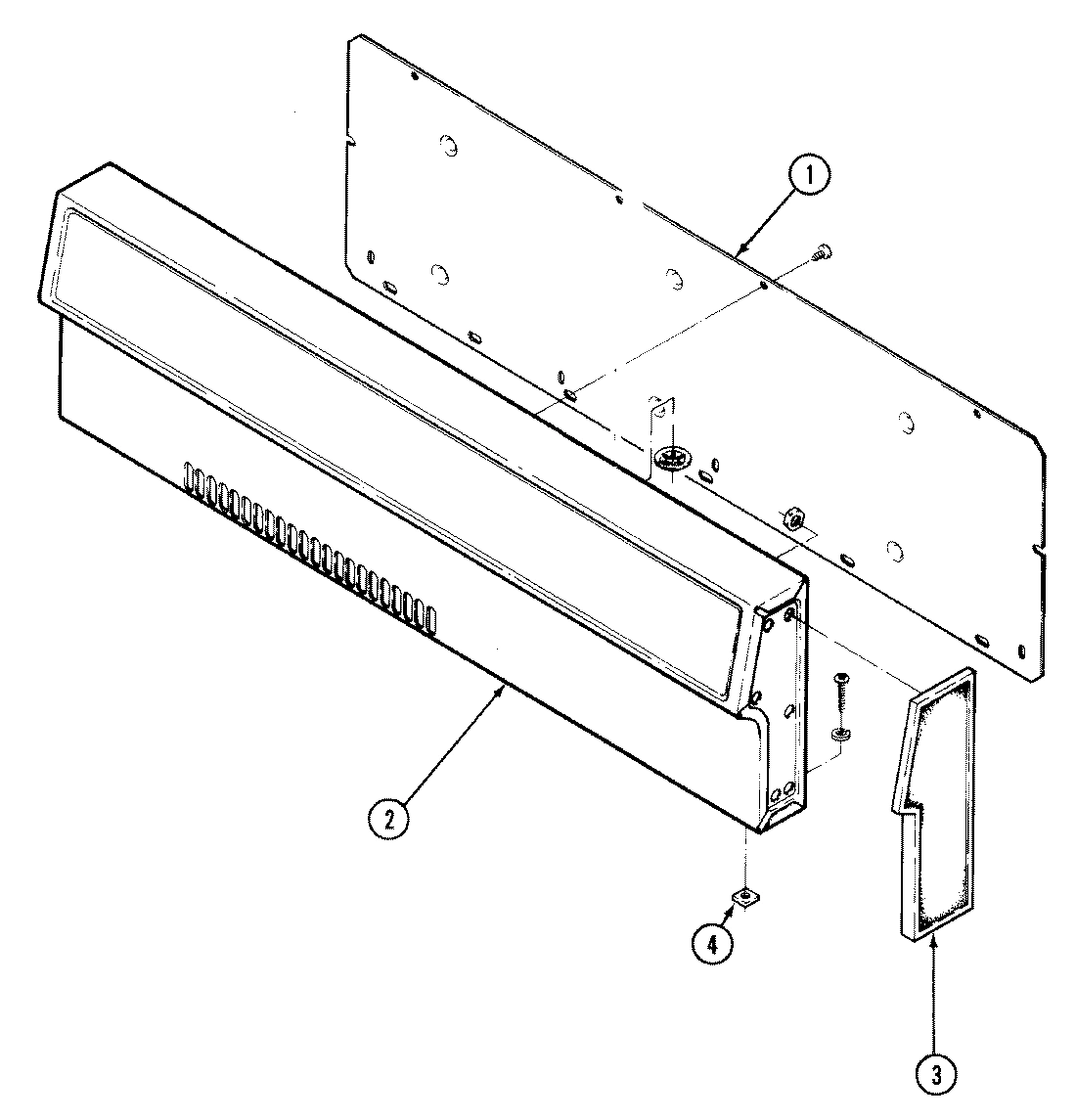

02 - CONTROL PANEL
Common parts from model Whirlpool 4100PRW-K GAS RANGE
1
BACK, MAIN WPL 4002F16880 Contact Us For Availability
1
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F21545 Contact Us For Availability
1
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
1
BRACE, BASE WPL 3802F01280 Contact Us For Availability
1
BASE ASSY. RANGE WPL 4003W00280 Contact Us For Availability
1
SCREW WPL 7101P00460 Contact Us For Availability
1
SHIELD WPL 4005F03680 Contact Us For Availability
2
BOX, BURNER WPL 4011F13580 Contact Us For Availability
2
TOP, MAIN WPL 2001F00701 Contact Us For Availability
2
SUPPORT WPL 3807F11234 Contact Us For Availability
2
SCREW WPL 7101P07660 Contact Us For Availability
2
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
2
BRACE COMPT. TOP WPL 3802F07280 Contact Us For Availability
2
PANEL, BACKGUARD WPL 2601W35181 Contact Us For Availability
3
FLUE ASSY. WPL 4006W01780 Contact Us For Availability
3
BRACE WPL 3802F01480 Contact Us For Availability
3
BOTTOM WPL 4011F14551 Contact Us For Availability
3
TRIM, BKGD. (LT) WPL 7726P00160 Contact Us For Availability
3
TRIM, BKGD. (RT) WPL 7726P01260 Contact Us For Availability
4
GASKET WPL 7201P00660 Contact Us For Availability
4
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01719 Contact Us For Availability
4
BAFFLE WPL 3601F01823 Contact Us For Availability
4
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
4
NUT WPL 7103P03460 Contact Us For Availability
5
BRACE TOP REAR WPL 3802F03870 Contact Us For Availability
5
BURNER, TOP WPL 3412A00419 Contact Us For Availability
5
SIDE, OVEN COMPARTMENT WPL 4016F01480 Contact Us For Availability
5
MANUAL, USE & CARE-INSERT WPL 8112P06860 Contact Us For Availability
5
MANUAL, USE & CARE WPL 8112P11460 Contact Us For Availability
6
BRACE WPL 3802F03734 Contact Us For Availability
6
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
6
CATCH WPL 8002P00160 Contact Us For Availability
6
HINGE WPL 7106P00360 Contact Us For Availability
6
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
7
HINGE, MAIN TOP R.H. WPL 5720A00234 Contact Us For Availability
7
HINGE, MAIN TOP L.H. WPL 5720A00934 Contact Us For Availability
7
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
7
DRAWER ASSY. WPL 3407W00411 Contact Us For Availability
7
SCREW WPL 7101P11460 Contact Us For Availability
7
STOP, OVEN DOOR WPL 3420A03534 Contact Us For Availability
8
SIDE, BURNER BOX RIGHT WPL 4016F00280 Contact Us For Availability
8
SIDE, BURNER BOX LEFT WPL 4016F00680 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
HINGE, OVEN DOOR (RT) WPL 3418A06934 Contact Us For Availability
8
HINGE, OVEN DOOR (LT) WPL 3418A07034 Contact Us For Availability
8
SCREW WPL 7101P07160 Contact Us For Availability
9
TRIM, LEFT WPL 7720P05560 Contact Us For Availability
9
TRIM, RIGHT WPL 7720P05860 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
9
HINGE, BROILER (LT) WPL 3418A02734 Contact Us For Availability
9
HINGE, BROILER (RT) WPL 3418A02834 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
TRIM WPL 7720P05660 Contact Us For Availability
10
TRIM WPL 7720P05960 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P13960 Contact Us For Availability
10
LINING, BROILER WPL 2404F02023 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
TRIM WPL 2610F00132 Contact Us For Availability
11
TRIM WPL 2610F00232 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
LINK, BROILER WPL 7807P00160 Contact Us For Availability
11
BOTTOM, COMPARTMENT WPL 4011F13180 Contact Us For Availability
12
PANEL, MANIFOLD WHITE WPL 2616F05281 Contact Us For Availability
12
SCREW WPL 7118P00460 Contact Us For Availability
12
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
12
SPRING WPL 7803P01460 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
PANEL, SIDE WHITE WPL 2618F01371 Contact Us For Availability
13
SCREW, TRIM WPL 7101P25060 Contact Us For Availability
13
SUPPORT, OVEN VALVE WPL 3807F41834 Contact Us For Availability
13
BUMPER WPL 8003P00360 Contact Us For Availability
13
RACK, OVEN WPL 7801P01360 Contact Us For Availability
14
BAFFLE WPL 3601F06051 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
BOX, DISCONNECT WPL 4006F00580 Contact Us For Availability
15
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
15
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
15
INSULATION WPL 7002P00260 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW 6-32X.625 TY23PH WPL 7101P01560 Contact Us For Availability
16
CORD, POWER WPL 7402P01160 Contact Us For Availability
16
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
16
VALVE, OVEN (LP) WPL 7501P01460 Contact Us For Availability
16
VALVE, OVEN (NATURAL) WPL 7501P01560 Contact Us For Availability
16
VALVE, OVEN (LP) WPL 7501P13560 Contact Us For Availability
16
VALVE, OVEN (NATURAL) WPL 7501P13660 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2403F02971 Contact Us For Availability
16
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
17
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
17
PANEL, OVEN DR-N WPL 2401F04171 Contact Us For Availability
17
BULB, OVEN WPL 7407P09560 Contact Us For Availability
18
BRACKET WPL 3801F05334 Contact Us For Availability
18
VALVE, NATURAL WPL 7502P17760 Contact Us For Availability
18
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
18
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
19
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
19
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
19
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
19
CATCH WPL 8024P00260 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7731P05460 Contact Us For Availability
20
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
20
LINING, DOOR WPL 2402W16619 Contact Us For Availability
20
HINGE WPL 7106P00760 Contact Us For Availability
21
KNOB, VALVE WPL 7733P00260 Contact Us For Availability
21
KNOB, VALVE WPL 7733P08860 Contact Us For Availability
21
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
21
NUT WPL 7103P06460 Contact Us For Availability
21
GUARD, HINGE WPL 3609F00361 Contact Us For Availability
21
SCREW, COUNTERWEIGHT WPL 7101P12760 Contact Us For Availability
22
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
22
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
CLIP, SEAL WPL 7112P06460 Contact Us For Availability
22
SEAL, OVEN DOOR WPL 7212P02560 Contact Us For Availability
22
SCREW WPL 7101P11260 Contact Us For Availability
23
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
23
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
24
BAFFLE WPL 3601F02551 Contact Us For Availability
24
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
25
PANEL WPL 2409F01071 Contact Us For Availability
25
SPRING WPL 7803P00360 Contact Us For Availability
26
HANDLE, COMPARTMENT DOOR WPL 7701P00960 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM WPL 5720A00211 Contact Us For Availability
27
SCREW WPL 7101P05860 Contact Us For Availability
27
LINING WPL 2408F00680 Contact Us For Availability
27
UPRIGHT, FRONT CORNER WPL 3822F00180 Contact Us For Availability
27
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
27
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
28
CATCH, FEMALE WPL 8002P01360 Contact Us For Availability
× ![]()
