Model LG 40WP95C-W – Common Parts & Diagrams

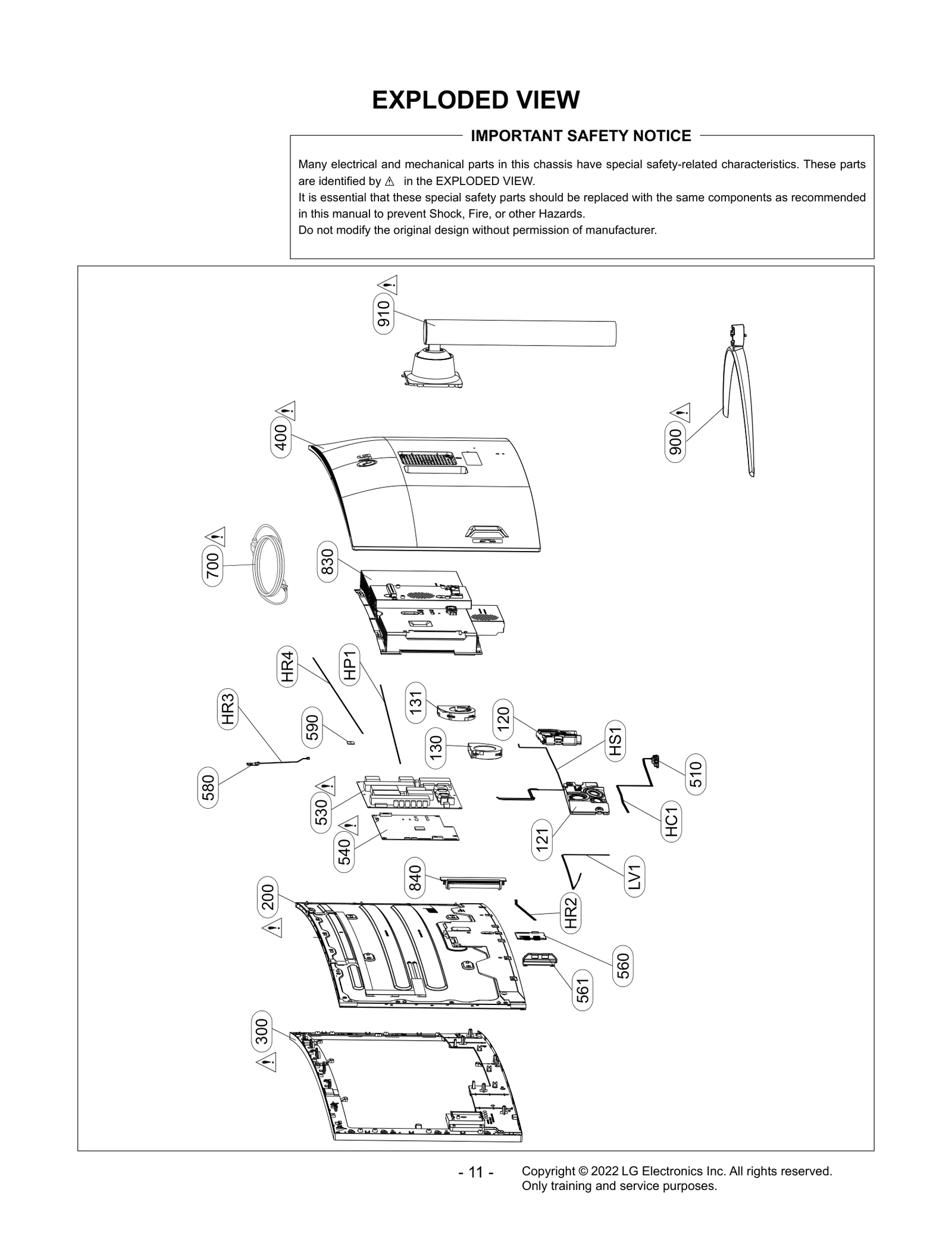

Diagram 0
Diagram 1
Common parts from model LG 40WP95C-W
121
Speaker Assembly LGE EAB65821502 Contact Us For Availability
130
Fan Module LGE EAL61800811 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65714601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76750001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30233301 Contact Us For Availability
540
Main Board,BPR Total Assembly LGE EBU66304702 Contact Us For Availability
560
PCB Assembly,USB LGE EBR33315501 Contact Us For Availability
561
Cover LGE MCK71467501 Contact Us For Availability
580
Auto SMT PCB Assembly,Sub LGE EBR86424402 Contact Us For Availability
590
Lens LGE MFB65093201 Contact Us For Availability
700
Power Cord,Detach LGE EAD64005901 Contact Us For Availability
830
Frame Assembly LGE ADV30028101 Contact Us For Availability
840
Cover LGE MCK70125001 Contact Us For Availability
900
Base Assembly LGE AAN30022801 Contact Us For Availability
910
Base Assembly LGE AAN30022901 Contact Us For Availability
920
Package Assembly LGE AGF79358855 Contact Us For Availability
A1
Manual Assembly LGE AFN30046101 Contact Us For Availability
A4
Card LGE MBM64637211 Contact Us For Availability
A7
Card LGE 3840TWL027W Contact Us For Availability
A8
Cable,Assembly LGE EAD65185202 Contact Us For Availability
A9
Card LGE MBM65360315 Contact Us For Availability
A10
Card LGE MBM67505002 Contact Us For Availability
A11
Card LGE MBM67500001 Contact Us For Availability
A16
Cable,Assembly LGE EAD64766101 Contact Us For Availability
HP1
Harness,Single LGE EAD62595405 Contact Us For Availability
HR3
Harness,Single LGE EAD52821205 Contact Us For Availability
HS1
Harness,Multi LGE EAD65285202 Contact Us For Availability
LV1
Harness,Single LGE EAD63967306 Contact Us For Availability
MT1
Tape,Double Faced LGE RAB34873121 Contact Us For Availability
× ![]()
