Model LG 40LX560H – Common Parts & Diagrams

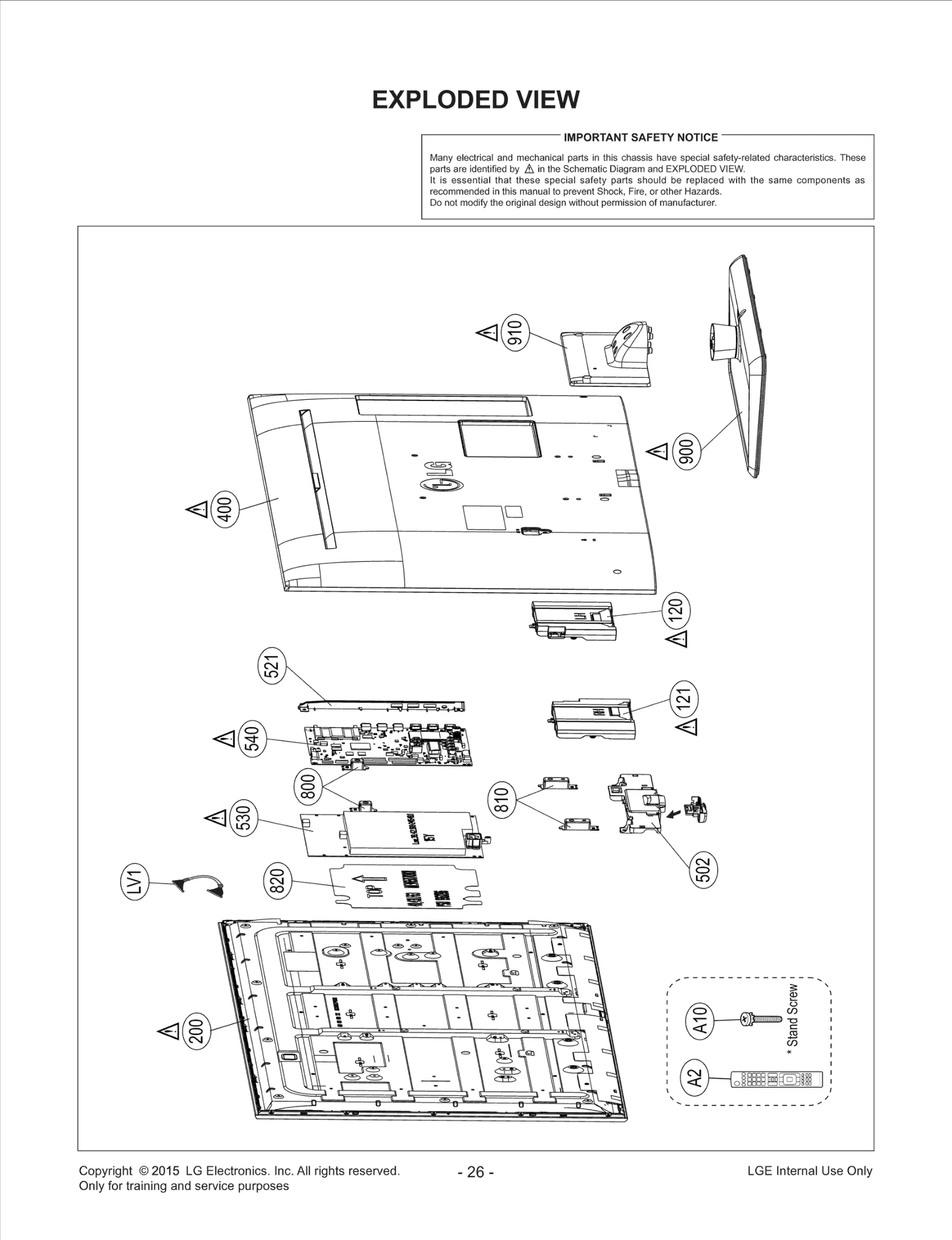

Diagram 0
Diagram 1
Common parts from model LG 40LX560H
200A
Package Assembly,LED Array LGE AGF79044001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87693946 Contact Us For Availability
502
Cover Assembly,Rear LGE ACQ87646378 Contact Us For Availability
521
Bracket Assembly LGE ABA75528363 Contact Us For Availability
530
Power Supply Assembly LGE EAY63630401 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU63224403 Contact Us For Availability
810
Supporter,VESA LGE MJH63693401 Contact Us For Availability
820
Insulator LGE MEV65070802 Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C5014
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5625
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
D100
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
L415
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
N/A
Pin,Customized LGE 366-017A Contact Us For Availability
N/A1
Bag LGE 373-071D Contact Us For Availability
P3300
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
Q401
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q403
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
× ![]()
