Model Maytag 3RATW3005TQ0 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS
02 - CONTROLS AND REAR PANEL PARTS

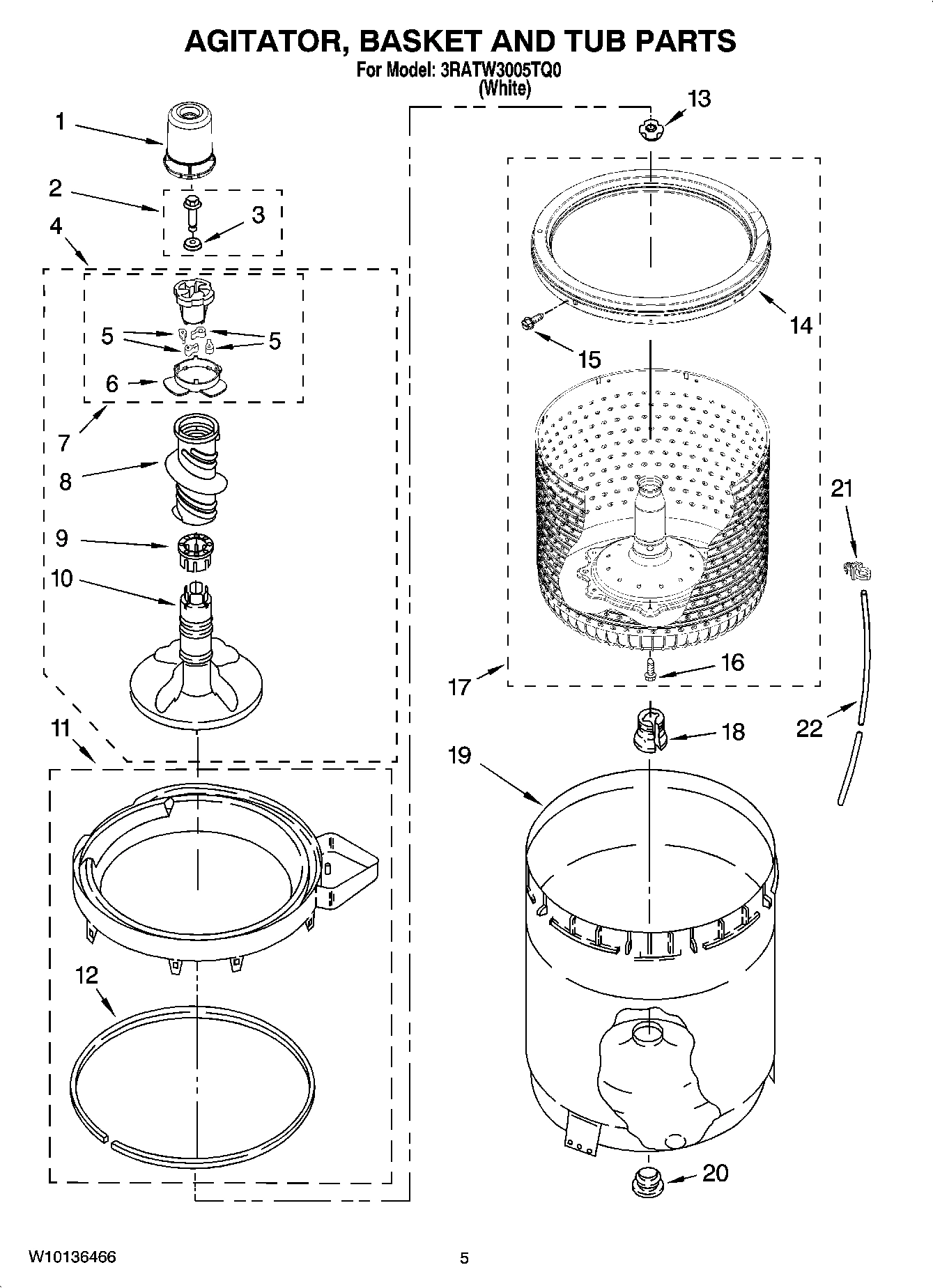

03 - AGITATOR, BASKET AND TUB PARTS

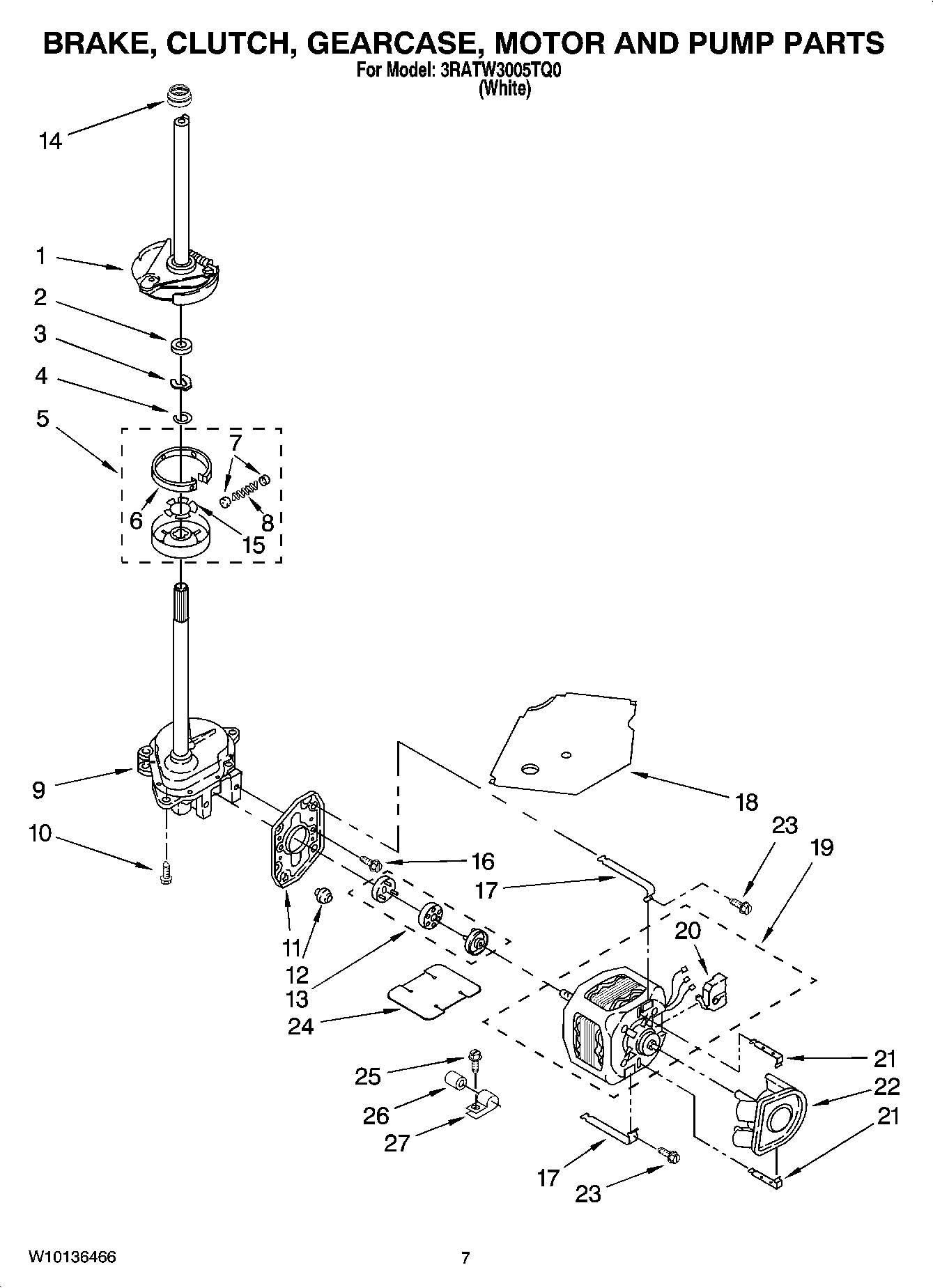

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

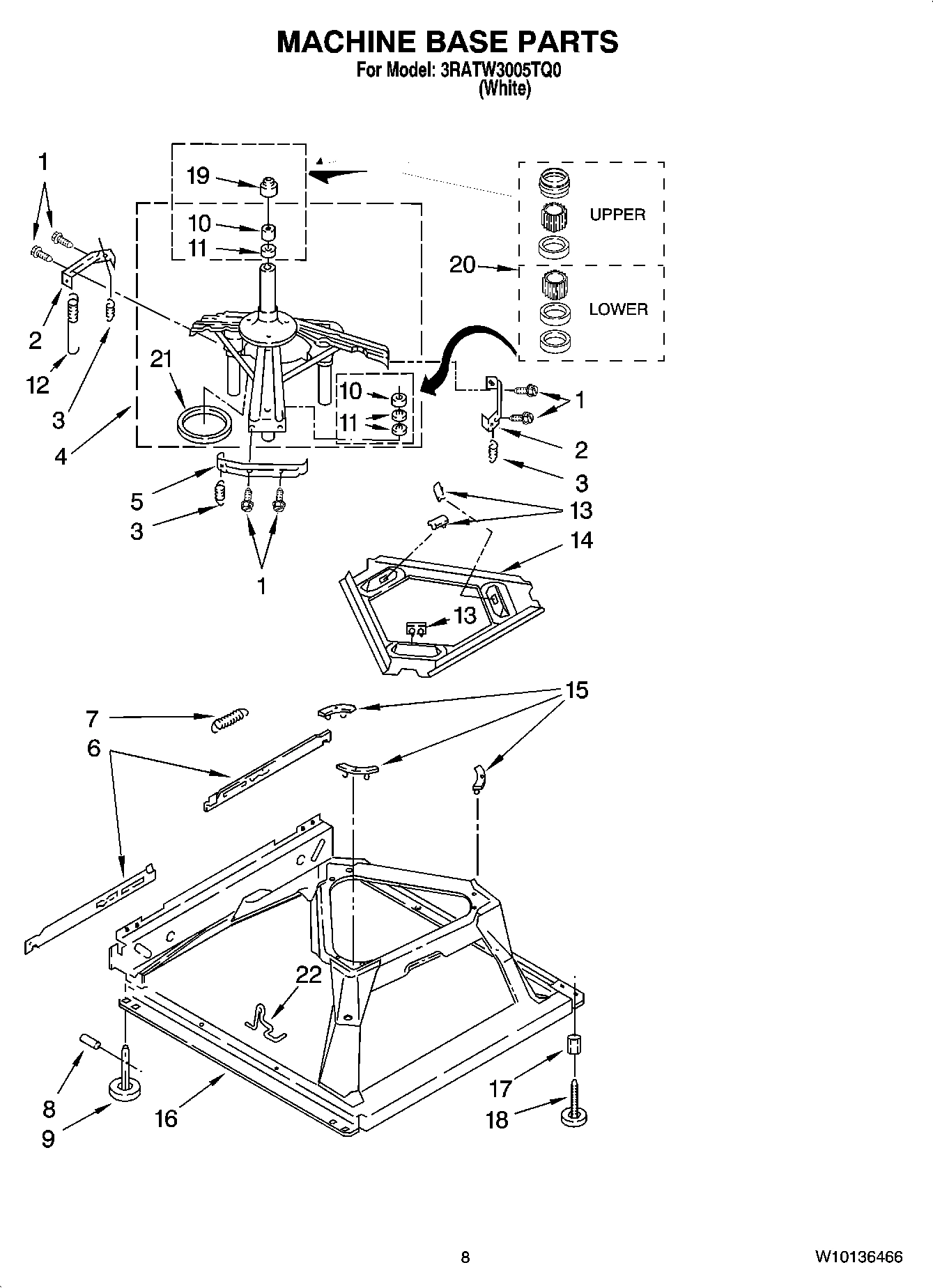

05 - MACHINE BASE PARTS

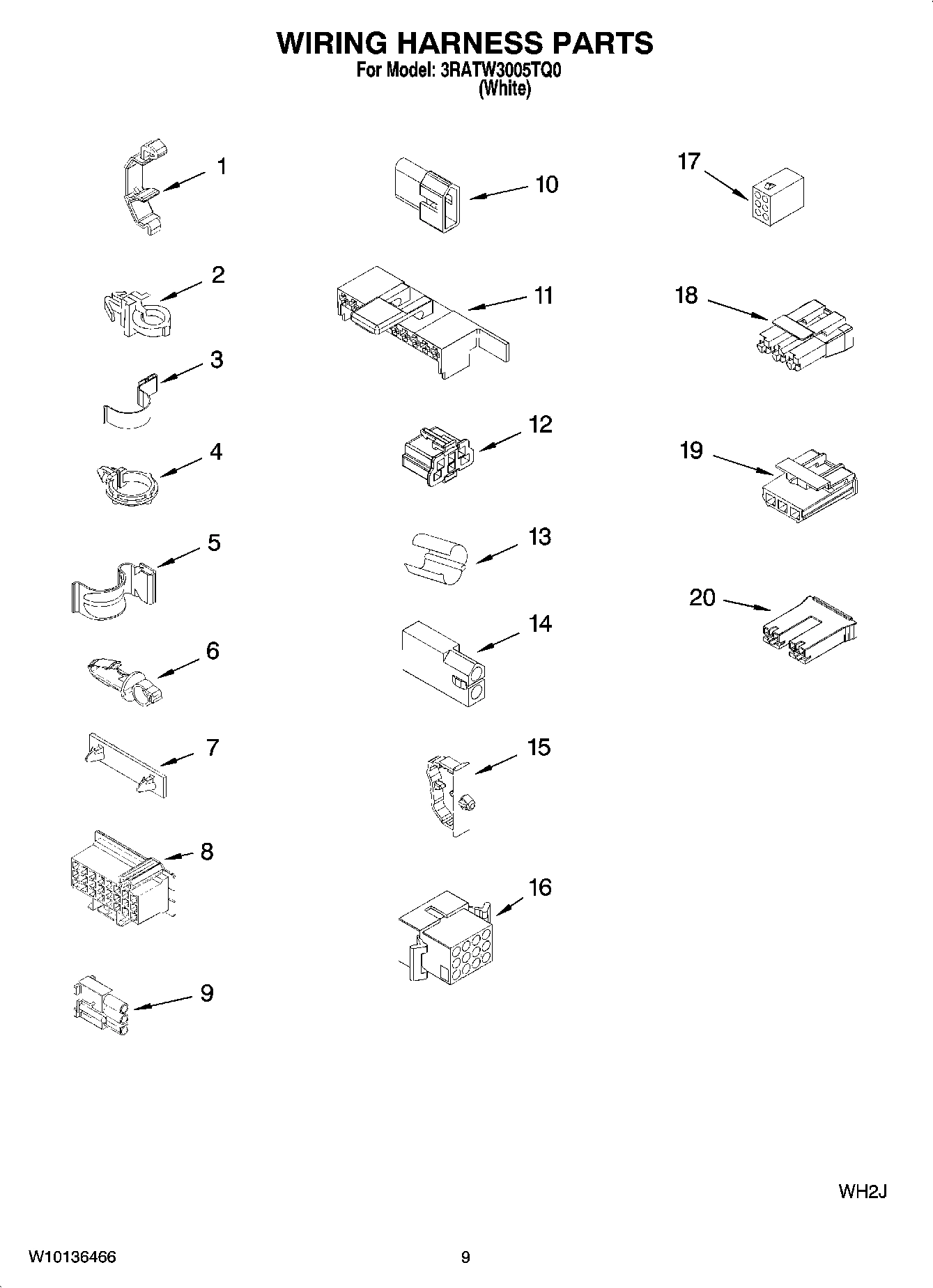

06 - WIRING HARNESS PARTS

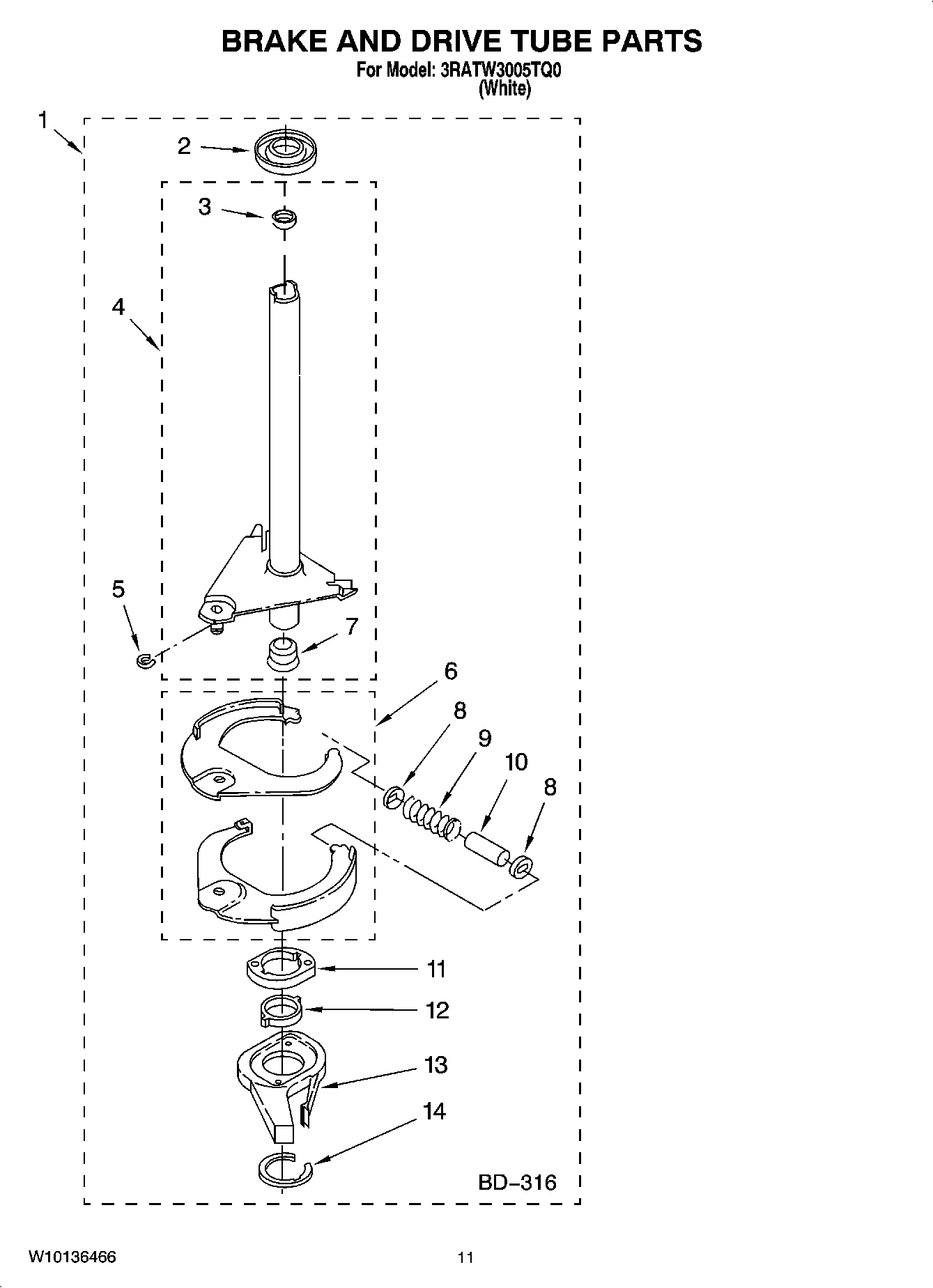

07 - BRAKE AND DRIVE TUBE PARTS

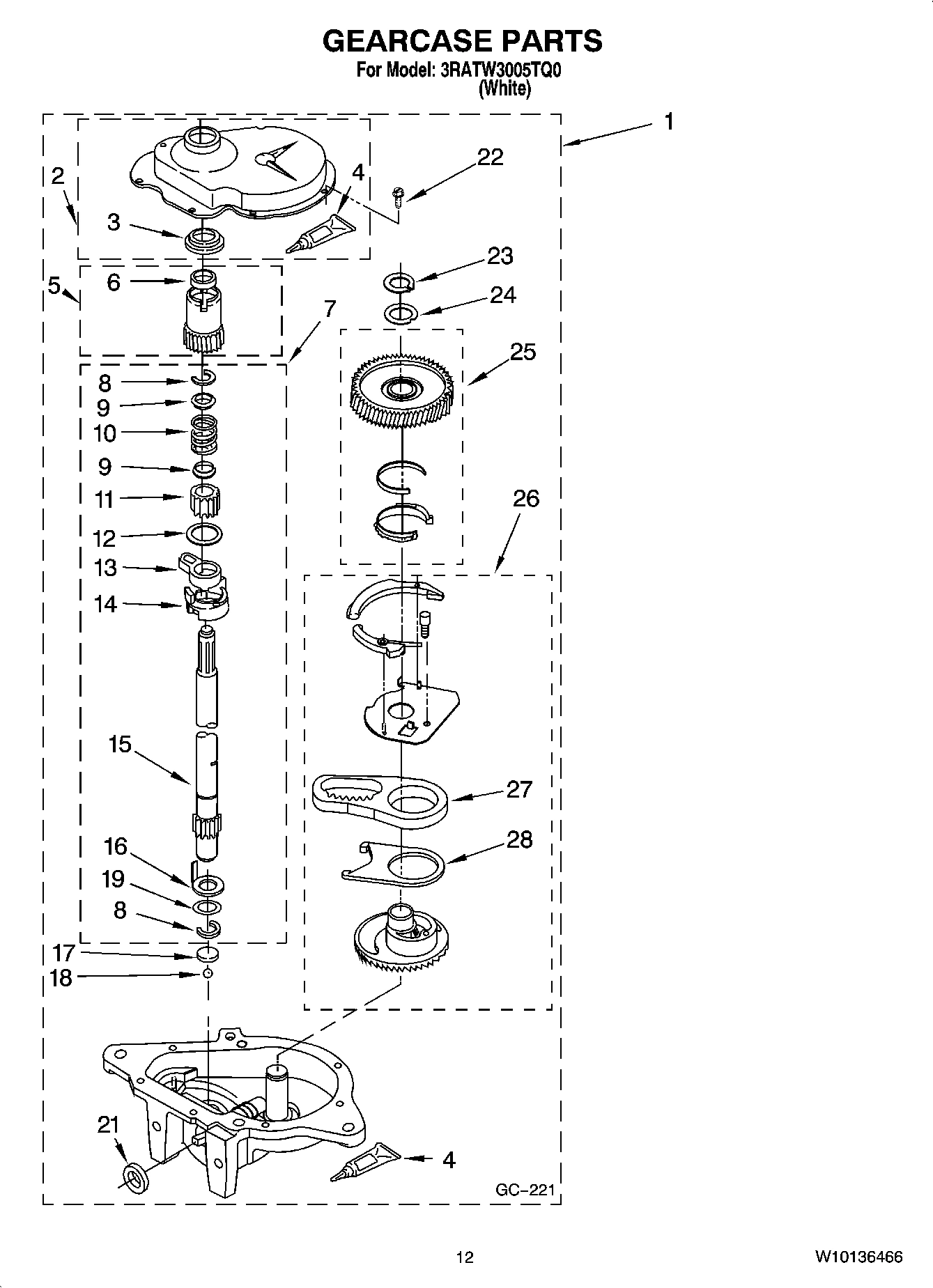

08 - GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 3RATW3005TQ0 WASHER
1
MAY W10106690 MAY W10106690 Contact Us For Availability
1
MAY W10131547 MAY W10131547 Contact Us For Availability
1
MAY W10131568 MAY W10131568 Contact Us For Availability
1
MAY W10131569 MAY W10131569 Contact Us For Availability
1
MAY W10131584 MAY W10131584 Contact Us For Availability
1
Hose, Water Inlet (Red) MAY 3949382 Contact Us For Availability
1
Hose, Water Inlet (Blue) MAY 3949383 Contact Us For Availability
1
MAY 8533252 MAY 8533252 Contact Us For Availability
1
Brake And Drive Tube (Complete) MAY W10117003 Contact Us For Availability
1
Gearcase (Complete) MAY W10116916 Contact Us For Availability
1
MAY W10080750 MAY W10080750 Contact Us For Availability
1
Retainer, Harness MAY 3349557 Contact Us For Availability
2
MAY 9724509 MAY 9724509 Contact Us For Availability
2
Adapter, Water Inlet Hose MAY 3357397 Contact Us For Availability
2
Screw & Washer (5/16-24 x 1) MAY W10003790 Contact Us For Availability
2
MAY 63292 MAY 63292 Contact Us For Availability
2
MAY 64067 MAY 64067 Contact Us For Availability
2
MAY 388498 MAY 388498 Contact Us For Availability
2
MAY 62658 MAY 62658 Contact Us For Availability
2
MAY 285202 MAY 285202 Contact Us For Availability
3
MAY W10115243 MAY W10115243 Contact Us For Availability
3
WASHER, WATER INLET HOSE 1-1/16 X 5/8 MAY 3976300 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10080230 MAY W10080230 Contact Us For Availability
3
SPRING, SUSPENSION(3) MAY 63907 Contact Us For Availability
3
MAY 3347812 MAY 3347812 Contact Us For Availability
3
MAY 3349985 MAY 3349985 Contact Us For Availability
4
MAY W10119828 MAY W10119828 Contact Us For Availability
4
MAY 8577378 MAY 8577378 Contact Us For Availability
4
Agitator(Complete) MAY W10093671 Contact Us For Availability
4
MAY 63283 MAY 63283 Contact Us For Availability
4
MAY W10117005 MAY W10117005 Contact Us For Availability
4
Clip, Harness (Push-In) MAY 3352501 Contact Us For Availability
4
MAY W10117001 MAY W10117001 Contact Us For Availability
5
MAY 8319539 MAY 8319539 Contact Us For Availability
5
Strap, Console (2) MAY 8568314 Contact Us For Availability
5
MAY 3366877 MAY 3366877 Contact Us For Availability
5
MAY W10116968 MAY W10116968 Contact Us For Availability
5
MAY 64065 MAY 64065 Contact Us For Availability
5
Clip, Harness (Half-Harness) MAY 90016 Contact Us For Availability
5
MAY W10083190 MAY W10083190 Contact Us For Availability
5
MAY 63320 MAY 63320 Contact Us For Availability
6
MAY 8318015 MAY 8318015 Contact Us For Availability
6
BEARING, DRIVEN CAM MAY 3363661 Contact Us For Availability
6
MAY W10118761 MAY W10118761 Contact Us For Availability
6
MAY 63466 MAY 63466 Contact Us For Availability
6
MAY 3390496 MAY 3390496 Contact Us For Availability
6
Seal, Spin Pinion MAY 356427 Contact Us For Availability
6
MAY W10116995 MAY W10116995 Contact Us For Availability
7
MAY 8565967 MAY 8565967 Contact Us For Availability
7
MAY 62747 MAY 62747 Contact Us For Availability
7
Cam, Driven MAY 3363662 Contact Us For Availability
7
MAY 62646 MAY 62646 Contact Us For Availability
7
MAY 62597 MAY 62597 Contact Us For Availability
7
Retainer, Harness MAY 389379 Contact Us For Availability
7
MAY 8546462 MAY 8546462 Contact Us For Availability
7
SHAFT, AGITATOR COMPLETE MAY W10116913 Contact Us For Availability
8
MAY 8566016 MAY 8566016 Contact Us For Availability
8
MAY W10127860 MAY W10127860 Contact Us For Availability
8
MAY 3360824 MAY 3360824 Contact Us For Availability
8
MAY 3946792 MAY 3946792 Contact Us For Availability
8
MAY W10080920 MAY W10080920 Contact Us For Availability
8
MAY 352089 MAY 352089 Contact Us For Availability
8
Timer, Block Disconnect (Natural) MAY 3948614 Contact Us For Availability
8
MAY 3353956 MAY 3353956 Contact Us For Availability
8
MAY 90369 MAY 90369 Contact Us For Availability
9
MAY 62750 MAY 62750 Contact Us For Availability
9
MAY W10106010 MAY W10106010 Contact Us For Availability
9
Spacer, Thrust MAY 3350389 Contact Us For Availability
9
MAY W10083250 MAY W10083250 Contact Us For Availability
9
Receptacle, Terminal (3-Way) MAY 62889 Contact Us For Availability
9
MAY 387806 MAY 387806 Contact Us For Availability
9
Retainer, Spring (2) MAY 62677 Contact Us For Availability
10
Cabinet MAY 63424 Contact Us For Availability
10
MAY W10093670 MAY W10093670 Contact Us For Availability
10
MAY W10080600 MAY W10080600 Contact Us For Availability
10
MAY 8546455 MAY 8546455 Contact Us For Availability
10
Plug, Terminal (3-Way) MAY 353424 Contact Us For Availability
10
MAY 3355360 MAY 3355360 Contact Us For Availability
10
MAY 62676 MAY 62676 Contact Us For Availability
11
MAY W10080680 MAY W10080680 Contact Us For Availability
11
MAY W10080280 MAY W10080280 Contact Us For Availability
11
MAY 8528150 MAY 8528150 Contact Us For Availability
11
MAY 62611 MAY 62611 Contact Us For Availability
11
MAY 357409 MAY 357409 Contact Us For Availability
11
Block, Disconnect (Motor 2 Speed) MAY 62505 Contact Us For Availability
11
MAY 8546461 MAY 8546461 Contact Us For Availability
11
MAY W10110245 MAY W10110245 Contact Us For Availability
12
MAY 21097 MAY 21097 Contact Us For Availability
12
MAY 8577844 MAY 8577844 Contact Us For Availability
12
MAY 3976308 MAY 3976308 Contact Us For Availability
12
MAY 62691 MAY 62691 Contact Us For Availability
12
MAY 388492 MAY 388492 Contact Us For Availability
12
Block, Disconnect MAY 3347243 Contact Us For Availability
12
MAY 63022 MAY 63022 Contact Us For Availability
12
MAY W10080940 MAY W10080940 Contact Us For Availability
13
MAY 8559336 MAY 8559336 Contact Us For Availability
13
MAY 8559504 MAY 8559504 Contact Us For Availability
13
MAY 21366 MAY 21366 Contact Us For Availability
13
Coupling, Motor & Isolation MAY 3364003 Contact Us For Availability
13
MAY 62568 MAY 62568 Contact Us For Availability
13
MAY 63523 MAY 63523 Contact Us For Availability
13
MAY 64194 MAY 64194 Contact Us For Availability
13
Cam Follower (Includes Item 14) MAY 62580 Contact Us For Availability
14
MAY 8318084 MAY 8318084 Contact Us For Availability
14
MAY W10111552 MAY W10111552 Contact Us For Availability
14
MAY W10116946 MAY W10116946 Contact Us For Availability
14
MAY 8577374 MAY 8577374 Contact Us For Availability
14
Plate, Suspension (Includes Item 13) MAY 3946509 Contact Us For Availability
14
Connector (2-Way) MAY 717252 Contact Us For Availability
14
MAY W10083200 MAY W10083200 Contact Us For Availability
14
MAY 3976349 MAY 3976349 Contact Us For Availability
15
MAY W10080590 MAY W10080590 Contact Us For Availability
15
MAY 8559337 MAY 8559337 Contact Us For Availability
15
MAY 3352944 MAY 3352944 Contact Us For Availability
15
MAY W10137113 MAY W10137113 Contact Us For Availability
15
MAY 3355454 MAY 3355454 Contact Us For Availability
15
MAY 3363660 MAY 3363660 Contact Us For Availability
15
MAY 389231 MAY 389231 Contact Us For Availability
16
Absorber, Sound (Cabinet) MAY 3976348 Contact Us For Availability
16
MAY W10128464 MAY W10128464 Contact Us For Availability
16
MAY W10112537 MAY W10112537 Contact Us For Availability
16
MAY W10080610 MAY W10080610 Contact Us For Availability
16
MAY W10116943 MAY W10116943 Contact Us For Availability
16
Block, Disconnect (12-Way) MAY 3390423 Contact Us For Availability
16
MAY 62618 MAY 62618 Contact Us For Availability
17
MAY 91770 MAY 91770 Contact Us For Availability
17
MAY W10128463 MAY W10128463 Contact Us For Availability
17
MAY W10042080 MAY W10042080 Contact Us For Availability
17
MAY W10086010 MAY W10086010 Contact Us For Availability
17
MAY W10080250 MAY W10080250 Contact Us For Availability
17
Receptacle (6-Way) MAY 3347730 Contact Us For Availability
17
Bearing, Thrust (Includes Item 18) MAY 16018 Contact Us For Availability
18
MAY 62780 MAY 62780 Contact Us For Availability
18
MAY 3360397 MAY 3360397 Contact Us For Availability
18
MAY 389140 MAY 389140 Contact Us For Availability
18
MAY 3362089 MAY 3362089 Contact Us For Availability
18
MAY W10080910 MAY W10080910 Contact Us For Availability
18
Connector (T.P.A.) (3-Circuit) MAY 3948617 Contact Us For Availability
18
Ball, Bearing (Includes Item 17) MAY 85529 Contact Us For Availability
19
MAY 3951198 MAY 3951198 Contact Us For Availability
19
MAY 63849 MAY 63849 Contact Us For Availability
19
MAY 3950297 MAY 3950297 Contact Us For Availability
19
MAY 8577376 MAY 8577376 Contact Us For Availability
19
Plug (T.P.A) (3-Circuit) (Pressure Switch) MAY 3360056 Contact Us For Availability
19
MAY W10080950 MAY W10080950 Contact Us For Availability
20
MAY W10129041 MAY W10129041 Contact Us For Availability
20
MAY 383727 MAY 383727 Contact Us For Availability
20
MAY 8529896 MAY 8529896 Contact Us For Availability
20
Centerpost Bearing Kit (Includes Items 10, 11 MAY 285203 Contact Us For Availability
20
Block, Connector (Natural) MAY 3354925 Contact Us For Availability
20
Block, Connector (Red) MAY 3354926 Contact Us For Availability
21
MAY W10096851 MAY W10096851 Contact Us For Availability
21
MAY 2219077 MAY 2219077 Contact Us For Availability
21
MAY 8546127 MAY 8546127 Contact Us For Availability
21
MAY 63134 MAY 63134 Contact Us For Availability
21
MAY 285352 MAY 285352 Contact Us For Availability
22
Screw, Gearcase Cover Mounting (8) (10-24 x 3 MAY W10080580 Contact Us For Availability
22
MAY 8541607 MAY 8541607 Contact Us For Availability
22
MAY 3347780 MAY 3347780 Contact Us For Availability
22
MAY 3363394 MAY 3363394 Contact Us For Availability
22
MAY W10145155 MAY W10145155 Contact Us For Availability
23
MAY W10096852 MAY W10096852 Contact Us For Availability
23
MAY W10080650 MAY W10080650 Contact Us For Availability
23
MAY 3946619 MAY 3946619 Contact Us For Availability
24
MAY 387606 MAY 387606 Contact Us For Availability
24
MAY 8316060 MAY 8316060 Contact Us For Availability
24
MAY 285766 MAY 285766 Contact Us For Availability
25
MAY 8541669 MAY 8541669 Contact Us For Availability
25
Screw, 10-16 x 5/16 MAY W10080260 Contact Us For Availability
25
MAY 63400 MAY 63400 Contact Us For Availability
26
MAY 8541658 MAY 8541658 Contact Us For Availability
26
MAY 8572719 MAY 8572719 Contact Us For Availability
26
MAY 3948434 MAY 3948434 Contact Us For Availability
27
MAY 8541667 MAY 8541667 Contact Us For Availability
27
MAY W10083210 MAY W10083210 Contact Us For Availability
27
MAY 8546456 MAY 8546456 Contact Us For Availability
28
MAY 8541668 MAY 8541668 Contact Us For Availability
28
MAY 62621 MAY 62621 Contact Us For Availability
29
MAY 3347868 MAY 3347868 Contact Us For Availability
30
MAY W10094820 MAY W10094820 Contact Us For Availability
31
MAY W10112110 MAY W10112110 Contact Us For Availability
32
MAY W10116973 MAY W10116973 Contact Us For Availability
33
MAY 8519200 MAY 8519200 Contact Us For Availability
34
MAY W10168263 MAY W10168263 Contact Us For Availability
35
Switch, Rotary MAY W10168262 Contact Us For Availability
36
MAY 3400818 MAY 3400818 Contact Us For Availability
37
MAY W10130933 MAY W10130933 Contact Us For Availability
38
MAY 8314879 MAY 8314879 Contact Us For Availability
39
MAY W10115414 MAY W10115414 Contact Us For Availability
40
MAY 8055003 MAY 8055003 Contact Us For Availability
41
MAY 357572 MAY 357572 Contact Us For Availability
42
MAY 3398893 MAY 3398893 Contact Us For Availability
44
MAY W10110061 MAY W10110061 Contact Us For Availability
45
MAY W10110062 MAY W10110062 Contact Us For Availability
46
MAY W10110063 MAY W10110063 Contact Us For Availability
47
MAY 8536939 MAY 8536939 Contact Us For Availability
49
MAY W10133461 MAY W10133461 Contact Us For Availability
NI
Lubricant (Use Only in Brake Shoe Assembly On MAY 285208 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 280129 MAY 280129 Contact Us For Availability
NI
MAY 280130 MAY 280130 Contact Us For Availability
NI
MAY 280131 MAY 280131 Contact Us For Availability
NI
MAY 350572 MAY 350572 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Drain Protector MAY 367031 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
