Model Maytag 3LMVWC400YW1 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS

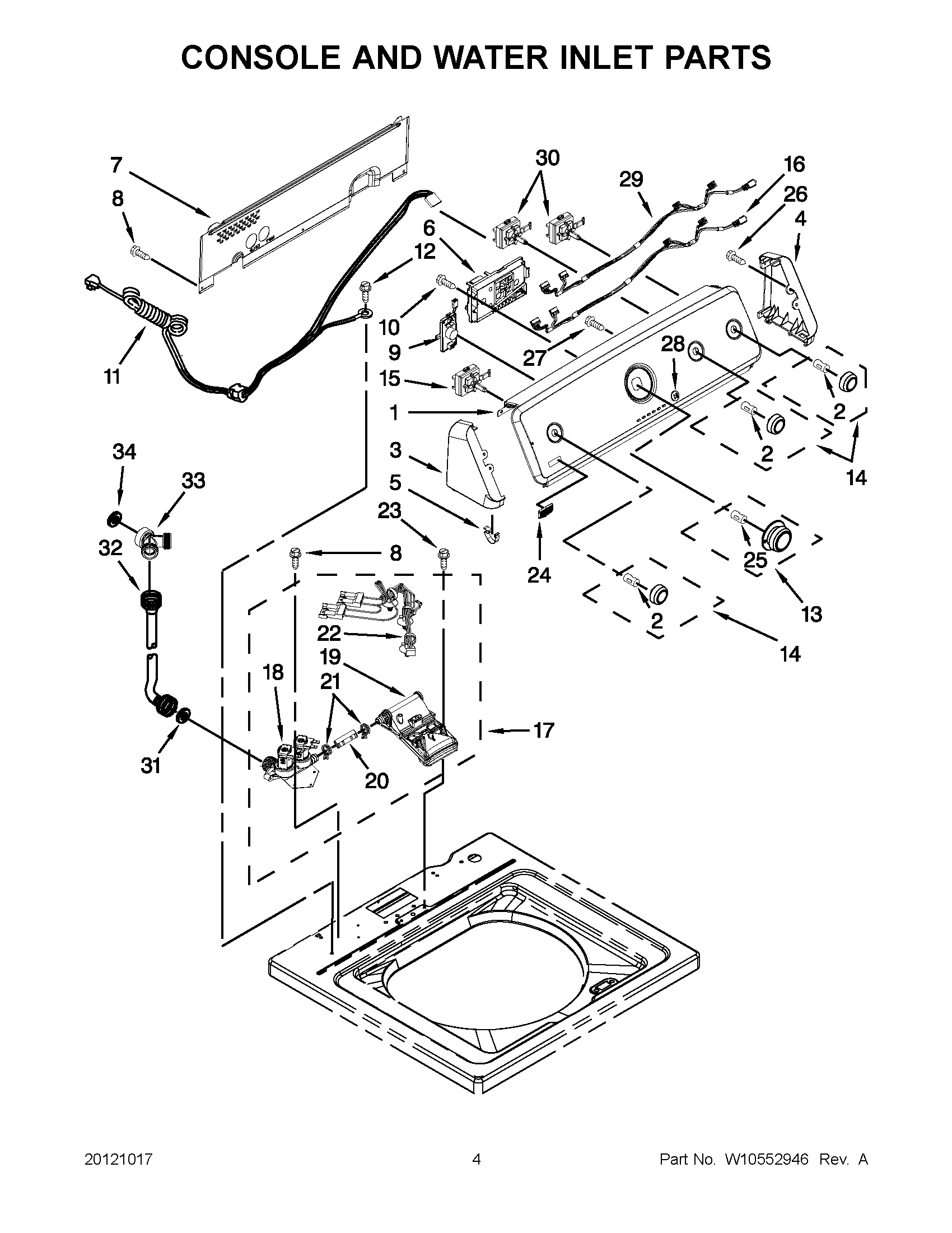

02 - CONSOLE AND WATER INLET PARTS

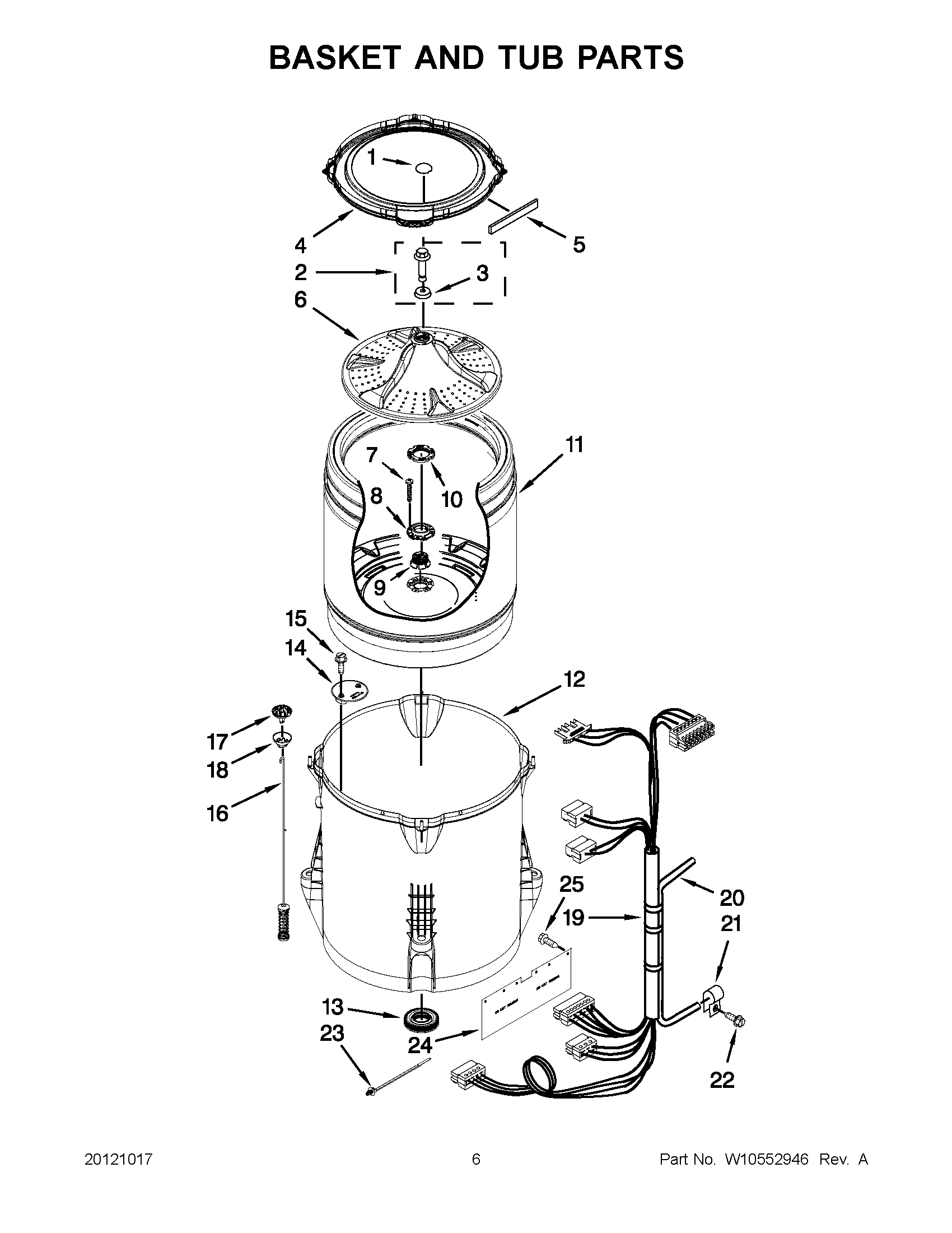

03 - BASKET AND TUB PARTS

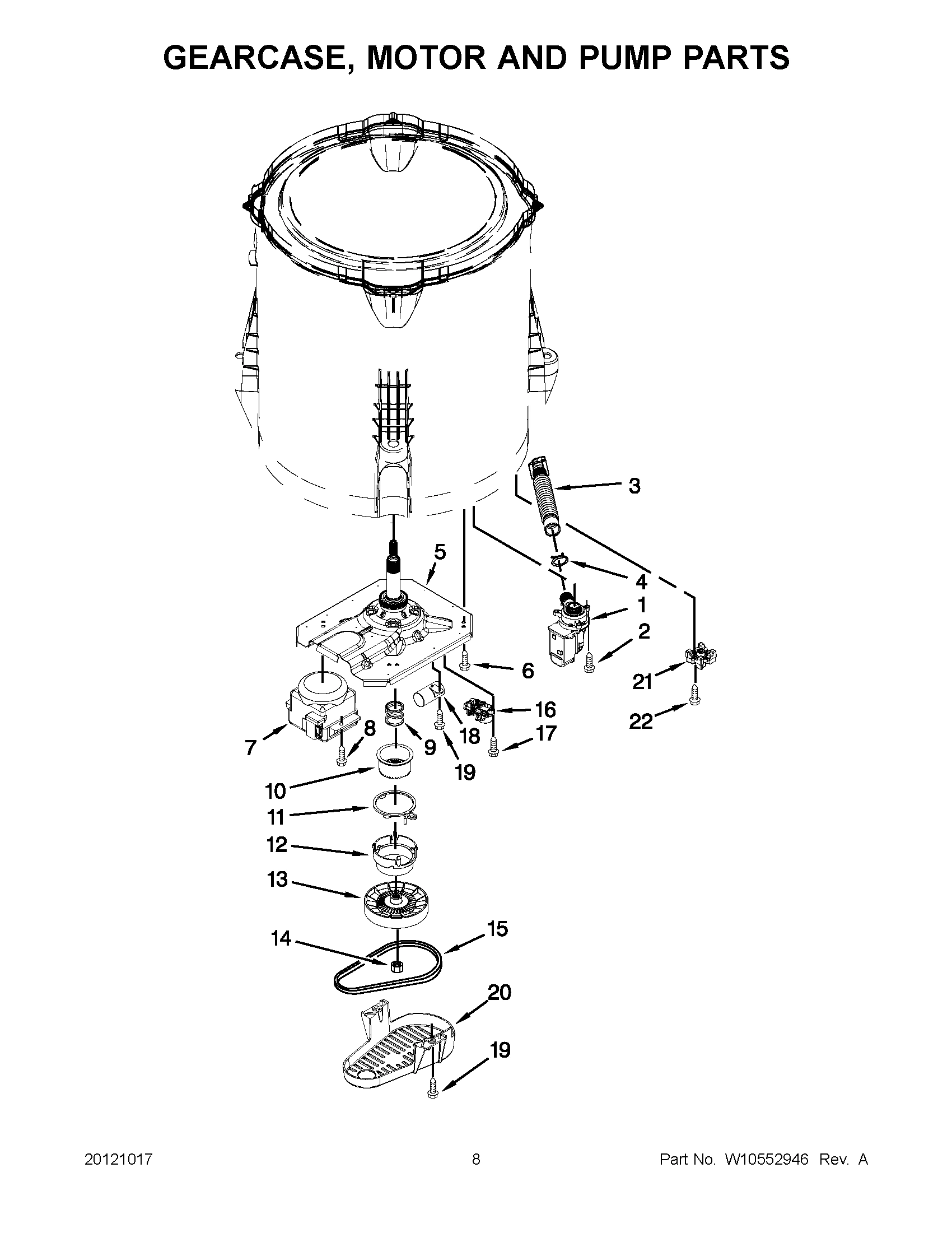

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 3LMVWC400YW1 WASHER
1
MAY W10454255 MAY W10454255 Contact Us For Availability
1
MAY W10475873 MAY W10475873 Contact Us For Availability
1
MAY W10481208 MAY W10481208 Contact Us For Availability
1
MAY W10464667 MAY W10464667 Contact Us For Availability
1
HINGE, SPRING ASSEMBLY MAY W10305251 Contact Us For Availability
1
MAY W10292579 MAY W10292579 Contact Us For Availability
2
MAY W10251319 MAY W10251319 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
SCREW & WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID & BUMPER ASSEMBLY (WHITE) MAY W10027624 Contact Us For Availability
3
CAP, END (L.H.) MAY W10193826 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
CAP, END (R.H.) MAY W10193823 Contact Us For Availability
4
TUB RING MAY W10215146 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10205824 MAY W10205824 Contact Us For Availability
5
MAY W10524955 MAY W10524955 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W10480085 MAY W10480085 Contact Us For Availability
6
MAY W10215116 MAY W10215116 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10420985 MAY W10420985 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W10249630 MAY W10249630 Contact Us For Availability
8
MAY W10240513 MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
HUB - DRIVEN, BASKET MAY W10291415 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10522615 MAY W10522615 Contact Us For Availability
9
BLOCK, BASKET DRIVE MAY W10291416 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10326374 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
NUT, SPANNER MAY W10291417 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10006352 Contact Us For Availability
11
MAY W10392041 MAY W10392041 Contact Us For Availability
11
MAY W10446856 MAY W10446856 Contact Us For Availability
11
BASKET ASSEMBLY MAY W10238268 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
TUB MAY W10238301 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
MAY W10317454 MAY W10317454 Contact Us For Availability
13
MAY W10006371 MAY W10006371 Contact Us For Availability
13
MAY W10246453 MAY W10246453 Contact Us For Availability
14
LOCK, LID MAY W10294102 Contact Us For Availability
14
MAY W10317455 MAY W10317455 Contact Us For Availability
14
MAY W10215093 MAY W10215093 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
15
Screw MAY 8533928 Contact Us For Availability
15
MAY W10006388 MAY W10006388 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
MAY W10291177 MAY W10291177 Contact Us For Availability
16
MAY W10257085 MAY W10257085 Contact Us For Availability
16
MAY W10249623 MAY W10249623 Contact Us For Availability
17
CABINET (WHITE) MAY W10251994 Contact Us For Availability
17
MAY W10360889 MAY W10360889 Contact Us For Availability
17
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10405423 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10356260 MAY W10356260 Contact Us For Availability
18
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
18
MAY W10349183 MAY W10349183 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10441423 MAY W10441423 Contact Us For Availability
19
HARNESS, LOWER MAY W10268821 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
MAY W10238347 MAY W10238347 Contact Us For Availability
20
MAY W10297437 MAY W10297437 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
MAY W10117298 MAY W10117298 Contact Us For Availability
21
CLAMP, CABLE MAY W10005430 Contact Us For Availability
21
MAY W10238318 MAY W10238318 Contact Us For Availability
22
MAY W10397767 MAY W10397767 Contact Us For Availability
22
MAY W10474662 MAY W10474662 Contact Us For Availability
22
SCREW MAY 8533943 Contact Us For Availability
22
SCREW MAY W10238319 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
PANEL, REAR MAY W10250884 Contact Us For Availability
23
MAY W10298887 MAY W10298887 Contact Us For Availability
24
MAY W10215102 MAY W10215102 Contact Us For Availability
24
BADGE, ASSEMBLY MAY W10323734 Contact Us For Availability
24
SHIELD, SPLASH MAY W10392691 Contact Us For Availability
25
SCREW MAY W10142728 Contact Us For Availability
25
CLIP, SPRING MAY 688805 Contact Us For Availability
25
MAY W10429200 MAY W10429200 Contact Us For Availability
26
MAY W10215139 MAY W10215139 Contact Us For Availability
26
MAY 359625 MAY 359625 Contact Us For Availability
27
SCREW MAY 3400073 Contact Us For Availability
28
NUT, HEX MAY 3359452 Contact Us For Availability
28
MAY W10251309 MAY W10251309 Contact Us For Availability
29
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
29
MAY W10481152 MAY W10481152 Contact Us For Availability
30
MAY W10280024 MAY W10280024 Contact Us For Availability
30
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
31
MAY 356138 MAY 356138 Contact Us For Availability
31
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
32
HOSE, WATER INLET (INLET HOSE (RED)) MAY 3949382 Contact Us For Availability
32
HOSE, WATER INLET (INLET HOSE (BLUE)) MAY 3949383 Contact Us For Availability
33
MAY W10269488 MAY W10269488 Contact Us For Availability
34
WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
