Model Whirlpool 3962XVB ELECTRIC WALL OVEN – Common Parts & Diagrams

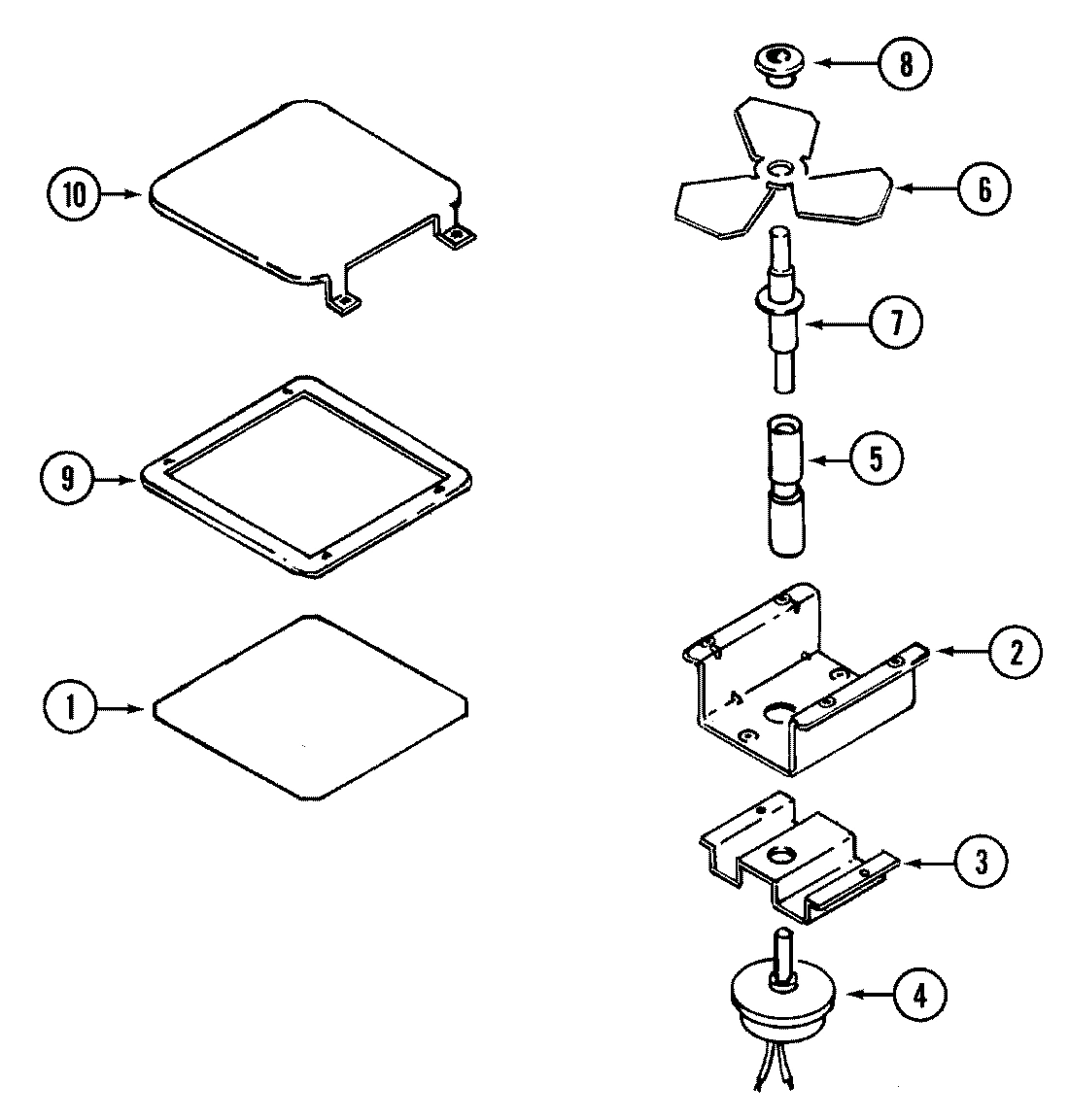

06 - STIRRER ASSEMBLY

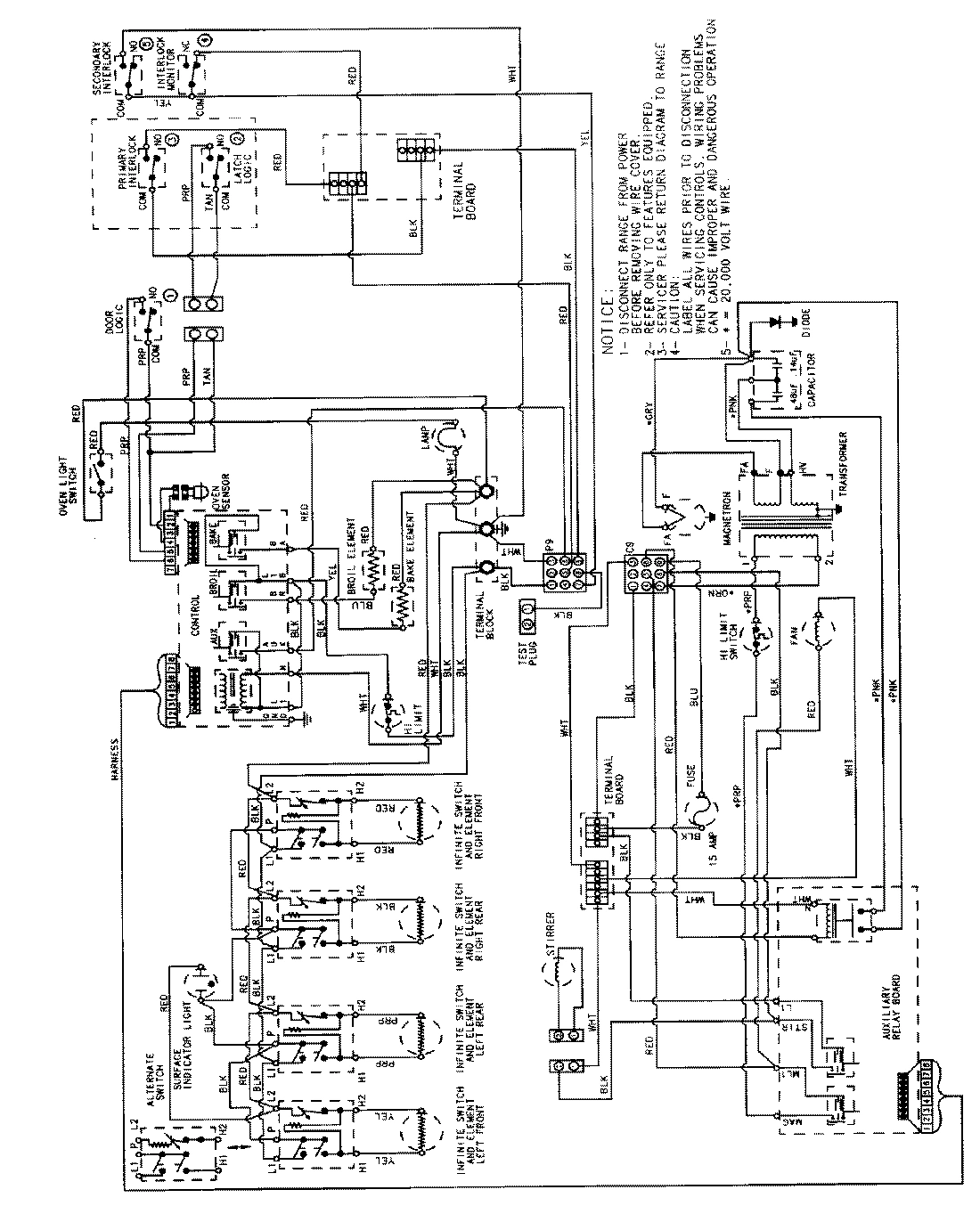

08 - WIRING INFORMATION

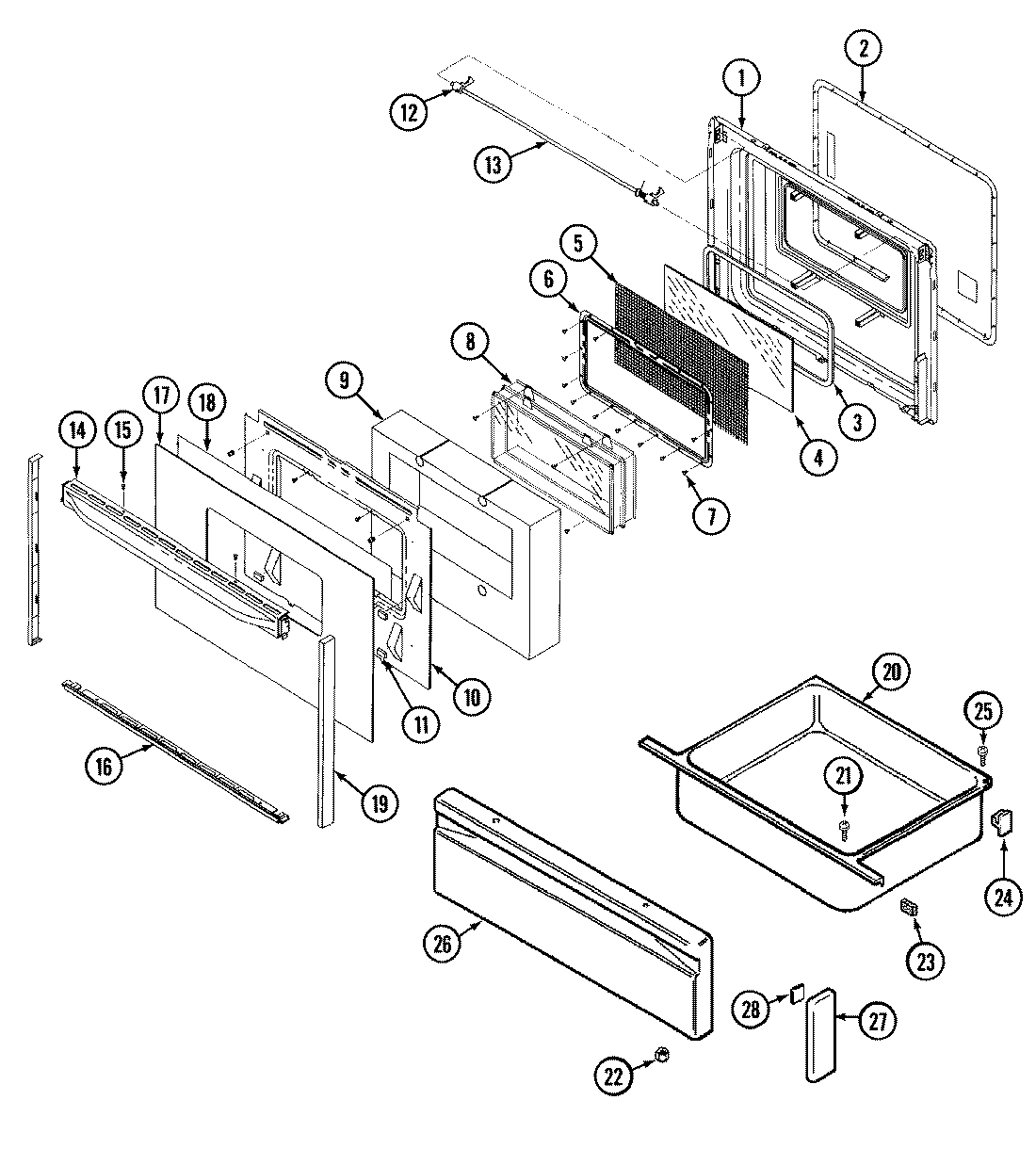

03 - DOOR/DRAWER

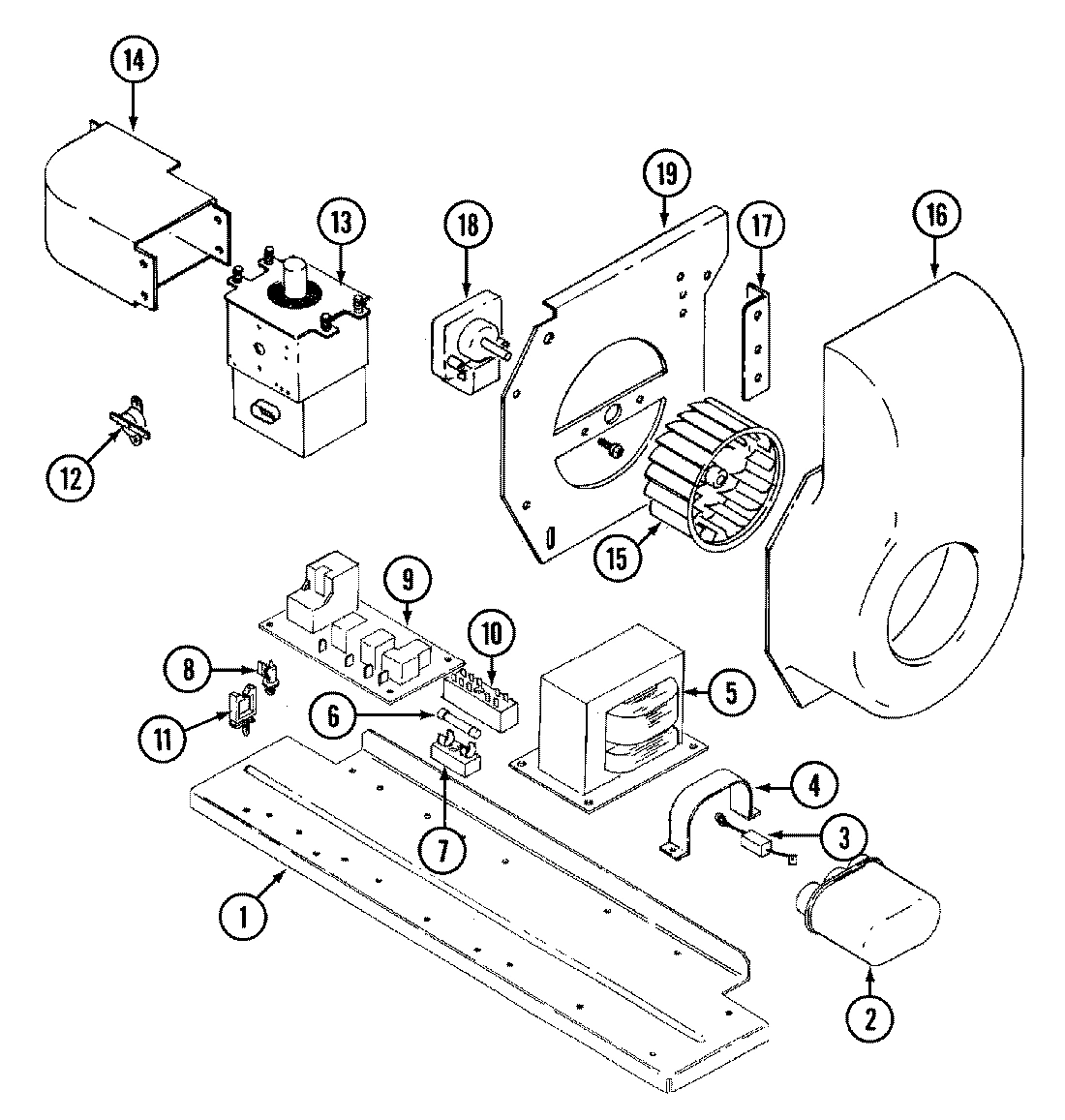

04 - MICROWAVE COMPONENTS

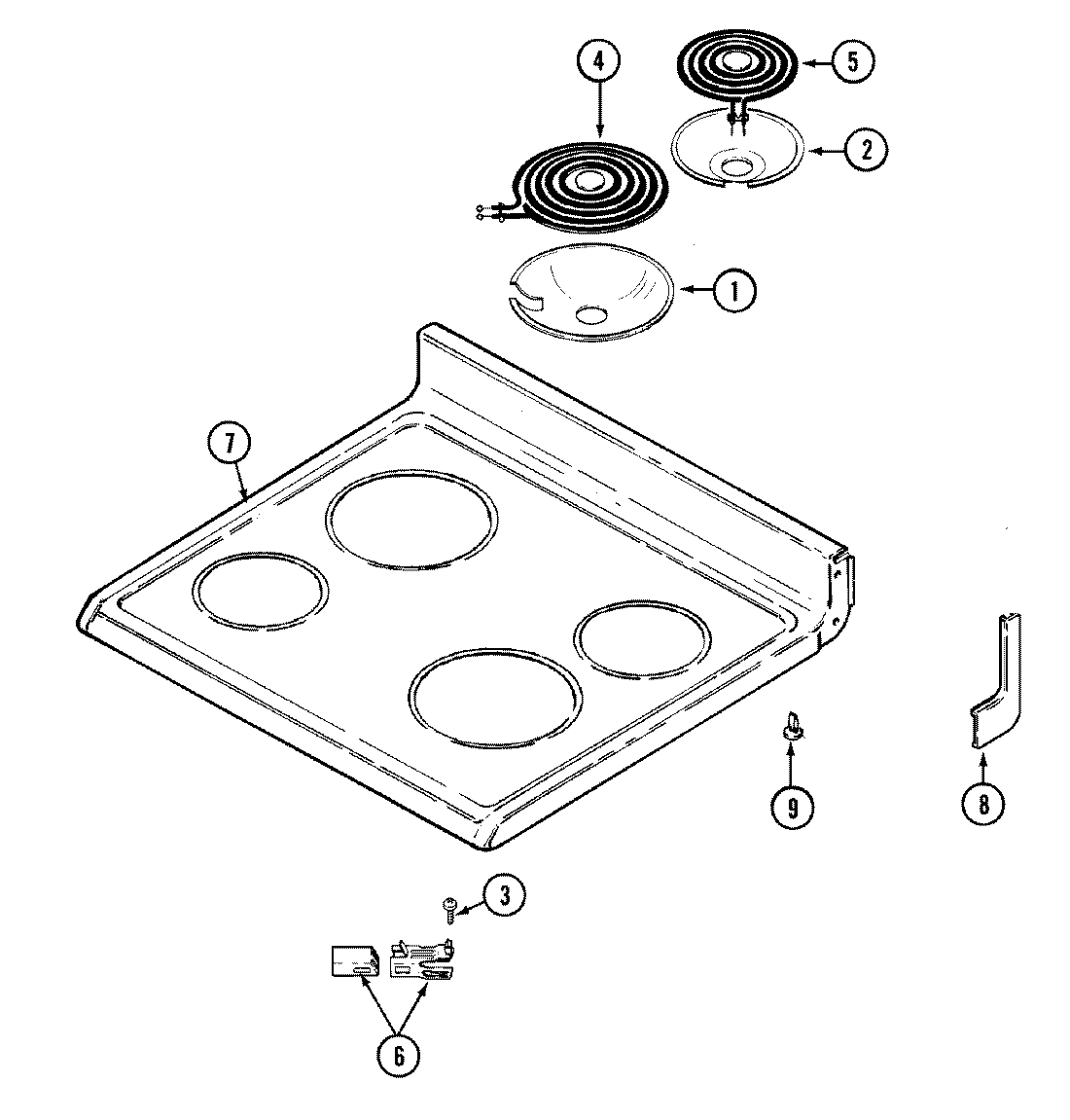

07 - TOP ASSEMBLY

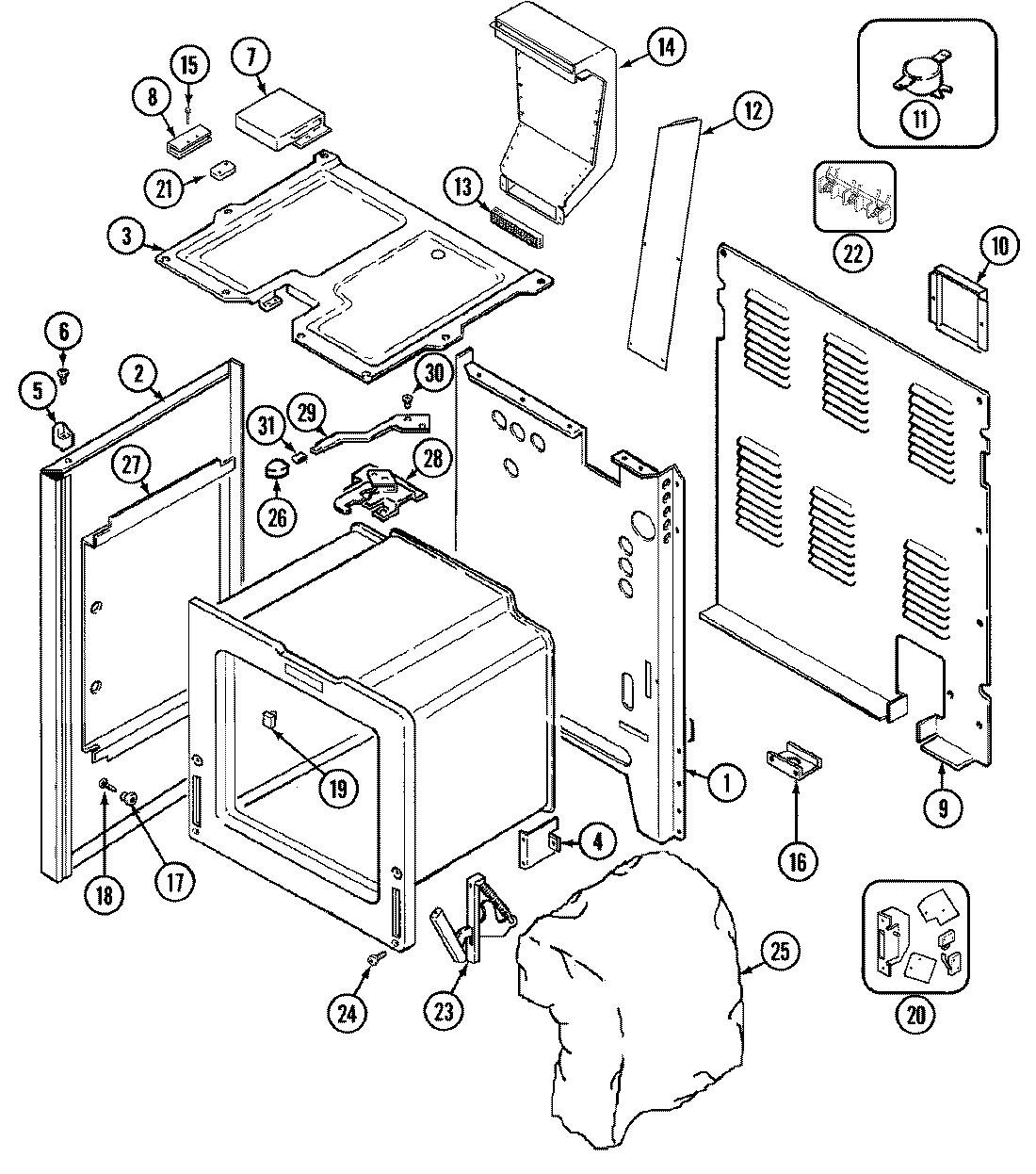

01 - BODY

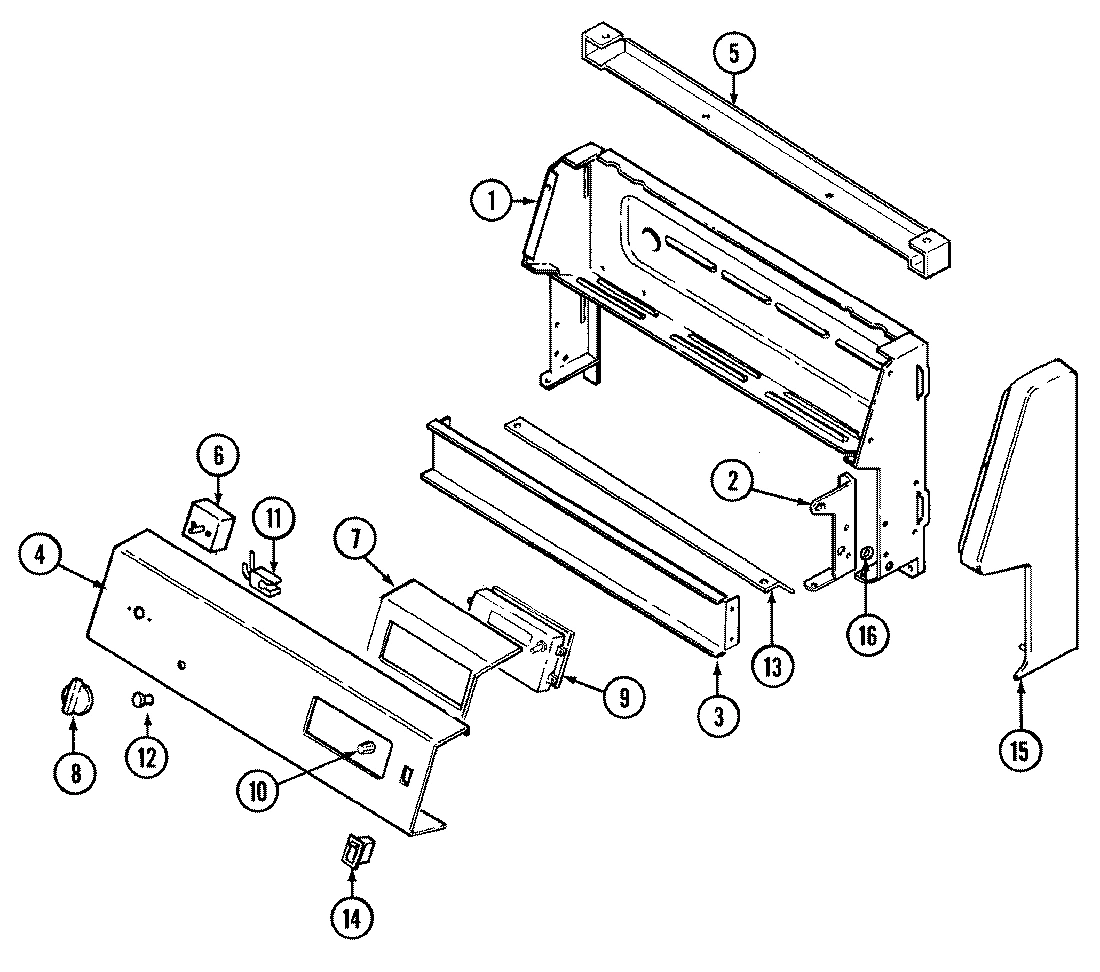

02 - CONTROL PANEL

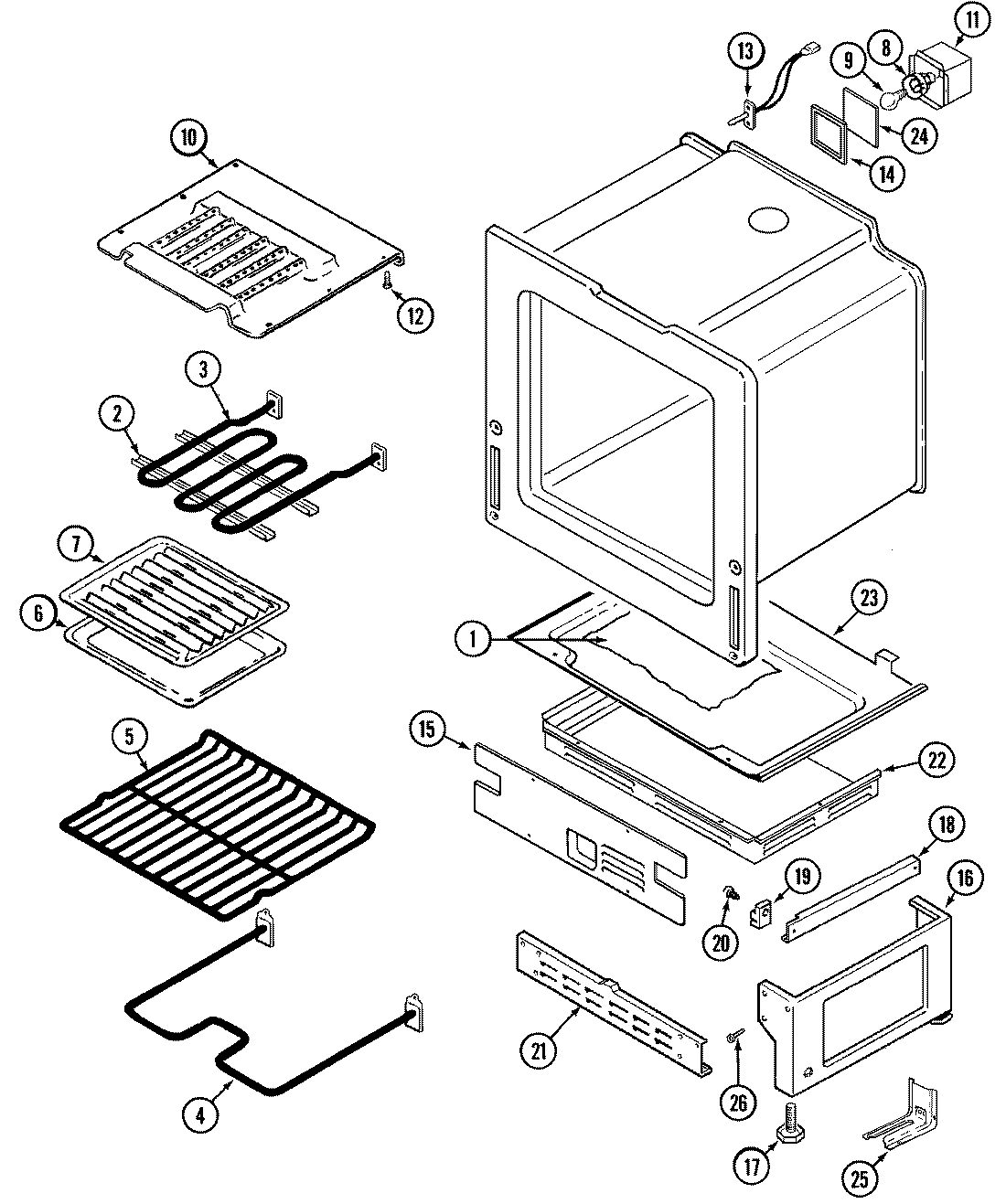

05 - OVEN/BASE
Common parts from model Whirlpool 3962XVB ELECTRIC WALL OVEN
1
SEAL WPL 74001167 Contact Us For Availability
1
LINING, DOOR WPL 74001105 Contact Us For Availability
1
SUPPORT, TRANSFORMER WPL 74001036 Contact Us For Availability
1
BOWL, DRIP (8``) (BLK) WPL 7725P02360 Contact Us For Availability
1
BACK, MAIN WPL 4002F20280 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
SHIELD, REAR WIRE WPL 74001155 Contact Us For Availability
1
INSULATION, BOTTOM WPL 74001131 Contact Us For Availability
1
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
2
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
2
SPACER, STIRRER WPL 74001115 Contact Us For Availability
2
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
2
GASKET, OVEN DOOR WPL 7201P05960 Contact Us For Availability
2
CAPACITOR, DUAL WPL 74001038 Contact Us For Availability
2
BOWL, DRIP (6``) (BLK) WPL 7725P02260 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F11070 Contact Us For Availability
2
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
2
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
3
BRACKET, STIRRER WPL 74001116 Contact Us For Availability
3
GASKET, WINDOW WPL 74001106 Contact Us For Availability
3
DIODE ASSY WPL 7436P00160 Contact Us For Availability
3
SCREW WPL 7101P34960 Contact Us For Availability
3
BOX, BURNER WPL 4011F24019 Contact Us For Availability
3
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
3
ELEMENT, BROIL----NA WPL 7406P08660 Contact Us For Availability
4
MOTOR, STIRRER WPL 7409P00660 Contact Us For Availability
4
GLASS, INNER WPL 7902P39260 Contact Us For Availability
4
BRACKET, CAPACITOR WPL 74001039 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74001148 Contact Us For Availability
4
WASHER (STNLSS MESH) WPL 74001165 Contact Us For Availability
4
ELEMENT, BAKE WPL 74001163 Contact Us For Availability
5
SHAFT, STIRRER WPL 74001118 Contact Us For Availability
5
INSULATION, STIRRER MOTOR WPL 74001119 Contact Us For Availability
5
SCREEN, INNER GLASS WPL 74001107 Contact Us For Availability
5
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
5
TRANSFORMER WPL 74001040 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
5
RACK WPL 74001164 Contact Us For Availability
6
BLADE, STIRRER WPL 74001121 Contact Us For Availability
6
RETAINER, SCREEN----NA WPL 74001108 Contact Us For Availability
6
FUSE, 125/250V 15A WPL 74001041 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
BUSHING WPL 8007P02760 Contact Us For Availability
7
CLIP, FUSE HOLDER WPL 74001042 Contact Us For Availability
7
TOP, MAIN (BLK) WPL 74001145 Contact Us For Availability
7
COVER, LATCH ASSY WPL 4005F45180 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F33645 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SPACER WPL 74001124 Contact Us For Availability
8
WINDOW ASSY. WPL 74001109 Contact Us For Availability
8
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
INSULATOR, LATCH SWITCH WPL 74001134 Contact Us For Availability
8
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
8
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
9
SEAL, GASKET WPL 74001125 Contact Us For Availability
9
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
9
SEAL WPL 7208P00260 Contact Us For Availability
9
RELAY WPL 7428P01760 Contact Us For Availability
9
GLIDE WPL 8016P01560 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 74001135 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
9
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
9
CLOCK (BLK) WPL 74001150 Contact Us For Availability
9
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
PLATE WPL 3605F16719 Contact Us For Availability
10
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
10
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCESS WPL 74001136 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
10
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
11
CLIP WPL 7112P02960 Contact Us For Availability
11
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
11
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
11
HOUSING, BULB WPL 74001129 Contact Us For Availability
12
LEVER, SWITCH ACTIVATOR (RT) WPL 74001110 Contact Us For Availability
12
LEVER, SWITCH ACTIVATOR (LT) WPL 74001111 Contact Us For Availability
12
SPRING WPL 74001112 Contact Us For Availability
12
WASHER WPL 74001168 Contact Us For Availability
12
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
12
SWITCH, MAGNETRON WPL 74001043 Contact Us For Availability
12
BOX, VENT (MAGNETRON BLOWER) WPL 74001137 Contact Us For Availability
12
TAPE, FOAM WPL 8270P08760 Contact Us For Availability
12
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
13
SCREW WPL 74001161 Contact Us For Availability
13
SHAFT, LEVER WPL 74001113 Contact Us For Availability
13
MAGNETRON WPL 74001045 Contact Us For Availability
13
ELIMINATOR, SMOKE WPL 74001138 Contact Us For Availability
13
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
13
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
14
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
14
DUCT, MAGNETRON WPL 74001046 Contact Us For Availability
14
VENT BOX ASSY. WPL 4006W12345 Contact Us For Availability
14
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
14
GASKET, GLASS WPL 74001128 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
FAN WPL 7427P01560 Contact Us For Availability
15
SCREW WPL 7101P03160 Contact Us For Availability
15
END CAP, PANEL (LT-BLK)----NA WPL 74001342 Contact Us For Availability
15
END CAP, PANEL (RT-BLK) WPL 74001343 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
15
SHIELD, MICROWAVE COMPONENTS WPL 74001126 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
COVER WPL 7724P06560 Contact Us For Availability
16
NUT, SPEED WPL 7103P04460 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
HARNESS, CONTROL PANEL WPL 74001151 Contact Us For Availability
16
HARNESS, SENSOR/LOCK WPL 74001152 Contact Us For Availability
16
HARNESS, LOOSE WIRE/PANEL WPL 74001153 Contact Us For Availability
16
HARNESS, PANEL/TOP WPL 74001154 Contact Us For Availability
16
HARNESS, CONTROL/RELAY WPL 74001156 Contact Us For Availability
16
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
16
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
17
GLASS, OUTER (BLK) WPL 74001169 Contact Us For Availability
17
BRACKET, BLOWER SUPPORT WPL 74001047 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
MANUAL, USE & CARE WPL 74001157 Contact Us For Availability
17
INSERT, OPERATING INSTR. WPL 74001158 Contact Us For Availability
17
VIDEO, TIME SAVOR INSTRUCTION WPL 74001336 Contact Us For Availability
17
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
18
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
18
MOTOR WPL 7409P00560 Contact Us For Availability
18
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
18
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
19
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
19
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
19
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
19
NUT WPL 7103P08260 Contact Us For Availability
19
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
19
SUPPORT, BLOWER WPL 3807F47551 Contact Us For Availability
19
BUMPER, DOOR WPL 74001139 Contact Us For Availability
19
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
20
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
20
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
SCREW WPL 7101P34560 Contact Us For Availability
20
SWITCH ASSY, INTERLOCK (RT) WPL 74001140 Contact Us For Availability
20
SWITCH ASSY, INTERLOCK (LT) WPL 74001141 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
21
BRACKET, SWITCH WPL 74001144 Contact Us For Availability
21
SWITCH, DOUBLE LOCK WPL 74001162 Contact Us For Availability
21
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
22
NUT, LOCK WPL 7103P13960 Contact Us For Availability
22
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
22
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
22
COVER, STIRRER MOTOR WPL 74001120 Contact Us For Availability
23
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
23
HINGE ASSY. WPL 7106P04560 Contact Us For Availability
23
RETAINER, INSULATION WPL 74001114 Contact Us For Availability
24
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
24
SCREW WPL 7101P11560 Contact Us For Availability
24
GLASS, OVEN BULB WPL 74001127 Contact Us For Availability
25
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
25
INSULATION, BACK WPL 74001159 Contact Us For Availability
25
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW WPL 7101P29060 Contact Us For Availability
26
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
26
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
27
END CAP, DRAWER (BLK) WPL 74003044 Contact Us For Availability
27
END CAP (BLK) WPL Y7744P07060 Contact Us For Availability
27
RETAINER, SIDE ASSY. (RT) WPL 74001142 Contact Us For Availability
27
RETAINER, SIDE ASSY. (LT) WPL 74001143 Contact Us For Availability
28
TAPE WPL 8270P09860 Contact Us For Availability
28
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
28
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
28
LATCH ASSY. WPL 74001160 Contact Us For Availability
29
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
29
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
29
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
31
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001330 Contact Us For Availability
× ![]()
Login and Registration Form
