Model Whirlpool 38JK-6AXW ELECTRIC RANGE – Common Parts & Diagrams

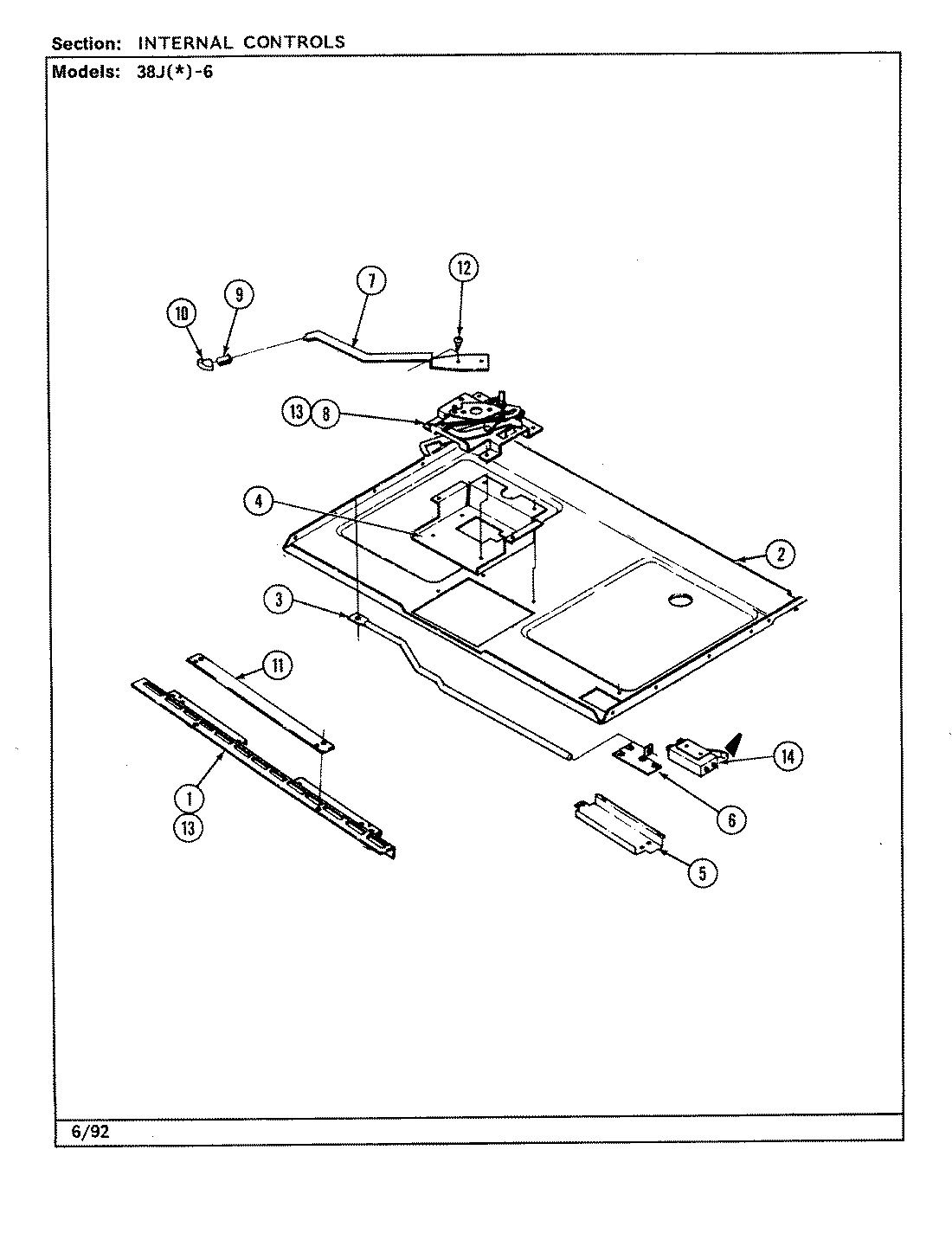

03 - INTERNAL CONTROLS

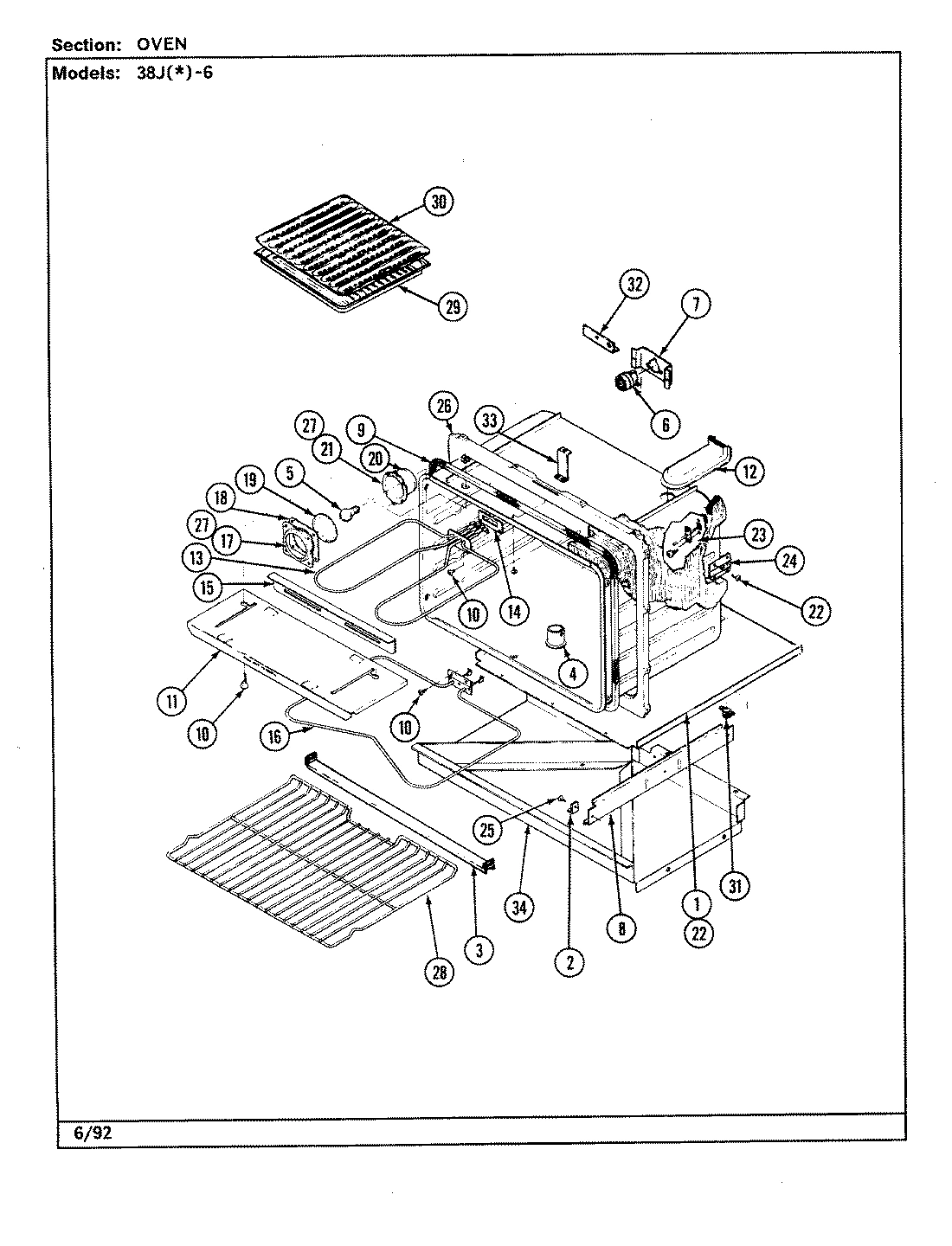

04 - OVEN

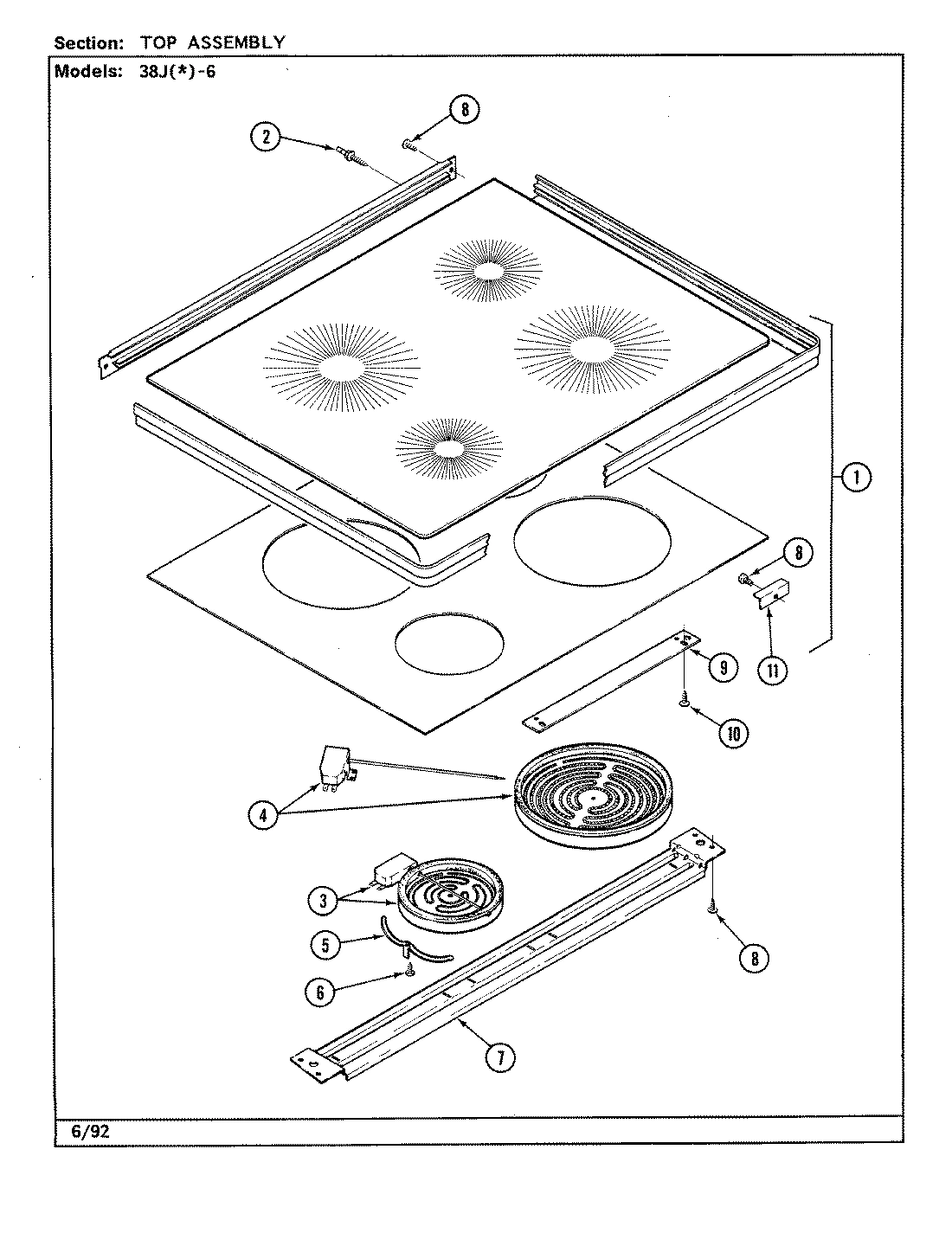

05 - TOP ASSEMBLY

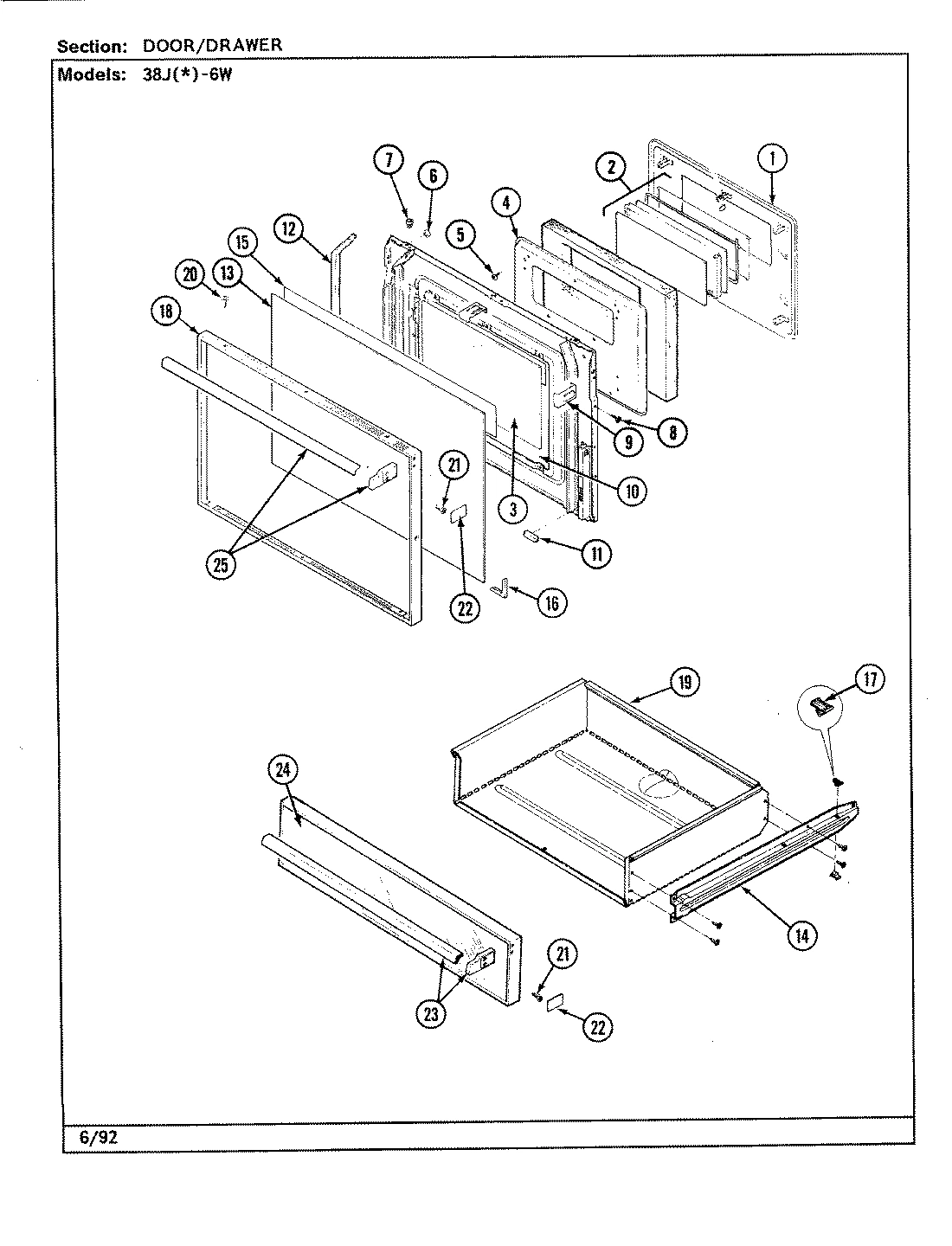

02 - DOOR/DRAWER

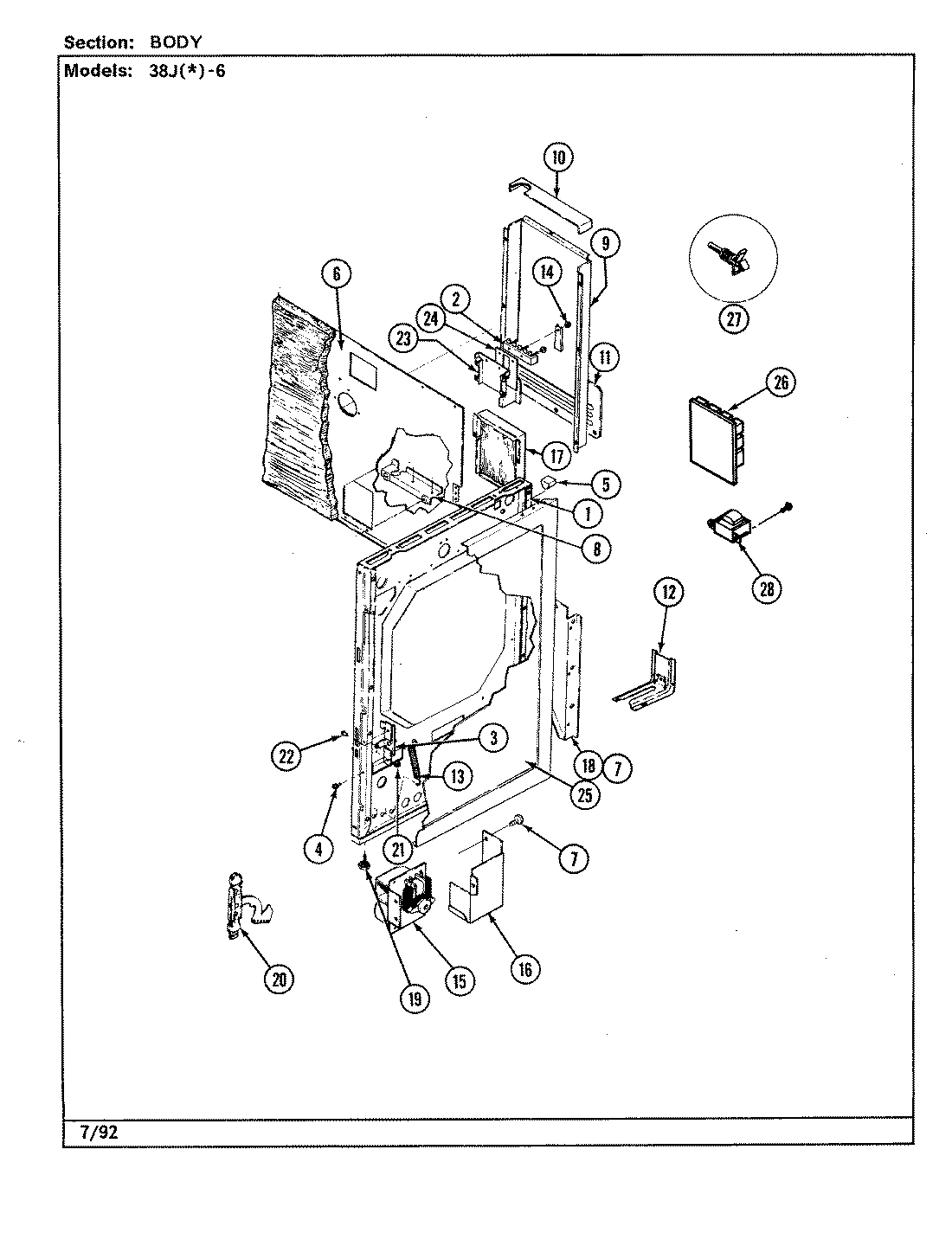

01 - BODY
Common parts from model Whirlpool 38JK-6AXW ELECTRIC RANGE
1
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
1
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
KIT, MAIN TOP WPL 5425A01060 Contact Us For Availability
1
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
1
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
1
PAD, DOOR WPL 2410W04119 Contact Us For Availability
1
INNER SIDE LINING ASSY WPL 4009W05480 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
2
COVER BACK BURNER BOX WPL 4005F41080 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F18080 Contact Us For Availability
2
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
2
SPACER, TOP WPL 8010P07160 Contact Us For Availability
2
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
2
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
3
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
GLASS, INNER WPL 7902P09760 Contact Us For Availability
3
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
3
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
3
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
4
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
4
TUBE, VENT WPL 8026A01160 Contact Us For Availability
4
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
4
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
4
PAD, INNER WPL 2410F01651 Contact Us For Availability
4
SCREW WPL 7101P11260 Contact Us For Availability
5
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
5
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
6
SUPPORT, LOCK SWITCH WPL 3807F43445 Contact Us For Availability
6
SCREW WPL 7101P03160 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
6
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
6
BACK, MAIN WPL 4002F17480 Contact Us For Availability
7
SCREW WPL 7101P01860 Contact Us For Availability
7
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
7
SCREW WPL 7101P06160 Contact Us For Availability
7
BRACKET WPL 3801F02451 Contact Us For Availability
7
SUPPORT WPL 3807F22945 Contact Us For Availability
7
NUT, SNAP WPL 7103P11460 Contact Us For Availability
8
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
8
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
8
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
RIVET WPL 7107P01760 Contact Us For Availability
8
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
8
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
9
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
9
BRACKET, MAIN TOP RETAINER WPL 3801F12580 Contact Us For Availability
9
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
9
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
9
HOUSING MAIN WIRE WPL 4001F08180 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
10
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
10
LINING WPL 2402W17319 Contact Us For Availability
10
BALLAST WPL 7412P00560 Contact Us For Availability
11
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
11
CLIP ELEMENT SUPPORT WPL 8004P02360 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
COVER ACCESS WPL 4005F36251 Contact Us For Availability
12
BOLT WPL 7116P00360 Contact Us For Availability
12
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
12
HARNESS SURFACE UNIT WPL 5175D04660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
12
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P02960 Contact Us For Availability
13
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
13
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
14
SWITCH----NA WPL 7403P07760 Contact Us For Availability
14
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
14
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
15
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
15
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17619 Contact Us For Availability
15
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
15
FAN ASSEMBLY WPL 7427P00560 Contact Us For Availability
16
WIRE HARNESS LOCK SWITCH WPL 5195D07760 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
16
COVER, FAN ASSY WPL 4005F17980 Contact Us For Availability
17
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
17
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
17
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
17
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
18
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
18
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
18
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
19
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
19
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
19
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
20
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
20
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
21
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
21
SCREW WPL 7101P12360 Contact Us For Availability
21
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
22
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
COVER, SENSOR PROBE WPL 4005F20080 Contact Us For Availability
23
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
23
HANDLE, DOOR WHITE WPL 7701P03160 Contact Us For Availability
23
SUPPORT, TERMINAL BLOCK WPL 3807F15780 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
PANEL, STORAGE DR BLACK WPL 5715A00370K Contact Us For Availability
24
INSULATION, TERM BD WPL 7003P01860 Contact Us For Availability
25
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
25
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
25
PANEL, SIDE (BLACK) WPL 2618F07370 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE OVEN FRONT (NOT WPL W10124350 Contact Us For Availability
26
RELAY BOARD WPL 7428P01160 Contact Us For Availability
27
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
27
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
TRANSFORMER WPL 7418P00760 Contact Us For Availability
29
PAN, BROIL WPL 3401F00419 Contact Us For Availability
30
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
31
SCREW WPL 7101P07660 Contact Us For Availability
31
SWITCH, HI-LIMIT WPL 7403P16460 Contact Us For Availability
32
SHIELD, LIGHT RECEPTACLE WPL 3604F00780 Contact Us For Availability
33
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
34
BAFFLE ASSY., AIR DUCT WPL 3601W12080 Contact Us For Availability
× ![]()
