Model Whirlpool 38HA-6TVW ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR/DRAWER

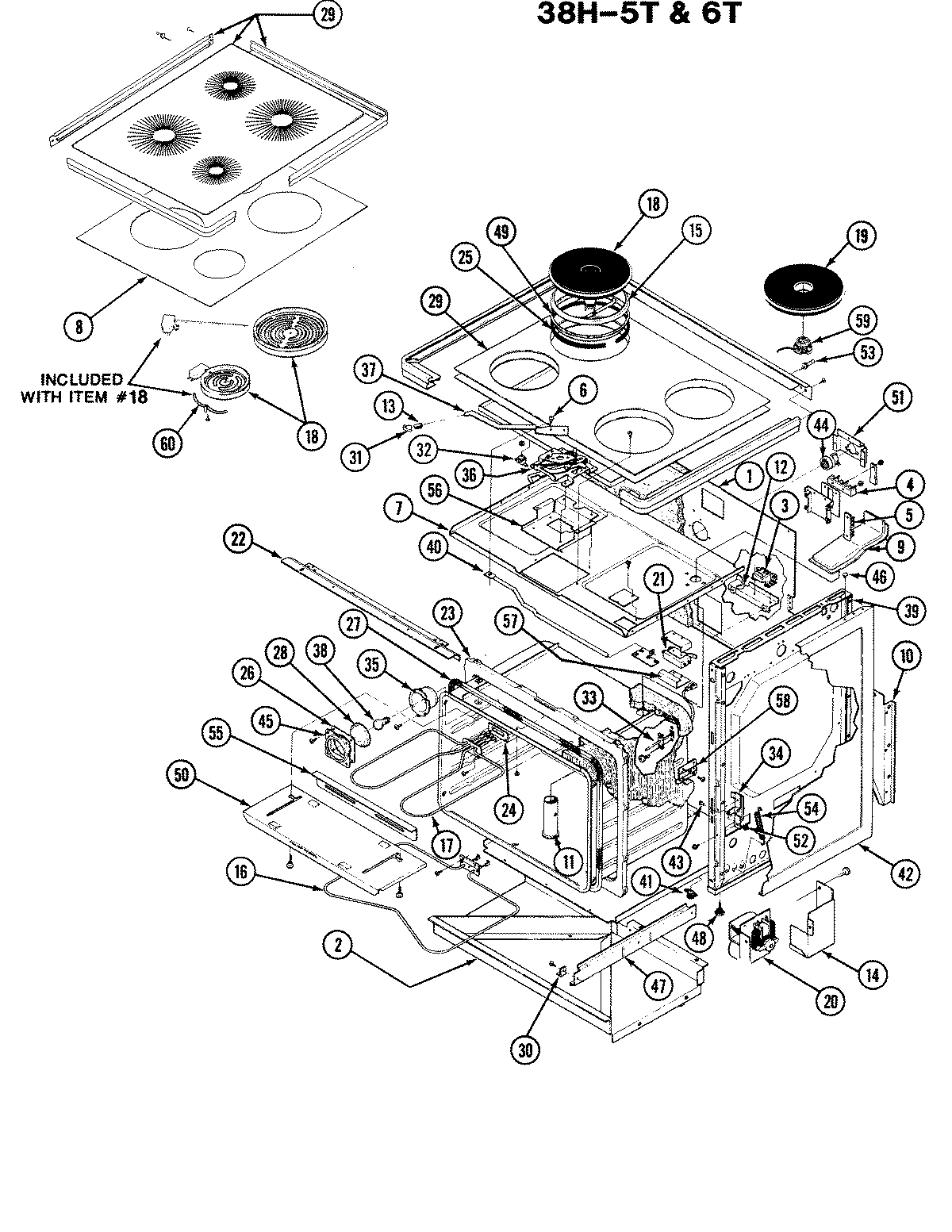

01 - BODY
Common parts from model Whirlpool 38HA-6TVW ELECTRIC RANGE
1
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
1
PLATE WPL 3605F00880 Contact Us For Availability
1
PAD, DOOR WPL 2410W04115 Contact Us For Availability
1
PAD, DOOR WPL 2410W04119 Contact Us For Availability
1
BACK, MAIN WPL 4002F08680 Contact Us For Availability
2
BRACKET, LAMP WPL 3801F00651 Contact Us For Availability
2
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
2
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
2
BAFFLE ASSY., AIR DUCT WPL 3601W12080 Contact Us For Availability
3
CLOCK WPL 7601P10060 Contact Us For Availability
3
CLOCK WPL 7601P15460 Contact Us For Availability
3
CLOCK WPL 7601P16260 Contact Us For Availability
3
CLOCK, ELECTRONIC WPL 7601P17560 Contact Us For Availability
3
INSULATION, DOOR PAD WPL 7002P11760 Contact Us For Availability
3
BALLAST WPL 7412P00560 Contact Us For Availability
4
COVER, LAMP WPL 7724P01060 Contact Us For Availability
4
COVER, BKGD LAMP WPL 7724P01760 Contact Us For Availability
4
TRIM, OVERLAY WPL 7728P01860 Contact Us For Availability
4
PAD, INNER WPL 2410F01651 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
5
COVER, UPPER FLUE BOX WPL 4005F19123 Contact Us For Availability
5
COVER, BKG WIRE WPL 4005F19380 Contact Us For Availability
5
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
5
GASKET, COVER WPL 4005F29651 Contact Us For Availability
5
COVER, BKGD WIRE WPL 4005F33980 Contact Us For Availability
5
BLOCK, MAIN TERMINAL WPL 7401P02060 Contact Us For Availability
6
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
6
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
6
BOLT WPL 7116P00360 Contact Us For Availability
7
EXTRUSION, GLASS SUPPORT WPL 7706P01960 Contact Us For Availability
7
NUT, SNAP WPL 7103P11460 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011F12980 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011F19880 Contact Us For Availability
8
TRIM WPL 7720P01760 Contact Us For Availability
8
TRIM, GLASS WPL 7720P06160 Contact Us For Availability
8
GLASS, BACKGUARD WPL 7910P02360 Contact Us For Availability
8
GLASS, BACKGUARD WPL 7910P06860 Contact Us For Availability
8
GLASS, BACKGUARD WPL 7910P10560 Contact Us For Availability
8
RIVET WPL 7107P01760 Contact Us For Availability
8
BAFFLE, GLASS TOP WPL 3601F11851 Contact Us For Availability
9
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
9
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
10
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
10
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
10
LINING WPL 2402W17315 Contact Us For Availability
10
LINING WPL 2402W17319 Contact Us For Availability
10
BRACE WPL 3802F00380 Contact Us For Availability
10
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
10
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
BRACKET WPL 3801F09351 Contact Us For Availability
11
BRACKET, MAIN TOP RETAINER WPL 3801F12580 Contact Us For Availability
11
TUBE, OVEN VENT WPL 8026P01160 Contact Us For Availability
12
BUTTON, SET WPL 7711P33560 Contact Us For Availability
12
BUTTON, CONTROL SET WPL 7711P44960 Contact Us For Availability
12
SCREW WPL 7101P06160 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
12
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
12
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
12
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
13
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
13
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
13
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
14
KNOB, SURFACE ELEMENT WPL 7737P01060 Contact Us For Availability
14
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
14
COVER, FAN ASSY WPL 4005F17980 Contact Us For Availability
14
COVER, WIRE HOUSING WPL 4005F18280 Contact Us For Availability
14
COVER, SENSOR PROBE WPL 4005F20080 Contact Us For Availability
15
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
15
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
15
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
15
RING, BURNER (SMALL) WPL 3608F00100 Contact Us For Availability
16
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
16
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
16
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
17
LIGHT, SIGNAL WPL 7407P02460 Contact Us For Availability
17
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
17
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
18
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
18
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
18
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
18
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
18
ELEMENT, GIANT CERM WPL 7406P05260 Contact Us For Availability
18
ELEMENT, STD. CERAM WPL 7406P05360 Contact Us For Availability
18
ELEMENT, GIANT WPL 7406P05760 Contact Us For Availability
18
ELEMENT, STD WPL 7406P05860 Contact Us For Availability
18
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
18
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
19
PANEL BKGD WPL 2620W04209 Contact Us For Availability
19
PANEL, LOWER BKGD WPL 2620W04290 Contact Us For Availability
20
PLATE, SWITCH MOUNTING WPL 3605F13480 Contact Us For Availability
20
PLATE SWITCH MTG WPL 3605F17180 Contact Us For Availability
20
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
20
FAN ASSEMBLY WPL 7427P00560 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
21
SCREW WPL 7101P12360 Contact Us For Availability
21
SWITCH----NA WPL 7403P07760 Contact Us For Availability
22
HARNESS, RELAY WPL 5170P00660 Contact Us For Availability
22
SHIELD WPL 7003P02160 Contact Us For Availability
22
SEAL, COVER WPL 7212P03260 Contact Us For Availability
22
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00860 Contact Us For Availability
22
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
22
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
23
WPL 3604F07980 WPL 3604F07980 Contact Us For Availability
24
WPL 7214P00160 WPL 7214P00160 Contact Us For Availability
24
WPL 7214P00760 WPL 7214P00760 Contact Us For Availability
24
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
25
WPL 7105P00560 WPL 7105P00560 Contact Us For Availability
25
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
26
WPL 3807F01080 WPL 3807F01080 Contact Us For Availability
26
WPL 3807F01280 WPL 3807F01280 Contact Us For Availability
26
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
26
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
27
WPL 3807F21580 WPL 3807F21580 Contact Us For Availability
27
WPL 3807F39180 WPL 3807F39180 Contact Us For Availability
27
WPL 8004P02060 WPL 8004P02060 Contact Us For Availability
27
PANEL, STORAGE DOOR WPL 5715A00374K Contact Us For Availability
27
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
28
WPL 7403P00960 WPL 7403P00960 Contact Us For Availability
28
WPL 7403P17960 WPL 7403P17960 Contact Us For Availability
28
WPL 7403P19660 WPL 7403P19660 Contact Us For Availability
28
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
28
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
29
WPL 7403P26660 WPL 7403P26660 Contact Us For Availability
29
WPL 7403P26760 WPL 7403P26760 Contact Us For Availability
29
KIT, MAIN TOP (BLK) WPL 5425A00960 Contact Us For Availability
30
WPL 7403P10460 WPL 7403P10460 Contact Us For Availability
30
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
30
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
30
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
30
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
31
WPL 7726P00760 WPL 7726P00760 Contact Us For Availability
31
WPL 7726P01860 WPL 7726P01860 Contact Us For Availability
31
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
32
SWITCH, INF. CONTROL WPL 7403P16960 Contact Us For Availability
32
WPL 7720P09160 WPL 7720P09160 Contact Us For Availability
32
WPL 7201P04560 WPL 7201P04560 Contact Us For Availability
32
WPL 7740P01060 WPL 7740P01060 Contact Us For Availability
32
WPL 7740P01660 WPL 7740P01660 Contact Us For Availability
32
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P17460 Contact Us For Availability
33
PROBE, OVEN SENSO WPL 7430P00360 Contact Us For Availability
33
WPL 8007P01360 WPL 8007P01360 Contact Us For Availability
33
GLASS, INNER WPL 7902P09760 Contact Us For Availability
33
WPL 7430P01060 WPL 7430P01060 Contact Us For Availability
34
WPL 3418F02934 WPL 3418F02934 Contact Us For Availability
34
WPL 3418F03034 WPL 3418F03034 Contact Us For Availability
34
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
35
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
35
WPL 4001F02019 WPL 4001F02019 Contact Us For Availability
35
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
35
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
36
WPL 8002P02060 WPL 8002P02060 Contact Us For Availability
37
WPL 8009P00960 WPL 8009P00960 Contact Us For Availability
37
WPL 8009P01860 WPL 8009P01860 Contact Us For Availability
38
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
39
WPL 4009W03380 WPL 4009W03380 Contact Us For Availability
40
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
40
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
40
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
40
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
41
WPL 7403P16460 WPL 7403P16460 Contact Us For Availability
42
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
43
WPL 5170A00760 WPL 5170A00760 Contact Us For Availability
43
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
43
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
44
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
45
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
46
WPL 8003P01060 WPL 8003P01060 Contact Us For Availability
46
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
47
WPL 3406F02080 WPL 3406F02080 Contact Us For Availability
47
WPL 3406J007 WPL 3406J007 Contact Us For Availability
48
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
49
WPL W10124350 WPL W10124350 Contact Us For Availability
50
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
50
WPL 7118P00160 WPL 7118P00160 Contact Us For Availability
51
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
52
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
53
WPL 7105P005 WPL 7105P005 Contact Us For Availability
× ![]()
Login and Registration Form
