Model Whirlpool 38FN-4TXW ELECTRIC RANGE – Common Parts & Diagrams

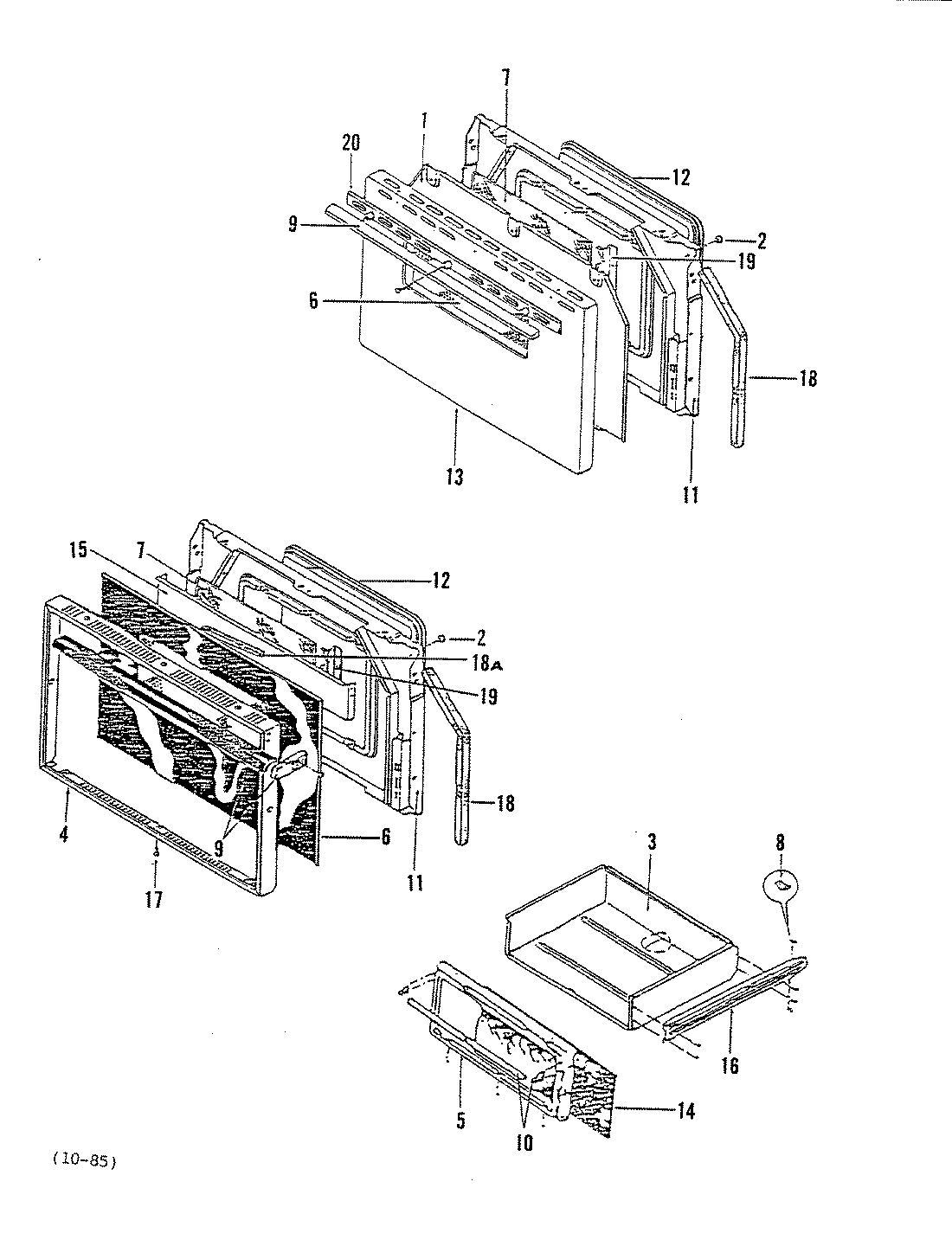

03 - DOOR

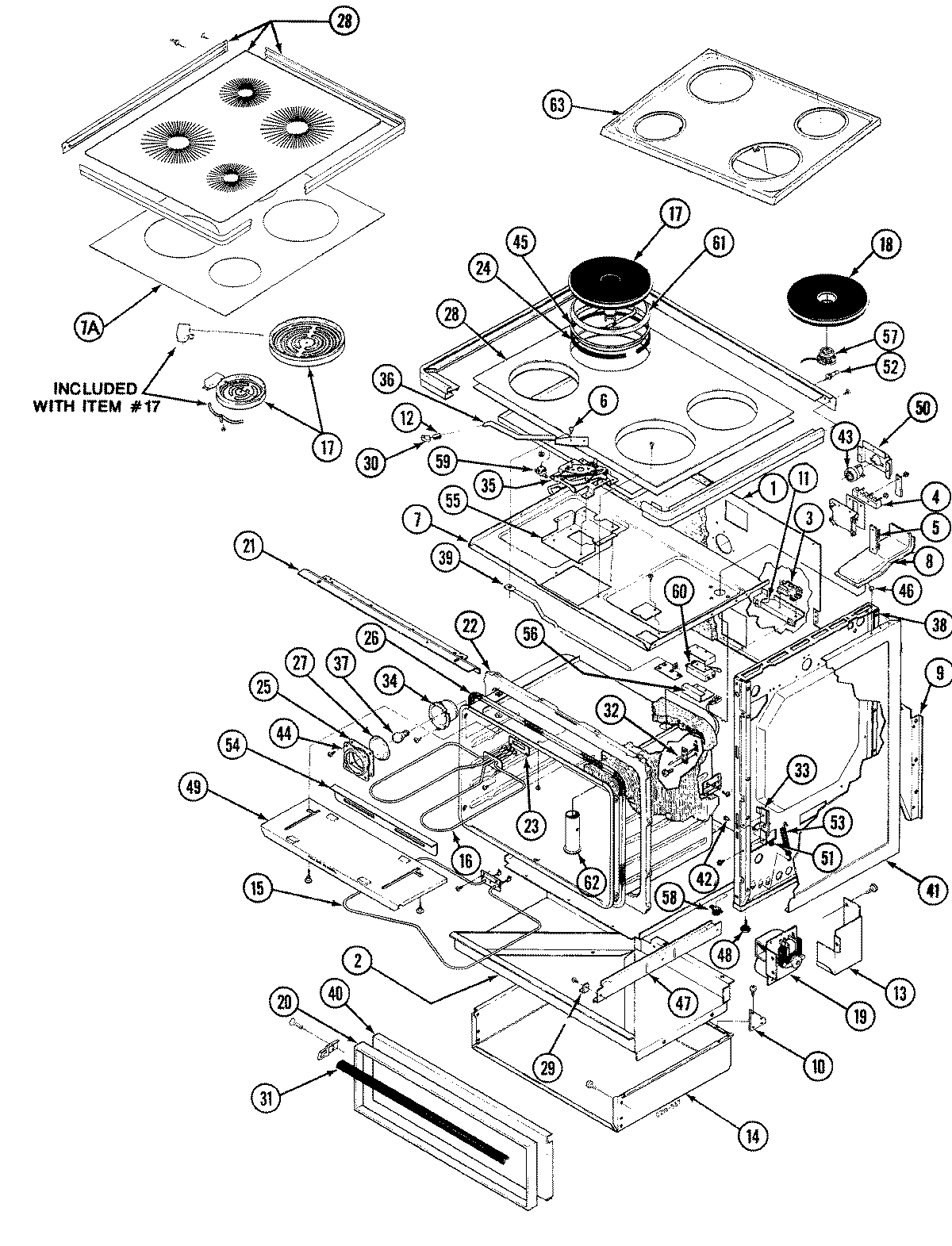

01 - BODY

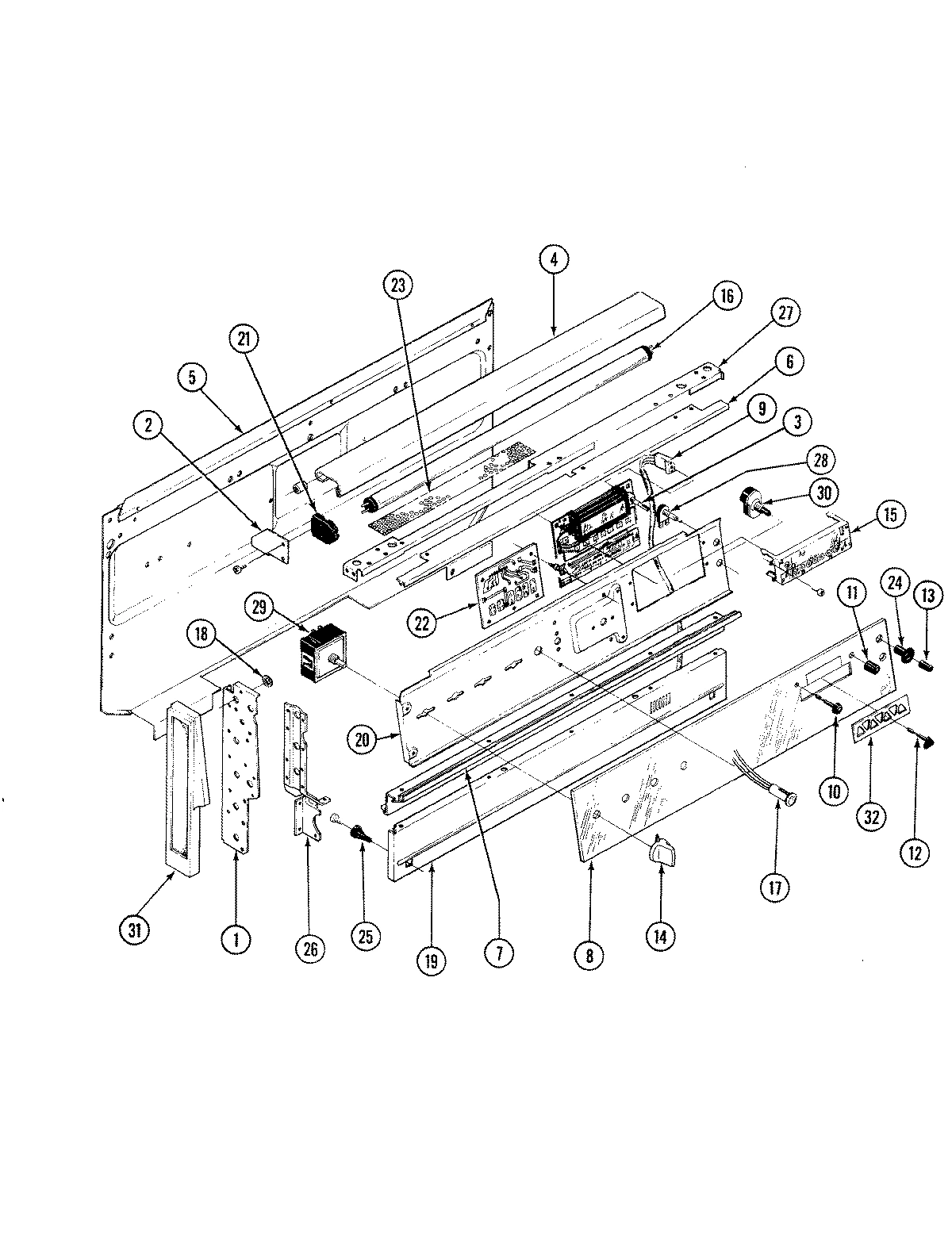

02 - CONTROL PANEL
Common parts from model Whirlpool 38FN-4TXW ELECTRIC RANGE
1
BRACKET WPL 0284324 Contact Us For Availability
1
BACK, MAIN WPL 4002F08620 Contact Us For Availability
1
BALLAST WPL 7412P00560 Contact Us For Availability
1
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
1
PLATE WPL 3605F00880 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
2
BAFFLE WPL 3601F058 Contact Us For Availability
2
BAFFLE AIR DUCT WPL 3601W12020 Contact Us For Availability
2
BRACKET WPL 0284291 Contact Us For Availability
3
DRAWER ASSY. WPL 0384227 Contact Us For Availability
3
CLOCK WPL 7601P07060 Contact Us For Availability
3
CLOCK WPL 7601P10060 Contact Us For Availability
3
CLOCK WPL 7601P15260 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P00760 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BLOCK, WIRE TERMINAL WPL 7401P02860 Contact Us For Availability
4
BKGD LIGHT COV KI WPL 1430311 Contact Us For Availability
5
GASKET WPL 1313269 Contact Us For Availability
5
FRAME, SERV DOOR WPL 7706P00160 Contact Us For Availability
5
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
5
COVER, BKG WIRE WPL 4005F18520 Contact Us For Availability
5
COVER, UPPER FLUE BOX WPL 4005F19123 Contact Us For Availability
5
COVER, BKG WIRE WPL 4005F19320 Contact Us For Availability
5
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
5
GASKET, COVER WPL 4005F29651 Contact Us For Availability
6
GLASS, DOOR WHITE WPL 7902P16260 Contact Us For Availability
6
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
6
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
BAFFLE, GLASS TOP WPL 3601F11851 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011F12923 Contact Us For Availability
7
EXTRUSION WPL 7706P09760 Contact Us For Availability
8
GLIDE WPL 1329101 Contact Us For Availability
8
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
8
BRACE, BACK-LEFT WPL 0277264 Contact Us For Availability
8
BRACE, BACK-RIGHT WPL 0277265 Contact Us For Availability
8
BOX, VENT WPL 4006W02545 Contact Us For Availability
8
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
8
GLASS, BACKGUARD WPL 7902P19460 Contact Us For Availability
9
HANDLE, DOOR WHITE WPL 7701P03160 Contact Us For Availability
9
BRACE WPL 0277238 Contact Us For Availability
9
BRACE WPL 0277257 Contact Us For Availability
9
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
9
HARNESS, WIRE WPL 5170A00660 Contact Us For Availability
10
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P01960 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
10
BRACKET WPL 3801F093 Contact Us For Availability
10
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
11
LINING WPL 2402W12815 Contact Us For Availability
11
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
11
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
11
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
11
CATCH WPL 8002P01460 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
12
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
12
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
12
PAD ASSY, OVEN DOOR WPL 2410W02112 Contact Us For Availability
12
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
12
PAD, OVEN DOOR WPL 2430H019 Contact Us For Availability
12
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
12
BUTTON, SET WPL 7711P33560 Contact Us For Availability
13
COVER, WIRE HOUSING WPL 4005F18220 Contact Us For Availability
13
COVER, SENSOR PROBE WPL 4005F18620 Contact Us For Availability
13
COVER, SENSOR PROBE WPL 4005F20020 Contact Us For Availability
13
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
14
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
14
KNOB, SURFACE UNIT WPL 7711P30160 Contact Us For Availability
15
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
15
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
15
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
15
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
16
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
16
RUNNER WPL Y0766215 Contact Us For Availability
16
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
16
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
17
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
17
SCREW, OVEN DOOR WPL 7101P08360 Contact Us For Availability
17
SCREW WPL 7101P12360 Contact Us For Availability
17
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
17
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
17
LIGHT, SIGNAL WPL 7407P02960 Contact Us For Availability
18
SEAL WPL 1726250 Contact Us For Availability
18
SEAL WPL 1726252 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
STOP, DOOR WPL Y0112241 Contact Us For Availability
18
ELEMENT (6``- AUTO SWITCH) WPL 7406P01960 Contact Us For Availability
18
ELEMENT (8``- AUTO SWITCH) WPL 7406P02260 Contact Us For Availability
18
SUPPORT, 6``(AUTO) WPL 8004P00960 Contact Us For Availability
18
SUPPORT, 8``(AUTO) WPL 8004P01060 Contact Us For Availability
18
GRIP NUT WPL 1555247 Contact Us For Availability
19
SUPPORT WPL 0862426 Contact Us For Availability
19
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
19
PANEL, BKGD LOWER WPL 2620W03500 Contact Us For Availability
19
PANEL, BACKGUARD BLK WPL 2620W03700 Contact Us For Availability
20
FRAME, SVC DOOR WPL 7706P18160 Contact Us For Availability
20
PLATE, SWITCH MTG WPL 3605F10220 Contact Us For Availability
20
PLATE, CLOCK MOUNTING WPL 3605F14220 Contact Us For Availability
21
+ WINDOW, OV DR ASSY WPL 5700A08160 Contact Us For Availability
21
+ WINDOW, PKG WPL 5700A08460 Contact Us For Availability
21
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
21
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
22
NOT REQUIRED PART OR SEE NOTE (SEAL, VENT) NO WPL W10124350 Contact Us For Availability
22
FRONT, OVEN WPL 2201F03323 Contact Us For Availability
22
SHIELD WPL 7003P02160 Contact Us For Availability
22
SEAL, COVER WPL 7212P03260 Contact Us For Availability
22
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00160 Contact Us For Availability
23
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
23
SHIELD, TERMINAL WPL 3604F07920 Contact Us For Availability
24
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
25
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
25
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
25
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
26
GASKET, OVEN WPL 7201P00160 Contact Us For Availability
26
SUPPORT WPL 0862417 Contact Us For Availability
26
SUPPORT, BROIL ELEMENT WPL Y0862419 Contact Us For Availability
27
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
27
SWITCH, AUTO WPL 7403P06260 Contact Us For Availability
27
SWITCH, AUTOMATIC WPL 7403P10160 Contact Us For Availability
27
SUPPORT, BKGD LAMP WPL 3807F21520 Contact Us For Availability
27
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
28
SWITCH WPL 1832379 Contact Us For Availability
29
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
29
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
29
SWITCH, INF. CONTROL WPL 7403P11460 Contact Us For Availability
29
SWITCH, INF. CONTROL WPL 7403P11560 Contact Us For Availability
30
HANDLE, DOOR LOCK WPL 7701P00360 Contact Us For Availability
30
SWITCH WPL 1832397 Contact Us For Availability
31
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
31
TRIM WPL 7726P00760 Contact Us For Availability
31
TRIM, BKGD. (RT) WPL 7726P01860 Contact Us For Availability
32
PROBE, OVEN SENSOR WPL 7430P00360 Contact Us For Availability
32
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
32
TRIM, GLASS WPL 7720P06160 Contact Us For Availability
32
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
32
TRIM, OVERLAY WPL 7728P01860 Contact Us For Availability
32
TRIM, BEZEL WHITE WPL 7740P00460 Contact Us For Availability
32
TRIM, BEZEL ALMOND WPL 7740P00560 Contact Us For Availability
32
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
33
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
33
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
34
HOUSING, LAMP WPL 0537253 Contact Us For Availability
34
INSERT WPL Y0507229 Contact Us For Availability
35
CATCH WPL 8002E002 Contact Us For Availability
36
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
37
BULB, OVEN WPL 7407P02660 Contact Us For Availability
38
LINING ASSY, INNER SID WPL 4009W02980 Contact Us For Availability
38
WPL 4009W05380 WPL 4009W05380 Contact Us For Availability
39
WPL 3401F00411 WPL 3401F00411 Contact Us For Availability
39
WPL 8021E001 WPL 8021E001 Contact Us For Availability
40
WPL 5715A00371 WPL 5715A00371 Contact Us For Availability
41
WPL 2618F05271 WPL 2618F05271 Contact Us For Availability
41
WPL 2618F07371 WPL 2618F07371 Contact Us For Availability
42
WPL 3605F14880 WPL 3605F14880 Contact Us For Availability
42
WPL 3605F15380 WPL 3605F15380 Contact Us For Availability
42
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
42
WPL 7801P00460 WPL 7801P00460 Contact Us For Availability
43
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
43
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
44
WPL 0749227 WPL 0749227 Contact Us For Availability
45
WPL 3608F00100 WPL 3608F00100 Contact Us For Availability
45
WPL 3608F00200 WPL 3608F00200 Contact Us For Availability
46
WPL 8003P01060 WPL 8003P01060 Contact Us For Availability
46
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
47
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
47
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
48
WPL 7101P02960 WPL 7101P02960 Contact Us For Availability
49
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
50
WPL 0787392 WPL 0787392 Contact Us For Availability
51
WPL 1013214 WPL 1013214 Contact Us For Availability
53
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
54
WPL 3807F17613 WPL 3807F17613 Contact Us For Availability
55
WPL 3807F195 WPL 3807F195 Contact Us For Availability
56
WPL 3807F193 WPL 3807F193 Contact Us For Availability
59
WPL 7403P16960 WPL 7403P16960 Contact Us For Availability
60
WPL 7403P09960 WPL 7403P09960 Contact Us For Availability
62
WPL 802 WPL 802 Contact Us For Availability
× ![]()
Login and Registration Form
