Model Whirlpool 38FN-3TX ELECTRIC RANGE – Common Parts & Diagrams

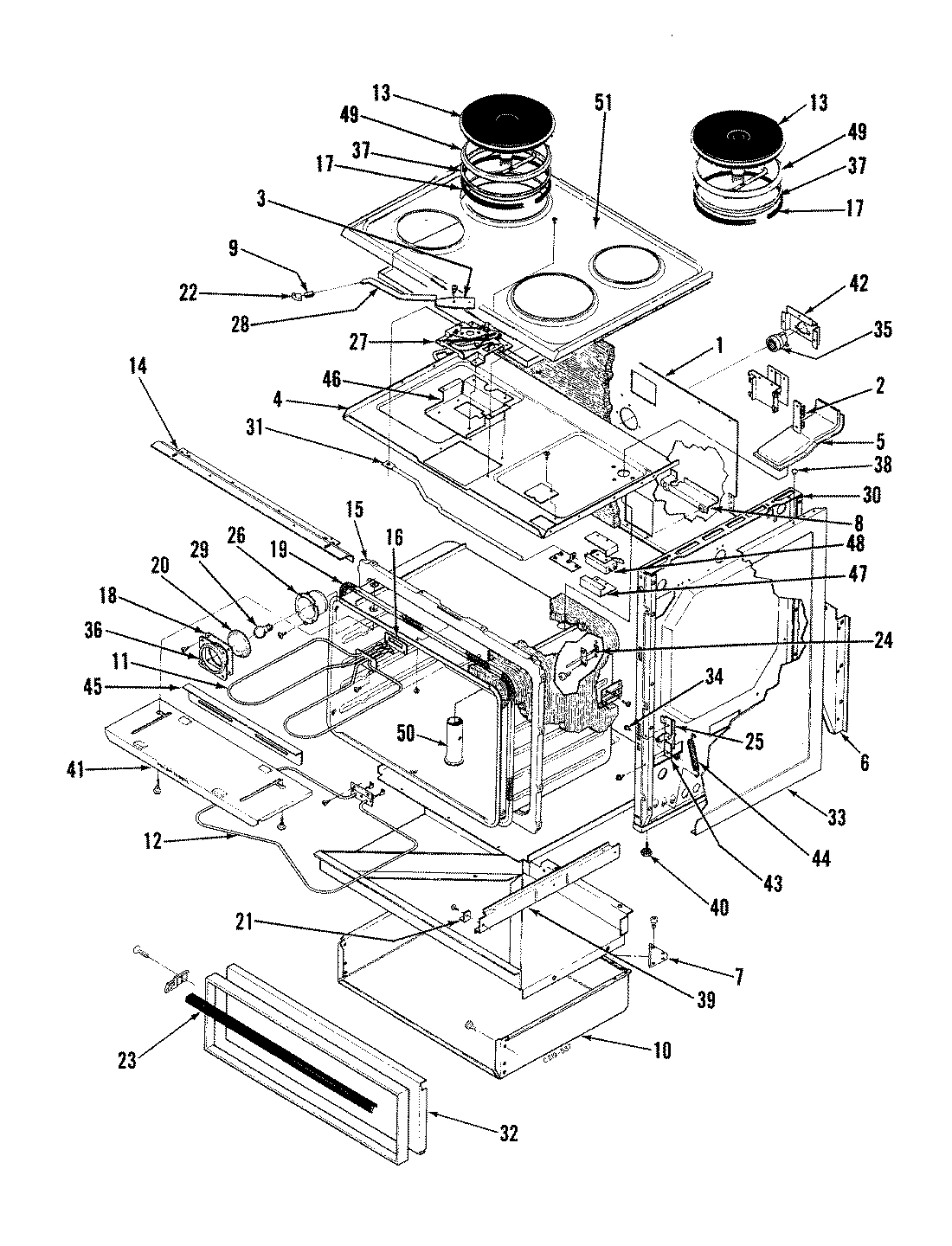

01 - BODY
02 - CONTROL PANEL
03 - DOOR
Common parts from model Whirlpool 38FN-3TX ELECTRIC RANGE
1
BAFFLE AIR DUCT WPL 3601W12020 Contact Us For Availability
1
BACK, MAIN WPL 4002F06720 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
CLOCK WPL 7601P07060 Contact Us For Availability
1
CLOCK WPL 7601P10060 Contact Us For Availability
1
BRACKET WPL 0284324 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
COVER, BKGD WIRE WPL 4005F18420 Contact Us For Availability
2
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
2
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
3
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
3
DRAWER ASSY. WPL 0384227 Contact Us For Availability
3
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
4
BOX, BURNER WPL 4011F07823 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7902P18460 Contact Us For Availability
4
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BOX, VENT WPL 4006W02545 Contact Us For Availability
5
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
5
HARNESS, WIRE WPL 5170A00660 Contact Us For Availability
5
GLASS, DOOR SOLID WPL 7902P06360 Contact Us For Availability
6
BRACE WPL 0277257 Contact Us For Availability
6
BRACE, BACK-LEFT WPL 0277264 Contact Us For Availability
6
BRACE, BACK-RIGHT WPL 0277265 Contact Us For Availability
6
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
6
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
7
BRACKET WPL 3801F093 Contact Us For Availability
7
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
7
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
7
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
7
BUTTON, SET WPL 7711P33560 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
8
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
8
CATCH WPL 8002P01460 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P01960 Contact Us For Availability
9
COVER, WIRE HOUSING WPL 4005F18220 Contact Us For Availability
9
COVER, SENSOR PROBE WPL 4005F18620 Contact Us For Availability
9
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
9
COVER, FRONT FLOOR WPL 7120P07460 Contact Us For Availability
9
KNOB, SURFACE UNIT WPL 7711P30160 Contact Us For Availability
9
HANDLE, DOOR WHITE WPL 7701P01471 Contact Us For Availability
9
INSERT, HANDLE WPL 7728E012 Contact Us For Availability
10
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
10
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
10
LINING WPL 2402W12815 Contact Us For Availability
10
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
11
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
11
LIGHT, SIGNAL WPL 7407P02960 Contact Us For Availability
11
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
11
PAD ASSY, OV DR NON W WPL 2410W02612 Contact Us For Availability
12
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
12
GRIP NUT WPL 1555247 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
13
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
13
BACKGUARD PANEL WPL 2601W18681 Contact Us For Availability
13
PANEL, BACKGUARD WPL 2601W18981 Contact Us For Availability
13
PLATE, SWITCH MNTG. WPL 3605F09120 Contact Us For Availability
14
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
14
RELAY, BOARD ASSY. WPL 7428P00160 Contact Us For Availability
14
OVEN DOOR ASSY WPL 5700A08660 Contact Us For Availability
15
FRONT, OVEN WPL 2201F03323 Contact Us For Availability
15
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
15
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
15
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
15
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
15
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
16
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
16
SUPPORT WPL 0862417 Contact Us For Availability
16
SUPPORT WPL 0862418 Contact Us For Availability
16
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
16
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
17
SEAL, SILICONE (NOT GOOD PART WPL 7212P00860 Contact Us For Availability
17
SPRING WPL 7803P00260 Contact Us For Availability
17
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
17
SEAL WPL 1726250 Contact Us For Availability
17
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
19
GASKET, OVEN WPL 7201P00160 Contact Us For Availability
19
SWITCH, INF. CONTROL WPL 7403P08460 Contact Us For Availability
19
SWITCH, INF. CONTROL WPL 7403P08560 Contact Us For Availability
19
SWITCH, HI LIMIT GLASS WPL 7403P16660 Contact Us For Availability
20
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
20
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
21
TRIM, BKGD WPL 7703P11660 Contact Us For Availability
21
TRIM, BKGD. (LT) WPL 7726P00860 Contact Us For Availability
21
TRIM, BKGD. WPL 7726P01960 Contact Us For Availability
22
HANDLE, DOOR LOCK WPL 7701P00360 Contact Us For Availability
22
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
22
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
23
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
24
PROBE, OVEN SENSOR WPL 7430P00360 Contact Us For Availability
24
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
25
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
25
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
26
HOUSING, LAMP WPL 0537253 Contact Us For Availability
26
INSERT WPL Y0507229 Contact Us For Availability
27
CATCH WPL 8002E002 Contact Us For Availability
28
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
29
BULB, OVEN WPL 7407P02660 Contact Us For Availability
30
LINING, INNER SIDE WPL 4009W02920 Contact Us For Availability
31
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
32
+ PANEL, SERVICE WPL 0684316N Contact Us For Availability
33
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
33
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
34
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
34
PLATE, CONDUIT WPL 3605F15380 Contact Us For Availability
34
PIN, HINGE WPL 7113P00260 Contact Us For Availability
34
RACK WPL 7801P00460 Contact Us For Availability
35
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
35
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
36
RETAINER, LAMPGUARD WPL 0749227 Contact Us For Availability
37
G WPL Y7201P02160 Contact Us For Availability
37
WPL Y7201P02260 WPL Y7201P02260 Contact Us For Availability
38
WPL 8003P00760 WPL 8003P00760 Contact Us For Availability
38
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
40
WPL 1986204 WPL 1986204 Contact Us For Availability
40
WPL 7208P01660 WPL 7208P01660 Contact Us For Availability
41
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
42
WPL 3801F02451 WPL 3801F02451 Contact Us For Availability
43
WPL 1013214 WPL 1013214 Contact Us For Availability
45
WPL 8004P01360 WPL 8004P01360 Contact Us For Availability
46
WPL 3807F195 WPL 3807F195 Contact Us For Availability
47
WPL 3807F193 WPL 3807F193 Contact Us For Availability
48
WPL 7403P09960 WPL 7403P09960 Contact Us For Availability
49
WPL 3608F00100 WPL 3608F00100 Contact Us For Availability
49
WPL 3608F00200 WPL 3608F00200 Contact Us For Availability
50
WPL 8026P01160 WPL 8026P01160 Contact Us For Availability
51
WPL 2002W03201 WPL 2002W03201 Contact Us For Availability
× ![]()
