Model Whirlpool 38FA-92C ELECTRIC RANGE – Common Parts & Diagrams
03 - DOOR

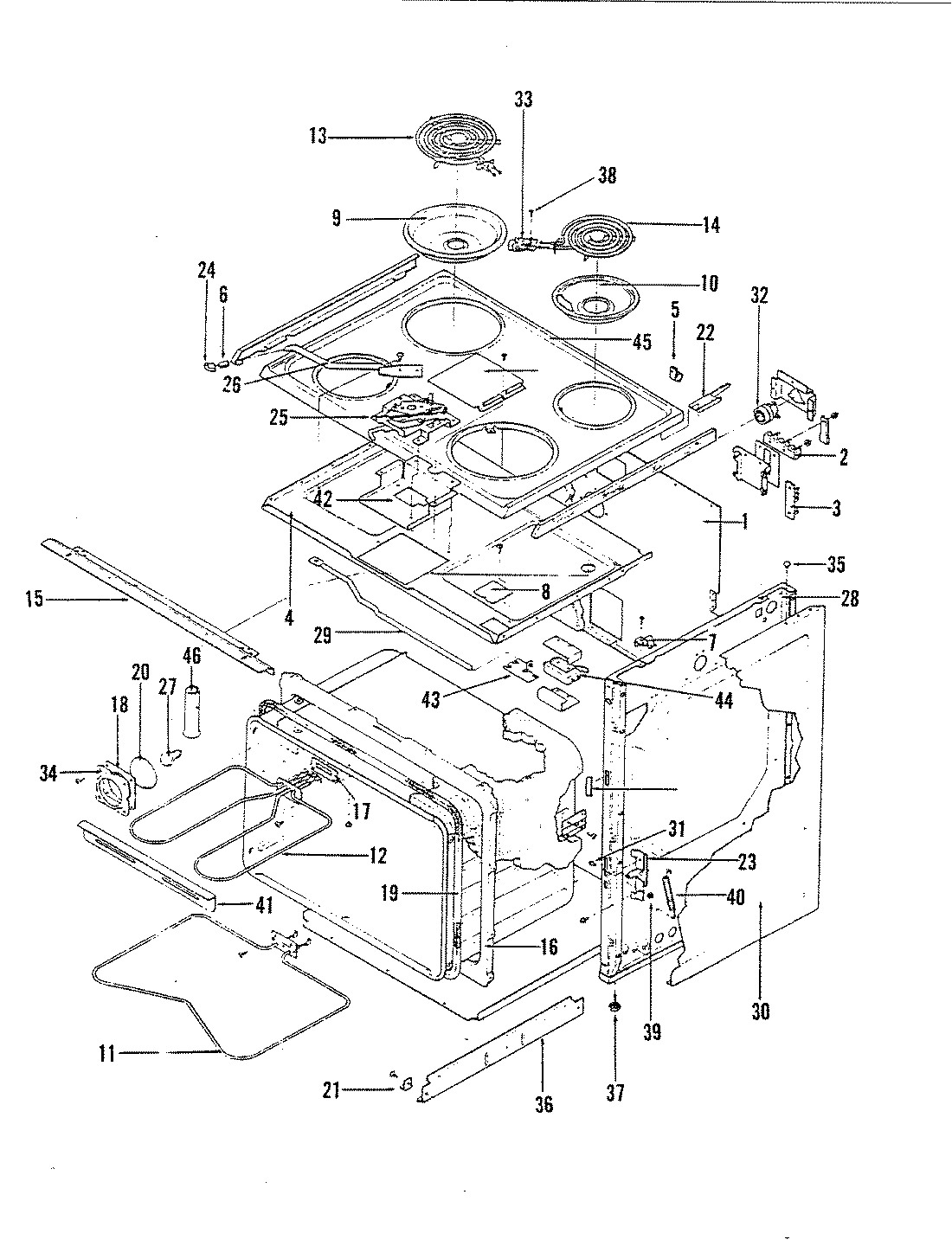

01 - BODY

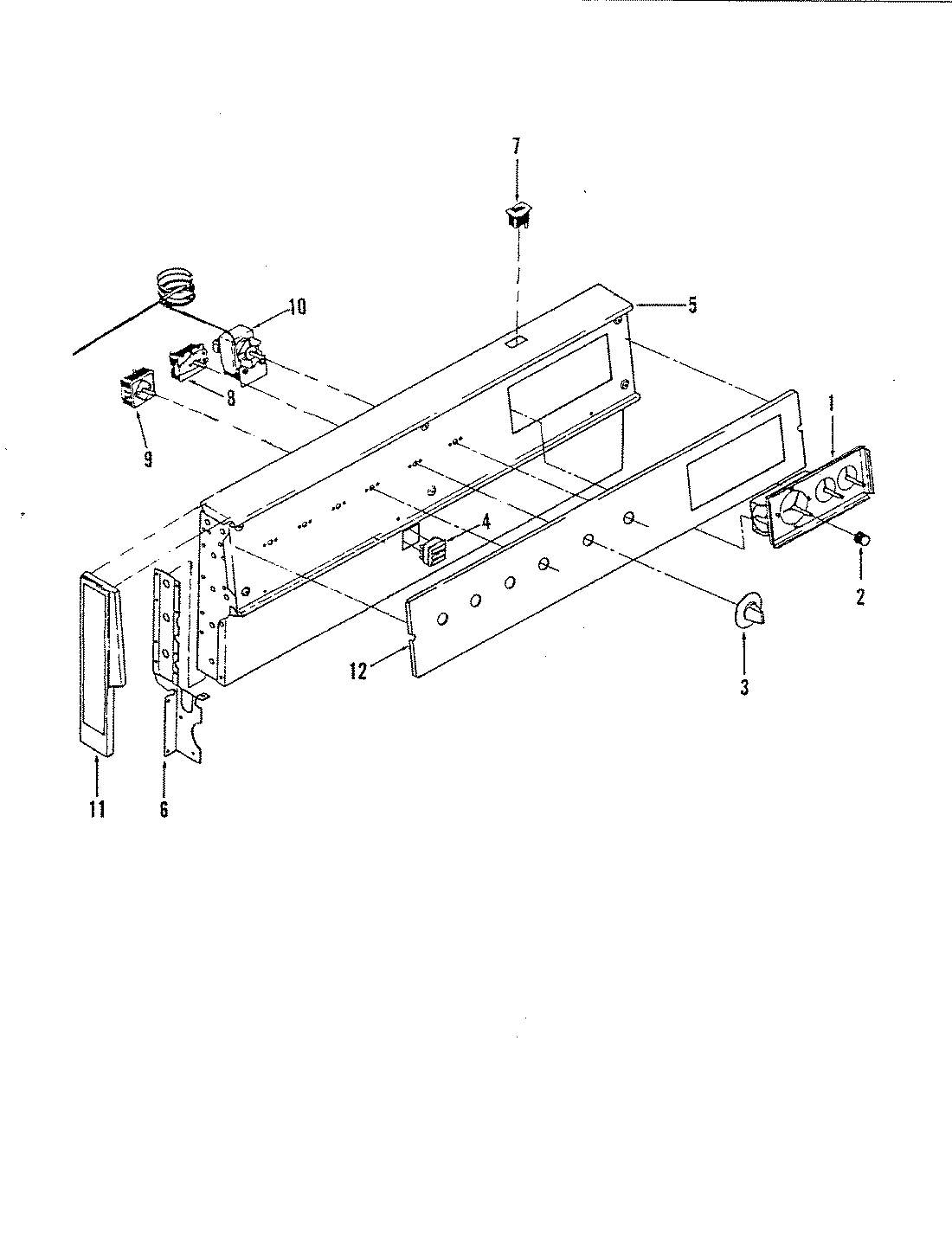

02 - CONTROL PANEL
Common parts from model Whirlpool 38FA-92C ELECTRIC RANGE
1
BAFFLE WPL 3601F09551 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
BACK, MAIN WPL 4002F09280 Contact Us For Availability
1
+ CLOCK WPL 7601P04560 Contact Us For Availability
1
CLOCK WPL 7601P18660 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P32160 Contact Us For Availability
3
KNOB WPL 7711P32060 Contact Us For Availability
4
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
4
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
4
SCREW WPL 7101P06160 Contact Us For Availability
4
BRACKET WPL 3801F09351 Contact Us For Availability
4
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
4
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
BRACE WPL 3802F00380 Contact Us For Availability
4
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F13323 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F18080 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F19880 Contact Us For Availability
4
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
4
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407E019 Contact Us For Availability
5
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
5
BACKGUARD ASSY WPL 2601W14074 Contact Us For Availability
5
PANEL, BKGD-A WPL 2601W14084 Contact Us For Availability
5
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
5
COVER, BKGD WIRE WPL 4005F00480 Contact Us For Availability
6
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
SUPPORT WPL 0862417 Contact Us For Availability
6
SUPPORT WPL 0862418 Contact Us For Availability
7
LINING WPL 2402W12815 Contact Us For Availability
7
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
8
NUT, SNAP WPL 7103P11460 Contact Us For Availability
8
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P03760 Contact Us For Availability
9
NUT, SPEED WPL 7103P04460 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P16860 Contact Us For Availability
10
PAD, OVEN DR WPL 2410A02815 Contact Us For Availability
10
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
10
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
10
THERMOSTAT WPL 7404P05060 Contact Us For Availability
11
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
11
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
11
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
11
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
12
PAD ASSY, O.D. SOLID WPL 2410W02815 Contact Us For Availability
12
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
12
BACKGUARD TRIM WPL 7703P20560 Contact Us For Availability
12
TRIM, BKGD WPL 7703P26260 Contact Us For Availability
13
PANEL, OVEN DR-A WPL 2401F04374 Contact Us For Availability
13
ELEMENT (8``) WPL 7406P01560 Contact Us For Availability
14
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
14
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
15
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
16
RUNNER (INNER) WPL 3406F02651 Contact Us For Availability
17
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
17
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
17
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
19
SCREW WPL 7101P05860 Contact Us For Availability
19
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
20
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
20
SEAL WPL 7208P00260 Contact Us For Availability
20
SEAL WPL 7208P00860 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
21
TRIM, HANDLE WPL 7720P06360 Contact Us For Availability
21
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
23
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
23
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
23
HOUSING WPL 4001F02015 Contact Us For Availability
23
HOUSING, MAIN WIRE WPL 4001F03480 Contact Us For Availability
24
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
24
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
24
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
25
CATCH WPL 8002E002 Contact Us For Availability
25
CATCH WPL 8002P01460 Contact Us For Availability
26
SCREW WPL 7101P11260 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009E001 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
27
BULB, OVEN WPL 7407P02660 Contact Us For Availability
28
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
28
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
29
PAN, BROIL WPL 3401F00423 Contact Us For Availability
29
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
29
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
29
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
30
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
30
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
31
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
31
PLATE, CONDUIT WPL 3605F15380 Contact Us For Availability
31
PIN, HIN WPL 7113P00260 Contact Us For Availability
31
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
32
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
33
WPL W10124350 WPL W10124350 Contact Us For Availability
33
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
34
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
35
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
35
WPL 8003P01060 WPL 8003P01060 Contact Us For Availability
36
WPL 3406F02080 WPL 3406F02080 Contact Us For Availability
36
WPL 3406F02680 WPL 3406F02680 Contact Us For Availability
37
WPL 7101P02960 WPL 7101P02960 Contact Us For Availability
38
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
38
WPL 4005F01380 WPL 4005F01380 Contact Us For Availability
38
WPL 7101P04260 WPL 7101P04260 Contact Us For Availability
39
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
40
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
41
WPL 3807F17613 WPL 3807F17613 Contact Us For Availability
42
WPL 3807F195 WPL 3807F195 Contact Us For Availability
43
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
43
WPL 3807F42245 WPL 3807F42245 Contact Us For Availability
44
WPL 7403P04560 WPL 7403P04560 Contact Us For Availability
45
WPL 2002W02804 WPL 2002W02804 Contact Us For Availability
46
WPL 8026A00760 WPL 8026A00760 Contact Us For Availability
× ![]()
