Model Whirlpool 3889XRB ELECTRIC RANGE – Common Parts & Diagrams

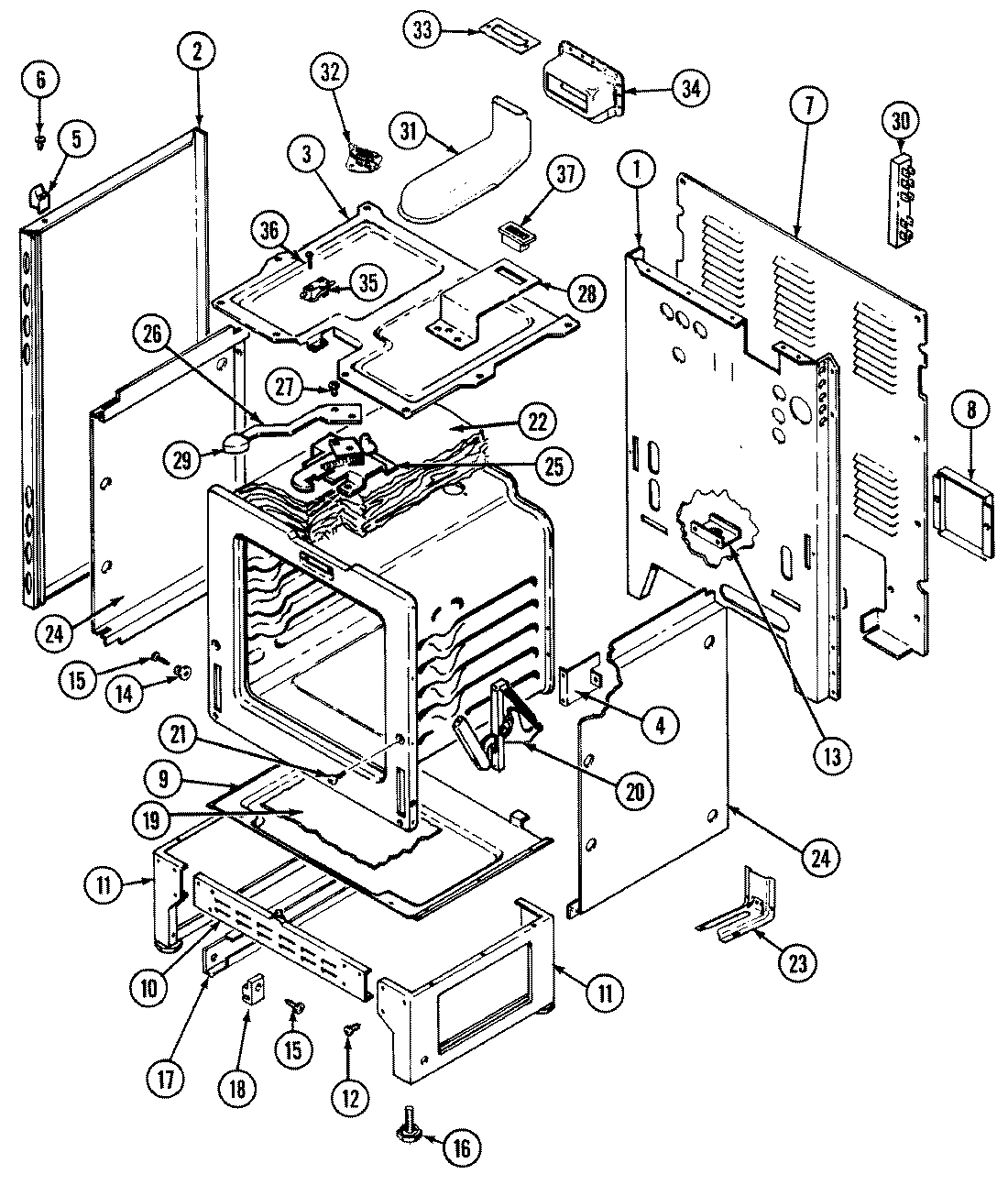

01 - BODY

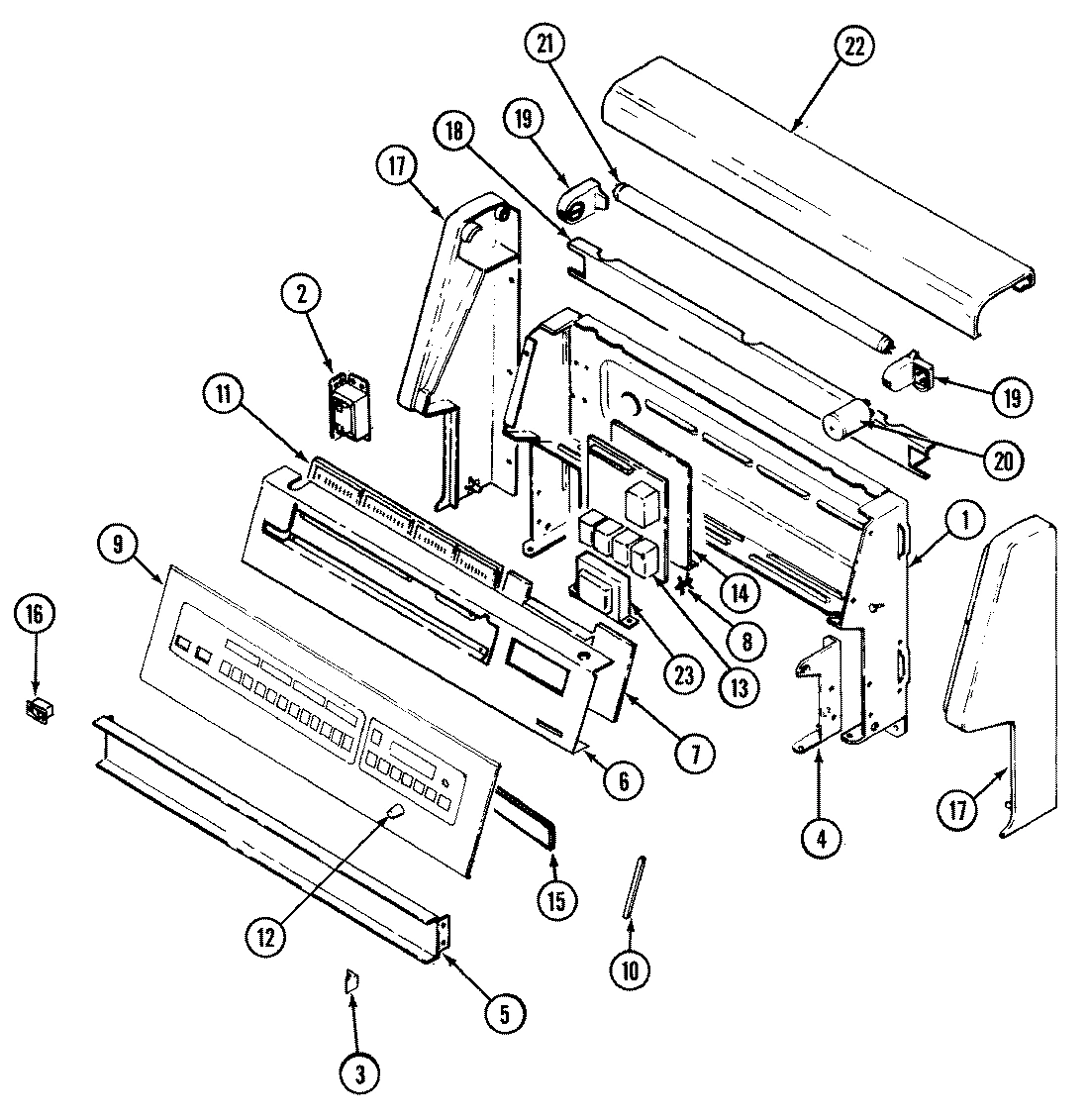

02 - CONTROL PANEL

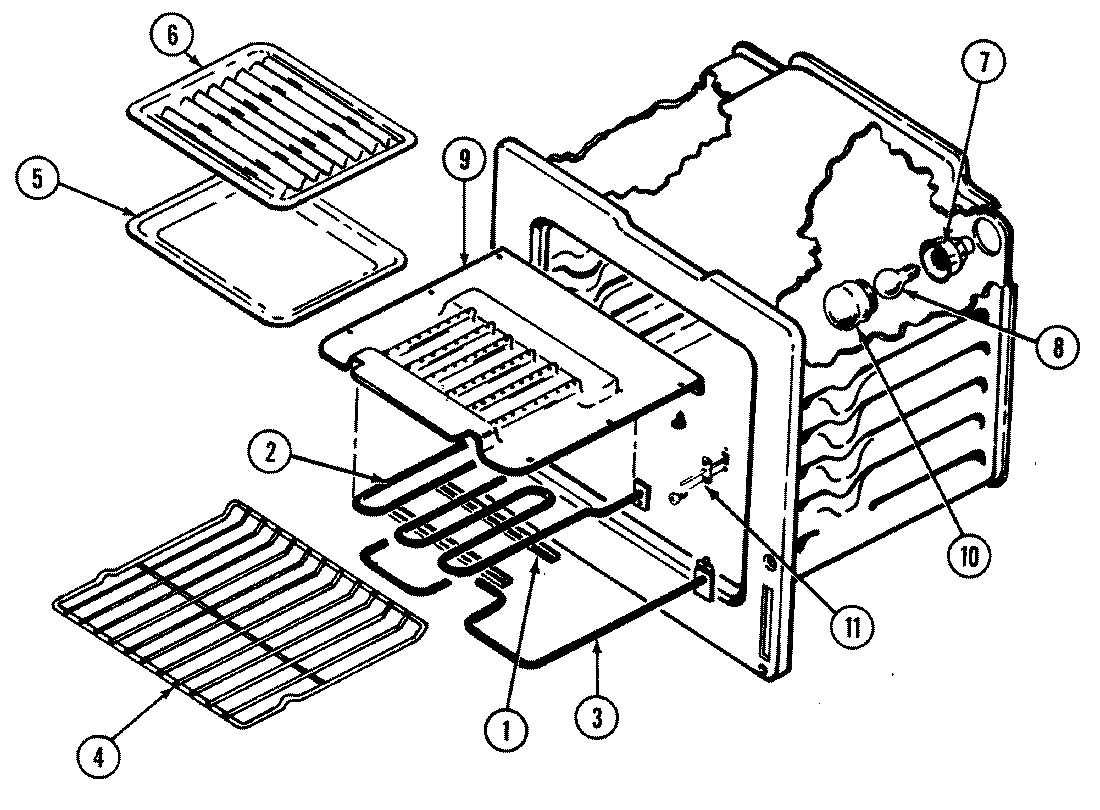

05 - OVEN

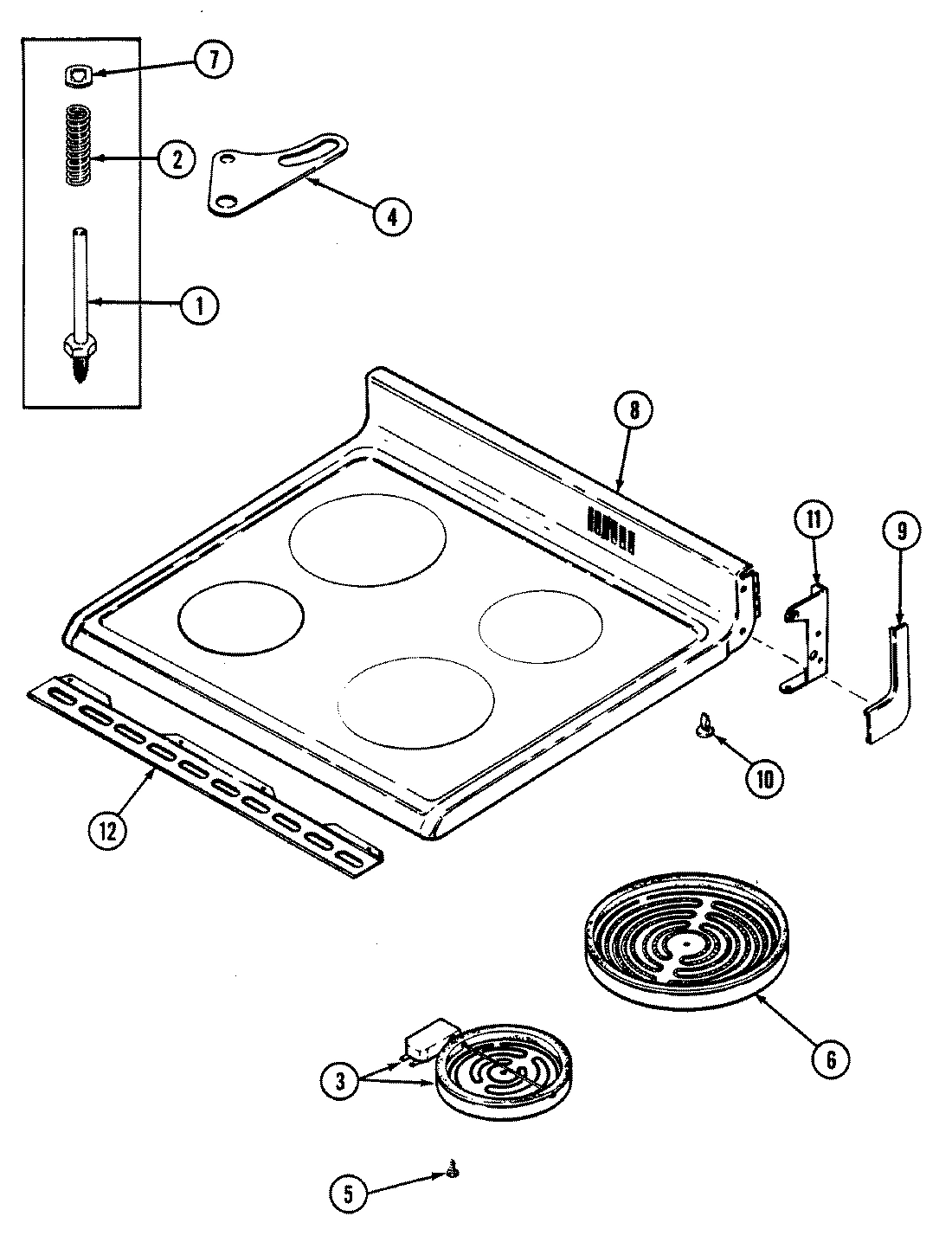

06 - TOP ASSEMBLY

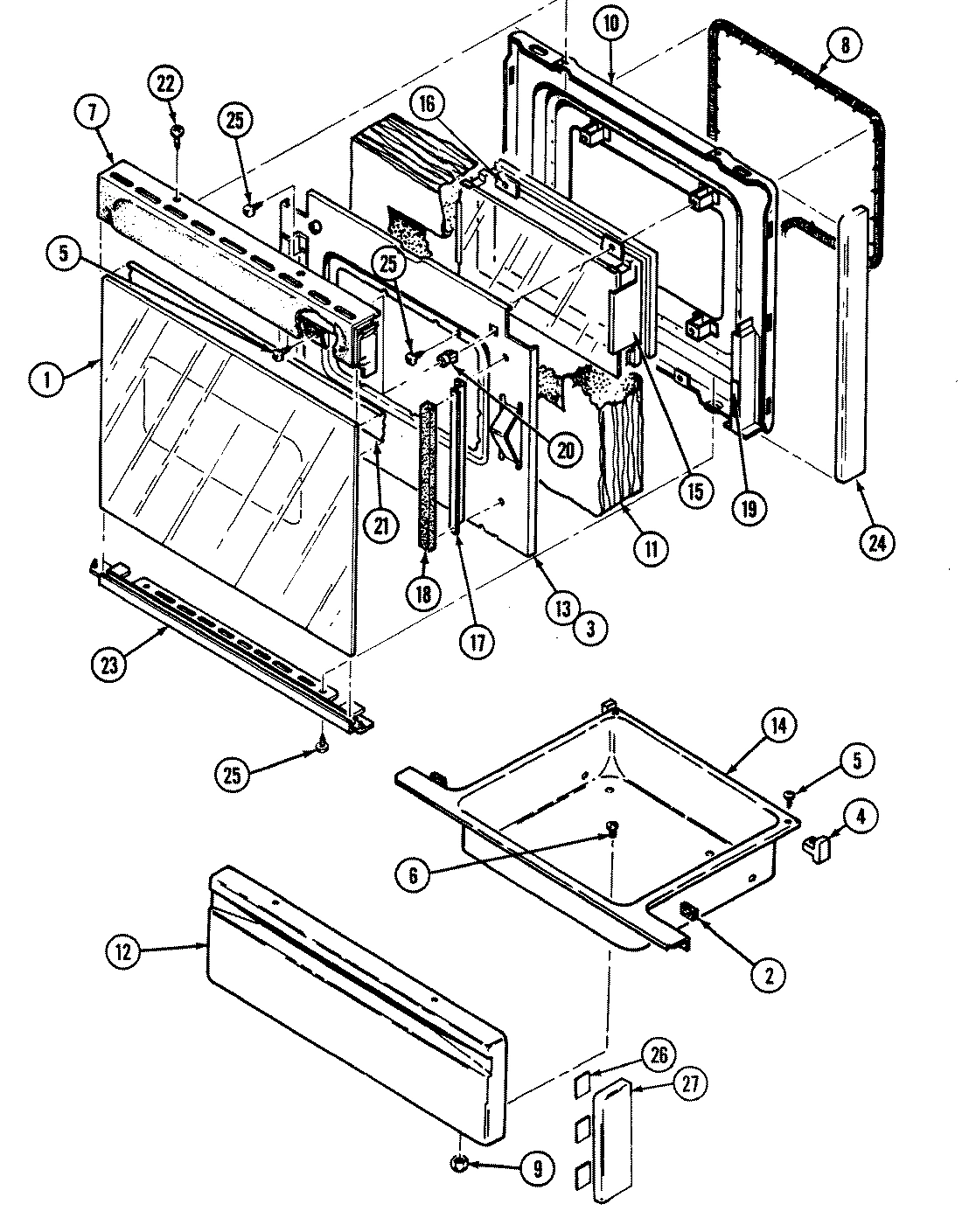

03 - DOOR/DRAWER (3889XRB)

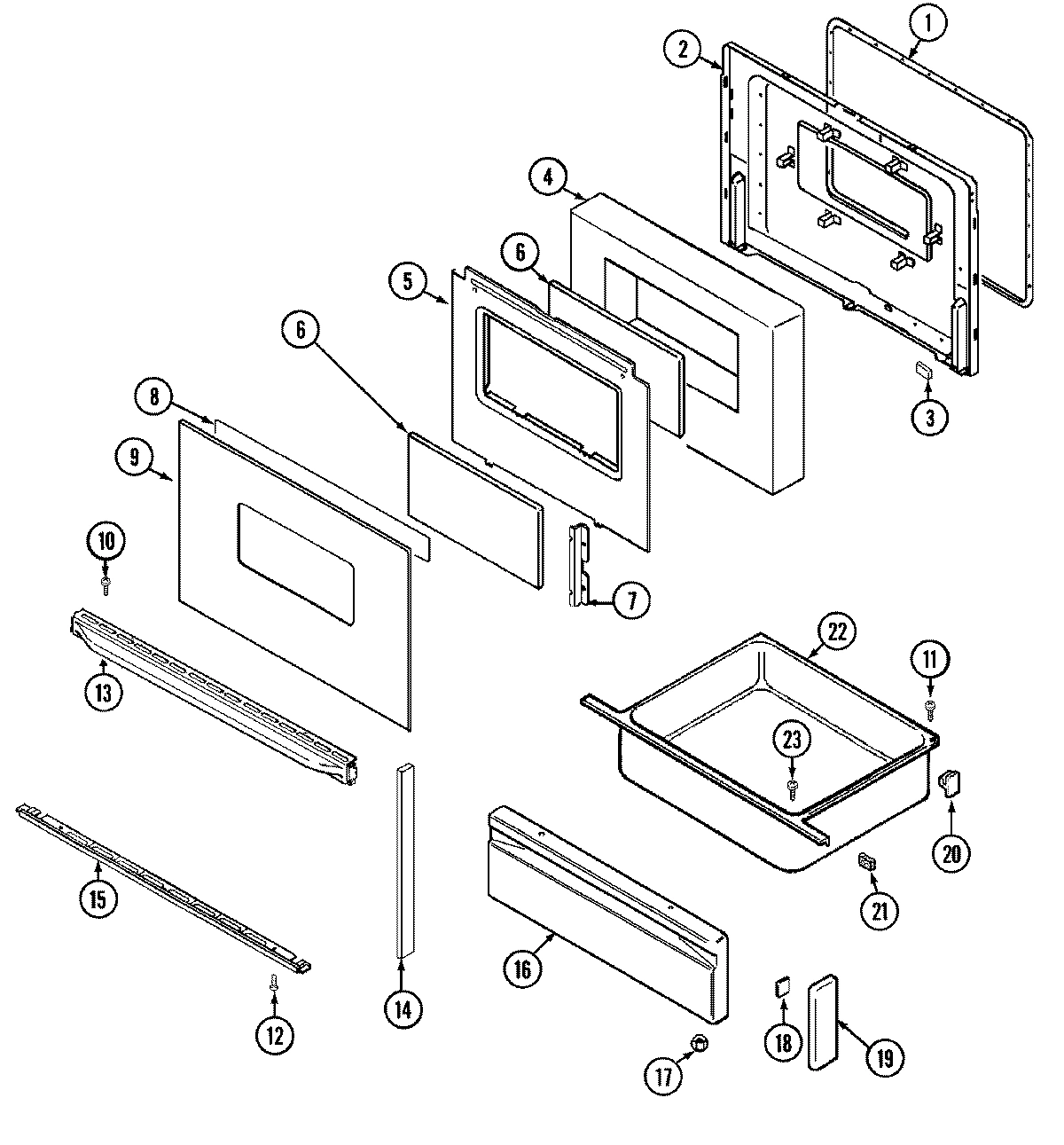

04 - DOOR/DRAWER (SER. PRE. 34)

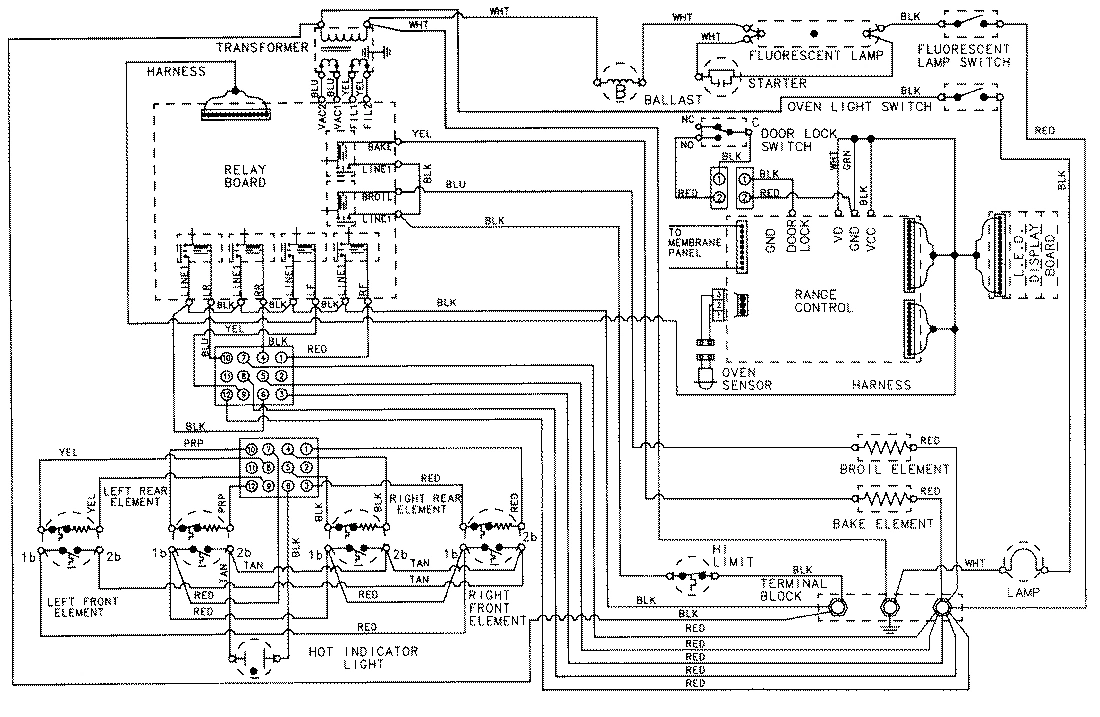

07 - WIRING INFORMATION
Common parts from model Whirlpool 3889XRB ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F08570 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F09970 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BOX, BURNER WPL 4011F23819 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
3
SPACER WPL 8010P08360 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P08460 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
4
RACK----NA WPL 7801P03960 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SCREW WPL 7101P32960 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
SCREW WPL 7101P33260 Contact Us For Availability
6
PANEL, BACKGUARD (BLACK) WPL 7703P52660 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
SUPPORT, CLOCK WPL 3807F43745 Contact Us For Availability
7
CLOCK WPL 7601P17460 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
8
SUPPORT, CLOCK WPL 8004P03560 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
TOP ASSY (BLK GLASS/BLK FRAME) WPL 5706S01790 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
9
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
9
PANEL, CONTROL ASSY WPL 4876S03959 Contact Us For Availability
9
TAPE WPL 74001019 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
10
TRIM, GLASS RETAINER (BLK) WPL 7720P15560 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
GLIDE, MAIN TOP WPL 8016P01460 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
11
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
11
HARNESS, L.E.D.BOARD WPL 5170P16460 Contact Us For Availability
11
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
11
DISPLAY BOARD WPL 7424P00160 Contact Us For Availability
11
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
11
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
12
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
12
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
12
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
12
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
RELAY BOARD WPL 7428P01160 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SUPPORT, RELAY BOARD WPL 3807F45845 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
15
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
16
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
16
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
17
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
TAPE WPL 8270P09860 Contact Us For Availability
19
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
END CAP (BLK) WPL Y7744P07060 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
STARTER WPL 7415P00160 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
22
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
22
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
23
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
23
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
23
HARNESS, LOOSE WIRE WPL 5125A36560 Contact Us For Availability
23
HARNESS, RELAY TO TRANSFER WPL 5140D04060 Contact Us For Availability
23
HARNESS, CONTROL PANEL WPL 5170D17460 Contact Us For Availability
23
HARNESS, LOCK & SENSOR WPL 5195D11960 Contact Us For Availability
23
NUT, SPEED CLIP WPL 7103P12660 Contact Us For Availability
23
TRANSFORMER WPL 7418P00760 Contact Us For Availability
23
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
24
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
24
MANUAL, USE & CARE WPL 8112P10860 Contact Us For Availability
24
MANUAL, USE & CARE WPL 8113P00960 Contact Us For Availability
25
SCREW WPL 7101P29060 Contact Us For Availability
25
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
26
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
26
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
26
TAPE, DOUBLE-SIDED WPL 8270P09460 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
28
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
29
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
29
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
30
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
31
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
33
GASKET, VENT WPL 7201P05460 Contact Us For Availability
34
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
35
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
35
INSULATOR WPL 74001722 Contact Us For Availability
35
INSULATOR, SWITCH WPL 74001999 Contact Us For Availability
35
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
36
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
37
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
37
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
38
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
38
HARNESS, PANEL TO BBB WPL 5195A11360 Contact Us For Availability
38
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001542 Contact Us For Availability
× ![]()
