Model Whirlpool 3888XRB ELECTRIC RANGE – Common Parts & Diagrams
05 - TOP ASSEMBLY

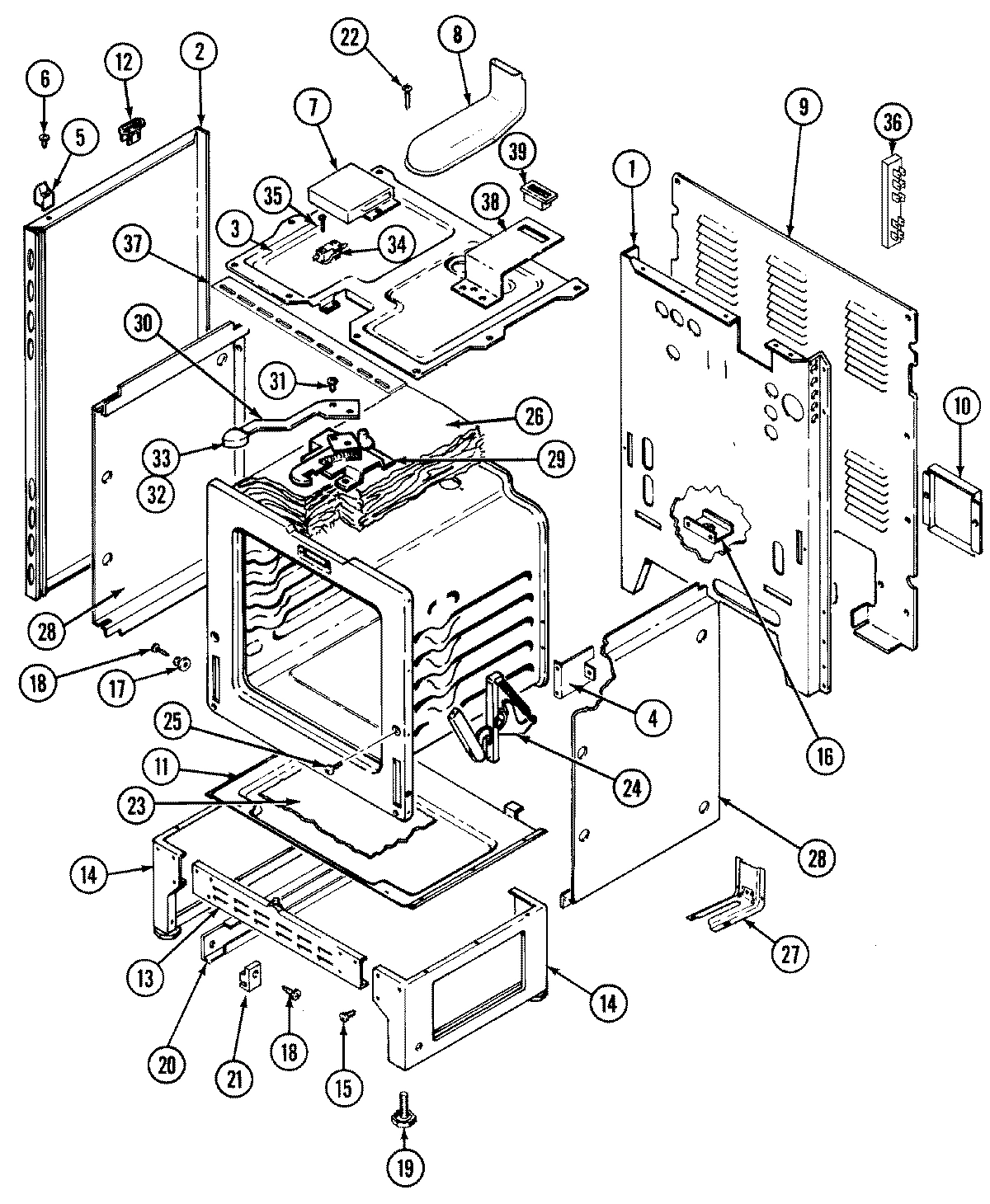

01 - BODY

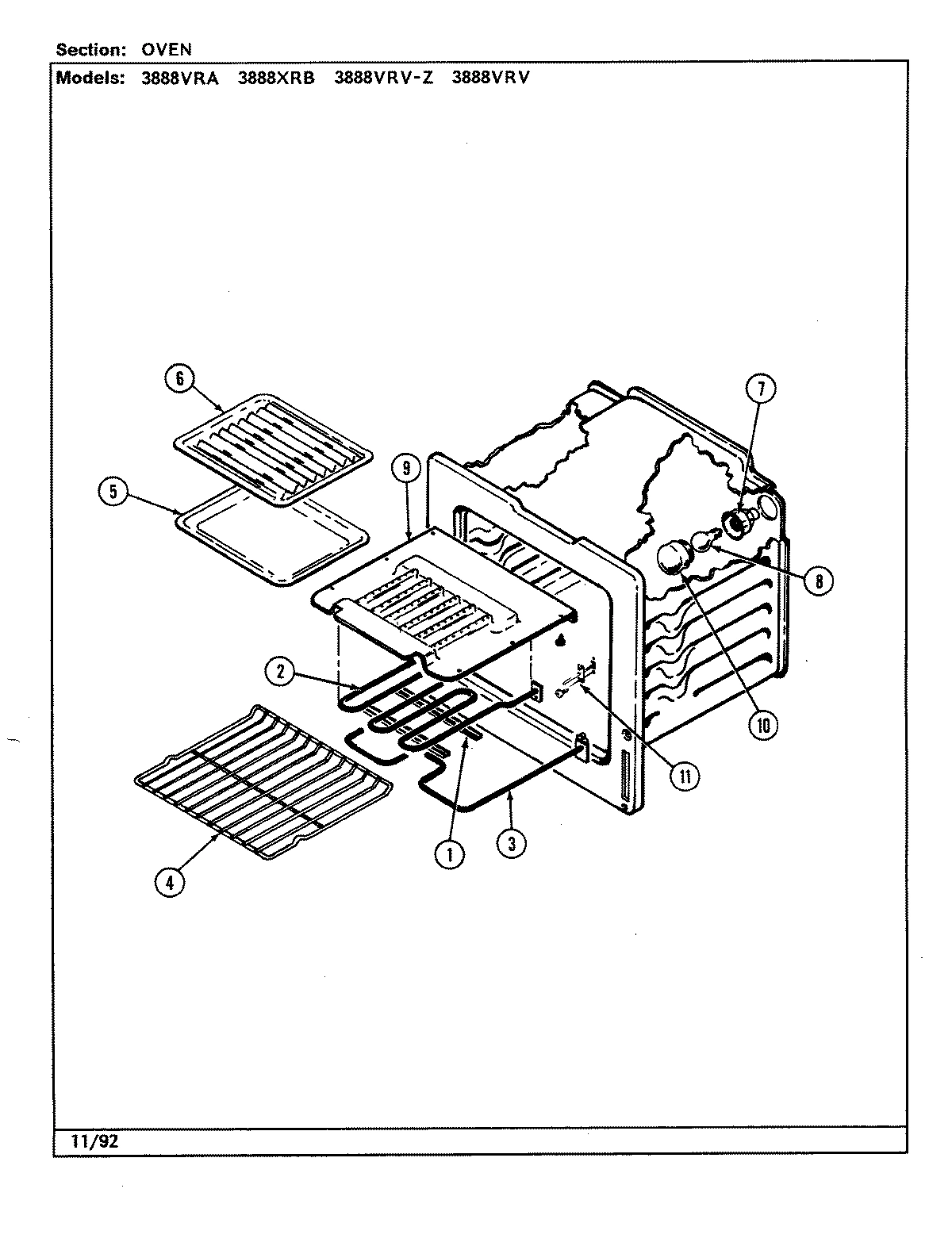

04 - OVEN

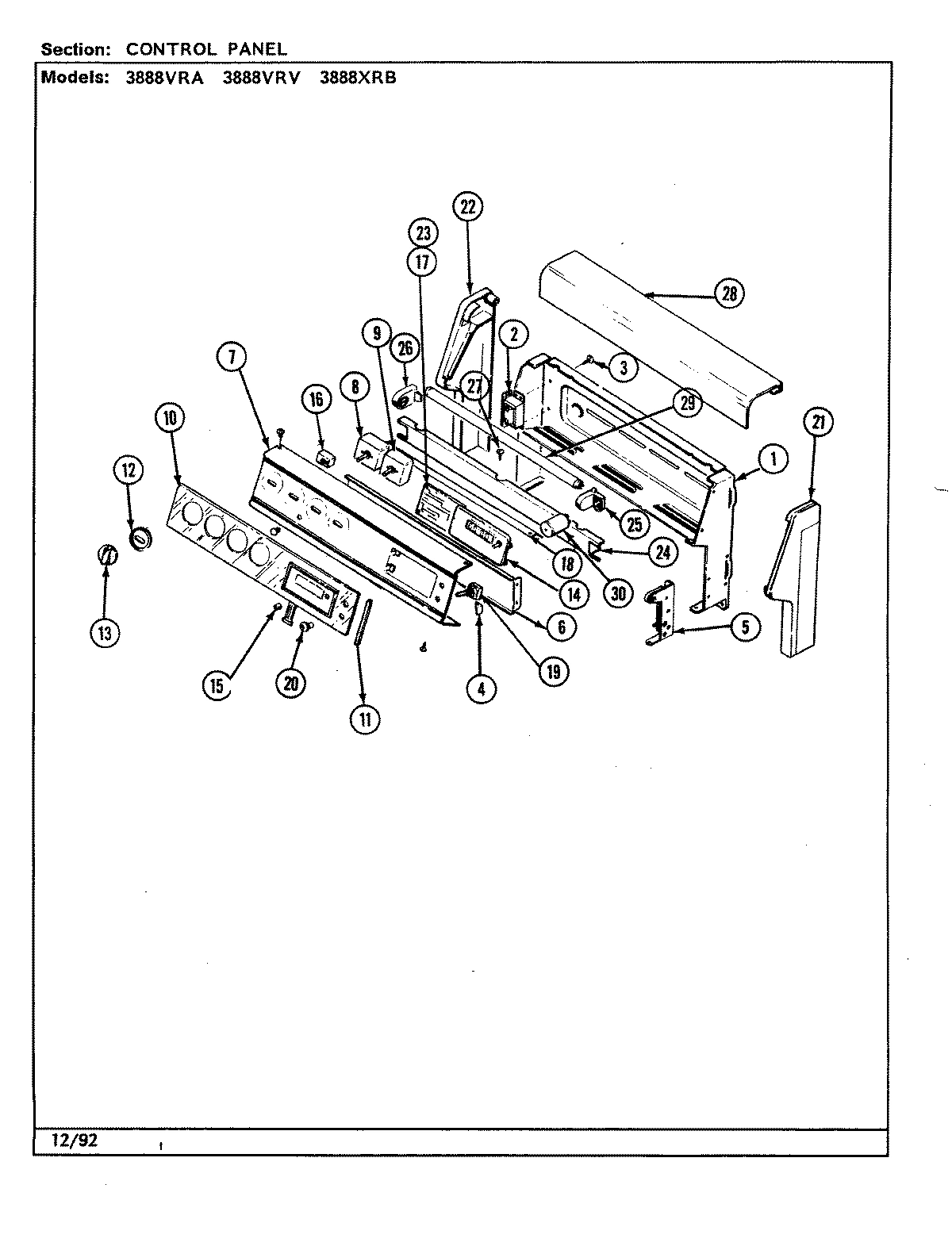

02 - CONTROL PANEL

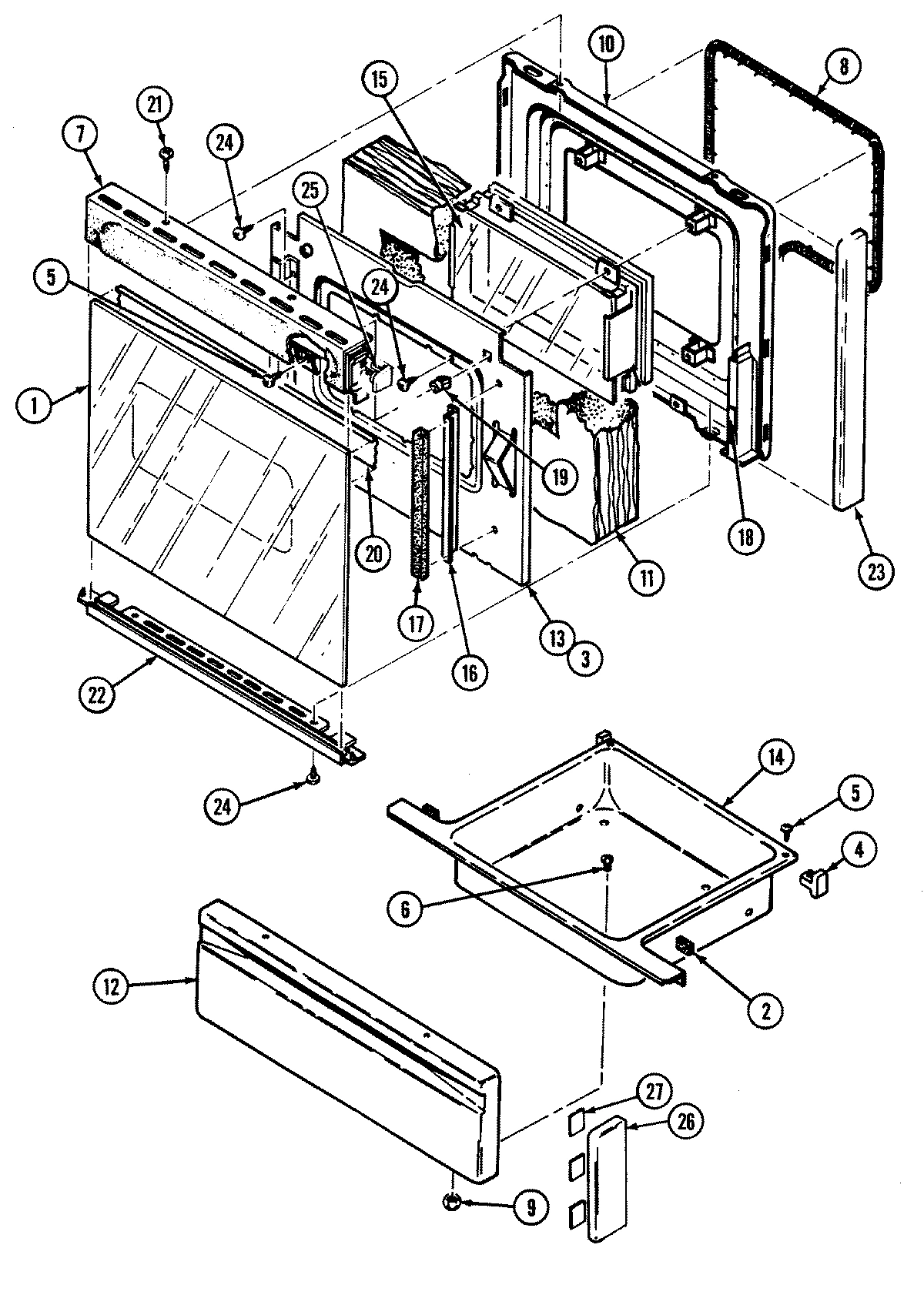

03 - DOOR/DRAWER (3888XRB)
Common parts from model Whirlpool 3888XRB ELECTRIC RANGE
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 4002F18480 Contact Us For Availability
1
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F08570 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F09970 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
RACK, OVEN WPL 7801P03660 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
5
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
6
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
PANEL BACKGUARD WPL 7703P27160 Contact Us For Availability
7
PANEL, BACKGUARD (BLK) WPL 7703P45460 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
8
TOP ASSY (BLK GLASS/BLK FRAME) WPL 5706S01790 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
GLIDE WPL 8016P01360 Contact Us For Availability
10
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
PANEL, CONTROL ASSY WPL 4876S01759 Contact Us For Availability
10
PANEL, CONTROL ASSY WPL 4876S01959 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
TRIM, GLASS RETAINER (BLK) WPL 7720P15560 Contact Us For Availability
11
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
12
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
12
BEZEL, KNOB WPL 7740P01860 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
CLOCK WPL 7601P17160 Contact Us For Availability
14
CLOCK WPL 7601P20960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
15
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
LAMP SIGNAL WPL 7407P09060 Contact Us For Availability
16
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
RELAY BOARD WPL 7428P01360 Contact Us For Availability
17
SEAL WPL 7208P00260 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
19
SPACER WPL 8010P07560 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
20
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
21
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
22
NUT, SPEED WPL 7103P12960 Contact Us For Availability
22
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
22
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
23
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
24
SCREW WPL 7101P29060 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
24
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
25
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
25
END CAP (RT) WPL 7744P07560 Contact Us For Availability
25
END CAP (LT) WPL 7744P07660 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
26
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
26
END CAP (BLK) WPL Y7744P07060 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
SCREW WPL 7118P01960 Contact Us For Availability
27
TAPE, DOUBLE-SIDED WPL 8270P09460 Contact Us For Availability
28
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
28
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
29
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
29
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
29
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
30
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
30
HARNESS BKGD WPL 5170D12260 Contact Us For Availability
30
HARNESS WPL 5170D16560 Contact Us For Availability
30
HARNESS SENSOR WPL 5170P12360 Contact Us For Availability
30
HARNESS CTRL TO RELAY WPL 5170P12460 Contact Us For Availability
30
HARNESS, SENSOR & LOCK WPL 5170P16260 Contact Us For Availability
30
HARNESS, PANEL TO TOP WPL 5175D06360 Contact Us For Availability
30
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
30
STARTER WPL 7415P00160 Contact Us For Availability
31
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
31
WASHER WPL 7109P01560 Contact Us For Availability
31
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
31
MANUAL, USE & CARE WPL 8113P00860 Contact Us For Availability
32
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
33
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
35
SCREW WPL 7101P10360 Contact Us For Availability
36
BRACKET, IND. WPL 3801F30245 Contact Us For Availability
36
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
37
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
38
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
39
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
39
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
× ![]()
