Model Whirlpool 3868XRW ELECTRIC RANGE – Common Parts & Diagrams

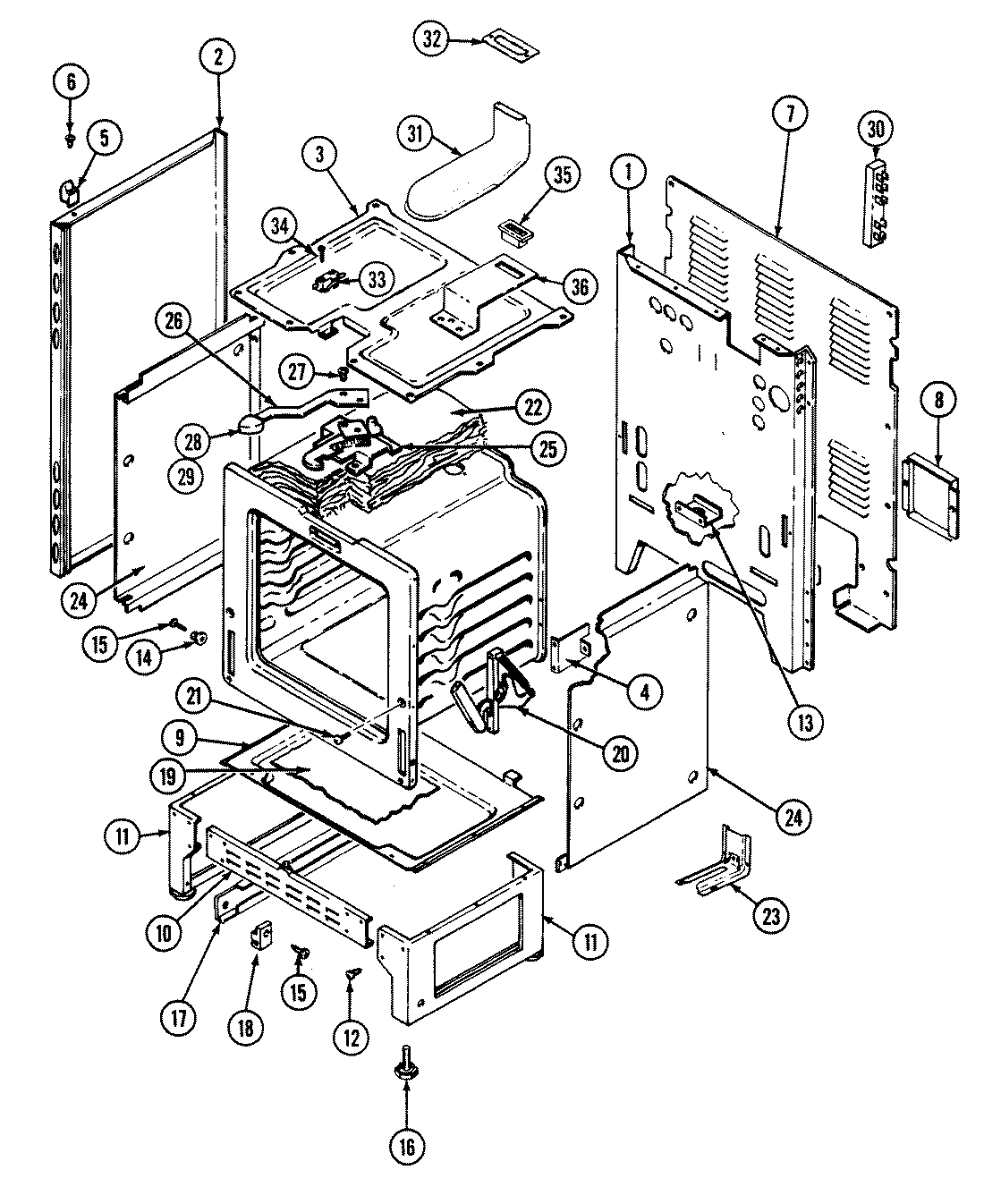

01 - BODY

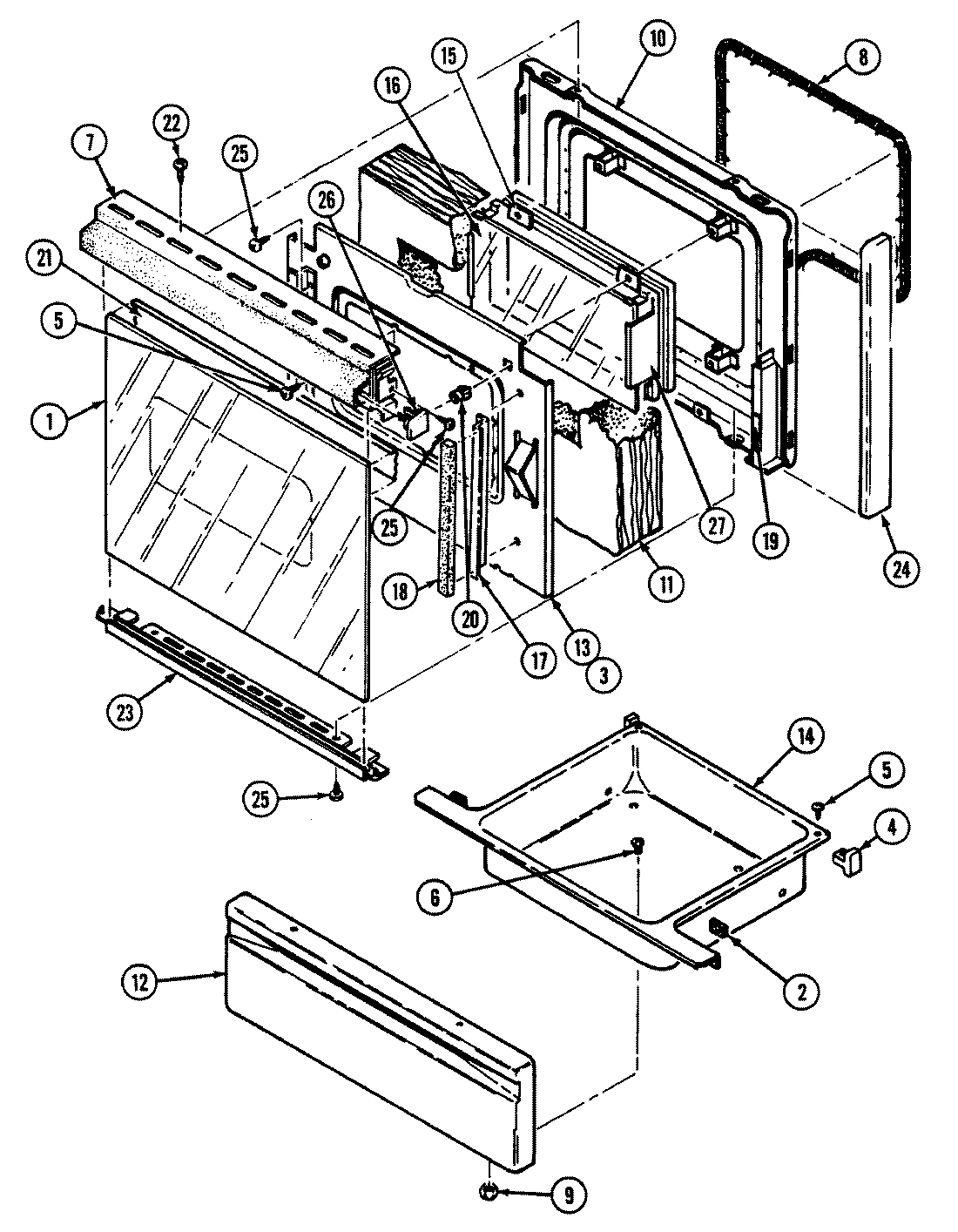

03 - DOOR/DRAWER

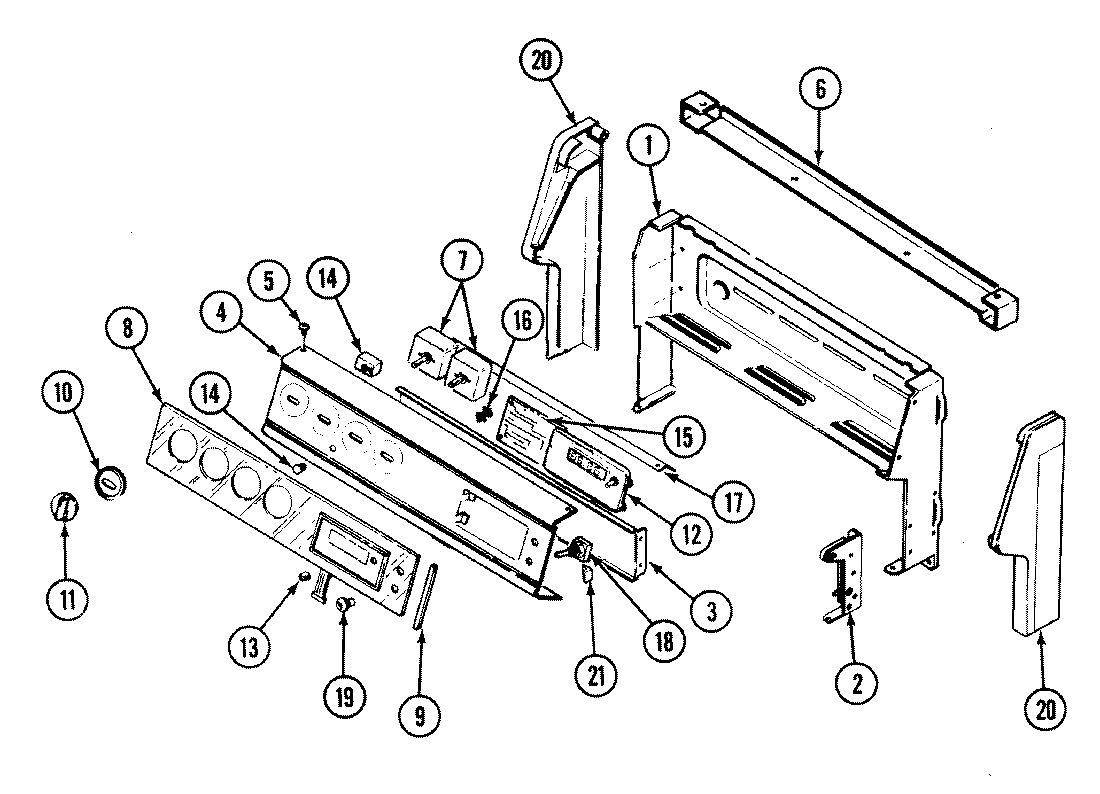

02 - CONTROL PANEL

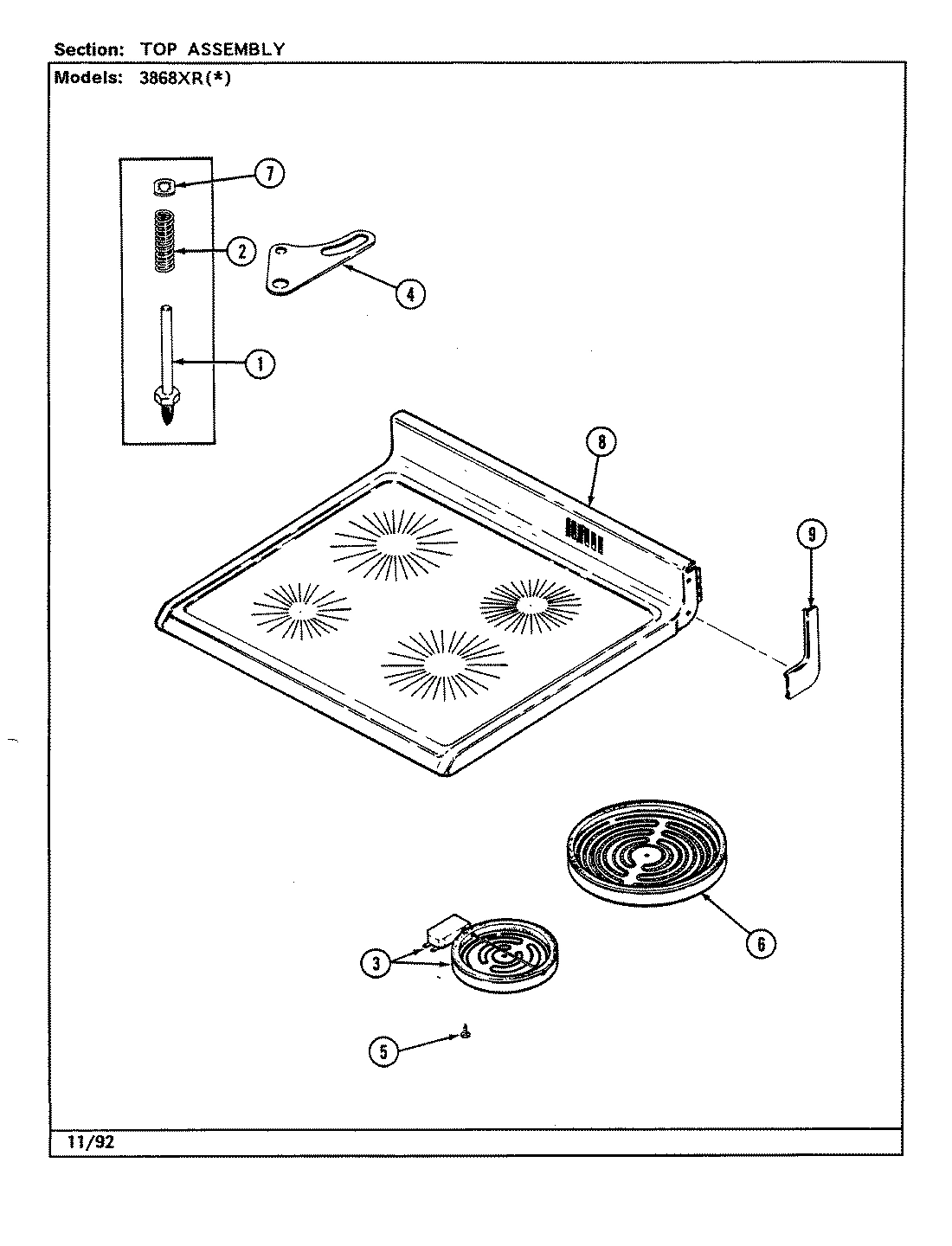

05 - TOP ASSEMBLY (3868XR)

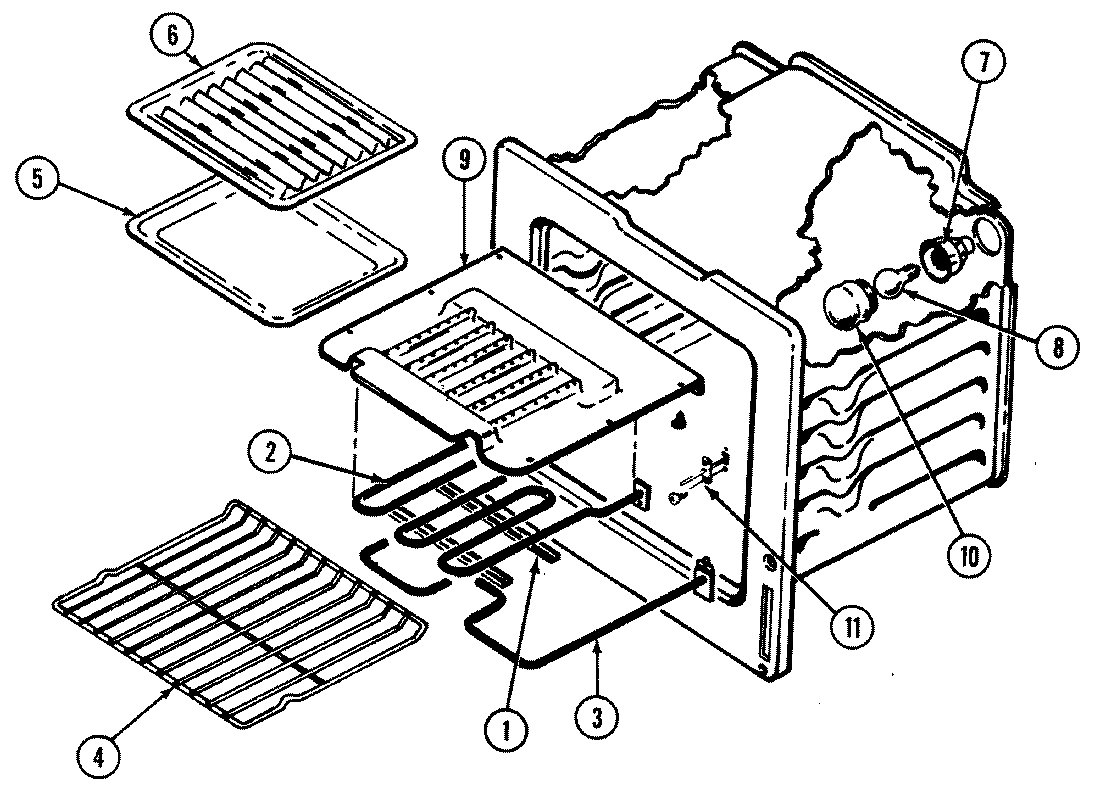

04 - OVEN
Common parts from model Whirlpool 3868XRW ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18480 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
2
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
2
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
PANEL BACKGUARD WPL 7703P27260 Contact Us For Availability
4
PANEL, CTRL WPL 7703P50160 Contact Us For Availability
4
PANEL, BACKGUARD WPL 7703P50260 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
RACK, OVEN WPL 7801P03660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
SCREW WPL 7118P01960 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
CONTROL PANEL ASSY WPL 4876S02359 Contact Us For Availability
8
CONTROL PANEL ASSY WPL 4876S02459 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
TOP ASSY (BLK GLASS/WHT FRAME) WPL 5706S01781 Contact Us For Availability
8
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
9
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
TRIM, RETAINER WPL 7720P15660 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
10
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
BEZEL, KNOB WPL 7740P01860 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
11
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
11
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
11
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
12
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
12
CLOCK WPL 7601P17160 Contact Us For Availability
12
CLOCK WPL 7601P19260 Contact Us For Availability
12
CLOCK WPL 7601P20960 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
LAMP SIGNAL WPL 7407P09060 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
15
FRAME, WINDOW WPL 7907P00960 Contact Us For Availability
15
RELAY BOARD WPL 7428P01360 Contact Us For Availability
16
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
16
GLASS ASY, OVEN DOOR WPL 7907P01460 Contact Us For Availability
16
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
17
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
19
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
20
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
20
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
20
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
21
HARNESS WPL 5170D16560 Contact Us For Availability
21
HARNESS CTRL TO RELAY WPL 5170P12460 Contact Us For Availability
21
HARNESS, SENSOR & LOCK WPL 5170P16260 Contact Us For Availability
21
SPACER WPL 8010P08360 Contact Us For Availability
22
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
23
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
23
MANUAL, USE & CARE WPL 8113P00860 Contact Us For Availability
24
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
24
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
26
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
27
WASHER WPL 7109P01560 Contact Us For Availability
28
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
29
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
30
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
31
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
31
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
32
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
32
GASKET, VENT WPL 7201P05460 Contact Us For Availability
33
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
34
SCREW WPL 7101P10360 Contact Us For Availability
35
LIGHT, INDICATOR WPL 7407P08960 Contact Us For Availability
36
BRACKET, IND. WPL 3801F30245 Contact Us For Availability
× ![]()
