Model Whirlpool 3862XRW ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

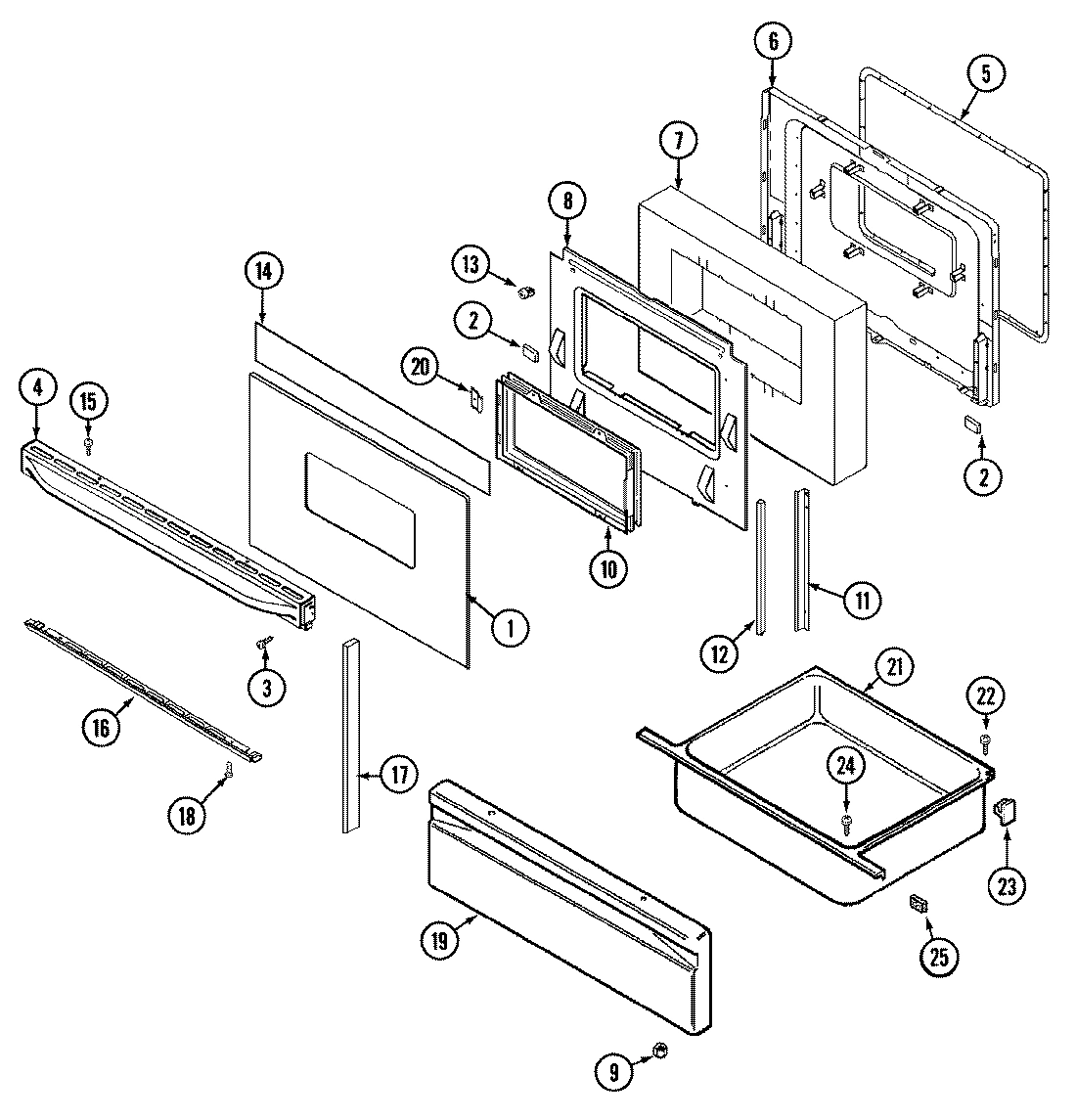

03 - DOOR/DRAWER

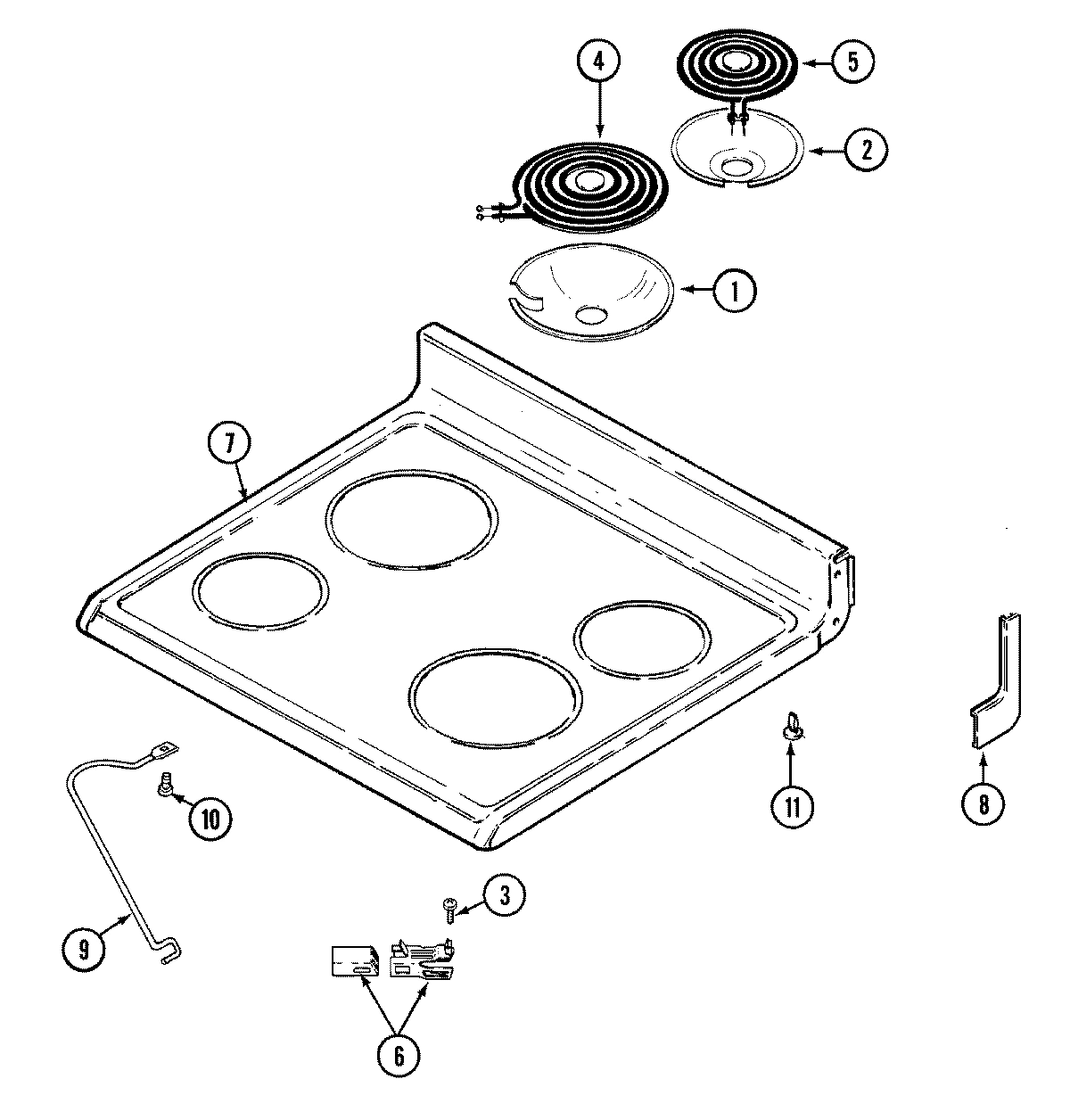

05 - TOP ASSEMBLY

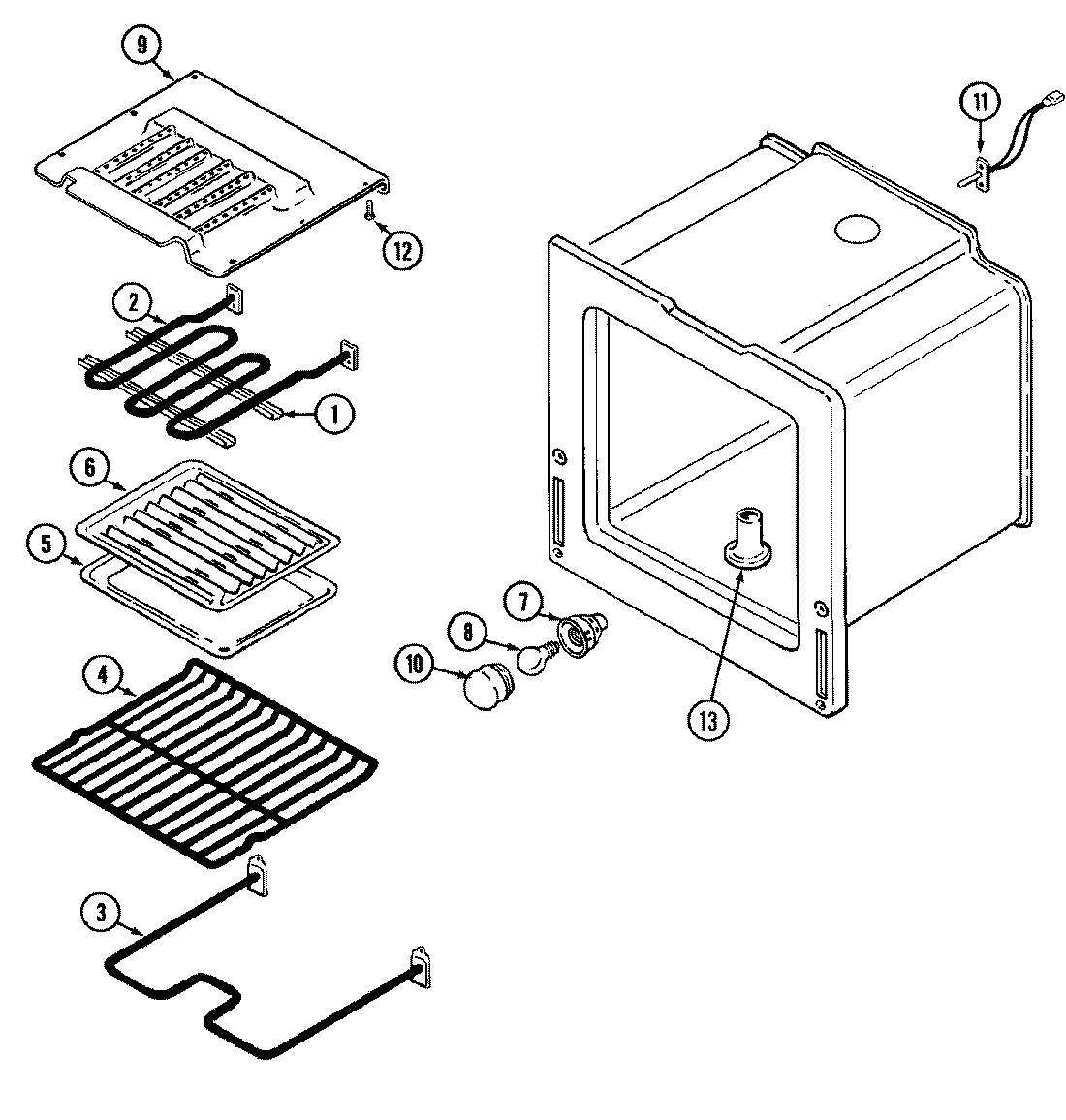

04 - OVEN

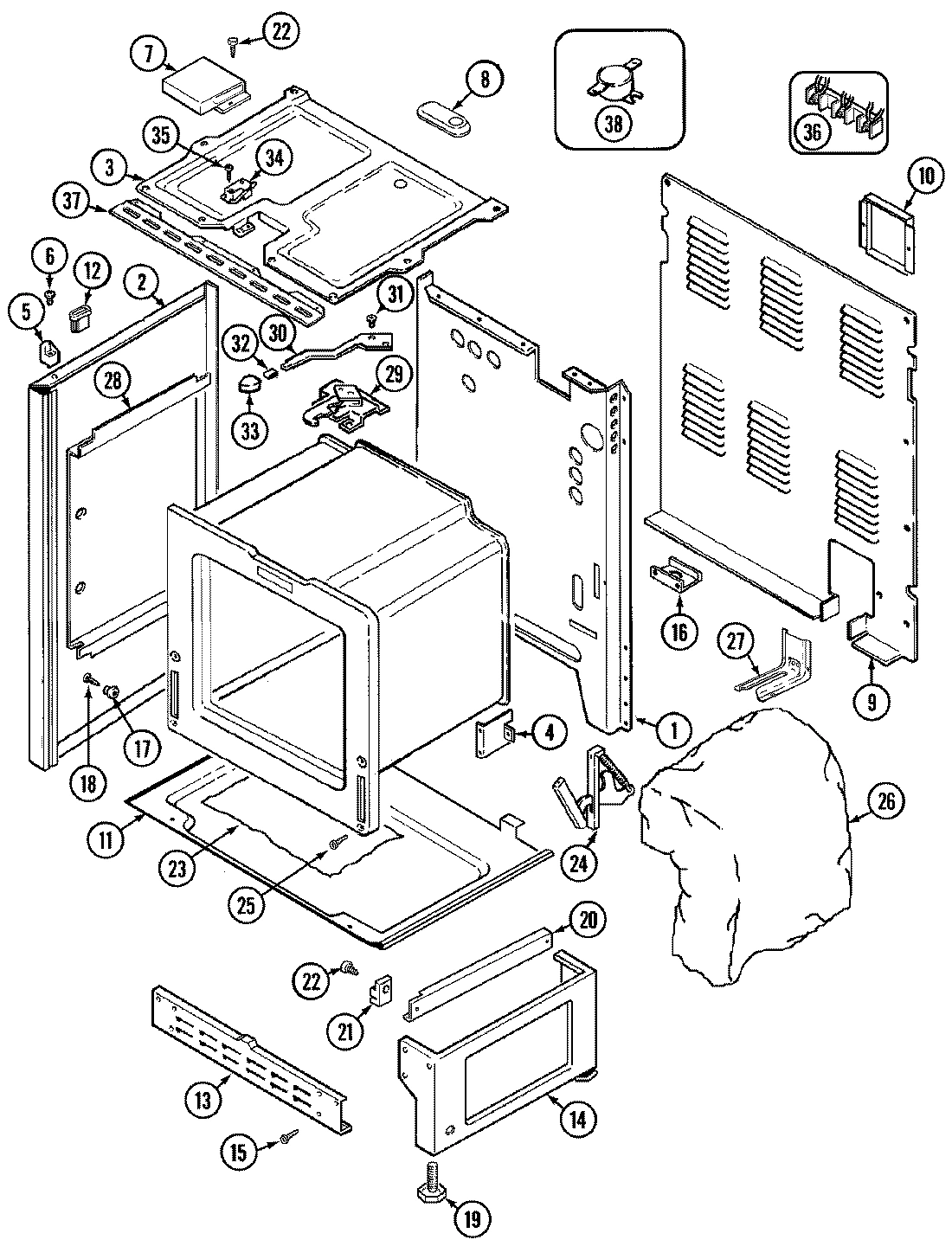

01 - BODY

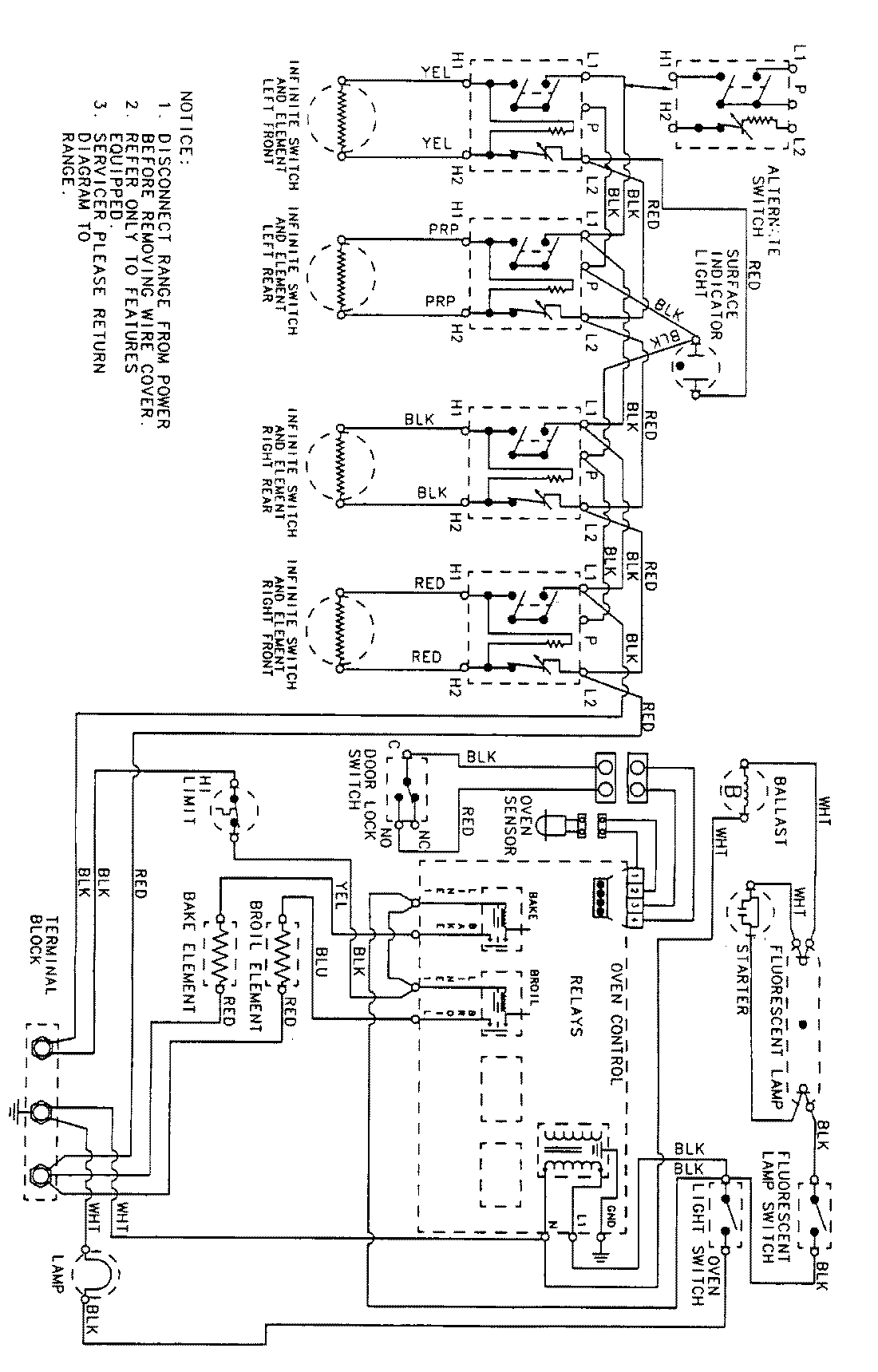

06 - WIRING INFORMATION
Common parts from model Whirlpool 3862XRW ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
1
BOWL, DRIP (8``) (BLK) WPL 7725P02360 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
BOWL, DRIP (6``) (BLK) WPL 7725P02260 Contact Us For Availability
2
BOWL, DRIP (6``W/HOLE-BLK) WPL 7725P04060 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
3
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
BOX, BURNER WPL 4011F21919 Contact Us For Availability
4
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08860 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08760 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SCREW WPL 7118P01960 Contact Us For Availability
6
PANEL BKGD WPL 7703P31060 Contact Us For Availability
6
PANEL, CTRL WPL 7703P50160 Contact Us For Availability
6
PANEL, BACKGUARD WPL 7703P50260 Contact Us For Availability
6
LINING, OVEN DOOR WPL 2402W19419 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
7
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
9
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
9
RELAY BOARD WPL 7428P01360 Contact Us For Availability
9
CLOCK WPL 7601P17160 Contact Us For Availability
9
CLOCK WPL 7601P20960 Contact Us For Availability
9
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
10
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
GLIDE WPL 8016P01360 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
13
LAMP SIGNAL WPL 7407P09060 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
TUBE, VENT WPL 8026P01960 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
TRIM, RETAINER WPL 7720P15660 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
15
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
16
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
16
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
CONTROL PANEL ASSY WPL 4876S02359 Contact Us For Availability
17
CONTROL PANEL ASSY WPL 4876S02459 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
BEZEL, KNOB WPL 7740P01860 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
19
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
19
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
HARNESS LOOSE WIRE WPL 5125A32360 Contact Us For Availability
20
WIRES, LOOSE WPL 5125A35260 Contact Us For Availability
20
HARNESS SENSOR WPL 5170P12360 Contact Us For Availability
20
HARNESS CTRL TO RELAY WPL 5170P12460 Contact Us For Availability
20
HARNESS, SENSOR & LOCK WPL 5170P16260 Contact Us For Availability
20
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P00760 Contact Us For Availability
21
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
SCREW WPL 7101P11560 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
24
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
25
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
28
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
29
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
29
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
30
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
31
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
31
WASHER WPL 7109P01560 Contact Us For Availability
32
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
33
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
35
SCREW WPL 7101P10360 Contact Us For Availability
36
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
36
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
37
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
38
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001817 Contact Us For Availability
× ![]()
