Model LG 37LG50-UG – Common Parts & Diagrams

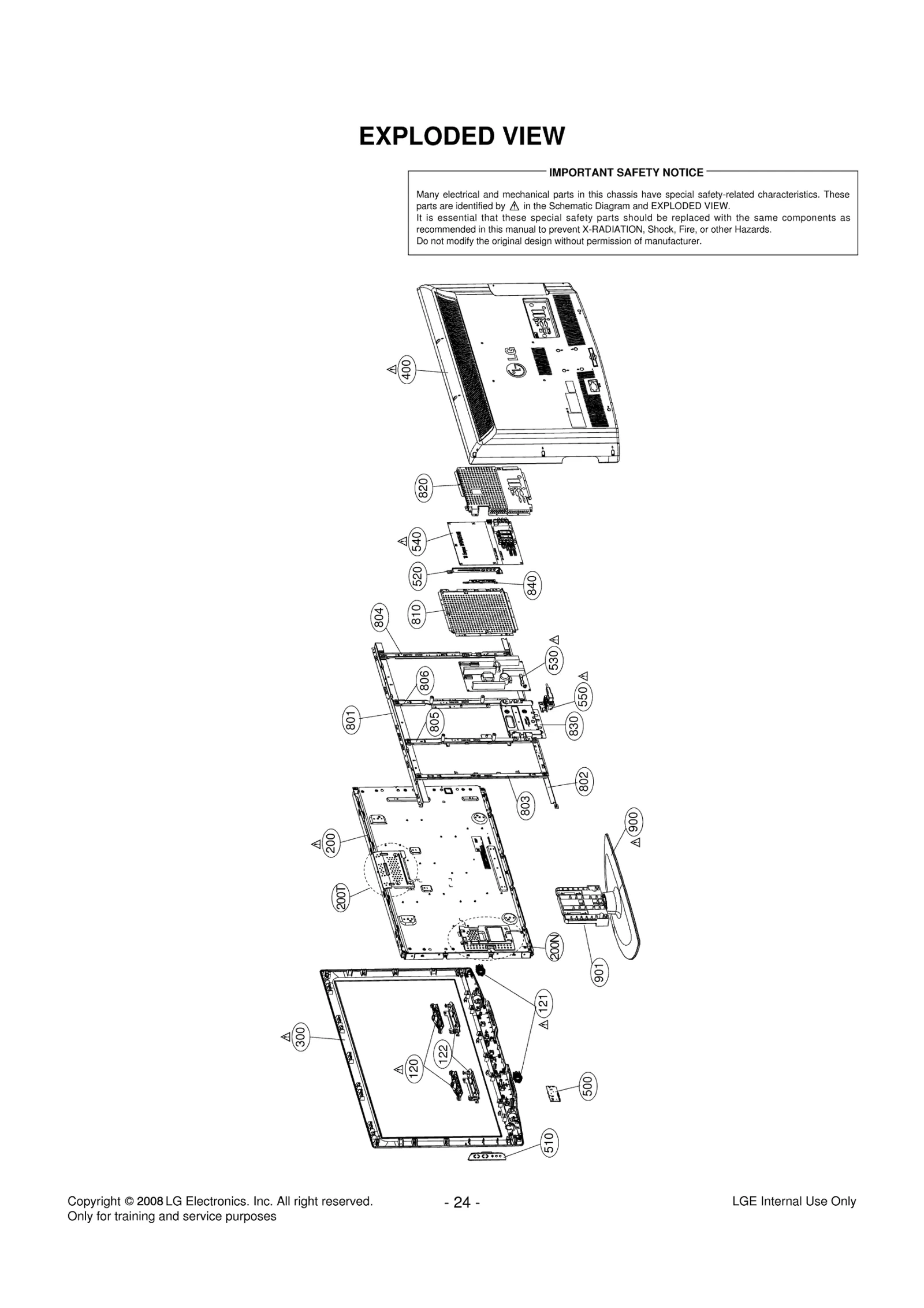

Diagram 0
Diagram 1
Common parts from model LG 37LG50-UG
120
Speaker,Full Range LGE EAB41280201 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ41849201 Contact Us For Availability
200N
Inverter Assembly LGE EAY56798301 Contact Us For Availability
200T
Time Control LGE EAT56802401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ34635607 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ34635807 Contact Us For Availability
500
PCB Assembly,Front LGE EBR42597902 Contact Us For Availability
520
Bracket Assembly LGE ABA35569904 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505001 Contact Us For Availability
540
Package Assembly LGE AGF65679201 Contact Us For Availability
550
Package Assembly LGE AGF37019101 Contact Us For Availability
801
Plate,Metal LGE MGJ42433301 Contact Us For Availability
802
Plate,Metal LGE MGJ42434501 Contact Us For Availability
803
Supporter LGE MJH40607001 Contact Us For Availability
804
Supporter LGE MJH41046701 Contact Us For Availability
805
Supporter LGE MJH40606801 Contact Us For Availability
806
Supporter LGE MJH40606901 Contact Us For Availability
810
Plate LGE MGJ40315501 Contact Us For Availability
820
Plate,Metal LGE MGJ40652301 Contact Us For Availability
830
Supporter LGE MJH40606701 Contact Us For Availability
840
Plate,Shield LGE MGJ40651701 Contact Us For Availability
900
Base Assembly LGE AAN34784113 Contact Us For Availability
901
Supporter LGE MJH40310801 Contact Us For Availability
A1
Manual,Owners LGE MFL34797082 Contact Us For Availability
A4
Title LGE SAC30708033 Contact Us For Availability
A5
Screw,Taptite LGE FAB30018303 Contact Us For Availability
LV1
Harness,Single LGE EAD42557901 Contact Us For Availability
× ![]()
