Model LG 37LG30DC-UA – Common Parts & Diagrams

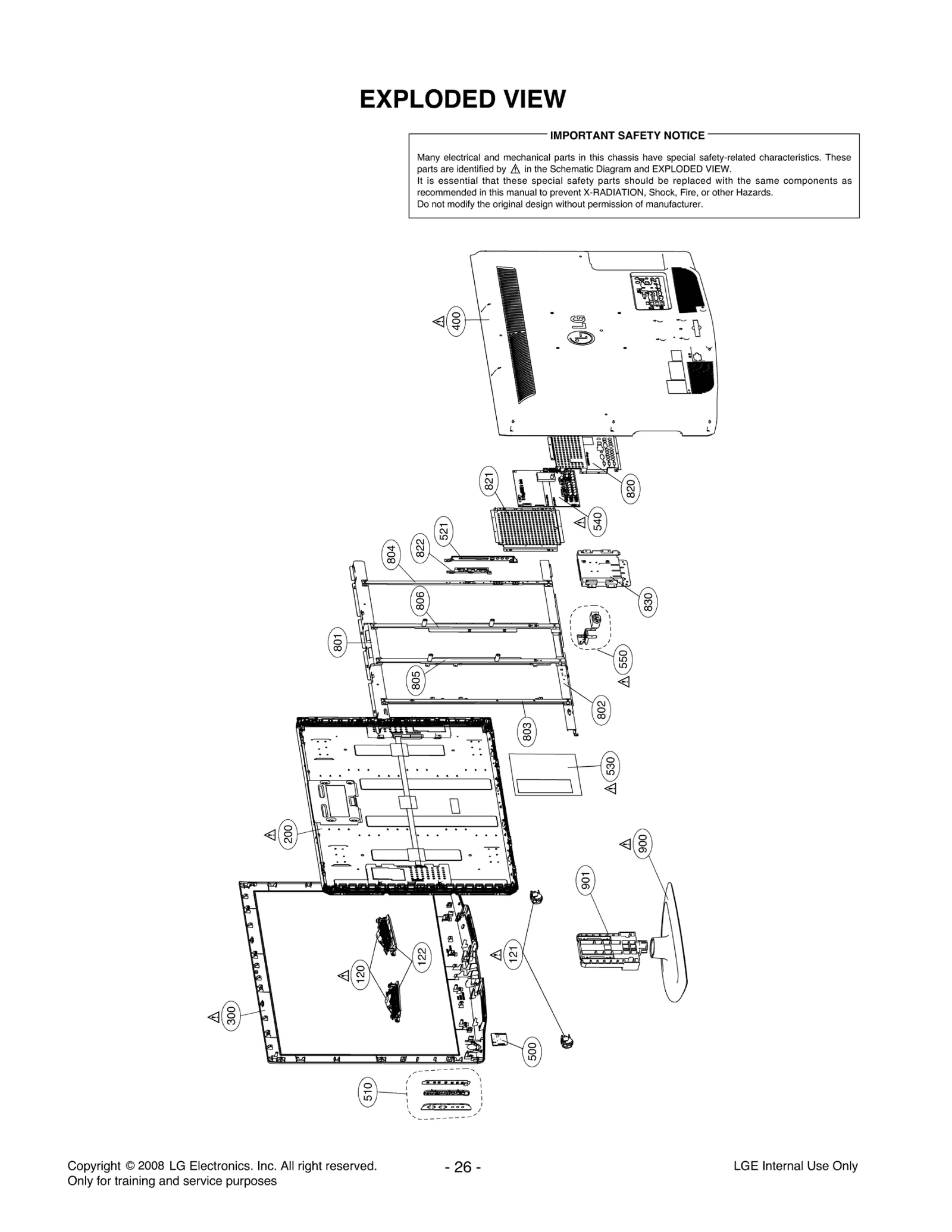

Diagram 0
Diagram 1
Common parts from model LG 37LG30DC-UA
120
Speaker,Full Range LGE EAB41280201 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284401 Contact Us For Availability
122
Bracket Assembly LGE ABA35815711 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ57535001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35594103 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35594424 Contact Us For Availability
500
PCB Assembly,Front LGE EBR42596403 Contact Us For Availability
510
PCB Assembly LGE EBR54865402 Contact Us For Availability
521
Bracket Assembly LGE ABA35569918 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505001 Contact Us For Availability
540
Main Total Assembly LGE EBU51651906 Contact Us For Availability
550
Filter,AC Line LGE EAM36140904 Contact Us For Availability
801
Supporter LGE MJH40605902 Contact Us For Availability
802
Supporter LGE MJH40606002 Contact Us For Availability
803
Supporter LGE MJH40606502 Contact Us For Availability
804
Supporter LGE MJH40606602 Contact Us For Availability
805
Supporter LGE MJH40606402 Contact Us For Availability
806
Supporter LGE MJH40606102 Contact Us For Availability
820
Plate,Metal LGE MGJ40652303 Contact Us For Availability
822
Plate,Shield LGE MGJ40651702 Contact Us For Availability
830
Supporter LGE MJH40606702 Contact Us For Availability
900
Base Assembly LGE AAN34784121 Contact Us For Availability
901
Supporter LGE MJH40310802 Contact Us For Availability
A1
Manual,Owners LGE MFL34797041 Contact Us For Availability
A10
Screw Assembly LGE FAB30016414 Contact Us For Availability
LV1
Harness,Single LGE EAD43289503 Contact Us For Availability
R101
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R104
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R107
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
SW102
SWITCH TACT LGE 140-313B Contact Us For Availability
× ![]()
