Model LG 37LD333H – Common Parts & Diagrams

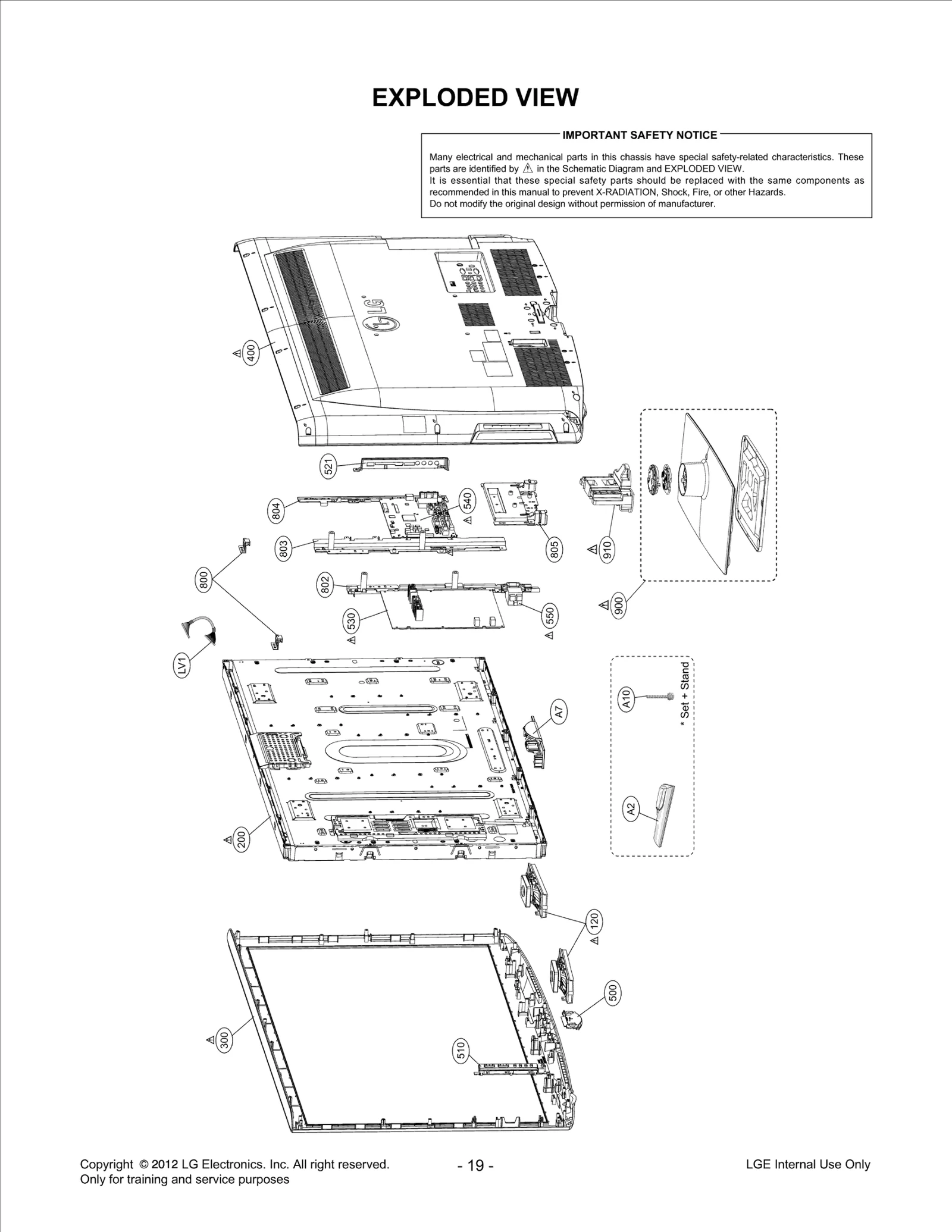

Diagram 0
Diagram 1
Common parts from model LG 37LD333H
120
Speaker,Full Range LGE EAB58304304 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61768701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65853911 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83871313 Contact Us For Availability
500
Package Assembly LGE AGF73983705 Contact Us For Availability
510
Package Assembly LGE AGF73983606 Contact Us For Availability
521
Bracket Assembly LGE ABA73131909 Contact Us For Availability
530
SMPS,AC/DC LGE EAY61209401 Contact Us For Availability
540
PCB Assembly LGE EBR73829501 Contact Us For Availability
800
Supporter LGE MJH56736706 Contact Us For Availability
802
Supporter LGE MJH55846513 Contact Us For Availability
803
Supporter LGE MJH61997702 Contact Us For Availability
804
Supporter LGE MJH61997802 Contact Us For Availability
900
Base Assembly LGE AAN74051702 Contact Us For Availability
910
Supporter LGE MJH54589201 Contact Us For Availability
A1
Manual,Owners LGE MFL62194612 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915231 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A4
Cover LGE MCK54408002 Contact Us For Availability
A9
Screw,Machine LGE FAB30999301 Contact Us For Availability
A13
Plate LGE 49509K0178G Contact Us For Availability
A14
Plate LGE 49509K0179E Contact Us For Availability
AR103
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1203
Resistor,Array LGE EBC32260404 Contact Us For Availability
C111
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C233
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C458
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C489
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C529
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C600
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1008
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1128
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1129
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1131
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1133
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1134
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1136
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C1246
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1510
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1601
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1603
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1608
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1618
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C1620
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1621
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1623
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C2001
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C2004
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C2186
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2191
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C2192
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C5019
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C5031
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
CA3
Harness,Single LGE EAD35983006 Contact Us For Availability
CA4
Harness,Single LGE EAD60676304 Contact Us For Availability
CA6
Harness,Single LGE EAD39295756 Contact Us For Availability
CA8
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
CA15
Harness,Single LGE EAD35908414 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD32659603 Contact Us For Availability
D802
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1004
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1501
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1600
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN60920002 Contact Us For Availability
IC102
S/W,Firmware LGE SAA35839305 Contact Us For Availability
IC103
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC410
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC1001
IC,Multiplexer LGE EAN61151201 Contact Us For Availability
IC1100
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC1209
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC1500
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1600
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC1601
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC1607
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC1608
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC2000
Receiver Module LGE EAV59155102 Contact Us For Availability
IC5001
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
JK501
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1000
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK1401
Jack,Modular LGE 6612E00008C Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L413
Filter,Bead LGE EAM58113401 Contact Us For Availability
L421
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1234
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1601
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L2000
Filter,Bead LGE EAM38769505 Contact Us For Availability
LD501
LED LGE 0DL233309AC Contact Us For Availability
LD503
LED,Chip LGE 0DL210009GC Contact Us For Availability
LED2000
LED,Chip LGE EAV44273501 Contact Us For Availability
LV1
Cable,FFC LGE EAD61807809 Contact Us For Availability
M2
Gasket LGE MDS61887701 Contact Us For Availability
P502
WAFER LGE 6602T25009C Contact Us For Availability
P700
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P1000
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P1103
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P1200
Connector,BtoB LGE EAG61233701 Contact Us For Availability
P2003
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q407
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q1114
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1603
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1612
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q2000
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R218
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R278
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R292
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R467
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R493
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R806
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R874
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R896
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1017
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1037
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1114
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1117
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R1118
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R1132
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1226
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1238
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1493
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R1500
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R1607
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1609
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1612
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R1613
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1617
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1704
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1760
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2000
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R3003
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3004
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3108
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R4015
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R5038
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R6105
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
SW3007
SWITCH TACT LGE 140-313B Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
X1600
Crystal LGE EAW30067102 Contact Us For Availability
ZD6100
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
