Model GE 3639878911KS Free Standing Electric Range (Kenmore 3639878911KS) – Common Parts & Diagrams

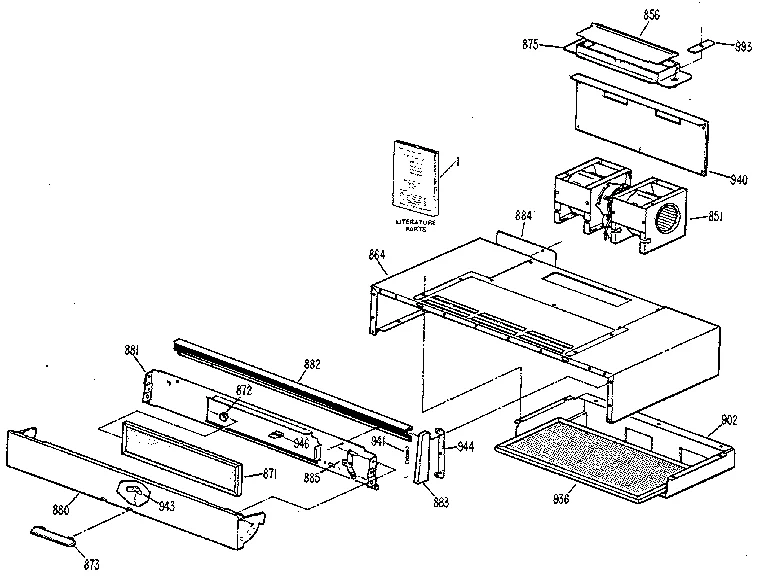

HOOD
UPPER OVEN
MICROWAVE POWER SUPPLY
LATCH MECHANISM
LOWER OVEN
MICROWAVE OVEN
COOKTOP
CONTROL PANEL
LOWER OVEN DOOR
MICROWAVE OVEN DOOR
Common parts from model GE 3639878911KS Free Standing Electric Range (Kenmore 3639878911KS)
1
Cooktop Wh GEN WB62X5353 Contact Us For Availability
1A
Main Top GEN WB62X5355 Contact Us For Availability
4
Knob Surface Unit GEN WB03X5750 Contact Us For Availability
5
Neon Lamp GEN WB02X3468 Contact Us For Availability
5
Neon Lamp GEN WB02X1608 Contact Us For Availability
6
Clip GEN WB02X1185 Contact Us For Availability
9
Trim Pkg Rh GEN WB07X6676 Contact Us For Availability
9A
Trim Pkg Lh GEN WB07X6677 Contact Us For Availability
11
Oven Switch GEN WB22X5103 Contact Us For Availability
12
Knob Oven Switch GEN WB03X5748 Contact Us For Availability
14
Thermostat GEN WB24X0184 Contact Us For Availability
14A
Sleeving GEN WB02X6274 Contact Us For Availability
14B
Barrier GEN WB02X6494 Contact Us For Availability
14C
Sleeve GEN WB02X6937 Contact Us For Availability
15
Thermostat Knob GEN WB03X5749 Contact Us For Availability
18
Crystal GEN WB36X5633 Contact Us For Availability
21
Cover GEN WB49X5293 Contact Us For Availability
26
Trim GEN WB07X1004 Contact Us For Availability
34
Lamp Socket GEN WB08X5096 Contact Us For Availability
39
Clip GEN WB02X6239 Contact Us For Availability
113
Trim Clip GEN WB02X2988 Contact Us For Availability
136
Insert Trim GEN WB07X7004 Contact Us For Availability
137
Trim Clip GEN WB07X7003 Contact Us For Availability
138
Lamp GEN WB08X0164 Contact Us For Availability
145
Nut GEN WB01X0246 Contact Us For Availability
151
Trim GEN WB32X0052 Contact Us For Availability
154
Pan & Rn 6" GEN WB31X5010 Contact Us For Availability
157
Trim GEN WB32X0051 Contact Us For Availability
250A
Barrier GEN WB02X3229 Contact Us For Availability
251
Frame GEN WB56X6054 Contact Us For Availability
252
Filler Panel GEN WB02X7864 Contact Us For Availability
253
Cooktop Box GEN WB49X5465 Contact Us For Availability
254
Vent Body GEN WB38X5039 Contact Us For Availability
255
Latch Trim GEN WB07X7036 Contact Us For Availability
256
Level Leg GEN WB01X5516 Contact Us For Availability
258
Drawer Guide GEN WB39X5011 Contact Us For Availability
258A
Drawer Guide GEN WB39X5010 Contact Us For Availability
259
Guide Block GEN WB02X0831 Contact Us For Availability
260
Hinge Lever GEN WB10X5092 Contact Us For Availability
261
Support GEN WB10X5090 Contact Us For Availability
261A
Support GEN WB10X5091 Contact Us For Availability
263
Hinge Pin GEN WB02X6195 Contact Us For Availability
264
Retainer GEN WB02X1082 Contact Us For Availability
265
Guide GEN WB02X6342 Contact Us For Availability
267
Door Spring GEN WB09X5073 Contact Us For Availability
268
Smoke Eliminator GEN WB29X5019 Contact Us For Availability
274
Plate GEN WB02X1908 Contact Us For Availability
275
Guard GEN WB02X7774 Contact Us For Availability
276
Cover GEN WB49X5398 Contact Us For Availability
277
Switch GEN WB24X0105 Contact Us For Availability
280
Oven Lamp GEN WB02X7560 Contact Us For Availability
282
Temperature Limit Switch GEN WB24X5138 Contact Us For Availability
283
Gasket GEN WB02X3163 Contact Us For Availability
283A
Mounting Plate GEN WB02X3164 Contact Us For Availability
291
Ballast GEN WB02X1546 Contact Us For Availability
302
Bail GEN WB02X7694 Contact Us For Availability
305
Speed Nut GEN WB02X6653 Contact Us For Availability
309
Wire Hook GEN WB02X6767 Contact Us For Availability
310
Lower Guard GEN WB49X5156 Contact Us For Availability
348
Ground Plate GEN WB02X0646 Contact Us For Availability
350
Door Liner GEN WB55X5322 Contact Us For Availability
350A
Dr Insul Pkg GEN WB02X6546 Contact Us For Availability
355
Inner Panel GEN WB55X5343 Contact Us For Availability
356
Trim Clip GEN WB02X6574 Contact Us For Availability
358
Glass GEN WB36X5560 Contact Us For Availability
359
Door Trim GEN WB07X6886 Contact Us For Availability
360
Guard GEN WB55X5325 Contact Us For Availability
361
Screw GEN WB01X5735 Contact Us For Availability
363
Spacer Panel GEN WB02X7616 Contact Us For Availability
365
Handle GEN WB15X5174 Contact Us For Availability
373
Window GEN WB36X5634 Contact Us For Availability
386
Drawer Handle GEN WB15X5171 Contact Us For Availability
391
Toggle GEN WB02X7881 Contact Us For Availability
392
Toggle Ling GEN WB02X5217 Contact Us For Availability
393
Cam Spring GEN WB09X5083 Contact Us For Availability
394
Trim GEN WB07X6889 Contact Us For Availability
397B
Screw GEN WZ04X0384 Contact Us For Availability
399
Pad GEN WB02X3285 Contact Us For Availability
402
Clip GEN WB01X0591 Contact Us For Availability
403
Bracket GEN WB02X7188 Contact Us For Availability
404
Crystal Window GEN WB36X5477 Contact Us For Availability
406
Door Bracket GEN WB02X6238 Contact Us For Availability
407
Crystal Trim GEN WB07X6913 Contact Us For Availability
415
Brace GEN WB02X7608 Contact Us For Availability
441
Braceside Rh GEN WB02X7610 Contact Us For Availability
441A
Braceside Lh GEN WB02X7609 Contact Us For Availability
442
Fastener GEN WB01X5733 Contact Us For Availability
443
Clip GEN WB01X5734 Contact Us For Availability
451
Drawer GEN WB58X5005 Contact Us For Availability
452
Slide GEN WB02X0840 Contact Us For Availability
453
Slide GEN WB02X0841 Contact Us For Availability
454
Bumper GEN WB02X6208 Contact Us For Availability
457
Front Panel (Black) GEN WB56X6083 Contact Us For Availability
520
Oven Liner GEN WB53X5131 Contact Us For Availability
520A
Insulation GEN WB02X6496 Contact Us For Availability
522
Trim Clip GEN WB02X6209 Contact Us For Availability
523
Housing GEN WB02X7693 Contact Us For Availability
526
Hanger GEN WB02X3165 Contact Us For Availability
528
Oven Rack GEN WB48X5044 Contact Us For Availability
652
Broil Support GEN WB02X1452 Contact Us For Availability
700
Latch GEN WB14X5036 Contact Us For Availability
701
Handle GEN WB15X5133 Contact Us For Availability
702
Latch Knob GEN WB03X5681 Contact Us For Availability
703
Retainer GEN WB02X2030 Contact Us For Availability
704
Latch Channel GEN WB02X7707 Contact Us For Availability
705
Locking Channel GEN WB02X7710 Contact Us For Availability
706
Locking Pawl GEN WB02X7708 Contact Us For Availability
706A
Locking Pawl GEN WB02X7746 Contact Us For Availability
707
Mounting Plate GEN WB02X7709 Contact Us For Availability
708
Latch Switch GEN WB24X0183 Contact Us For Availability
709
Solenoid GEN WB24X0197 Contact Us For Availability
710
Spring GEN WB09X0148 Contact Us For Availability
711
Pivot Stud GEN WB02X6212 Contact Us For Availability
712
Retaining Ring GEN WB02X1800 Contact Us For Availability
713
Switch GEN WB24X5234 Contact Us For Availability
714
Bracket GEN WB02X3475 Contact Us For Availability
715
Canoe Clip GEN WB01X5751 Contact Us For Availability
717
Latch Bracket GEN WB02X6911 Contact Us For Availability
731
Bracket GEN WB02X7711 Contact Us For Availability
732
Switch GEN WB24X5235 Contact Us For Availability
733
Trim Bracket GEN WB02X7750 Contact Us For Availability
734
Bracket GEN WB02X7755 Contact Us For Availability
735
Lamp Switch GEN WB24X5093 Contact Us For Availability
736
Fan Switch GEN WB24X5245 Contact Us For Availability
737
Power Supply GEN WB27X5407 Contact Us For Availability
737A
Bracket GEN WB02X7766 Contact Us For Availability
739
Receptacle GEN WB08X5097 Contact Us For Availability
742
Power Relay GEN WB27X5405 Contact Us For Availability
746
Bracket GEN WB02X7777 Contact Us For Availability
747
Key Panel GEN WB27X5460 Contact Us For Availability
748
Smartboard GEN WB27X5399 Contact Us For Availability
749
Screw GEN WB01X5578 Contact Us For Availability
750
Bracket GEN WB02X7726 Contact Us For Availability
751
Exhaust GEN WB02X7727 Contact Us For Availability
754
Air Guide GEN WB02X7635 Contact Us For Availability
755
Bracket GEN WB02X7753 Contact Us For Availability
756
Bracket GEN WB02X7733 Contact Us For Availability
757
Cushion GEN WB02X7734 Contact Us For Availability
758
Holder Probe GEN WB02X7660 Contact Us For Availability
759
Bracket GEN WB02X7751 Contact Us For Availability
761
Bracket GEN WB02X7752 Contact Us For Availability
762
Tapping Cover Screw GEN WB02X7761 Contact Us For Availability
763
Filter Clip GEN WB02X1665 Contact Us For Availability
764
Case GEN WB49X5392 Contact Us For Availability
765A
Spray Paint GEN WB64X5022 Contact Us For Availability
768
Fan Motor GEN WB26X5082 Contact Us For Availability
772
Bracket GEN WB02X7731 Contact Us For Availability
777
Probe GEN WB20X5054 Contact Us For Availability
778
Shelf GEN WB48X5084 Contact Us For Availability
779
Receptacle Probe GEN WB20X5053 Contact Us For Availability
779A
Spacer GEN WB02X7552 Contact Us For Availability
779B
Nut GEN WB01X5588 Contact Us For Availability
782
Block GEN WB17X5060 Contact Us For Availability
783
Shield GEN WB02X7730 Contact Us For Availability
785
Orifice GEN WB02X7728 Contact Us For Availability
786
Fan GEN WB02X4114 Contact Us For Availability
787
Support Rack GEN WB02X7640 Contact Us For Availability
788
Con.blk(4pin GEN WB17X5064 Contact Us For Availability
788A
Housing Socket GEN WB17X5079 Contact Us For Availability
791
Rack GEN WB48X5088 Contact Us For Availability
792
Tern Cutout GEN WB27X5381 Contact Us For Availability
793
Trim GEN WB07X6952 Contact Us For Availability
794
Spacer GEN WB02X7770 Contact Us For Availability
795
Crystal Trim GEN WB07X6951 Contact Us For Availability
796
Speed Nut GEN WB02X6654 Contact Us For Availability
797
Crystal GEN WB36X5605 Contact Us For Availability
798
Bracket GEN WB02X7754 Contact Us For Availability
799
Holder GEN WB02X7769 Contact Us For Availability
809
"F" LAMP F20T12 C/W GEN N/P Contact Us For Availability
865
Support Rh GEN WB02X7220 Contact Us For Availability
865A
Support Lh GEN WB02X7221 Contact Us For Availability
866
Cvr Supt Rh GEN WB56X5913 Contact Us For Availability
866A
Cvr Supt R H GEN WB56X5916 Contact Us For Availability
866B
Cvr Supt Lwh GEN WB56X5917 Contact Us For Availability
866C
Cvr Supt Lh GEN WB56X5920 Contact Us For Availability
867
Lamp Panel GEN WB49X5291 Contact Us For Availability
868
Pnl Cystl Rh GEN WB56X5905 Contact Us For Availability
868A
Pnl Crysl Rh GEN WB56X5908 Contact Us For Availability
868B
Pnl Crysl Lh GEN WB56X5909 Contact Us For Availability
868C
Pnl Crysl Lh GEN WB56X5912 Contact Us For Availability
873
Handle GEN WB15X5138 Contact Us For Availability
875
Exhaust Assembly GEN WB49X5935 Contact Us For Availability
880
Panel Hood GEN WB56X6084 Contact Us For Availability
881
Filter Plate GEN WB49X5390 Contact Us For Availability
882
Trim Hood GEN WB07X6793 Contact Us For Availability
883
End Cap, Right GEN WB07X6791 Contact Us For Availability
883A
End Cap, Left GEN WB07X6792 Contact Us For Availability
884
Cover GEN WB02X2017 Contact Us For Availability
885
Spring Pin GEN WB02X7216 Contact Us For Availability
902
Air Plenum GEN WB49X5470 Contact Us For Availability
906
Case Side-rh GEN WB56X6030 Contact Us For Availability
906A
Case Side-rh GEN WB56X6032 Contact Us For Availability
906B
Case Side-lh GEN WB56X6035 Contact Us For Availability
906C
Case Side-lh GEN WB56X6037 Contact Us For Availability
906D
Strip GEN WB02X6930 Contact Us For Availability
907
Lower Filter GEN WB02X1666 Contact Us For Availability
910
Air Cover GEN WB49X5382 Contact Us For Availability
914
Post Rh GEN WB02X7218 Contact Us For Availability
914A
Post Lh GEN WB02X7219 Contact Us For Availability
923
Control Trim GEN WB07X7012 Contact Us For Availability
924
Mag Cover GEN WB49X5387 Contact Us For Availability
926
Bracket GEN WB02X7778 Contact Us For Availability
934
Crystal Trim GEN WB36X5509 Contact Us For Availability
936
Filter Comb GEN WB02X7692 Contact Us For Availability
940
Housing Cover GEN WB02X7900 Contact Us For Availability
941
Spring GEN WB09X5099 Contact Us For Availability
943
Retainer Clip GEN WB02X7217 Contact Us For Availability
944
Bracket GEN WB02X3461 Contact Us For Availability
946
Filter Clip GEN WB02X6734 Contact Us For Availability
950
Latch Spring GEN WB09X0137 Contact Us For Availability
952
Side Duct GEN WB49X5292 Contact Us For Availability
954
Case GEN WB56X6077 Contact Us For Availability
957
Brace GEN WB02X7231 Contact Us For Availability
958
Baffle GEN WB49X5393 Contact Us For Availability
961
Clip GEN WB01X5750 Contact Us For Availability
962
Trim Sup Rh GEN WB07X6795 Contact Us For Availability
962A
Trim Sup Lh GEN WB07X6794 Contact Us For Availability
963
Hinge GEN WB02X7729 Contact Us For Availability
964
Angle GEN WB02X7230 Contact Us For Availability
966
Grille Cover GEN WB02X7234 Contact Us For Availability
967
Grille GEN WB07X7005 Contact Us For Availability
969
Lamp Cover GEN WB49X5394 Contact Us For Availability
989
Screw GEN WB01X0425 Contact Us For Availability
991
Clip GEN WB02X3006 Contact Us For Availability
992
Button Plug GEN WB02X7762 Contact Us For Availability
993
Plate GEN WB02X7765 Contact Us For Availability
994
Access Cover GEN WB02X7723 Contact Us For Availability
995
Air Guide GEN WB02X7724 Contact Us For Availability
996
Stopper GEN WB02X7624 Contact Us For Availability
× ![]()
Login and Registration Form
