Model GE 363.61244300 Top-Mount Refrigerator (Kenmore 36361244300) – Common Parts & Diagrams

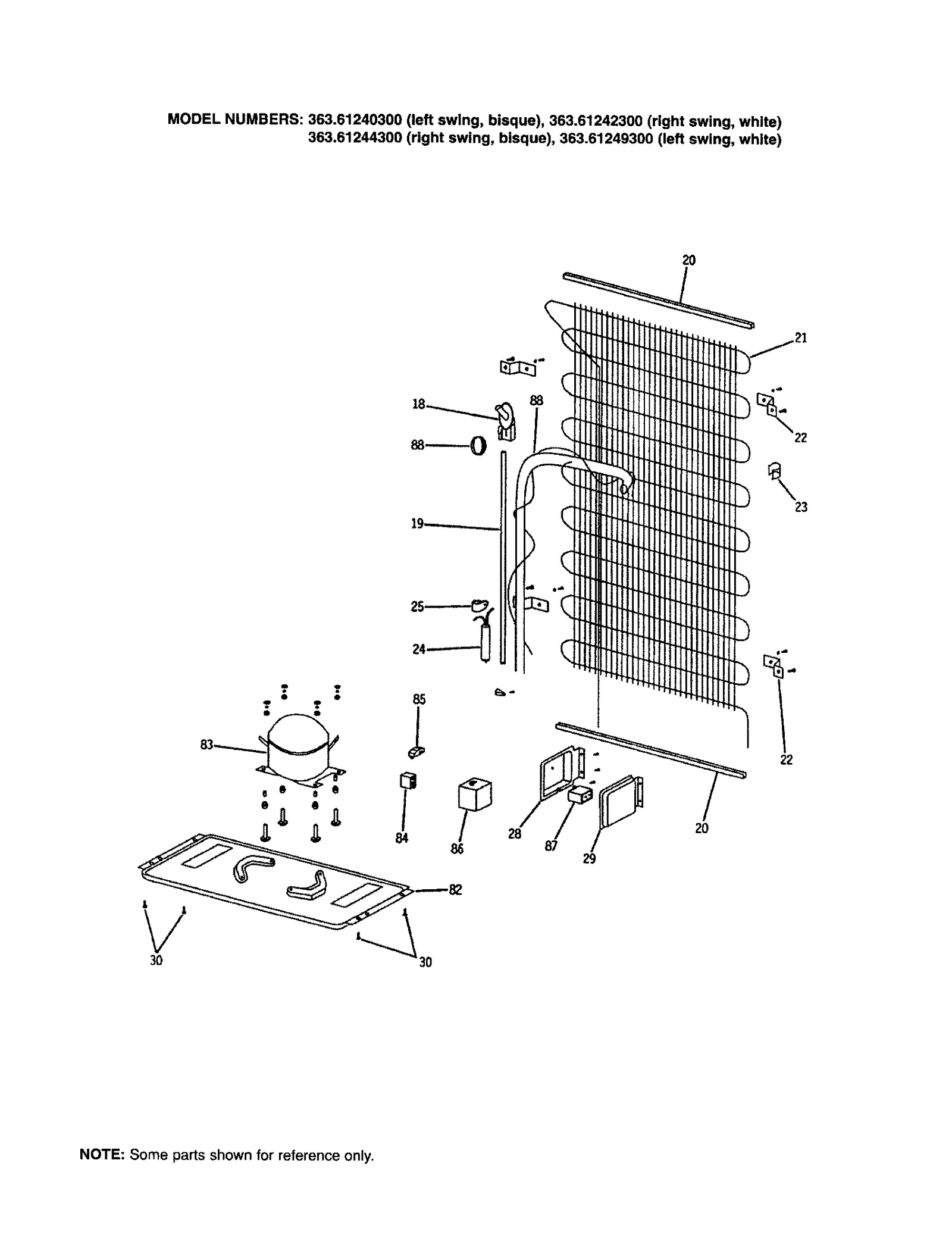

UNITS
UNIT
All Parts
DOORS
Common parts from model GE 363.61244300 Top-Mount Refrigerator (Kenmore 36361244300)
1
Top Hinge Sc GEN WR02X11519 Contact Us For Availability
1A
Top Hinge Sc GEN WR02X11491 Contact Us For Availability
2
Refrigerator Door Hinge Cover GEN WR02X11492 Contact Us For Availability
2A
Refrigerator Hinge Cover GEN WR02X11520 Contact Us For Availability
4
Refrigerator Freezer Door Hinge, Upper GEN WR13X10291 Contact Us For Availability
5
Top Hinge Sp GEN WR01X10390 Contact Us For Availability
6
Refrigerator Hinge Cover GEN WR13X10292 Contact Us For Availability
7
Refrigerator Hinge GEN WR01X10391 Contact Us For Availability
8
Adj Leg(left GEN WR02X11493 Contact Us For Availability
9
Refrigerator Hinge GEN WR13X10298 Contact Us For Availability
9A
Refrigerator Hinge GEN WR13X10293 Contact Us For Availability
10
Refrigerator Hinge GEN WR01X10392 Contact Us For Availability
15
Defrost Timer GEN WR02X11494 Contact Us For Availability
16
Adj Leg(righ GEN WR02X11495 Contact Us For Availability
17
Drain Connec GEN WR02X11550 Contact Us For Availability
28
Electric Box GEN WR02X11502 Contact Us For Availability
29
Electric Box GEN WR02X11503 Contact Us For Availability
30
Refrigerator Bottom Hinge Screw GEN WR01X10393 Contact Us For Availability
31
Refrigerator Door Foam Assembly GEN WR78X10868 Contact Us For Availability
31A
Refrigerator Door Foam Assembly GEN WR78X10867 Contact Us For Availability
32
Refrigerator Door Gasket GEN WR14X10155 Contact Us For Availability
33
Refrigerator Door Stopper GEN WR02X11518 Contact Us For Availability
34
Refrigerator Door GEN WR78X10814 Contact Us For Availability
34A
Refrigerator Door Foam Assembly GEN WR78X10866 Contact Us For Availability
35
Refrigerator Door Gasket GEN WR14X10158 Contact Us For Availability
36
Refrigerator Handle GEN WR02X11558 Contact Us For Availability
36A
Refrigerator Door Stopper GEN WR02X11517 Contact Us For Availability
37
Refrigerator Door End Cap GEN WR02X11559 Contact Us For Availability
37A
Refrigerator Door End Cap GEN WR02X11522 Contact Us For Availability
38
Refrigerator Door End Cap GEN WR02X11560 Contact Us For Availability
38A
Refrigerator Door End Cap GEN WR02X11523 Contact Us For Availability
39
F Shelf Fron GEN WR17X11474 Contact Us For Availability
40
F Shelf Fron GEN WR17X11473 Contact Us For Availability
41
R Shelf Fron GEN WR17X11504 Contact Us For Availability
42
Refrigerator Door End Cap GEN WR02X11521 Contact Us For Availability
43
Refrigerator Dairy Door GEN WR22X10044 Contact Us For Availability
44
R Shelf Fron GEN WR17X11472 Contact Us For Availability
46
Wire Shelf F GEN WR71X10497 Contact Us For Availability
47
Refrigerator Vegetable Pan Cover GEN WR32X10445 Contact Us For Availability
48
Vegetable Bin GEN WR17X11464 Contact Us For Availability
49
Vegetable Bin GEN WR32X10431 Contact Us For Availability
50
Refrigerator Wire Harness GEN WR23X10332 Contact Us For Availability
50A
Refrigerator Wire Harness GEN WR23X10321 Contact Us For Availability
51
Refrigerator Thermostat GEN WR09X10097 Contact Us For Availability
52
Refrigerator Cold Control Thermostat Housing GEN WR17X11465 Contact Us For Availability
53
Refrigerator Defrost Bi-Metal Thermostat GEN WR02X11507 Contact Us For Availability
54
Refrigerator Light Shield GEN WR17X11466 Contact Us For Availability
55
Light Holder GEN WR02X11551 Contact Us For Availability
56
Refrigerator Light Socket GEN WR02X11509 Contact Us For Availability
58
Refrigerator Lamp Cover GEN WR02X11510 Contact Us For Availability
59
Refrigerator Evaporator Fan Bracket, Rear GEN WR02X11511 Contact Us For Availability
60
Refrigerator Bushing GEN WR02X11512 Contact Us For Availability
61
Refrigerator Evaporator Fan Motor GEN WR60X10126 Contact Us For Availability
62
Refrigerator Evaporator Fan Bracket, Front GEN WR02X11513 Contact Us For Availability
63
Motor Fixture GEN WR02X11514 Contact Us For Availability
64
Refrigerator Fan Blade GEN WR60X10127 Contact Us For Availability
65
Refrigerator Evaporator Fan Blade Compression GEN WR01X10415 Contact Us For Availability
69
Refrigerator Defrost Heat GEN WR51X10075 Contact Us For Availability
70
Refrigerator Defrost Heat GEN WR02X11515 Contact Us For Availability
71
Refrigerator Defrost Thermostat GEN WR50X10041 Contact Us For Availability
72
Foam Block GEN WR14X10157 Contact Us For Availability
73
Insulation Evaporator GEN WR82X10089 Contact Us For Availability
74
Wire Cap Shi GEN WR17X11469 Contact Us For Availability
75
Evap Metal R GEN WR38X10306 Contact Us For Availability
76
Evap Top Ins GEN WR82X10090 Contact Us For Availability
77
Evaporator Top Insulation GEN WR82X10091 Contact Us For Availability
78
Floor Evaporator GEN WR17X11470 Contact Us For Availability
79
Refrigerator Ice Maker Cap GEN WR02X11552 Contact Us For Availability
82
Refrigerator Pan Base GEN WR17X11467 Contact Us For Availability
85
Refrigerator Compressor Overload Protector GEN WR08X10054 Contact Us For Availability
86
Protect Cap GEN WR02X11557 Contact Us For Availability
87
Refrigerator Capacitor GEN WR62X10037 Contact Us For Availability
88
Evap Ass'y GEN WR85X10056 Contact Us For Availability
88A
Evap Ass'y GEN WR85X10053 Contact Us For Availability
89
Refrigerator Drain Pan GEN WR17X11468 Contact Us For Availability
89A
Refrigerator Drain Pan GEN WR32X10432 Contact Us For Availability
90
Refrigerator Nameplate GEN WR04X10131 Contact Us For Availability
90A
Refrigerator Nameplate GEN WR04X10130 Contact Us For Availability
NI01
Refrigerator Parts List GEN SR3199 Contact Us For Availability
NI02
Sears Kenmor GEN SR6200 Contact Us For Availability
× ![]()
