Model GE 363.59577990 Refrigerator (Kenmore 36359577990) – Common Parts & Diagrams

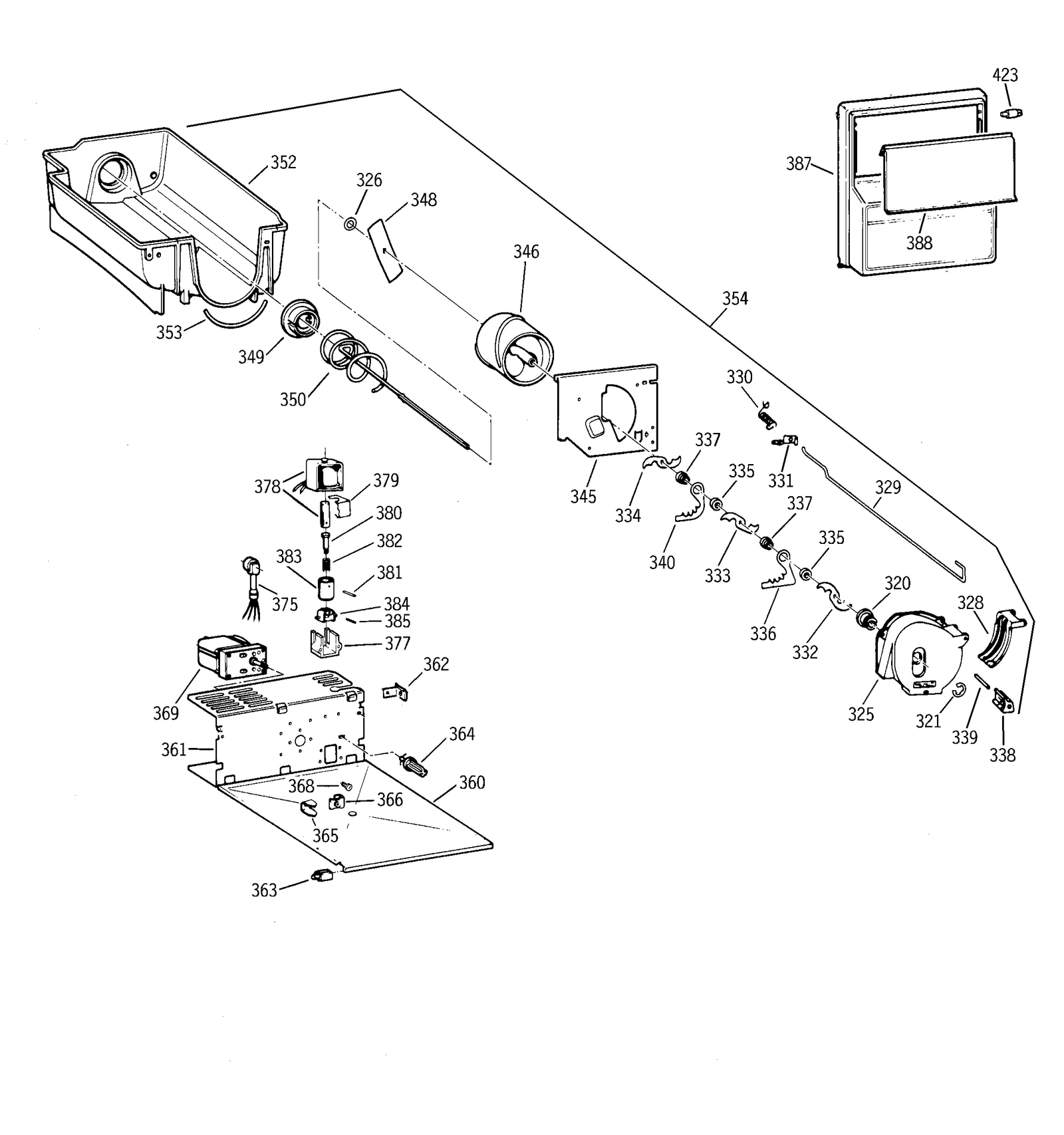

ICE BUCKET

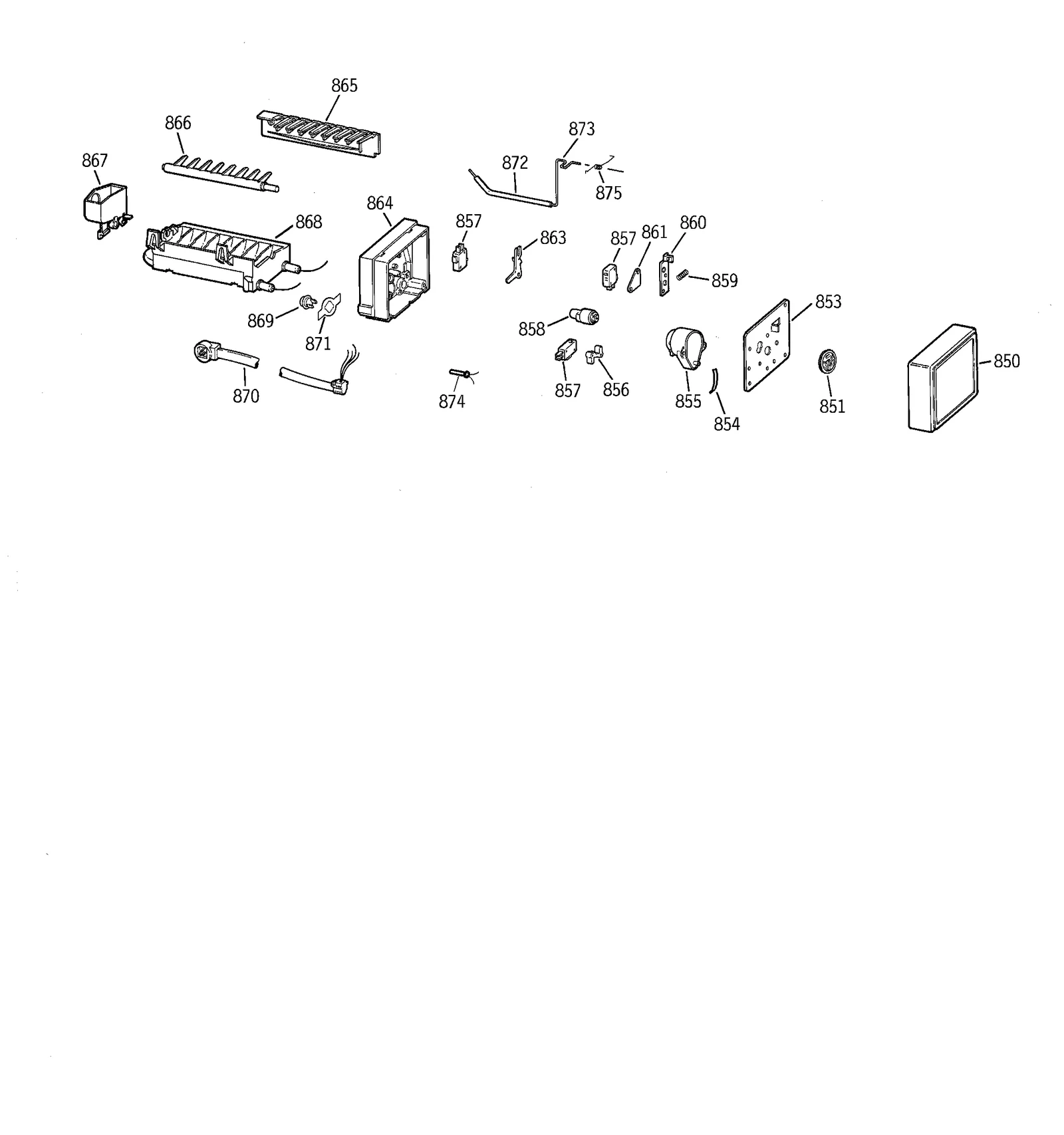

ICEMAKER WR30X0327

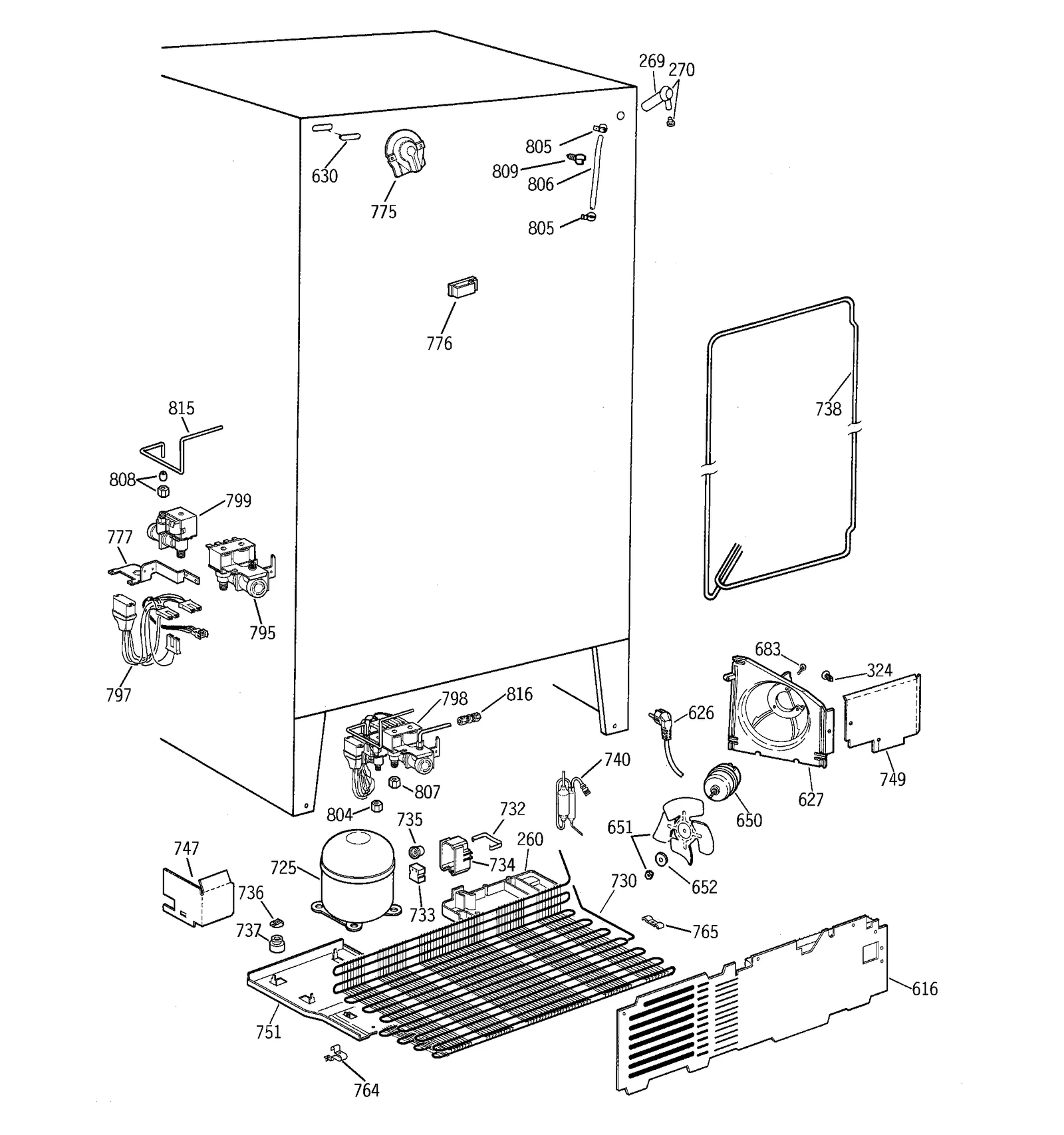

UNIT PARTS

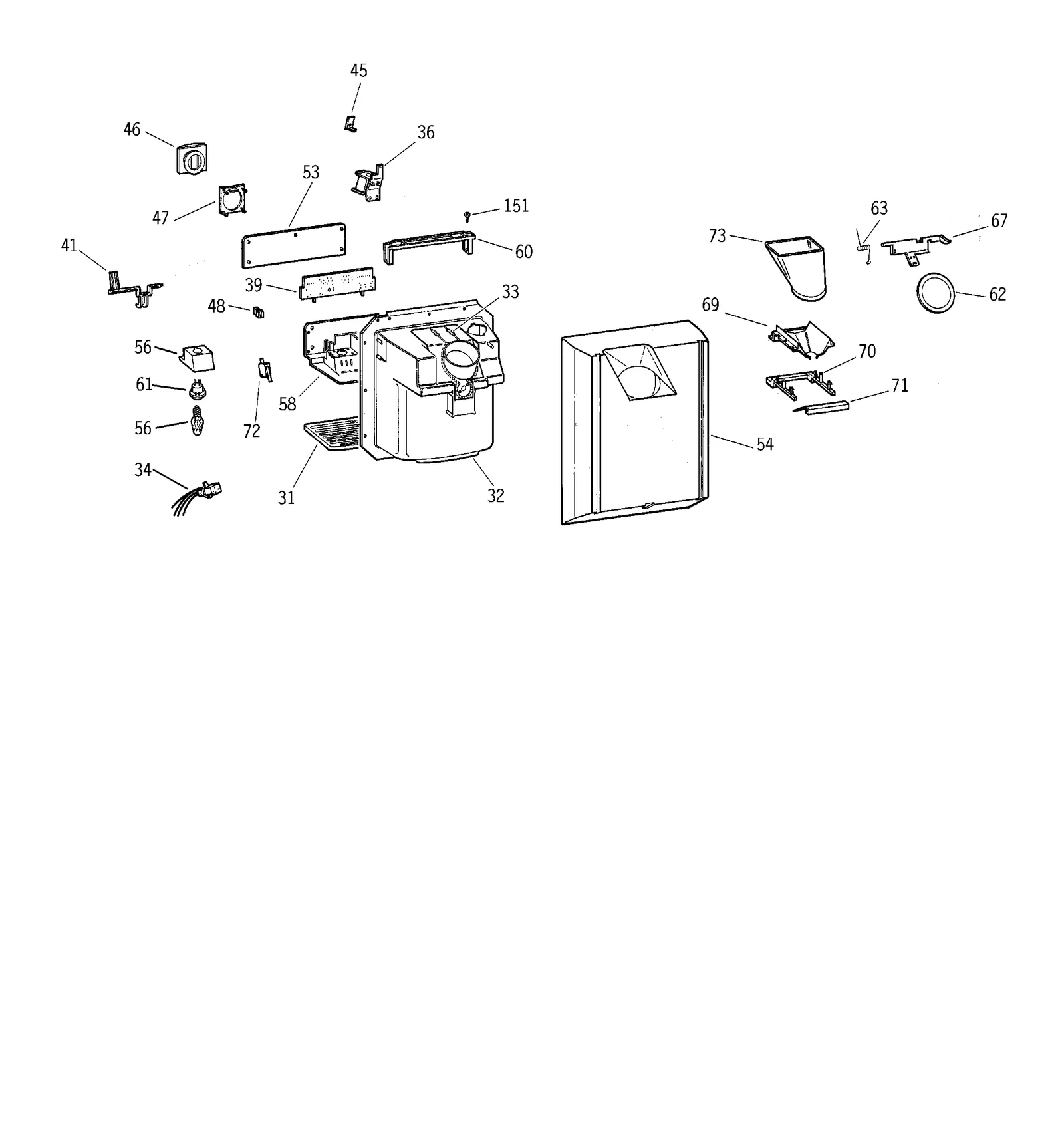

DISPENSER

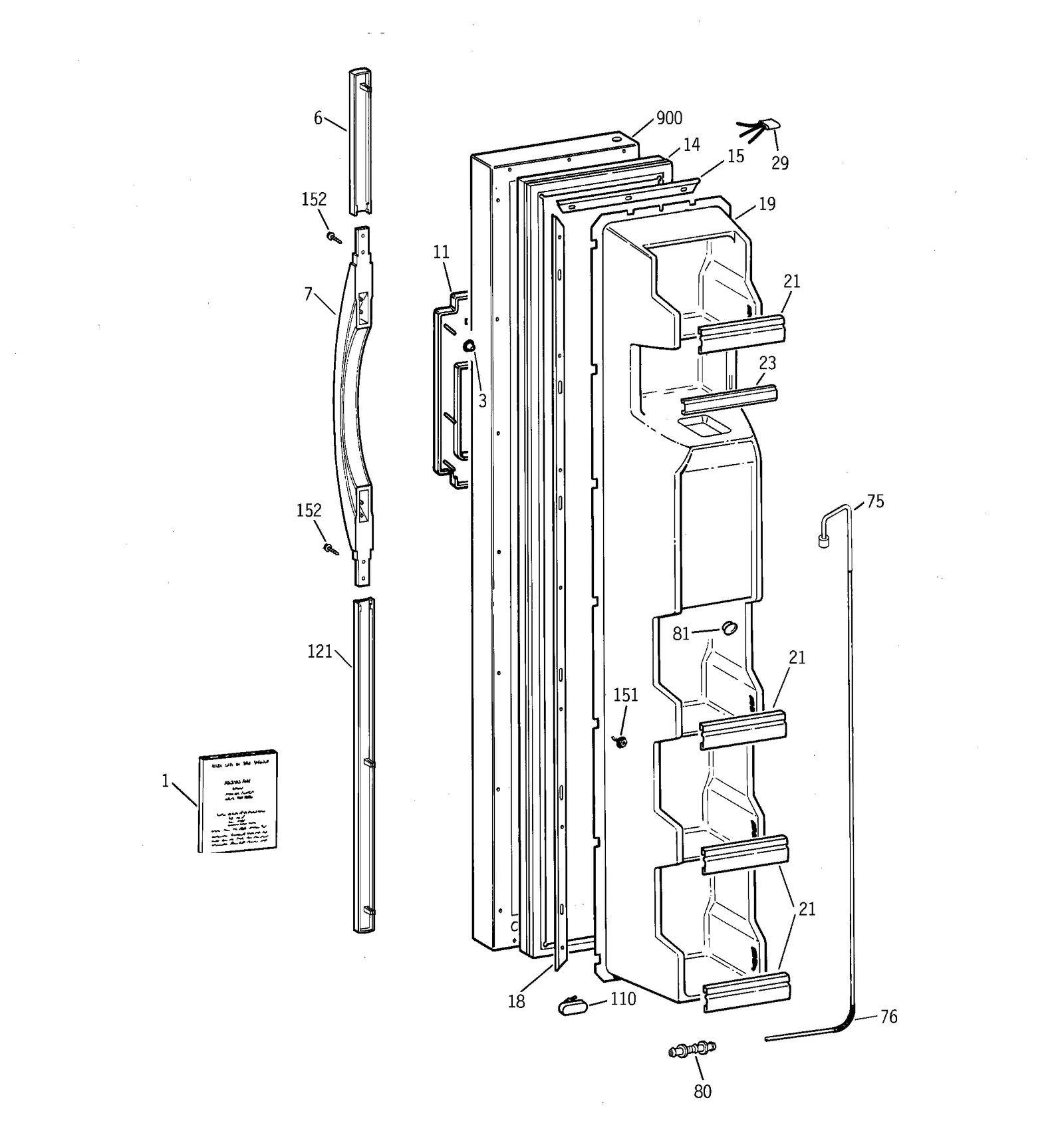

FREEZER DOOR

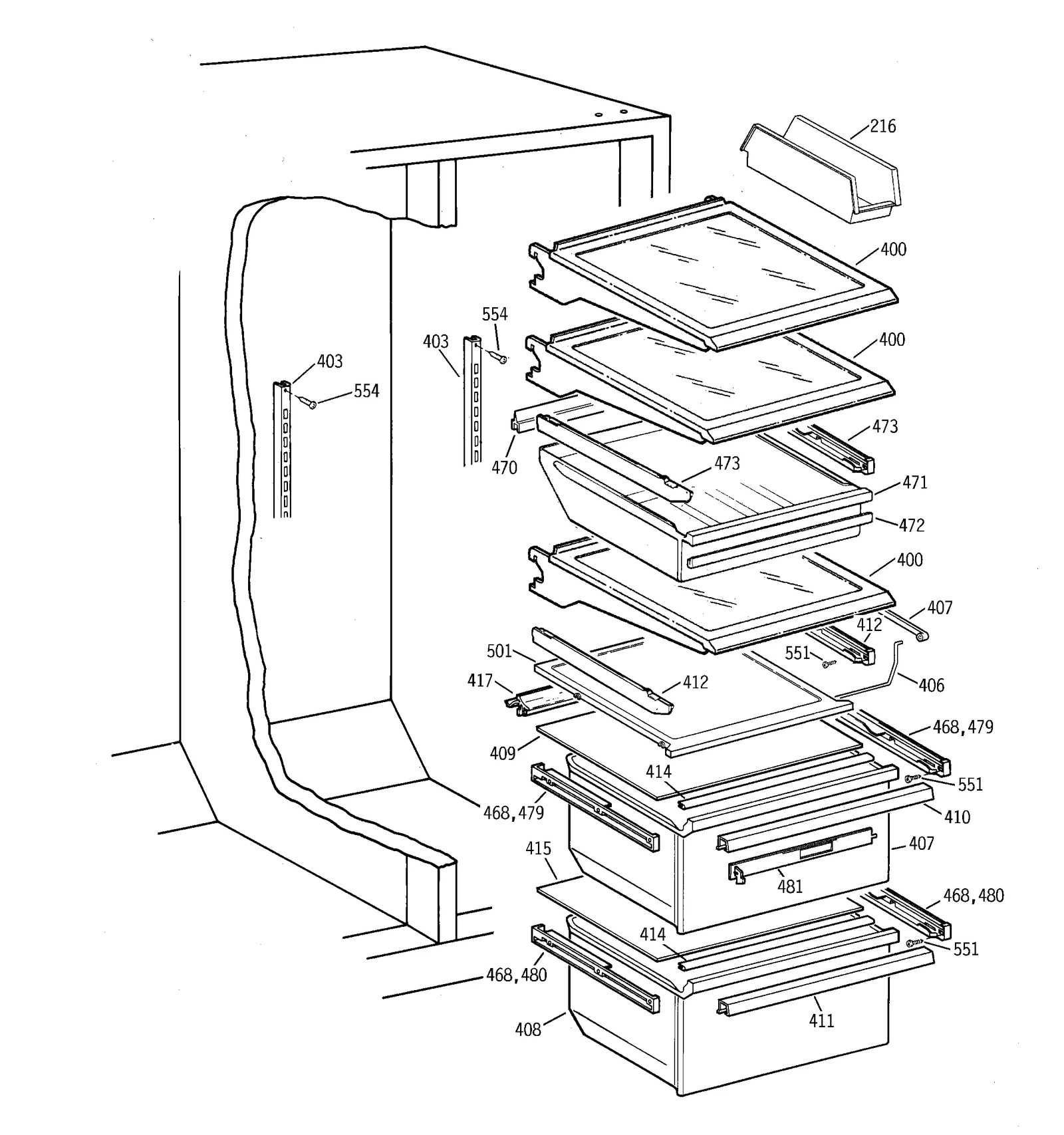

FRESH FOOD SHELVES
FREEZER SECTION

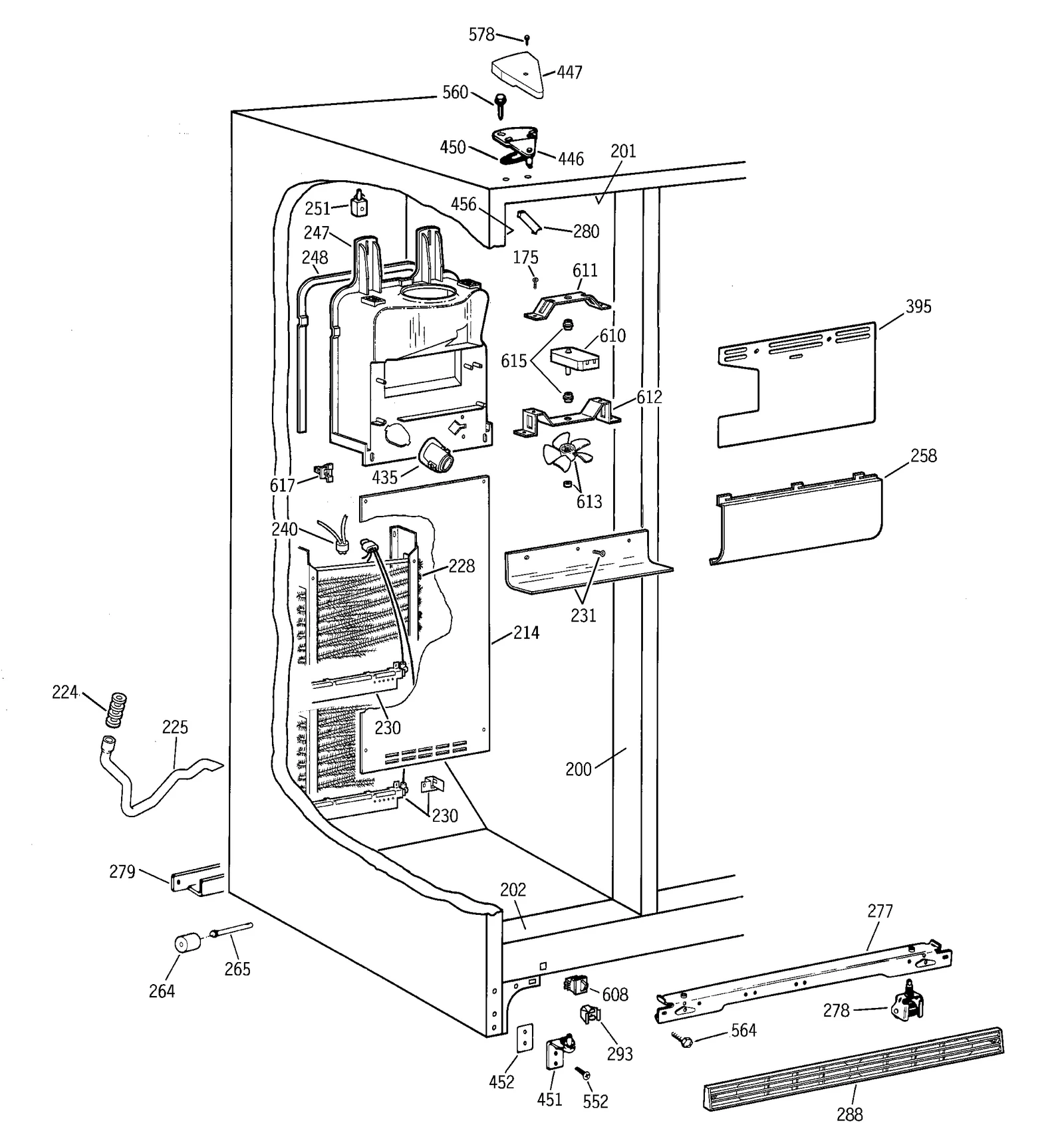

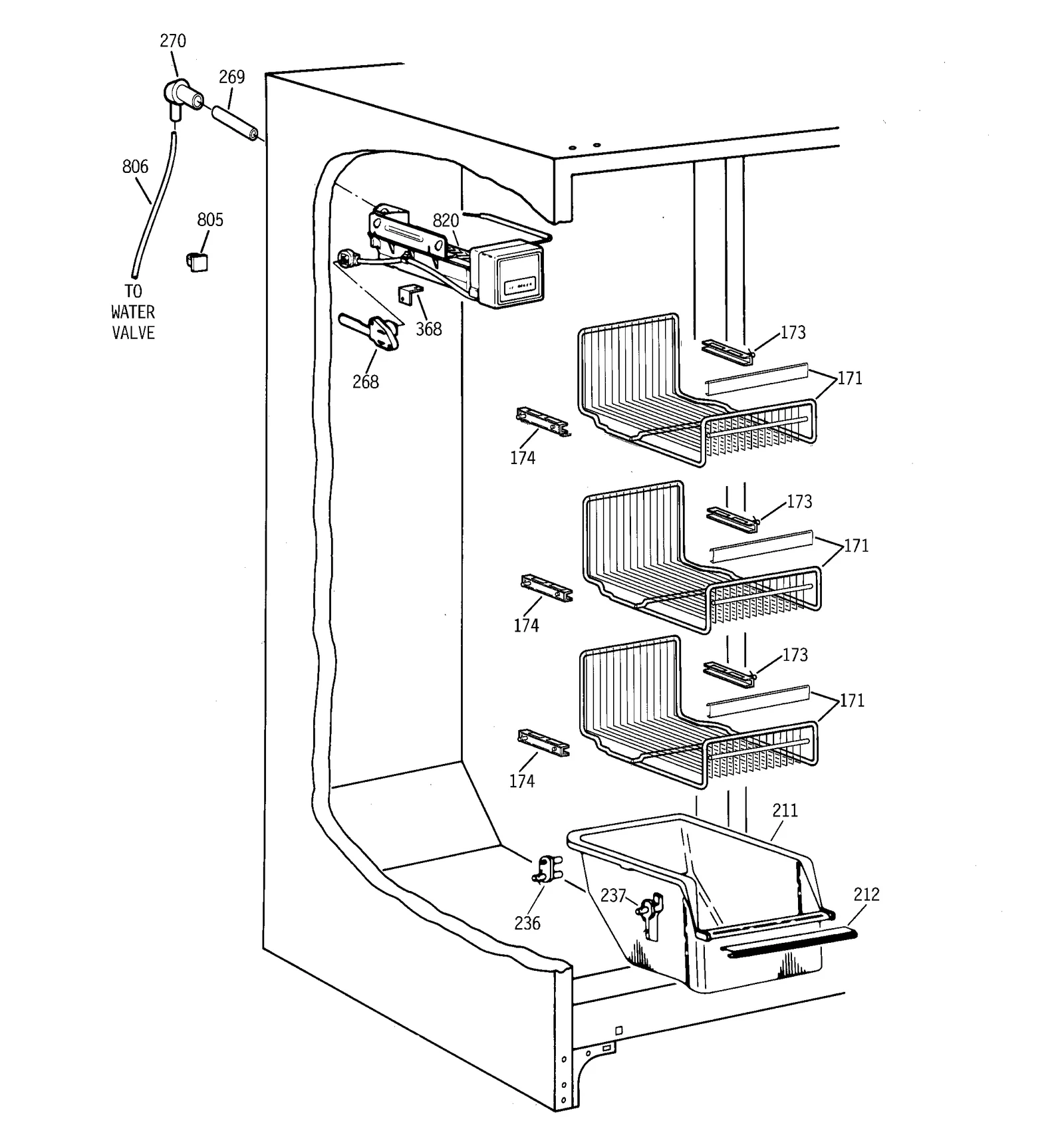

FREEZER SECTION

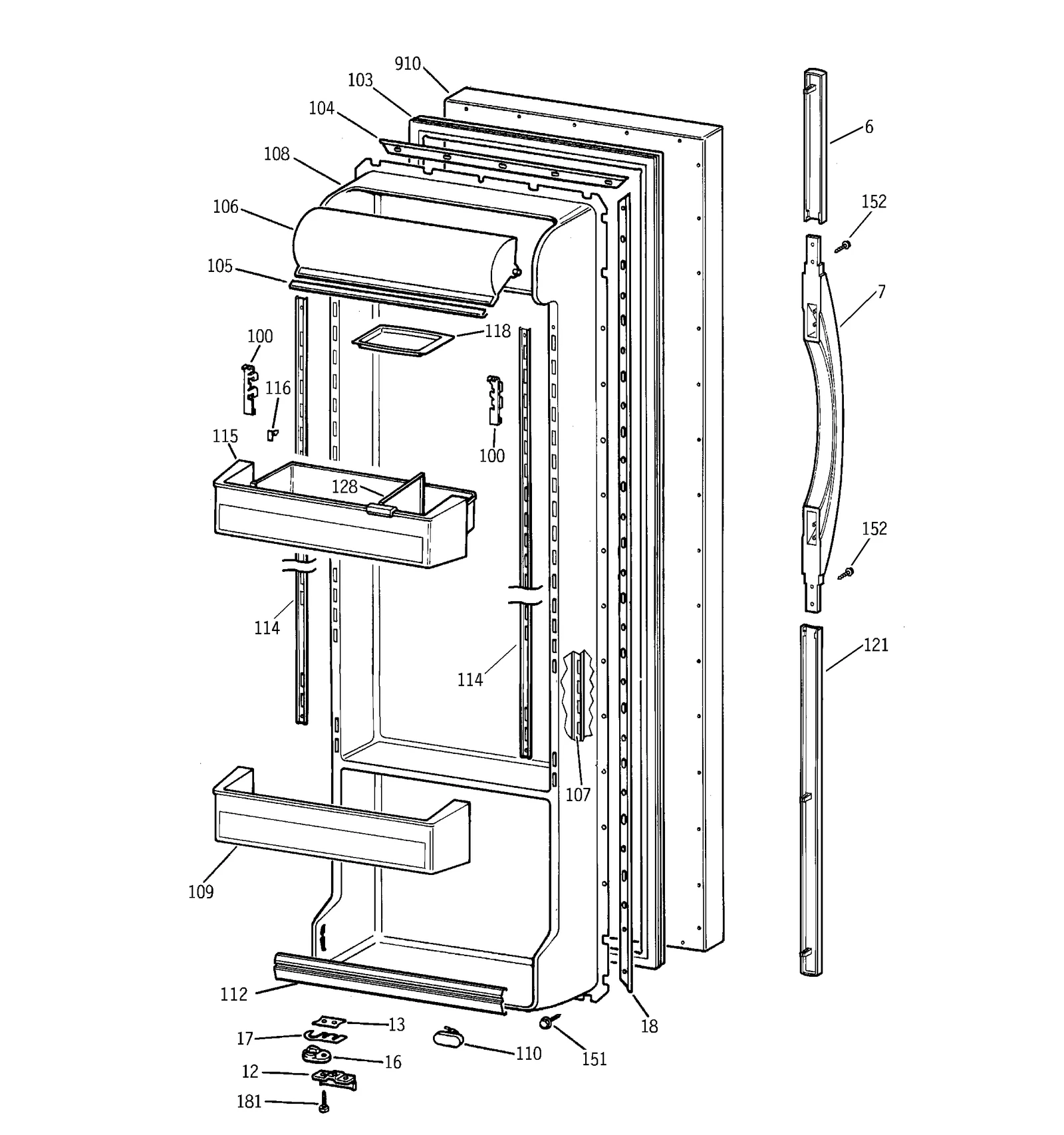

FRESH FOOD DOOR

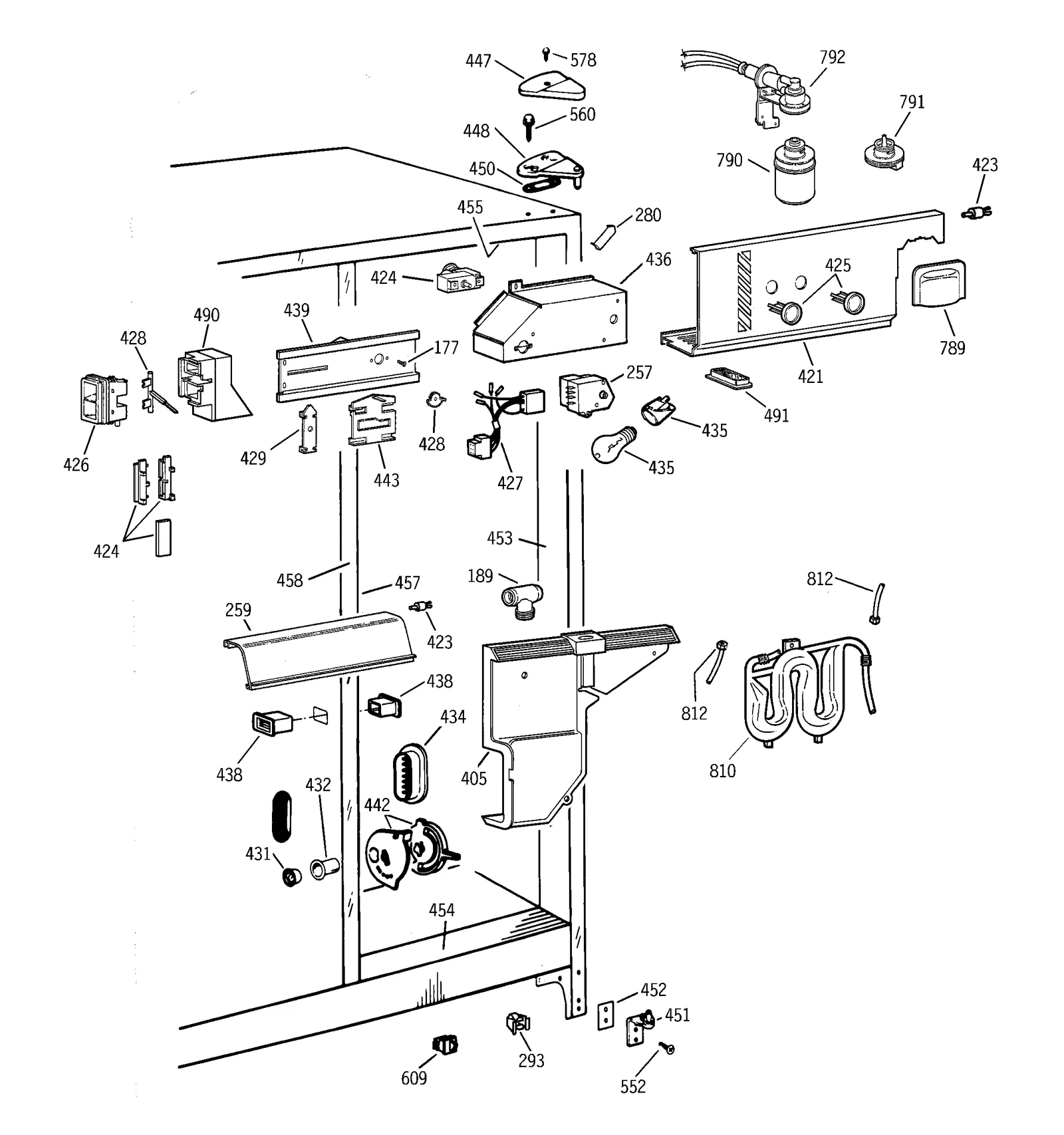

FRESH FOOD SECTION
Common parts from model GE 363.59577990 Refrigerator (Kenmore 36359577990)
1
Refrigerator Mini Wiring Manual GEN 31-51201 Contact Us For Availability
1
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
1
Refrigerator Energy Label GEN SR1241 Contact Us For Availability
1
Refrigerator Parts List GEN SR3897 Contact Us For Availability
1
Refrigerator Water Filter Data Sheet GEN SR6181 Contact Us For Availability
1
Refrigerator User's Manual GEN SR6184 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR02X7213 Contact Us For Availability
12
Stop Door Wh GEN WR02X9300 Contact Us For Availability
12
Stop Door Ad GEN WR02X9302 Contact Us For Availability
13
Shim Cam GEN WR02X7490 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0525 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X0531 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X1167 Contact Us For Availability
17
Refrigerator Shim Riser Cam GEN WR02X7491 Contact Us For Availability
17
Refrigerator Shim Riser Cam GEN WR02X9147 Contact Us For Availability
18
Refrigerator Freezer Door Gasket Retainer GEN WR17X2092 Contact Us For Availability
19
Refrigerator Inner Door GEN WR77X0680 Contact Us For Availability
21
Refrigerator Door Shelf GEN WR17X10106 Contact Us For Availability
23
Refrigerator Freezer Door Shelf GEN WR17X10118 Contact Us For Availability
29
Refrigerator Drive Hinge Harness GEN WR23X0448 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
31
Grill Rec Ad GEN WR17X4151 Contact Us For Availability
31
Grill Rec Bk GEN WR17X4152 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
32
Recess Disp GEN WR17X10191 Contact Us For Availability
32
Recess Disp GEN WR17X10192 Contact Us For Availability
33
Recessed Heater GEN WR51X0353 Contact Us For Availability
34
Harness Light Switch GEN WR23X0456 Contact Us For Availability
39
Mod Time Del GEN WR55X0129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8702 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8704 Contact Us For Availability
46
Pad Act Ad GEN WR02X8726 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Refrigerator Knob Recess GEN WR02X8676 Contact Us For Availability
48
Knob Rec Dis GEN WR02X8696 Contact Us For Availability
48
Knob Rec Dis GEN WR02X9154 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10125 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10126 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10128 Contact Us For Availability
54
Refrigerator Dispenser Insulation GEN WR17X4254 Contact Us For Availability
56
Refl Lp Skt GEN WR02X8686 Contact Us For Availability
56
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
58
Refrigerator Recessed Display Shield GEN WR17X3156 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3210 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Electronic Cover GEN WR02X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8943 Contact Us For Availability
70
Supt Funnel GEN WR02X8954 Contact Us For Availability
70
Supt Funnel GEN WR02X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4253 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
81
Refrigerator Button Plug GEN WR01X2077 Contact Us For Availability
100
Hook Mdl L/s GEN WR02X8410 Contact Us For Availability
100
Hook Mdl R/s GEN WR02X8409 Contact Us For Availability
103
Refrigerator Gasket GEN WR24X0526 Contact Us For Availability
103
Gasket GEN WR24X0532 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Dairy Door GEN WR22X0383 Contact Us For Availability
107
Drive Track GEN WR72X0256 Contact Us For Availability
108
Refrigerator Inner Door GEN WR77X0681 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X0257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Cap Drive Track GEN WR02X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10040 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10054 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
152
Refrigerator Screw GEN WR01X10038 Contact Us For Availability
171
Refrigerator Wire Basket GEN WR71X10147 Contact Us For Availability
173
Refrigerator Support GEN WR02X8724 Contact Us For Availability
174
Refrigerator Slide Support GEN WR02X8667 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
189
Refrigerator Lamp Socket GEN WR02X9243 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1730 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1731 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1732 Contact Us For Availability
211
Clear Basket GEN WR21X0190 Contact Us For Availability
212
Refrigerator Freezer Basket Trim GEN WR38X10059 Contact Us For Availability
214
Refrigerator Evaporator Cover Mounting Clip GEN WR01X10064 Contact Us For Availability
214
Refrigerator Evaporator Cover Gasket GEN WR14X0456 Contact Us For Availability
214
Refrigerator Evaporator Coils Cover GEN WR17X3915 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
225
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
230
Refrigerator Heater Bracket GEN WR02X8647 Contact Us For Availability
231
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
231
Plug Fastner GEN WR01X2110 Contact Us For Availability
236
Refrigerator Support GEN WR02X4548 Contact Us For Availability
237
Freezer Support Basket GEN WR02X7036 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X0493 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Light Cover GEN WR17X3489 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265
Refrigerator Axle GEN WR02X3595 Contact Us For Availability
265
Axle & Cotte GEN WR02X4742 Contact Us For Availability
268
I M Recept GEN WR23X0312 Contact Us For Availability
269
Refrigerator Water Tube GEN WR02X8668 Contact Us For Availability
277
Rail Mach Mt GEN WR17X2113 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10058 Contact Us For Availability
280
C Cap Oc Wh GEN WR02X8518 Contact Us For Availability
280
C Cap Oc Ad GEN WR02X8519 Contact Us For Availability
280
Bk Corner Cp GEN WR02X8524 Contact Us For Availability
288
Refrigerator Grille GEN WR74X0199 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0206 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0209 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
328
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
368
Refrigerator Ice Maker Mounting Bracket GEN WR02X8459 Contact Us For Availability
388
Refrigerator Ice Container Front Cover Door GEN WR17X10275 Contact Us For Availability
395
Fan Shield GEN WR17X10243 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR71X10054 Contact Us For Availability
403
Track Cant S GEN WR72X0254 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
406
Refrigerator Shelf Hanger GEN WR02X8953 Contact Us For Availability
407
Shelf Link GEN WR17X3487 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
412
Refrigerator Slide-Out Shelf GEN WR17X2853 Contact Us For Availability
412
Refrigerator Slide-Out Shelf GEN WR17X2854 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gasket Shield GEN WR14X10006 Contact Us For Availability
421
Gkt Lgt Shld GEN WR14X0433 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10396 Contact Us For Availability
423
Refrigerator Shelf Support GEN WR02X6347 Contact Us For Availability
423
Grommet Support GEN WR02X10050 Contact Us For Availability
424
Capillary Lo GEN WR02X10115 Contact Us For Availability
424
Capillary Lo GEN WR02X10116 Contact Us For Availability
424
Foam Control Pad GEN WR02X10117 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X10016 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426
Foam Nozzle GEN WR02X8425 Contact Us For Availability
426
Housing Nozzle GEN WR02X8514 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428
Control Damper GEN WR02X10113 Contact Us For Availability
428
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
438
Duct Mullion GEN WR02X7476 Contact Us For Availability
438
Duct Mullion GEN WR02X8655 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hge Top Asm GEN WR13X0660 Contact Us For Availability
447
Cvr Hg Ff Ad GEN WR02X8843 Contact Us For Availability
447
Cvr Hg Fz Ad GEN WR02X8844 Contact Us For Availability
447
Cvr Hg Ff Bk GEN WR02X8845 Contact Us For Availability
447
Cvr Hg Fz Bk GEN WR02X8846 Contact Us For Availability
447
Cvr Hg Fz Wh GEN WR02X8825 Contact Us For Availability
447
Cvr Hg Ff Wh GEN WR02X8824 Contact Us For Availability
448
Hge Top Asm GEN WR13X0659 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X7011 Contact Us For Availability
452
Shim .031 GEN WR02X4497 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1734 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1735 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1736 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1733 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1737 Contact Us For Availability
458
U Nut GEN WR02X4739 Contact Us For Availability
458
Breaker Mullion GEN WR02X7033 Contact Us For Availability
458
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
458
Mullion Wh GEN WR40X1738 Contact Us For Availability
458
Mullion Bk GEN WR40X1739 Contact Us For Availability
458
Mullion Ad GEN WR40X1740 Contact Us For Availability
470
Pan Gasket GEN WR14X0420 Contact Us For Availability
471
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473
Pan Slide, Right GEN WR72X0210 Contact Us For Availability
473
Pan Slide, Left GEN WR72X0211 Contact Us For Availability
480
Refrigerator Slide Assembly, Left GEN WR72X0252 Contact Us For Availability
480
Refrigerator Slide Assembly, Right GEN WR72X0253 Contact Us For Availability
481
Slide Pan Foot GEN WR01X2079 Contact Us For Availability
490
Duct Nozzle GEN WR02X10114 Contact Us For Availability
491
Light Grille GEN WR17X10250 Contact Us For Availability
501
Quick Shelf GEN WR32X10081 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
611
Refrigerator Condenser Fan Motor Bracket GEN WR02X10100 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X10101 Contact Us For Availability
613
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10042 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
630
Refrigerator Button Plug GEN WR02X8525 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X10002 Contact Us For Availability
651
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0189 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
733
Refrigerator Protector GEN WR07X0277 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Compressor Overload Protector GEN WR08X10006 Contact Us For Availability
738
Refrigerator Condenser GEN WR84X0168 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X4347 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4148 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
777
Refrigerator Water Valve Bracket GEN WR02X10110 Contact Us For Availability
789
Refrigerator Filter Cover GEN WR17X10132 Contact Us For Availability
791
Refrigerator Filter Plug GEN WR02X10049 Contact Us For Availability
792
Refrigerator Filter Head GEN WR17X10237 Contact Us For Availability
795
Refrigerator Water Inlet Valve Assembly GEN WR57X10012 Contact Us For Availability
797
Refrigerator Wire Harness GEN WR23X10035 Contact Us For Availability
799
Refrigerator Water Inlet Valve Assembly GEN WR57X10007 Contact Us For Availability
807
Nut & Union GEN WR02X4046 Contact Us For Availability
808
Refrigerator Ferrule Nut GEN WR57X10005 Contact Us For Availability
815
Tube Jumper GEN WR57X10014 Contact Us For Availability
816
Union Valve GEN WR57X10002 Contact Us For Availability
816
Refrigerator Water Tube Connector GEN WR57X10021 Contact Us For Availability
850
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X0153 Contact Us For Availability
868
Mold Body GEN WR29X0204 Contact Us For Availability
870
Wire Harness GEN WR29X0186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10197 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10199 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10202 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10198 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10200 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10203 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
Login and Registration Form
