Model GE 363.59557991 Refrigerator (Kenmore 36359557991) – Common Parts & Diagrams

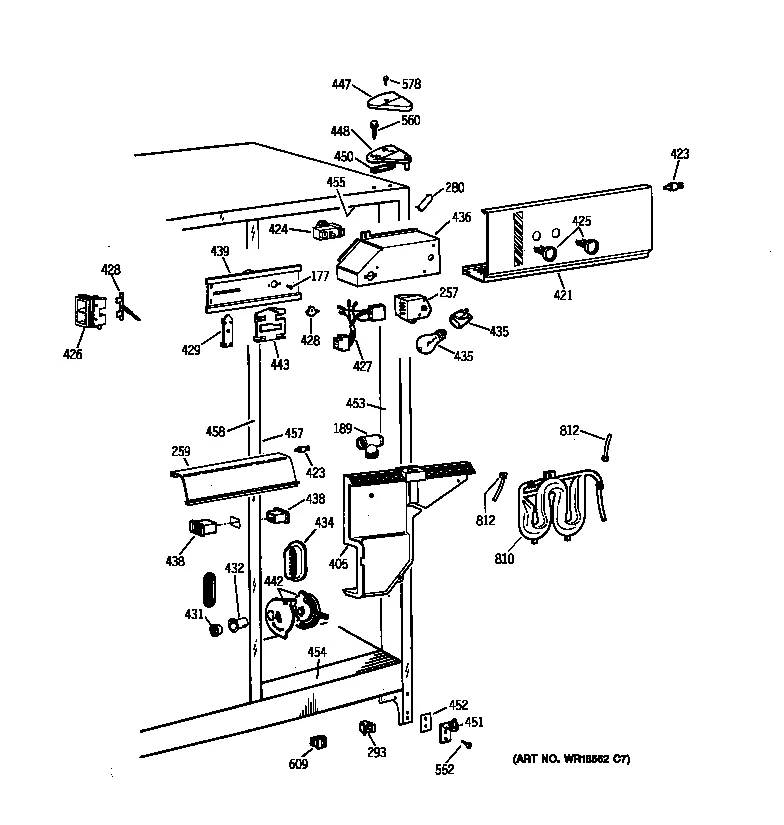

FRESH FOOD SECTION

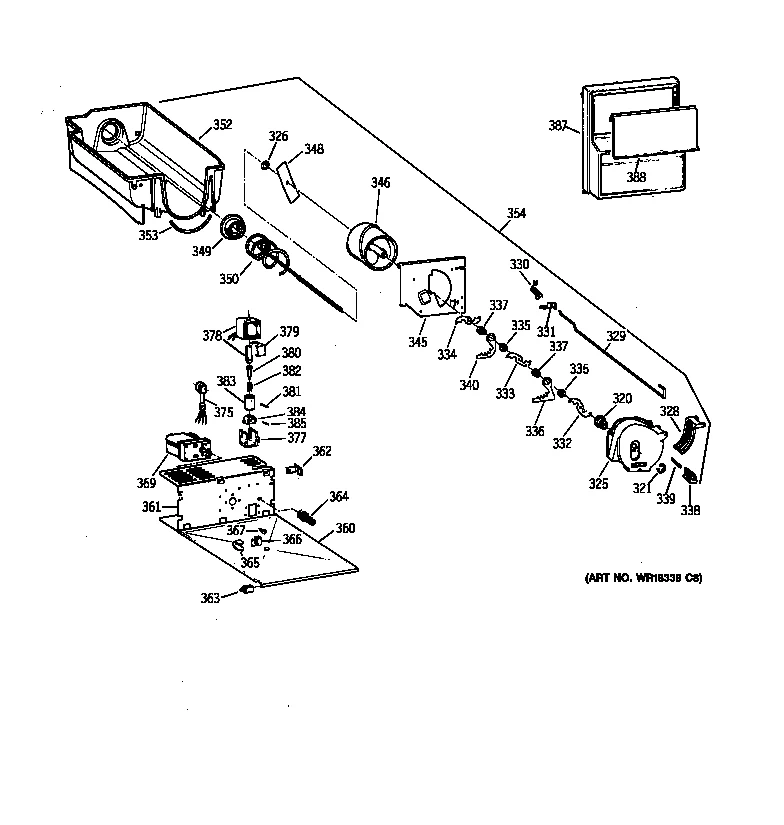

ICE BUCKET

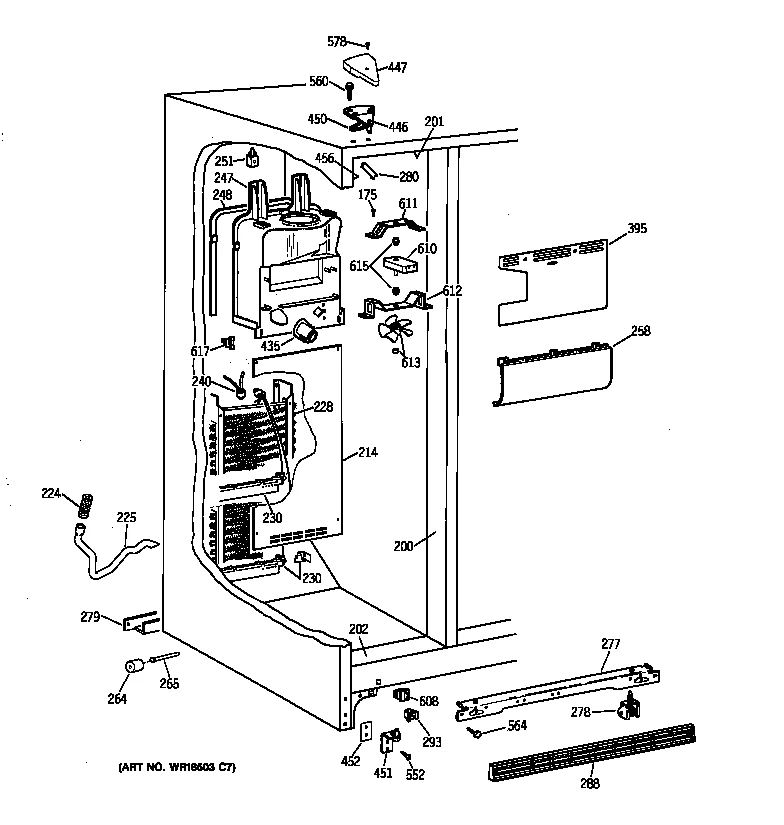

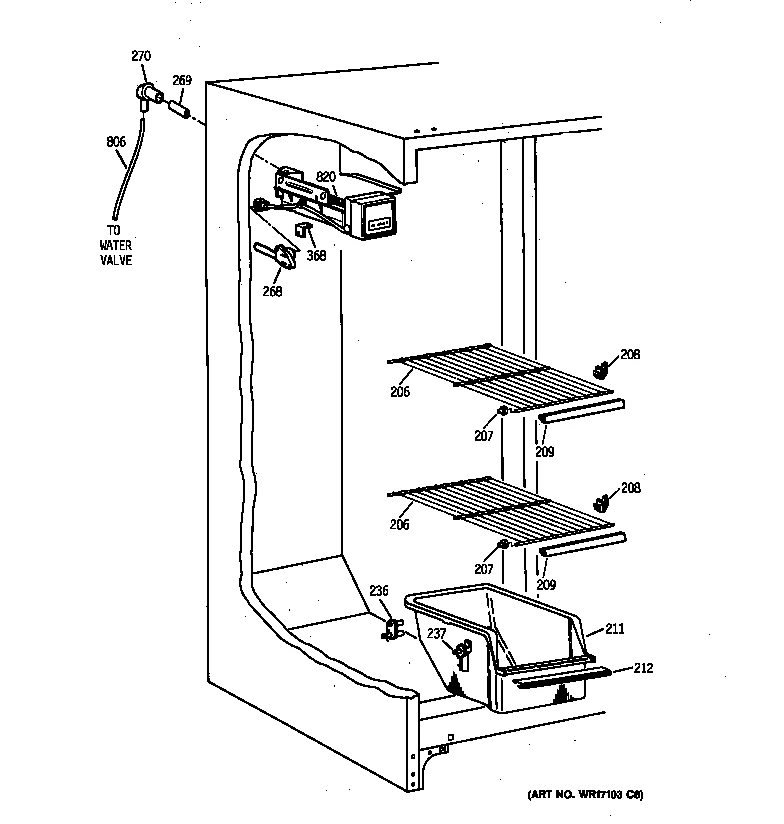

FREEZER SECTION

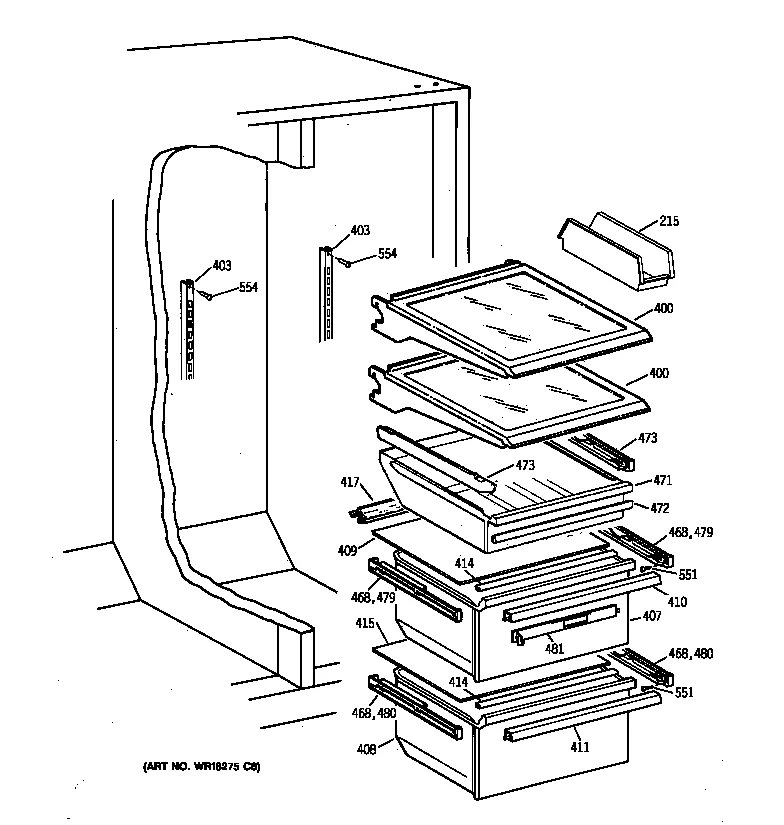

FRESH FOOD SECTION

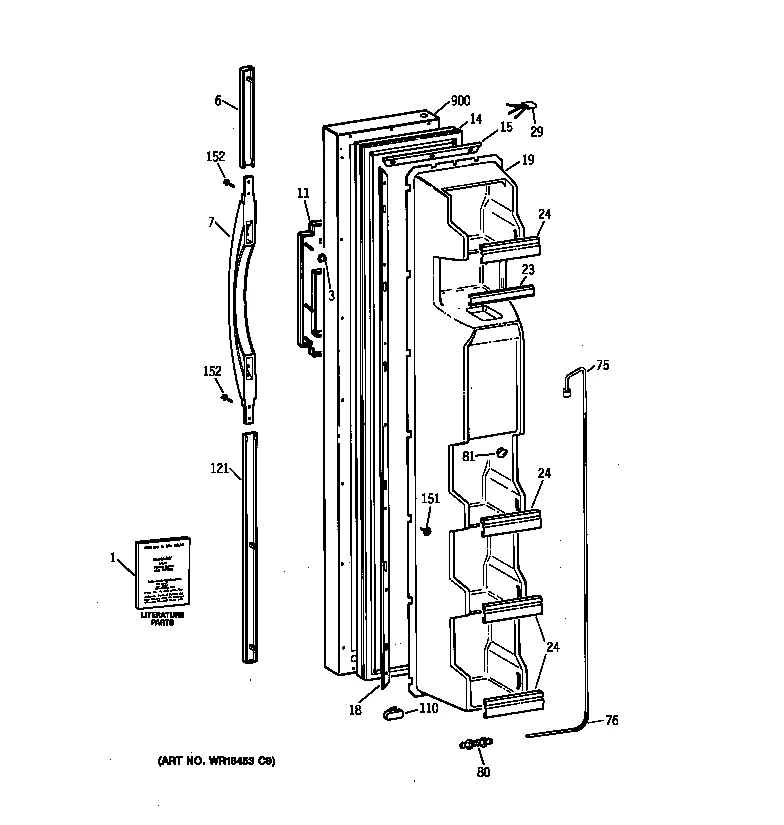

FREEZER DOOR

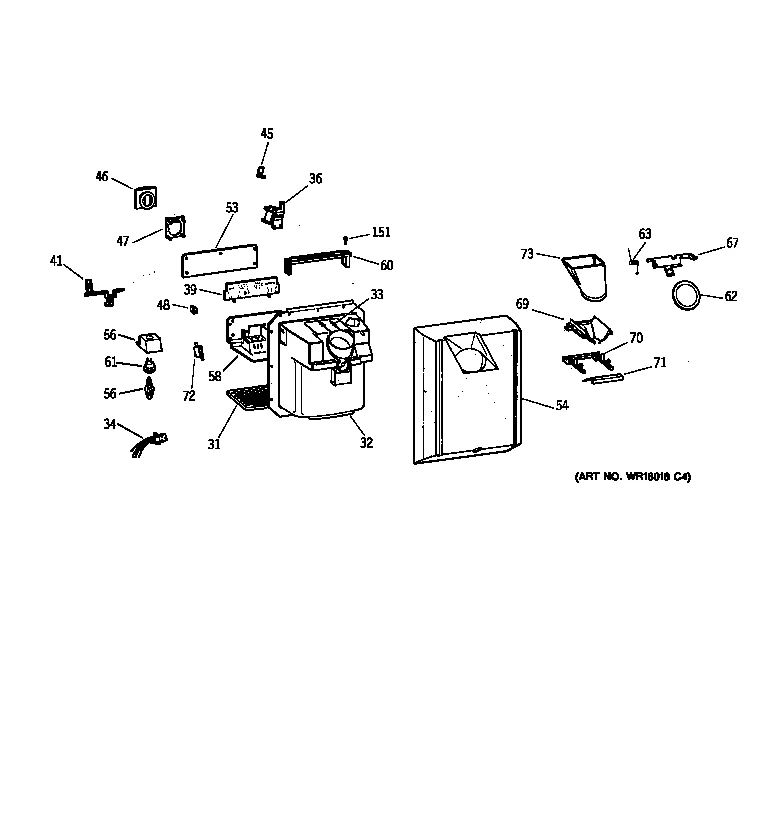

DISPENSER

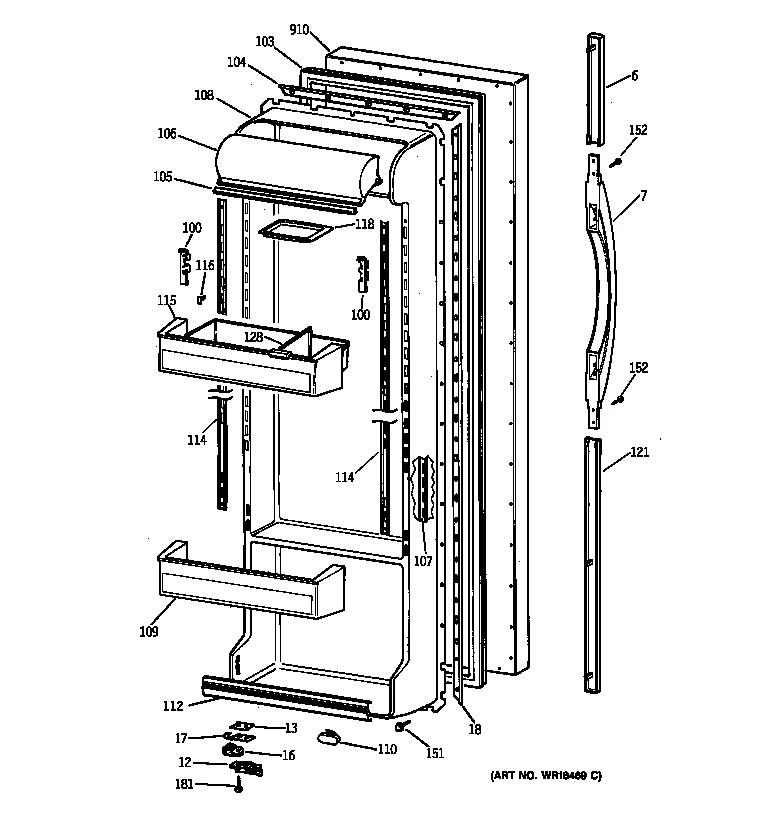

FRESH FOOD DOOR
FREEZER SECTION
All Parts

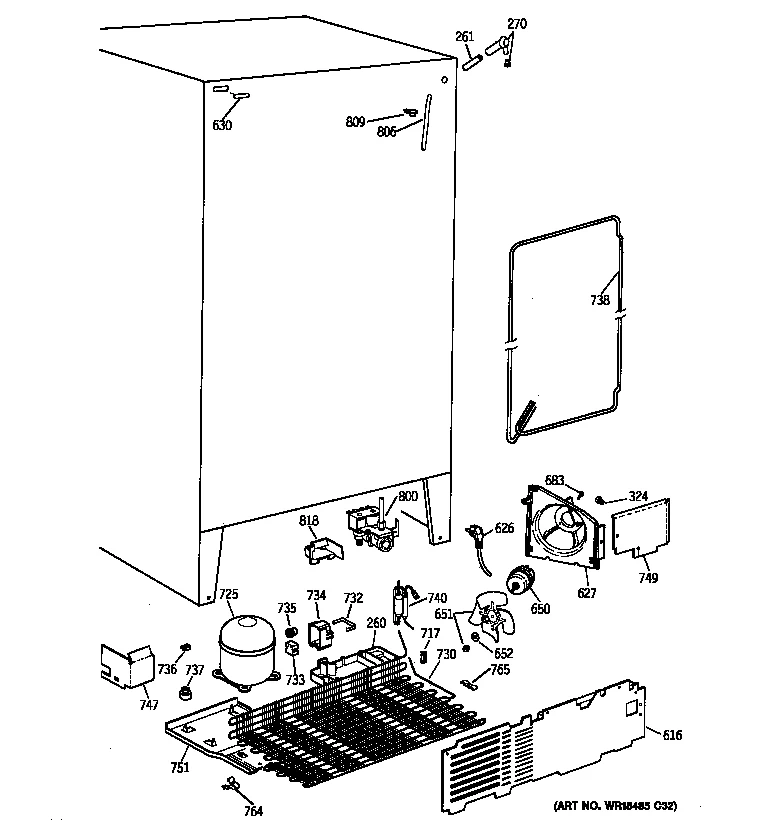

UNIT PARTS

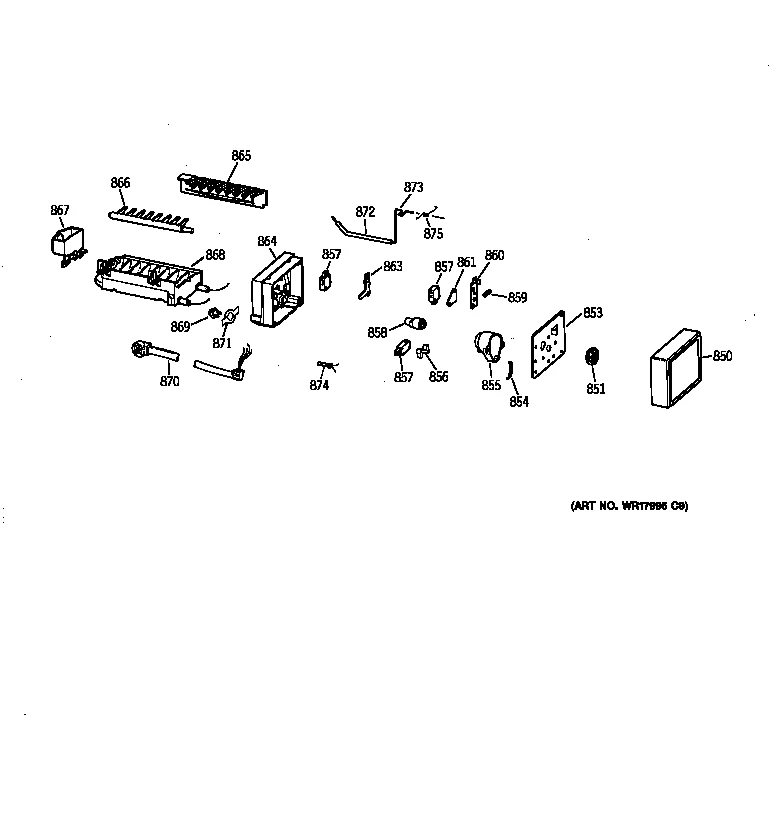

ICEMAKER WR30X0327
Common parts from model GE 363.59557991 Refrigerator (Kenmore 36359557991)
1E
Refrigerator Mini Wiring Manual GEN 31-51239 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (White) GEN WR24X525 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X1167 Contact Us For Availability
16
Refrigerator Riser Cam GEN WR2X10140 Contact Us For Availability
17A
Riser Shim GEN WR2X9147 Contact Us For Availability
17B
Refrigerator Door Hinge Shim GEN WR2X7491 Contact Us For Availability
18
Refrigerator Freezer Door Gasket Retainer GEN WR17X2092 Contact Us For Availability
19
Refrigerator Inner Door GEN WR77X680 Contact Us For Availability
23
Refrigerator Freezer Door Shelf GEN WR17X10118 Contact Us For Availability
24
Refrigerator Door Shelf GEN WR17X10106 Contact Us For Availability
29
Harness Dr H GEN WR23X10100 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
31
Grill Rec Ad GEN WR17X4151 Contact Us For Availability
31
Grill Rec Bk GEN WR17X4152 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
32
Recess Disp GEN WR17X10191 Contact Us For Availability
32
Recess Disp GEN WR17X10192 Contact Us For Availability
33
Refrigerator Dispenser Heater GEN WR51X353 Contact Us For Availability
34
Harness Light Switch GEN WR23X456 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
46
Pad Actua GEN WR2X8704 Contact Us For Availability
46
Pad Act A GEN WR2X8726 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
48
Refrigerator Selector Knob (Black) GEN WR2X8676 Contact Us For Availability
48
Refrigerator Selector Knob GEN WR2X8696 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10108 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10109 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10110 Contact Us For Availability
54
Refrigerator Dispenser Insulation GEN WR17X4254 Contact Us For Availability
56A
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
56B
Refl Lp S GEN WR2X8686 Contact Us For Availability
58
Refrigerator Recessed Display Shield GEN WR17X3156 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3210 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Refrigerator Dispenser Control Cover GEN WR2X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
70
Supt Funn GEN WR2X8943 Contact Us For Availability
70
Supt Funn GEN WR2X8954 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4253 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
100A
Middle Hook GEN WR2X8409 Contact Us For Availability
100B
Refrigerator Hook, Center GEN WR2X8410 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X526 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Refrigerator Dairy Bin Cover GEN WR22X383 Contact Us For Availability
107
Drive Track GEN WR72X256 Contact Us For Availability
108B
Refrigerator Inner Door GEN WR77X681 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Refrigerator Door Trim Cap GEN WR2X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10040 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10054 Contact Us For Availability
128
Snugger Module GEN WR2X7971 Contact Us For Availability
152
Scr 8-18 GEN WR1X10038 Contact Us For Availability
181
SCR 10-32 MA HX 1 S XTW GEN WZ6X105 Contact Us For Availability
207
Refrigerator Freezer Shelf Support Grommet GEN WR2X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR2X4674 No Longer Available
209
Refrigerator Freezer Basket Trim GEN WR38X10071 Contact Us For Availability
211
Refrigerator Freezer Bin GEN WR21X190 Contact Us For Availability
212
Refrigerator Freezer Basket Trim GEN WR38X10059 Contact Us For Availability
214A
Refrigerator Evaporator Cover Gasket GEN WR14X456 Contact Us For Availability
230A
Refrigerator Defrost Heater Bracket GEN WR2X8647 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Light Cover GEN WR17X3489 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265A
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tube GEN WR2X8668 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
324A
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
324B
Button Plug GEN WR2X7069 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328A
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
352
Refrigerator Ice Container GEN WR30X256 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
368
Refrigerator Ice Maker Mounting Bracket GEN WR2X8459 Contact Us For Availability
388
Refrigerator Ice Container Front Cover Door GEN WR17X10275 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423B
Refrigerator Shelf Support GEN WR2X6347 Contact Us For Availability
428A
Refrigerator Damper Control GEN WR2X9396 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
448
Refrigerator Door Hinge, Upper GEN WR13X659 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
473A
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
473B
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
480A
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X252 Contact Us For Availability
480B
Refrigerator Crisper Drawer Slide Rail, Right GEN WR72X253 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10042 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
651A
Refrigerator Nut GEN WR1X1515 Contact Us For Availability
651B
Condenser Fan Blade GEN WR60X10002 Contact Us For Availability
652
Refrigerator Fan Motor Washer GEN WR1X1714 Contact Us For Availability
683
Refrigerator Fastener GEN WR1X1825 Contact Us For Availability
717
Clip Condenser GEN WR2X10335 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X207 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR7X277 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR8X10006 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X168 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X10427 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4148 Contact Us For Availability
818
Guard Spl GEN WR2X10181 Contact Us For Availability
818
Refrigerator Splash Guard GEN WR2X1181 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10197 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10199 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10198 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10200 Contact Us For Availability
NI
Term Housi GEN WH12X497 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
SCR 8-36 T IHW 3/8 S N GEN WR1K01 Contact Us For Availability
NI
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
NI
Scr 8-18 GEN WR1X10065 Contact Us For Availability
NI
Refrigerator Rivet Plate GEN WR1X1987 Contact Us For Availability
NI
Refrigerator Fastener Plug GEN WR1X2110 Contact Us For Availability
NI
SCR 8-18 AB HXW 1/2 S GEN WZ6X136 Contact Us For Availability
× ![]()
Login and Registration Form
