Model GE 363.59551994 Refrigerator (Kenmore 36359551994) – Common Parts & Diagrams

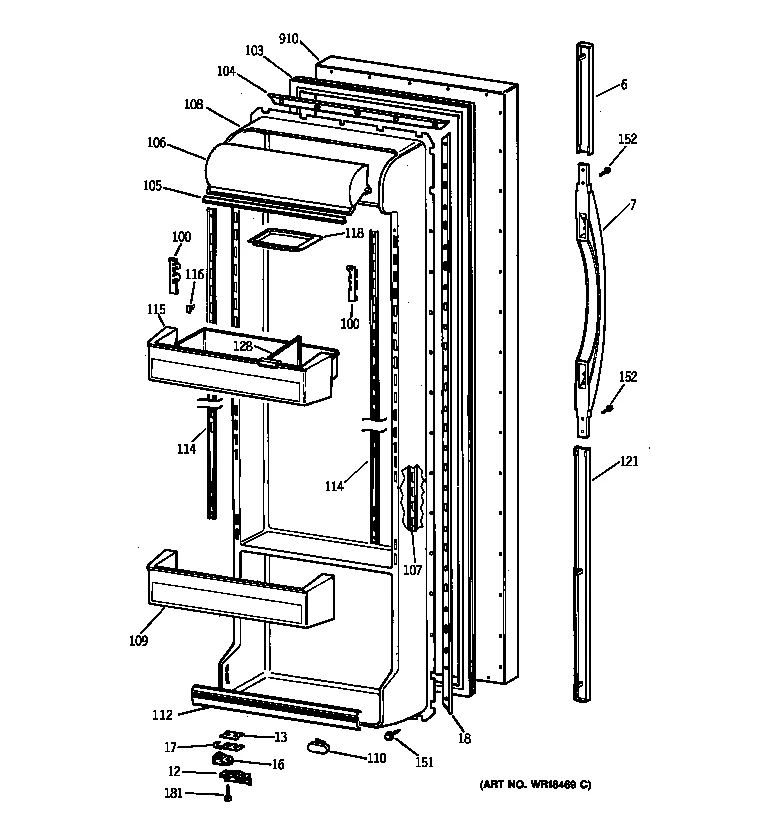

FRESH FOOD DOOR

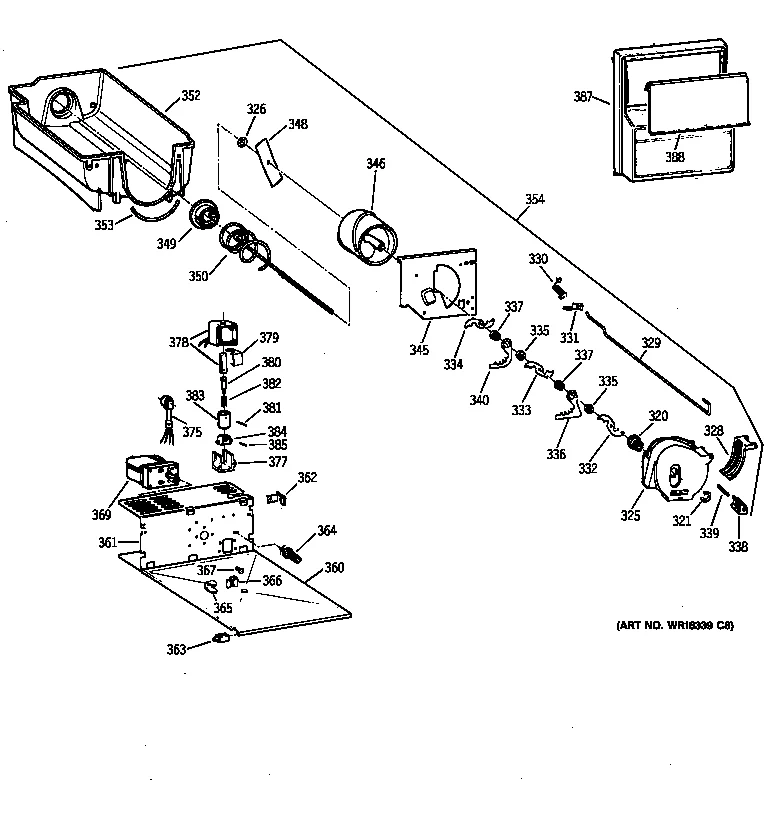

ICE BUCKET

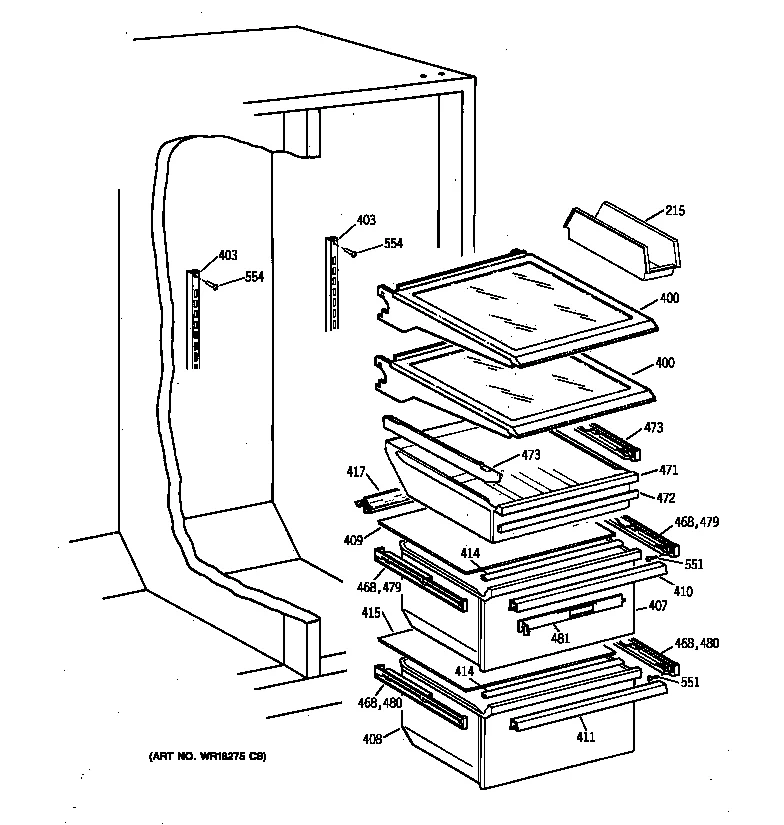

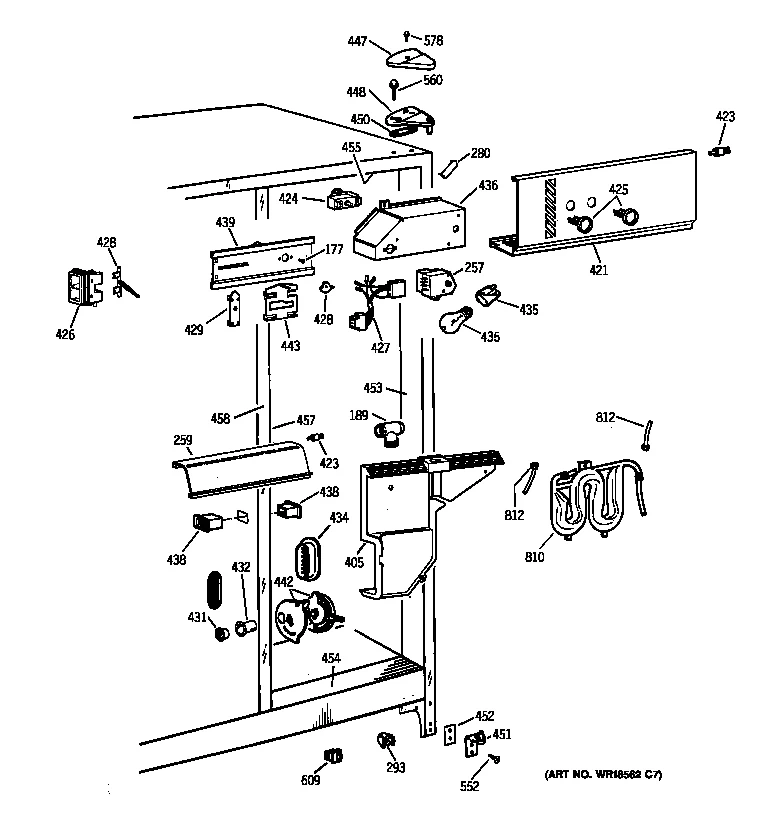

FRESH FOOD SECTION

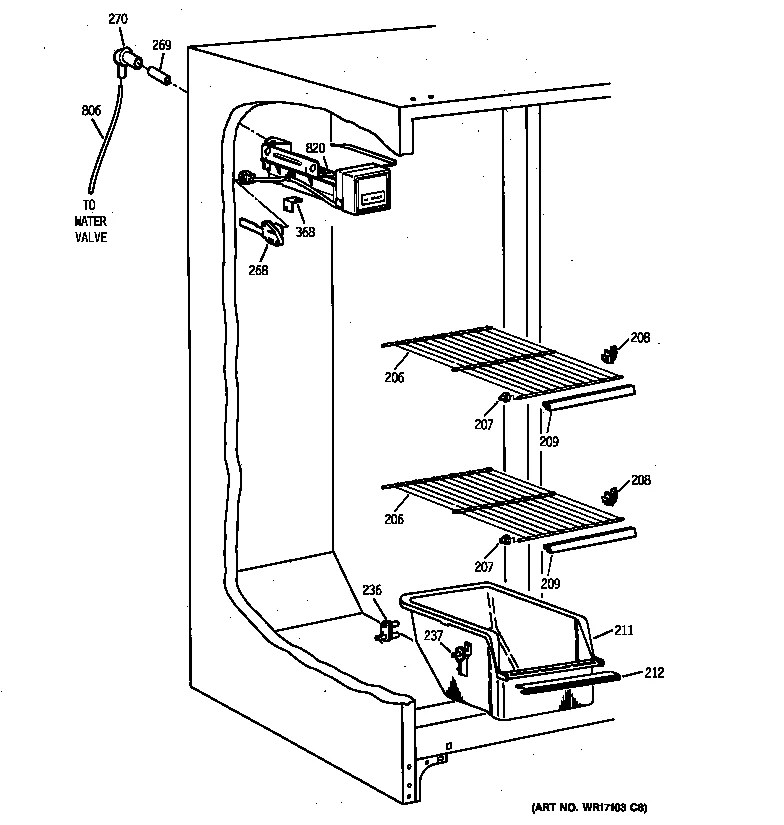

FREEZER SECTION

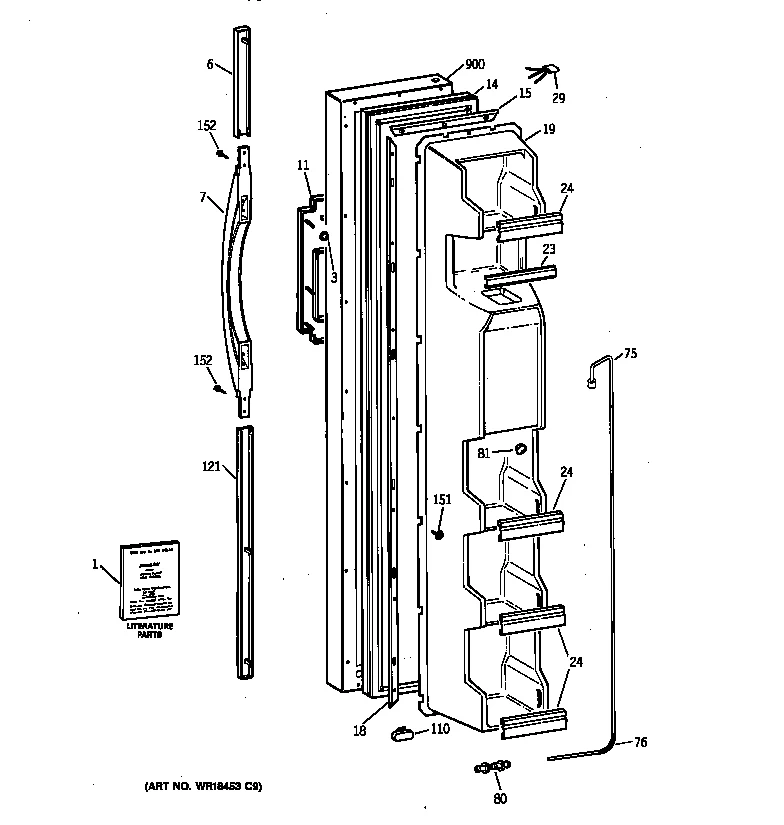

FREEZER DOOR

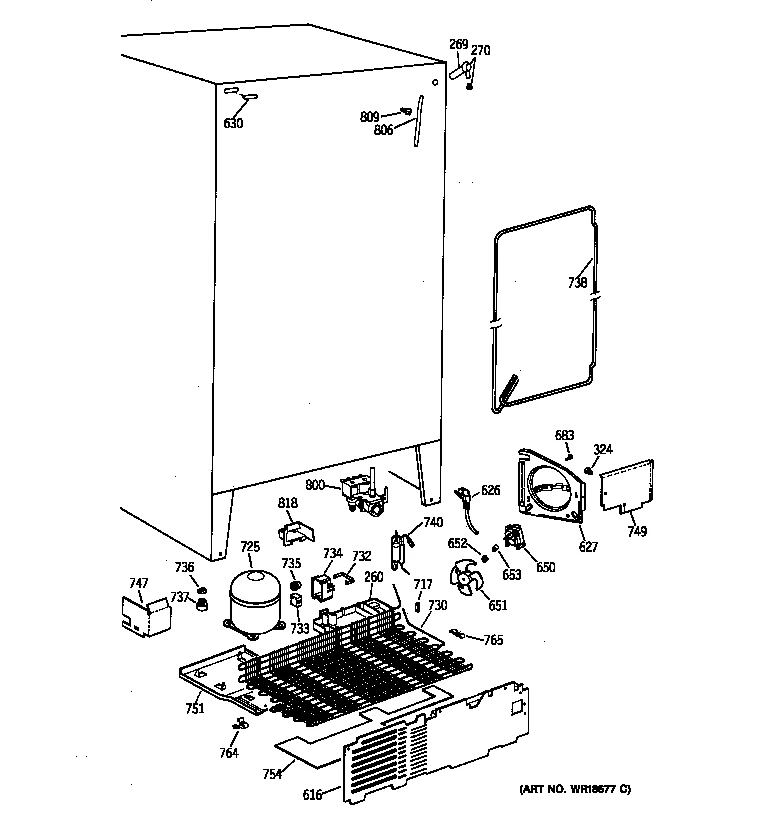

UNIT PARTS

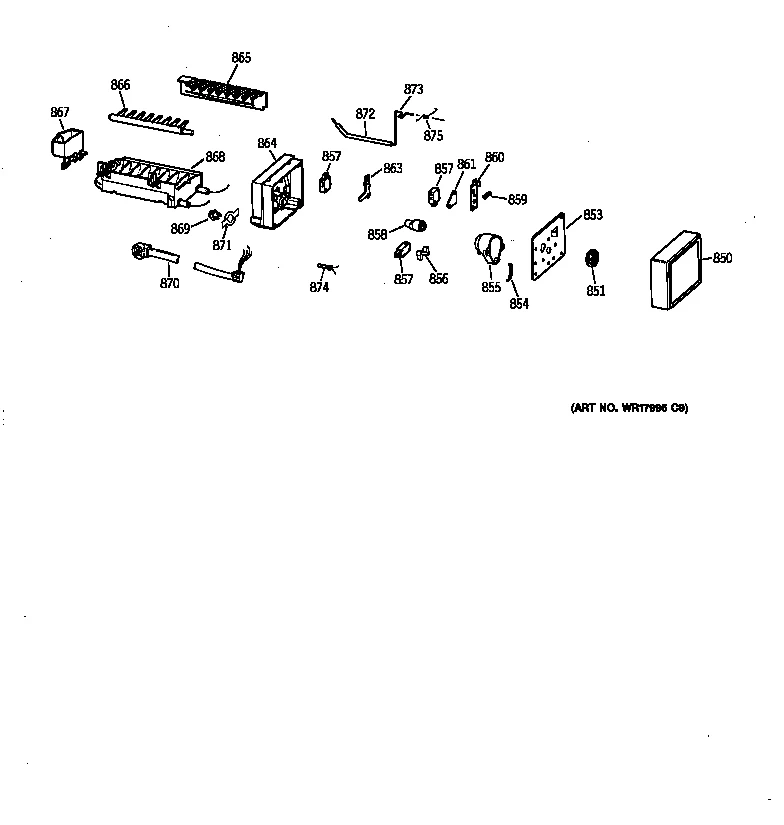

ICEMAKER WR30X0327
All Parts

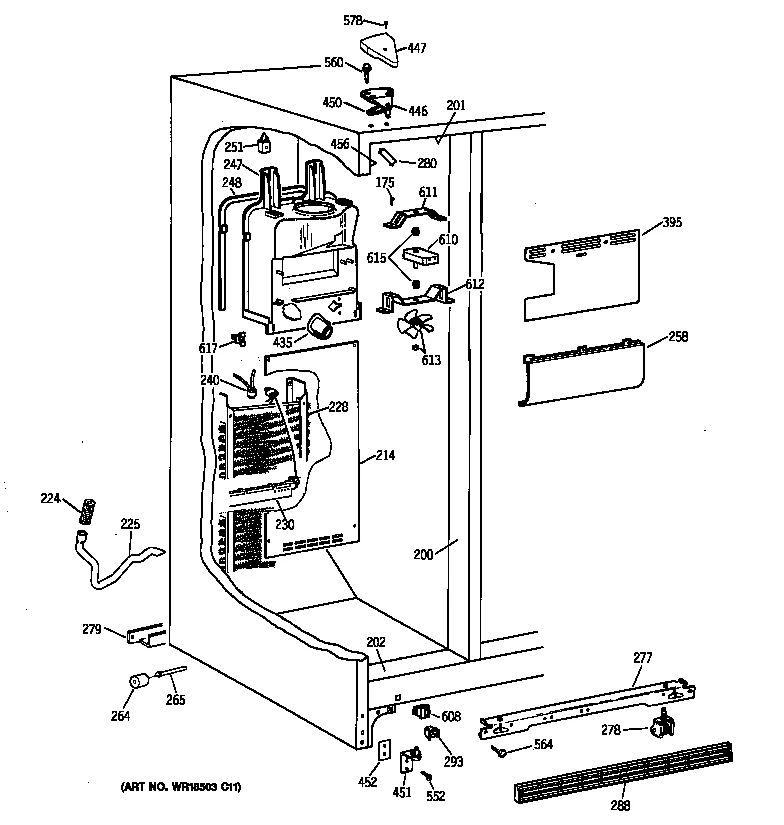

FREEZER SECTION
FRESH FOOD SECTION

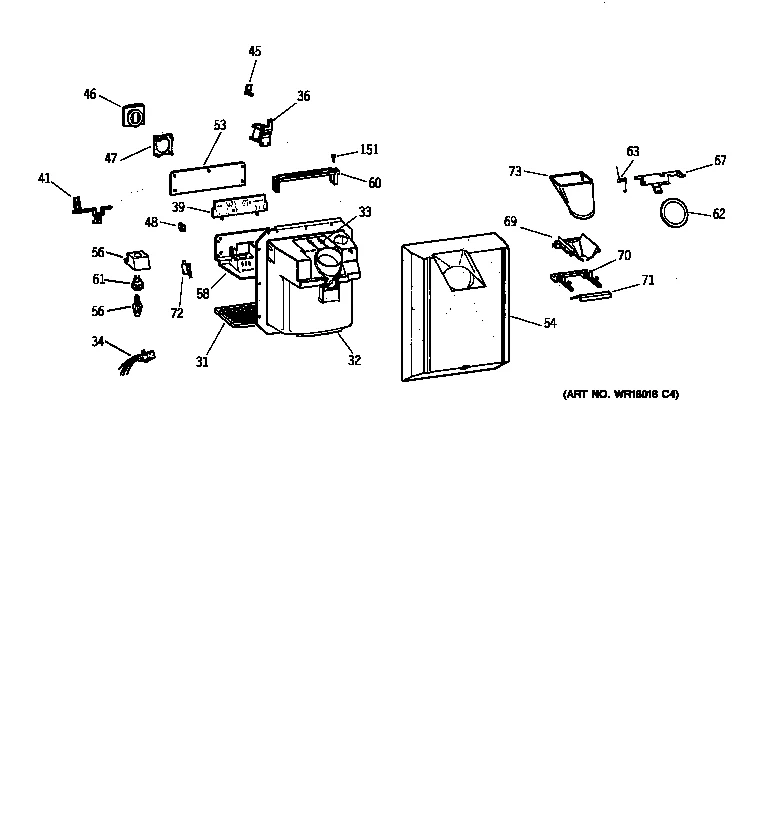

DISPENSER
Common parts from model GE 363.59551994 Refrigerator (Kenmore 36359551994)
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (White) GEN WR24X525 Contact Us For Availability
17A
Refrigerator Door Hinge Shim GEN WR2X7491 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
31
Grill Rec Ad GEN WR17X4151 Contact Us For Availability
31
Grill Rec Bk GEN WR17X4152 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
32
Recess Disp GEN WR17X10191 Contact Us For Availability
32
Recess Disp GEN WR17X10192 Contact Us For Availability
33
Refrigerator Dispenser Heater GEN WR51X353 Contact Us For Availability
34
Harness Light Switch GEN WR23X456 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
46
Pad Actua GEN WR2X8704 Contact Us For Availability
46
Pad Act A GEN WR2X8726 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
48
Refrigerator Selector Knob (Black) GEN WR2X8676 Contact Us For Availability
48
Refrigerator Selector Knob GEN WR2X8696 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10108 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10109 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10110 Contact Us For Availability
54
Refrigerator Dispenser Insulation GEN WR17X4254 Contact Us For Availability
56A
Refl Lp S GEN WR2X8686 Contact Us For Availability
56B
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
58
Refrigerator Recessed Display Shield GEN WR17X3156 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3210 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Refrigerator Dispenser Control Cover GEN WR2X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
70
Supt Funn GEN WR2X8943 Contact Us For Availability
70
Supt Funn GEN WR2X8954 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4253 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X526 Contact Us For Availability
106
Refrigerator Dairy Bin Cover GEN WR22X383 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
112
Refrigerator Door Shelf Rail GEN WR17X10451 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
175
Scr 8-18 GEN WR1X10035 Contact Us For Availability
177
Refrigerator Screw, 2-pack GEN WR1X5034 Contact Us For Availability
181
SCR 10-32 MA HX 1 S XTW GEN WZ6X105 Contact Us For Availability
189
Refrigerator Lamp Socket GEN WR2X9243 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1730 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1731 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1732 Contact Us For Availability
207
Refrigerator Freezer Shelf Support Grommet GEN WR2X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR2X4674 No Longer Available
211
Refrigerator Freezer Bin GEN WR21X190 Contact Us For Availability
214A
Refrigerator Evaporator Cover Gasket GEN WR14X456 Contact Us For Availability
214B
Clip Evaporator GEN WR1X10064 Contact Us For Availability
214C
Refrigerator Evaporator Coils Cover GEN WR17X3915 Contact Us For Availability
224
Refrigerator Grommet GEN WR2X8657 Contact Us For Availability
225A
Tube Drai GEN WR2X8293 Contact Us For Availability
225B
Refrigerator Clamp GEN WR1X5042 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Light Cover GEN WR17X3489 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
265B
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tube GEN WR2X8668 Contact Us For Availability
277
Rail Mach Mt GEN WR17X2113 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10434 Contact Us For Availability
280
C Cap Oc GEN WR2X8518 Contact Us For Availability
280
C Cap Oc GEN WR2X8519 Contact Us For Availability
288
Refrigerator Grille GEN WR74X199 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X206 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X209 Contact Us For Availability
293
Refrigerator Toe Grille Clip GEN WR2X7080 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
324B
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328A
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
352
Refrigerator Ice Container GEN WR30X256 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
388
Refrigerator Ice Container Front Cover Door GEN WR17X10275 Contact Us For Availability
395
Fan Shield GEN WR17X10243 Contact Us For Availability
405A
Refrigerator Foam Tape GEN WR14X264 Contact Us For Availability
405B
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423A
Refrigerator Shelf Support GEN WR2X6347 Contact Us For Availability
423B
Grommet S GEN WR2X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR9X570 Contact Us For Availability
425
Refrigerator Knob GEN WR2X8398 Contact Us For Availability
426A
Foam Nozzle GEN WR2X8425 Contact Us For Availability
426B
Housing Nozzle GEN WR2X8514 Contact Us For Availability
427
Refrigerator Wire Harness GEN WR23X316 Contact Us For Availability
428A
Refrigerator Damper Control GEN WR2X9396 Contact Us For Availability
428B
Refrigerator Gear Control GEN WR2X8513 Contact Us For Availability
429
Heat Holder GEN WR2X8516 Contact Us For Availability
432
Duct Mullion GEN WR2X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR2X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR2X7736 Contact Us For Availability
438A
Duct Mullion GEN WR2X8655 Contact Us For Availability
438B
Duct Mullion GEN WR2X7476 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR2X8570 Contact Us For Availability
446
Refrigerator Freezer Door Hinge, Upper GEN WR13X660 Contact Us For Availability
447A
Cvr Hg Ff GEN WR2X8824 Contact Us For Availability
447A
Cvr Hg Ff GEN WR2X8843 Contact Us For Availability
447B
Refrigerator Freezer Door Hinge Cover (White) GEN WR2X8825 Contact Us For Availability
447B
Hinge Freezer Cover GEN WR2X8844 Contact Us For Availability
448
Refrigerator Door Hinge, Upper GEN WR13X659 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
452A
Refrigerator Door Hinge Shim GEN WR2X7011 Contact Us For Availability
452B
Refrigerator Hinge Shim GEN WR2X4497 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1734 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1735 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1736 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1733 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1737 Contact Us For Availability
458
Mullion Wh GEN WR40X1738 Contact Us For Availability
458
Mullion Ad GEN WR40X1740 Contact Us For Availability
458A
Refrigerator Bracket Mullion GEN WR2X9376 Contact Us For Availability
458B
Clip Mullion GEN WR2X10334 Contact Us For Availability
473A
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
473B
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
480A
Refrigerator Crisper Drawer Slide Rail, Right GEN WR72X253 Contact Us For Availability
480B
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X252 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
552
Scr 12-24 GEN WR1X10034 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
564
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10026 Contact Us For Availability
651
Refrigerator Condenser Fan Blade GEN WR60X10030 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X207 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4148 Contact Us For Availability
754
Condenser Floor Baffle GEN WR82X10067 Contact Us For Availability
818
Guard Spl GEN WR2X10181 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
NI
Term Housi GEN WH12X497 Contact Us For Availability
NI
Connection Block GEN WB17X5062 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
SCR 8-36 T IHW 3/8 S N GEN WR1K01 Contact Us For Availability
NI
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
NI
Scr 8-18 GEN WR1X10065 Contact Us For Availability
NI
Refrigerator Rivet Plate GEN WR1X1987 Contact Us For Availability
NI
Refrigerator Fastener Plug GEN WR1X2110 Contact Us For Availability
NI
SCR 8-18 AB HXW 1/2 S GEN WZ6X136 Contact Us For Availability
× ![]()
Login and Registration Form
