Model GE 363.58572891 Refrigerator (Kenmore 36358572891) – Common Parts & Diagrams
FRESH FOOD SECTION
All Parts

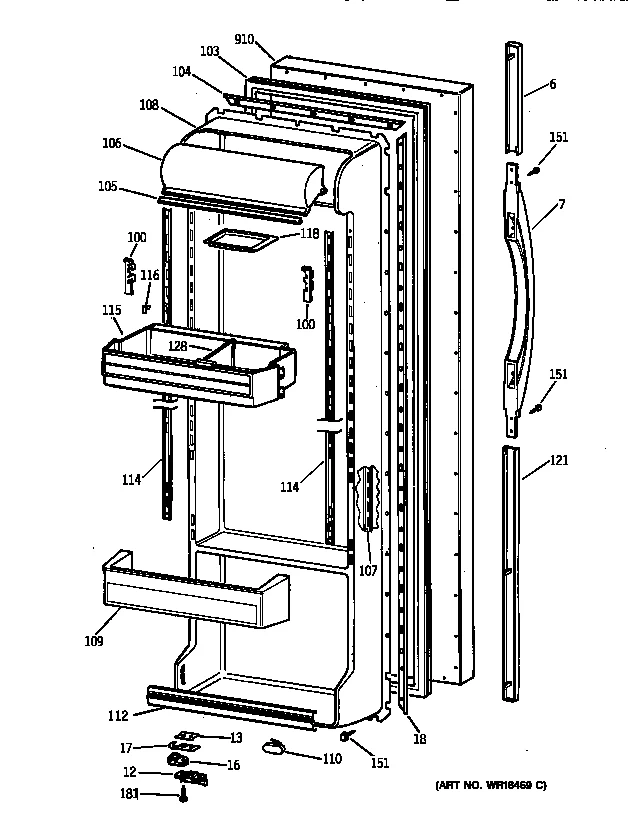

FRESH FOOD DOOR

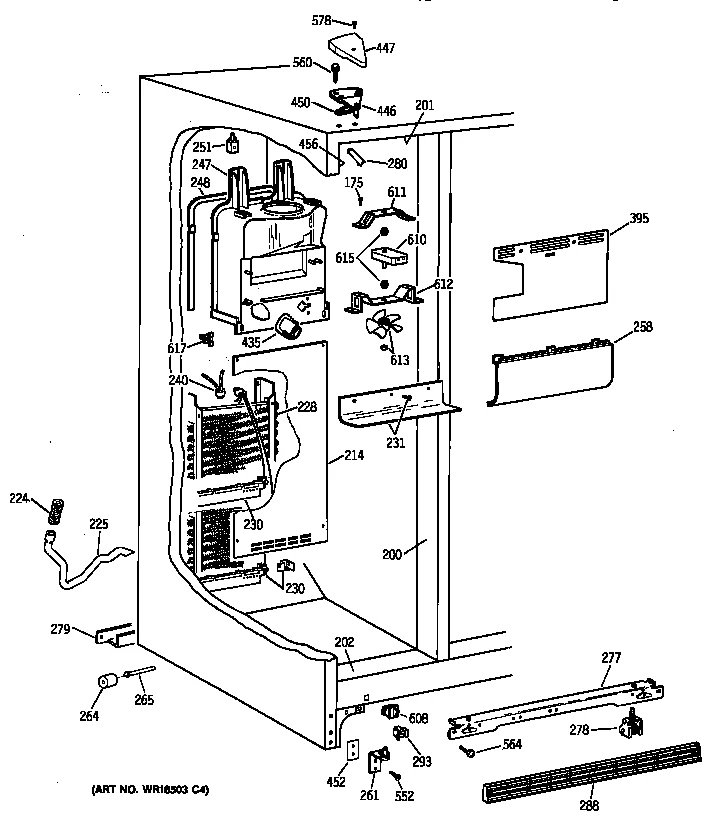

FREEZER SECTION

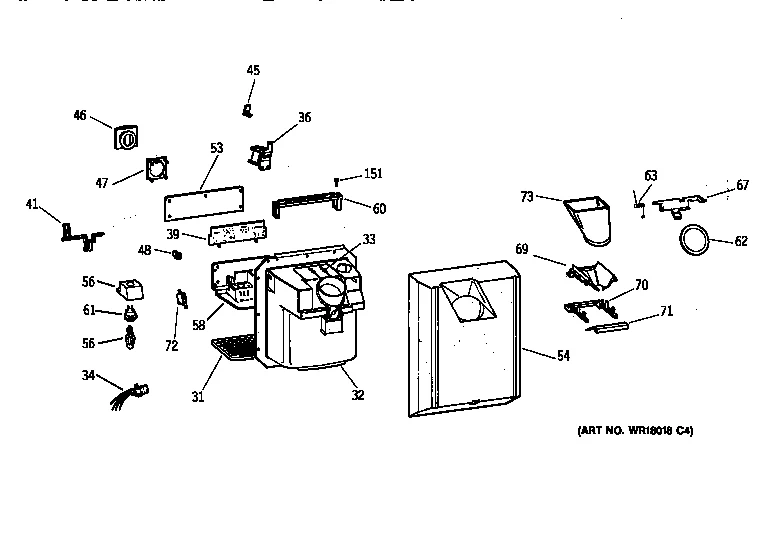

DISPENSER

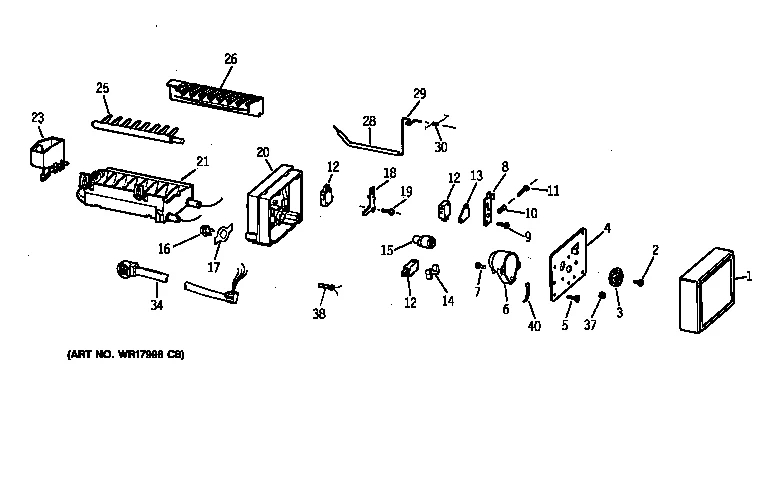

ICEMAKER WR30X0327

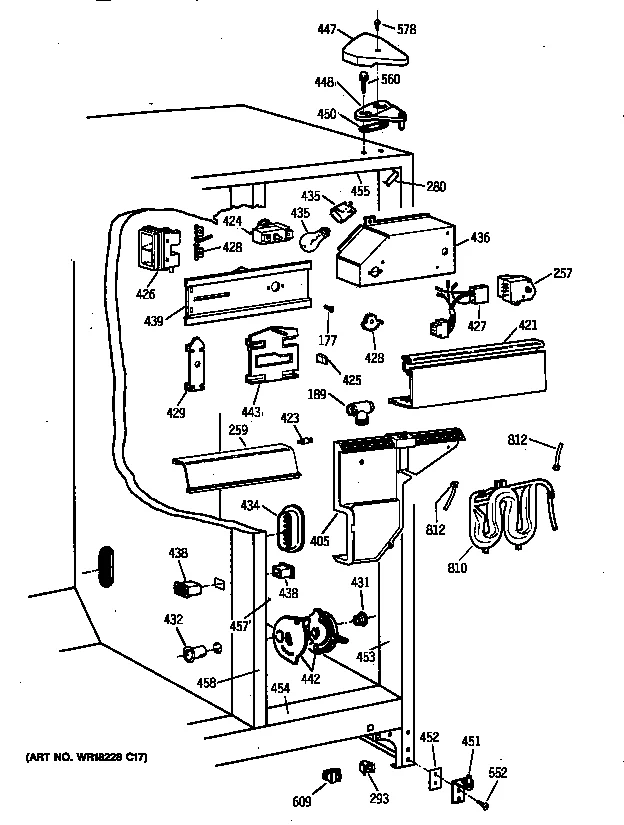

FRESH FOOD SECTION

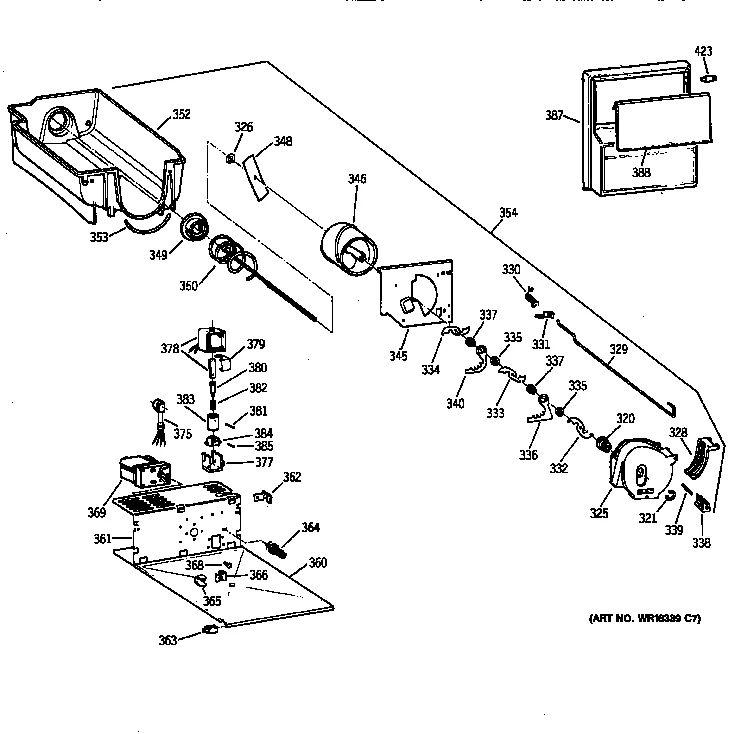

ICE BUCKET

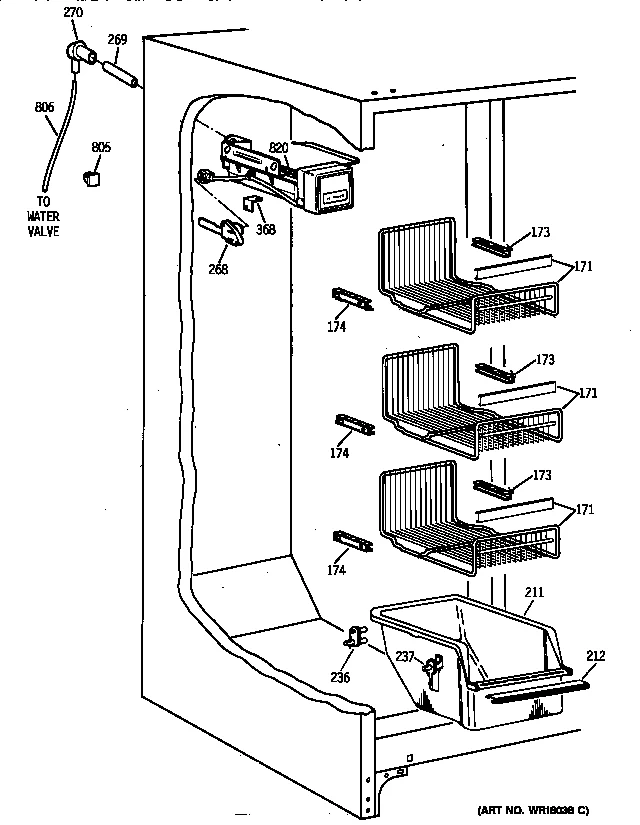

FREEZER SECTION
UNIT PARTS

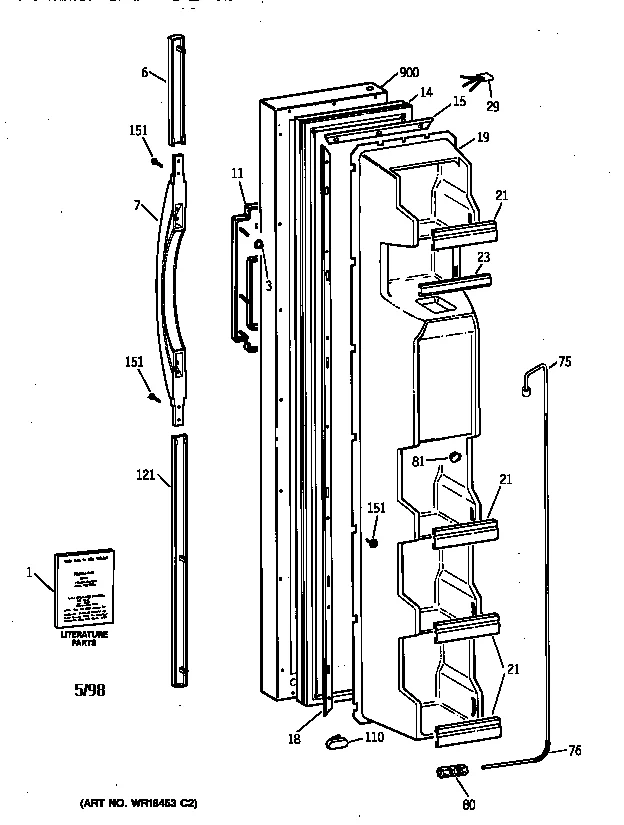

FREEZER DOOR
Common parts from model GE 363.58572891 Refrigerator (Kenmore 36358572891)
1
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
1A
Refrigerator Parts List GEN SR3848 Contact Us For Availability
1B
Refrigerator Mini Wiring Manual GEN 31-51182 Contact Us For Availability
1C
Energy Guide Label GEN SR1225 Contact Us For Availability
1D
Refrigerator User's Manual GEN SR6179 Contact Us For Availability
1E
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
2
Refrigerator Screw GEN WR29X5109 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
4
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
5
Refrigerator Screw GEN WR29X5112 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Plate Screw GEN WR29X5135 Contact Us For Availability
9
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
11
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
12
Stop Door Wh GEN WR02X9300 Contact Us For Availability
13
Insulator GEN WR29X5188 Contact Us For Availability
13A
Shim Cam GEN WR02X7490 Contact Us For Availability
13B
Refrigerator Nut Strip GEN WR02X4599 Contact Us For Availability
14
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0525 Contact Us For Availability
15
Cam GEN WR29X5167 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X1167 Contact Us For Availability
18
Refrigerator Freezer Door Gasket Retainer GEN WR17X2092 Contact Us For Availability
18
Lever GEN WR29X5183 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
19
Refrigerator Inner Door GEN WR77X0680 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
21
Refrigerator Door Shelf GEN WR17X10106 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
23
Refrigerator Freezer Door Shelf GEN WR17X10118 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
29
Refrigerator Drive Hinge Harness GEN WR23X0448 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
33
Recessed Heater GEN WR51X0353 Contact Us For Availability
34
Harness Light Switch GEN WR23X0456 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
39
Mod Time Del GEN WR55X0129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8704 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Knob Rec Dis GEN WR02X8696 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10109 Contact Us For Availability
54
Refrigerator Dispenser Insulation GEN WR17X4254 Contact Us For Availability
56A
Refl Lp Skt GEN WR02X8686 Contact Us For Availability
56B
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Electronic Cover GEN WR02X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8954 Contact Us For Availability
71
Deflec Icebk GEN WR17X3478 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4253 Contact Us For Availability
75
Grommet Tube GEN WR17X3611 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
81
Refrigerator Button Plug GEN WR01X2077 Contact Us For Availability
100A
Hook Mdl R/s GEN WR02X8409 Contact Us For Availability
100B
Hook Mdl L/s GEN WR02X8410 Contact Us For Availability
103
Refrigerator Gasket GEN WR24X0526 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Dairy Door GEN WR22X0383 Contact Us For Availability
107
Drive Track GEN WR72X0256 Contact Us For Availability
108B
Refrigerator Inner Door GEN WR77X0681 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X0257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Cap Drive Track GEN WR02X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
171A
Dishwasher Silverware Basket GEN WR71X2335 Contact Us For Availability
171B
Refrigerator Basket Trim GEN WR38X10006 Contact Us For Availability
173
Refrigerator Support GEN WR02X8724 Contact Us For Availability
174
Refrigerator Slide Support GEN WR02X8667 Contact Us For Availability
175
Refrigerator Screw GEN WR01X2023 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
189
Refrigerator Lamp Socket GEN WR02X9243 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1730 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1731 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1732 Contact Us For Availability
211
Clear Basket GEN WR21X0190 Contact Us For Availability
212
Refrigerator Freezer Basket Trim GEN WR38X10059 Contact Us For Availability
214A
Refrigerator Evaporator Cover Gasket GEN WR14X0456 Contact Us For Availability
214B
Refrigerator Cover Clip Evaporator GEN WR01X2128 Contact Us For Availability
214C
Refrigerator Evaporator Coils Cover GEN WR17X3915 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225A
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
225B
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
230A
Refrigerator Heater Bracket GEN WR02X8647 Contact Us For Availability
231A
Plug Fastner GEN WR01X2110 Contact Us For Availability
231B
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
231C
Refrigerator Deflector GEN WR17X3651 Contact Us For Availability
236
Refrigerator Support GEN WR02X4548 Contact Us For Availability
237
Freezer Support Basket GEN WR02X7036 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X0493 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Light Cover GEN WR17X3489 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
265A
Refrigerator Axle GEN WR02X3595 Contact Us For Availability
265B
Refrigerator Cotter Pin GEN WR02X3598 Contact Us For Availability
265C
Axle & Cotte GEN WR02X4742 Contact Us For Availability
268
I M Recept GEN WR23X0312 Contact Us For Availability
269
Refrigerator Water Tube GEN WR02X8668 Contact Us For Availability
277
Rail Mach Mt GEN WR17X2113 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10058 Contact Us For Availability
280
C Cap Oc Wh GEN WR02X8518 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0206 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
320
Refrigerator Nut GEN WR01X1585 Contact Us For Availability
324A
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
324B
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
326
Washer GEN WR01X1366 Contact Us For Availability
328A
Refrigerator Spring GEN WR02X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
329
Refrigerator Ice Dispenser Actuator Rod GEN WR17X2060 Contact Us For Availability
330
Refrigerator Spring GEN WR02X4145 Contact Us For Availability
331
Refrigerator Retainer GEN WR02X4251 Contact Us For Availability
335
Refrigerator Spacer GEN WR02X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Blade Rest GEN WR02X4140 Contact Us For Availability
339
Refrigerator Pin GEN WR02X4141 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
348
Blade In Dip GEN WR02X7351 Contact Us For Availability
349
Drive Cup GEN WR02X4550 Contact Us For Availability
350
Refrigerator Helix Auger GEN WR17X4309 Contact Us For Availability
352
Refrigerator Ice Dispenser GEN WR30X0256 Contact Us For Availability
360A
Refrigerator Protector GEN WR02X4566 Contact Us For Availability
360B
Refrigerator Shelf Bracket GEN WR71X2465 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR71X10091 Contact Us For Availability
362
Refrigerator Shelf Bracket GEN WR02X8839 Contact Us For Availability
363
Supprt Twist GEN WR02X8952 Contact Us For Availability
364
Twist Support GEN WR02X7310 Contact Us For Availability
365
Hub Auger GEN WR02X4854 Contact Us For Availability
366
J Nut GEN WR01X1547 Contact Us For Availability
368A
Refrigerator Ice Maker Mounting Bracket GEN WR02X8459 Contact Us For Availability
375
Refrigerator Motor Harness GEN WR23X10055 Contact Us For Availability
387
Refrigerator Cover Bucket GEN WR17X10101 Contact Us For Availability
388A
Door Ice Stirrer GEN WR17X2874 Contact Us For Availability
388B
Refrigerator Ice Container Front Cover Door T GEN WR38X1524 Contact Us For Availability
395
Fan Shield GEN WR17X2905 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423A
Refrigerator Shelf Support GEN WR02X6347 Contact Us For Availability
423B
Grommet Support GEN WR02X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X0570 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426A
Foam Nozzle GEN WR02X8425 Contact Us For Availability
426B
Housing Nozzle GEN WR02X8514 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428A
Refrigerator Damper Control GEN WR02X9396 Contact Us For Availability
428B
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
438A
Duct Mullion GEN WR02X8655 Contact Us For Availability
438B
Duct Mullion GEN WR02X7476 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hge Top Asm GEN WR13X0660 Contact Us For Availability
447A
Cvr Hg Fz Wh GEN WR02X8825 Contact Us For Availability
447B
Cvr Hg Ff Wh GEN WR02X8824 Contact Us For Availability
448
Hge Top Asm GEN WR13X0659 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X9443 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1734 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1735 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1736 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1733 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1737 Contact Us For Availability
458A
Breaker Mullion GEN WR02X7033 Contact Us For Availability
458B
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
458C
U Nut GEN WR02X4739 Contact Us For Availability
458D
Mullion Wh GEN WR40X1738 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
611
Refrigerator Condenser Fan Motor Bracket GEN WR02X10100 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10038 Contact Us For Availability
617
Refrigerator Grommet Screw GEN WR02X10097 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
651A
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
651B
Refrigerator Fan Blade GEN WR60X0231 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0189 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
733
Refrigerator Protector GEN WR07X0277 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Compressor Overload Protector GEN WR08X10006 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X0168 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X3643 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4148 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
800
Refrigerator Water Valve GEN WR57X10010 Contact Us For Availability
807B
Nut & Union GEN WR02X4046 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10124 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10125 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Refrigerator Screw GEN WB01K5052 Contact Us For Availability
NI
Connection Block GEN WB17X5062 Contact Us For Availability
NI
CONNECTOR ELEC 6 PIN GEN WD01X1391 Contact Us For Availability
NI
Refrigerator Terminal GEN WD01X1440 Contact Us For Availability
NI
HOUSING TERMINAL GEN WH12X0497 Contact Us For Availability
NI
Refrigerator Grommet GEN WR01X1510 Contact Us For Availability
NI
Scr 6-22 Pl GEN WR01X1966 Contact Us For Availability
NI
Refrigerator Screw GEN WZ02X0509 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
Login and Registration Form
