Model GE 363.58551890 Refrigerator (Kenmore 36358551890) – Common Parts & Diagrams

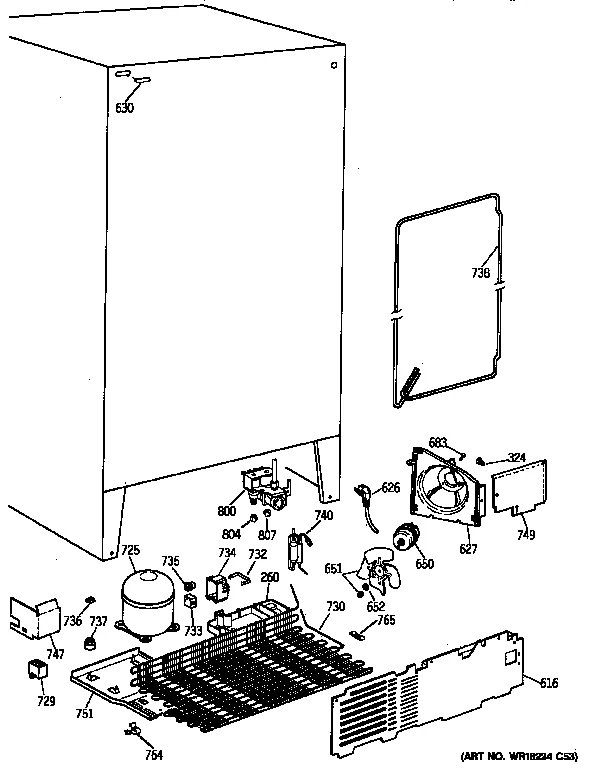

UNIT PARTS

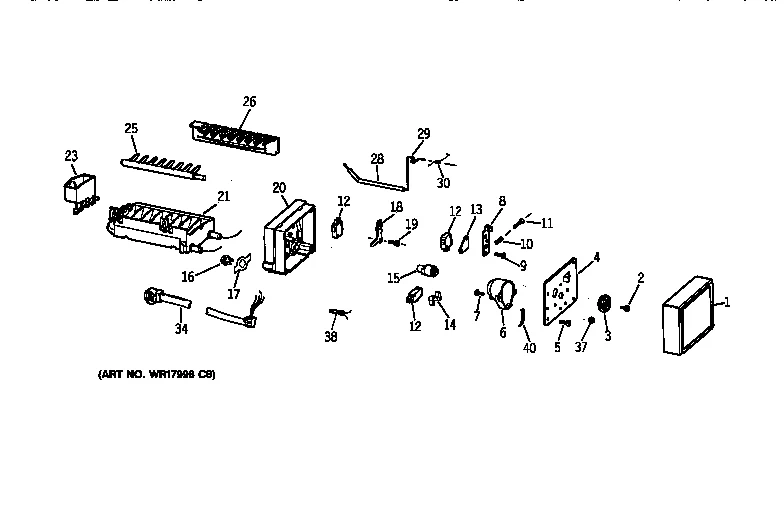

ICEMAKER WR30X0327

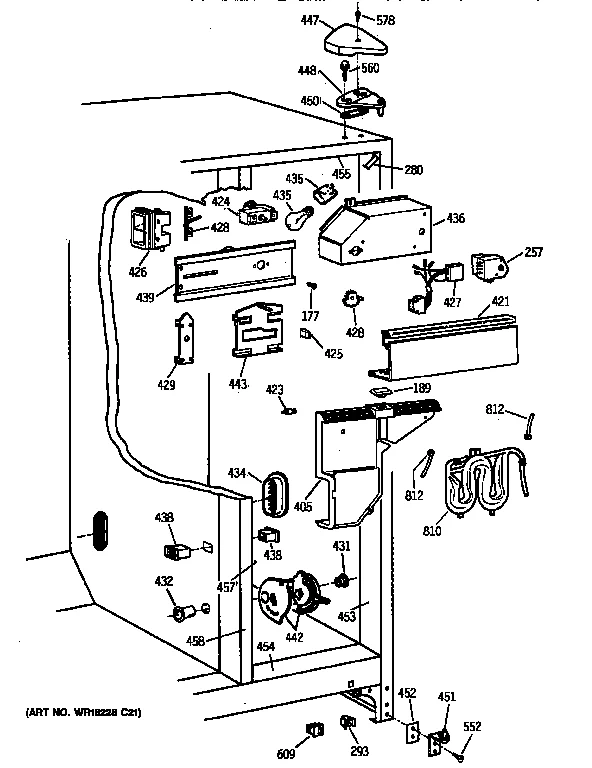

FRESH FOOD SECTION

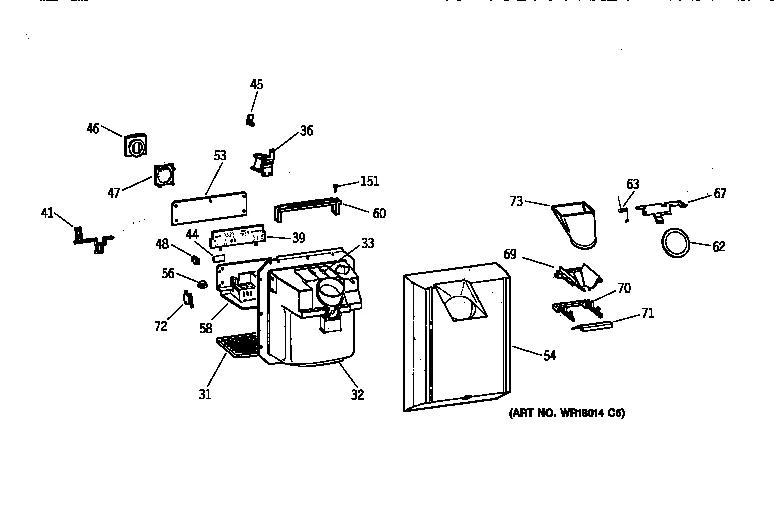

DISPENSER

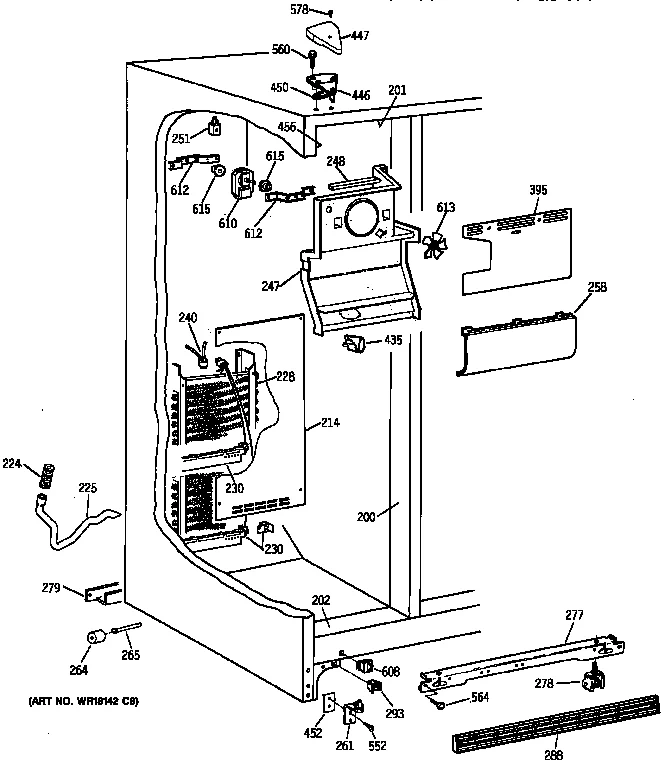

FREEZER SECTION
All Parts

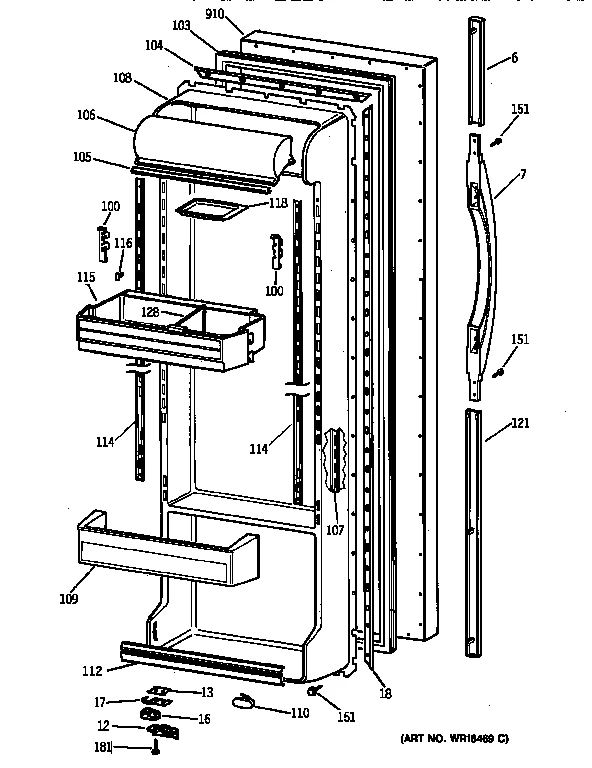

FRESH FOOD DOOR

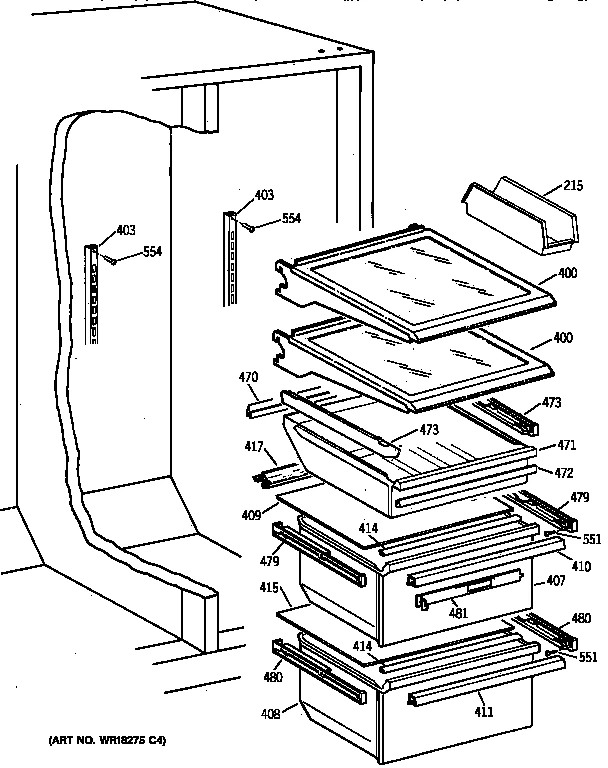

FRESH FOOD SECTION

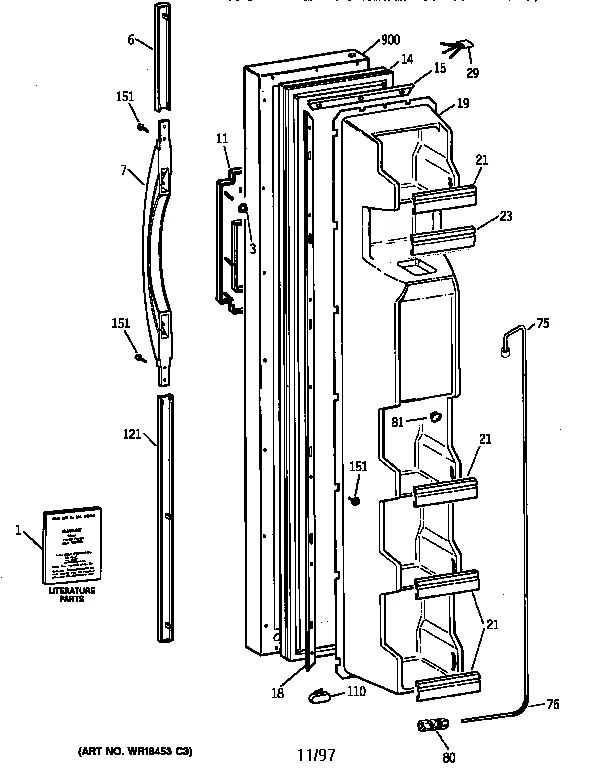

FREEZER DOOR

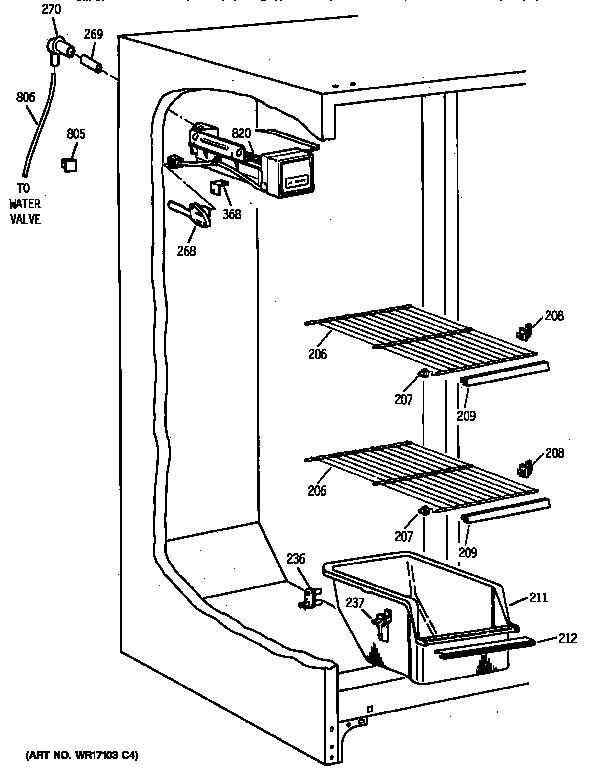

FREEZER SECTION

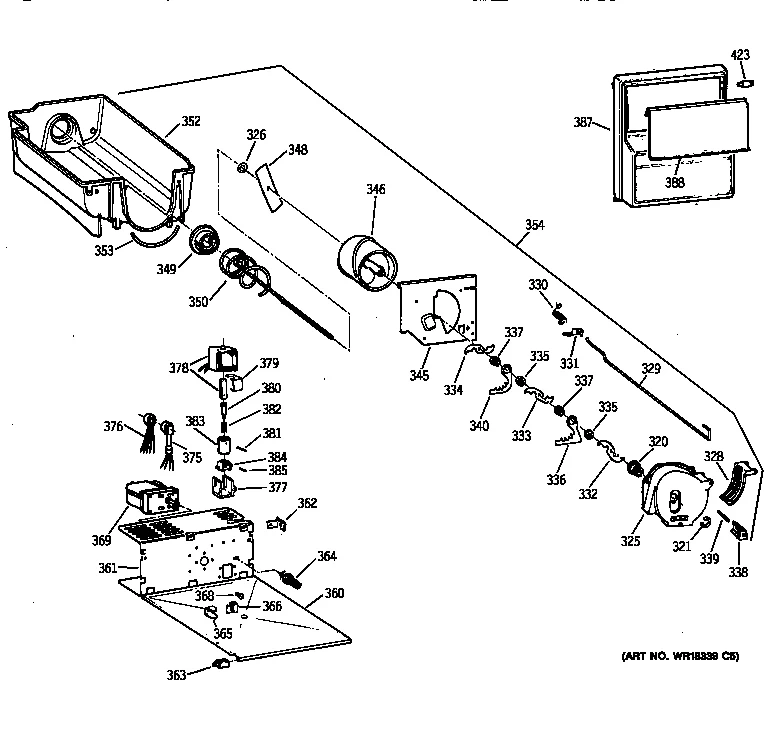

ICE BUCKET
Common parts from model GE 363.58551890 Refrigerator (Kenmore 36358551890)
1
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
1A
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
1B
Energy Guide Label GEN SR1225 Contact Us For Availability
1C
Refrigerator Parts List GEN SR3813 Contact Us For Availability
1D
Refrigerator Owner's Manual GEN SR6167 Contact Us For Availability
1E
Refrigerator Mini Wiring Manual GEN 31-51141 Contact Us For Availability
2
Refrigerator Screw GEN WR29X5109 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
4
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
5
Refrigerator Screw GEN WR29X5112 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Refrigerator Plate Screw GEN WR29X5135 Contact Us For Availability
7
Handle Sxs A GEN WR12X10053 Contact Us For Availability
9
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
11
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
12
Stop Door Wh GEN WR02X9300 Contact Us For Availability
13
Insulator GEN WR29X5188 Contact Us For Availability
13A
Refrigerator Nut Strip GEN WR02X4599 Contact Us For Availability
13B
Shim Cam GEN WR02X7490 Contact Us For Availability
14
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0525 Contact Us For Availability
15
Cam GEN WR29X5167 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X1167 Contact Us For Availability
18
Lever GEN WR29X5183 Contact Us For Availability
18
Refrigerator Freezer Door Gasket Retainer GEN WR17X2092 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
19
Refrigerator Inner Door GEN WR77X0680 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
21
Refrigerator Door Shelf GEN WR17X10106 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
23
Refrigerator Freezer Door Shelf GEN WR17X10118 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
29B
Harness Light Switch GEN WR23X0457 Contact Us For Availability
31
Refrigerator Dispenser Drip Tray Cover (Black GEN WR17X3366 Contact Us For Availability
32
Recess Disp GEN WR17X3303 Contact Us For Availability
33
Recessed Heater GEN WR51X0353 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X0130 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
44
Stop Selector Switch GEN WR02X8680 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8702 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Refrigerator Knob Recess GEN WR02X8676 Contact Us For Availability
53
Recess Asm GEN WR17X10121 Contact Us For Availability
54
Refrigerator Dispenser Insulation GEN WR17X4254 Contact Us For Availability
56
Plug Lamphol GEN WR02X8679 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3139 Contact Us For Availability
60
Electronic Cover GEN WR02X8674 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8943 Contact Us For Availability
71
Deflec Icebk GEN WR17X3478 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4253 Contact Us For Availability
75
Grommet Tube GEN WR17X3611 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
81
Refrigerator Button Plug GEN WR01X2077 Contact Us For Availability
100A
Hook Mdl R/s GEN WR02X8409 Contact Us For Availability
100B
Hook Mdl L/s GEN WR02X8410 Contact Us For Availability
103
Refrigerator Gasket GEN WR24X0526 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Dairy Door GEN WR22X0383 Contact Us For Availability
107
Drive Track GEN WR72X0256 Contact Us For Availability
108B
Refrigerator Inner Door GEN WR77X0681 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X0257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Cap Drive Track GEN WR02X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10054 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
189
Refrigerator Button Plug GEN WR01X2115 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1730 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1731 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1732 Contact Us For Availability
207
Refrigerator Support GEN WR02X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR02X4674 Contact Us For Availability
209
Refrigerator Freezer Basket Trim GEN WR38X10071 Contact Us For Availability
211
Basket Wh Fz GEN WR21X0204 Contact Us For Availability
212
Refrigerator Freezer Basket Trim GEN WR38X10059 Contact Us For Availability
214A
Refrigerator Evaporator Cover Gasket GEN WR14X0456 Contact Us For Availability
214B
Refrigerator Cover Clip Evaporator GEN WR01X2128 Contact Us For Availability
214C
Refrigerator Evaporator Coils Cover GEN WR17X3915 Contact Us For Availability
215
Util Bucket GEN WR32X0897 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225A
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
225B
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
230A
Refrigerator Heater Bracket GEN WR02X8647 Contact Us For Availability
236
Refrigerator Support GEN WR02X4548 Contact Us For Availability
237
Freezer Support Basket GEN WR02X7036 Contact Us For Availability
247A
Support Orifice GEN WR02X4845 Contact Us For Availability
247B
Refrigerator Orifice GEN WR17X3488 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X0493 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Light Cover GEN WR17X3489 Contact Us For Availability
265A
Refrigerator Axle GEN WR02X3595 Contact Us For Availability
265B
Refrigerator Cotter Pin GEN WR02X3598 Contact Us For Availability
265C
Axle & Cotte GEN WR02X4742 Contact Us For Availability
268
I M Recept GEN WR23X0312 Contact Us For Availability
269
Refrigerator Water Tube GEN WR02X8668 Contact Us For Availability
277
Rail Mach Mt GEN WR17X2113 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10058 Contact Us For Availability
280
C Cap Oc Wh GEN WR02X8518 Contact Us For Availability
288
Refrigerator Grille GEN WR74X0199 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
320
Refrigerator Nut GEN WR01X1585 Contact Us For Availability
326
Washer GEN WR01X1366 Contact Us For Availability
328A
Refrigerator Spring GEN WR02X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
329
Refrigerator Ice Dispenser Actuator Rod GEN WR17X2060 Contact Us For Availability
330
Refrigerator Spring GEN WR02X4145 Contact Us For Availability
331
Refrigerator Retainer GEN WR02X4251 Contact Us For Availability
335
Refrigerator Spacer GEN WR02X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Blade Rest GEN WR02X4140 Contact Us For Availability
339
Refrigerator Pin GEN WR02X4141 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
348
Blade In Dip GEN WR02X7351 Contact Us For Availability
349
Drive Cup GEN WR02X4550 Contact Us For Availability
350
Refrigerator Helix Auger GEN WR17X4309 Contact Us For Availability
352
Refrigerator Ice Dispenser GEN WR30X0256 Contact Us For Availability
360A
Refrigerator Protector GEN WR02X4566 Contact Us For Availability
360B
Refrigerator Shelf Bracket GEN WR71X2465 Contact Us For Availability
361
Refrigerator Auger Motor Cover GEN WR71X2353 Contact Us For Availability
362
Refrigerator Shelf Bracket GEN WR02X8839 Contact Us For Availability
363
Supprt Twist GEN WR02X8952 Contact Us For Availability
364
Twist Support GEN WR02X7310 Contact Us For Availability
365
Hub Auger GEN WR02X4854 Contact Us For Availability
366
J Nut GEN WR01X1547 Contact Us For Availability
368A
Refrigerator Ice Maker Mounting Bracket GEN WR02X8459 Contact Us For Availability
375
Refrigerator Motor Harness GEN WR23X0194 Contact Us For Availability
376
Plug Harness GEN WR23X0189 Contact Us For Availability
387
Refrigerator Cover Bucket GEN WR17X10101 Contact Us For Availability
388A
Refrigerator Ice Container Front Cover Door T GEN WR38X1524 Contact Us For Availability
388B
Door Ice Stirrer GEN WR17X2874 Contact Us For Availability
395
Fan Shield GEN WR17X2905 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR71X10054 Contact Us For Availability
403
Track Cant S GEN WR72X0254 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gskt Shld Lo GEN WR14X0470 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423
Grommet Support GEN WR02X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X0499 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426A
Housing Nozzle GEN WR02X8514 Contact Us For Availability
426B
Foam Nozzle GEN WR02X8425 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428A
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
428B
Control Damper GEN WR02X8582 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
438A
Duct Mullion GEN WR02X7476 Contact Us For Availability
438B
Duct Mullion GEN WR02X8655 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hge Top Asm GEN WR13X0660 Contact Us For Availability
447A
Cvr Hg Fz Wh GEN WR02X8825 Contact Us For Availability
447B
Cvr Hg Ff Wh GEN WR02X8824 Contact Us For Availability
448
Hge Top Asm GEN WR13X0659 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X9443 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1734 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1735 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1736 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1733 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1737 Contact Us For Availability
458A
Breaker Mullion GEN WR02X7033 Contact Us For Availability
458B
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
458C
U Nut GEN WR02X4739 Contact Us For Availability
458D
Mullion Wh GEN WR40X1738 Contact Us For Availability
470
Pan Gasket GEN WR14X0420 Contact Us For Availability
471B
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473B
Pan Slide, Left GEN WR72X0211 Contact Us For Availability
473C
Pan Slide, Right GEN WR72X0210 Contact Us For Availability
480A
Refrigerator Slide Assembly, Right GEN WR72X0253 Contact Us For Availability
480B
Refrigerator Slide Assembly, Left GEN WR72X0252 Contact Us For Availability
481
Slide Pan Foot GEN WR01X2079 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
610
Refrigerator Fan Motor GEN WR60X0188 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X8549 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X0168 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X3643 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4148 Contact Us For Availability
751
Complete Plate GEN WR17X3645 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
807B
Nut & Union GEN WR02X4046 Contact Us For Availability
900
Dr Foam As GEN WR78X10049 Contact Us For Availability
910
Ff Dr Foam A GEN WR78X10050 Contact Us For Availability
NI
Refrigerator Screw GEN WB01K5052 Contact Us For Availability
NI
Block GEN WB17X5061 Contact Us For Availability
NI
Connection Block GEN WB17X5062 Contact Us For Availability
NI
CONNECTOR ELEC 6 PIN GEN WD01X1391 Contact Us For Availability
NI
Refrigerator Terminal GEN WD01X1440 Contact Us For Availability
NI
Refrigerator Grommet GEN WR01X1510 Contact Us For Availability
NI
Scr 6-22 Pl GEN WR01X1966 Contact Us For Availability
NI
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
NI
Plug Fastner GEN WR01X2110 Contact Us For Availability
NI
Refrigerator Foam Strip GEN WR02X7493 Contact Us For Availability
NI
Refrigerator Screw GEN WZ02X0509 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
Login and Registration Form
