Model GE 363.58272893 Refrigerator (Kenmore 36358272893) – Common Parts & Diagrams

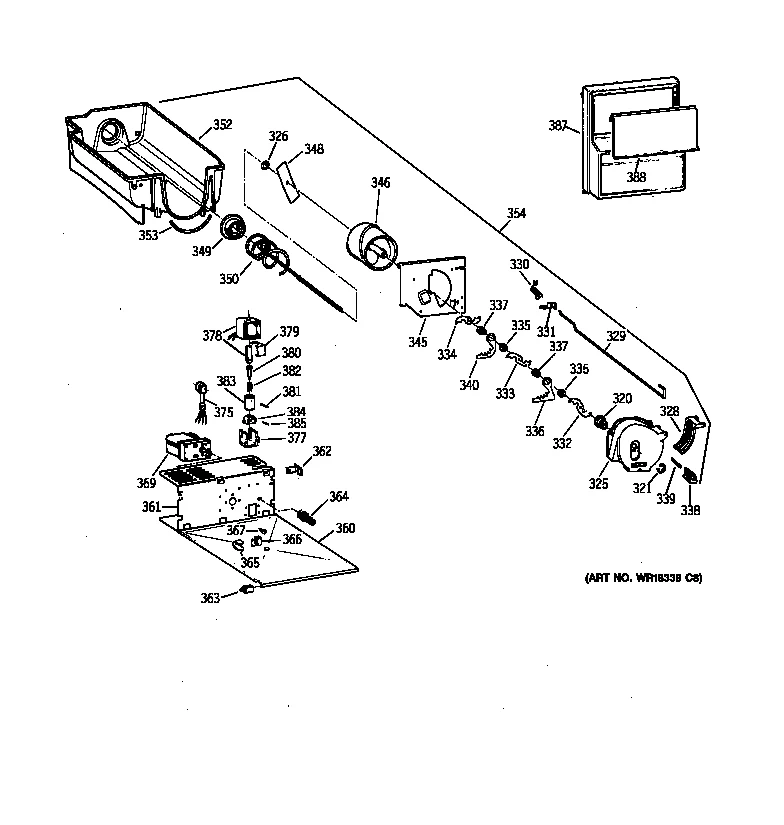

ICE BUCKET
FRESH FOOD DOOR
UNIT PARTS
All Parts
FREEZER SECTION
DISPENSER
FRESH FOOD SECTION
FREEZER DOOR
FRESH FOOD SECTION
ICEMAKER WR30X0327
FREEZER SECTION
Common parts from model GE 363.58272893 Refrigerator (Kenmore 36358272893)
1A
Refrigerator Mini Wiring Manual GEN 31-51238 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10038 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10041 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10056 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Refrigerator Dispenser Trim (White) GEN WR38X10039 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10041 Contact Us For Availability
11
Refrigerator Dispenser Trim (Black) GEN WR38X10070 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X7213 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X527 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X536 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X3119 Contact Us For Availability
18
Refrigerator Retainer Strip GEN WR17X1169 Contact Us For Availability
19
I.d.panel Fz GEN WR77X600 Contact Us For Availability
21
Door Front GEN WR17X10090 Contact Us For Availability
23
Door Front GEN WR17X10091 Contact Us For Availability
24
Door Front GEN WR17X10092 Contact Us For Availability
29
Harness Dr H GEN WR23X10096 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
33
Refrigerator Dispenser Heater GEN WR51X353 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3139 Contact Us For Availability
58
Recessed Shield GEN WR17X3178 Contact Us For Availability
58
Shd Rec Disp GEN WR17X3206 Contact Us For Availability
60
Refrigerator Dispenser Control Cover GEN WR2X8674 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
70
Supt Funn GEN WR2X8943 Contact Us For Availability
70
Supt Funn GEN WR2X8954 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X3125 Contact Us For Availability
75
Grommet Tube GEN WR17X3669 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X529 Contact Us For Availability
103
Refrigerator Door Gasket (Black) GEN WR24X535 Contact Us For Availability
106
Refrigerator Dairy Bin Cover GEN WR22X383 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10040 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10054 Contact Us For Availability
152
Scr 8-18 GEN WR1X10038 Contact Us For Availability
174
Refrigerator Slide Support GEN WR2X8667 Contact Us For Availability
175
Scr 8-18 GEN WR1X10035 Contact Us For Availability
177
Refrigerator Screw, 2-pack GEN WR1X5034 Contact Us For Availability
181
SCR 10-32 MA HX 1 S XTW GEN WZ6X105 Contact Us For Availability
189
Refrigerator Lamp Socket GEN WR2X9243 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1741 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
214A
Clip Evaporator GEN WR1X10064 Contact Us For Availability
214B
Refrigerator Evaporator Cover Gasket GEN WR14X455 Contact Us For Availability
214C
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
224
Refrigerator Grommet GEN WR2X8657 Contact Us For Availability
225A
Tube Drai GEN WR2X8293 Contact Us For Availability
225B
Refrigerator Clamp GEN WR1X5042 Contact Us For Availability
230A
Defrost Bracket GEN WR2X8671 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X3484 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
265A
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3136 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10057 Contact Us For Availability
280
C Cap Oc GEN WR2X8518 Contact Us For Availability
280
C Cap Oc GEN WR2X8519 Contact Us For Availability
280
Bk Corner GEN WR2X8524 Contact Us For Availability
288
Refrigerator Toe Grille GEN WR74X217 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X224 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X216 Contact Us For Availability
293
Refrigerator Toe Grille Clip GEN WR2X7080 Contact Us For Availability
293
CLIP-O. CASE-END CAP GEN WR2X780 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
324B
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328A
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
328B
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
345
Refrigerator Ice Dispenser Container Mounting GEN WR17X2760 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
352
Refrigerator Ice Container GEN WR30X257 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10339 Contact Us For Availability
395
Fan Shield GEN WR17X10220 Contact Us For Availability
403
Refrigerator Shelf Support GEN WR71X2588 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gasket Shield GEN WR14X10006 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423
Grommet S GEN WR2X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR9X570 Contact Us For Availability
425
Refrigerator Knob GEN WR2X8398 Contact Us For Availability
426A
Foam Nozzle GEN WR2X8425 Contact Us For Availability
426B
Housing Nozzle GEN WR2X8514 Contact Us For Availability
427
Refrigerator Wire Harness GEN WR23X316 Contact Us For Availability
428A
Refrigerator Gear Control GEN WR2X8513 Contact Us For Availability
428B
Control Double Bracket Damper Washer GEN WR2X8569 Contact Us For Availability
429
Heat Holder GEN WR2X8516 Contact Us For Availability
432
Duct Mullion GEN WR2X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR2X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR2X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR2X8570 Contact Us For Availability
446
Refrigerator Freezer Door Hinge, Upper GEN WR13X647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8262 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8263 Contact Us For Availability
447
Bk Hinge GEN WR2X8523 Contact Us For Availability
448
Refrigerator Door Top Hinge GEN WR13X646 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1744 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1745 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1746 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458
Mullion Bk GEN WR40X1750 Contact Us For Availability
458
Mullion Ad GEN WR40X1751 Contact Us For Availability
458
Mullion Wh GEN WR40X1749 Contact Us For Availability
458A
Refrigerator Bracket Mullion GEN WR2X9376 Contact Us For Availability
458B
Clip Mullion GEN WR2X10334 Contact Us For Availability
470
203c3566p004 GEN WR14X420 Contact Us For Availability
471
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473A
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
473B
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
480A
Refrigerator Crisper Drawer Slide Rail, Right GEN WR72X253 Contact Us For Availability
480B
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X252 Contact Us For Availability
481
Slide Pan GEN WR1X2079 Contact Us For Availability
500
Refrigerator Cantilever Shelf GEN WR71X2585 Contact Us For Availability
501
Refrigerator Slide Shelf GEN WR32X10032 Contact Us For Availability
504
Slide Out Seal GEN WR14X469 Contact Us For Availability
505
Shelf Stop GEN WR1X2080 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
552
Scr 12-24 GEN WR1X10034 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
564
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
651A
Refrigerator Nut GEN WR1X1515 Contact Us For Availability
652
Refrigerator Fan Motor Washer GEN WR1X1714 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10191 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10192 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10195 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Term Housi GEN WH12X497 Contact Us For Availability
× ![]()
Login and Registration Form
