Model GE 363.58272890 Refrigerator (Kenmore 36358272890) – Common Parts & Diagrams

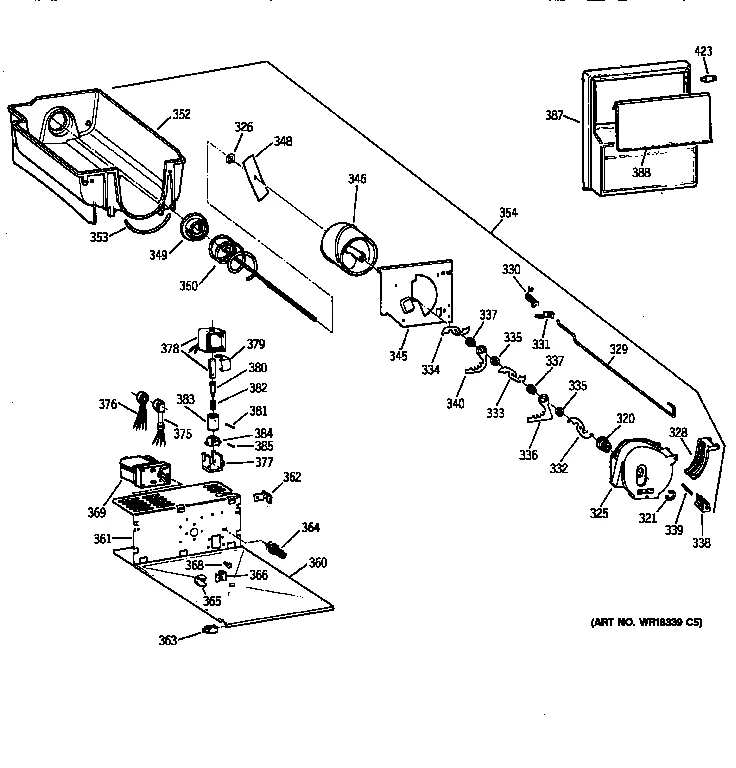

ICE BUCKET

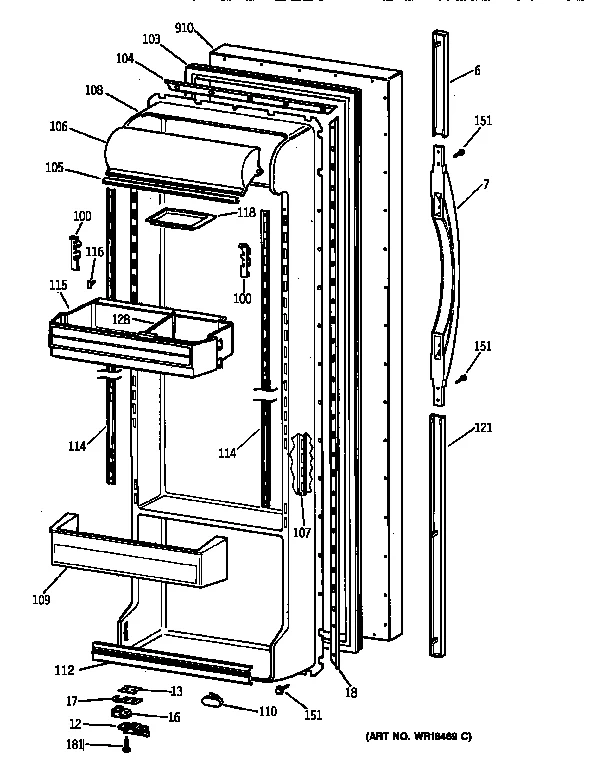

FRESH FOOD DOOR

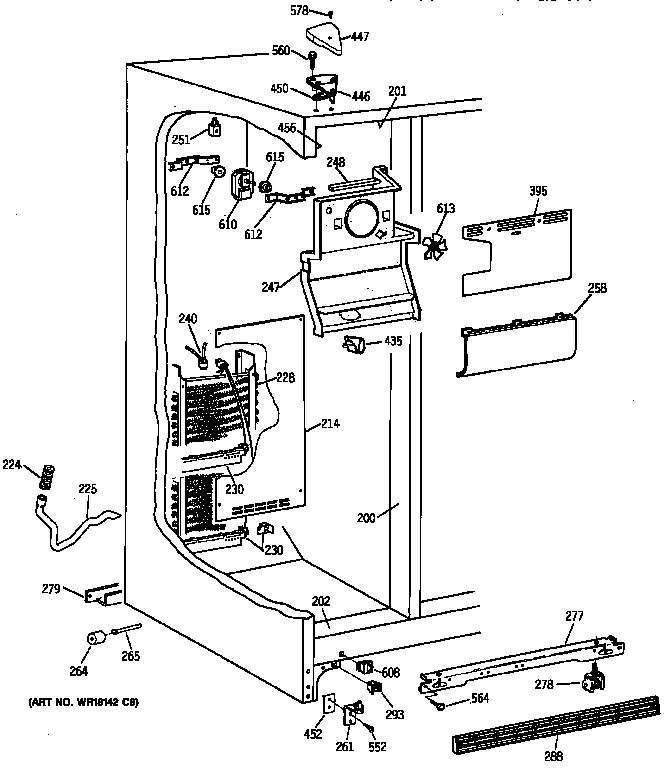

FREEZER SECTION
All Parts

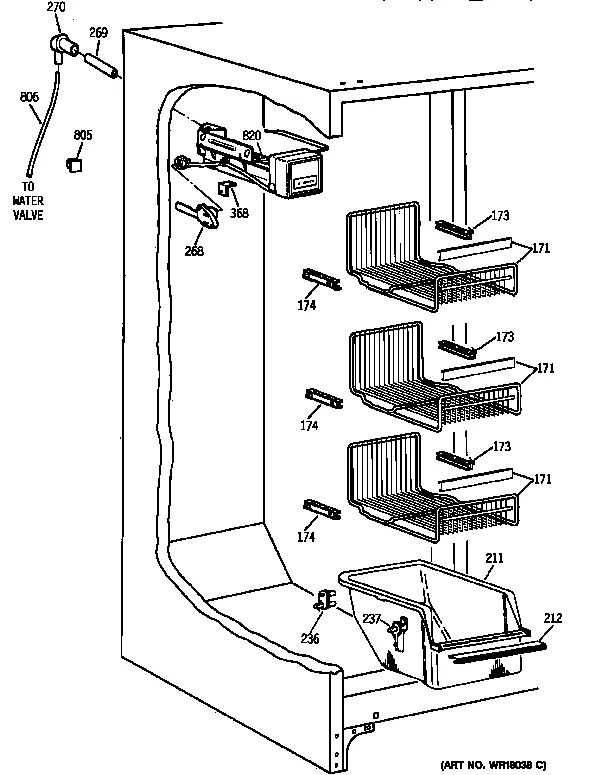

FREEZER SECTION

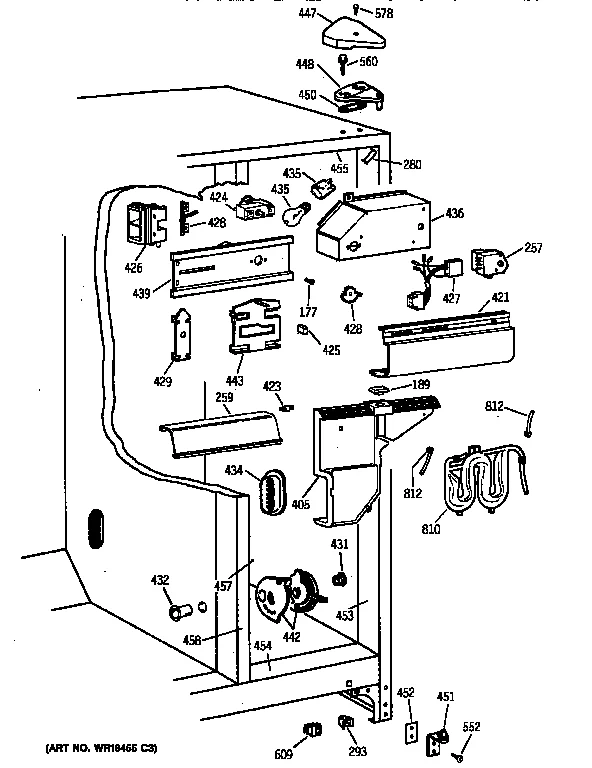

FRESH FOOD SECTION

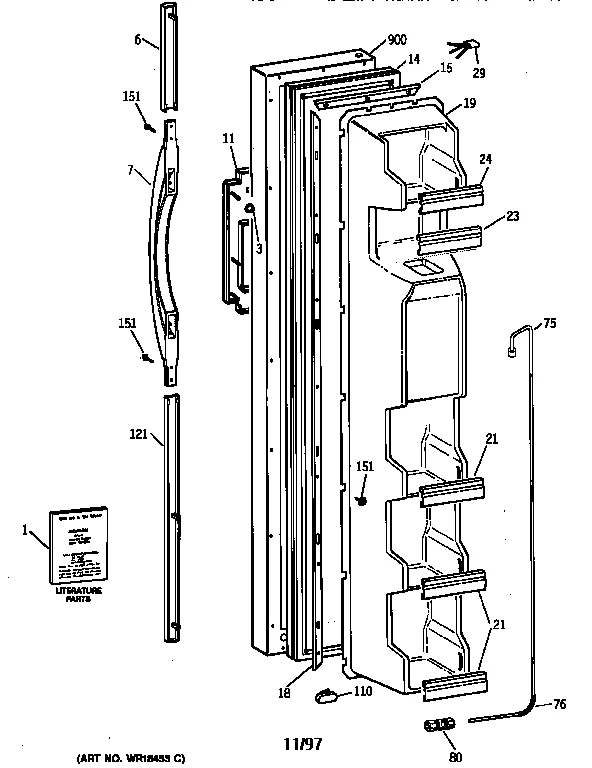

FREEZER DOOR

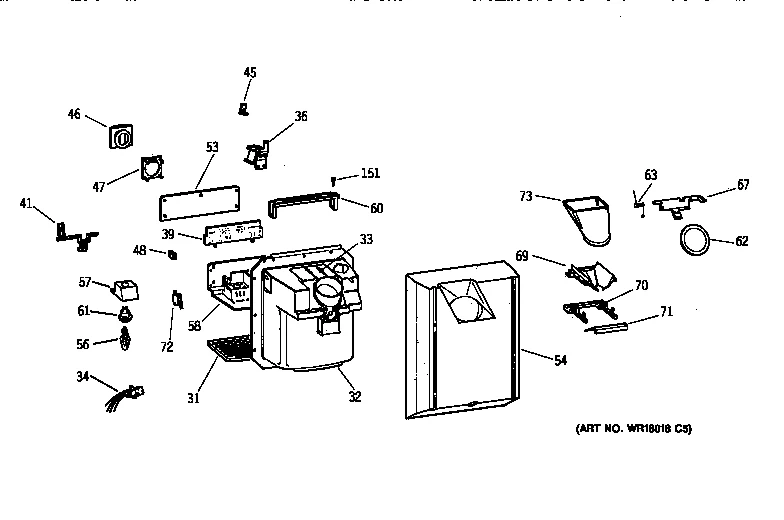

DISPENSER

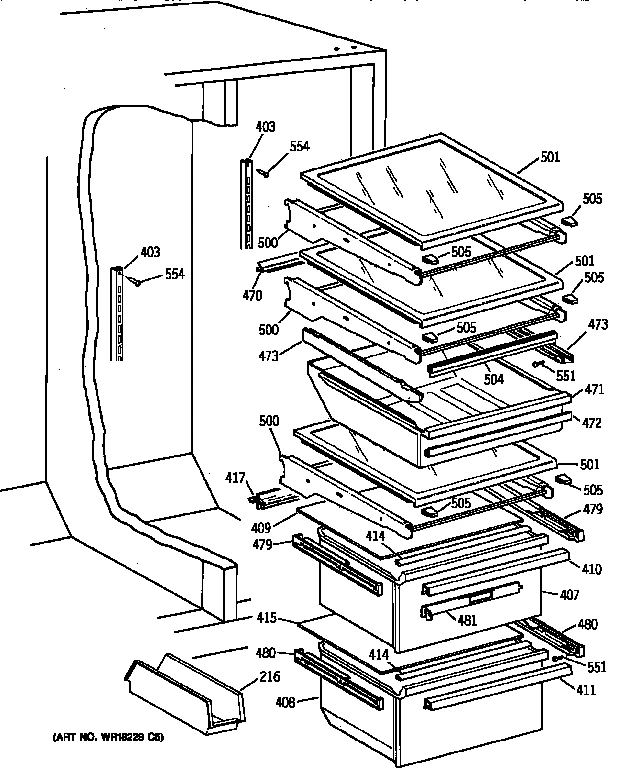

FRESH FOOD SECTION

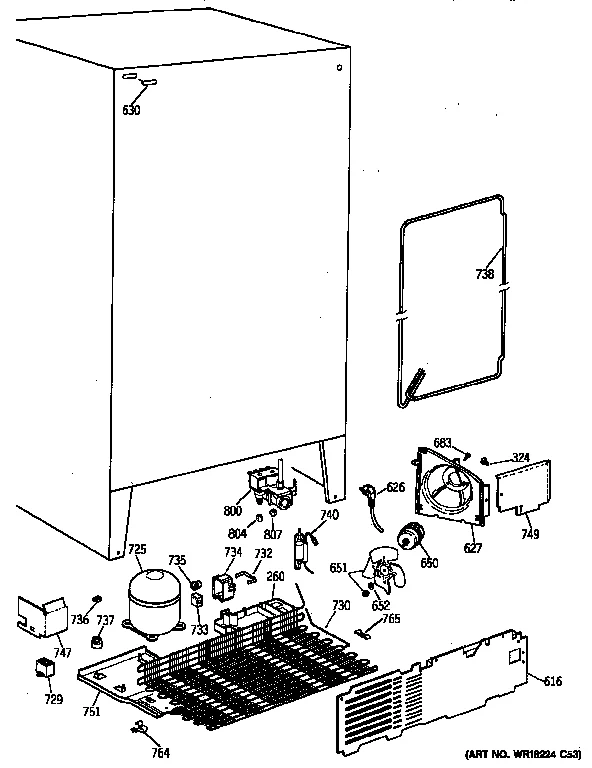

UNIT PARTS

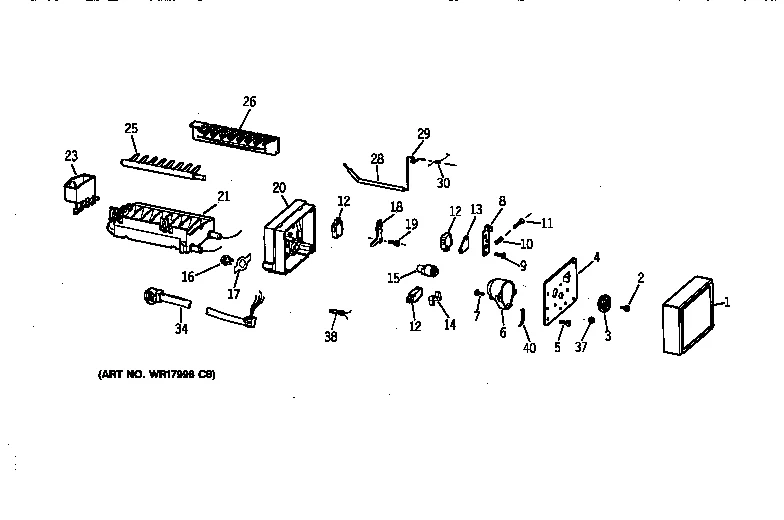

ICEMAKER WR30X0327
Common parts from model GE 363.58272890 Refrigerator (Kenmore 36358272890)
1
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
1A
Refrigerator Owner's Manual GEN SR6167 Contact Us For Availability
1B
Refrigerator Parts List GEN SR3812 Contact Us For Availability
1C
Energy Guide Label GEN SR1224 Contact Us For Availability
1D
Refrigerator Mini Manual GEN 31-51136 Contact Us For Availability
1E
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
2
Refrigerator Screw GEN WR29X5109 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
4
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
5
Refrigerator Screw GEN WR29X5112 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10038 Contact Us For Availability
7
Handle Sxs A GEN WR12X10036 Contact Us For Availability
7
Refrigerator Plate Screw GEN WR29X5135 Contact Us For Availability
9
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
11
Refrigerator Dispenser Trim (White) GEN WR38X10039 Contact Us For Availability
11
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
13
Insulator GEN WR29X5188 Contact Us For Availability
13B
Refrigerator Nut Strip GEN WR02X4599 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0527 Contact Us For Availability
14
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X3119 Contact Us For Availability
15
Cam GEN WR29X5167 Contact Us For Availability
18
Refrigerator Retainer Strip GEN WR17X1169 Contact Us For Availability
18
Lever GEN WR29X5183 Contact Us For Availability
19
I.d.panel Fz GEN WR77X0600 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
21
Door Front GEN WR17X10090 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
23
Door Front GEN WR17X10091 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
24
Door Front GEN WR17X10092 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
29
Refrigerator Drive Hinge Harness GEN WR23X0443 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
31
Recessed Grille GEN WR17X4175 Contact Us For Availability
32
Recess Disp GEN WR17X3304 Contact Us For Availability
33
Recessed Heater GEN WR51X0353 Contact Us For Availability
34
Harness Light Switch GEN WR23X0456 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
39
Mod Time Del GEN WR55X0129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8704 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Knob Rec Dis GEN WR02X8696 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10093 Contact Us For Availability
54
Insul Recess GEN WR17X3927 Contact Us For Availability
56
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
57
Refrigerator Reflector GEN WR02X8725 Contact Us For Availability
58
Recessed Shield GEN WR17X3178 Contact Us For Availability
60
Electronic Cover GEN WR02X8674 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8954 Contact Us For Availability
71
Deflec Icebk GEN WR17X3478 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X3125 Contact Us For Availability
75
Grommet Tube GEN WR17X3614 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
100A
Hook Mdl R/s GEN WR02X8409 Contact Us For Availability
100B
Hook Mdl L/s GEN WR02X8410 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X0529 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Dairy Door GEN WR22X0383 Contact Us For Availability
107
Drive Track GEN WR72X0256 Contact Us For Availability
108B
Refrigerator Door Liner GEN WR77X0672 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X0257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Cap Drive Track GEN WR02X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
171
Bkt Wr Sl Fz GEN WR71X2349 Contact Us For Availability
173
Refrigerator Support GEN WR02X8724 Contact Us For Availability
174
Refrigerator Slide Support GEN WR02X8667 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
189
Refrigerator Button Plug GEN WR01X2115 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1741 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
211
Refrigerator Freezer Basket GEN WR21X0188 Contact Us For Availability
212
Refrigerator Handle Trim GEN WR38X10035 Contact Us For Availability
214A
Refrigerator Cover Clip Evaporator GEN WR01X2128 Contact Us For Availability
214B
Refrigerator Evaporator Cover Gasket GEN WR14X0455 Contact Us For Availability
214C
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225A
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
225B
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
230A
Refrigerator Defrost Heater Bracket GEN WR02X8671 Contact Us For Availability
236
Refrigerator Support GEN WR02X4548 Contact Us For Availability
237
Freezer Support Basket GEN WR02X7036 Contact Us For Availability
247A
Support Orifice GEN WR02X4845 Contact Us For Availability
247B
Refrigerator Orifice GEN WR17X3483 Contact Us For Availability
248
Refrigerator Gasket GEN WR14X0272 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X3484 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265
Axle & Cotte GEN WR02X4742 Contact Us For Availability
269
Refrigerator Water Tube GEN WR02X7927 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3136 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10057 Contact Us For Availability
280
C Cap Oc Wh GEN WR02X8518 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0217 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
324A
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
324B
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
328
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
345
Refrigerator Ice Dispenser Container Mounting GEN WR17X2760 Contact Us For Availability
368B
Refrigerator Ice Maker Mounting Bracket GEN WR02X8459 Contact Us For Availability
395
Fan Shield GEN WR17X2904 Contact Us For Availability
403
Refrigerator Shelf Support GEN WR71X2588 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gskt Shld Lo GEN WR14X0470 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423
Grommet Support GEN WR02X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X0499 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426A
Housing Nozzle GEN WR02X8514 Contact Us For Availability
426B
Foam Nozzle GEN WR02X8425 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428A
Control Damper GEN WR02X8582 Contact Us For Availability
428B
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hinge Tp Asm GEN WR13X0647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X8262 Contact Us For Availability
448
Hinge Tp Asm GEN WR13X0646 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X9442 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1744 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1745 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1746 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458A
Breaker Mullion GEN WR02X7033 Contact Us For Availability
458B
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
458C
U Nut GEN WR02X4739 Contact Us For Availability
458D
Mullion Wh GEN WR40X1749 Contact Us For Availability
470
Pan Gasket GEN WR14X0420 Contact Us For Availability
471B
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473B
Pan Slide, Right GEN WR72X0210 Contact Us For Availability
473C
Pan Slide, Left GEN WR72X0211 Contact Us For Availability
480A
Refrigerator Slide Assembly, Right GEN WR72X0253 Contact Us For Availability
480B
Refrigerator Slide Assembly, Left GEN WR72X0252 Contact Us For Availability
481
Slide Pan Foot GEN WR01X2079 Contact Us For Availability
500
Refrigerator Cantilever Shelf GEN WR71X2585 Contact Us For Availability
501
Refrigerator Slide Shelf GEN WR32X10032 Contact Us For Availability
504
Slide Out Seal GEN WR14X0469 Contact Us For Availability
505
Shelf Stop GEN WR01X2080 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
610
Refrigerator Fan Motor GEN WR60X0188 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X8549 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10011 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
651A
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
651B
Refrigerator Fan Blade GEN WR60X0231 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0188 Contact Us For Availability
735
Refrigerator Overload GEN WR08X0170 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X0169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X3643 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4147 Contact Us For Availability
751
Complete Plate GEN WR17X3645 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
807A
Nut & Union GEN WR02X4046 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10034 Contact Us For Availability
910
Door Foam Assembly GEN WR78X10045 Contact Us For Availability
NI
Refrigerator Screw GEN WB01K5052 Contact Us For Availability
NI
Refrigerator Grommet GEN WR01X1510 Contact Us For Availability
NI
Scr 6-22 Pl GEN WR01X1966 Contact Us For Availability
NI
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
NI
Plug Fastner GEN WR01X2110 Contact Us For Availability
NI
Refrigerator Foam Strip GEN WR02X7493 Contact Us For Availability
NI
Refrigerator Screw GEN WZ02X0509 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
Login and Registration Form
