Model GE 363.50227000 Refrigerator (Kenmore 36350227000) – Common Parts & Diagrams

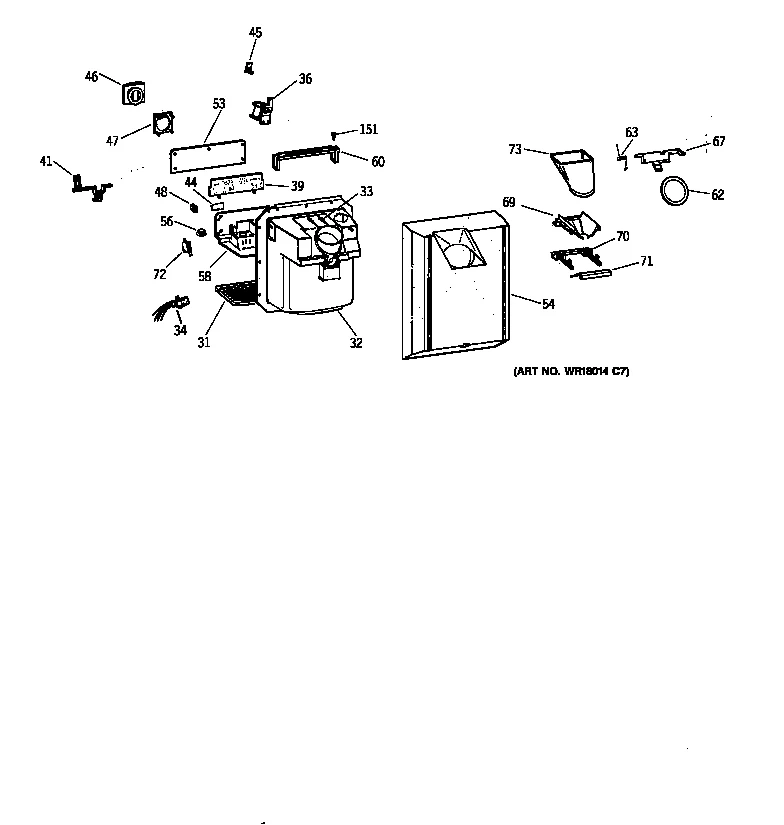

DISPENSER

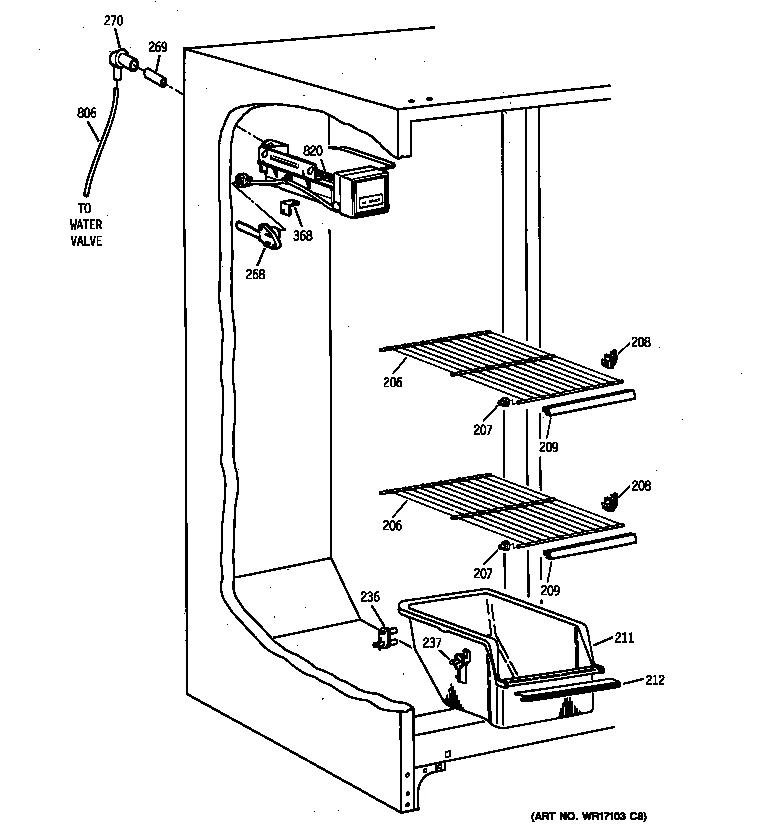

FREEZER SECTION

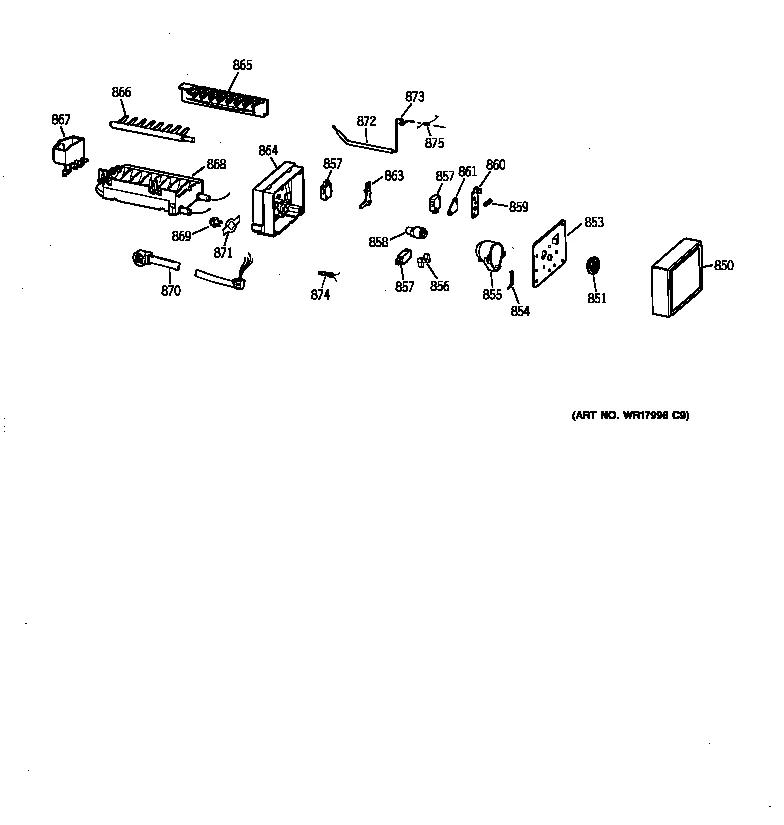

ICEMAKER WR30X0327

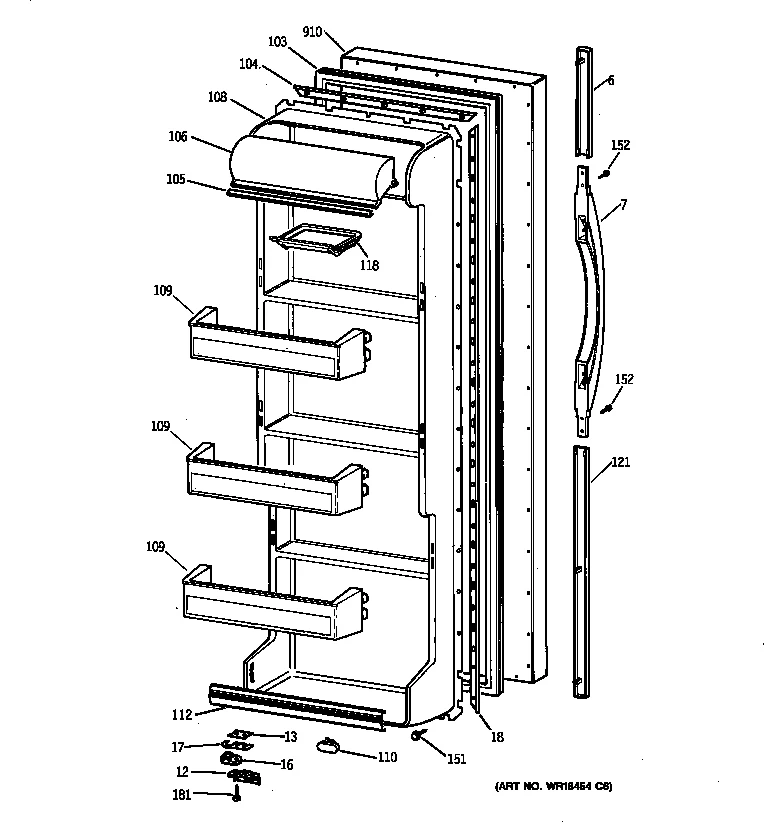

FRESH FOOD DOOR

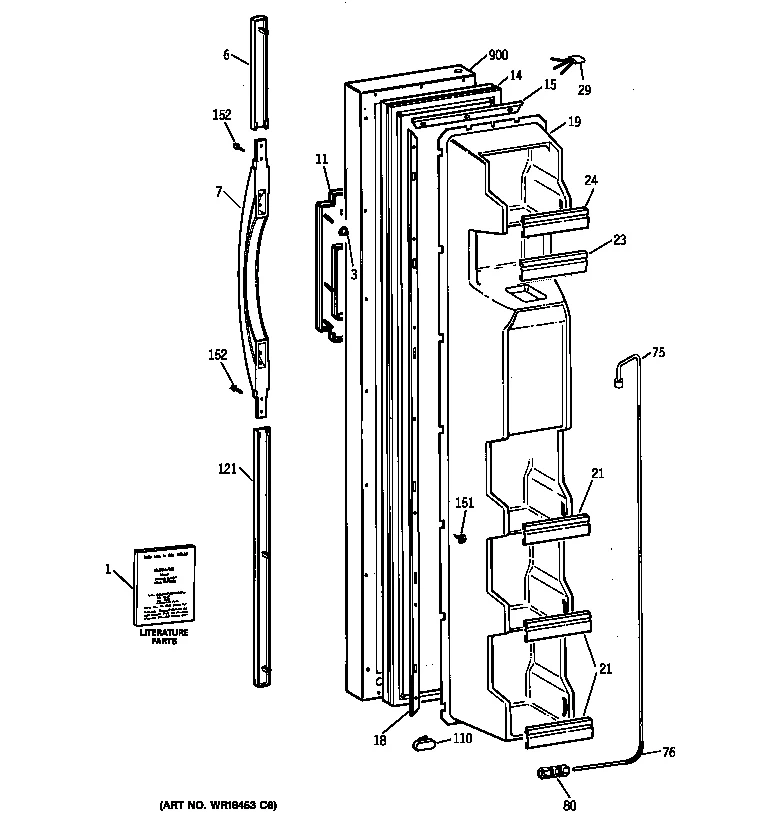

FREEZER DOOR
All Parts

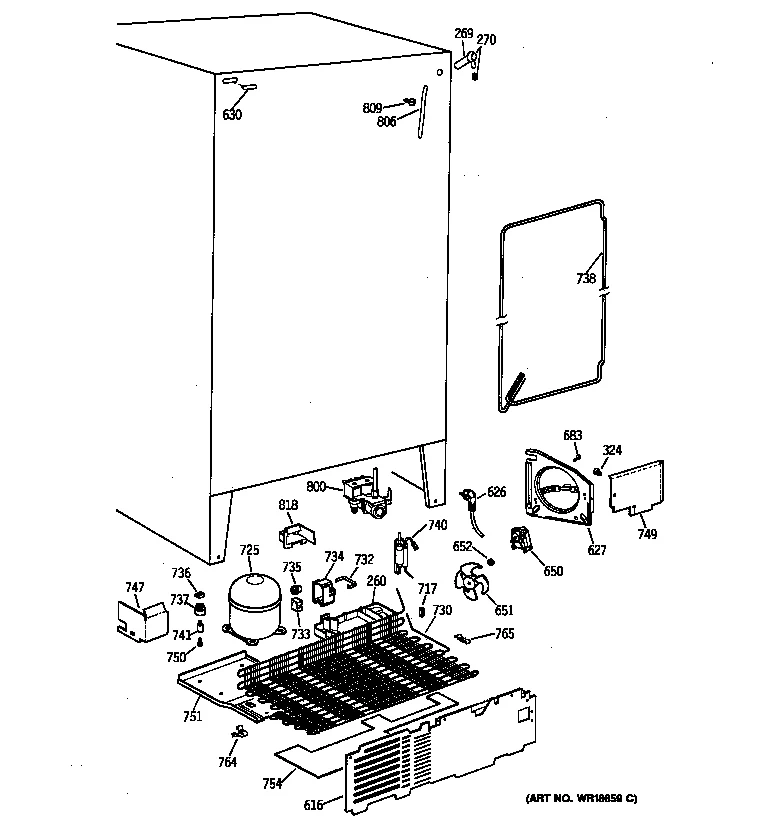

UNIT PARTS

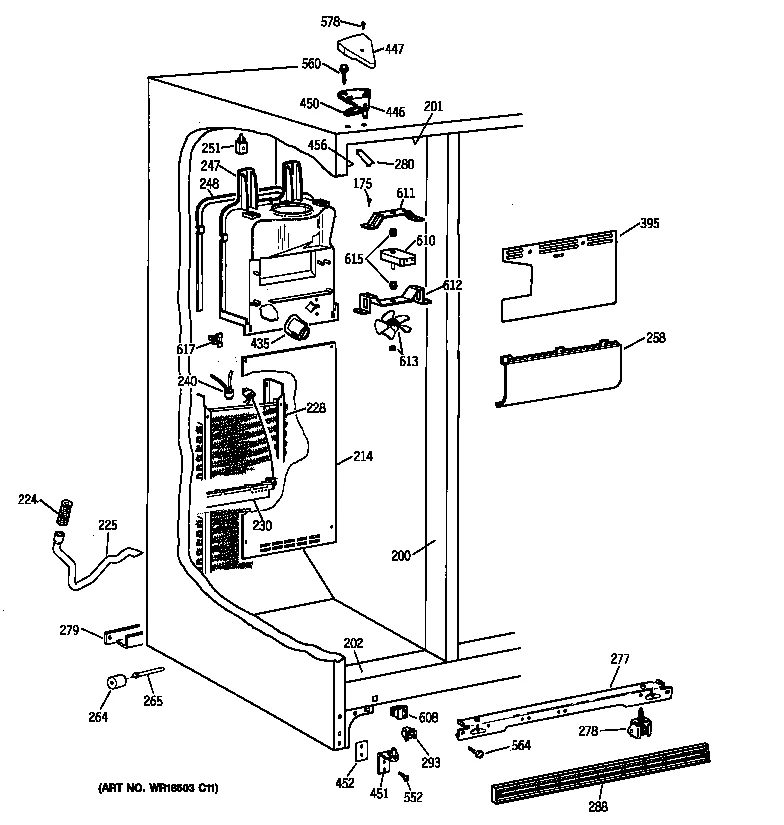

FREEZER SECTION

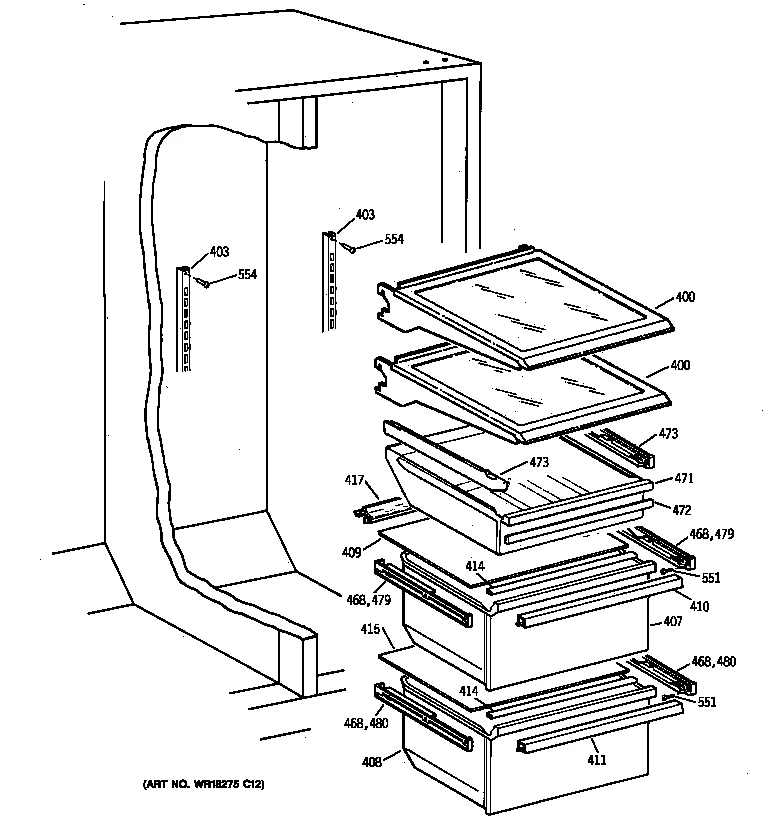

FRESH FOOD SECTION

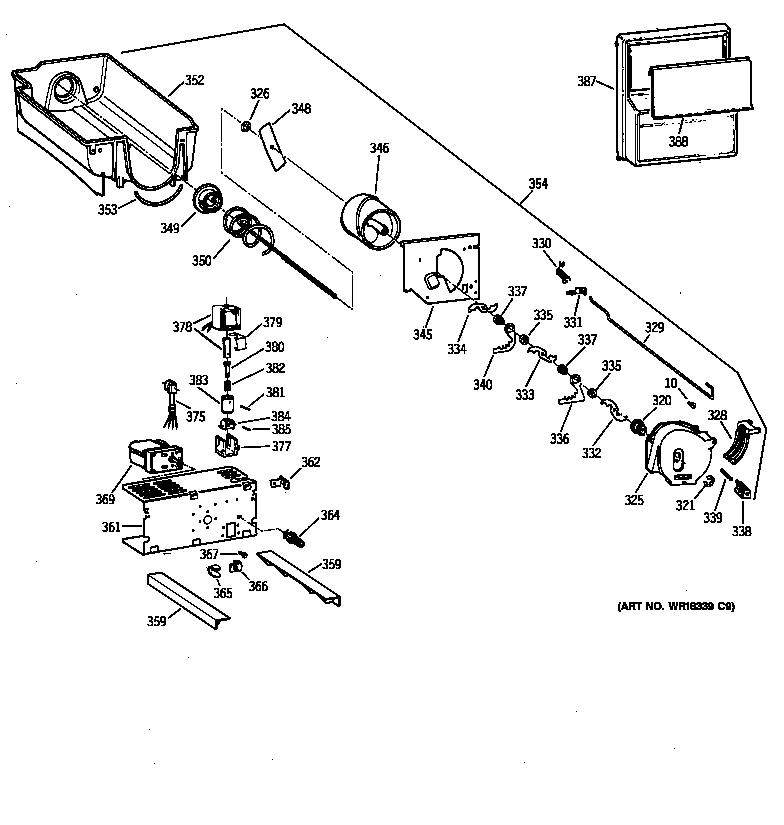

ICE BUCKET

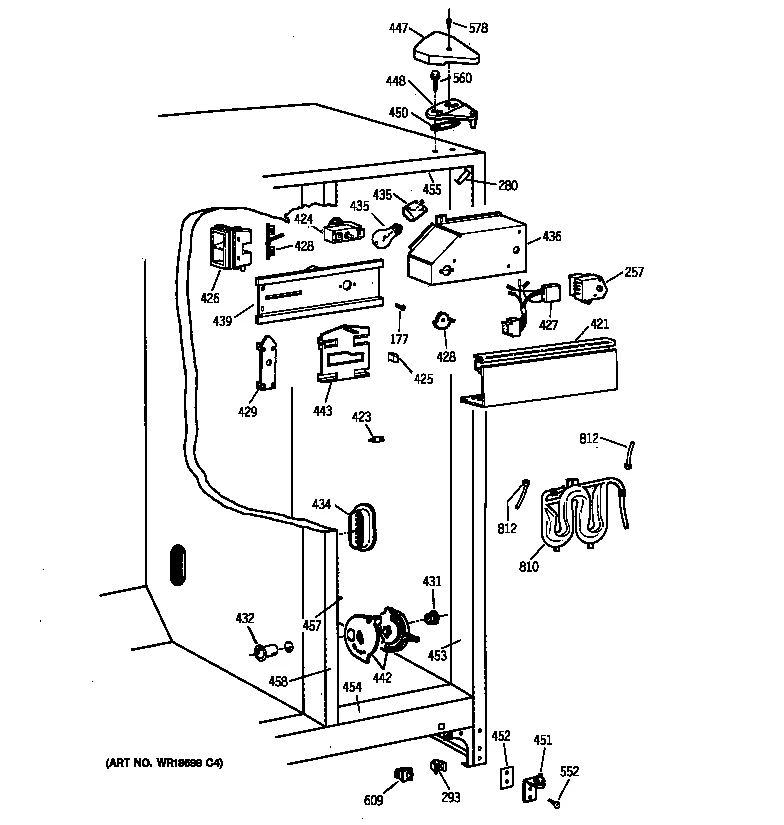

FRESH FOOD SECTION
Common parts from model GE 363.50227000 Refrigerator (Kenmore 36350227000)
6
Refrigerator Handle Trim GEN WR12X10038 Contact Us For Availability
10
Scr 8-18 GEN WR1X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X527 Contact Us For Availability
17B
Refrigerator Door Hinge Shim GEN WR2X7491 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10517 Contact Us For Availability
33
Refrigerator Dispenser Heater GEN WR51X353 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X130 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X529 Contact Us For Availability
109
Refrigerator Door Bin GEN WR71X10053 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
112
Refrigerator Door Shelf Rail GEN WR17X10451 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
175
Scr 8-18 GEN WR1X10035 Contact Us For Availability
177
Refrigerator Screw, 2-pack GEN WR1X5034 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1741 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
207
Refrigerator Freezer Shelf Support Grommet GEN WR2X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR2X4674 No Longer Available
211
Refrigerator Freezer Basket GEN WR21X188 Contact Us For Availability
214A
Clip Evaporator GEN WR1X10064 Contact Us For Availability
214B
Refrigerator Evaporator Cover Gasket GEN WR14X455 Contact Us For Availability
214C
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
224
Refrigerator Grommet GEN WR2X8657 Contact Us For Availability
225A
Refrigerator Clamp GEN WR1X5042 Contact Us For Availability
225B
Tube Drai GEN WR2X10395 Contact Us For Availability
230B
Refrigerator Defrost Heater and Thermostat GEN WR51X10031 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X3484 Contact Us For Availability
265A
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3136 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10437 Contact Us For Availability
280
C Cap Oc GEN WR2X8518 Contact Us For Availability
280
C Cap Oc GEN WR2X8519 Contact Us For Availability
288
Refrigerator Toe Grille GEN WR74X217 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X224 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X216 Contact Us For Availability
293
Refrigerator Toe Grille Clip GEN WR2X7080 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
324B
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328B
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
329
Refrigerator Ice Dispenser Actuator Rod GEN WR17X2060 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
331
Refrigerator Dispenser Pan Retainer GEN WR2X4251 Contact Us For Availability
335
Spacer GEN WR2X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
339
Refrigerator Ice Dispenser Cube Diverter Pin GEN WR2X4141 Contact Us For Availability
345
Refrigerator Ice Dispenser Container Mounting GEN WR17X2760 Contact Us For Availability
348
Blade Indisp GEN WR2X7351 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
350
Refrigerator Helix Auger GEN WR17X4309 Contact Us For Availability
352
Refrigerator Ice Container GEN WR30X257 Contact Us For Availability
359A
Refrigerator Right Side Ice Bucket Shelf GEN WR71X10197 Contact Us For Availability
359B
Refrigerator Ice Container GEN WR71X10196 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR17X10518 Contact Us For Availability
362
Refrigerator Shelf Bracket GEN WR2X8839 Contact Us For Availability
364
Refrigerator Dispenser Bucket Support Stud GEN WR2X7310 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
375
Refrigerator Motor Harness GEN WR23X10059 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10339 Contact Us For Availability
395
Fan Shield GEN WR17X10220 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR71X10054 Contact Us For Availability
403
Refrigerator Shelf Support GEN WR71X2588 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10113 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gasket Shield GEN WR17X10506 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423
Grommet S GEN WR2X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR9X570 Contact Us For Availability
425
Refrigerator Knob GEN WR2X8398 Contact Us For Availability
426A
Housing Nozzle GEN WR2X8514 Contact Us For Availability
426B
Foam Nozzle GEN WR2X8425 Contact Us For Availability
427
Refrigerator Wire Harness GEN WR23X316 Contact Us For Availability
428A
Refrigerator Gear Control GEN WR2X8513 Contact Us For Availability
428B
Control Double Bracket Damper Washer GEN WR2X8569 Contact Us For Availability
429
Heat Holder GEN WR2X8516 Contact Us For Availability
432
Duct Mullion GEN WR2X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR2X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR2X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR2X8570 Contact Us For Availability
446
Refrigerator Freezer Door Hinge, Upper GEN WR13X647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8262 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8263 Contact Us For Availability
448
Refrigerator Door Top Hinge GEN WR13X646 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR2X4497 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1744 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1745 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1746 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458
Clip Mullion GEN WR2X10334 Contact Us For Availability
458
Refrigerator Bracket Mullion GEN WR2X9376 Contact Us For Availability
458
Mullion Ad GEN WR40X1751 Contact Us For Availability
458
Mullion Wh GEN WR40X1749 Contact Us For Availability
468
BEARING SLIDE LH GEN WR1X248 Contact Us For Availability
471
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473A
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
473B
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
480A
Refrigerator Crisper Drawer Slide Rail, Right GEN WR72X253 Contact Us For Availability
480B
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X252 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
552
Scr 12-24 GEN WR1X10034 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
564
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10024 Contact Us For Availability
717
Clip Condenser GEN WR2X10335 Contact Us For Availability
730
Refrigerator Condenser Coils Assembly GEN WR84X188 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR7X277 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR8X10005 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X10427 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4147 Contact Us For Availability
751
Plate Comp M GEN WR17X10337 Contact Us For Availability
754
Condenser Floor Baffle GEN WR82X10066 Contact Us For Availability
810
Refrigerator Water Tank Assembly GEN WR17X10504 Contact Us For Availability
818
Guard Spl GEN WR2X10422 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
× ![]()
Login and Registration Form
