Model GE 363.37400791 Refrigerator (Kenmore 36337400791) – Common Parts & Diagrams

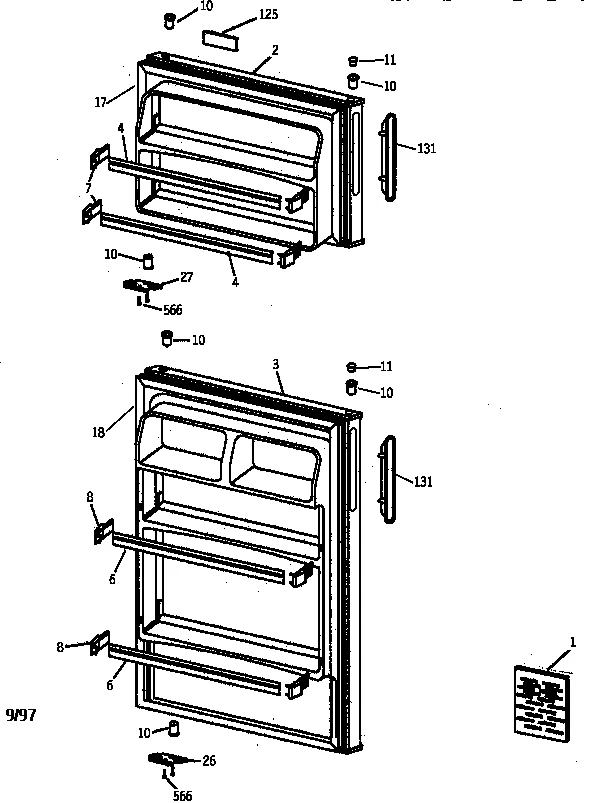

DOORS
UNIT PARTS
CABINET
Common parts from model GE 363.37400791 Refrigerator (Kenmore 36337400791)
1A
Refrigerator Use and Care Guide GEN SR6172 Contact Us For Availability
1B
Refrigerator Parts List GEN SR3105 Contact Us For Availability
1C
Refrigerator Parts List GEN SR3104 Contact Us For Availability
1D
Refrigerator Owner's Manual GEN 31-51109 Contact Us For Availability
2
Refrigerator Door Foam Assembly GEN WR78K0031 Contact Us For Availability
3
Refrigerator Door Foam Assembly GEN WR78K0030 Contact Us For Availability
4
Door Front GEN WR17K10002 Contact Us For Availability
6
Door Front GEN WR17K10004 Contact Us For Availability
7
Refrigerator Shelf Cap GEN WR02X9185 Contact Us For Availability
8
Refrigerator Shelf Cap GEN WR02X9186 Contact Us For Availability
10
Bushing Ff D GEN WR02X9203 Contact Us For Availability
11
Refrigerator Button Plug GEN WR02X9198 Contact Us For Availability
17
Refrigerator Gasket Kit GEN WR49K0006 Contact Us For Availability
18
Kit Replacem GEN WR49K0004 Contact Us For Availability
21
Hinge Btm As GEN WR13K0001 Contact Us For Availability
22
Refrigerator Hinge Shim GEN WR02X9199 Contact Us For Availability
24A
Refrigerator Hinge GEN WR13X0687 Contact Us For Availability
24B
Refrigerator Hinge GEN WR13K0002 Contact Us For Availability
25
Refrigerator Hinge Shim GEN WR02X9200 Contact Us For Availability
26
Door Stop GEN WR02K0060 Contact Us For Availability
27
Freezer Door Stop GEN WR02K0061 Contact Us For Availability
28
Refrigerator Hinge Shim GEN WR02X9201 Contact Us For Availability
30A
Gusset Lh GEN WR02K0067 Contact Us For Availability
30B
Gusset Rh GEN WR02K0068 Contact Us For Availability
31
Washer GEN WR01X5753 Contact Us For Availability
37
Fan Bracket Evaporator GEN WR02X9183 Contact Us For Availability
38
Fan Bracket Evaporator GEN WR02X9182 Contact Us For Availability
39
Refrigerator Grommet GEN WR02X9192 Contact Us For Availability
48
Refrigerator Evaporator Cover GEN WR17X3753 Contact Us For Availability
49
Air Duct GEN WR17X3754 Contact Us For Availability
52
Refrigerator Duct Foam GEN WR02X9191 Contact Us For Availability
53
Diff Air Ff GEN WR02X9189 Contact Us For Availability
54
Diff Orifice GEN WR02X9190 Contact Us For Availability
55
Refrigerator Ice Tray GEN WR30K0001 Contact Us For Availability
56
Vegetable Full Pan GEN WR32X1454 Contact Us For Availability
58
Refrigerator Shelf GEN WR71X2514 Contact Us For Availability
60
Electronic Insulation GEN WR02X9196 Contact Us For Availability
61
Refrigerator Control Housing GEN WR17K0012 Contact Us For Availability
66
Terminal Socket GEN WR02K0058 Contact Us For Availability
69
Refrigerator Harness Control Module GEN WR23X0418 Contact Us For Availability
72
Refrigerator Drain Trough GEN WR17X3758 Contact Us For Availability
73
Refrigerator Freezer Floor GEN WR17X3756 Contact Us For Availability
74
Refrigerator Control Housing GEN WR17K0015 Contact Us For Availability
75
Refrigerator Housing GEN WR02X8080 Contact Us For Availability
76
Complete Grommet GEN WR02K10006 Contact Us For Availability
78
Refrigerator Compressor GEN WR87K10001 Contact Us For Availability
86
TUBE DRAIN CON. GEN WR02K0069 Contact Us For Availability
87
Refrigerator Drain Pan GEN WR17K10001 Contact Us For Availability
88
Refrigerator Dryer GEN WR86K0002 Contact Us For Availability
89
Striate Wash GEN WR01X2007 Contact Us For Availability
96
Refrigerator Screw Assembly GEN WR01X2009 Contact Us For Availability
98
Screw "t" GEN WR01K0013 Contact Us For Availability
100
Foam Washer GEN WR02K10004 Contact Us For Availability
101
Grommet Tube GEN WR02K10005 Contact Us For Availability
102
Rubber Grommet GEN WR02K10003 Contact Us For Availability
103
Refrigerator Foam Pad GEN WR02K10001 Contact Us For Availability
104
Refrigerator Foam Pad GEN WR02K10002 Contact Us For Availability
105
Refrigerator Screw Nut GEN WR01X2005 Contact Us For Availability
106
Refrigerator Screw GEN WR01X2004 Contact Us For Availability
107
Refrigerator Nut GEN WR01K0009 Contact Us For Availability
113
Drive Freezer Spacer GEN WR01X2006 Contact Us For Availability
114
Refrigerator Hinge GEN WR13X0688 Contact Us For Availability
115
Refrigerator Hinge Cover GEN WR13K10001 Contact Us For Availability
125
Nameplate Ke GEN WR04K10001 Contact Us For Availability
131
Handle Pocke GEN WR12K0010 Contact Us For Availability
134
Refrigerator Access Cover GEN WR82K0006 Contact Us For Availability
135
Refrigerator Wire Clamp GEN WR01X2008 Contact Us For Availability
136
Harness Fuse GEN WR23K0005 Contact Us For Availability
137
Refrigerator Low Side Assembly GEN WR85K0004 Contact Us For Availability
138
Refrigerator Screw Nut GEN WR01K0012 Contact Us For Availability
139
Complete Washer GEN WR02K0044 Contact Us For Availability
140
Screw "b" GEN WR01K0015 Contact Us For Availability
242
Cover Pan Lo GEN WR32K0006 Contact Us For Availability
247
Refrigerator Support GEN WR02X8242 Contact Us For Availability
260
Refrigerator Grommet GEN WR02X8228 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X8466 Contact Us For Availability
281
Hinge Washer GEN WR01K0014 Contact Us For Availability
296
Cvr Un Recep GEN WR02X9159 Contact Us For Availability
300A
Refrigerator Control GEN WR09X0491 Contact Us For Availability
300B
Refrigerator Sleeve GEN WR02X8268 Contact Us For Availability
301
Refrigerator Control Knob GEN WR02K0049 Contact Us For Availability
302
Thermal Rod GEN WR02K0051 Contact Us For Availability
305
Refrigerator Air Actuator GEN WR02K0041 Contact Us For Availability
309
Duct Gasket GEN WR02X8246 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X1249 Contact Us For Availability
573
Refrigerator Screw GEN WZ04X0254 Contact Us For Availability
602
Refrigerator Screw GEN WR01X1591 Contact Us For Availability
610
Refrigerator Fan Motor GEN WR60X0191 Contact Us For Availability
613B
Ring Compres GEN WR02K0059 Contact Us For Availability
618
Refrigerator Defrost Heater GEN WR51K0001 Contact Us For Availability
626
Machine Harness GEN WR23K0008 Contact Us For Availability
687
Refrigerator Screw GEN WZ05X0194 Contact Us For Availability
690
Refrigerator Screw GEN WR01X1790 Contact Us For Availability
692
Refrigerator Screw GEN WZ04X0416 Contact Us For Availability
694
Refrigerator Screw GEN WR01X1792 Contact Us For Availability
732
Clip Relay C GEN WR02K0042 Contact Us For Availability
733
PTC Starter GEN WR07K0005 Contact Us For Availability
734
Cover Relay GEN WR02K0045 Contact Us For Availability
735
Refrigerator Overload GEN WR08K0004 Contact Us For Availability
× ![]()
