Model Whirlpool 3621WPA ELECTRIC RANGE – Common Parts & Diagrams

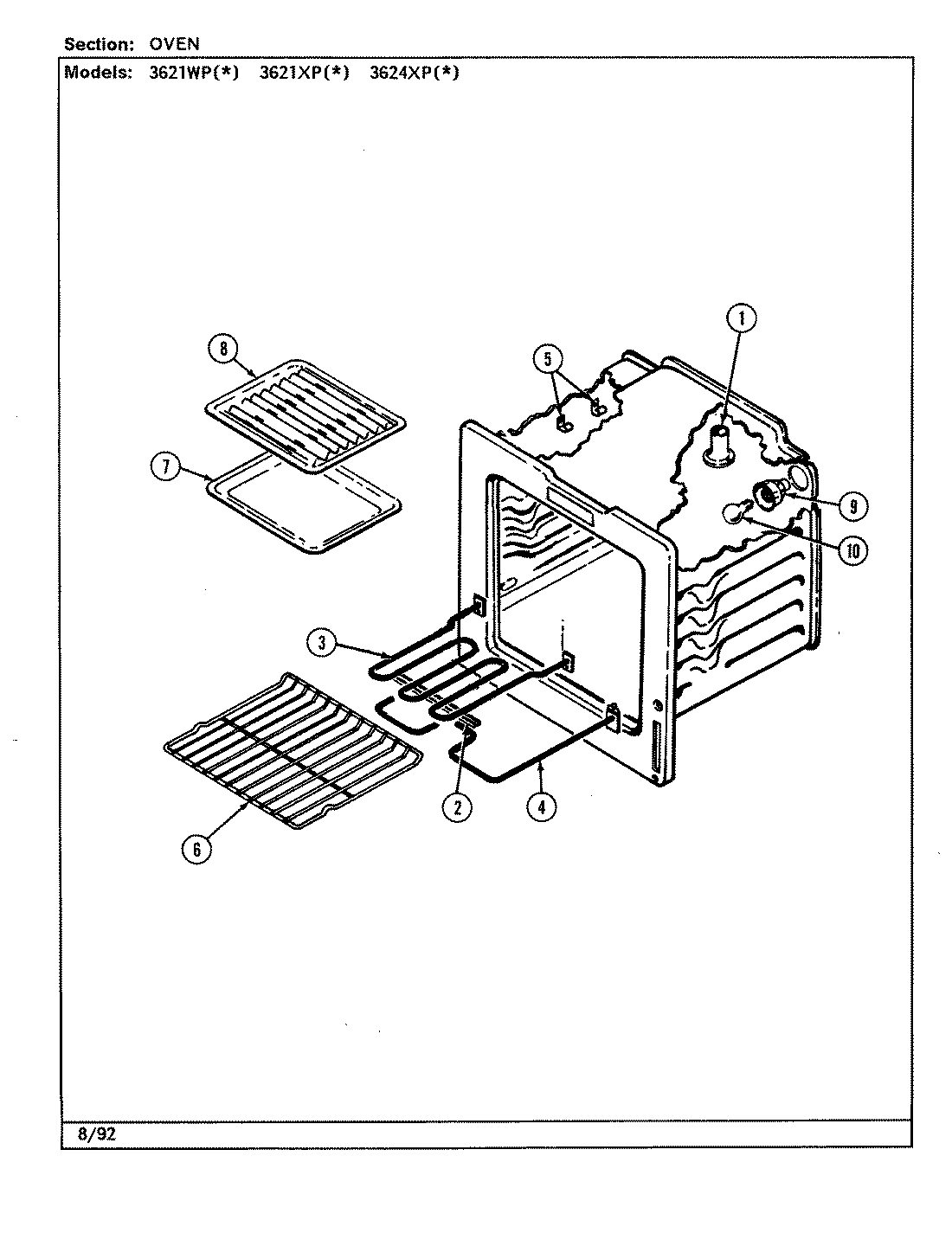

03 - OVEN

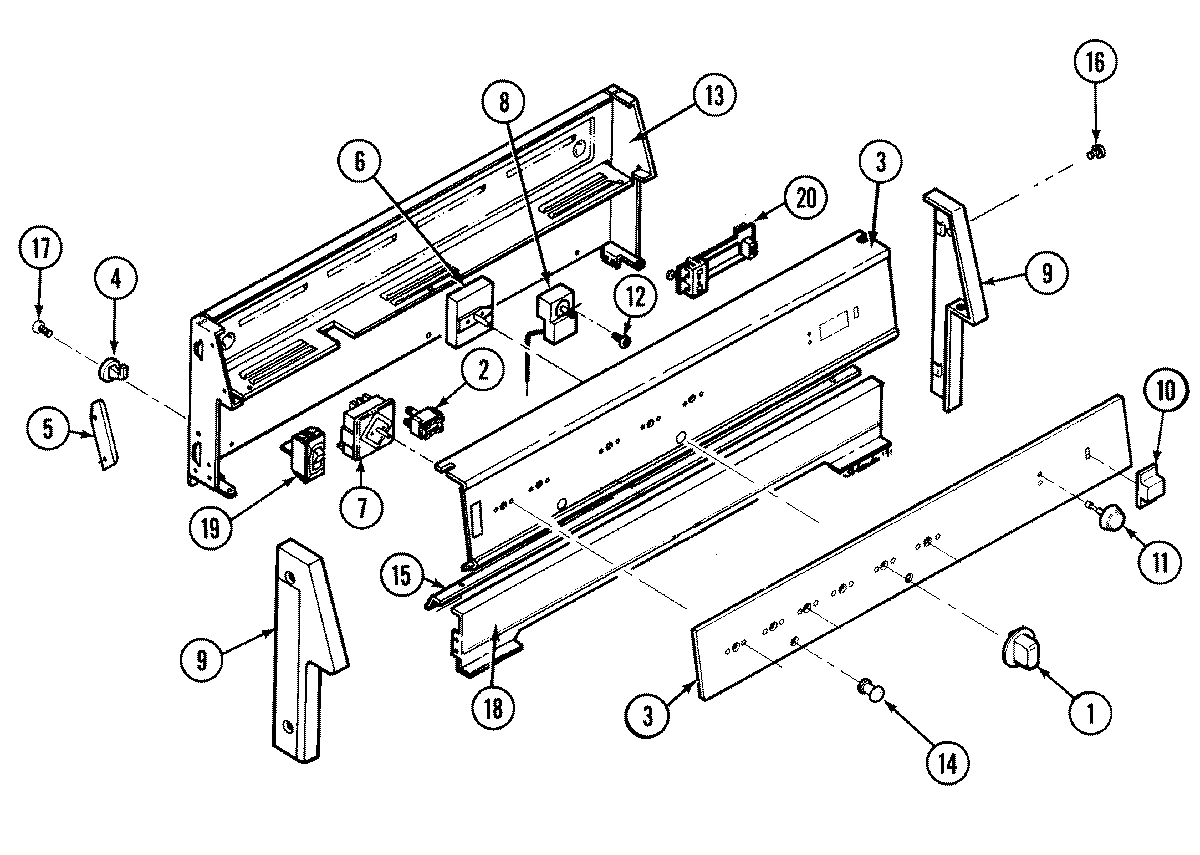

02 - CONTROL PANEL

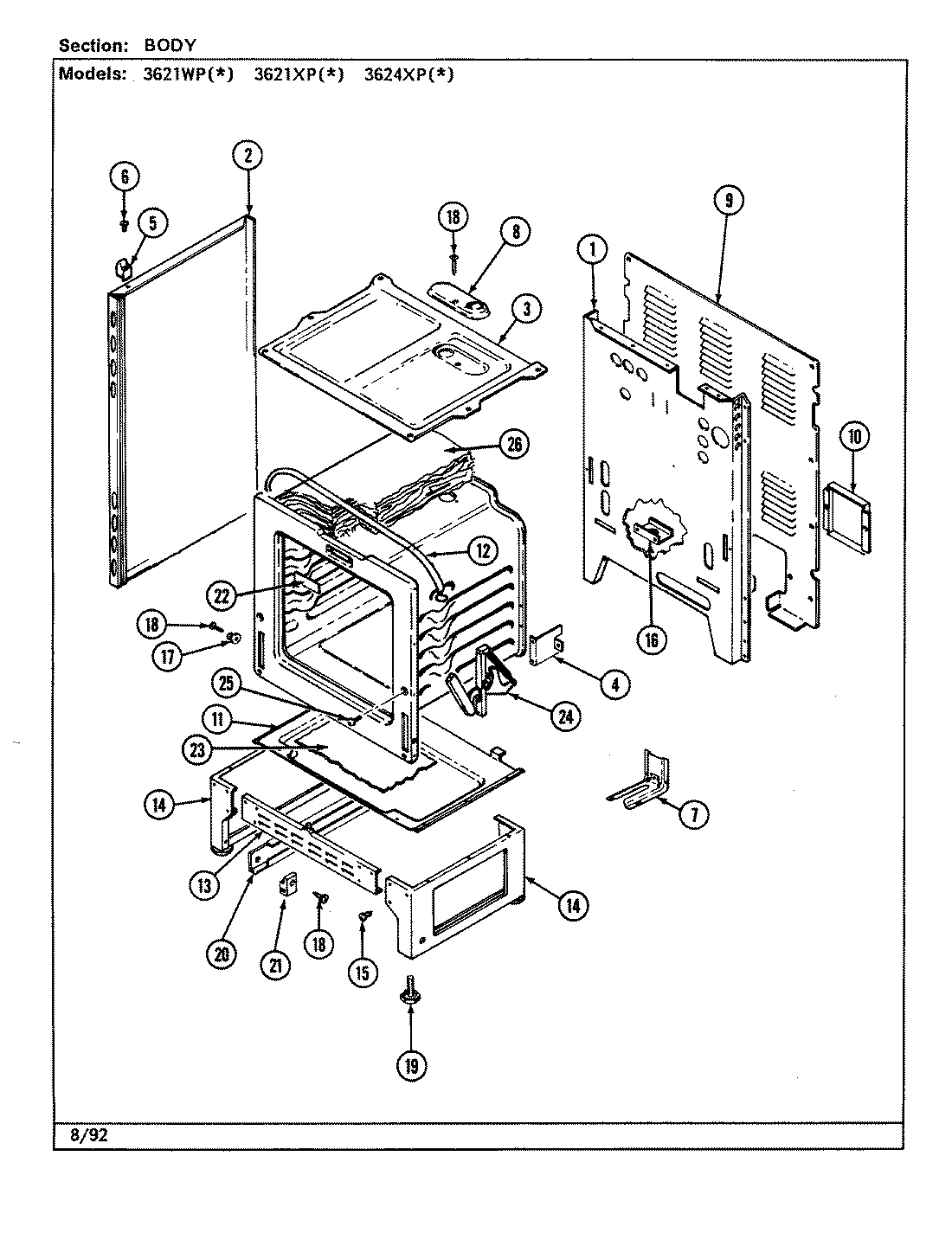

01 - BODY

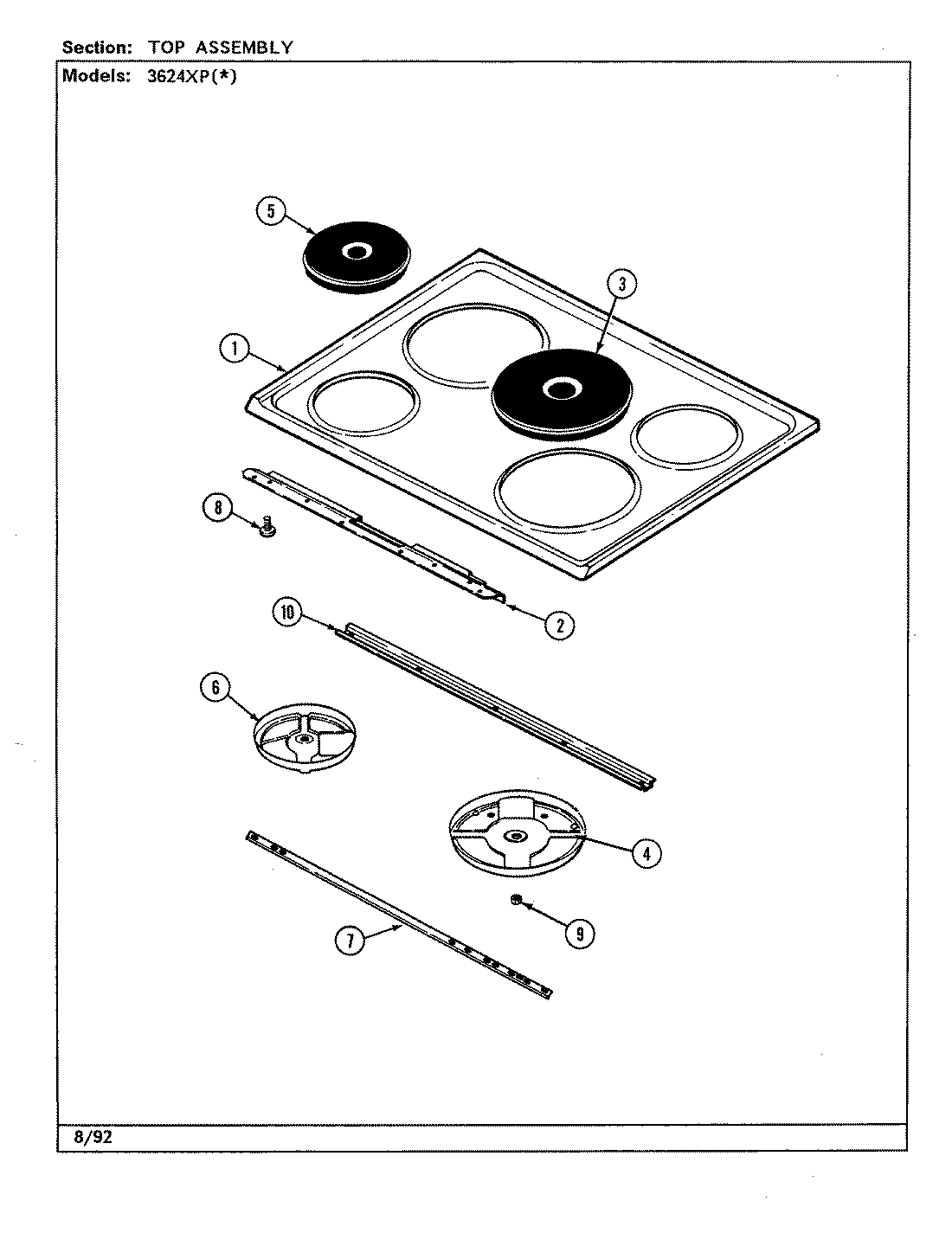

04 - TOP ASSY.
Common parts from model Whirlpool 3621WPA ELECTRIC RANGE
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
BACK, MAIN WPL 4002F18680 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
PANEL ASSY. (BLK) WPL 4876S04859 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
BRACE WPL 3802F08580 Contact Us For Availability
7
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
7
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SCREW WPL 7101P03260 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P06760 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06860 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
10
BULB, OVEN WPL 7407P02660 Contact Us For Availability
10
BRACKET, BACKGUARD WPL 3801F29651 Contact Us For Availability
10
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
11
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
12
SCREW WPL 7101P30960 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
13
HOUSING WPL 4001F08551 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
16
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
18
PANEL, BACKSPLASH WPL 2612W03984 Contact Us For Availability
19
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
SCREW WPL 7101P29360 Contact Us For Availability
20
CLOCK WPL 7602P10460 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
COVER LOCK SLOT WPL 8114P33660 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
× ![]()
