Model Whirlpool 35JA-2CX-ON ELECTRIC RANGE – Common Parts & Diagrams

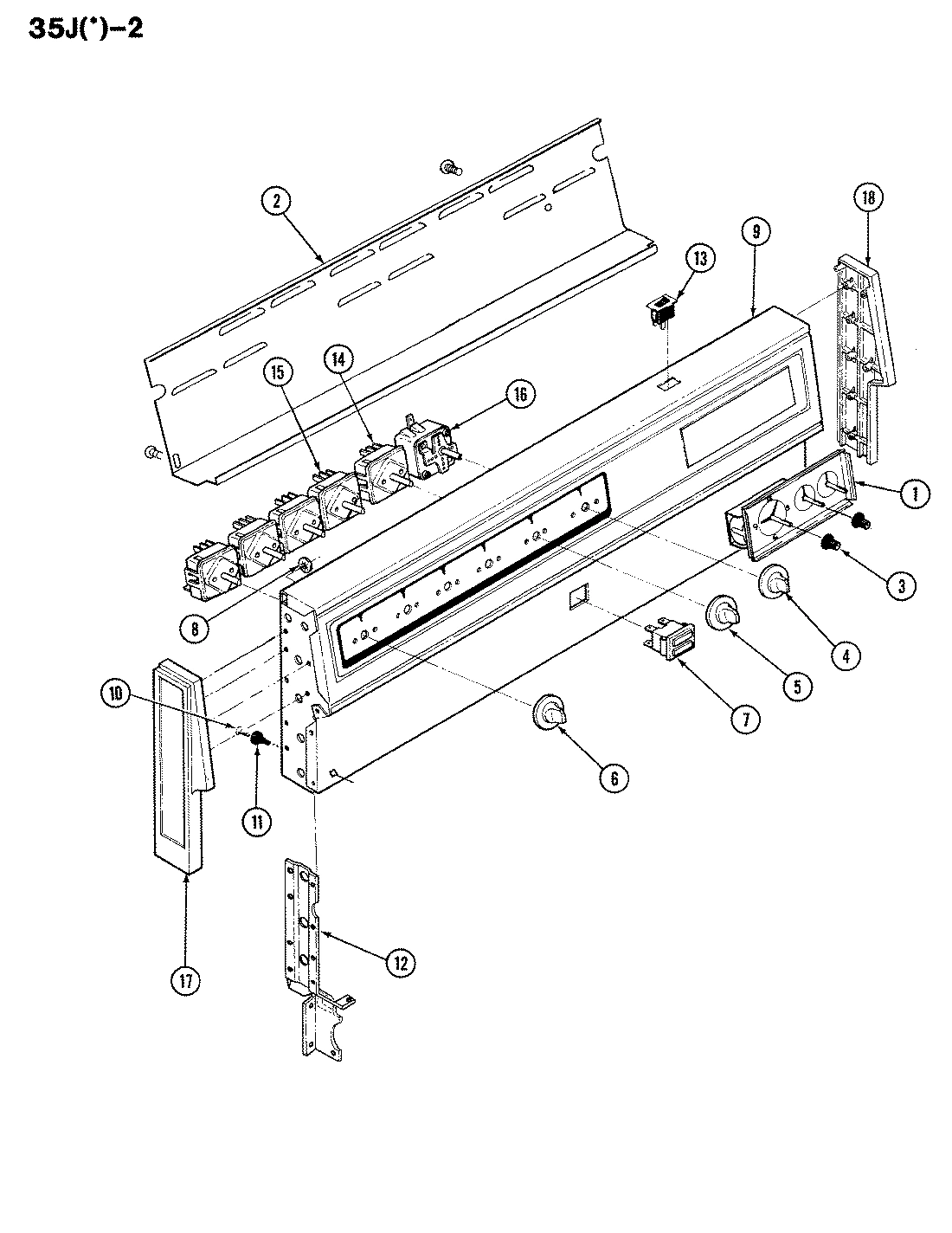

02 - CONTROL PANEL

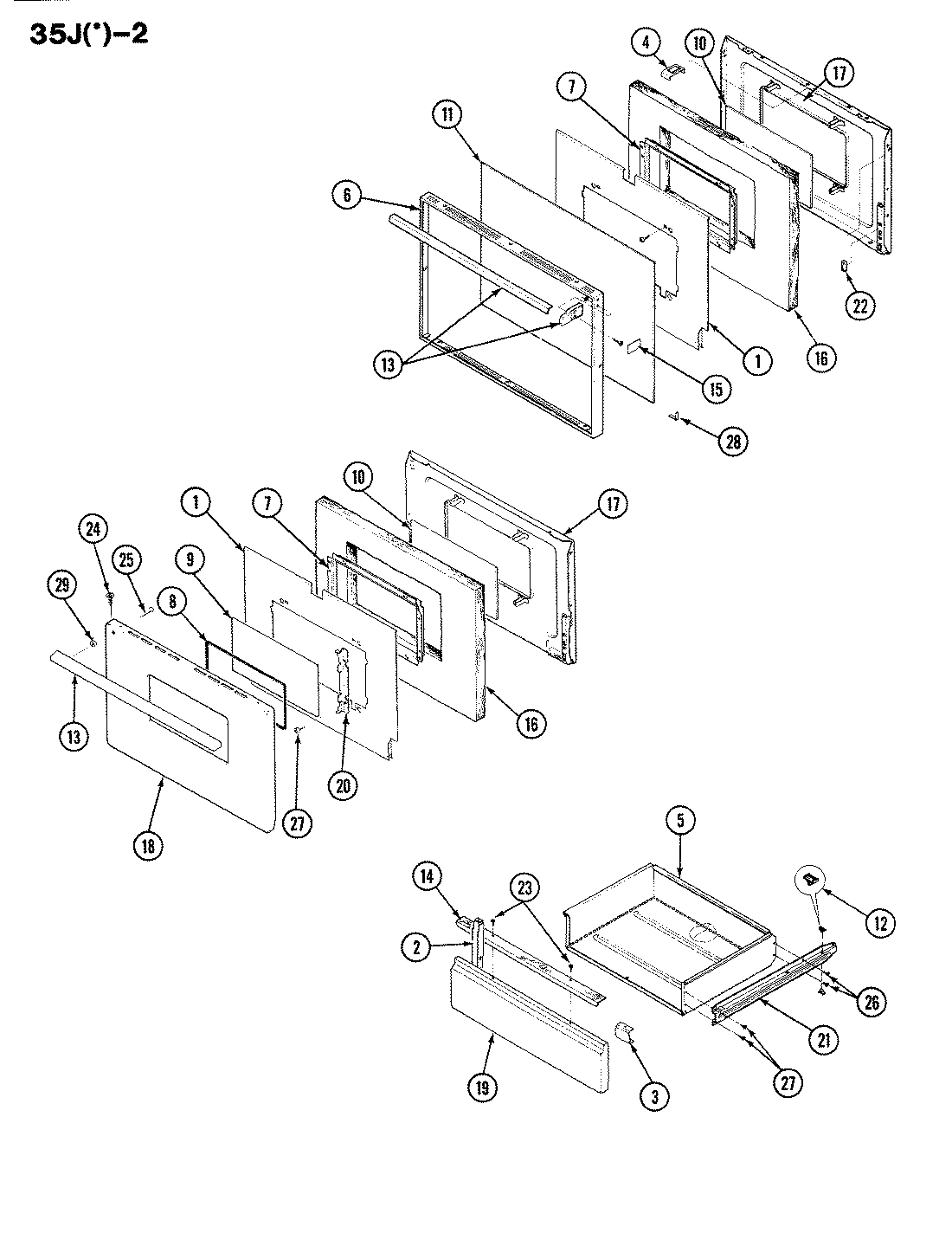

03 - DOOR

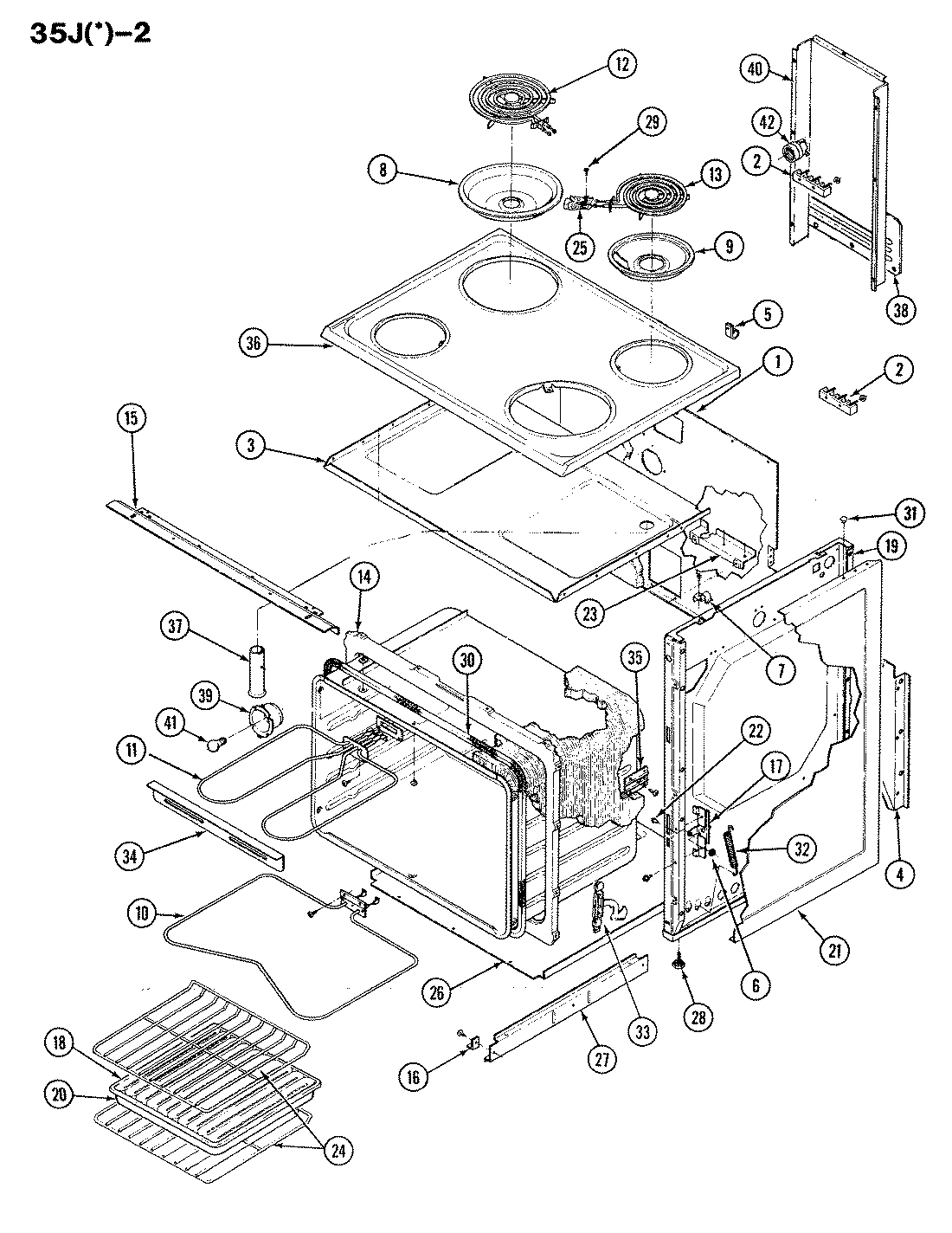

01 - BODY
Common parts from model Whirlpool 35JA-2CX-ON ELECTRIC RANGE
1
CLIP WPL 7112P00760 Contact Us For Availability
1
CLOCK WPL 7601P13160 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
2
COVER, SHIELD BKGD WIRE WPL 4005F28380 Contact Us For Availability
2
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
3
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
3
BRACKET WPL 3801F03151 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
4
KNOB, THERM WPL 7739P02760 Contact Us For Availability
4
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
SCREW WPL 7101P06160 Contact Us For Availability
4
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
4
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
4
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
4
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
4
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
5
KNOB WPL 7739P02560 Contact Us For Availability
5
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
5
SCREW WPL 7101P06760 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
6
KNOB WPL 7737P02360 Contact Us For Availability
6
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
7
LIGHT, SIGNAL WPL 7407P06860 Contact Us For Availability
7
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
7
COVER, BACK BURNER BOX WPL 4005F01680 Contact Us For Availability
7
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
9
BACKGUARD ASSY, ALMOND WPL 2601W26384 Contact Us For Availability
9
BACKGUARD WPL 2601W34374 Contact Us For Availability
9
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
10
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
10
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
10
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
11
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
11
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
11
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
11
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
12
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
12
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
12
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
12
SCREW WPL 7101P07460 Contact Us For Availability
12
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
12
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
12
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
13
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
13
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
14
SWITCH, SELECTOR WPL 7403P17360 Contact Us For Availability
14
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
15
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
15
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
15
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
15
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
15
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
16
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
16
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
16
THERMOSTAT WPL 7404P03060 Contact Us For Availability
16
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
16
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
17
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
17
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
17
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
17
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
17
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
17
SCREW WPL 7101P11260 Contact Us For Availability
18
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
18
TRIM, BACKGUARD WPL 7703P23860 Contact Us For Availability
18
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
19
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
19
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
20
PAN, BROIL WPL 3401F00423 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
21
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
21
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
22
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
SCREW WPL 7101P12360 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
23
SCREW WPL 7118P00460 Contact Us For Availability
24
RACK, OVEN WPL 7801P03060 Contact Us For Availability
26
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
26
RIVET WPL 7107P01760 Contact Us For Availability
27
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
27
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
27
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
28
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
28
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
29
SCREW WPL 7101P04260 Contact Us For Availability
30
SHIELD WPL 3604F01745 Contact Us For Availability
30
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
31
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
32
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
33
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
34
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
35
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
36
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
36
TOP ASSY, MAIN WPL 2002W02884 Contact Us For Availability
37
TUBE, OVEN VENT WPL 8026P00360 Contact Us For Availability
38
COVER, ACCESS WPL 5006F30251 Contact Us For Availability
39
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
40
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
40
SCREW WPL 7101P10460 Contact Us For Availability
41
BULB, OVEN WPL 7407P02660 Contact Us For Availability
42
RE WPL 7408P00260 Contact Us For Availability
× ![]()
