Model Whirlpool 35HN-3CLX-BO ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

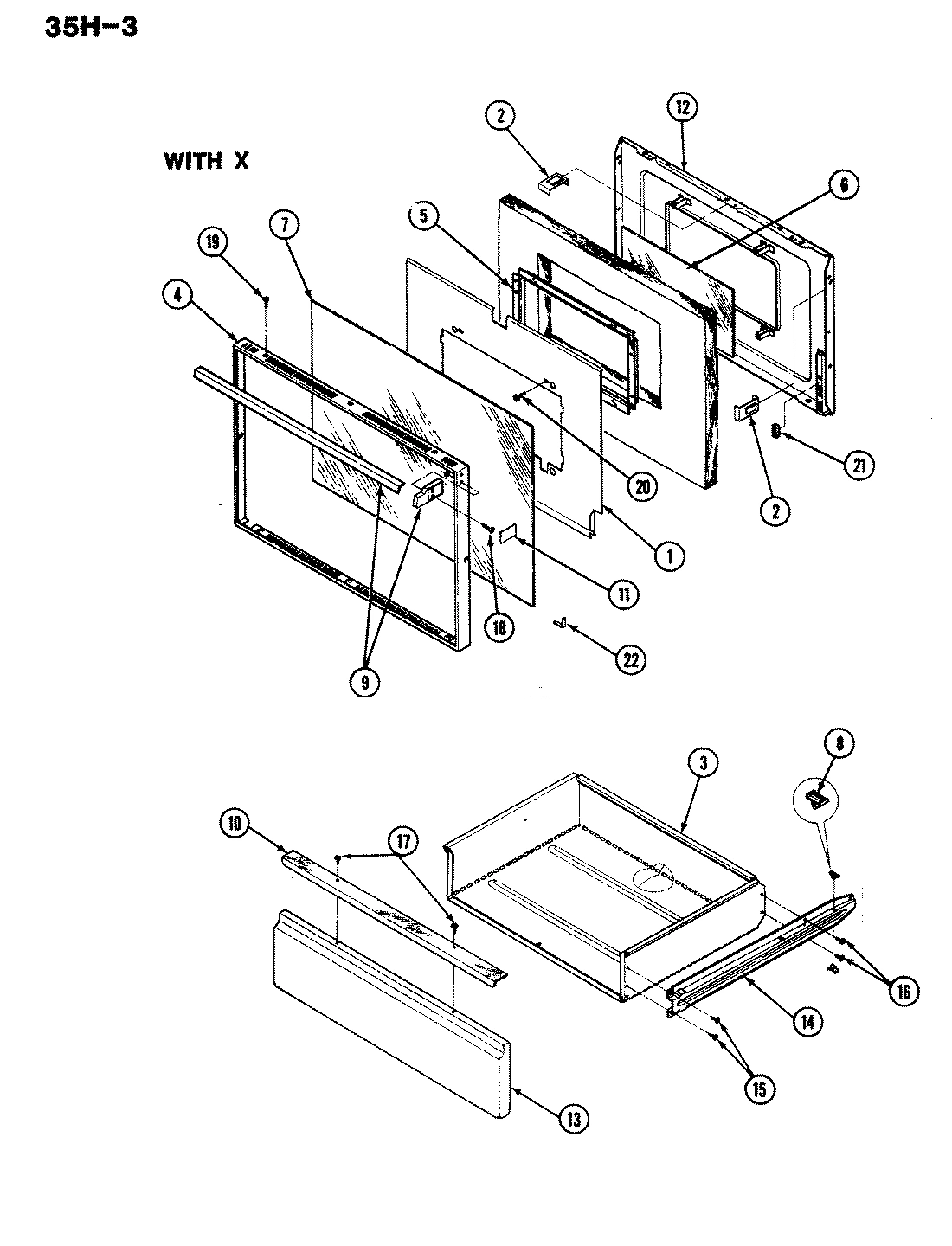

01 - BODY
03 - DOOR
Common parts from model Whirlpool 35HN-3CLX-BO ELECTRIC RANGE
1
COVER, BKGD WIRE WPL 4005F20180 Contact Us For Availability
1
CLOCK KIT WPL 5476A03260 Contact Us For Availability
1
CLIP WPL 7112P00760 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
KNOB WPL 7737P02360 Contact Us For Availability
3
KNOB, THERM WPL 7739P02760 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
4
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F12880 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BACKGUARD ASSY, WHITE WPL 2601W26481 Contact Us For Availability
5
PANEL, BKGD WHT WPL 2601W29481 Contact Us For Availability
5
BRACKET WPL 3801F10051 Contact Us For Availability
5
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
5
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
5
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
5
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
5
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
5
BRACE,INNER SIDE WPL 3802F07751 Contact Us For Availability
5
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
5
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
6
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
6
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
7
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
7
SCREW WPL 7101P07460 Contact Us For Availability
7
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
7
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
8
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
8
COVER,ACCESS WPL 4005F28851 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
SWITCH, SELECTOR WPL 7403P17360 Contact Us For Availability
9
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
9
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
10
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
10
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
10
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
10
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
10
HANDLE, DOOR WHITE WPL 7701P01471 Contact Us For Availability
11
THERMOSTAT WPL 7404P03060 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
12
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
12
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
13
TRIM, BKGD WPL 7703P19060 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
13
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
13
PANEL, SERVICE DRAWER WHITE WPL 2416F00671 Contact Us For Availability
14
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
14
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
14
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
14
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
15
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
15
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
16
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
17
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
17
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
17
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
17
SCREW WPL 7101P05860 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
18
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
18
SCREW WPL 7101P12360 Contact Us For Availability
19
LAMP, OVEN WPL 7407P02760 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
20
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
20
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
21
PAN, BROIL WPL 3401F00423 Contact Us For Availability
21
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
21
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
22
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
22
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
23
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
RACK, OVEN WPL 7801P03060 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
25
RETAINER WPL 3804F01050 Contact Us For Availability
25
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
25
RIVET WPL 7107P01760 Contact Us For Availability
26
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
27
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
28
SHIELD WPL 3604F01745 Contact Us For Availability
28
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
29
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
29
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
30
WPL W10124350 WPL W10124350 Contact Us For Availability
31
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
31
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
32
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
33
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
34
WPL 8004P01160 WPL 8004P01160 Contact Us For Availability
34
WPL 8004P01260 WPL 8004P01260 Contact Us For Availability
35
WPL 2002W03281 WPL 2002W03281 Contact Us For Availability
36
WPL 8026P01560 WPL 8026P01560 Contact Us For Availability
× ![]()
