Model Whirlpool 35HA-3ELX-EC ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY PARTS

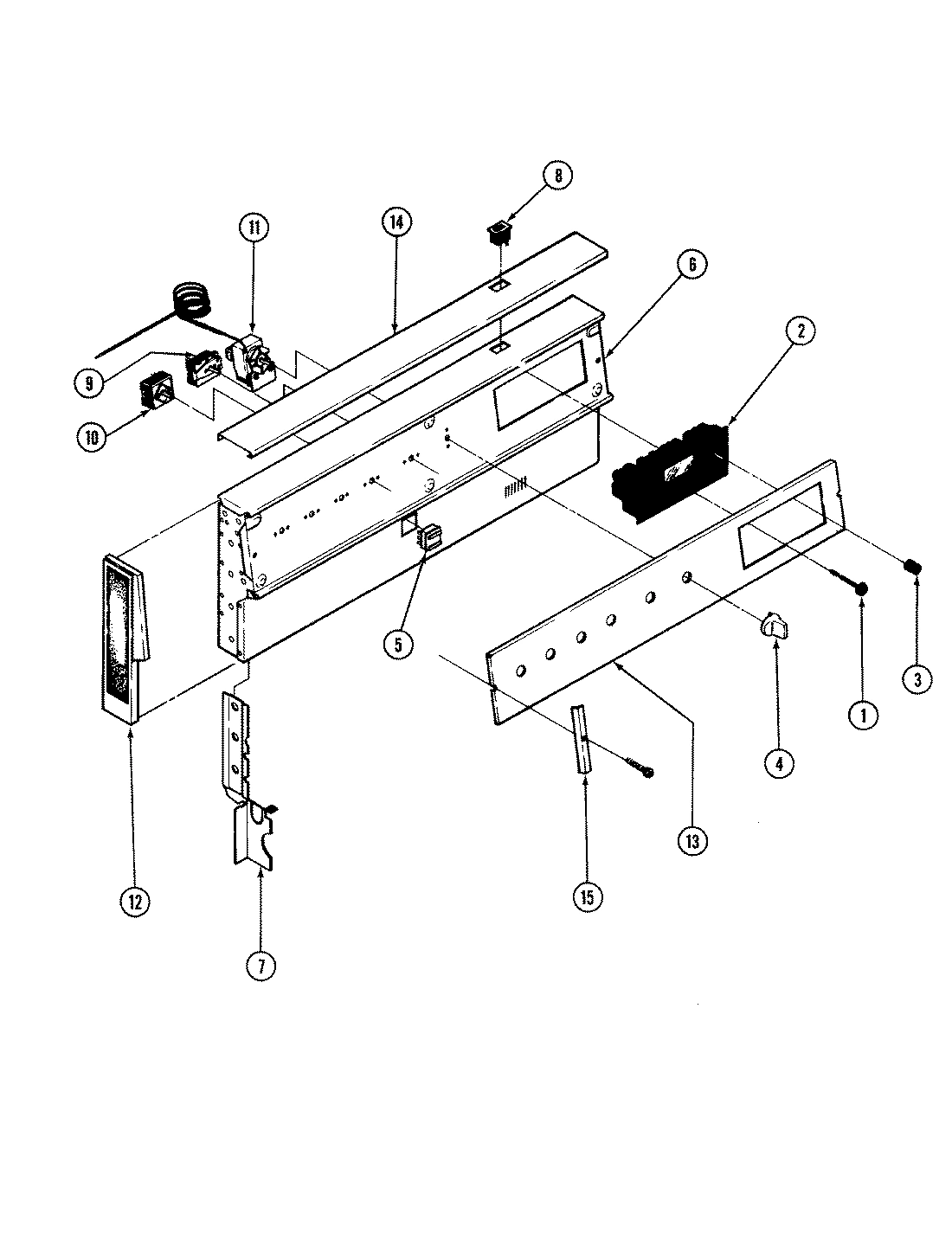

02 - CONTROL PANEL

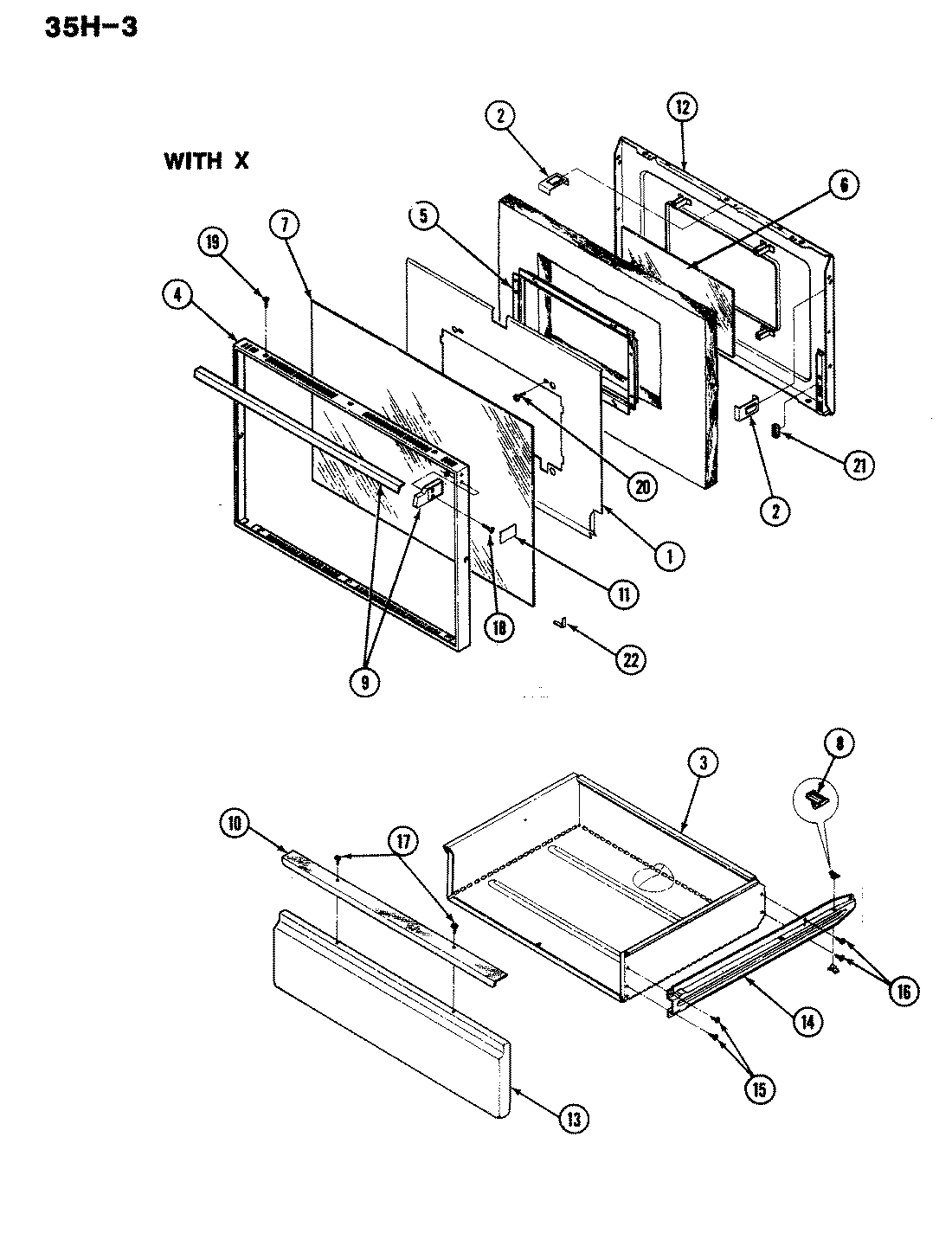

03 - DOOR PARTS
Common parts from model Whirlpool 35HA-3ELX-EC ELECTRIC RANGE
1
BACK, MAIN WPL 4002F08680 Contact Us For Availability
1
+ KIT, TRIM DECOR WPL 1430287 Contact Us For Availability
1
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
2
COVER, UPPER FLUE BOX WPL 4005F19123 Contact Us For Availability
2
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
2
GASKET, COVER WPL 4005F29651 Contact Us For Availability
2
CLOCK WPL 7601P04860 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F12880 Contact Us For Availability
4
KNOB WPL 7737P02160 Contact Us For Availability
4
KNOB WPL 7739P02560 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BRACKET WPL 3801F10051 Contact Us For Availability
5
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
5
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
5
BRACE WPL 3802F00380 Contact Us For Availability
5
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
5
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
5
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
5
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
5
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
5
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
6
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
6
BACKGUARD ASSY, WHITE WPL 2601W26481 Contact Us For Availability
6
BACKGUARD ASSY, ALMOND WPL 2601W26484 Contact Us For Availability
6
PANEL, BKGD ALM WPL 2601W29484 Contact Us For Availability
6
SHIELD, BKGD WIRE WPL 4005F19280 Contact Us For Availability
6
SEAL, COVER WPL 7212P03260 Contact Us For Availability
6
SPACER WPL 8010P01860 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
7
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
7
SUPPORT WPL 3807F01080 Contact Us For Availability
7
SUPPORT WPL 3807F01280 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
SHIELD WPL 4005F01380 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
9
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
9
SWITCH, SELECTOR WPL 7403P17360 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
10
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
10
SWITCH, INF. CONTROL WPL 7403P17060 Contact Us For Availability
10
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
11
THERMOSTAT WPL 7404P03060 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
TRIM, BKGD. (LT) WPL 7726P00860 Contact Us For Availability
12
TRIM, BKGD. WPL 7726P01960 Contact Us For Availability
12
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
13
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
13
TRIM, BKGD WPL 7703P19060 Contact Us For Availability
13
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
14
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
14
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
14
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
15
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
15
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
16
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
17
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
17
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
17
SCREW WPL 7101P05860 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
18
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
18
SCREW WPL 7101P12360 Contact Us For Availability
19
BULB, OVEN WPL 7407P02660 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
20
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
20
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
21
PAN, BROIL WPL 3401F00423 Contact Us For Availability
21
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
21
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
22
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
23
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
RACK, OVEN WPL 7801P03060 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
25
RETAINER WPL 3804F01050 Contact Us For Availability
25
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
25
RIVET WPL 7107P01760 Contact Us For Availability
26
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
27
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
28
SHIELD WPL 3604F01745 Contact Us For Availability
28
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
29
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
29
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
31
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
31
SPRING WPL 7803P00260 Contact Us For Availability
32
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
33
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
34
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
34
WPL 8004P01260 WPL 8004P01260 Contact Us For Availability
35
WPL 2002W03204 WPL 2002W03204 Contact Us For Availability
36
WPL 8026P01560 WPL 8026P01560 Contact Us For Availability
× ![]()
