Model Whirlpool 35HA-2CLX-ON ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

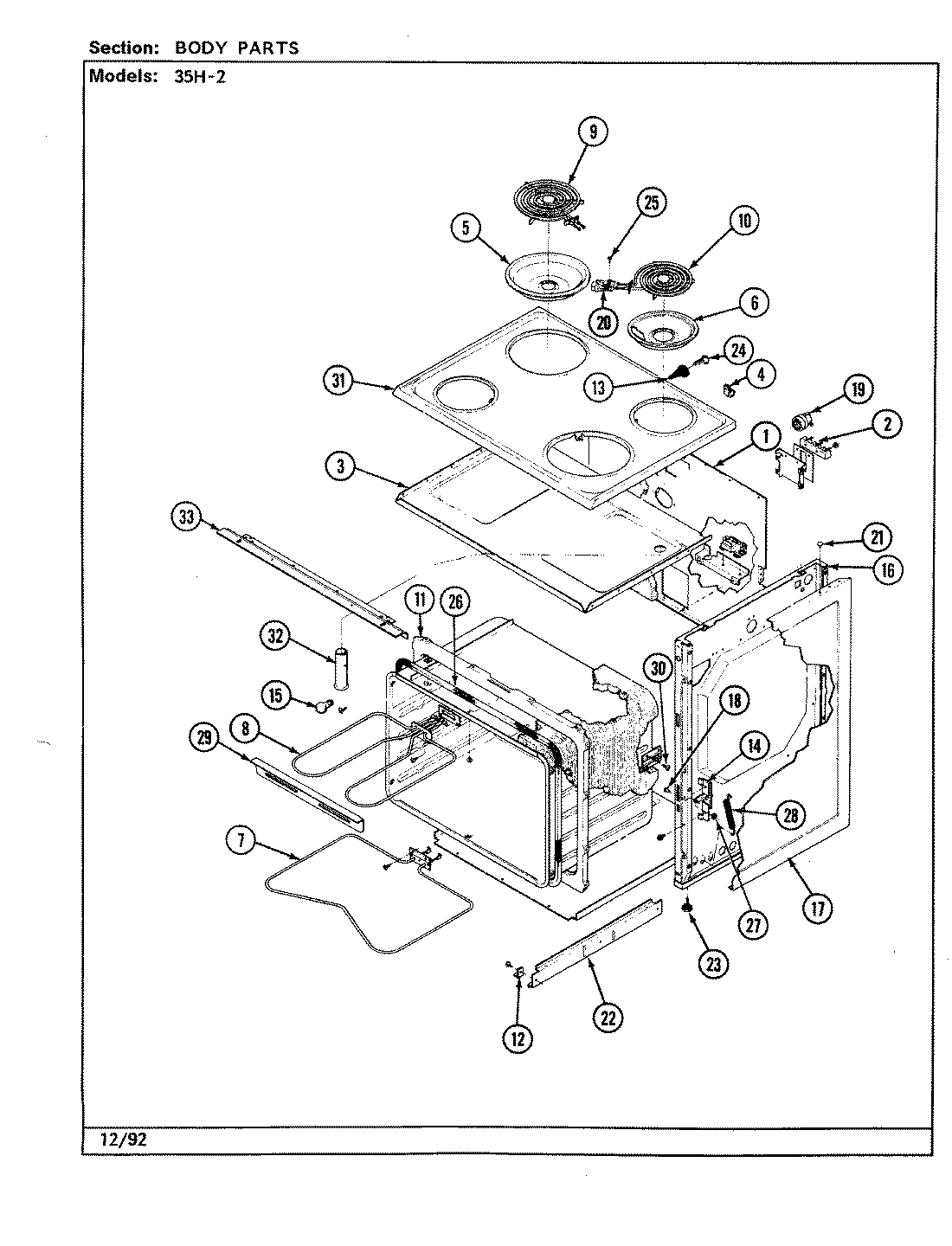

01 - BODY PARTS

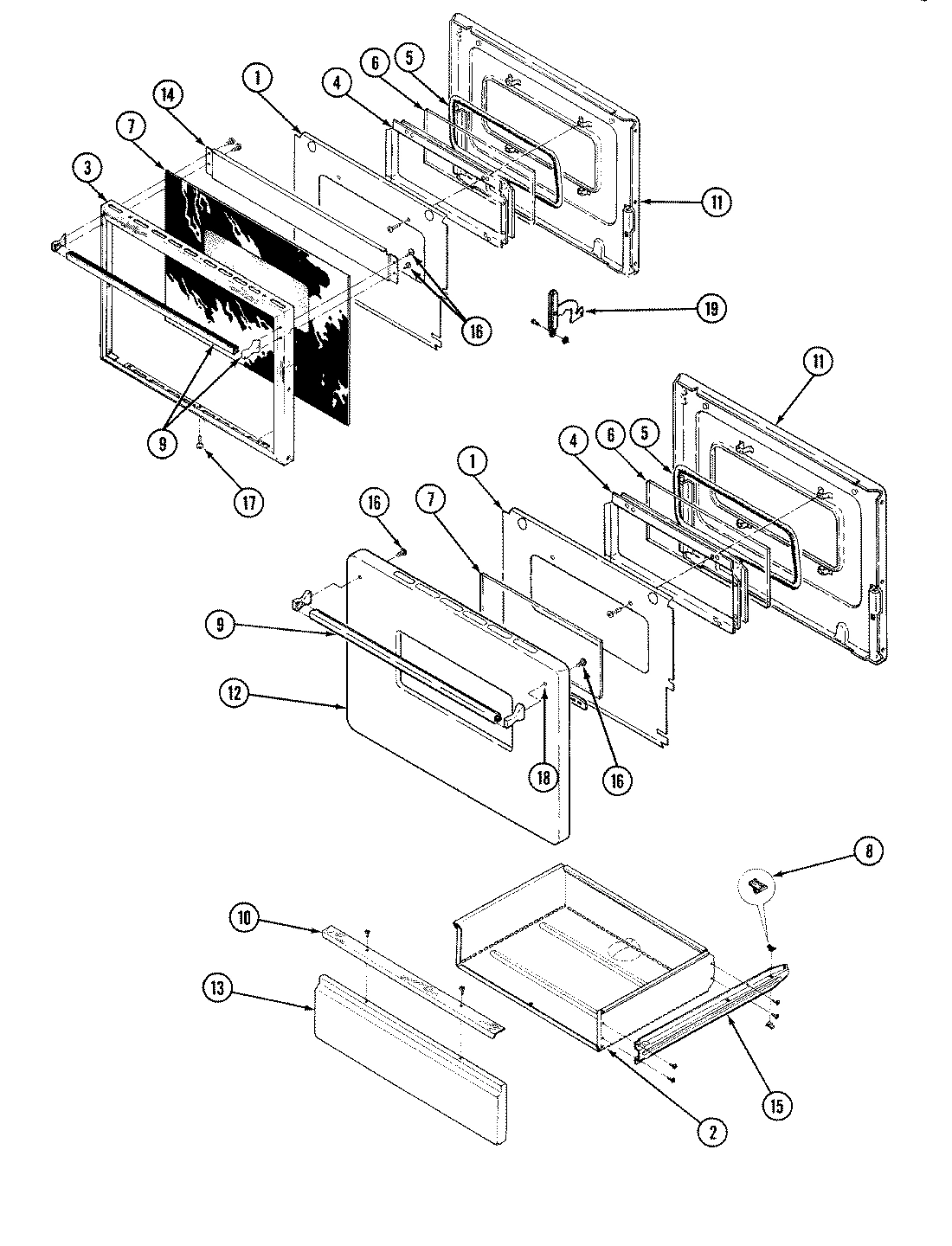

03 - DOOR PARTS
Common parts from model Whirlpool 35HA-2CLX-ON ELECTRIC RANGE
1
CLIP WPL 7112P00760 Contact Us For Availability
1
CLOCK WPL 7601P10260 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
1
BACK, MAIN WPL 4002F09280 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
KNOB, THERMOSTAT WPL 7731P02160 Contact Us For Availability
3
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
3
BRACE WPL 3802F00380 Contact Us For Availability
3
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
3
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
LIGHT, SIGNAL WPL 7407P06860 Contact Us For Availability
4
SHIELD WPL 4005F01380 Contact Us For Availability
4
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
BACKGUARD ASSY, ALMOND WPL 2601W26384 Contact Us For Availability
5
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
5
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
6
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
6
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
6
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
6
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
7
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P17360 Contact Us For Availability
8
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
9
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
10
THERMOSTAT WPL 7404P03060 Contact Us For Availability
10
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
10
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
10
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
11
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
11
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
12
TRIM, BKGD WPL 7703P19160 Contact Us For Availability
12
KNOB WPL 7737P02160 Contact Us For Availability
12
KNOB WPL 7739P02560 Contact Us For Availability
12
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
13
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
13
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
14
INSERT WPL 3413F00211 Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
14
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
14
HOUSING WPL 4001F01611 Contact Us For Availability
15
BULB, OVEN WPL 7407P02660 Contact Us For Availability
15
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
15
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
16
PAN, BROIL WPL 3401F00411 Contact Us For Availability
16
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
16
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
16
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
17
SEAL WPL 1726252 Contact Us For Availability
17
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
18
RACK, OVEN WPL 7801P03060 Contact Us For Availability
18
SPRING WPL 7803P00260 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
19
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
19
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
19
STRAP WPL 8019P00260 Contact Us For Availability
20
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
21
RIVET WPL 7107P01760 Contact Us For Availability
22
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
22
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
23
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
24
SCREW, TOP HINGE WPL 1986339 Contact Us For Availability
24
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
26
SHIELD WPL 3604F01745 Contact Us For Availability
26
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
27
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
29
SUPPORT WPL 3807F17613 Contact Us For Availability
30
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
31
TOP ASSY, MAIN A WPL 2002W02804 Contact Us For Availability
32
GLIDE WPL 8016P00360 Contact Us For Availability
33
FRONT, BURNER BOX BOTTOM WPL 4012F02280 Contact Us For Availability
34
MANUAL, USE & CARE WPL 8110P02860 Contact Us For Availability
× ![]()
