Model Whirlpool 35HA-10XS-ON ELECTRIC RANGE – Common Parts & Diagrams

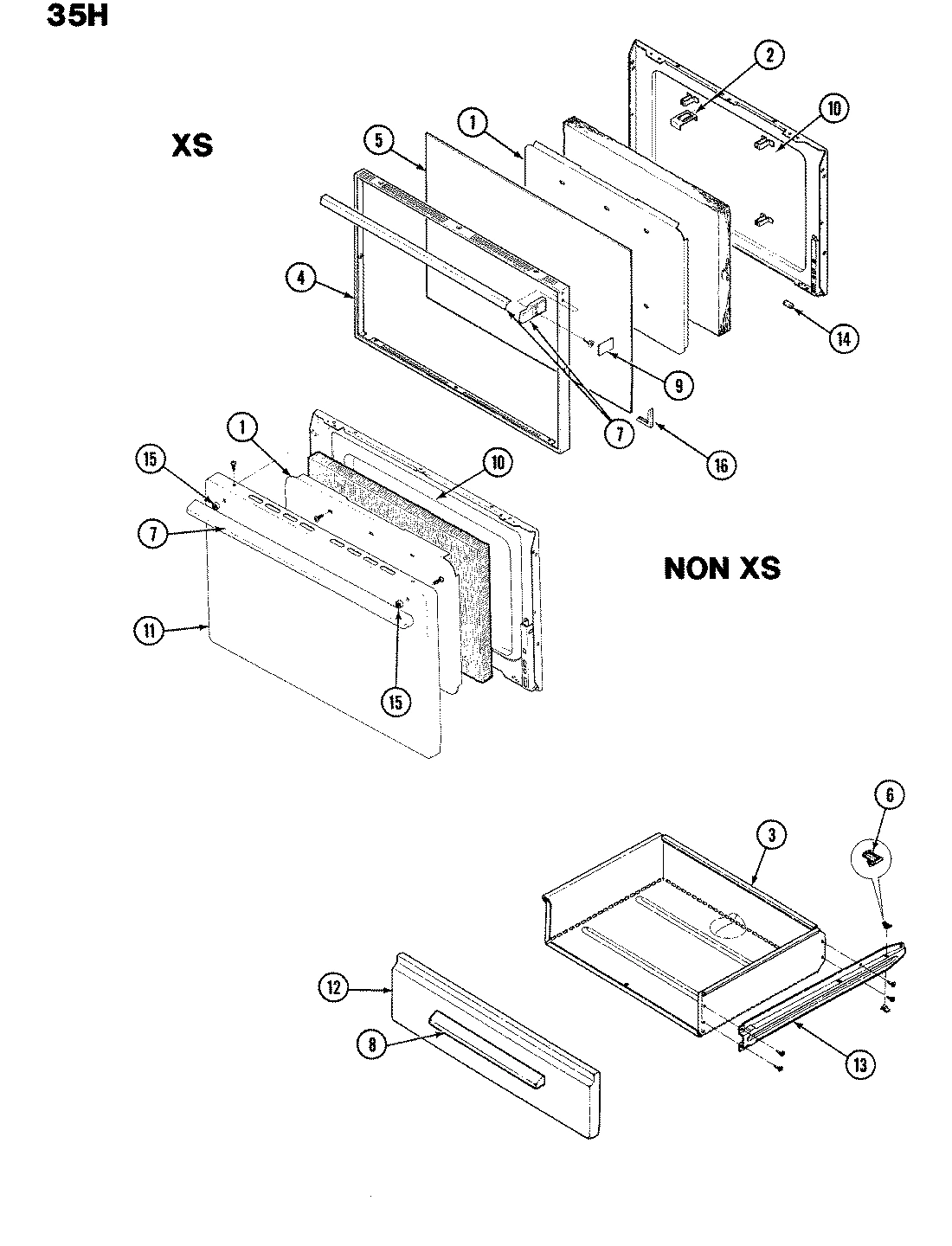

01 - DOOR PARTS

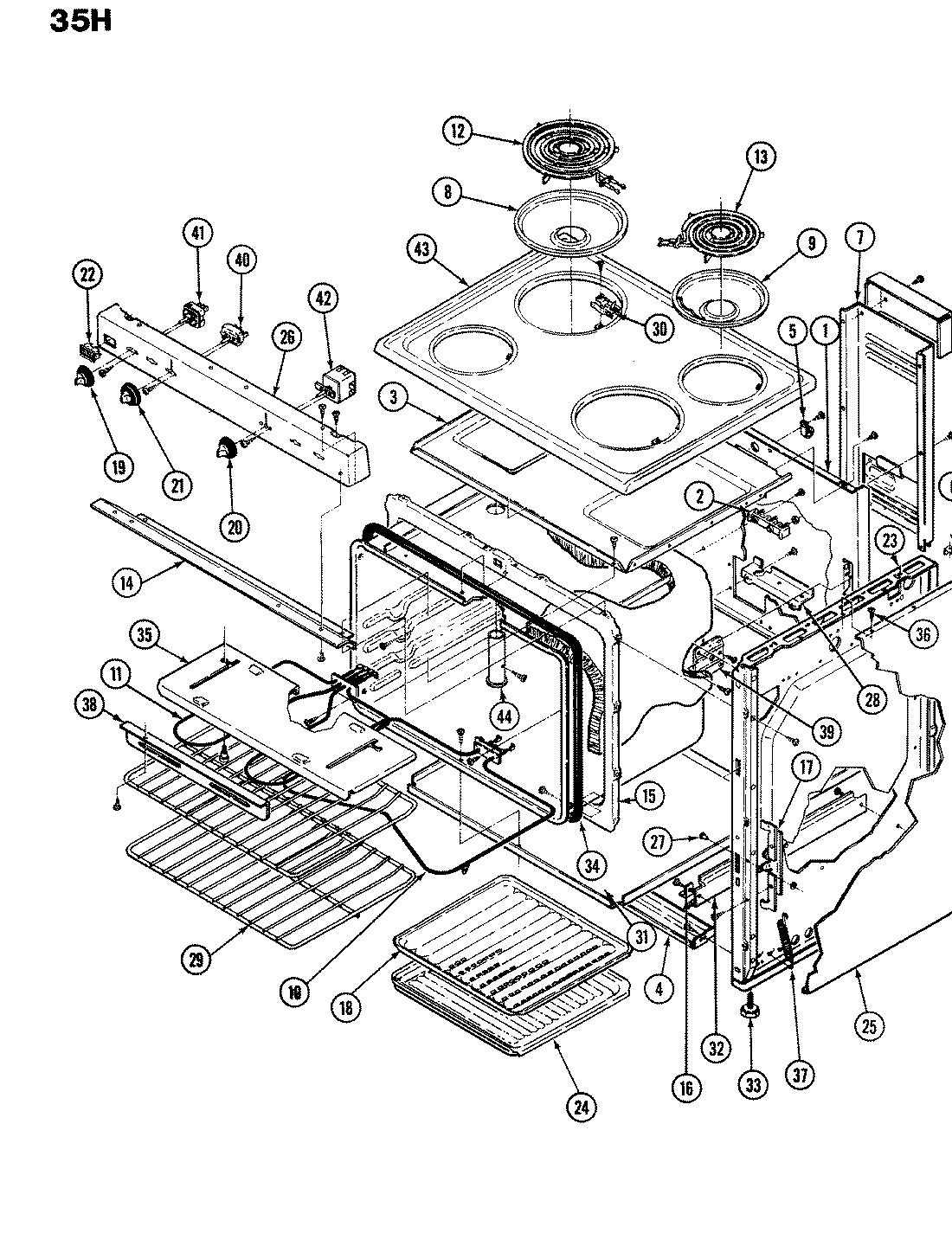

02 - TOP ASSY.\BODY
Common parts from model Whirlpool 35HA-10XS-ON ELECTRIC RANGE
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
4
SCREW WPL 7101P06160 Contact Us For Availability
4
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
4
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
4
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
4
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
4
CHANNEL, WIRE REAR WPL 3818F02151 Contact Us For Availability
4
CHANNEL, WIRE SIDE WPL 3818F02251 Contact Us For Availability
4
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
5
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
7
SCREW WPL 7101P12360 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
COVER WPL 4005F00545 Contact Us For Availability
7
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
7
COVER ACCESS WPL 4005F30251 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
9
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
10
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
10
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
11
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
11
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
11
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
12
PANEL, STORAGE DRAWER ALM WPL 2416F01774 Contact Us For Availability
12
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
16
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
16
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
17
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
17
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
17
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
17
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
KNOB, SWITCH WPL 7711P31460 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7711P31160 Contact Us For Availability
21
KNOB, SELECTOR WPL 7711P31360 Contact Us For Availability
22
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
23
LINING, INNER SIDE WPL 4009W07180 Contact Us For Availability
23
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
24
PAN, BROIL WPL 3401F00423 Contact Us For Availability
24
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
26
PANEL, UPPER FRONT WPL 2614F00784 Contact Us For Availability
27
PIN, HINGE WPL 7113P00260 Contact Us For Availability
28
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
28
PLUG WPL 7718P00360 Contact Us For Availability
29
RACK, OVEN WPL 7801P03060 Contact Us For Availability
30
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
30
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
31
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
31
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
32
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
32
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
33
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
34
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
35
SHIE WPL 3604F09245 Contact Us For Availability
35
WPL 3604F16034 WPL 3604F16034 Contact Us For Availability
36
WPL 8003P01160 WPL 8003P01160 Contact Us For Availability
36
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
37
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
37
WPL 7803P05960 WPL 7803P05960 Contact Us For Availability
38
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
39
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
40
WPL 7403P03160 WPL 7403P03160 Contact Us For Availability
41
WPL 7403P16860 WPL 7403P16860 Contact Us For Availability
41
WPL 7403P26260 WPL 7403P26260 Contact Us For Availability
41
WPL 7403P26360 WPL 7403P26360 Contact Us For Availability
42
WPL 7404P02960 WPL 7404P02960 Contact Us For Availability
43
WPL 2002W03184 WPL 2002W03184 Contact Us For Availability
44
WPL 7402P02860 WPL 7402P02860 Contact Us For Availability
44
WPL 8026P00160 WPL 8026P00160 Contact Us For Availability
45
WPL 2601W32184 WPL 2601W32184 Contact Us For Availability
46
WPL 8010P06960 WPL 8010P06960 Contact Us For Availability
47
WPL 7101P04160 WPL 7101P04160 Contact Us For Availability
× ![]()
