Model Whirlpool 35HA-1 ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

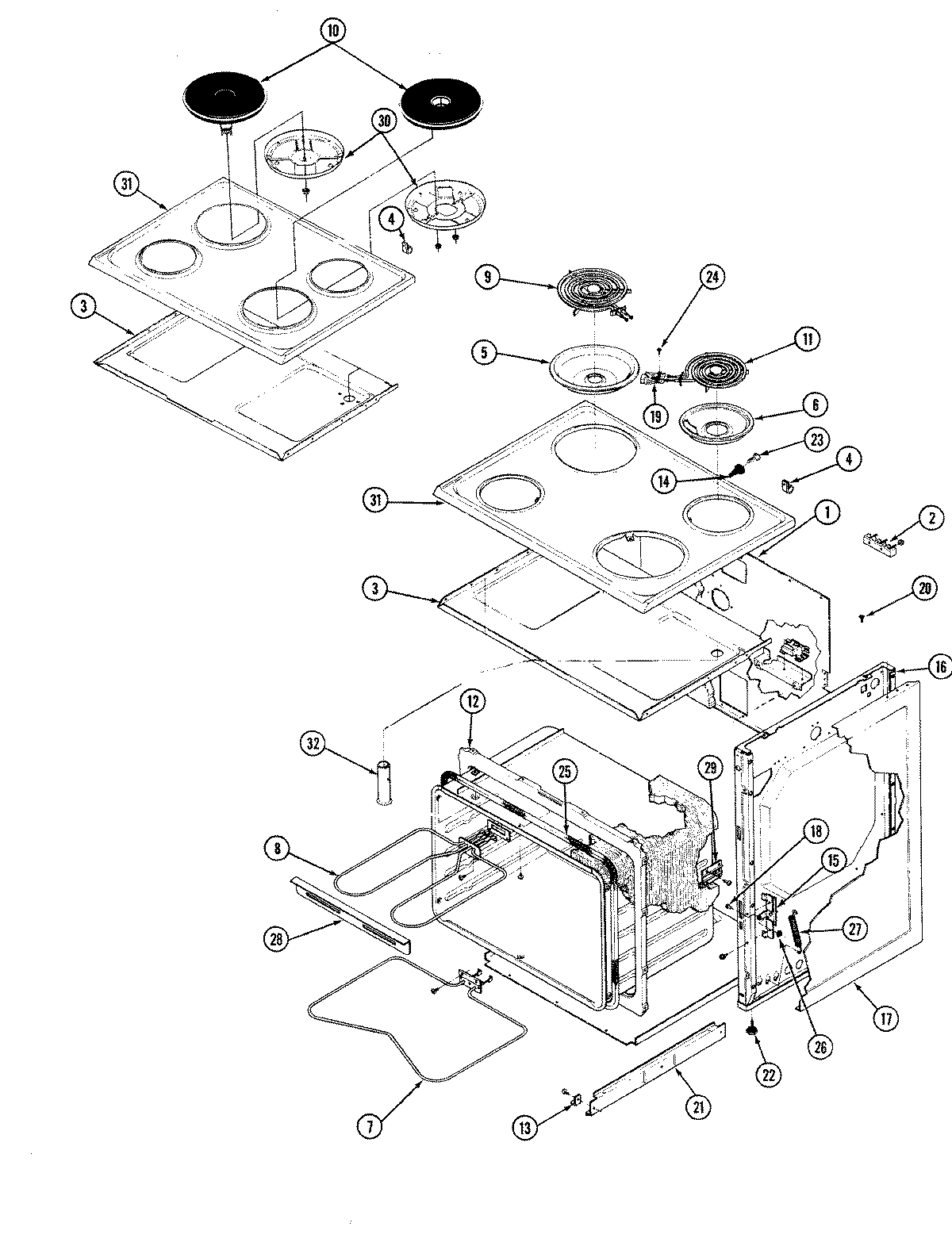

01 - BODY

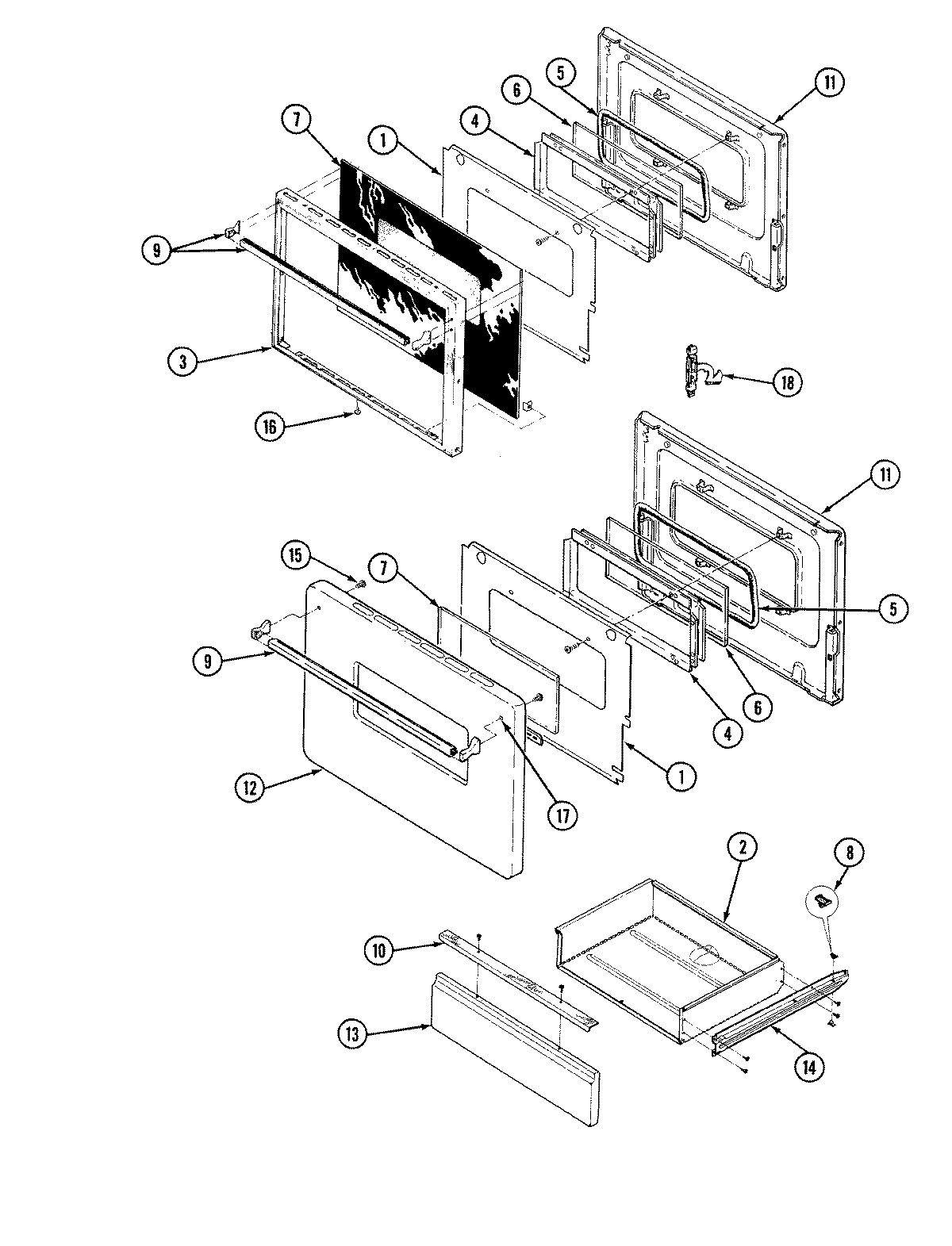

03 - DOOR
Common parts from model Whirlpool 35HA-1 ELECTRIC RANGE
1
COVER, BKGD WIRE WPL 4005F25280 Contact Us For Availability
1
KNOB WPL 7739P02560 Contact Us For Availability
1
BACK, MAIN WPL 4002F09280 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
KNOB WPL 7737P02160 Contact Us For Availability
3
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
3
BRACE WPL 3802F00380 Contact Us For Availability
3
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
3
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
3
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
4
SHIELD WPL 4005F01380 Contact Us For Availability
4
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
5
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
5
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
+ BACKGUARD PANEL WPL 2601W13484 Contact Us For Availability
6
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
6
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
7
SUPPORT WPL 3807F01080 Contact Us For Availability
7
SUPPORT WPL 3807F01280 Contact Us For Availability
7
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
8
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P16860 Contact Us For Availability
9
ELEMENT, GIANT SURFACE WPL 7406P01460 Contact Us For Availability
9
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
THERMOSTAT WPL 7404P02960 Contact Us For Availability
10
TRIM, BKGD WPL 7703P19260 Contact Us For Availability
10
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
11
ELEMENT, STD. SURFACE WPL 7406P01760 Contact Us For Availability
11
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
12
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
12
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
13
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
14
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
15
INSERT WPL 3413F00211 Contact Us For Availability
15
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
15
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
15
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
16
PAN, BROIL WPL 3401F00411 Contact Us For Availability
16
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
16
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
16
SEAL WPL 1726252 Contact Us For Availability
16
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
17
SPRING WPL 7803P00260 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
18
RACK, OVEN WPL 7801P03060 Contact Us For Availability
18
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
18
STRAP WPL 8019P00260 Contact Us For Availability
19
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
20
RIVET WPL 7107P01760 Contact Us For Availability
21
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
21
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
22
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
23
SCREW, TOP HINGE WPL 1986339 Contact Us For Availability
23
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
25
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
26
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
28
SUPPORT WPL 3807F17613 Contact Us For Availability
29
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
31
TOP ASSY, MAIN A WPL 2002W02804 Contact Us For Availability
32
GLIDE WPL 8016P00360 Contact Us For Availability
33
MANUAL, USE & CARE WPL 8110P02860 Contact Us For Availability
× ![]()
