Model Whirlpool 3527WUV ELECTRIC RANGE – Common Parts & Diagrams

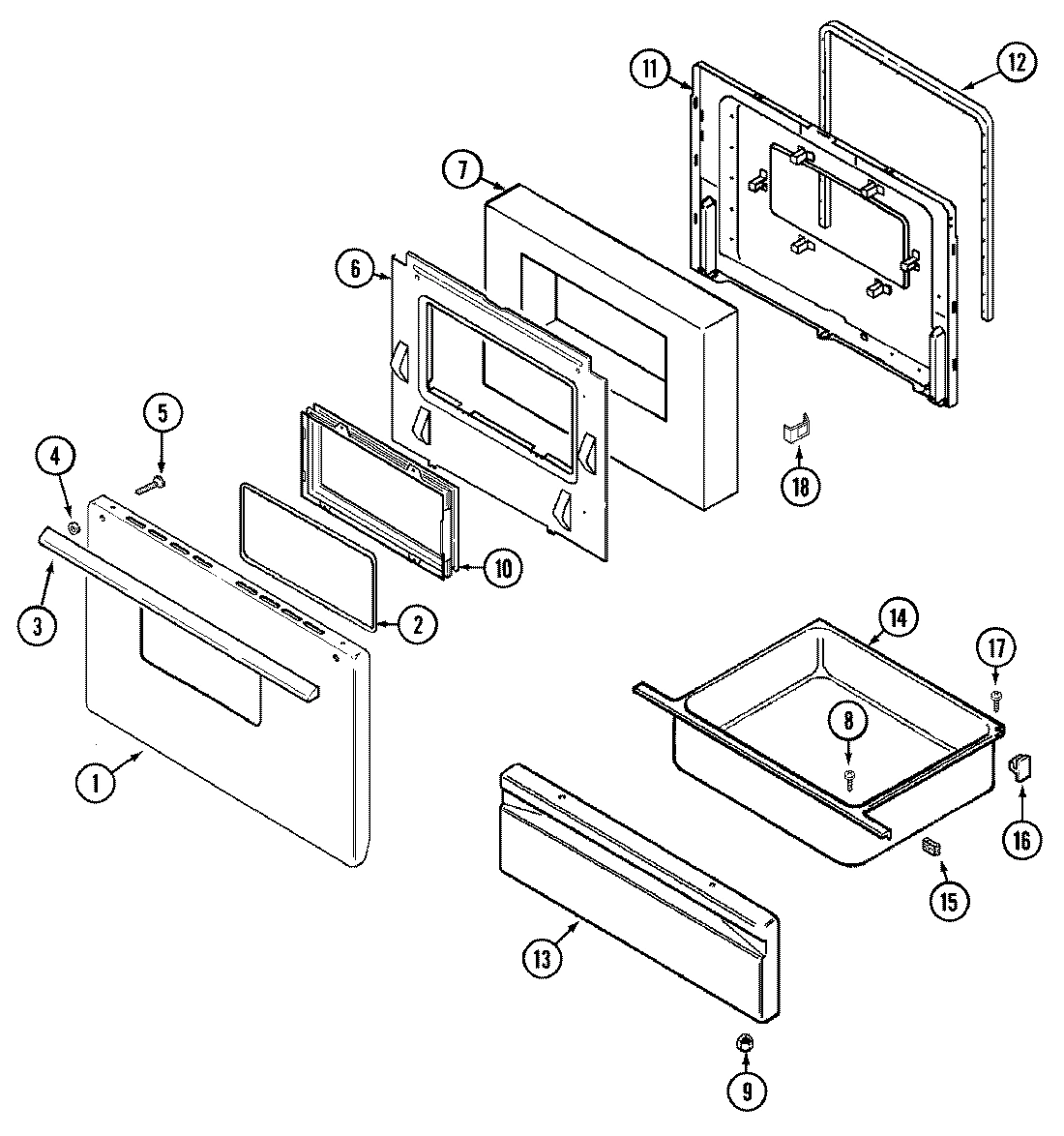

04 - DOOR/DRAWER (3527WUV)

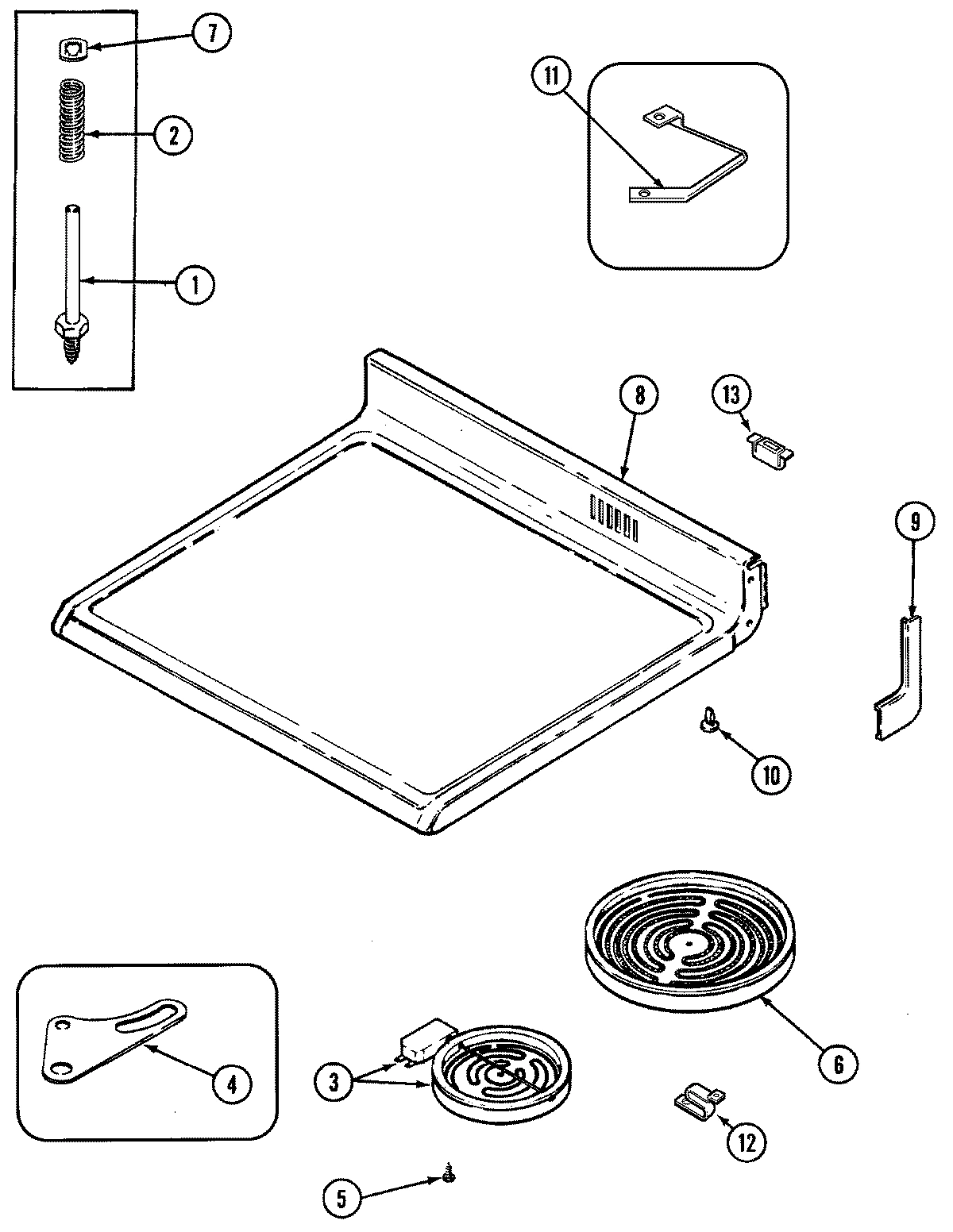

06 - TOP ASSEMBLY

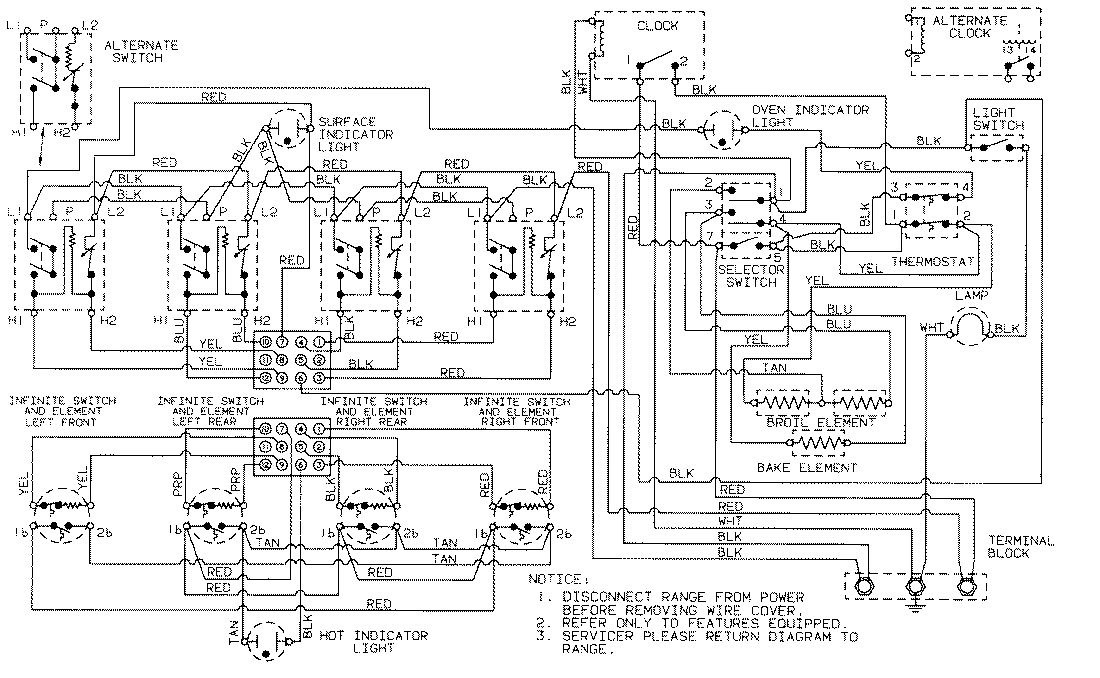

07 - WIRING INFORMATION

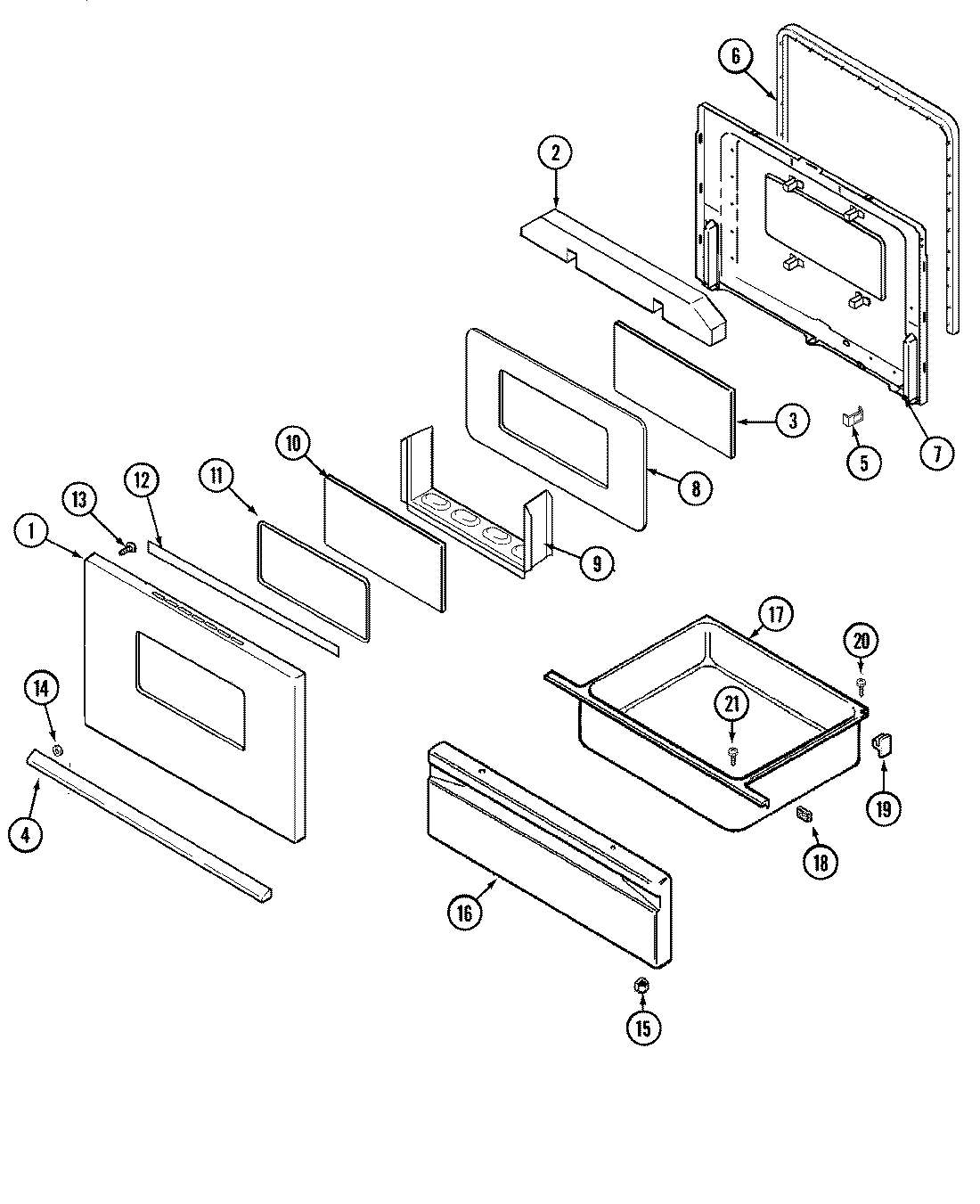

03 - DOOR/DRAWER (3527WUx SERIES 28)

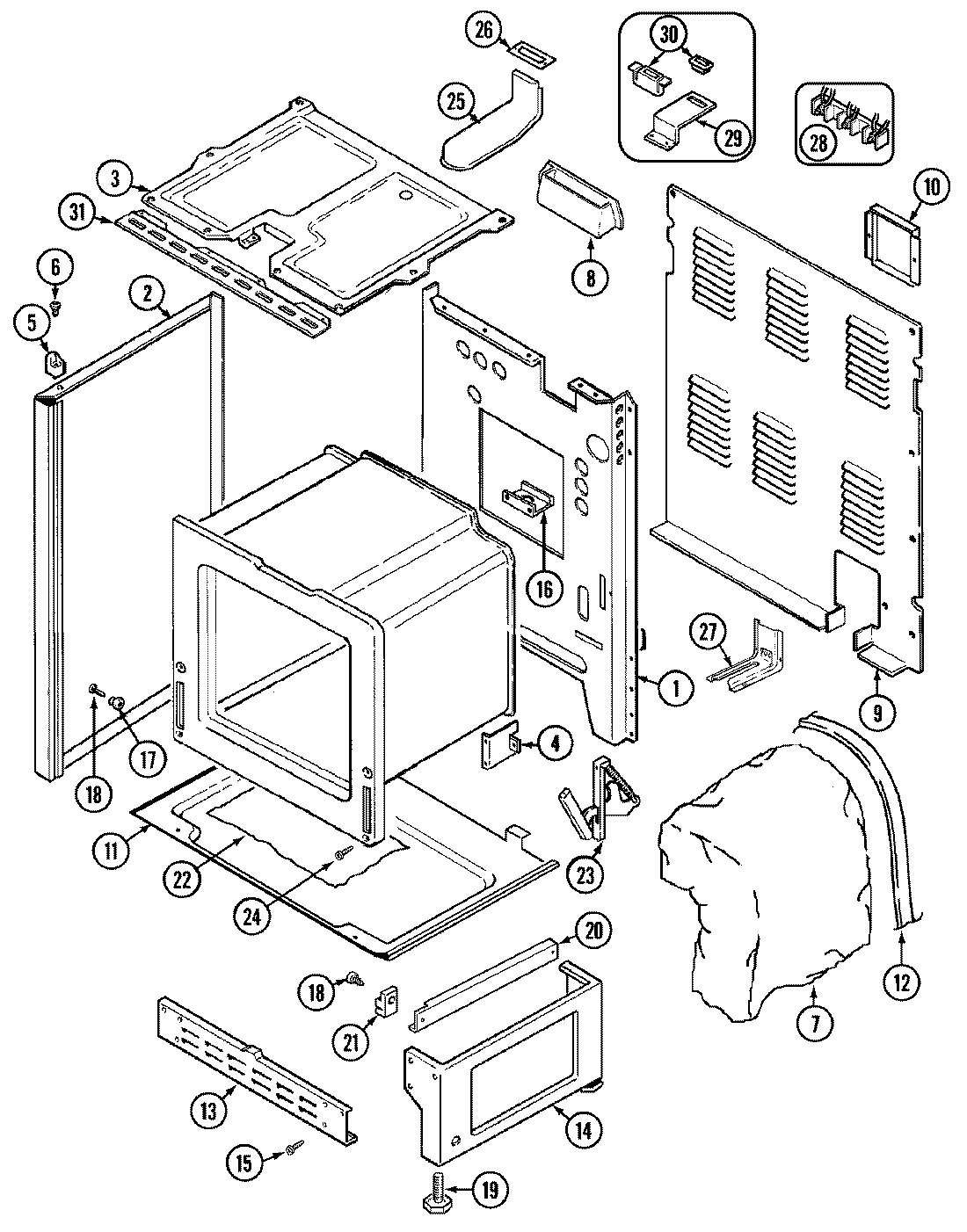

01 - BODY

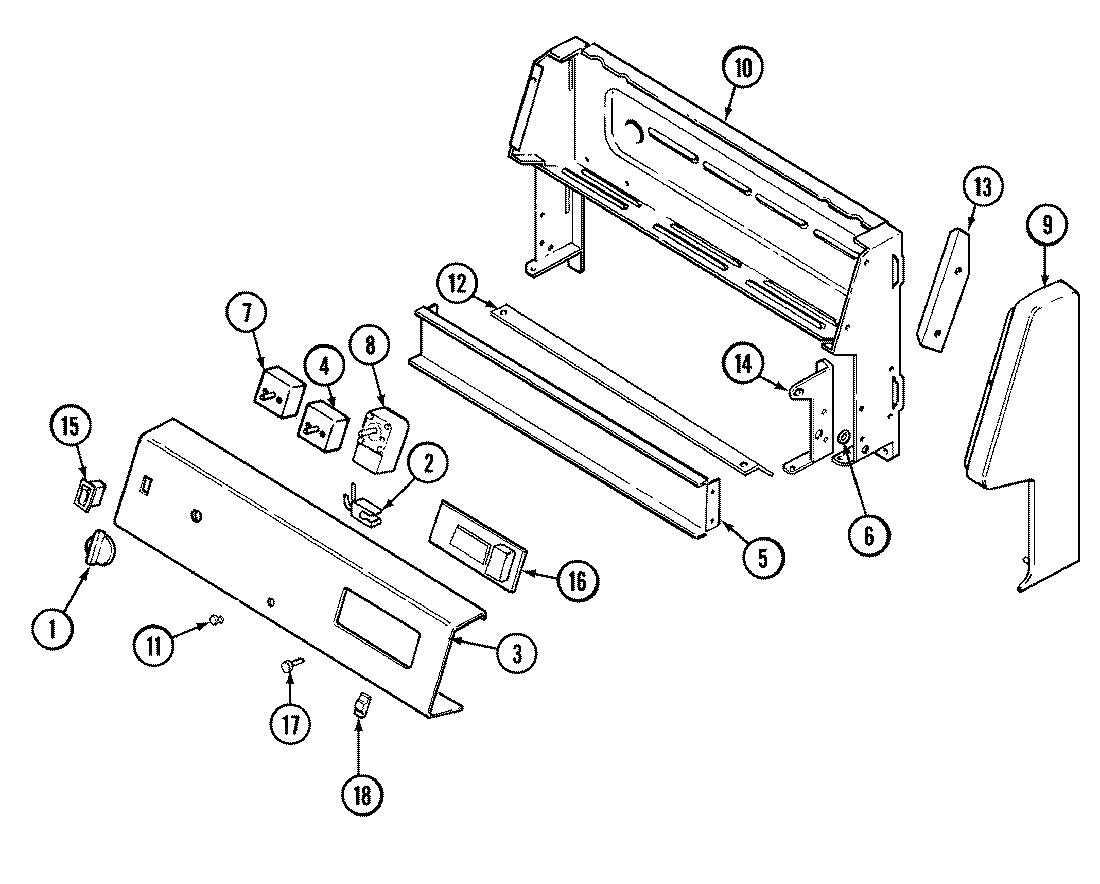

02 - CONTROL PANEL

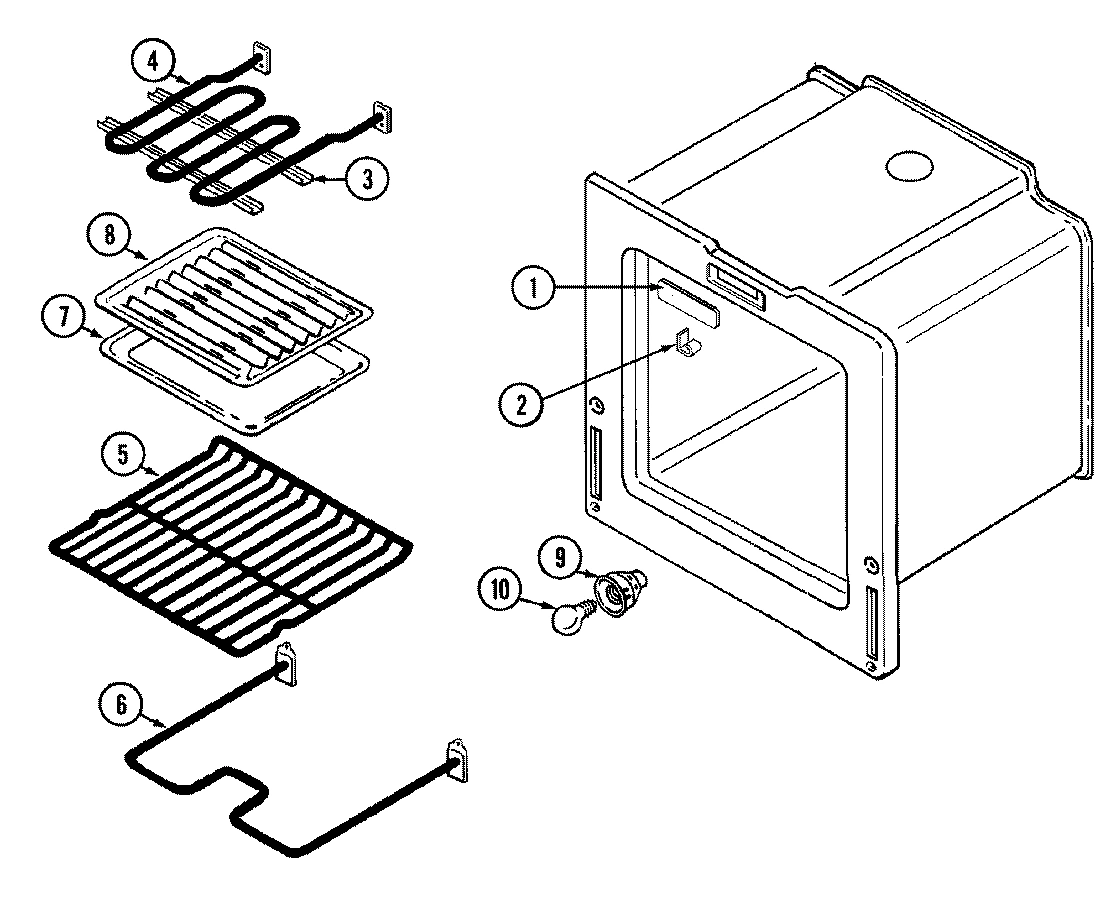

05 - OVEN
Common parts from model Whirlpool 3527WUV ELECTRIC RANGE
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 74001341 Contact Us For Availability
1
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
1
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
INSULATION, DOOR WPL 74002458 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW WPL 7101P30060 Contact Us For Availability
3
PANEL, CONTROL----NA WPL 4876S04659 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
5
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
6
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
NUT, SPEED WPL 7103P04460 Contact Us For Availability
6
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
LINING, DOOR WPL 74002460 Contact Us For Availability
7
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
7
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
SCREW WPL 7101P29160 Contact Us For Availability
8
TOP ASSY. (WHT GLASS/WHT FRM) WPL 5706S07981 Contact Us For Availability
8
TOP, MAIN (WHT GLASS/WHT TOP) WPL 74003088 Contact Us For Availability
8
SCREW WPL 7101P20960 Contact Us For Availability
8
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
8
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
THERMOSTAT WPL 7404P10560 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
9
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability
9
COVER, WIRE WPL 4005F45551 Contact Us For Availability
9
SCREW WPL 7101P31860 Contact Us For Availability
9
END CAP (RT-WHT) WPL 7726P08960 Contact Us For Availability
9
END CAP (LT-WHT) WPL 7726P09060 Contact Us For Availability
9
END CAP (RT-WHT) WPL 7726P09760 Contact Us For Availability
9
END CAP (LT-WHT)----NA WPL 7726P09860 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
GLASS ASY. WPL 7907P02260 Contact Us For Availability
10
GLIDE WPL 8016P01360 Contact Us For Availability
10
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
10
GLASS, DOOR (OUTER-WHT) WPL 74002464 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
11
LINING, DOOR WPL 2402W20319 Contact Us For Availability
11
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
13
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
13
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
14
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
14
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
14
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
14
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
CLOCK WPL 7602P10460 Contact Us For Availability
17
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
BUTTON, SET (WHT) WPL 7711P47360 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
HARNESS, LOOSE WIRE WPL 5125A31560 Contact Us For Availability
18
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
18
BUTTON, SLIDE (WHT)----NA WPL 7711P47260 Contact Us For Availability
19
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
19
LEG, LEVELING WPL 74001311 Contact Us For Availability
19
MANUAL, USE & CARE WPL 8113P00260 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
HINGE WPL 7106P05560 Contact Us For Availability
24
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
25
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
26
SEAL, VENT WPL 7212P03660 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
30
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
30
LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability
31
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002238 Contact Us For Availability
× ![]()
