Model Whirlpool 3510KPA ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN

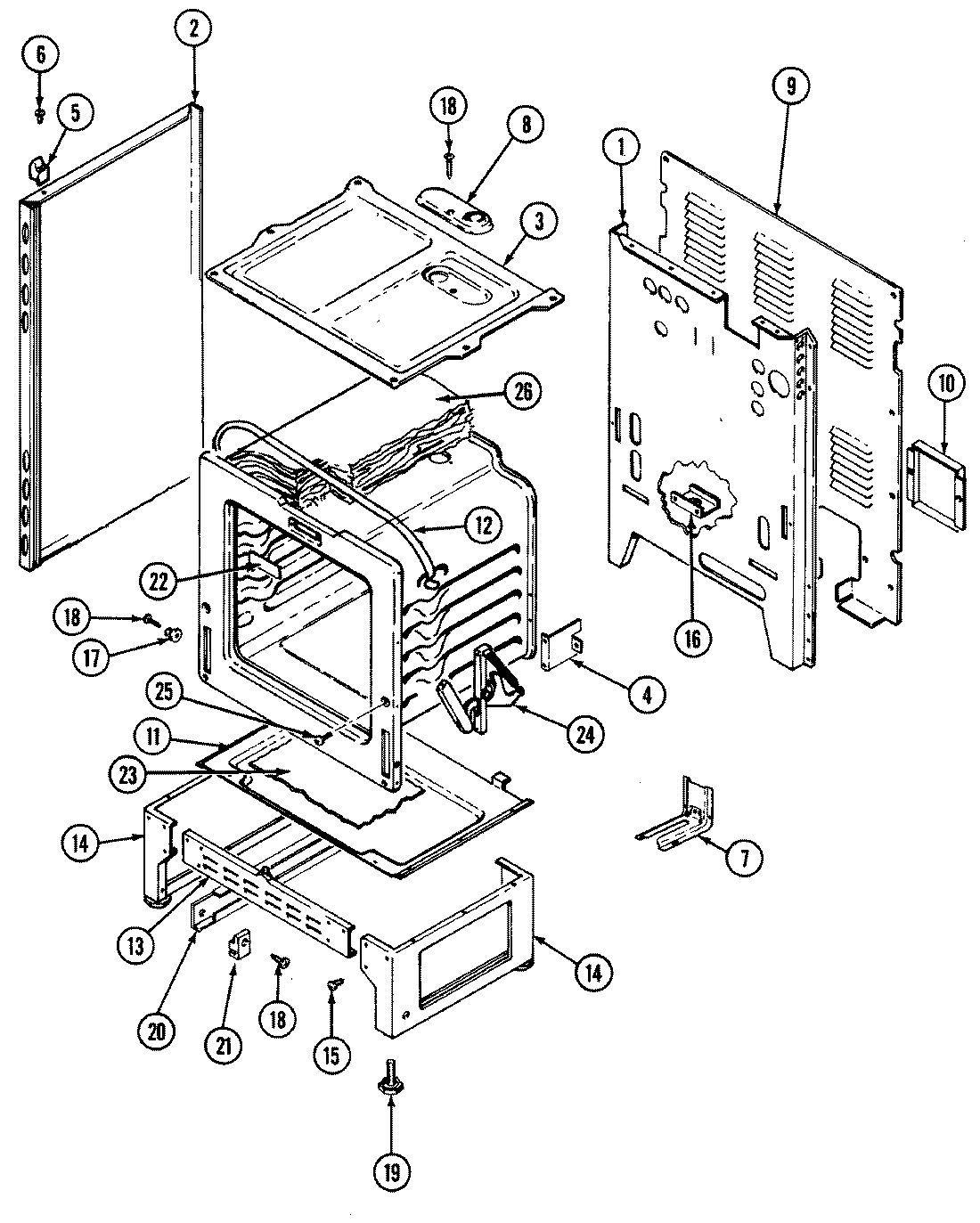

01 - BODY

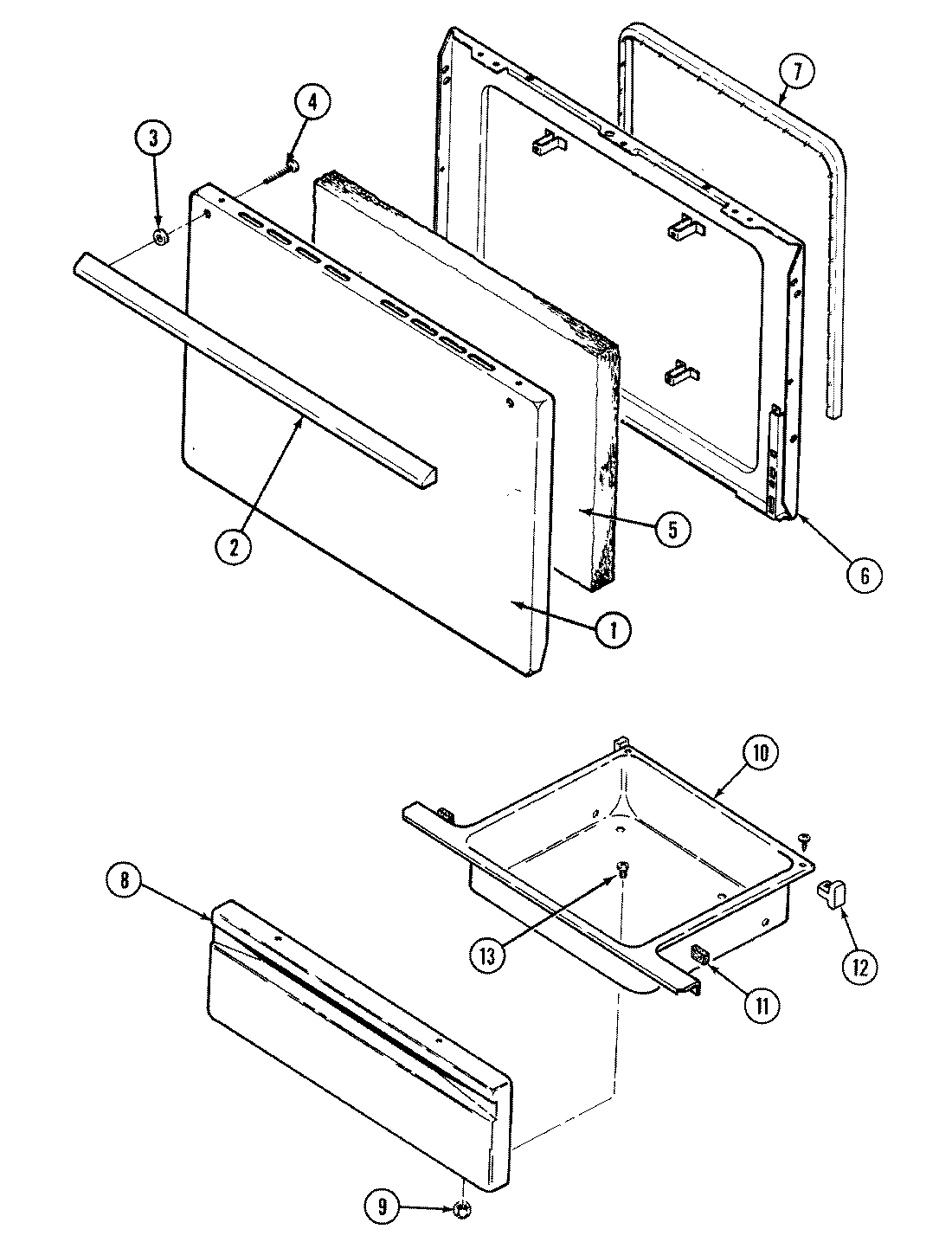

03 - DOOR/DRAWER

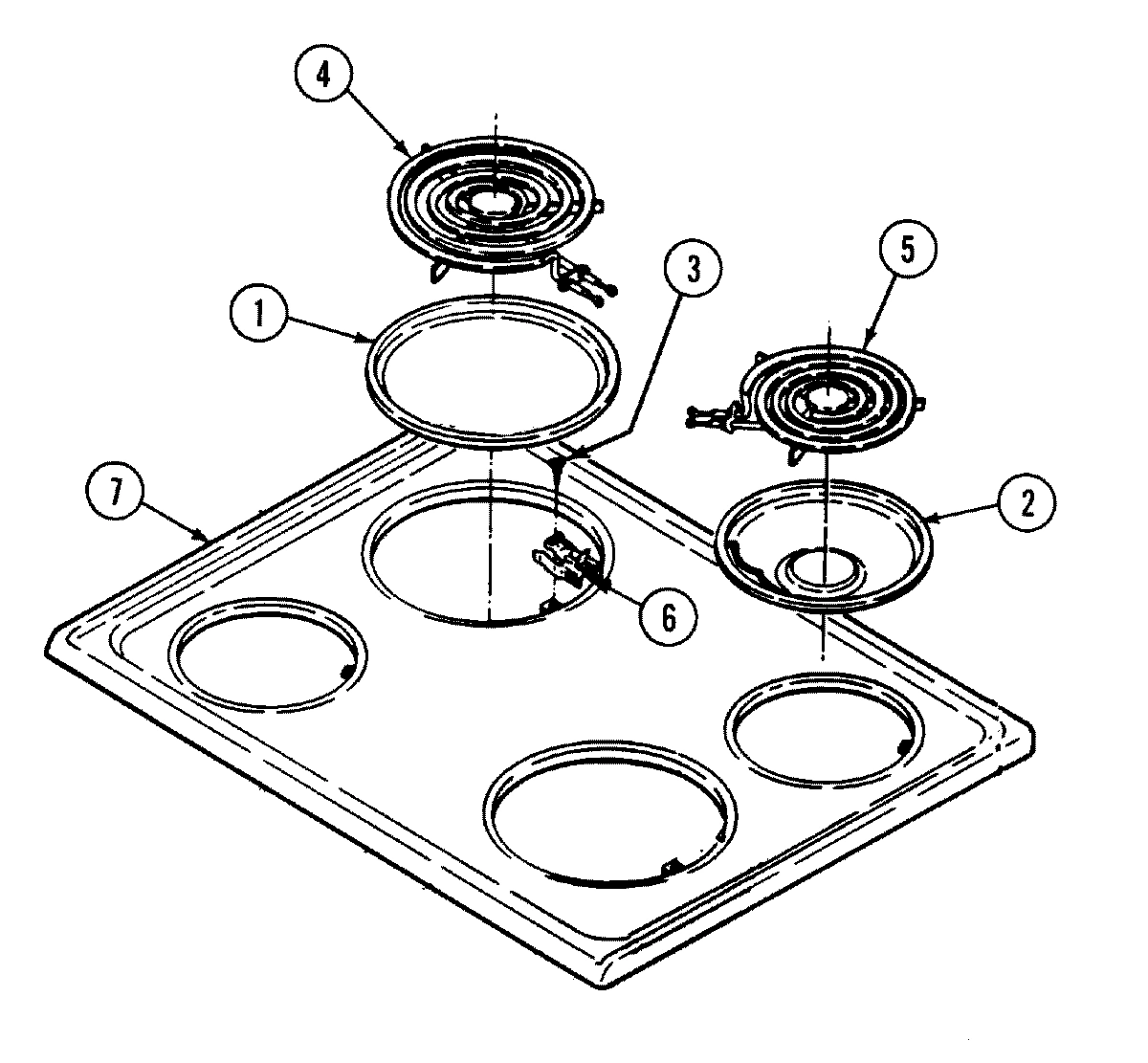

05 - TOP ASSEMBLY/CONTROL PANEL/BACKGUARD

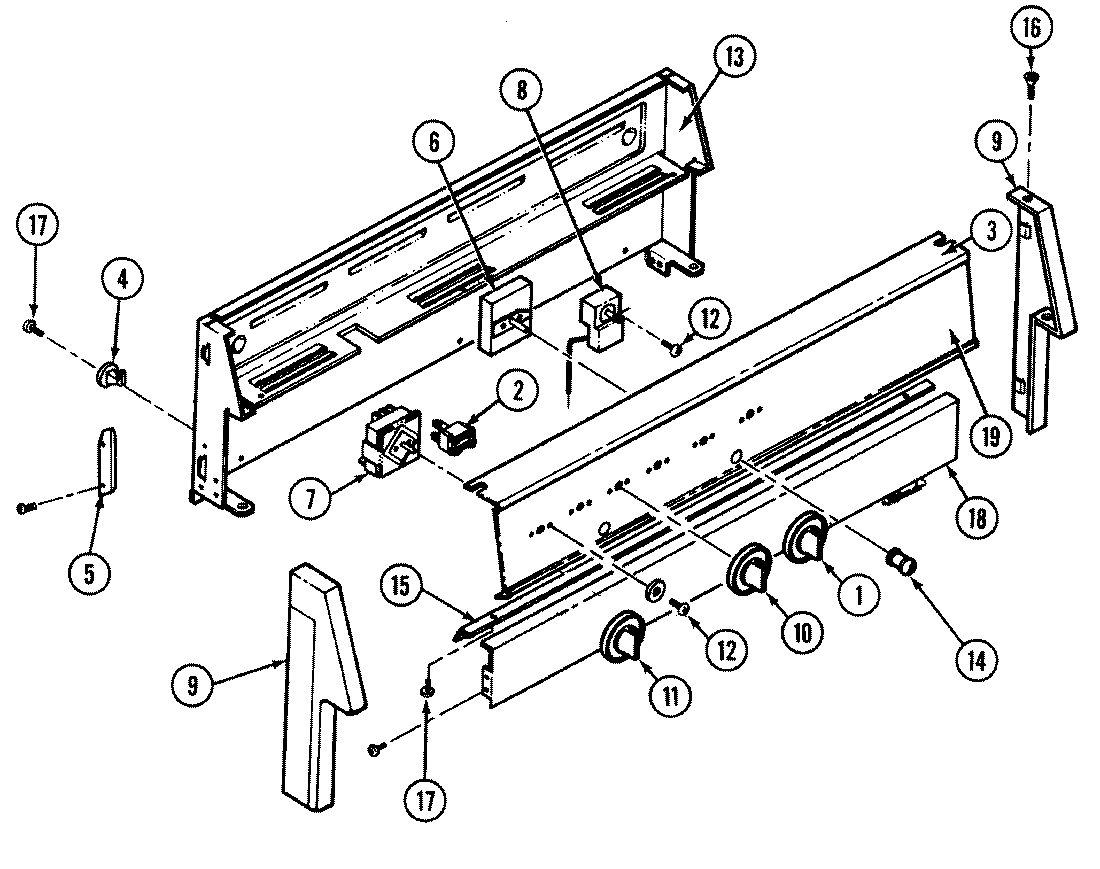

02 - CONTROL PANEL-BACKGUARD
Common parts from model Whirlpool 3510KPA ELECTRIC RANGE
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
1
PANEL, DOOR (BLK) WPL 2401F09670 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
1
KNOB, THERMOSTAT WPL 7735P03160 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
PANEL, BACKGUARD WPL 2601F40684 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
4
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
LINING, DOOR WPL 2402W18719 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07484 Contact Us For Availability
7
BRACE WPL 3802F08580 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
8
PANEL, ACCESS (ALM) WPL 2416F04274 Contact Us For Availability
8
BRACKET, PANEL WPL 3801F25751 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SCREW WPL 7101P03260 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06960 Contact Us For Availability
9
TRIM, END CAP WPL 7726P07060 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
10
KNOB SELECTOR WPL 7739P03760 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
11
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
12
SCREW WPL 7101P30960 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
SCREW WPL 7101P29160 Contact Us For Availability
13
HOUSING WPL 4001F08551 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
16
MANUAL, USE & CARE WPL 8113P00160 Contact Us For Availability
16
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
18
PANEL, BACKSPLASH (ALM) WPL 2612F03684 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability
21
HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability
22
COVER LOCK SET WPL 8114P32360 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
× ![]()
