Model Whirlpool 3500PPA ELECTRIC RANGE – Common Parts & Diagrams

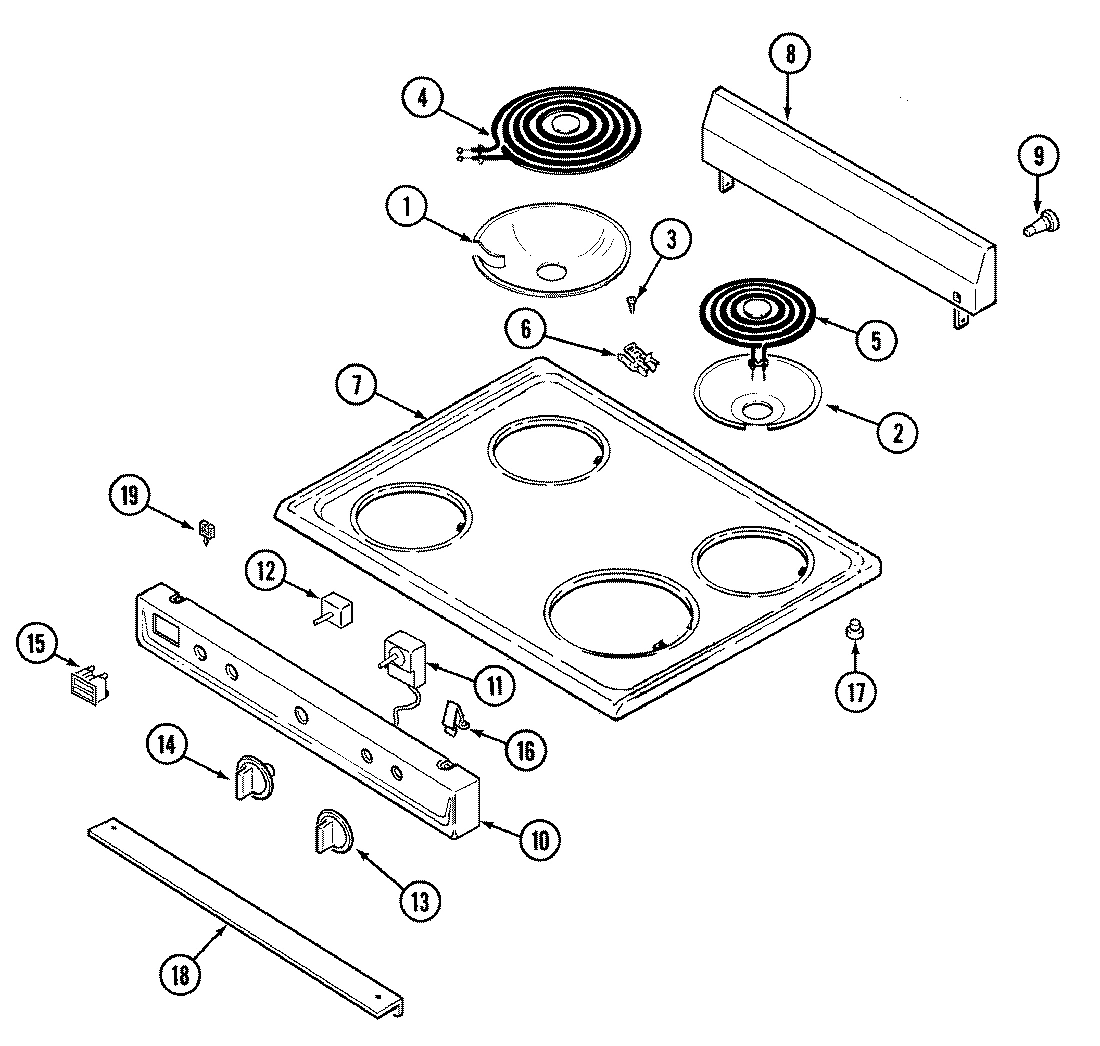

03 - TOP ASSEMBLY/CONTROL PANEL
05 - WIRING INFORMATION

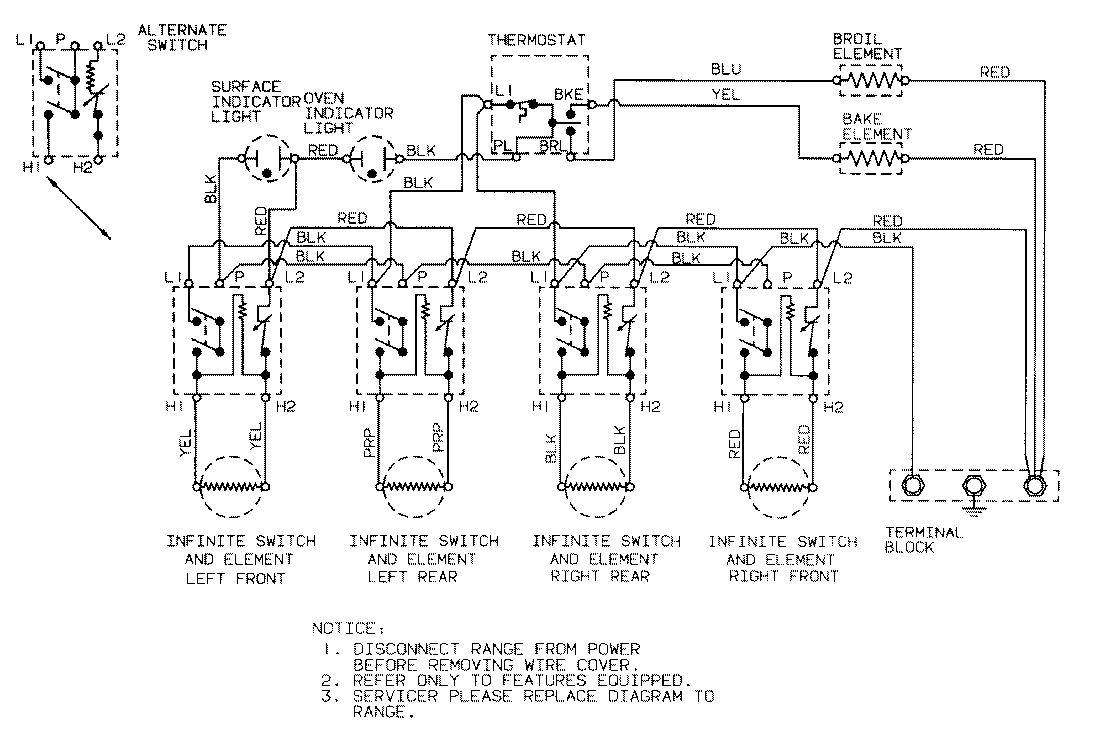

04 - WIRING INFORMATION

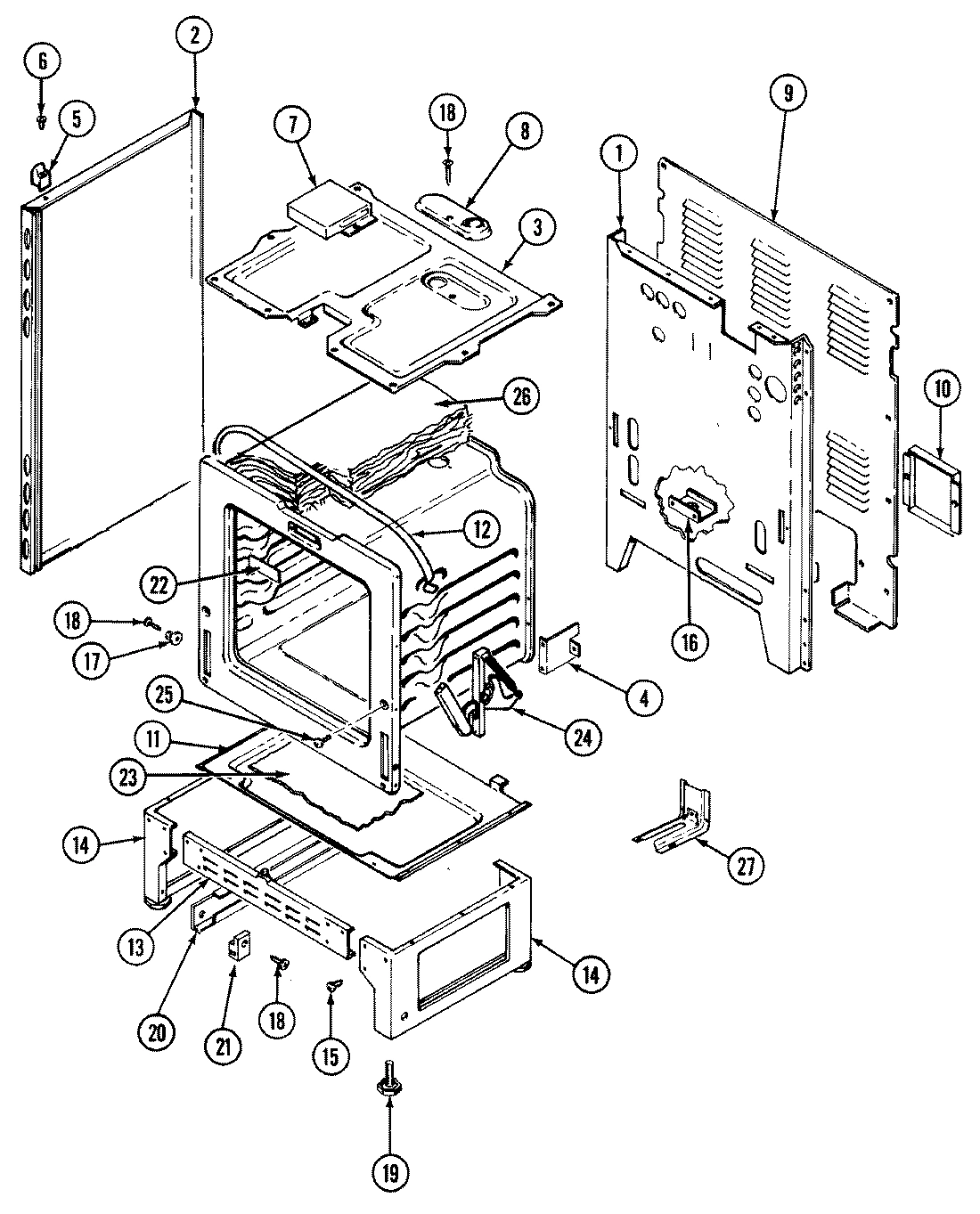

01 - BODY

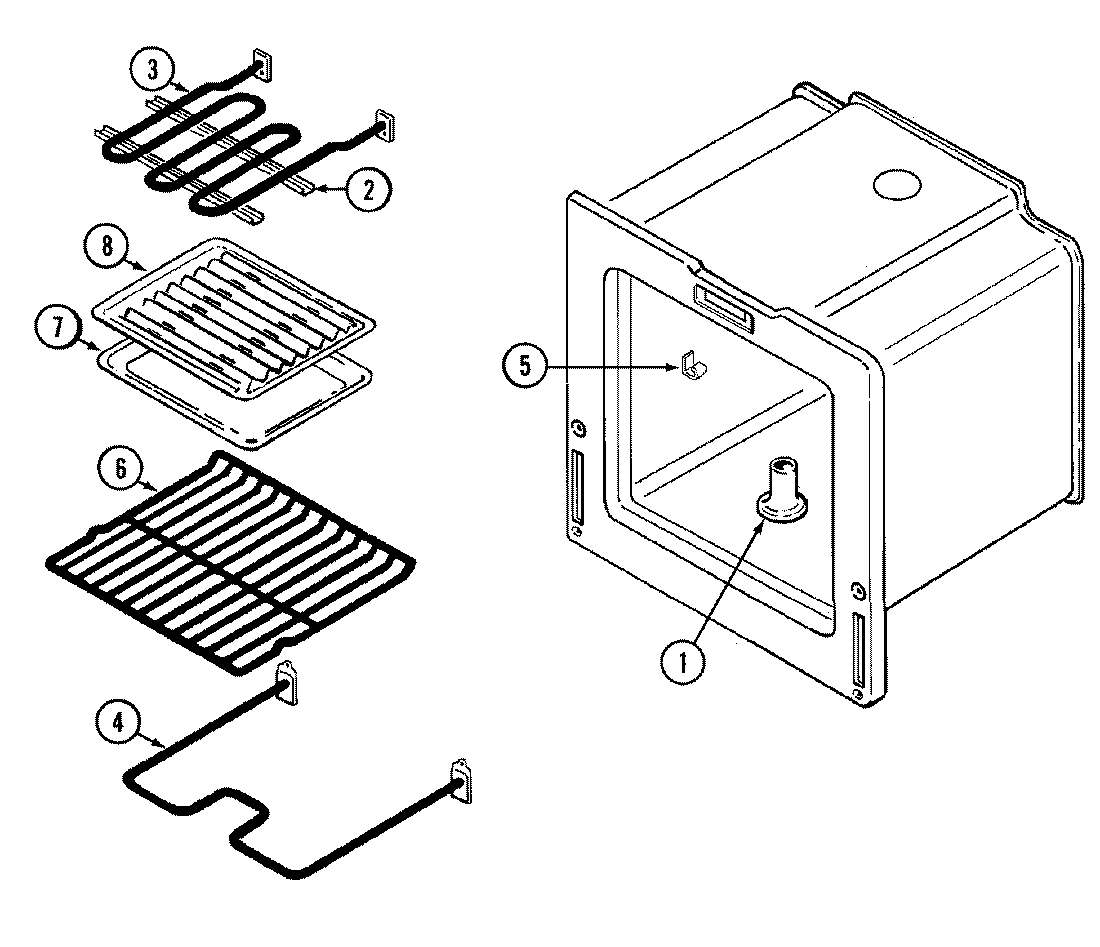

02 - OVEN
Common parts from model Whirlpool 3500PPA ELECTRIC RANGE
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
1
TUBE, VENT WPL 8026P02060 Contact Us For Availability
2
BOWL, DRIP (W/HOLE) WPL 7725P00760 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07484 Contact Us For Availability
7
COVER WPL 4005F39751 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
PANEL, BACKGUARD (ALM) WPL 2601F36074 Contact Us For Availability
8
BRACKET, CONTROL PANEL (RT) WPL 3801F24251 Contact Us For Availability
8
BRACKET, CONTROL PANEL (LT) WPL 3801F24351 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
COVER, MAIN WIRE WPL 4005F38751 Contact Us For Availability
10
PANEL, CNTL. WPL 2614F03009 Contact Us For Availability
10
BRACKET, CNTL. PANEL WPL 3801F25151 Contact Us For Availability
10
PANEL, CONTROL (BLK) WPL 74003401 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
11
THERMOSTAT WPL 74003267 Contact Us For Availability
11
THERMOSTAT WPL 7404P08560 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
12
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
13
KNOB, THERMOSTAT WPL WP74003280 No Longer Available
13
KNOB, THERMOSTAT WPL 7735P03360 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
14
SIDE PEDESTAL WPL 4020F00380 Contact Us For Availability
14
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
16
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
BRACE WPL 3802F08580 Contact Us For Availability
18
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
19
CLIP WPL 7112P02960 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
HARNESS, CONTROL PANEL WPL 5170D13060 Contact Us For Availability
20
HARNESS, COOKTOP WPL 5175D05360 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P00160 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
COVER LOCK SET WPL 8114P32360 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002207 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001148 Contact Us For Availability
× ![]()
