Model LG 34UB67-B – Common Parts & Diagrams

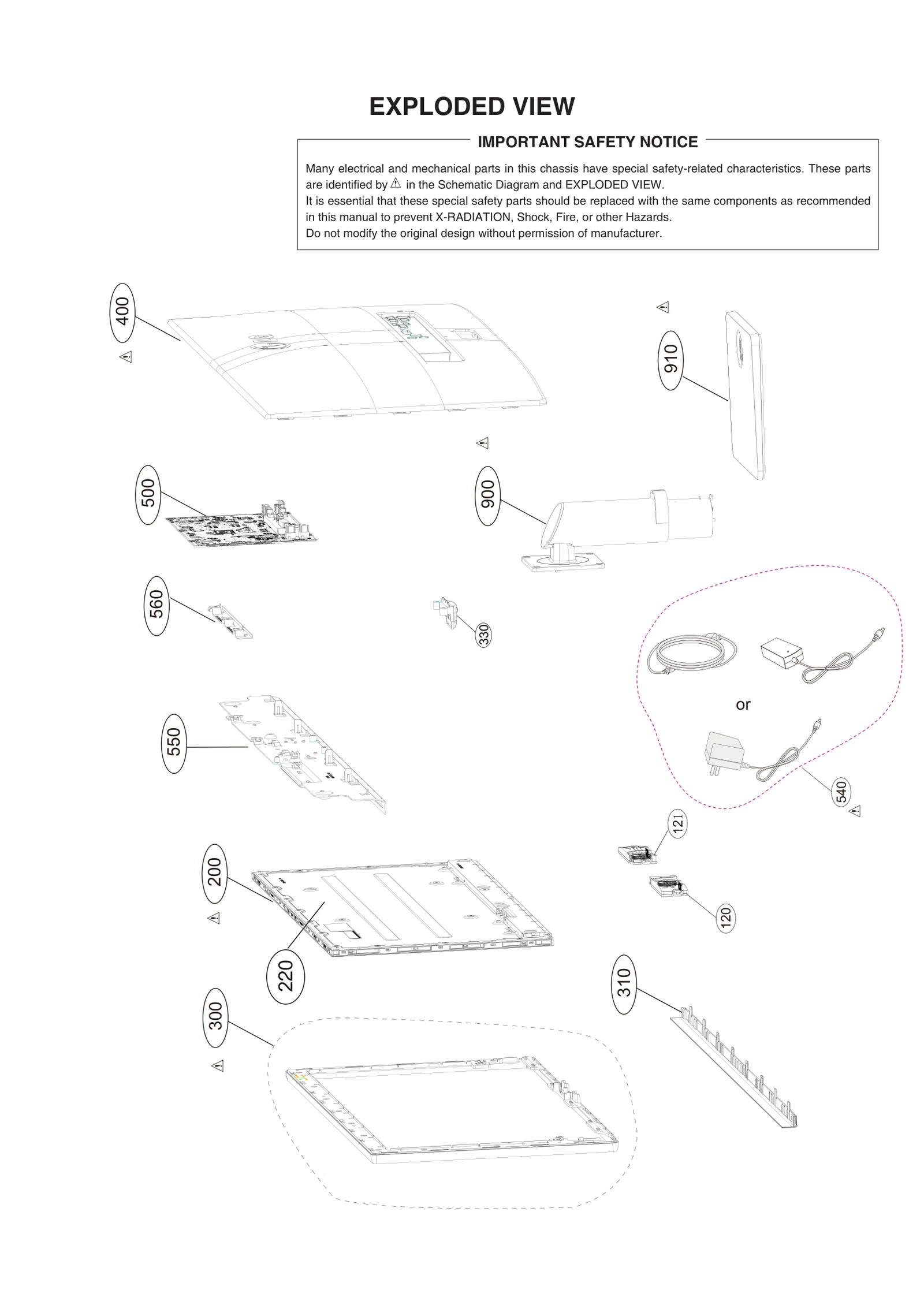

Diagram 0
Diagram 1
Common parts from model LG 34UB67-B
121
Speaker Assembly LGE EAB63049401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ64611201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63850701 Contact Us For Availability
220
Back Light Assembly LGE EBV62639501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74167615 Contact Us For Availability
310
Cover Assembly LGE ACQ86810218 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR80544301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86810382 Contact Us For Availability
500
BPR Total Assembly LGE EBU63229502 Contact Us For Availability
550
Plate Assembly LGE AGU74388026 Contact Us For Availability
560
Plate,Metal LGE MGJ63366302 Contact Us For Availability
900
Base Assembly LGE AAN75129102 Contact Us For Availability
910
Base Assembly LGE AAN75108801 Contact Us For Availability
920
Package Assembly LGE AGF76629823 Contact Us For Availability
A1
Manual Assembly LGE AFN77445321 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE MBM65637108 Contact Us For Availability
A6
Cable,Assembly LGE EAD61273120 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE 3840TWL001S Contact Us For Availability
A11
Card LGE MBM65386401 Contact Us For Availability
C10
Harness,Single LGE EAD61729410 Contact Us For Availability
C11
Harness,Single LGE EAD61729403 Contact Us For Availability
LV1
Cable,FFC LGE EAD63326003 Contact Us For Availability
LV2
Cable,FFC LGE EAD63325903 Contact Us For Availability
× ![]()
