Model Whirlpool 34MA-3TKXW GAS RANGE – Common Parts & Diagrams

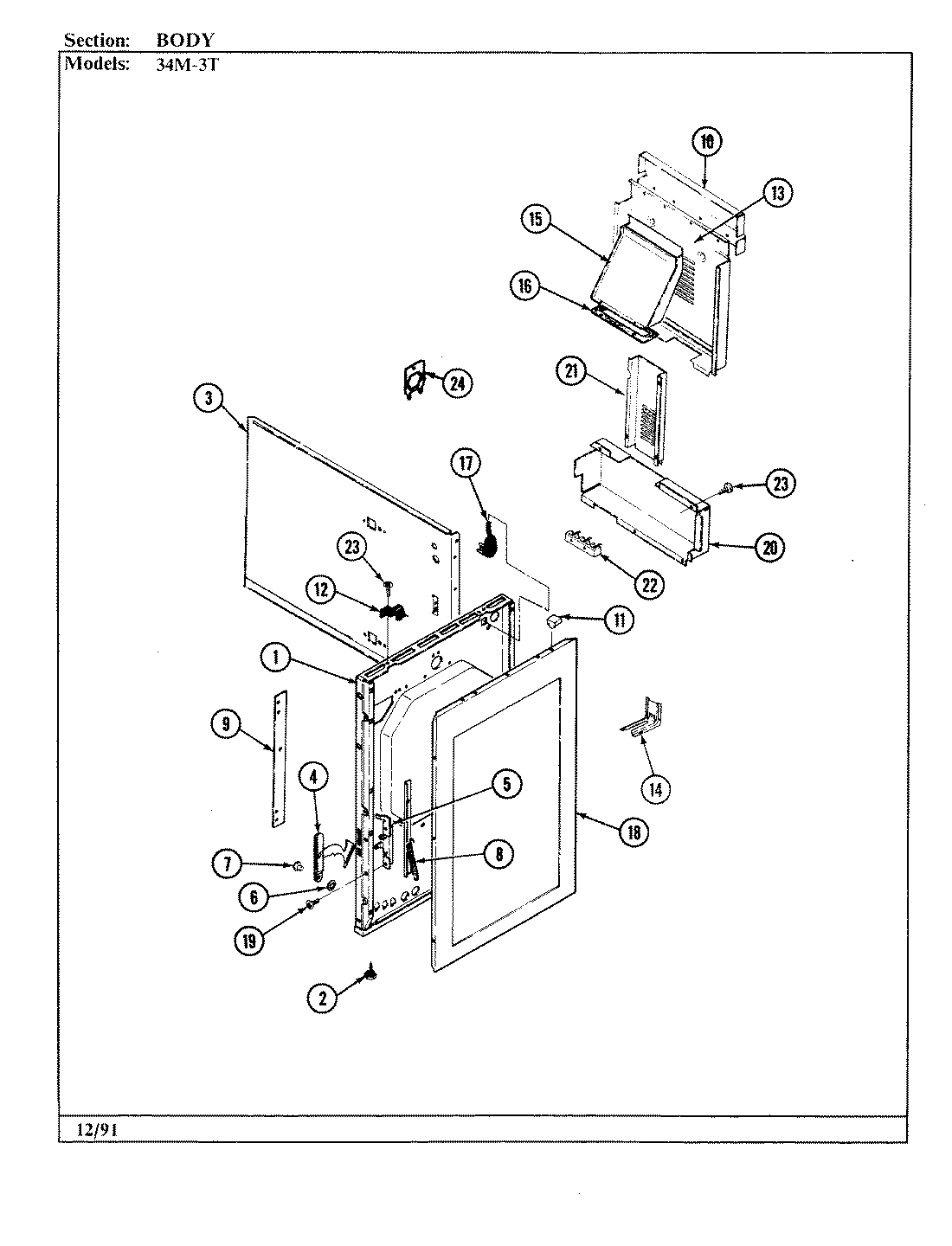

01 - BODY

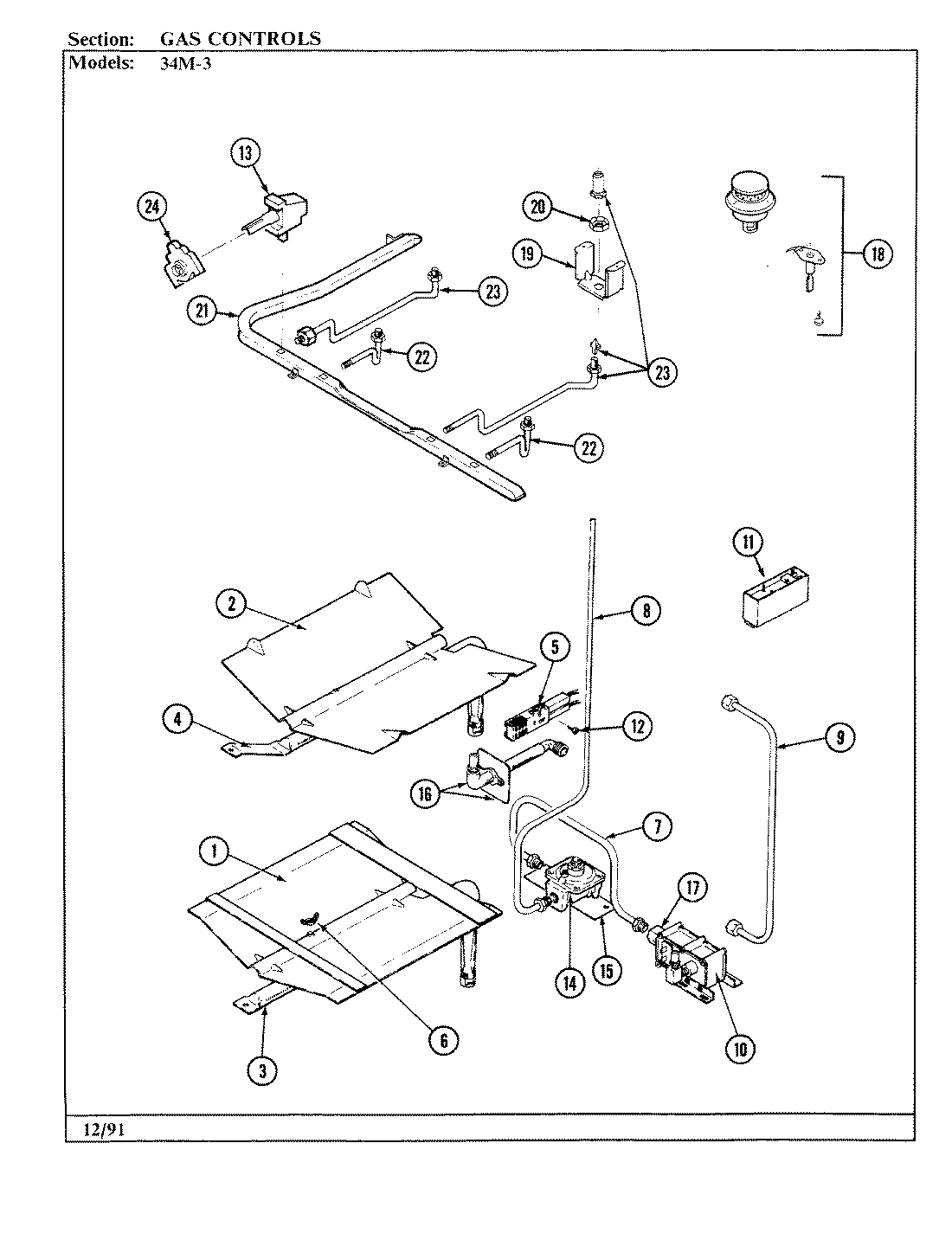

04 - GAS CONTROLS

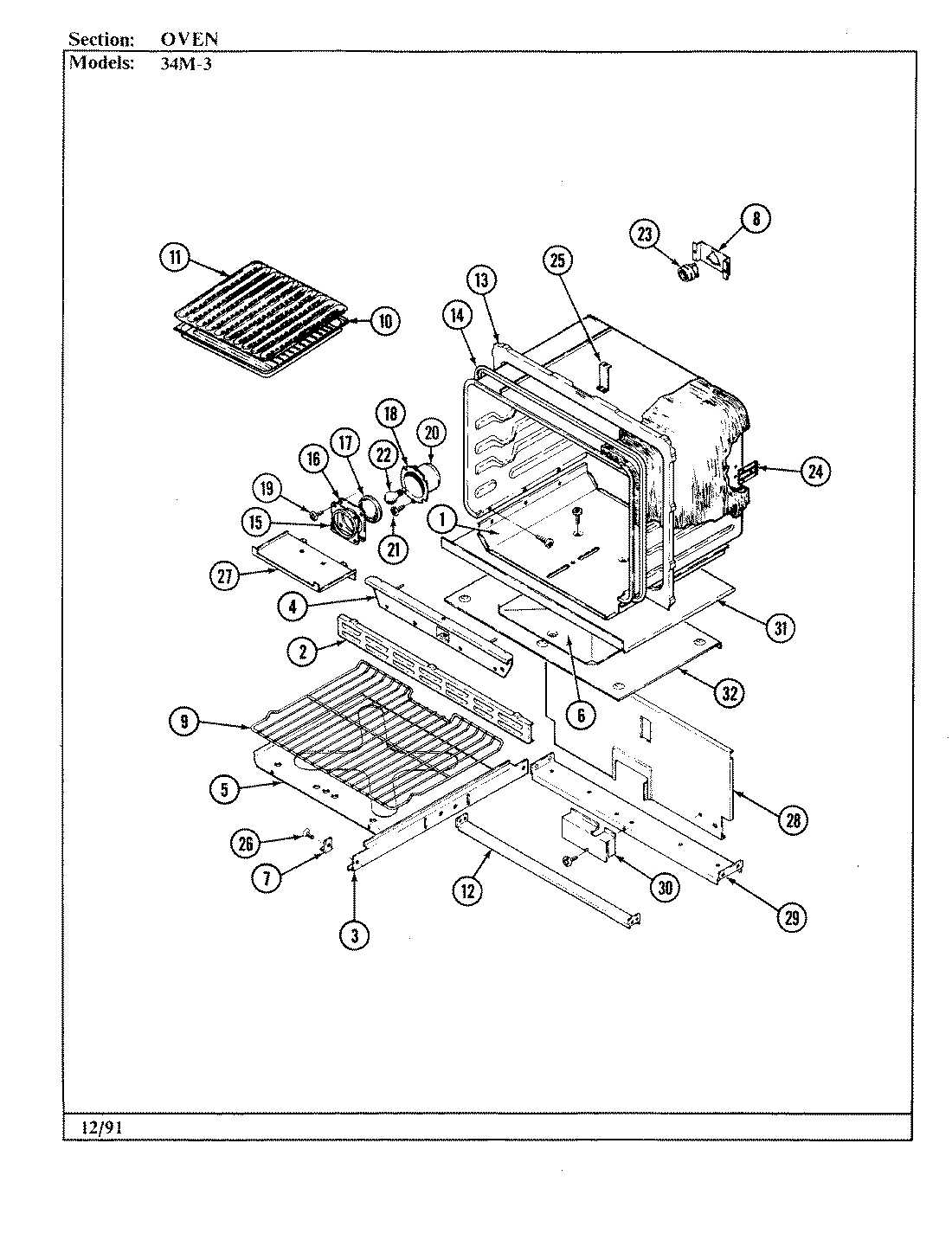

06 - OVEN

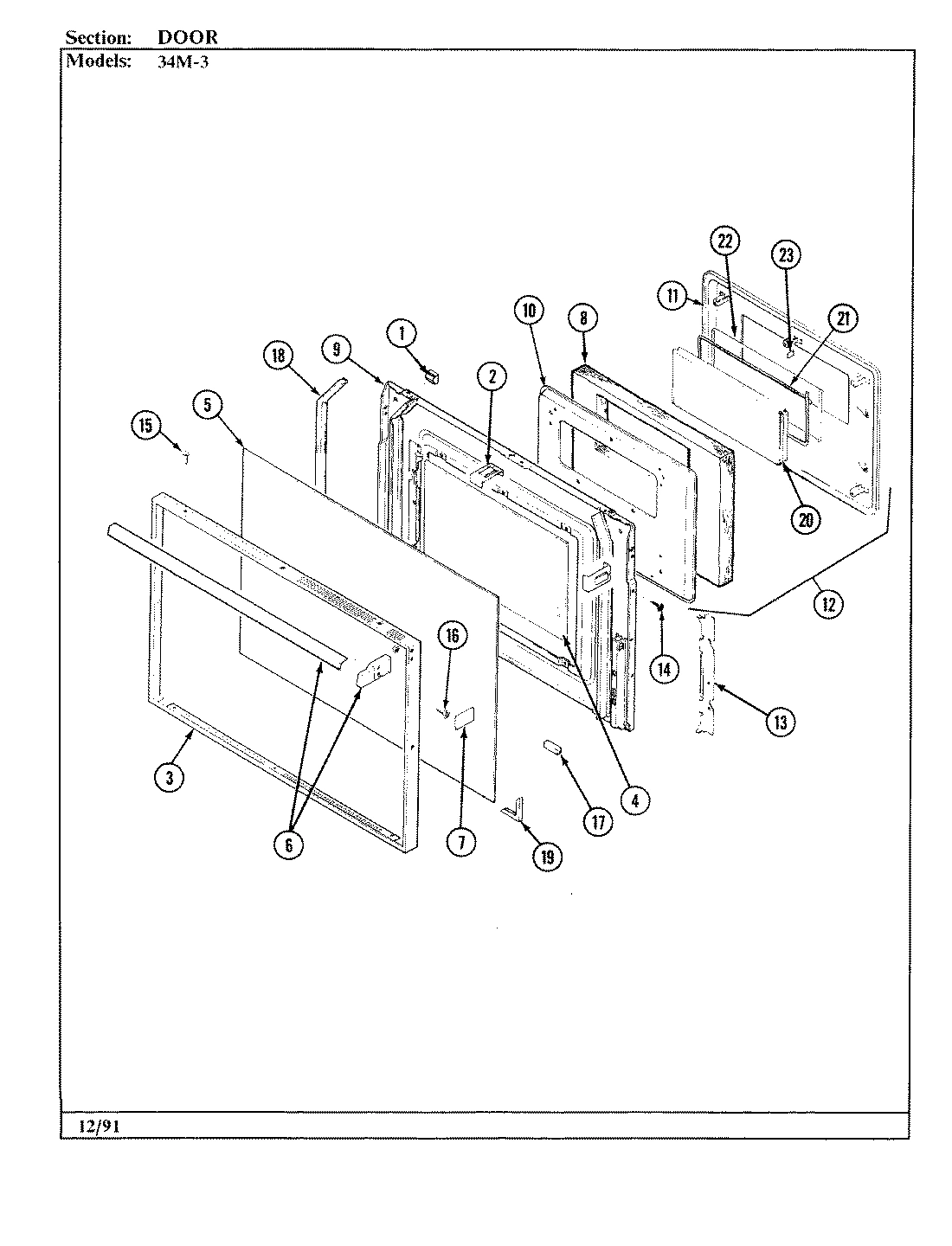

03 - DOOR

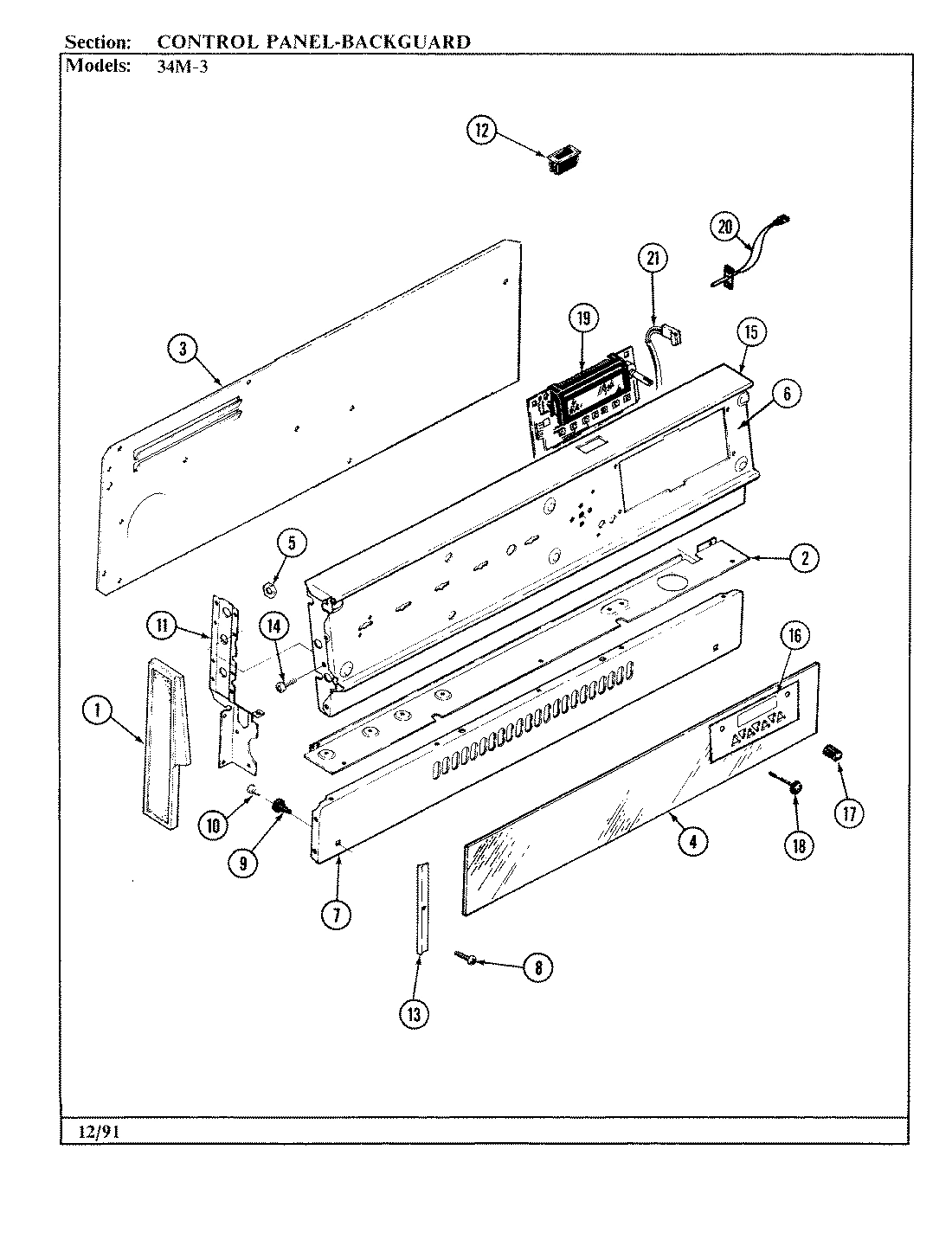

02 - CONTROL PANEL

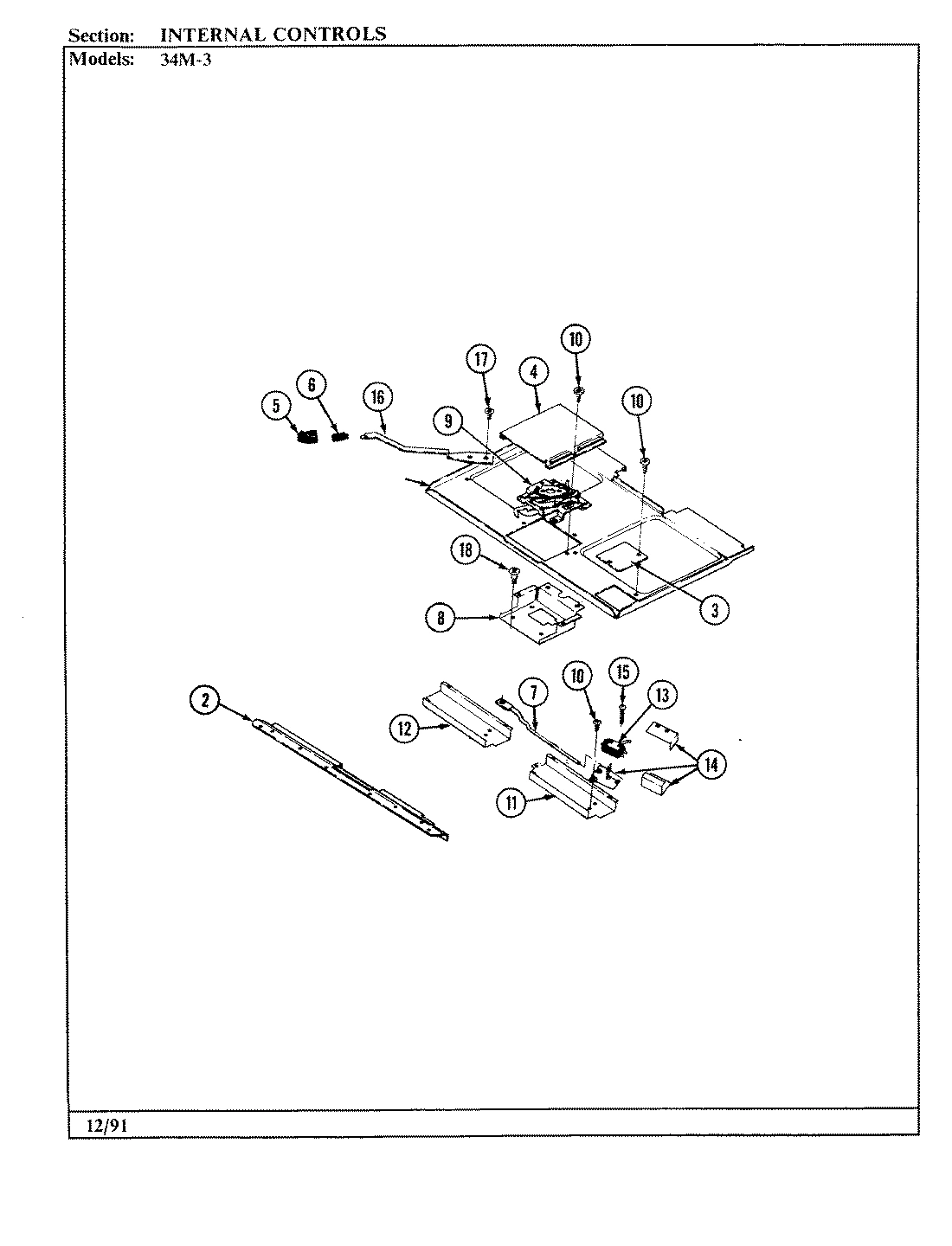

05 - INTERNAL CONTROLS
Common parts from model Whirlpool 34MA-3TKXW GAS RANGE
1
LINING, ASSY INNER SIDE WPL 4009W07480 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
BAFFLE, BAKE WPL 3601W18419 Contact Us For Availability
1
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
1
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
1
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
2
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
PANEL, LOWER FRONT WPL 2614F00880 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
2
FRONT, BURN BOX BOTT WPL 4012F02080 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
3
BACK, MAIN WPL 4002F16580 Contact Us For Availability
3
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
COVER BKGD WIRE WPL 4005F39380 Contact Us For Availability
3
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
3
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
4
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
4
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
4
GLASS, INNER WPL 7902P09760 Contact Us For Availability
4
TAPE WPL 8270P09160 Contact Us For Availability
4
GLASS BACKGUARD WPL 7910P12960 Contact Us For Availability
4
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
5
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
5
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
5
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
5
COVER IGNITOR WIRE WPL 4005F36345 Contact Us For Availability
5
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01221 Contact Us For Availability
5
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
5
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
5
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
6
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
6
NUT, WING WPL 7103P03060 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
6
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
6
PANEL, CONTROL (ALMOND) WPL 2601W32884 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
7
PIN, HINGE WPL 7113P00260 Contact Us For Availability
7
SCREW WPL 7101P05860 Contact Us For Availability
7
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
7
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
7
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
7
PANEL BKGD LOWER WPL 2620W05309 Contact Us For Availability
7
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
8
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
8
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
8
BRACKET WPL 3801F02451 Contact Us For Availability
8
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
8
SCREW WPL 7101P00860 Contact Us For Availability
8
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
9
BAFFLE SIDE PANEL WPL 3601F21451 Contact Us For Availability
9
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
9
RACK, OVEN WPL 7801P03160 Contact Us For Availability
9
LINING WPL 2402W17319 Contact Us For Availability
9
NUT, SNAP WPL 7103P11460 Contact Us For Availability
9
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
9
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
9
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
9
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
10
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
10
SCREW WPL 7101P06160 Contact Us For Availability
10
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
10
PAN, BROIL WPL 3401F00419 Contact Us For Availability
10
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
10
PAD, INNER WPL 2410F01651 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
11
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
11
BRACKET, SPARK MODULE WPL 3801F27045 Contact Us For Availability
11
BRACKET, SPARK MODULE WPL 3801F30345 Contact Us For Availability
11
MODULE, SPARK WPL 7431P02160 Contact Us For Availability
11
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
11
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
11
PAD, DOOR WPL 2410W04119 Contact Us For Availability
11
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
11
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
11
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
12
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
12
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
CHANNEL, AIR WPL 3818F04945 Contact Us For Availability
13
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
13
SCREW WPL 7101P29660 Contact Us For Availability
13
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
13
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
13
TRIM GLASS RETAINER WPL 7742P01560 Contact Us For Availability
13
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
13
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
13
SWITCH, OVN LOCK ASY----NA WPL 7403P09960 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
14
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
14
RIVET, TRIM WPL 7107P01560 Contact Us For Availability
14
SCREW WPL 7101P07460 Contact Us For Availability
14
SUPPORT, LOCK SWITCH WPL 3807F43445 Contact Us For Availability
15
BOX, FLUE ASSY WPL 4006W02619 Contact Us For Availability
15
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
15
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
15
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
15
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
15
SCREW WPL 7101P03160 Contact Us For Availability
16
GASKET WPL 7201P01360 Contact Us For Availability
16
FITTING, BROIL BURNER WPL 7507P06760 Contact Us For Availability
16
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
16
SCREW WPL 7101P30560 Contact Us For Availability
16
PAD, FOAM GASKET WPL 7201P05260 Contact Us For Availability
16
TRIM, BEZEL WPL 7740P01660 Contact Us For Availability
16
LEVER, DOOR LOCK WPL 8009P01960 Contact Us For Availability
17
BLOCK WPL 7401P01860 Contact Us For Availability
17
CORD, POWER WPL 7402P02460 Contact Us For Availability
17
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
17
SCREW WPL 7101P01860 Contact Us For Availability
18
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
18
BURNER, SEALED WPL 3412D01509 Contact Us For Availability
18
BURNER, SEALED (BLACK) WPL 3412D01609 Contact Us For Availability
18
WIRE, IGNITER WPL 5111A36060 Contact Us For Availability
18
WIRE IGNITER WPL 5111A36160 Contact Us For Availability
18
SCREW WPL 7118P01060 Contact Us For Availability
18
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
18
IGNITER TOP BURNER WPL 7432P07260 Contact Us For Availability
18
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
18
BUTTON, CONTROL SET WPL 7711P46160 Contact Us For Availability
18
BOLT WPL 7116P00360 Contact Us For Availability
19
SCREW WPL 7101P11260 Contact Us For Availability
19
SUPPORT, ORIFICE FITTING WPL 3807F37845 Contact Us For Availability
19
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
19
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
19
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
19
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
20
COVER MODULE WPL 4005F39680 Contact Us For Availability
20
PALNUT WPL 7103P11960 Contact Us For Availability
20
SCREW WPL 7118P00460 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
20
WINDOW PAK WPL 7902S30360 Contact Us For Availability
20
CONNECTOR, PIN WPL 7417P00260 Contact Us For Availability
20
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
20
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
21
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
21
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
21
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
21
HARNESS, LOOSE WIRE WPL 5125A29860 Contact Us For Availability
21
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
21
HARNESS UPPER WPL 5180D12960 Contact Us For Availability
22
SCREW WPL 7101P07960 Contact Us For Availability
22
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
22
FITTING, ORIFICE (FRT 12,000) WPL 7507P07160 Contact Us For Availability
22
FITTING, ORIFICE (FRT 9,000) WPL 7507P07360 Contact Us For Availability
22
BULB, OVEN WPL 7407P02660 Contact Us For Availability
22
RETAINER WPL 3804F02245 Contact Us For Availability
23
FITTING, ORIFICE (REAR 9,000) WPL 7507P06960 Contact Us For Availability
23
FITTING, ORIFICE (REAR 12,000) WPL 7507P09260 Contact Us For Availability
23
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
23
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
24
BRACKET WPL 3801F02145 Contact Us For Availability
24
HARNESS SUPPLY WPL 5120A00860 Contact Us For Availability
24
HARNESS COMPLETE WPL 5125A13460 Contact Us For Availability
24
HARNESS, LOWER WPL 5185D25460 Contact Us For Availability
24
HARNESS SERVICE PLUG WPL 5195D06860 Contact Us For Availability
24
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
25
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
25
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
26
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
27
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
27
SCREW WPL 7101P27360 Contact Us For Availability
28
BACK, BROILER WPL 4002F15945 Contact Us For Availability
29
SUPPORT, VALVE WPL 3807F32945 Contact Us For Availability
30
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
31
SUPPORT, OVEN BOTTOM WPL 3807F38845 Contact Us For Availability
32
SHIELD, SERVICE DRAWER WPL 3604F16245 Contact Us For Availability
× ![]()
Login and Registration Form
