Model Whirlpool 34JA-3TKXW GAS RANGE – Common Parts & Diagrams

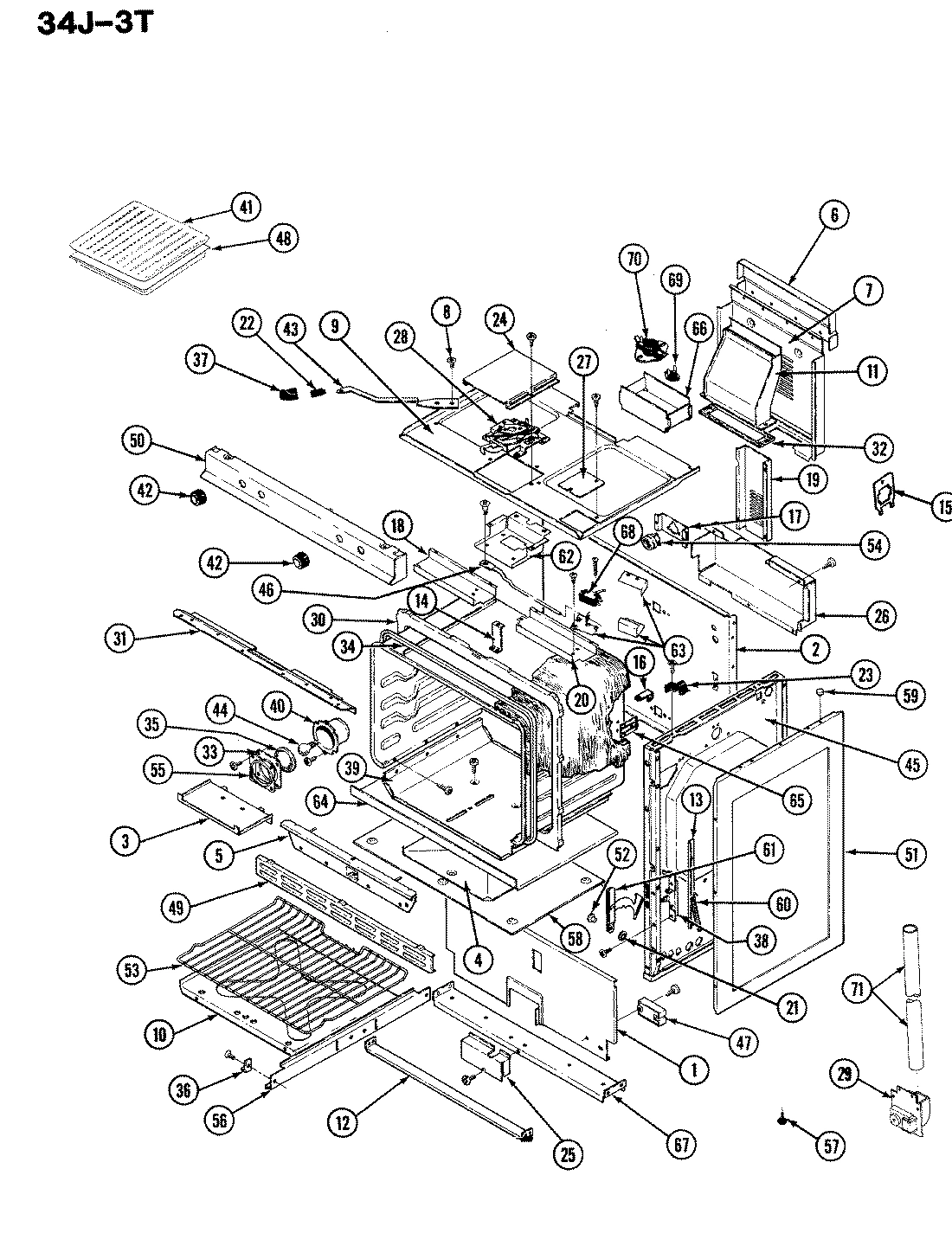

01 - BODY

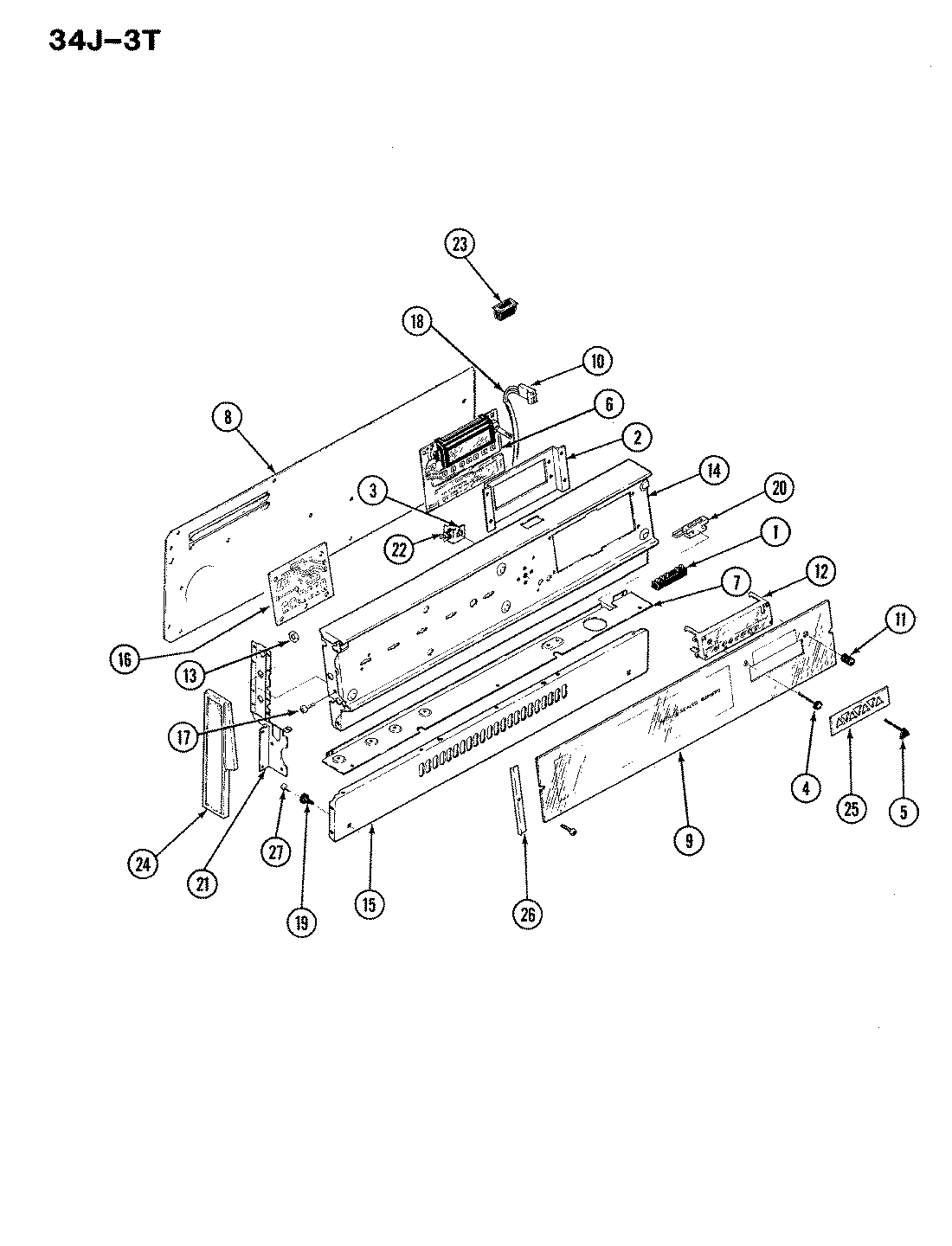

02 - CONTROL PANEL

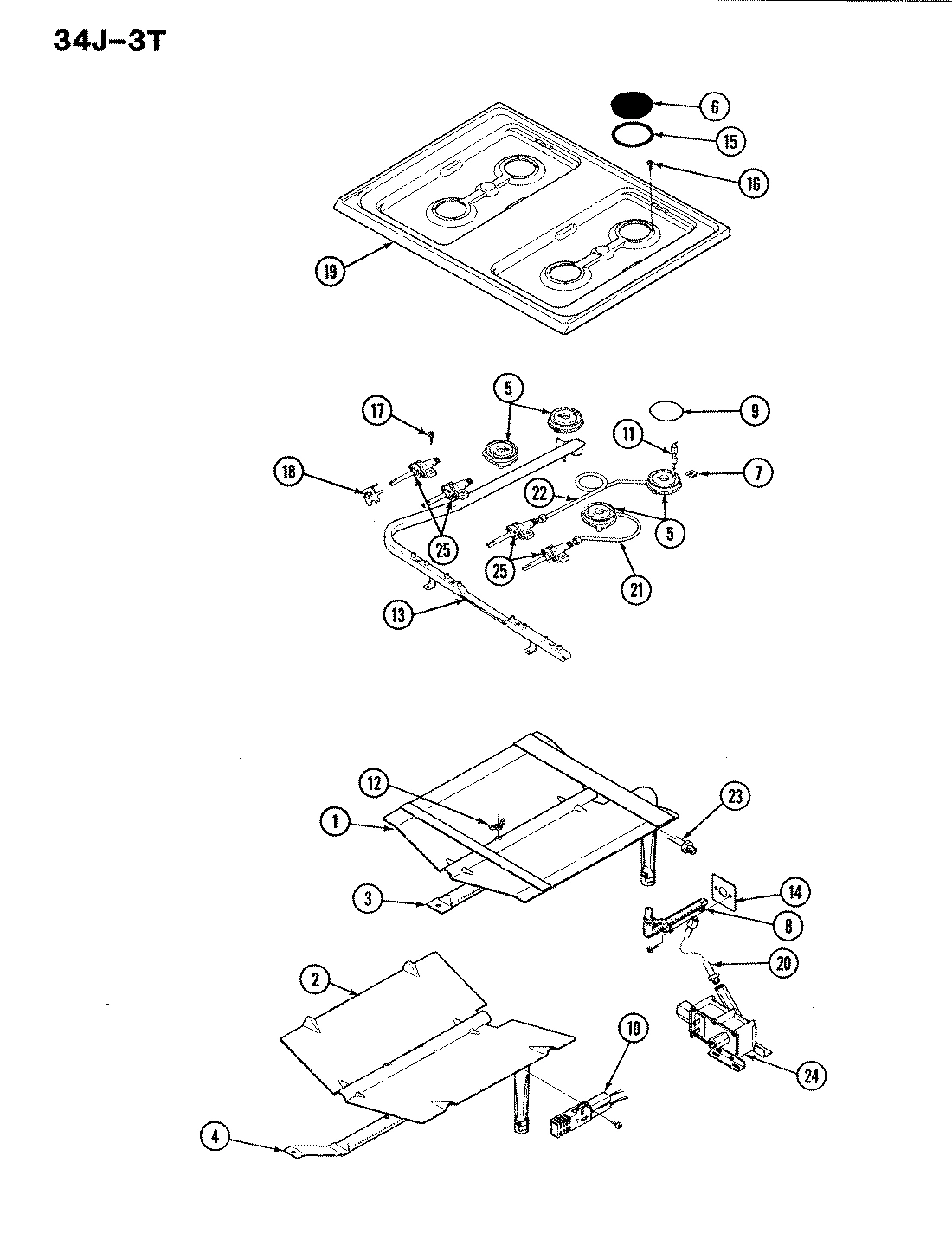

04 - TOP ASSY./CONTROL SYSTEM

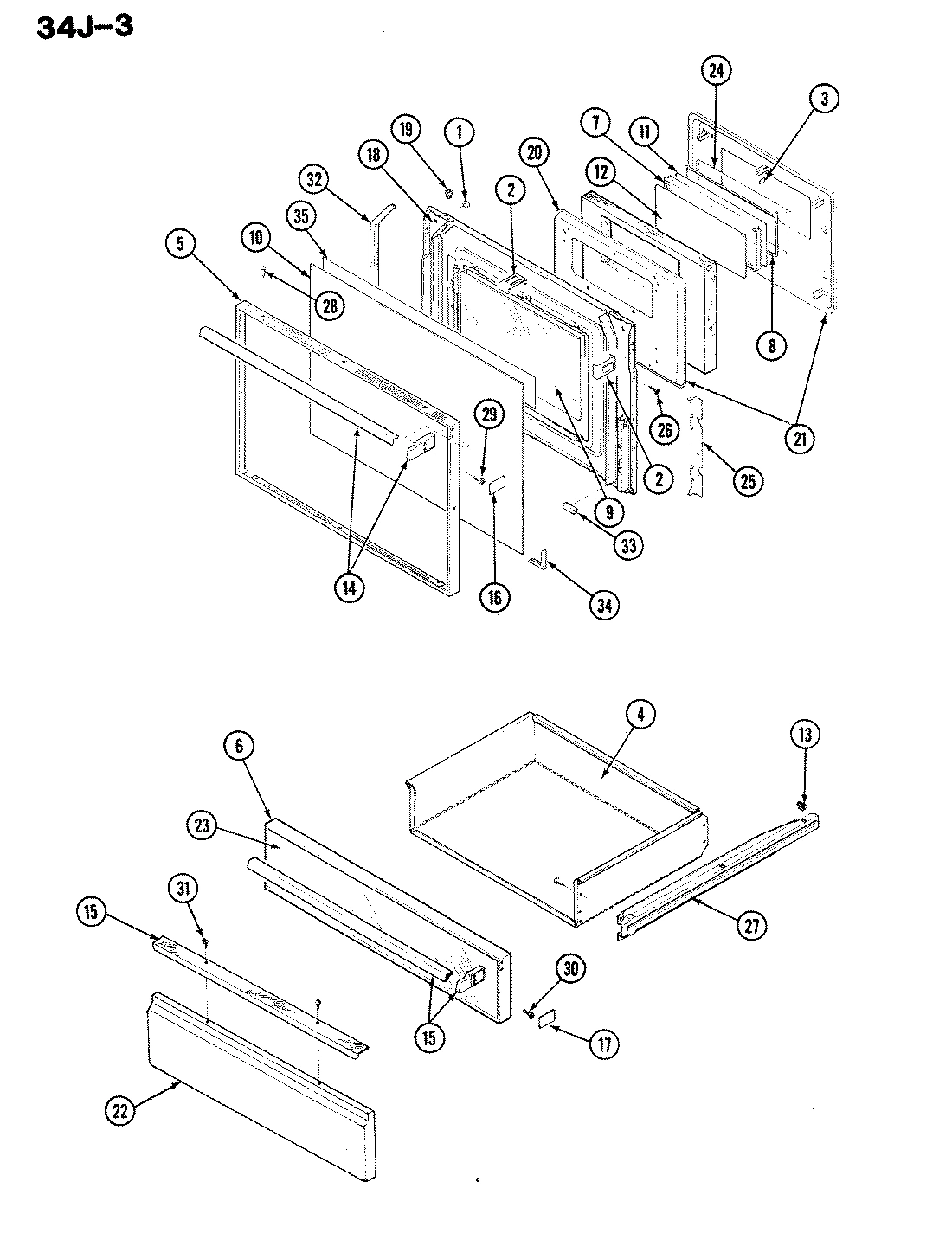

03 - DOOR
Common parts from model Whirlpool 34JA-3TKXW GAS RANGE
1
BACK,BROILER SECTION WPL 4002F11945 Contact Us For Availability
1
BACK, BROIL SECTION WPL 4002F14545 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
SCREW WPL 7101P27360 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
2
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
2
BAFFLE WPL 3601W18415 Contact Us For Availability
2
BAFFLE, BAKE WPL 3601W18419 Contact Us For Availability
2
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
2
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
4
BAFFLE WPL 3601F11645 Contact Us For Availability
4
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
4
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
4
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
5
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
5
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
5
BUTTON, SET WPL 7711P33560 Contact Us For Availability
5
BUTTON, CONTROL SET WPL 7711P44960 Contact Us For Availability
5
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
5
BURNER, TOP WPL 7505P18760 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
6
NOT REQUIRED PART OR SEE NOTE FRAME, DRWR (IN WPL W10124350 Contact Us For Availability
6
PAD, FOAM GASKET WPL 7201P05260 Contact Us For Availability
6
CLOCK WPL 7601P10160 Contact Us For Availability
6
CLOCK WPL 7601P15560 Contact Us For Availability
6
CLOCK WPL 7601P16360 Contact Us For Availability
6
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
6
CAP, BURNER WPL 7504P00560 Contact Us For Availability
7
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
7
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
7
BLOCK WPL 7401P01860 Contact Us For Availability
7
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
7
CLIP WPL 7112P07260 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
8
BOLT WPL 7116P00360 Contact Us For Availability
8
COVER, BACKGUARD WPL 4005F19480 Contact Us For Availability
8
COVER, BKGD WIRE WPL 4005F36980 Contact Us For Availability
8
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
9
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
9
GLASS, BACKGUARD WPL 7910P04260 Contact Us For Availability
9
GLASS BACKGUARD WPL 7910P12960 Contact Us For Availability
9
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
9
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
9
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
9
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
9
GRATE WPL 7518P00860 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
10
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
10
HARNESS OVEN SENSOR WPL 5170P00760 Contact Us For Availability
10
WIRE HARNESS, CLOCK WPL 5170P06760 Contact Us For Availability
10
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
11
BOX, FLUE WPL 4006W02615 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
11
NUT, BURNER CAP WPL 7103P00360 Contact Us For Availability
11
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P34060 Contact Us For Availability
12
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
12
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
12
NUT, WING WPL 7103P03060 Contact Us For Availability
12
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
12
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
13
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
13
NUT, SPEED WPL 7103P04460 Contact Us For Availability
13
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
13
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
13
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
14
BRACKET WPL 3801F09351 Contact Us For Availability
14
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
14
PANEL, CONTROL (ALMOND) WPL 2601W32884 Contact Us For Availability
14
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
14
REGULATOR WPL 7510P04060 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
15
BRACKET WPL 3801F02145 Contact Us For Availability
15
SCREW WPL 7101P05860 Contact Us For Availability
15
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
15
PROBE, OVEN SENSOR WPL 7430P00460 Contact Us For Availability
15
OVEN SENSOR WPL 7430P00760 Contact Us For Availability
15
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
15
RING, BLACK WPL 2014F00100 Contact Us For Availability
15
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
16
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
16
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
16
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
16
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
16
SCREW WPL 7101P25660 Contact Us For Availability
17
BRACKET WPL 3801F02451 Contact Us For Availability
17
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
17
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
17
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
17
SLEEVE WPL 7214P00360 Contact Us For Availability
17
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
17
MIXER, AIR WPL 3411F00635 Contact Us For Availability
17
SHIELD, WIRE WPL 3604F04680 Contact Us For Availability
17
SUPPORT, VALVE WPL 3807F32945 Contact Us For Availability
17
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
18
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
18
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
18
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
18
SWITCH WPL 7403P25860 Contact Us For Availability
18
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
18
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
18
LINING WPL 2402W12815 Contact Us For Availability
18
LINING WPL 2402W17315 Contact Us For Availability
18
LINING WPL 2402W17319 Contact Us For Availability
19
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
19
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
19
TOP, MAIN ALMOND WPL 2001F06394 Contact Us For Availability
19
NUT, SNAP WPL 7103P11460 Contact Us For Availability
20
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
20
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
20
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
20
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
20
PAD, INNER WPL 2410F01651 Contact Us For Availability
21
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
21
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
21
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
21
SCREW WPL 7101P07460 Contact Us For Availability
21
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
21
PAD, OVEN DOOR WPL 2410A03715 Contact Us For Availability
22
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
22
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
22
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
22
SCREW WPL 7101P00860 Contact Us For Availability
22
SWITCH WPL 7403P18860 Contact Us For Availability
22
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
22
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
23
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
23
CLIP, WIRE WPL 7112P04560 Contact Us For Availability
23
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
23
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
23
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
23
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
23
DRAWER, SERVICE WPL 5425A02170 Contact Us For Availability
24
SCREW WPL 7101P06160 Contact Us For Availability
24
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
24
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
24
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
24
TRIM, BKGD END WPL 7726P03260 Contact Us For Availability
24
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
24
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
24
RETAINER WPL 3804F02245 Contact Us For Availability
25
COVER, MODULE WPL 4005F17480 Contact Us For Availability
25
COVER MODULE WPL 4005F39680 Contact Us For Availability
25
WPL 7740P01060 WPL 7740P01060 Contact Us For Availability
25
WPL 7740P01660 WPL 7740P01660 Contact Us For Availability
25
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
25
SCREW WPL 7101P29660 Contact Us For Availability
25
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
25
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
25
VALVE WPL 7502P22960 Contact Us For Availability
25
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
26
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
26
WPL 7715P01660 WPL 7715P01660 Contact Us For Availability
26
WPL 7720P08860 WPL 7720P08860 Contact Us For Availability
26
WPL 7742P00960 WPL 7742P00960 Contact Us For Availability
26
WIRE, IGNIT WPL 5110P82460 Contact Us For Availability
26
WPL 5110P82560 WPL 5110P82560 Contact Us For Availability
26
RIVET WPL 7107P01760 Contact Us For Availability
27
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
27
WPL 7101P04160 WPL 7101P04160 Contact Us For Availability
27
WPL 5415A01560 WPL 5415A01560 Contact Us For Availability
27
WPL 5415A01660 WPL 5415A01660 Contact Us For Availability
27
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
27
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
28
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
28
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
29
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
30
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
30
SCREW WPL 7101P12360 Contact Us For Availability
31
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
32
GASKET WPL 7201P01360 Contact Us For Availability
32
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
32
SEAL WPL 7208P00260 Contact Us For Availability
33
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
33
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
34
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
34
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
35
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
35
TAPE 29.5`` WPL 4870F00560 Contact Us For Availability
36
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
36
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
37
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
38
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
38
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
39
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
39
HOUSING WPL 4001F06045 Contact Us For Availability
40
WPL 7101P06460 WPL 7101P06460 Contact Us For Availability
40
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
41
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
41
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
42
WPL 7733P03860 WPL 7733P03860 Contact Us For Availability
42
WPL 7733P05360 WPL 7733P05360 Contact Us For Availability
42
WPL 7733P05960 WPL 7733P05960 Contact Us For Availability
42
WPL 7733P06560 WPL 7733P06560 Contact Us For Availability
43
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
43
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
43
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
44
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
45
WPL 4009W05880 WPL 4009W05880 Contact Us For Availability
45
WPL 4009W07480 WPL 4009W07480 Contact Us For Availability
46
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
46
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
47
WPL 7431P01660 WPL 7431P01660 Contact Us For Availability
47
WPL 7431P01760 WPL 7431P01760 Contact Us For Availability
48
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
48
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
49
WPL 2614F00880 WPL 2614F00880 Contact Us For Availability
50
WPL 7712A05260 WPL 7712A05260 Contact Us For Availability
51
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
51
WPL 2618F07374 WPL 2618F07374 Contact Us For Availability
52
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
53
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
54
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
55
WPL 3 WPL 3 Contact Us For Availability
× ![]()
Login and Registration Form
