Model Whirlpool 34JA-2CKXW-FS GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

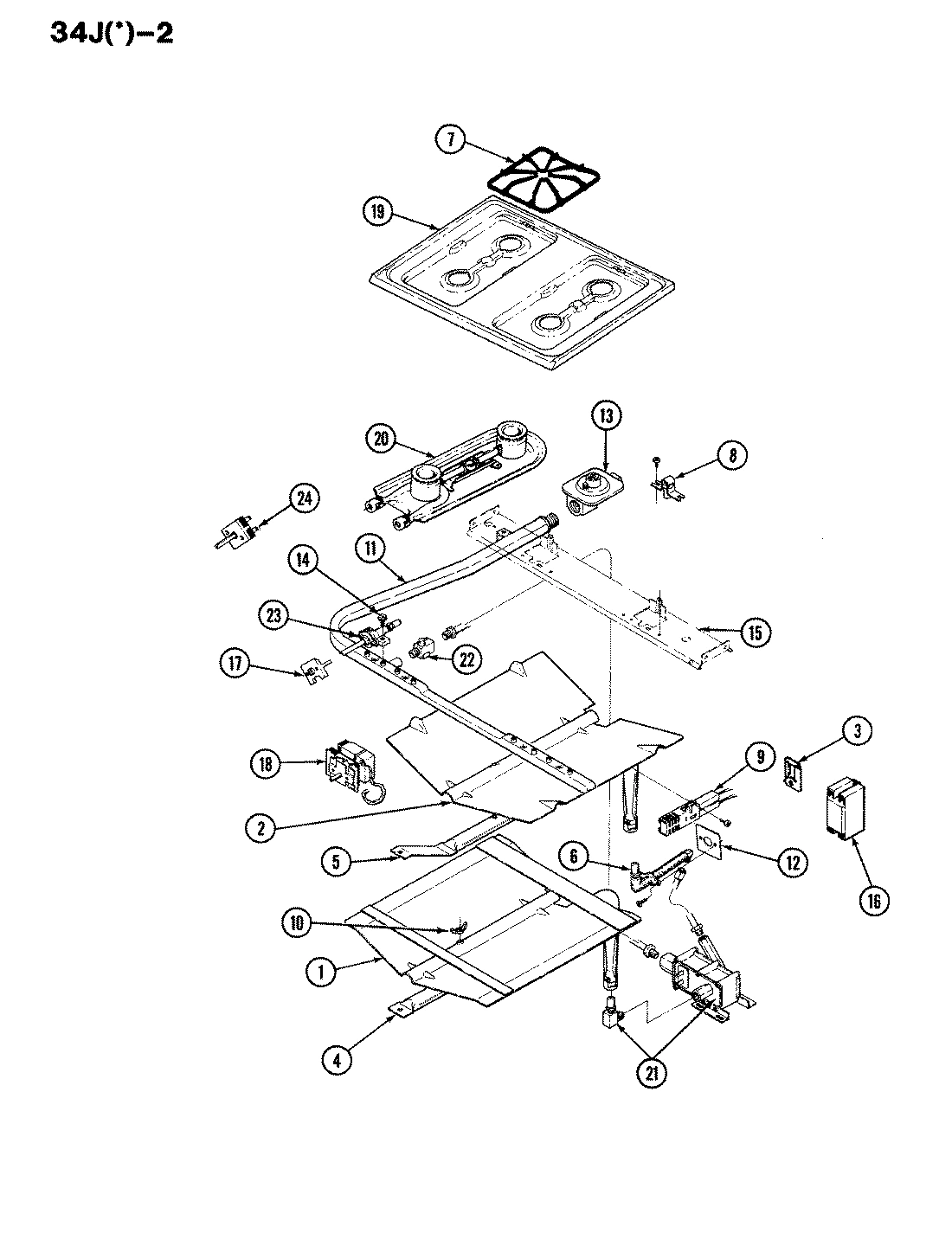

04 - TOP ASSY./GAS CONTROLS

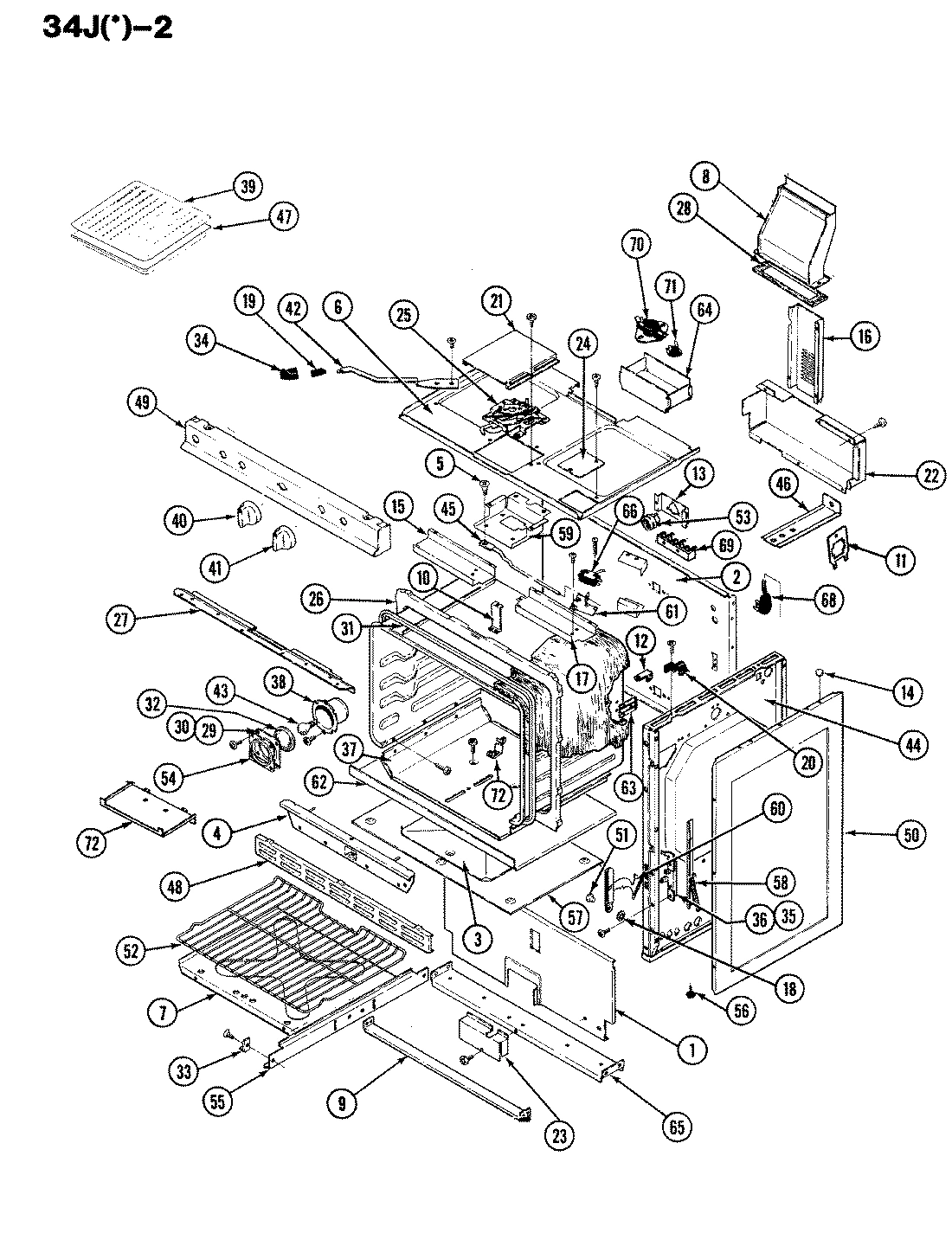

01 - BODY

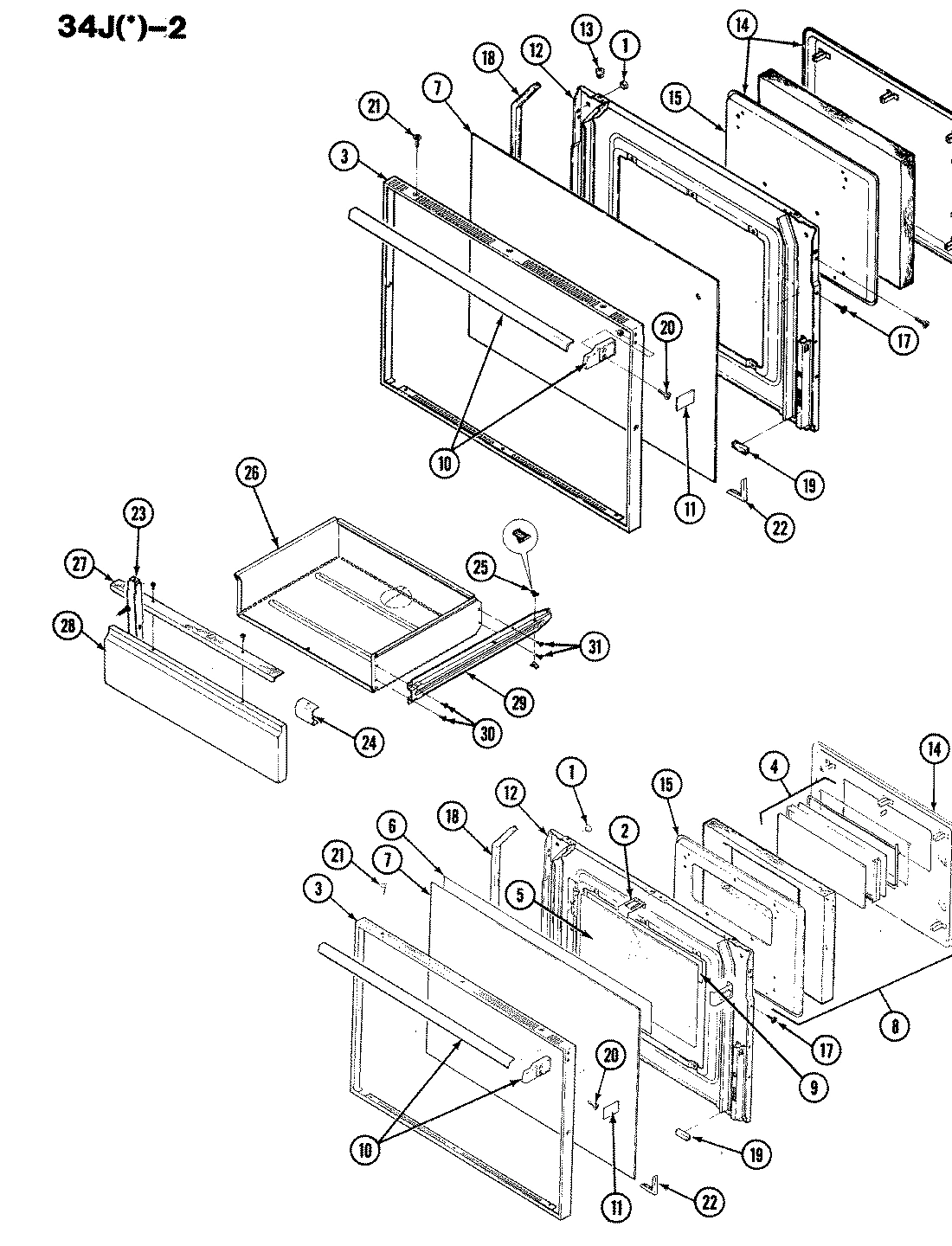

03 - DOOR
Common parts from model Whirlpool 34JA-2CKXW-FS GAS RANGE
1
SCREW WPL 7101P07960 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
BAFFLE, BAKE WPL 3601W18419 Contact Us For Availability
1
BACK BROILER SECTION WPL 4002F14645 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
2
CONNECTOR, IN-LINE WPL 7417P00660 Contact Us For Availability
2
CLOCK WPL 7601P13160 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
COVER, BOTTOM BKGD WIRE WPL 4005F07380 Contact Us For Availability
3
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
3
BAFFLE WPL 3601F11645 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
4
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
4
CLIP WPL 7112P02960 Contact Us For Availability
4
SCREW WPL 7101P05860 Contact Us For Availability
4
BURNER OVEN WPL 3403A01545 Contact Us For Availability
4
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
4
BURNER WPL 7505P10160 Contact Us For Availability
4
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
4
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
4
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
4
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
5
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
5
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
5
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
5
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
GLASS, INNER WPL 7902P09760 Contact Us For Availability
6
GLASS, BKGD WPL 7910P10260 Contact Us For Availability
6
GLASS, BACKGUARD WPL 7910P13560 Contact Us For Availability
6
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
6
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
6
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
7
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
7
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
7
GRATE, BLACK WPL 7518P01460 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
7
RETAINER WPL 3804F01050 Contact Us For Availability
7
RIVET, OV BOT RET WPL 7107P00660 Contact Us For Availability
7
BUSHING, SNAP WPL 8008P00260 Contact Us For Availability
7
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
8
LIGHT, INDICATOR WPL 7407P01360 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
8
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
8
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
8
BOX, FLUE ASSY WPL 4006W02623 Contact Us For Availability
8
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
8
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
9
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE TAPE, FOIL (NOT WPL W10124350 Contact Us For Availability
9
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
10
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
10
NUT, WING WPL 7103P03060 Contact Us For Availability
10
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
10
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
11
PANEL BKGD LOWER WPL 2620W05309 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
11
PIPE MANIFOLD WPL 7513P10360 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
11
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
12
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
12
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
12
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
12
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
12
LINING WPL 2402W12815 Contact Us For Availability
12
LINING WPL 2402W17315 Contact Us For Availability
12
LINING WPL 2402W17319 Contact Us For Availability
12
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
13
SCREW WPL 7101P00860 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
13
BRACKET WPL 3801F02451 Contact Us For Availability
13
NUT, SNAP WPL 7103P11460 Contact Us For Availability
14
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
14
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
14
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
14
SCREW WPL 7101P29660 Contact Us For Availability
14
SLEEVE WPL 7214P00360 Contact Us For Availability
14
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
14
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
14
PAD, DOOR WPL 2410W04115 Contact Us For Availability
14
PAD, DOOR WPL 2410W04119 Contact Us For Availability
15
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
15
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
15
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
15
PAD, INNER WPL 2410F01651 Contact Us For Availability
16
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
16
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
16
SCREW WPL 7101P07460 Contact Us For Availability
16
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
16
COVER, MODULE WPL 4005F17680 Contact Us For Availability
16
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
16
RETAINER WPL 3804F02245 Contact Us For Availability
17
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
17
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
17
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
17
SWITCH WPL 7403P25860 Contact Us For Availability
17
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
17
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
17
RIVET WPL 7107P01760 Contact Us For Availability
18
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
18
TRIM, BKGD TOP WPL 7715P03060 Contact Us For Availability
18
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
18
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
18
TUBING, 3/8 X 51-1/2 WPL 3414F04844 Contact Us For Availability
18
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
18
THERMOSTAT WPL 7404P06460 Contact Us For Availability
18
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
18
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
19
TOP, MAIN WPL 2001F03584 Contact Us For Availability
19
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
BURNER, TOP WPL 3412A00419 Contact Us For Availability
20
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
20
CAP, BURNER WPL 7504P00160 Contact Us For Availability
20
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
20
SCREW WPL 7101P12360 Contact Us For Availability
21
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
21
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
21
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
21
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
22
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
22
COVER, MODULE WPL 4005F17480 Contact Us For Availability
22
COVER MODULE WPL 4005F39680 Contact Us For Availability
22
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
23
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
23
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
23
VALVE WPL 7502P22460 Contact Us For Availability
23
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
24
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
24
SWITCH, SELECTOR WPL 7403P09260 Contact Us For Availability
24
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
24
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
25
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
26
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
27
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
27
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
28
GASKET WPL 7201P01360 Contact Us For Availability
28
DRAWER, SERVICE WPL 5425A02170 Contact Us For Availability
29
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
29
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
29
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
30
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
30
SCREW, SERVICE DRAWER WPL 7101P27260 Contact Us For Availability
31
SCREW WPL 7101P06160 Contact Us For Availability
31
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
32
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
33
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
33
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
34
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
35
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
36
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
36
SCREW WPL 7101P11260 Contact Us For Availability
36
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
37
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
37
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
38
WPL 7101P28760 WPL 7101P28760 Contact Us For Availability
38
HOUS WPL 4001F02019 Contact Us For Availability
38
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
39
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
39
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
40
WPL 7711P38160 WPL 7711P38160 Contact Us For Availability
40
WPL 7731P02060 WPL 7731P02060 Contact Us For Availability
41
WPL 7733P03860 WPL 7733P03860 Contact Us For Availability
41
WPL 7733P05360 WPL 7733P05360 Contact Us For Availability
41
WPL 7733P05960 WPL 7733P05960 Contact Us For Availability
42
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
42
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
42
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
43
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
44
WPL 3601F10651 WPL 3601F10651 Contact Us For Availability
44
WPL 4009W03880 WPL 4009W03880 Contact Us For Availability
45
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
45
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
46
WPL 3801F19851 WPL 3801F19851 Contact Us For Availability
47
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
47
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
48
WPL 2614F00880 WPL 2614F00880 Contact Us For Availability
49
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
49
WPL 7712P08960 WPL 7712P08960 Contact Us For Availability
50
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
50
WPL 2618F07374 WPL 2618F07374 Contact Us For Availability
51
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
52
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
53
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
54
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
55
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
55
WPL 3 WPL 3 Contact Us For Availability
× ![]()
Login and Registration Form
